USER MANUAL AVU51D82 AVINTAGE

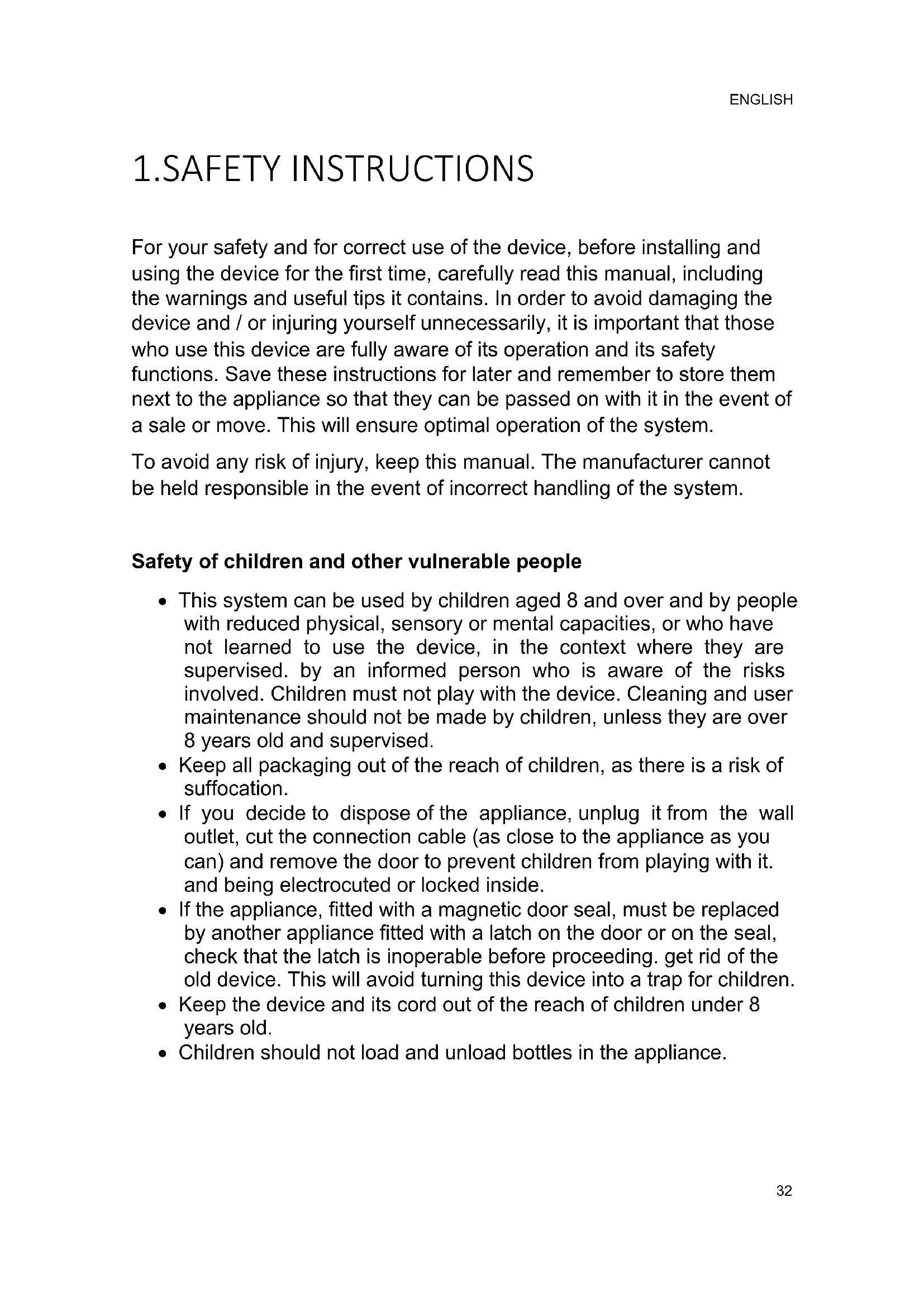

1.SAFETY INSTRUCTIONS For your safety and for correct use of the device, before installing and using the device for the first time, carefully read this manual, including the warnings and useful tips it contains. In order to avoid damaging the device and / or injuring yourself unnecessarily, it is important that those who use this device are fully aware of its operation and its safety functions. Save these instructions for later and remember to store them next to the appliance so that they can be passed on with it in the event of a sale or move. This will ensure optimal operation of the system. To avoid any risk of injury, keep this manual. The manufacturer cannot be held responsible in the event of incorrect handling of the system. Safety of children and other vulnerable people

• This system can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities, or who have not learned to use the device, in the context where they are supervised. by an informed person who is aware of the risks involved. Children must not play with the device. Cleaning and user maintenance should not be made by children, unless they are over 8 years old and supervised.

• Keep all packaging out of the reach of children, as there is a risk of suffocation.

• If you decide to dispose of the appliance, unplug it from the wall outlet, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children from playing with it. and being electrocuted or locked inside.

• If the appliance, fitted with a magnetic door seal, must be replaced by another appliance fitted with a latch on the door or on the seal, check that the latch is inoperable before proceeding. get rid of the old device. This will avoid turning this device into a trap for children.

• Keep the device and its cord out of the reach of children under 8 years old.

• Children should not load and unload bottles in the appliance.ENGLISH

General security CAUTION - This appliance is designed to operate in a domestic household and in the following environments:

• kitchen rooms and equipment sold in commerce, work environments and offices;

• Bed and Breakfast type structures;

• farm buildings and hotels, motels and other organizations welcoming clients;

• industrial kitchen and other applications not intended for resale. CAUTION - Never store flammable substances such as aerosols inside this appliance, as they may spill into it. CAUTION - If the power cord is damaged, you must replace it immediately with your manufacturer, or a qualified dealer, to avoid any risk of electric shock. CAUTION - Keep the vents fully open, and check that air can circulate through the openings. CAUTION - Do not damage the refrigeration circuit. CAUTION - Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer. CAUTION - The refrigerant and insulating system contain flammable gases. When you dispose of the system, do so at an authorized collection point. Never expose the device to flame. Refrigerating fluid The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable. Caution: risk of fire If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.

• Thoroughly ventilate the room in which the appliance is situated. ItENGLISH

is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.

• The power cord must not be lengthened. Do not use an extension cable, or adapter, or multi-way socket.

• Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.

• Make sure that you can access the main plug of the appliance.

• Do not pull the main cable.

• Ensure that the appliance is always electrically earthed.

• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

• You must not operate the appliance without the interior lighting lamp cover.

• Disconnect the appliance before replacing the lighting bulb.

• The cellar is only applied with power supply of single phase alternating current of 220~240V/50Hz.

• Do not attempt to replace a damaged power cable, contact your after-sales service.

• The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician.

• The device must not use an extension, adapter or multiple socket. The device must be connected to an electrical outlet with a ground connection in accordance with the electrical standards in force. Daily use

• This appliance is intended to be used exclusively for the storage of wine.

• Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.

• Do not operate any electrical appliances in the appliance (electric ice cream makers, mixers etc.).

• When unplugging always pull the plug from the mains socket and do not pull on the cable.

• Do not place hot items near the plastic components of this appliance.ENGLISH

• The appliance manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.

• Keep burning candles lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.

• The appliance is intended for keeping beverages in normal household as explained in this instruction booklet.

• The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.

• Never use the shelves, drawers, doors etc. to stand on or as supports.

• To avoid items falling and causing injury or damage to the appliance, do not overload the shelves or put food into the appliance. Caution: cleaning and servicing

• Before carrying out servicing, switch off the power supply and disconnect the appliance.

• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.

• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

• Do not use sharp or pointed objects to remove ice. Use a plastic scraper. Important information about the installation!

• • Warning! To prevent the wine cellar from tipping over, it is important to load the places located at the back of the cellar as a priority. The shelves must not be pulled out or left out at the same time. The weight of the bottles can cause the cellar to tip forwards, it is essential to distribute the weight of the bottles throughout the cellar and to handle it with care. For the electrical connections to be correct, follow the instructions in this manual.

• Unpack the device and check that it is not visually damaged. Do not plug in the device if it is damaged. Report any damage to the point of sale where you purchased it. In this case, keep the packaging.ENGLISH

• It is recommended to wait at least 24 hours before connecting the appliance to the power supply, so that the compressor is supplied with oil.

• Good air circulation is necessary to avoid the risk of overheating. For sufficient ventilation, carefully follow the installation instructions provided.

• Check that the outlets are accessible once the appliance is installed.

• Be careful not to trap or damage the power cord when setting up the appliance. Trouble shooting and spareparts Any electrical work should be carried out by a qualified and skilled technician. The appliance should be repaired by an accredited repair centre, using only manufacturer’s original spare parts. Aesthetic and functional spare parts in accordance with REGULATION (EU) 2019/2019 (Annex II, point 3.), are made available to professional repairers and end users for a period of 7 years or 10 years (List in Annex II, point 3.a.1 and 3.a.2) from the time the last unit of the model is placed on the market. The list of spare parts and the procedure for ordering them (professional access / special access) are available on the following website: www.interfroidservices.fr or by post at the following address: FRIO - Interfroid Services, 143 Bd Pierre Lefaucheux - 72230 ARNAGE For other functional spare parts not specified in EU regulation 2019/2019, they are available for a period of 10 years. The manufacturer's warranty is 1 year for functional parts.ENGLISH

• Caution — Do not obstruct the ventilation grills on the appliance. Keep ventilation openings in the appliance enclosure or in the structure for building-in clear of obstruction.

• Caution — Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

• Caution — Do not damage the refrigerating circuit in the appliance.

• Caution — The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the rating plate of the appliance.

• Caution — Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments.ENGLISH

The nameplate attached to the inside or rear of the appliance (depending on the model) includes the entire information specific to your appliance. We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.).

Once the appliance is installed and loaded, access to it is not so easy. CAUTION: no assistance can be provided without this information.

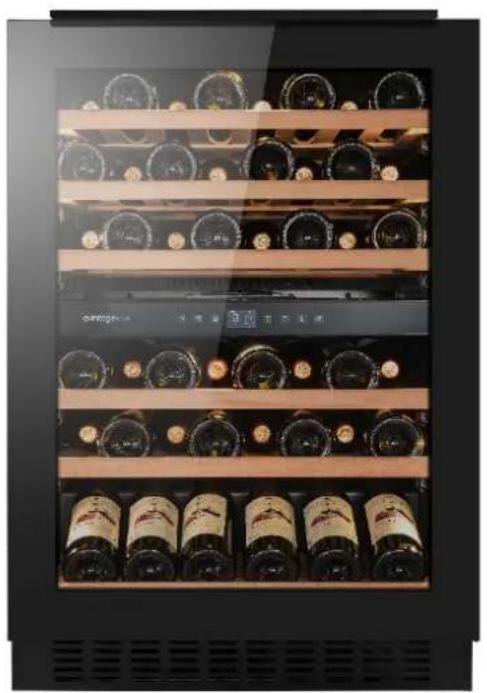

3. DESCRIPTION OF THE APPLIANCE

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance. Announced capacity Please check at the end of the document for Bottle loading The advertised capacity is the maximum capacity calculated with the number of shelves sold with the cellar and 75 cl Bordeaux type bottles according to standard EN62552:2013; in a head-to-tail position. The shelves of the BU88 cellars have been sized to accommodate several bottle formats, such as: Bordelaise, Champenoise, Bourgogne. If you wish to age bottles of different formats, we recommend that you alternate a standard Bordeaux type bottle between your bottles of larger formats, this recommendation will allow you to avoid any storage problems.ENGLISH

It is indeed possible that the juxtaposition of atypical or imposing format bottles will force you to only partially use the spaces on your shelf. Alternating a standard bottle (Bordeaux 75cl) with an atypical or imposing bottle will allow you to use all the available slots on your shelf. Layout recommendations The initial layout of your appliance's equipment (shelves, etc.) is recommended so that the energy is used as rationally as possible by the refrigeration appliance. Any change to this layout may impact the energy consumption of the device.

• Remove the outer and inner packaging.

• Leave your device in an upright position at rest for about 24 hours before putting it into service. This will reduce the possibility of cooling system malfunction due to transportation.

• Clean the inside with a soft cloth and lukewarm water.

• When installing your device, please choose an authorized location.

• Place your cellar on a floor that is strong enough to support it when fully loaded.

• In order to ensure that the door closes properly, the cellar must be leveled, adjust the 4 adjustable feet if necessary. This inclination will also keeps the drawers or shelves in place despite the weight of the bottles. Adequate ventilation is necessary, do not obstruct any air outlet.

• This device is only used for storing wines.

• This appliance uses flammable refrigerant gas, so please never damage the cooling pipe during transportation. Attention

• Store wine in sealed bottles.

• Do not overload the cabinet.

• Do not open the door unless necessary.

• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.

• Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or smell.

• CAUTION: please keep the appliance away from substance, which can cause ignition. Wine cellar installation Refer to the installation diagrams at the end of the document.ENGLISH

Fixation to the furniture

WARNING: Risk of the product tipping over when the door is opened, the appliance must be fixed to

the furniture. In order to ensure the stability of your device, use the supplied bracket according to the diagram below.

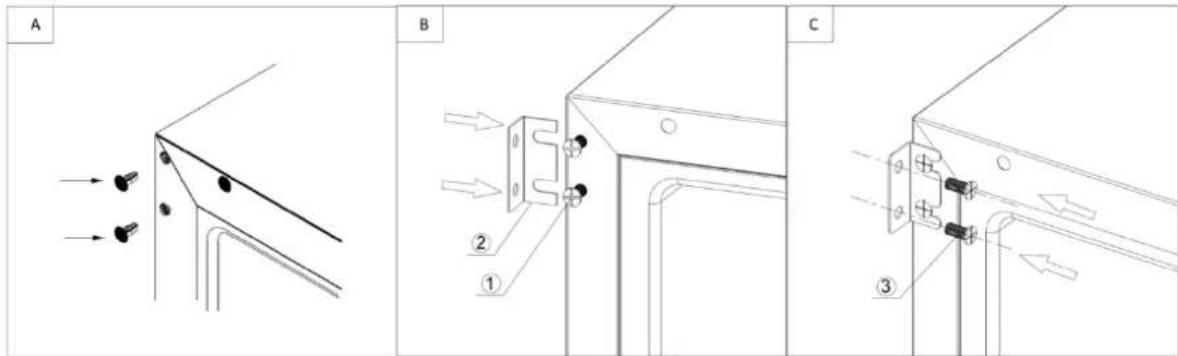

1. Remove the cover caps as shown in picture A.

2. With the help of the screws (1), place the fixing plate (2) as shown in picture

B. Do not tighten the screws (1) to facilitate the adjustment of the fixing plate (2).

3. With the help of the screws (3), fix the fixing plate against the furniture as

4. Fasten the screws (1) more tightly to ensure that the appliance is held

securely. Installing the handle Your appliance has a top handle. To fit it, simply screw it onto the door with the screws supplied as per the diagram below, having first removed the seal.ENGLISH

Reversing the door The door can be changed from left and right side. No special requirement, all the door is opened from left side. If required to open from right side please refer to the following direction.

1. Lower hinge (right) 2. Screws 3. Door axis

4. Door 5. Top hinge (Right) 6. Hinge screws

7. Top hinge (left) 8. Decorative nail 9. Lower hinge

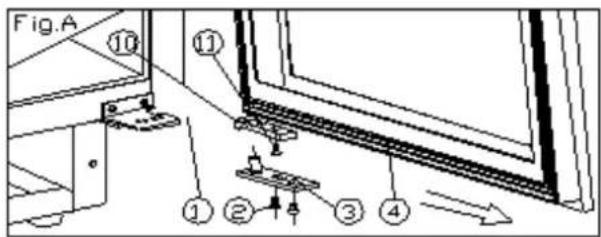

5. Open the door to 90 degrees, remove the two screws (2) from the lower door

axis (3), remove the door (4) and door axis (Fig. A).

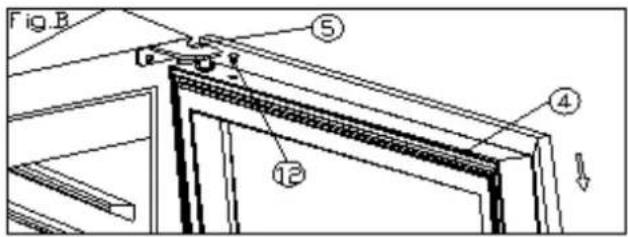

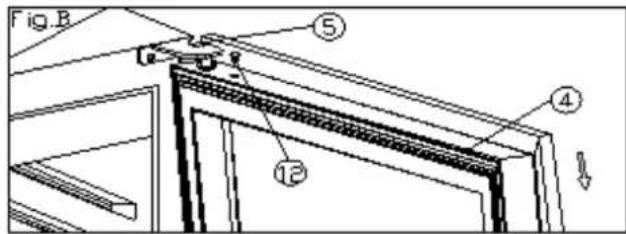

6. Position the door (4) safely and remove the plug (12) from the top of the door

frame. Unscrew one screw (11) at the bottom and remove the door limit device (10). Install the door limit device (10) at the top of the door frame. Please use the spare plug (12) to block the hole at the top of the door frame (Fig. A/B).

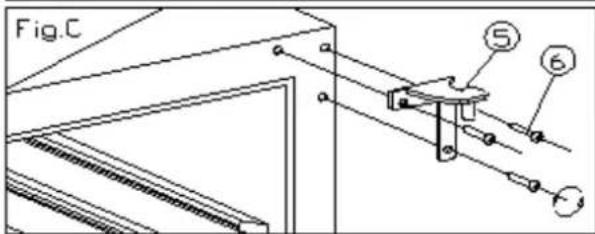

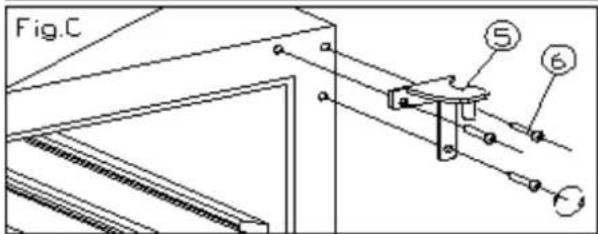

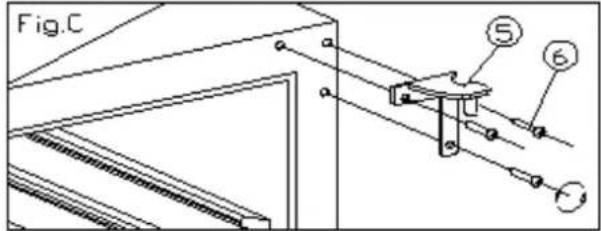

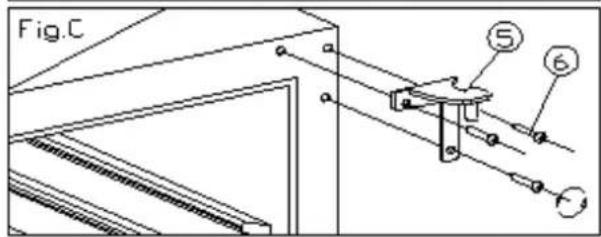

7. Take out three hinge screws (6) from the upper hinge (right) (5) and remove

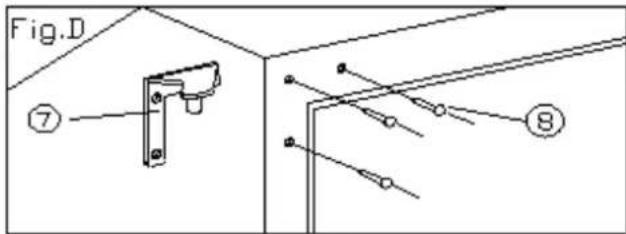

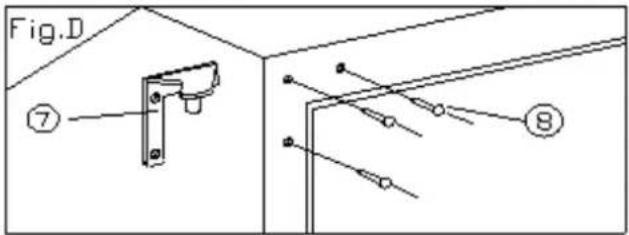

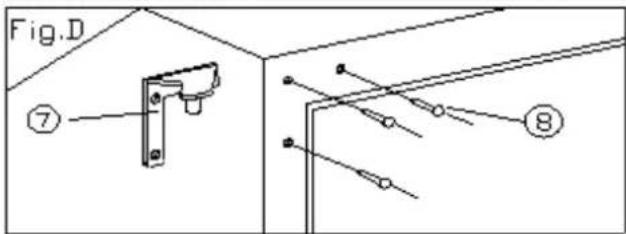

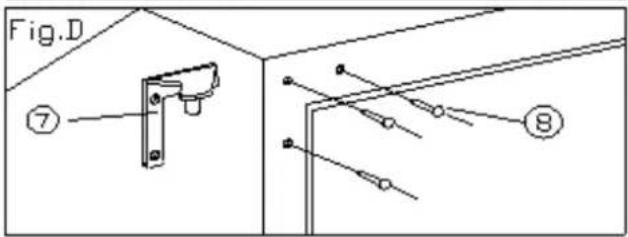

8. Remove the decorative nail (8) from the top left of the cabinet and install the

spare top hinge (left) (7) on the top left of the cabinet with three screws (Fig. D).

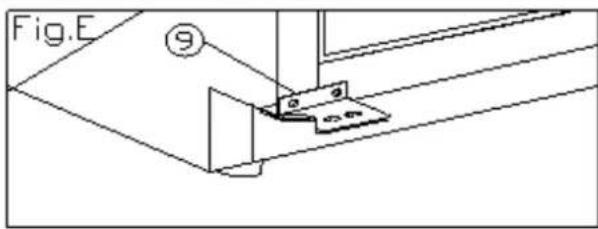

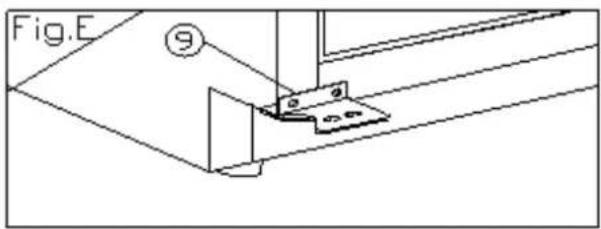

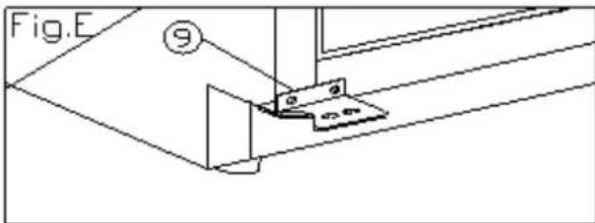

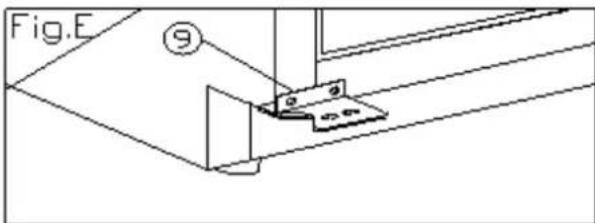

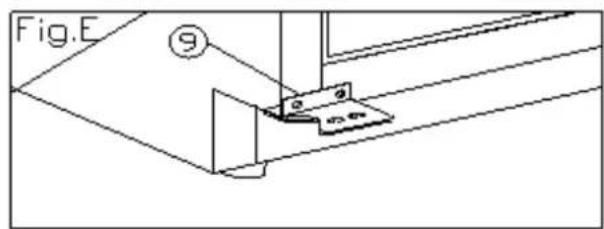

9. Install the spare lower hinge (left) (9) according to the above procedure (Fig.

10. The door opens to 180 degrees. Install the door in the same way as it was

removed and fix it so that the door is aligned.

11. Block the hole at the top right of the cabinet with the spare decorative nail

Power supply Connect the wine cellar to a single, wall-mounted type E socket. The cellar must be plugged into a single, easily accessible socket. All questions relating to power and / or earthing must be handled by qualified personnel (electrician, authorized service). Emplacement

• Warning ! The cellar must be placed in a clean environment (not dusty), frost-free, away from a heat source, type: radiator, oven, sunlight, etc ... it must not be installed outdoors.

• Place the cellar in a location strong enough to support the full load weight.

• To level it adjust the height of the adjustable feet below the cellar.

• This device is suitable for operation in rooms with a very specific ambient temperature, this climatic class is indicated on the rating label.

• When selecting a location for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. This device is suitable for operation in rooms with a very specific ambient temperature, this climatic class is indicated on the nameplate. The ambient temperature affects the interior temperature and humidity of your cellar. For optimal operation, your cellar settings are made for ambient temperatures of 23 ° C to 25 ° C. The temperature of the device is adjustable between 5°C and 20°C; dual-zone cabinets offer two compartments with independent adjustment, a first compartment adjustable between 5°C and 12°C and a second adjustable between 12°C and 20°C. Temperature regulation is carried out by a thermostat. Changing the temperature generates higher energy consumption. The device guarantees that the temperature is maintained as long as it is in operation and used under normal conditions of use. The temperature inside the appliance and its energy consumption can be influenced by many factors: ambient temperature, exposure to the sun, number of door openings and quantity stored... Slight changes in temperature are perfectly normal and correspond to the appliance cold cycles. But these variations in no way affect the storage temperature of the wines, these variations being too short for a heat exchange with the bottles. It is recommended to load the bottles to be stored in several times in order to allow the internal temperature to stabilize. Once your cellar is fully charged, it takes between 24 and 48 hours to obtain the desired temperature. This duration is impacted by the initial temperature of the stored bottles, which must be brought to the desired temperature.ENGLISH

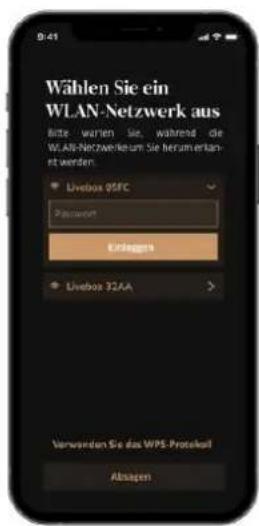

Wifi range Warning ! The BU88 cellars work with a Wifi connection. Warning ! It is the user's responsibility to ensure that the wifi network is sufficient (signal speed / strength) for the proper functioning of the connected cellar.

• The use of a wifi amplifier/repeater may be required in the case of a low speed connection.

• The use of a separate 2.4ghz/5ghz network may be required in the event of pairing problems. In this case, contact your internet provider so that the internet network is disconnected. The cellar operating on the 2.4ghz network. In the event of a power cut, the cellar cannot take any settings into account, and also loses the settings it would have while waiting for synchronization with the server. When restarting after a power outage, the last settings saved in the cloud will be used. Scope of the cellar Bluetooth Attention ! BU88 cabinets work with Bluetooth during the pairing phase of the cabinet to the WiFi network. During its daily use, the cellar communicates only through the WiFi network. The cellar's Bluetooth range is 1m maximum with the door closed.

5. OPERATING INSTRUCTIONS

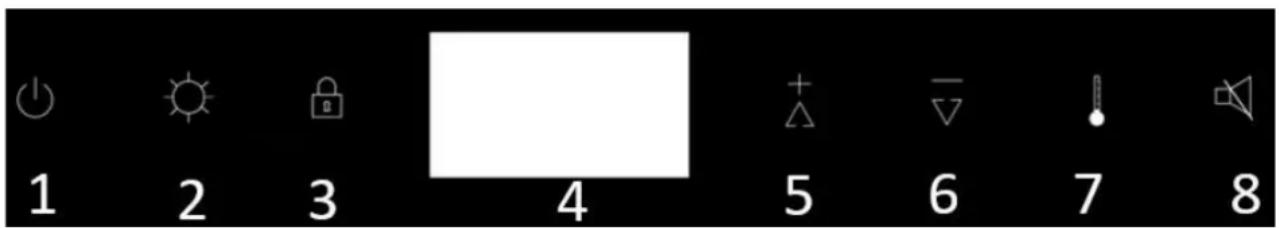

Control panel The BU88 cabinets are equipped with an electronic control panel with LCD screen. The control panel is located inside the cellar The control panel differs between single and dual temperature zone models

1. Press the button for 3 seconds to turn on or off

2. Touch of light. Press 1 time to select the intensity. Press 3 seconds to change the color. See light

3. Press 3 sec to lock the control panel

4. The LCD screenENGLISH

5. Button to increase the set temperature by 1°C

6. Button to decrease the set temperature by 1°C

7. Button to switch the temperature setting from one zone to another.

8. Press the button 1 time to turn off or re-engage the audible alarm

Temperature Adjustment To adjust the temperature of your wine cellar, you need to unlock the control panel and select the desired area with the key 7. The temperature of the selected area will flash. Use the 5 and 6 keys to adjust the temperature

• Upper Zone: 5-12°C (41-54°F)

• Lower Zone: 12-20°C (54-68°F) To optimize operation, it is important to adjust the temperatures respecting a maximum difference of 10°C between the 2 compartments. Avoid repeated opening of the door so as not to disturb the temperature setting of your bottles. Temperature displayed The temperature shown on the LCD display is the set temperature. To display the actual temperature, you need to unlock the control panel and press 2+3 for 3 seconds The actual temperature will flash for 5 seconds, after 5 seconds the set temperature will be visible again. Temperature unit selection (°C / °F) To change the temperature unit of the control panel, you need to lock the control panel and press 5+6 for 3 seconds Lighting modes Your device has 3 different lighting modes that you can also control thanks to your Vinotag app.

• Door Contactor Mode: Default mode, the light turns on when the door is opened. When the door is opened, the door open icon is visible and the light is on. When the door is closed, the open door icon is no longer visible and the light goes out.

• Auto Light: The light turns on automatically when the door is opened, and automatically turns off after a 15-minute delay.

• Permanent light mode: The light only turns on or off on command by pressing the 2 button on the control panel or by using the switch in your Vinotag app.ENGLISH

Lighting Color Your device has 3 different lighting colors that you can also control through your Vinotag app. To change the color of the lighting directly on the control panel, press the light button (2) for 3 seconds. Then, use the plus and minus keys to choose between:

• « W » Warm white colour Dimmable Lighting Your device has 4 levels of light intensity that you can also control through your Vinotag app. To change the intensity of the light directly on the control panel, quickly press the light button (2). With each press of the button, the intensity will decrease until it turns off entirely, then start again at 100%.

• Dimmable levels : 100%-75%-50%-25% Door Alarm Your device is equipped with an open door alarm that you can also control through your Vinotag app. A visual and audible alarm will be present after the door is opened for more than 3 minutes. To turn off the alarm:

• Turn of the silent mode switch in the app

• Close your door Carbon filter alarm When you go to turn on your wine cellar, the countdown to the lifespan of your carbon filter will begin. After 365 days, a visual alarm will appear to let you know it's time to change the carbon filter. See

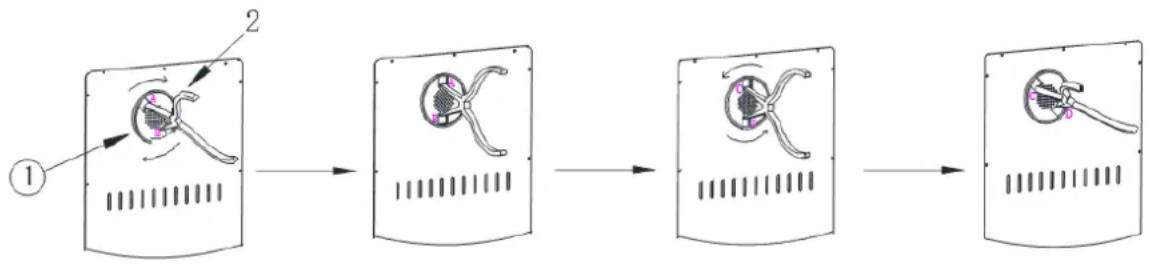

Chapter 6 for changing the carbon filter.

Once the filter is changed, to restart the countdown, you need to unlock the control panel and press 2+6 for 3 seconds Energy savingENGLISH

After 20 seconds without operation, the screen will enter power saving mode and become darker but still visible. Connection to a WIFI network Use your mobile phone to connect the cellar to a WIFI network. Open the Vinotag application and create a digital cellar by selecting: "Connected Cellar" and choose, from the list provided, the reference of your BU88 cellar. If you already have a Vinotag account, go to the “MY ACCOUNT” space then click on “ADD A CELLAR” by selecting: “Connected Cellar” and choose, from the proposed list, the reference of your BU88 cellar. The application will connect to your physical cellar, which must be powered by a mains socket and be correctly installed (refer to the installation instructions for your cellar). Once your physical cellar has been detected by the application, the available WIFI networks are displayed, select the WIFI network of your choice, or indicate the name of your WIFI network if it is not displayed automatically and enter the password. access (network password) to connect your cellar to the network and adjust its settings remotely. The “WIFI” icon of the cellar is displayed fixed indicating that the WIFI function is on and the cellar is connected to WIFI. If the “WIFI” icon is flashing, it means the WIFI function is on but the cellar cannot connect to the WIFI network, please reset the wifi of the cellar. Reset WIFI To reset the WIFI in the event of a connection problem or a change of internet box, you need to unlock the control panel and press 3+5 for 3 seconds This process deletes the original WIFI information and allows you to reconnect to the network of your choice. The "WIFI" icon tells you that the WIFI function is off. Turn OFF the WIFI To turn off, you need to unlock the control panel and press 3+6 for 3 seconds The Vinotag® app BU88 cellars are compatible with the VINOTAG® wine cellar management application. To use your cellar in a connected way, it is necessary to have:

• A power source to power the cellar

• Have downloaded the VINOTAG® application from the App Store or Google Play Store and created a user accountENGLISH

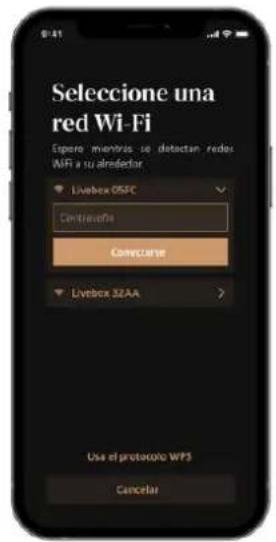

• A stable internet connection (Wi-Fi) within range of the BU88 cellar

• An BU88 cellar model VINOTAG app functions® The VINOTAG® application allows you to:

• Create, customize and manage your wine cellars

• Consult your wine inventory (wine bottles present in your cellar) and create your own wine sheets. VINOTAG® partners with VIVINO®, as part of its Premium option, to allow you to export detailed wine sheets from the VIVINO® database.

• Create and consult your vinotheque. The exclusive VINOTAG® - VIVINO® partnership allows you to save and consult detailed wine sheets from the VIVINO® database

• Share the visualization of your cellar(s) with your loved ones

• Be alerted to the peak date of your wines, the need to change the filter in your cellar or a low stock level of your favorite wine

• Quickly identify specific bottle(s) in your cellar

• Identify the spaces available in your cellar

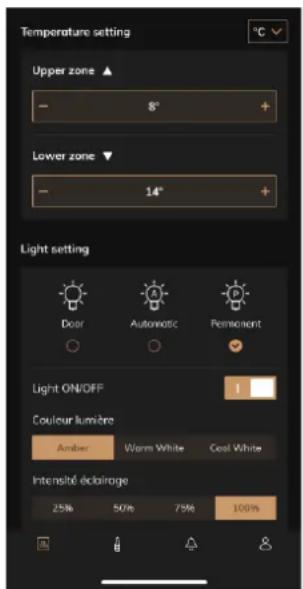

• Adjust the temperature of the cellar and remotely control the lighting mode (3 possible modes), start or stop the cellar, mute the audible alarm.

• Be alerted to a change of carbon filter or a malfunction in your cellar. How to create a VINOTAG® account

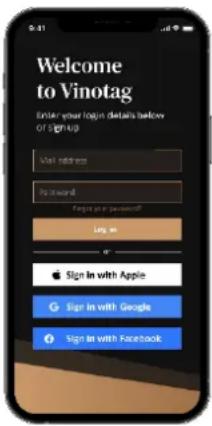

• Download the VINOTAG® application from the App Store or Google Play Store depending on your phone type.

• Check the box "I accept the general conditions of use"

• Click on "Finalize my registration" You now have a VINOTAG® account, remember to save your username and password.

VINOTAG® Menus When the application is open, the following menu is visible:

My cellar My wines Alerts Profile

• MY CELLAR: Allows you to view your wine cellar (s).ENGLISH

• MY WINES: Allows you to consult your wine library.

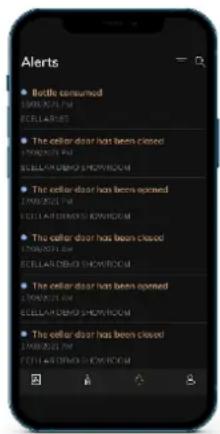

• ALERTS: Allows you to consult your cellar's alerts.

• PROFILE: Allows you to complete-view the information related to your account. « MY CELLAR » page

This page allows you to view the content of your wine cellar (s).

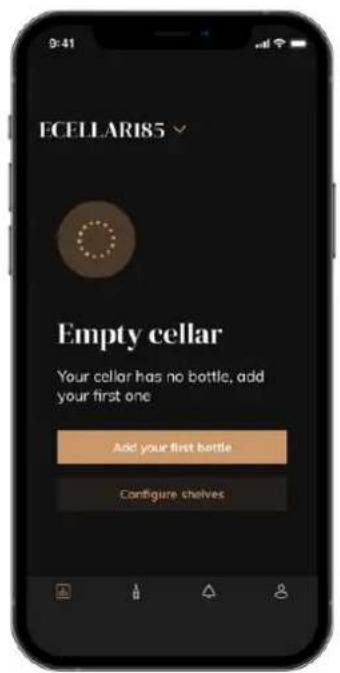

• Warning ! if your cellar is empty, you will not be able to view it; it is necessary to add bottles to access the view of your cellar.

• The cellar can be visible in list mode or in graphic mode. The mode setting is accessible via the icon at the top right of your screen. This icon allows you to switch from one viewing mode to another. By default, the cellars in the “connected cellar” category are displayed in list mode. Details of the cellar view icon: List mode or Graphic mode

• The search icon at the top left of your screen allows you to search for a bottle of wine in your cellar; all you need to do is write information about the bottle you are looking for (domain name, type of wine, year, etc)

• The icon at the bottom right of your screen allows you to add bottles of wine. (see the "Add a bottle of wine" section for more information)

• Warning! If you have more than one cellar, you can switch from one cellar to another using the name of your cellar located at the top left of your screen. When you click on the name of your cellar a pop-up asks you to select the cellar you want to view. Click in the list of your cellars on the model to view.ENGLISH

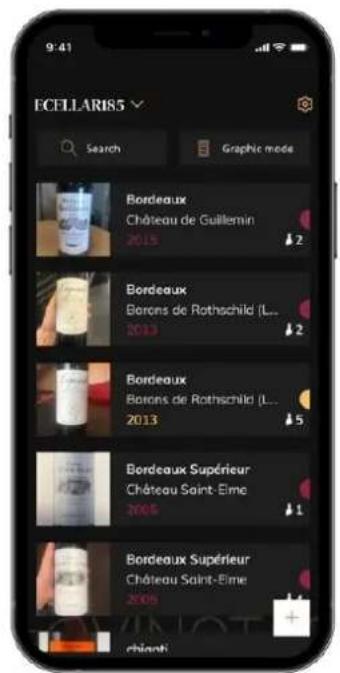

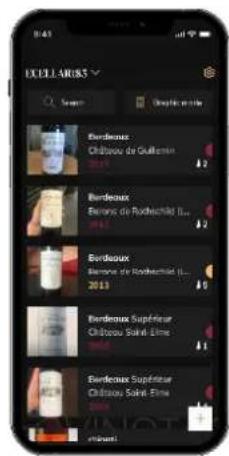

• Simplified display mode. A list allows you to consult the wines kept in your cellar. The wines are listed in alphabetical order.

• List mode indicates for each wine: the name of the wine, its domain, its date, its color, its type and finally the picture of the bottle.

• Pressing a wine allows you to access its wine sheet.

• An indicator is present on the right of your screen. It indicates for each wine the type of wine. The types of wine are identified by a colored icon. (Red disc: indicates a red wine / Yellow disc: indicates a white wine / Salmon disc: indicates a rosé wine).

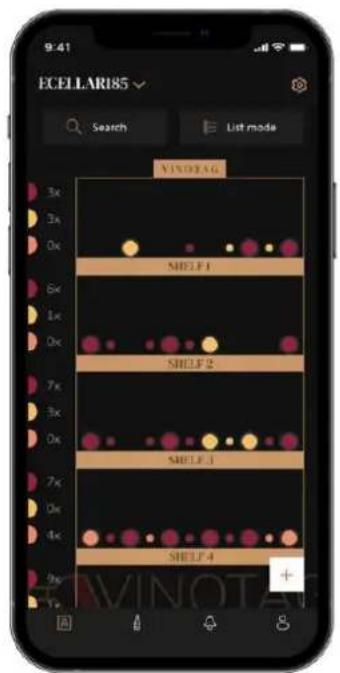

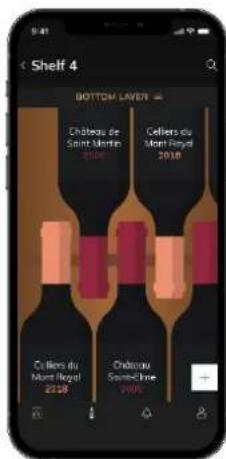

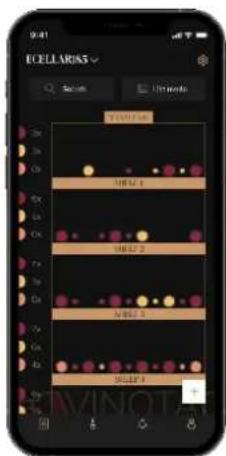

• A graphical view of the cellar makes it possible to visualize the filling of the cellar by indicating the stored bottles represented by colored rounds.

• The wines are classified by shelf.

• User can view bottles

• Press on a bottle to access its wine sheet

• An indicator is present on the left of your screen. It indicates for each shelf the number of bottles per type of wine. The types of wine are identified by a colored round.

Red dot: indicates a red wine Yellow dot : indicates a white wine Pink dot: indicates a rosé wine

« MY WINES » page This page allows you to view your wine library. The wine library area allows you to:

• Consult your wines consumed, all wines added (still present or not) in your cellar are automatically added to your wine library area.

• Create a wishlist; you can save wines tasted at friends or you want to buy. The wine library area allows you to create a wish list.

• The search icon at the top left of your screen allows you to search for a bottle of wine in your wine store; all you need to do is write information about the bottle you are looking for (domain name, type of wine, year, etc.)

• To add a bottle to your wine library, follow the “Add bottles” procedure and click on “add to my wine library”ENGLISH

• Press on a wine to consult its wine file (for more information, follow the procedure "consult a wine sheet") “ALERTS” page This page allows you to view the alerts related to your cellar; a red dot next to the icon indicates an unread alert. The alerts are classified chronologically. When you have several cellars, it is possible to filter by cellar (filter icon located at the top left of your screen). A search field allows you to filter your alerts to find a specific event. Temperature alert / door open: your cellar alerts you when temperature movements should attract your attention. Stock alert: you have the possibility to program stock alerts for a specific wine and according to a defined quantity. The application alerts you that the wine in question is about to run out. (the "rupture" quantity is defined by you, the alert can be set to a number of bottles.) « PROFIL » page This page allows you to view, complete or modify the information related to your VINOTAG® account: Modify my information: to modify your registration information (last name, first name, birthday, country, department) or delete your account. To agree to receive news and other commercial information from VINOTAG. I become premium: to subscribe to the premium option of VINOTAG® and benefit from recharging scans. These scans allow you to directly save the VIVINO® files in your application and no longer have to complete the wine sheets manually (refer to the "premium account" process). Add cellar: allows you to add new cellars. Enter an invitation code: allows you to join cellars whose access has been shared with you. Entering an invitation code is mandatory to join a cellar, this access code is generated and distributed by the owner of the shared cellar. Contact: allows you to contact VINOTAG® customer service a drop-down list allows you to select the subject of your request. General Conditions of Use: allows you to consult the VINOTAG® General Conditions of Use Legal notices: allows you to consult the VINOTAG® Legal notices Disconnect: allows you to disconnectENGLISH

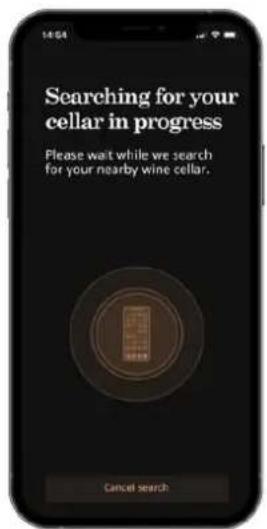

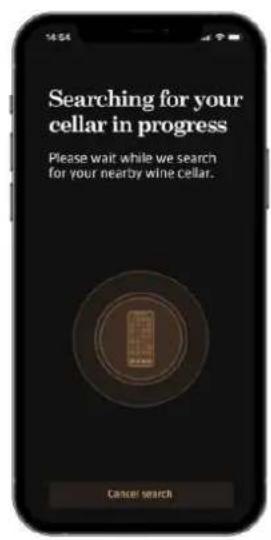

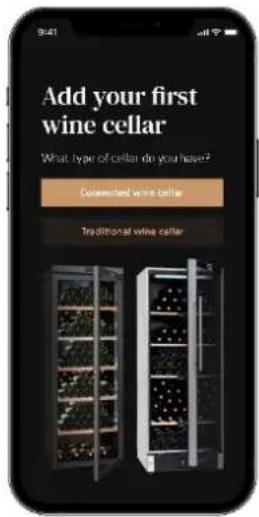

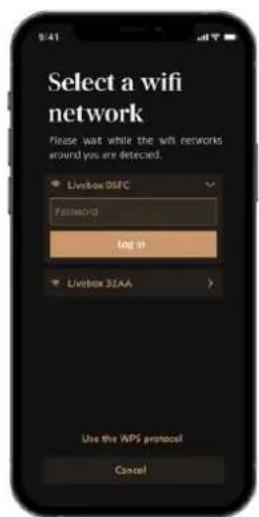

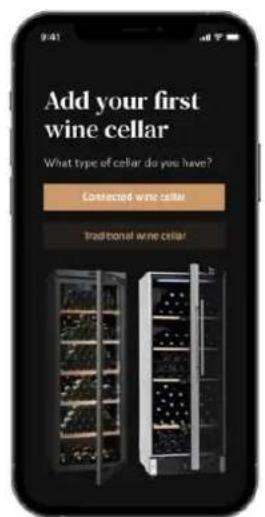

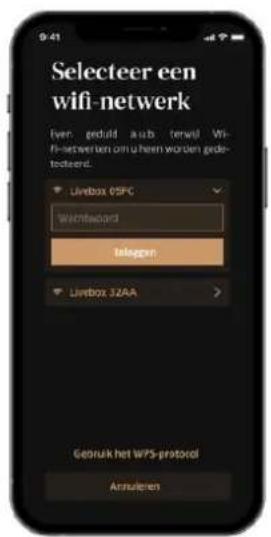

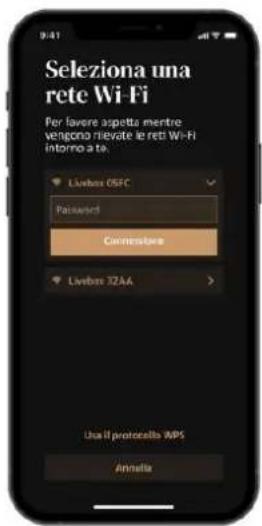

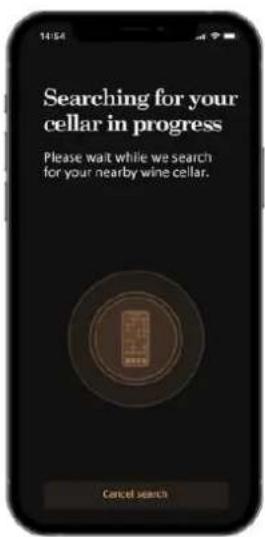

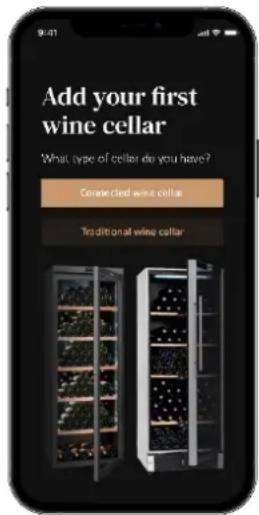

Add a cellar You now have a VINOTAG® account to add your first cellar or a new cellar (the application offers you the possibility of managing several cellars from a selection of models). Warning ! Under no circumstances should you quit the application when adding a cellar.

• Adding a first cellar: the creation of your cellar is mandatory when creating your account, follow the different steps below.

• Adding a new cellar: you want to manage a new cellar from your application, go to the "profile" -> "my cellars" page and click on the "add a cellar" button; follow the different steps below.

• Define the type of cellar “connected cellar” or “not connected cellar”. BU88 models are part of the "connected cellar" category. Click on “connected cellar”.

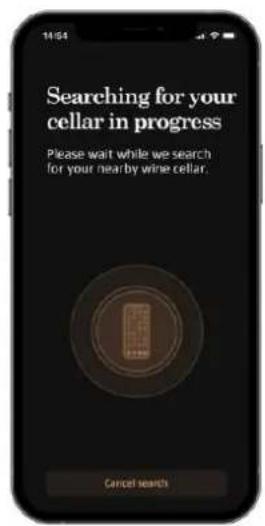

• The application asks you to activate Bluetooth; its activation is necessary to configure the cellar.

• Once your cellar is connected to Bluetooth, the application asks you to select a Wifi network. In the case of a Wi-Fi network, the password of the Wi-Fi router is requested. If the Wi-Fi connection fails, check the password and/or check the distance between your cellar and your Wi-Fi router. Too great a distance or too thick walls can block the connection. Bring the cellar closer to the Wi-Fi router to allow its connection or add a Wi-Fi repeater. Managing my cellarENGLISH

In the "Settings" mode you can control your cellar

• Adjust the temperature of your cellar

• Change measurement from Celsius to Fahrenheit

• Choose a lighting mode

• Reset the carbon filter when the

• Stop or start operation

• Reset the WiFi of your cellar

Share a cellar As the owner of a cellar, you can invite other people to join your cellar. Consulting your cellar requires the guest to create a VINOTAG® account. To invite someone:

• Go to your Cellar page and select the "Settings" icon at the top right

• At the bottom of the page select "Share my cellar"

• Then click on the “Create a code” button,

• You can transfer or communicate this code to the person(s) with whom you wish to share your cellar.

• You can create new access codes to share the contents of your cellar with other members. When you share your cellar;

• The “Alerts” page tells you when a member has joined your cellar.

• You can remove this access at any time; in the "Share my cellar" tab the users with access are indicated, just click on the "trash can" icon next to the name of the member for whom you wish to remove access. To access a cellar shared with you;

• When you are invited to join a cellar, go to the “my profile” page: “enter an invitation code”. Enter the invitation code received and click on “join”. You now have access to a shared cellar.

• You can leave a shared cellar at any time; select the cellar that you no longer wish to consult and click on the “Leave this cellar” button. Delete a cellar

• You wish to delete one or more cellars.

• Go to the “my cellar” pageENGLISH

• The list of your cellars appears is accessible in the drop-down menu at the top left of the page

• Select the cellar you want to delete, go to "settings" located at the top right and select "Delete cellar".

• Repeat the operation on all the cellars you wish to delete. Attention ! if the cellar has at least one bottle, a pop-up will appear asking you to confirm this action. Once the cellar is deleted, it is no longer possible to recover the related information. Attention ! you cannot delete a cellar that does not belong to you. When a cellar is shared with you and therefore visible from the “my cellars” page; you can stop sharing. When you are not the owner, the “Delete” button is an “Exit” button. It allows you to leave the cellar. A pop-up appears to confirm the action. Change the cellar configuration You wish to modify the configuration of your cellar differently from its standard configuration. Go to your cabinet's "Settings" then Information/Shelves to delete or add shelves. Add bottles You have created your cellar in the VINOTAG® application; you can now add bottles. Create a cellar List mode Graphic mode o Click on "add my first bottle" in the case of a new cellar or "+" Take a picture of the label of the bottle you want to add to your cellar. A completed wine sheet appears; this sheet comes from the VIVINO® database. You can modify or complete this wine sheet. o Warning ! If the scanned bottle of wine is not available on the VIVINO® database or if you do not have a premium subscription, you will have to manually complete the wine sheetENGLISH

associated with your bottle. If you wish, it is possible not to take a photo of the label; in this case, you will not be able to access the VIVINO® database, so you will have to manually complete the wine sheet associated with your bottle. o When adding a bottle, you can complete / modify the associated wine sheet; enter a comment on the bottle of wine, save it as a favorite or give it a rating. o Wine name o Field o Appellation o Year o Country / region o Color o Quantity of bottles o An "advanced" mode allows you to provide additional information such as; o Minimum guard (years) o Maximum guard (years) o Comment o Switch to favorites o Rate the bottle (0 to 5) o Buying price o Link to VIVINO® to find the complete sheet (Premium Option) o Link to VIVINO® to buy this wine The scanned bottle is not recognized: if the bottle is not recognized, the application offers to restart the scan, to manually search for the bottle (if no bottle corresponds to its search) or to fill manually the sheet. It is mandatory to enter a minimum and maximum conservation time to receive peak date alerts. If the minimum and maximum conservation time fields are not completed, no peak date alert will be sent. Once the bottles have been identified, the application allows you to keep a digital register of your wines. Report in your digital cellar the location of your real bottles to keep a register of your digital wines. It is also possible to add a bottle via a wine file.

• Click on the button located at the bottom of the page "add one or more bottles"

• Enter the number of bottles to add.

• Place the bottle/s in your cellar on the desired location/s;

• Record these locations in VINOTAG®. PLEASE NOTE: creating a VINOTAG® account allows you to benefit from “50 free scans”. When adding a connected cellar, 50 scans are offered to you. These scans allow you to benefit from pre- completed wine sheets thanks to the VINOTAG® - VIVINO® partnership. In the event that all of the scans offered have been used; it is possible to continue to add bottles by manually completing their wine sheet or to subscribe to the premium option to benefit from a recharge of scans (refer to the paragraph “Premium account”).ENGLISH

ESOMMELIER® function When adding a bottle to a “connected cellar”; you can use the ESOMMELIER® function. This function recommends the ideal place to store your wine. When you scan a bottle, VINOTAG® identifies the type of wine; Depending on each type of wine, storage temperatures are recommended for optimal preservation. Certain locations in your cellar are therefore more suitable depending on the type of wine. The ESOMMELIER® function helps you keep your wine in the best conditions. By clicking on this button, the wine cellar offers you available slots suitable for the scanned bottle of wine; specific icons indicate these locations on the digital view of your cellar. Premium account VINOTAG® partners with VIVINO® to facilitate the user experience. When creating a VINOTAG® account, a number of "free scans" are offered. These "free scans" refer to the act of taking a picture of a bottle to directly access a detailed wine sheet extracted from the VIVINO® database. Warning ! unrecognized bottles are compatibilized as a “free scan” since the recognition request has been sent to VIVINO®. The photo capture must be of sufficient quality and sharpness for bottle recognition to be possible. This wine sheet can be modified and saved directly in the digital version of your wine cellar, you no longer need to manually complete your wine sheet. A real time saver to fill your cellar and access a lot of information on your favorite wines. In the event that all of the scans offered have been used; it is possible to continue to add bottles by manually completing their wine sheet or to subscribe to the premium option to benefit from a refill of scans. A pop-up alerts you when you have used up the “free scans”. To switch to a premium account; the user must subscribe to the premium option which allows him to purchase scan refill.

• Refill 1000 scans The “scans” purchased can be used without a time limit. Subscription to the premium option and the pricing conditions are accessible via the VINOTAG® application in "my account" area by clicking on the "I become premium" button. Remove bottles You have created your cellar in the VINOTAG® application; you can now delete bottles from your cellar. The bottles will be kept in your vinotheque area. When you consume a bottle you must delete its digital version in the application to keep an up-to- date wine register.ENGLISH

Consult a wine sheet The consultation of wine sheets is accessible by your cellars or your wine library. Consultation of wine sheet in my cellar - list mode or in my wine library

• Click on the bottle of your choice

• Consult the information related to your bottle

• For more details, you can go to the site of our partner Vivino by clicking on "See on Vivino" Consultation of wine sheet in my cellar - graphic mode

• Click on the shelf of your choice

• Click on the bottle of your choice

• Consult the information related to your bottle

• For more details, you can go to the site of our partner Vivino by clicking on "See on Vivino" Create peak date alerts To create peak date alerts, it is mandatory to enter a minimum aging time (greater than 0) and a maximum aging time on the wine sheet. The conservation time is expressed in years. You will be sent an alert for the start and end of the peak date if your bottle has not been consumed. A wine from the year "X" with a minimum conservation time of 5 years and maximum of 10 years will alert you as follows: - Year "X" + 5 years: Early peak date alert "Your bottle is ready to be tasted" - Year "X" + 10 years: End of peak date alert "Your bottle is at the end of its peak date" Create stock alerts To better manage your cellar and your wines, VINOTAG® offers you to set up stock alerts:

• Via the view of your cellar on the application, click on the desired bottle to access the associated wine sheet

• Click on "schedule an alert"

• Indicate from how many bottles remaining you wish to receive a stock alert

• Click on validate. The stock alert is now activated. To deactivate a stock alert, click on "modify alert"; decrease the number of desired bottles until "deactivate". Click on validate. The stock alert is now deactivated. Visualize the location of your bottles in your cellar

• You are in sight of your cellar; Use the search icon located at the top left of your screen

• Indicate the name of the wine sought and / or domain and / or other information related to the bottle

• The wine file of the bottle sought is displayedENGLISH

• Click on the button located at the bottom of the page "See my bottles" or on the "Position in the cellar" button located at the beginning of your wine file

6. CARE AND MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit. Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, side and top) with warm mixed with a gentle cleaning product. Rinse with clean water and allow drying before reconnecting. Do not use solvents or abrasives. When the appliance is switched on for the first time, there may be a residual smell. In that case, runt the appliance empty for a few hours at the coldest possible temperature. The cold will kill any smell. Automatic defrost An automatic defrost is programmed on your cellar. There is no impact for wines stored in the cellar during the defrosting phase. During defrost; the compressor and the fans will be off. Changing the carbon filter Your wine cellar is equipped with a carbon filter, we advise you to replace it once a year. To replace it, all you have to do is pull it out from inside the cellar and replace it with a new filter. If you go on vacation

• Short stays: let your cellar operate during your stay if it lasts less than 3 weeks.

• Long stays: if your device is not to be used for several months, remove all bottles and accessories, turn off and unplug the device from the power outlet. Clean and dry the inside and outside of the appliance thoroughly. Also leave the door open, blocking it if necessary, to prevent the formation of condensate, odors and mold. If you need to move your wine cellar

• Unplug your cellar before any operation.

• Remove all bottles from the cellar and secure the moving parts.

• To avoid damaging the leg leveling screws, screw them all the way into their base.

• Close the door completely.

• Move the device to a vertical position preferably or note from the inscriptions on the packaging, the direction in which the device can be laid. Also protect your device with a blanket or similar cloth.ENGLISH

Change the activated carbon filter

1. Using pointed pliers, tighten positions A and B of the carbon filter. Rotate the pliers clockwise to

make A and B in the horizontal direction, then pull to put on the carbon filter.

2. To install the new carbon filter; Using pointed pliers, tighten the carbon filter in position C and D.

3. To attach the new filter, rotate the clamp counterclockwise to make C and D approximately 45

degrees from the vertical direction. (same as last illustration)

Despite the care we take during production, a breakdown can never be totally excluded. Before contacting your retailer’s after-sales department, please check that: The appliance is properly plugged in There is not a power cut in progress The breakdown is not one of those described in the table at the end of this manual IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury. IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER’S AFTER-SALES DEPARTMENT.

CAUTION! Unplug the appliance before carrying out any maintenance or repair work.ENGLISH

Many problems can be solved easily, saving you the cost of a phone call to service. Try to resolve your problem by following the suggestions below before calling for service.

TROUBLESHOOTING SOLUTION GUIDE

PROBLEM POSSIBLE CAUSE The cellar is not working The device is not plugged in. The device is turned off. The circuit breaker has tripped or a fuse has blown. The wine cellar is not cold enough Check the set temperature. The outdoor environment may require a higher setting. The door is opened too frequently. The door is not closed properly. The door seal does not adhere completely.

The device turns on and off frequently The ambient temperature is higher than normal. Many bottles have been added to the wine cellar. The door is opened too frequently. The door is not closed properly. The temperature is not set correctly. The door seal does not adhere completely. Interior lighting does not work The device is not plugged in. The circuit breaker has tripped or a fuse has blown. The indicator light is off. The lighting activation key is OFF Vibrations Check and make sure the cellar is level. The wine cellar seems to make too much noise The "clicking" noise may come from flowing refrigerant, which is normal. At the end of each cooling cycle you may hear "gurgling" noises due to the flow of refrigerant in your wine cellar. The contraction and expansion of the internal walls can cause popping and crackling noises. The wine cellar is not level. In "mono" mode the cellar fans are activated to circulate the air flow inside the cellar.

The door does not close properly The wine cellar is not level. The gasket is dirty or damaged. Some of the contents prevent the door from closing The door hinges are loose The shelves are not in their place. The label of the wine I am photographing is not recognized by the application The photo taken via the application must be of good quality (not blurred), the photo must be taken so that the wine label fills the white frame of the application. If that still doesn't work, try taking a close-up photo of just the name of the wine.

Error codes The following error codes may appear on your screen or in your Vinotag application. E1/ E2/ E3/ E4/ E5/ E6/ E7/ E8 In this case, stop and unplug your appliance and contact your dealer's After-Sales Service and tell them the code displayed on the screen.ENGLISH

If any other code is displayed on your screen, please also contact the after-sales service and provide them with the code displayed.

This appliance is marked according to the European directive 2019/290/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product. The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product. During disposal, or in the context of a resale, the user's personal data is protected, without action on his part. These data are not saved in the cellar but on an external server. No information transmitted during normal use of the cellar can be used after its disposal. In the context of a resale of the device, the new user must scan the QR code of the master unit and follow the mandatory pairing procedure. This procedure overwrites data previously stored on the server. The new user will thus have a blank account. The former user will no longer be able to access or view their old information from the Vinotag application. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for AVINTAGE brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee. FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document. Non-binding document.DEUTSCH
