Product type	Cordless vacuum cleaner
Brand	HOOVER
Model	FJ192R2 FREEJET
Power supply	Rechargeable NiMH battery, double insulation charger 230 V (UK 240 V)
Main functions	Turbo for carpet (LED on), on/off, Push and Go to detach the hand vacuum
Charging time	24 hours (first charge and subsequent charges)
Filters	Motor filter (ref. S93) and sieve washable with lukewarm water
Maintenance	Empty the dust bin using the emptying trigger; wash filters with lukewarm water
Safety	Do not use outdoors, on wet surfaces, or for vacuuming burning objects or flammable liquids
Included accessories	Crevice tool, furniture brush (stored at the back of the charger)
Spare parts	Motor protection filter S93 (35600860), Agitator Y24 (35600861)
Repairability	Replaceable agitator; replaceable batteries at end of life (full discharge required before removal)
Environment	Compliant with WEEE (2002/96/EC); do not dispose of in household waste, mandatory recycling

Frequently Asked Questions - FJ192R2 FREEJET HOOVER

How to charge the Hoover FJ192R2 FREEJET vacuum cleaner?

Place the vacuum on the charger base and plug it into a 230 V outlet. The charger indicator lights up. For first use, charge for 24 hours. Make sure the On/Off switch is in the OFF position during charging.

How to detach the hand vacuum?

Press the Push and Go button (position D on the body) and lift the hand unit to detach it from the main body.

How to clean the vacuum filters?

Detach the hand unit from the body. Press the filter access button (O) and remove the dust bin handle. Remove the filter and sieve using the handle. Wash them with lukewarm water (no hot water or detergent). Dry completely before reassembling.

How to empty the dust bin?

Hold the hand unit over a trash can and pull the dust bin emptying trigger (N). The bin empties instantly.

What if the vacuum does not start?

Check that the vacuum is properly charged (charge for 24 h if necessary). Make sure the On/Off switch is in the ON position. If the problem persists, contact an authorized Hoover repairer.

How to change the agitator (brush)?

Turn the agitator lock to the open position using a coin. Remove the agitator support. Disengage the belt and lift the agitator. Pass the belt around the new agitator and put it back in place. Lock.

What accessories are included with the vacuum?

The vacuum comes with a crevice tool and a furniture brush, which are stored at the back of the charger. The carpet and floor nozzle is integrated into the body.

How to use turbo mode?

Use the Turbo On/Off switch (C): activate it for carpets (the LED lights up) and deactivate it for hard floors (LED off).

Where to find spare parts for the Hoover FJ192R2 FREEJET?

Hoover spare parts are available from your Hoover dealer or directly from Hoover. References: motor filter S93 (35600860), agitator Y24 (35600861).

How to recycle the vacuum at end of life?

Fully discharge the batteries by running the unit until it stops. Remove the batteries (follow the disassembly procedure in the manual). Dispose of the batteries and the unit at a WEEE recycling center in accordance with local regulations.

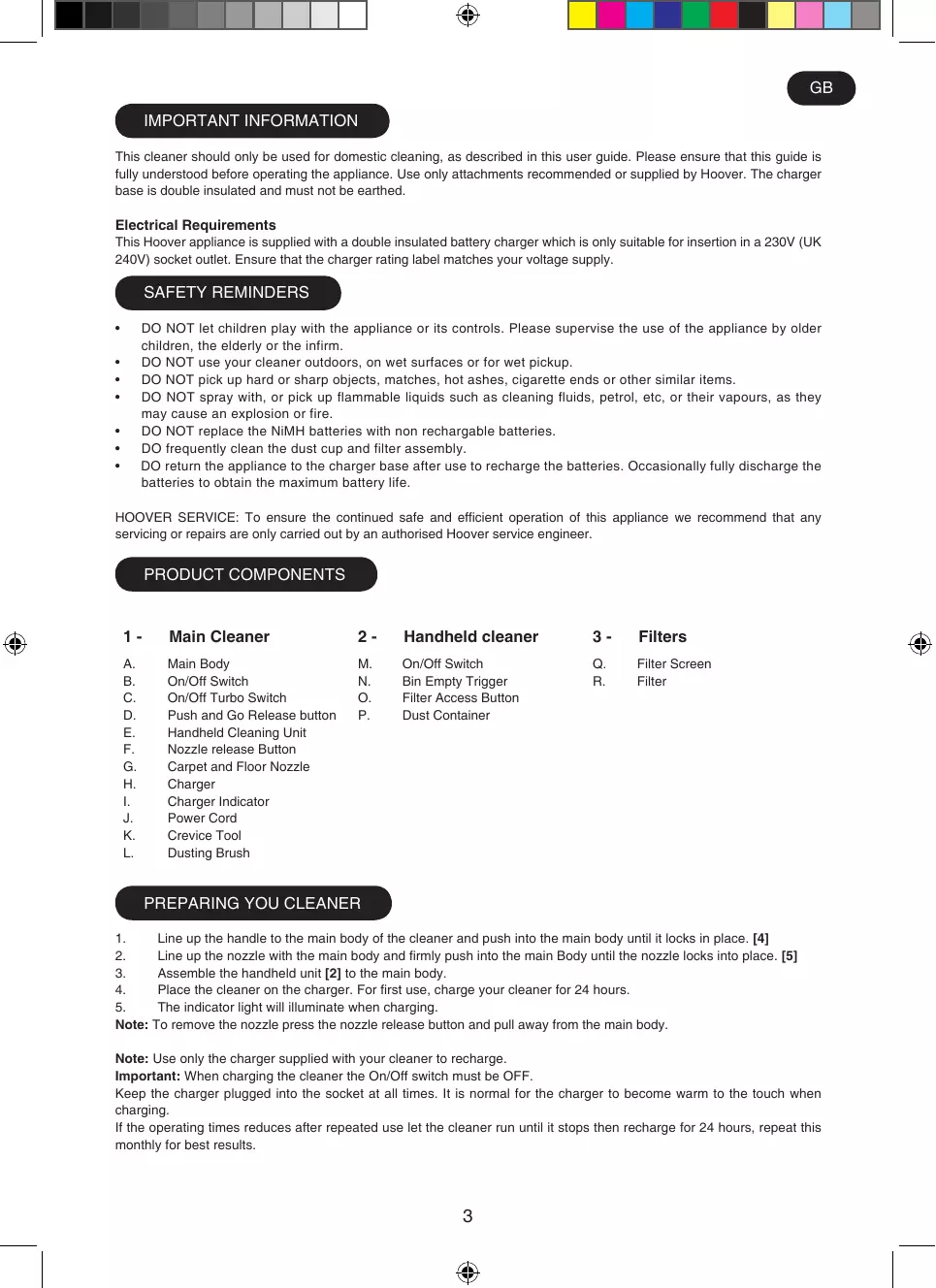

USER MANUAL FJ192R2 FREEJET HOOVER

This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover. The charger base is double insulated and must not be earthed.

Electrical Requirements

This Hoover appliance is supplied with a double insulated battery charger which is only suitable for insertion in a 230V (UK 240V) socket outlet. Ensure that the charger rating label matches your voltage supply.

SAFETY REMINDERS

DO NOT let children play with the appliance or its controls. Please supervise the use of the appliance by older children, the elderly or the infirm. DO NOT use your cleaner outdoors, on wet surfaces or for wet pickup. DO NOT pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. DO NOT spray with, or pick up flammable liquids such as cleaning fluids, petrol, etc, or their vapours, as they may cause an explosion or fire. DO NOT replace the NiMH batteries with non recharging batteries. DO frequently clean the dust cup and filter assembly. DO return the appliance to the charger base after use to recharge the batteries. Occasionally fully discharge the batteries to obtain the maximum battery life.

HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

PRODUCT COMPONENTS

1 - Main Cleaner

A. Main Body B. On/Off Switch C. On/Off Turbo Switch D. Push and Go Release button E. Handheld Cleaning Unit F. Nozzle release Button G. Carpet and Floor Nozzle H. Charger

I. Charger Indicator J. Power Cord K. Crevice Tool L. Dusting Brush

2 - Handheld cleaner

M. On/Off Switch N. Bin Empty Trigger O. Filter Access Button P. Dust Container

3- Filters

Q. Filter Screen R. Filter

PREPARING YOU CLEANER

1. Line up the handle with the main body of the cleaner and push it in until it locks into place. [4]
2. Align the nozzle with the main body and firmly push it in until the nozzle locks into place. [5]
3. Attach the handheld unit [2] to the main body.
4. Place the cleaner on the charger. For the first use, charge the cleaner for 24 hours.
5. The indicator light will illuminate while charging.

Note: To remove the nozzle, press the nozzle release button and pull it away from the main body.

Note: Use only the charger supplied with your cleaner to recharge.

Important: When charging the cleaner, the On/Off switch must be in the OFF position.

Keep the charger plugged into the socket at all times. It is normal for the charger to become warm to the touch while charging.

If the operating time reduces after repeated use, let the cleaner run until it stops, then recharge for 24 hours. Repeat this monthly for best results.

USING YOUR CLEANER

Main cleaner

1. Turn the cleaner on by pressing the On/Off button. [1B]
2. Set the On/Off Turbo switch to the desired cleaning mode. [1C]

CARPET: Switch Turbo Nozzle ON (LED will be ON.)

HARD FLOOR: Switch Turbo Nozzle OFF (LED will be OFF.)

Handheld Cleaner

1. Press the Push and Go button and lift the handheld unit from the cleaner main body. {6}
2. Turn the handheld cleaner on by pressing the On/Off button. [2M]

ACCESSORIES

Crevice Tool and Dusting brush

Both accessories are stored at the rear of the charger. Both fit directly onto the handheld unit.

CLEANER MAINTENANCE

Emptying the Dust Container

Hold the unit over a bin and pull the bin empty trigger [2N] to instantly empty the dust container. [7]

Cleaning the Filters

1. Release the handheld unit from the main body of the cleaner.
2. Press the filter access button [20] and remove the handle section from the dust container. [8]
3. Use the filter handle to remove the filter and filter screen from the dust container. [9]
4. Wash the filter and screen in hand warm water. Once thoroughly dry return to the dust container.
5. Reassemble the handheld unit and return it to the cleaner main body.

Note: Do not use hot water or detergents when cleaning the filters. In the unlikely event of the filters becoming damaged, fit a genuine Hoover replacement. Do not try to use the product without a filter fitted.

Changing the Agitator

1. Using a coin, turn the lock to the open position. [10]
2. Remove the agitator retainer.
3. Unloop the belt and lift the agitator out of the cleaner. [11]
4. Loop the belt around the new agitator and return it to its original position. Replace the agitator retainer and lock it in place.

End of Product Life Battery Disposal

If the cleaner is to be disposed of, the batteries should be removed. Used batteries should be taken to a recycling station and not disposed of with household waste.

IMPORTANT: Always fully discharge the batteries before removal.

1. Run the unit until the batteries run flat.
2. Release the handheld unit from the main body of the cleaner.
3. Press the filter access button and remove the handle section from the dust container.
4. Remove 6 screws and open the unit. [12]
5. Remove the motor/battery housing and disconnect the cables.
6. Remove the batteries from the housing.

Note: Should you experience any difficulties in dismantling the unit or for more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service.

HOOVER SPARES AND CONSUMABLES

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

• Pre motor Hepa Filter - S93 - 35600860 Agitator - Y24 - 35600861

The Environment:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

YOUR GUARANTEE

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

IMPORTANT INFORMATION

USE OF THE VACUUM CLEANER

Kpatntote Tn movaba Etnavw ato eva kado aToppmuatwv kai TpaBnte Tn oKavdaan aEiaagatoC kao, ia va aEiaoe Tc to doxio 0kovns. [7]

Filter cleaning

YKA3AHNIAIPO TEXHNIKE B3OINACHOCTN

HE no3BONJIte DeTAMIrpaTb c 3eNkTpnpn6Opom INIero opraHAm ynpaBHeN.NcEduyET KOHTpOPOBaTbpimHeHne 3eNkTpnpn6OpaDeTbMn CTapeo Bo3pacta, ppeapelbIMn HemooHbIMn IIObMn." HE CJIENYET nCnoIb3ObaT bIinecOC BHe nOmeueHn, HBaNaxhblx nobepxHOCTx IIN dIy c6opa BnaI. HE donyckaite nonadaHnB nbIeoc TBePbIX nJN ocTpbx npedMeTOB, cNIueK, ropayero neNa, OKypkoB nT.D. - HE CJIENYET paCnBnIaTb, nIN CO6nPaTb ORHeONaChbIe KJNkOcTn, taKne KaK YnCTraIe CpeIcTba, 6eH3nH nIN nx napbl, TAK KAK 3TO MOKeT npNBecT N B3PbBy nIN NOkApy. HE CLEYET 3aMeHrTb HKeJIb-MapraHcEByIaKKymyJrToP He3apXkaEmbIMn 6aTapeAeMn. CNEyET perynapno nctntb y3en nbIeSc6bpHnka n nIbtpa. - Pocne nepe3apdAn kkyMnyIaTopa O5y3ATEBHO BepHte daHbH b6byTOBo 3eKtPnpN6Op Ha 63ay 3apdHoro akkMyIaTopa. Bpemr ot Bpemehn nonHocbIO pa3paJkaTe akkMyIaTOp, T06bMaKcMmaHbNo npOdnIb cpoK erO cnjck6bl.

CEPBNUCHOE OBCJYKUBAHNE KOMTAHIN HOOVER: IЯ obecneueHn npoJokntbHo, 6e0nacHOI 3fOeKTHBNO paobToI daHnO 6blTOBO rKeTPOpnpbopa, KOmnaHn peKomeHnyet IIO6oe TeXOBcnykBaHne IIN pEmOH npOn3BODHT TOJIbK CteuHaHCTOM ABTOP3OBaHORO cepBNUCHOrO cHTpa Hoover.

COCTABHbIe YACTn N3dJIyA

1-OcHOBHOIbJIeCOC

A. OchOBHoi KOpnyc B. BbiknluoyateJIb nHTaHn (On/Off) C. BbIKIIOuATEteJI typ6OpexKIma (On/Off) D. Khoonga ocbo6oxJeHnna Push and Go Release E. Puyhoe yctpoCTBO JIJI YIcTKN F. KhoNka ocB6oKdEHNHa cAdkn G. HacaKa dIa YIcTKN KOBpO b nOla H. 3apraHoe yctpoiCTBO I. INHdkatop 3apdnoho yctpoictBa J. Ceteboi shhpy K. Μεπεναγ εκαδικα L. Μετκα πλγαπηνηνηνην

2-PyHoi nblncoc

M. BыкluчateNBiTaHn (On/Off) N. 3aaukena onopoxhneHnna bIyIe6bOpHnka O. Khonka doctyna K phnIbtpy P. KoHTeINHepe nla c6opaa bIa

3-ΦnIbTpbl

TEXHINCHECKOE OBCJNYKINBAHNE IbILECOCA

OnopoxKHeHne KOTheHepa nla c6opa nbln

Tc06bI MTHOBEHHO ydaJIntb PbIb n3 PbJIeSc6OpHnka, ydePjNBAy yctpoiCTBO hA MycOpHbIM 6aKOM, notaHHTe 3aUeIKy onopOxHHeH NJIeSc6OpHnka. [7]

YnCTka qHJbTPOB

1. Remove the handheld device from the main body of the vacuum cleaner.
2. Press the filter release button and disconnect the handle section from the dust container. [8]
3. Grasp the filter handle, remove the filter and filter mesh from the dust container. [9]
4. Clean the filter and mesh in warm water. After complete drying, install the filter in the dust container.
5. Assemble the handheld vacuum cleaner and install it into the main body of the vacuum cleaner.

Note: Do not use the vacuum cleaner without the filter installed. The probability of filter damage is extremely low, however, if this occurs, install new filters. Do not use the vacuum cleaner without the filter installed.

Replacing the brush roller

1. Using a coin, turn the lock to the open position. [10]
2. Remove the brush roller cover.
3. Remove the belt and extract the brush roller from the vacuum cleaner. [11]
4. Place the belt on the new brush roller and install it in its original position. Install the brush roller cover and secure it in place.

Disposal of the battery at the end of its service life

If the vacuum cleaner is to be disposed of, the battery must be removed from it. The used battery should be sent to a recycling point and not thrown away with regular household waste.

WARNING: Before removal, always fully discharge the battery.

1. Turn on the vacuum cleaner and let it run until the battery is completely discharged.
2. Disconnect the hand-held device from the main body of the vacuum cleaner.
3. Press the dust release button and disconnect the hand-held section from the container for collecting dust.
4. Unscrew 6 screws and open the device. [12]
5. Remove the cover of the motor/battery and disconnect the cable.
6. Remove the battery from the housing.

Note: If you encounter difficulties in disassembling the device, or if you need more detailed information on operation, restoration, and reuse of the product, contact our office in your city - the household waste recycling service.

Spare parts and consumables of HOOVER company

RU

When replacing, use only genuine spare parts and consumables manufactured by Hoover. They can be purchased from a local Hoover dealer or directly from Hoover. When ordering spare parts, be sure to indicate the model number of the vacuum cleaner.

-Filter for motor, installed before the electric motor - S93-35600860 -Exhaust filter - Y24-35600861

Environment:

This device is marked in accordance with European Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE). By disposing of this device correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate disposal of this device. The marking on this device indicates that it cannot be disposed of as household waste. It must be delivered to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local waste disposal regulations. For more detailed information on the disposal, recovery, and recycling of this device, please contact your local city authorities, the household waste disposal service, or the store where you purchased this device.

WARRANTY

The warranty conditions for this household electrical appliance are determined by our representative in the country where the appliance is sold. You can obtain more detailed information about these conditions from the dealer who sold the appliance. When submitting a claim under these warranty obligations, a receipt or proof of purchase must be presented.

Changes may be made without notice.
