Product Type	Desktop Computer Power Supply
Brand	ENERMAX
Model	EMA2V4550
Rated Power	450 W
Form Factor	ATX
Motherboard Connector	1 x 24-pin
CPU Connector	1 x 4+4-pin (8-pin)
PCI Express Connectors	2 x 6+2-pin (8-pin)
SATA Connectors	6 (4+2 on modular cables)
Molex Connectors	6 (4+2 on modular cables)
FDD Connector	1 (on Molex cable)
Cabling	Modular
CordGuard Function	Power cord locking system
HeatGuard Function	Continuous cooling after shutdown (30-60 seconds)
Electrical Protections	Overcurrent (OCP), Overvoltage (OVP), Undervoltage (UVP), Short Circuit (SCP)
Cooling	1 x 120 mm fan
Dimensions (L x W x H)	150 x 86 x 140 mm
Weight	Approximately 2.3 kg

Frequently Asked Questions - EMA2V4550 ENERMAX

How to install the CordGuard system?

Place the power supply in the case with the switch set to O. Insert both sides of the CordGuard locking system into the designated slot near the power connector. Plug in the cable, then close the system to lock the cable.

What is the purpose of the HeatGuard function?

The HeatGuard function allows the power supply fan to continue dissipating system heat for 30 to 60 seconds after shutdown or in ACPI S3/S4 sleep mode, thereby extending system lifespan.

How to properly connect the modular cables?

Ensure you connect black connectors to black sockets and red connectors to red sockets. The white arrows must face each other. Never force the connection.

What to do if protection is triggered?

Set the I/O switch to O, unplug the power cord, wait a few minutes, plug back in and turn on. Check the operation of the fans. If the problem persists, contact technical support.

What type of power cord to use with CordGuard?

Use only the A.C. power cord provided with the ENERMAX power supply, compatible with CordGuard. Other cables may be incompatible.

Can I use other modular cables than those provided?

No, use only the ENERMAX-certified modular cables provided with the power supply. Other cables could damage the power supply and void the warranty.

How to disconnect a modular cable?

Press both safety latches of the connector and gently pull to remove the cable from the power supply socket.

What UPS capacity to choose for this power supply?

For a 450 W power supply, a suggested minimum capacity is about 600 W / 1000 VA. Adjust based on other connected peripherals.

How to configure the CPU connectors for a standard motherboard?

Use the 4+4-pin connector in split mode for a single CPU motherboard. Connect only the part marked '12V' to the 4-pin connector on the motherboard.

What are the installation precautions?

Do not place the system near a source of heat, moisture, or vibrations. Ensure adequate ventilation. Use a suitable electrical outlet. Unplug the power supply before any manipulation.

USER MANUAL EMA2V4550 ENERMAX

Only a technician, authorized by ENERMAX, is allowed to perform maintenance service! Warranty is subject to void under unauthorized attempt to open the power case or modification of any kinds, even attempted only, of the power supply or its components!

ENERMAX will not be responsible for damages caused by following situations:

• Opening of the PSU case and/or modification of any component or cable without ENERMAX's written authorization.
• Ignoring connector's wrong insertion prevention design by attaching a connector to a device in wrong orientation.
• Connecting too many devices to one cable unit by using additional adaptor (Y cables).
  Usage of non-genuine ENERMAX modular cables.
  The serial number label or warranty seal is defaced, modified, or removed.
• Damage caused by natural phenomena or uncontrollable forces, such as lightning, flooding, fire, earthquake, etc.

This ENERMAX Technology Corporation product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of purchase. ENERMAX Technology Corporation agrees to repair or replace the product, at its own option and at no charge, if, during the warranty period, it is returned to nearest ENERMAX Technology Corporation subsidiary/agent with all shipping charges prepaid and bearing a return merchandise authorization (RMA) number, and if inspection reveals that the product is defective. Charges for removing or installing the product are excluded under the terms of this warranty agreement. This warranty shall not apply to any product, which has been subject to connection to a faulty power source, alteration, negligence, or accident, or to any product, which has been installed other than in accordance with these instructions. In no event shall ENERMAX Technology Corporation, or its subsidiaries, or agents be liable for damages for a breach of warranty in an amount exceeding the purchase price of this product!

If you are uncertain whether or not your ENERMAX PSU is defective, please contact your dealer/reseller for support!

Web Site: http://www.enermax.com

E-mail: [e-mail]

Forum: forum.enermax.com

ENERMAX Technology Corporation, 15F-2, No. 888, Jing-Guo Road, Taoyuan City (330), Taiwan (R.O.C.), Tel. [phone], Fax. [phone]

©2011 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual product and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others. Reproduction in any manner without the written permission of ENERMAX is strictly forbidden.

ENERMAX REVOLUTION87+ Series Power Supply Specification

	ERV550AWT-G		ERV650AWT-G		ERV750AWT-G		ERV850EWT-G		ERV1000EWT-G
AC Input Voltage	100-240VAC, 50-60Hz								115-240VAC, 50-60Hz
AC Input Current	7.5 - 3A		8.5 - 3.5A		9 - 4.5A		11 - 5A		11 - 5A
DC OUTPUT
	Rated	Combined	Rated	Combined	Rated	Combined	Rated	Combined	Rated	Combined
3.3V	0-24A	120W	0-24A	120W	0-24A	120W	0-24A	120W	0-24A	120W
5V	0-24A		0-24A		0-24A		0-24A		0-24A
12V1	0-25A	540W (45A)	0-25A	648W (54A)	0-25A	744W (62A)	0-30A	840W (70A)	0-30A	996W (83A)
12V2	0-25A		0-25A		0-25A		0-30A		0-30A
12V3	0-25A		0-25A		0-25A		0-30A		0-30A
12V4	-	-	-	-	0-25A		0-30A		0-30A
-12V	0-0.5A	6W	0-0.5A	6W	0-0.5A	6W	0-0.5A	6W	0-0.5A	6W
5Vsb	0-3A	15W	0-3A	15W	0-3A	15W	0-3A	15W	0-3A	15W
Total Power	550W		650W		750W		850W		1000W
Peak Power*	605W		715W		825W		935W		1100W
PROTECTION CIRCUIT
Over Current Protection	DC Rail		OCP trigger range
	3.3V		30 - 40A
	5V		30 - 40A
	12V		30 - 40A (ERV550AWT-G / ERV650AWT-G) 35 - 45A (ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)
Over Voltage Protection	DC Rail		OVP trigger range
	3.3V		3.7 - 4.1V
	5V		5.7 - 6.5V
	12V		13.1 - 14.5V
(DC)Under Voltage Protection	DC Rail		UVP trigger range
	3.3V		2.0 - 2.4V
	5V		3.3 - 3.7V
	12V		8.5 - 9.5V
Over Power Protection	Activated when output power > 120 ~ 150% of rated max load.
Over Temperature Protection	Activated when PSU heat sink > 90 ~ 120°C.
Short Circuit Protection	Activated when any DC rails short-circuited.
ENVIRONMENT
Temperature	Operation ambient: 0~50°C (for full rated output) Storage: ambient: -40~70°C
Humidity	Operation: to 85% relative humidity, non-condensing Storage: to 95% relative humidity, non-condensing
OTHERS
Cooling	One 13.9cm twist bearing fan, speed auto controlled.
MTBF	> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25°C (MIL-HDBK-217F standard)
Dimension	150(w) x 86(h) x 160(d) mm (ERV550AWT-G / ERV650AWT-G) 150(w) x 86(h) x 175(d) mm (ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)
Weight	2kg (without modular cables)±50g (ERV550AWT-G / ERV650AWT-G) 2.9kg(without modular cables)±50g (ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)
Safety	UL/cUL(Level 6), TUV, GOST, CB, BSMI
EMC	CE, FCC, KCC

• Peak power may last up to 60 seconds

User's Manual

Dear customer,

Thank you for choosing this ENERMAX power supply unit (PSU)! Please read this manual carefully and follow its instructions before installing the PSU.

We would like to draw your attention that a computer required very specific conditions to work best for you without failing. To avoid failures and to increase lifetime of the system, we suggest that:

• Your system is NOT located near a radiator or any other heat producing device
• Your system is NOT located near a magnetic device
• Your system is NOT located in a moist and/or dusty and/or vibrating environment
• Your system is NOT exposed to direct sunshine
• Your system is sufficiently cooled by additional fans
• If you use AC extension cables, please make sure it can support all connected appliances' potential peak power draw. Or redistribute other high power consumption equipment, such as laser printers or monitors to other AC wall outlets. Exceeding the extension cable's loading capacity could trigger its circuit breaker and cut off the power.
• If you want to add the UPS (Uninterruptible Power Supply) for your system, please choose adequate Watts/VA capacity UPS.

Ex.

PSU Model	Suggested minimum UPS output power capacity (Based on efficiency & PFC at respective load)
ERV550AWT-G	600W / 1000VA
ERV650AWT-G	700W / 1100VA
ERV750AWT-G	900W / 1400VA
ERV850EWT-G	1000W / 1400VA
ERV1000EWT-G	1100W / 1600VA

• If you intend to add other appliance powered by the same UPS, such as monitor or printer, please use higher capacity UPS according to all connected devices' rated power draw.
• Please do not mistake VA capacity as Watts, or use insufficient power UPS. This would result in less UPS battery runtime or the inability to power the system in battery mode.

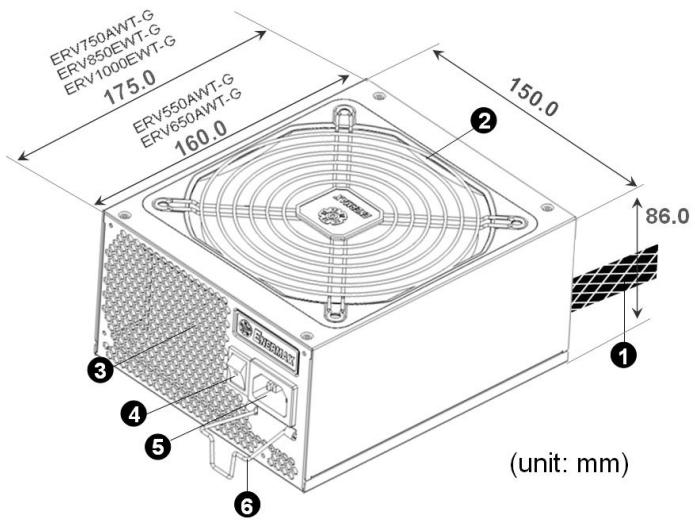

① Output cable: Please check "Cables & Connectors" section.
② Fan. #1
③ Honeycomb air vent.
④ ON/OFF switch (I=ON, O=OFF). #2
⑤ AC Inlet. #2
(6) CordGuard. #3

1 To ensure best system cooling, do not block PSU fan's air in-take and air vent area.

This PSU offers a special HeatGuard function. When the system is turned off, or goes into ACPI S3/S4 sleep mode, the PSU fan will keep dissipating the remaining heat for 30 60 seconds and prolonging system lifetime.

2 When assembling or maintaining the system, please remove AC cord from AC inlet, or turn ON/OFF switch into "OFF" position. Then you can safely service the system.

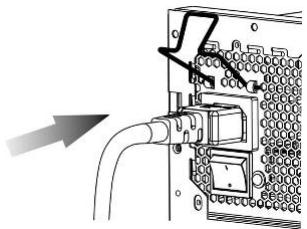

3 AC cord can get loose in many ways. The ENERMAX CordGuard lock can fix your AC cord tightly to the PSU, so that it will not be easily detached and avoid shut-downs of your PC. The following is CordGuard installation:

① Set your PSU into the chassis, and please make sure the I/O switch is on “O” position.

② Press two sides of the CordGuard lock together, and set it into

CordGuard holder near the AC inlet.

③ Plug the AC cord into your PSU.

④ Lock CordGuard to latch onto AC cord.

1. CordGuard is for AC cords supplied with ENERMAX CordGuard-compatible PSUs. Other AC cords may be incompatible.
2. When assembling or maintaining the system, please remove AC cord from AC inlet, or turn I/O switch into "O" position.

CABLES & CONNECTORS

All connectors are designed to prevent insertion in wrong orientation. If you cannot easily insert a connector, please check if you are inserting the connector in the right orientation. Do not try by force to insert it nor modify the connectors. This might damage power supply and system components, and warranty shall be void.

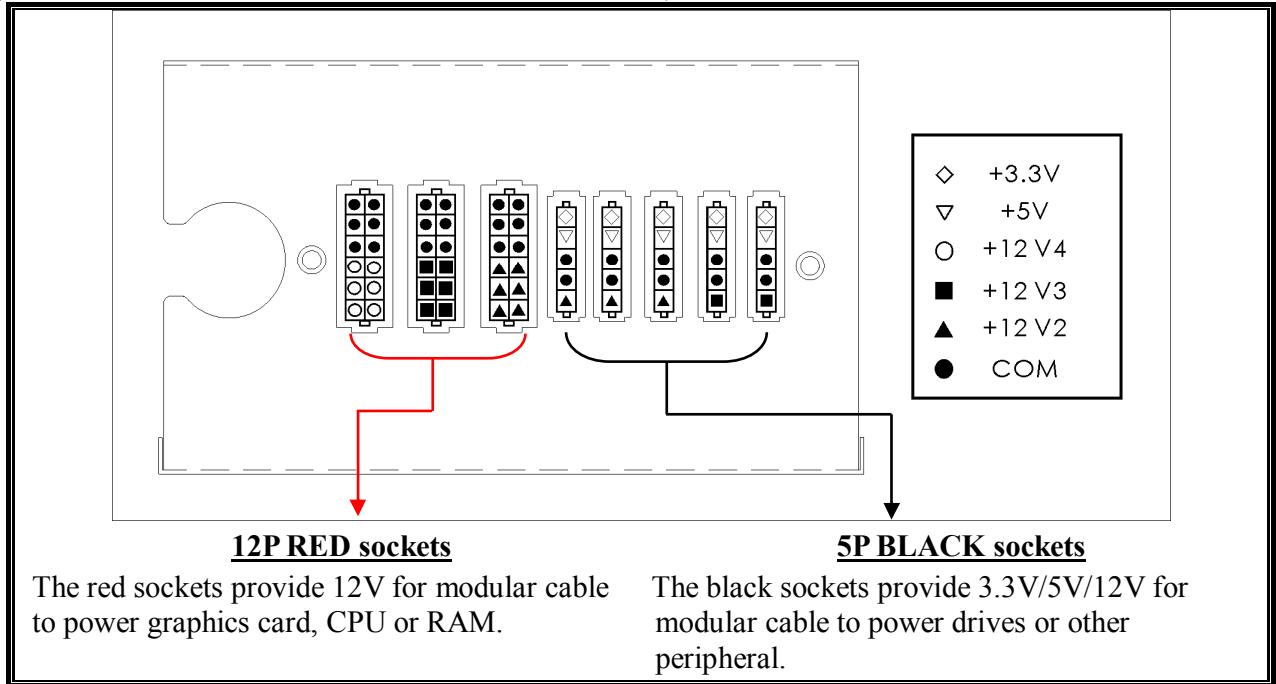

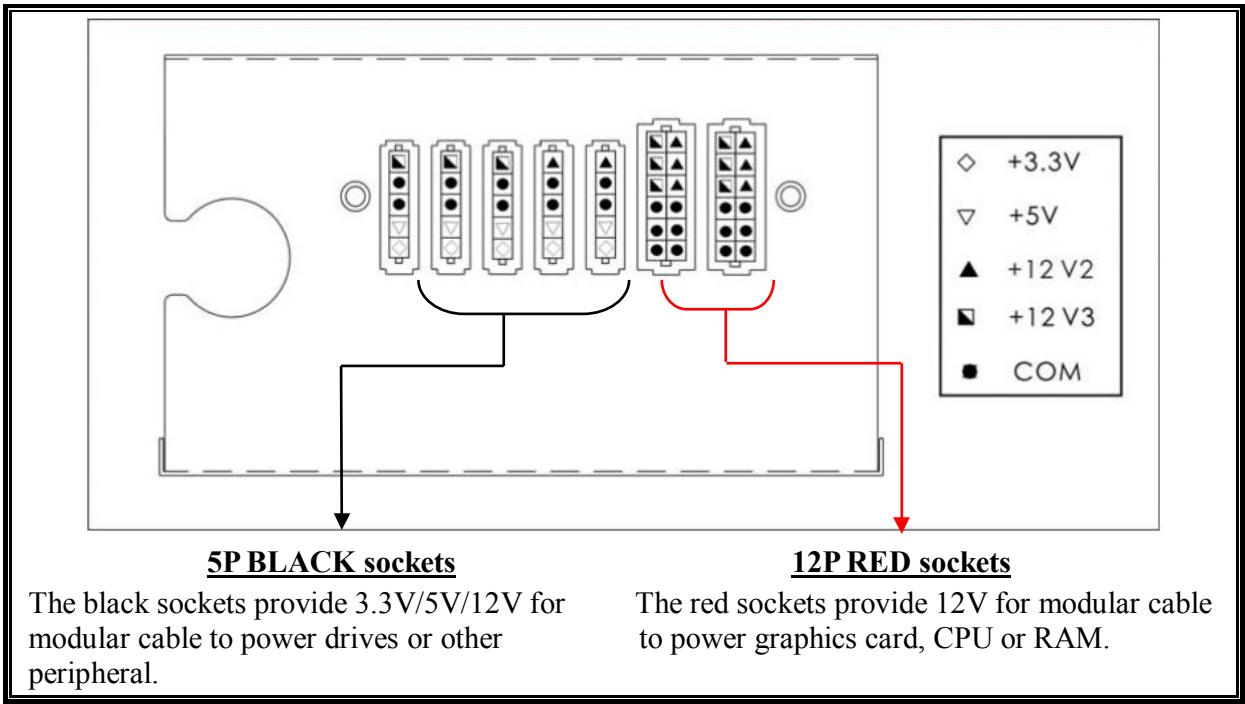

Following graphic illustrates the modular sockets layout and its DC rail distribution.

(ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)

• This product incorporates multiple 12V rails over current protection. If you let many peripherals consume the power on only one 12V rail, it may trigger the over current protection and shut down the system. Please re-direct certain peripheral power cable to other 12V rail to share the current loading to ensure highest stability and safety.

	24P Mainboard For new generations of ATX/EEB/CEB server/workstation MB.
	8P CPU +12V Native cable, 12V rail supplied by 12V1 (750/850/1000W) 8-pin configuration supports multi-CPU server/workstation systems and some single extreme CPU systems.
	4+4P(8P) CPU+12V, in combined mode Native cable, 12V rail supplied by 12V1 8-pin configuration supports multi-CPU server/workstation systems and some single extreme CPU systems.
	4+4P(8P) CPU+12V, in split mode Native cable, 12V rail supplied by 12V1 4-pin configuration supports certain single CPU systems. Some multi-CPU workstation/server system might also need this extra 4-pin 12V connector. Please use the connector with “12V” marking.
	6+2P (8P) PCI Express, in combined mode 12V rail supplied by 12V4 on native cables (850/1000W) 8-pin configuration supports latest extreme graphic cards, which require 8-pin PCI-E connector.
	6+2P (8P) PCI Express, in split mode / 6P PCI Express 12V rail supplied by 12V4 on native cables (850/1000W) 6-pin configuration supports most performance PCI-E graphic cards, which require 6-pin PCI-E connector.
	SATA #1 For SATA/SAS drives.
	4P Molex #2 For IDE/SCSI/SAS drives or some AGP graphic card with traditional 4P power in socket.
	FDD For floppy drive or certain add-on card.

1 Some SATA drives might accept SATA or 4P Molex power. Normally, use either one of power connector to power the driver, BUT NOT BOTH! Please check the drive's manual for details.
2 Some MB might require this connector to share the +12V current from 24-pin Mainboard connector to PCI-E slot. If your system has multiple extreme graphic cards, please plug this connector to MB correspond socket and check the MB's manual for details.

- MODULAR CABLES SUPPLIED

Use ONLY genuine ENERMAX modular cables coming with ENERMAX PSU. Third party cables might not be compatible and might cause damage to your PSU and/or system, and use of third party cable shall void PSU warranty.

EMC014-G: 2 x 6+2P (8P) PCI-E 2.0 Modular cable for 1 or 2 performance PCI Express graphic cards, which needs 6P or 8P PCI-E connector.

EMC019-G: 4 x SATA drives Modular cable for SATA/SAS drives like ODD and HDD.

EMC020-G: 4 x 4P Molex (IDE/SCSI) drives & 1 x FDD connector Modular cable for IDE/SCSI/SAS drives and peripheral, plus 1 FDD power connector.

EMC021-G: 2 x SATA & 2 x 4P Molex Modular cable for SATA/SAS/IDE/SCSI drives and other peripherals.

Special note for System Integrators: If your system requires special modular cable configuration or design, please contact an ENERMAX sales representative.

	Attaching the modular cable to PSU 5-pin / 12-pin connector on modular cable and PSU's modular socket has an arrow mark. To make correct connection is easy: 1. Black connector to black socket, and red to red. 2. Arrow mark to arrow mark. 3. Then you can easily plug in the connector.
	Detaching the modular cable from PSU 5-pin / 12-pin connector on modular cable has two hooks to lock with the PSU's modular sockets. When unplug the modular cable from PSU, please press two hooks together and gently pull out the cable.

BOOTING YOUR SYSTEM

Before booting your system, please check that:

1. Main power connector (24P) is properly connected.
2. CPU +12V power connector (4 or 8P configuration), and/or a 4P Molex connector (if required by MB) is properly connected.
3. All other needed connectors are properly connected.
4. AC cord is properly connected to wall outlet and PSU AC inlet.
5. Close your system chassis.
6. Turn on the PSU by switching the ON/OFF switch to "ON", and your system is ready.

PROTECTION, SAFETY & SECURITY

This ENERMAX PSU features multiple protections. In case of most abnormal situations, the power supply will automatically turn off to avoid potential danger to itself and other PC components. It is usually a malfunction of components or user's negligence to trigger off a protection event. In such circumstance, please check your PC devices and working environment for malfunction:

1. Turn I/O switch of power supply into "O" position, or disconnect AC cord from wall plug and power supply AC inlet.
2. Check PSU for temperature by simply touching it. If it is very hot, this can be caused by malfunction of case fans or the PSU fan itself and/or wrong positioning of your PC.
3. Wait some minutes until PSU cools off.
4. Reconnect AC cord to wall plug and power supply AC inlet.
5. Turn I/O switch of power supply into "I" position, and reboot your system.
6. Check, if all fans are working.
7. Contact technical support of the respective manufacturer of the component which you think might be the cause to the problem. (e.g. MB, GPU or PSU)

If you have any question or need support, please contact your reseller or nearest ENERMAX subsidiary/agent or ENERMAX headquarters service center.

Benutzerhandbuch

3AIIHTA, MEPbI IPEIOCTOPOXHOCTH IIIPABUNIA TEXHNK INE3OIACHOCTH

bI ENERMAX ochaiueh HeCKoJIbKIMn cpeCTBaAMn 3aIHTbI. B 6OJIbIIHHCTBe aHOMaJIbHbIX cHTyaIIN bIOK IITaHna ABToMaTHUeCKN BbIKJIHOaETcra IIЯ IpeIoTbPaIeHn IOBpeJKeHnB bI IN dpyTHX KOMIOHeTOB PIK. 3aIHTa O6bIuHO cpaTaIBaer BCJIeCTBHe HEnCIIpaBHOCTN KOMIOHeTOB IIK IJIH He6peKHOCTH IoiJIb3OBAteJIeB. B TaKoI cHTyaIIN IpoBepbTe NcIIpaBHOCTb yCTpOietB IIK n ycIOBnA 3KCIJIyataIIN.

1. OTKJIIOHTHe IINTaHHe BII, IIepeBdIy BbIKJIOUaTeJIb B IOJIIOKeHne «O», HJIN OTcoEiHHNb Ka6JIb IIepeMeHHoro TOka OT 3JIeKtprueckoI po3ETKn I BXODHOrO rHe3Ja IIepeMeHHoro TOka BII.
2. Пюоверы TeMпьатуpy BП, ИрнкocHyBинсь K HeMy. Иреть BП может 6ыт bВi3BaH HeNcIIpaBHO BeHTnJIaTOpOB KOpIyca IIK nJIn BeHTnJIaTopa BП, JIN6O HeIIpaBnJIbHBiM pa3MeIeHHeM IIK.
3. IIOJOKJIte HeCKOJIbKO MmHyT, IOKa BII He oCTbIHET.
   4.Полсоeингte Ka6eЛь ПеременHorO ToKa K 3JIeKtpnueckoу po3etke И К BXODHOMy ГHe3dY ПеременHorO ToKa BII.
4. IpebeIte BbIKIOHaeJIb BI IN IOIOKeHne «I» II BbIIIOJIHNTE Ipee3aIpy3Ky cNCTeMbI.
5. IpoBepbTe pa6oTocOc6Hocb cHCTeMbI.
6. O6paHTTeCb B CJIyK6y TexHnueckOI IOJIePJKN IpoH3BOJNTeJI KOMIOHeHTa, KOtOpbI, BO3MOJHO, BbI3bIBAeT IIpo6JIeMy, HApIpIMep MaTePHNcKo IIJaIbI, rpaΦnueckOIIaTbI NII BII.

C BOIIPOcAMH 3a IIOJIePJKKoI O6paIIaITeCb K MeCTHOMy IIpoIaBcy HJIN B 6JIHKaIIHIN HJHaJI HJIN B IIpeIcTaBHTeJIbCTBO ENERMAX, JIn60 B rOJIoBHOI cepBnCHbI ζeHTp ENERMAX.
