As a stove of construction type 1, it is possible to connect it to the flue pipe of an existing other stove or another furnace for solid and liquid fuels, as long as the chimney does complies with DIN 4705,

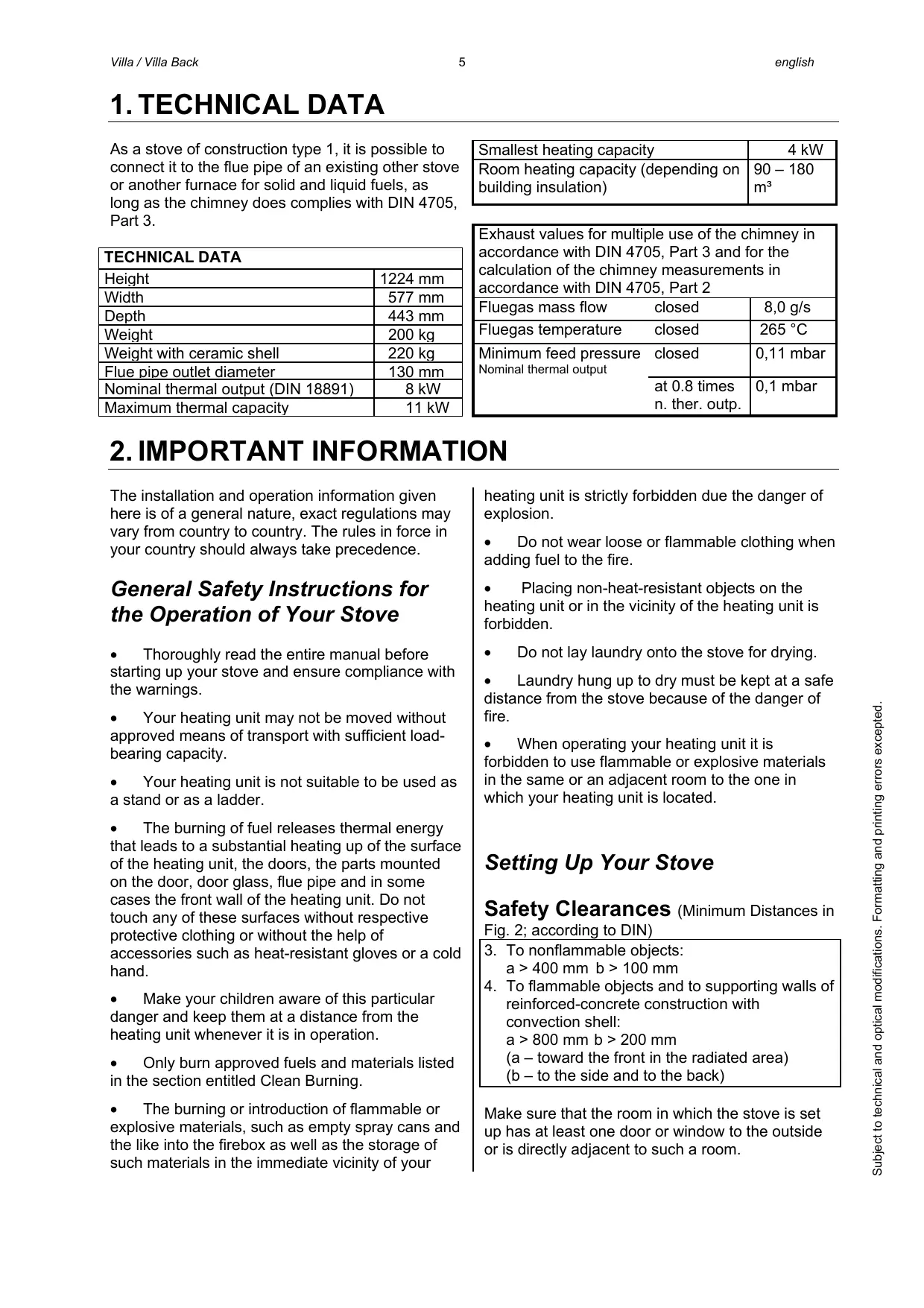

TECHNICAL DATA Height Width Depth Weight Weight with ceramic shell Flue pipe outlet diameter Nominal thermal output (DIN 18891) Maximum thermal capacity 1224 mm 577 mm 443 mm 200 kg 220 kg 130 mm 8 kW 11 kW Smallest heating capacity 4 kW Room heating capacity (depending on 90 – 180 building insulation) Exhaust values for multiple use of the chimney in accordance with DIN 4705, Part 3 and for the calculation of the chimney measurements in accordance with DIN 4705, Part 2 Fluegas mass flow closed 8,0 g/s Fluegas temperature closed 265 °C Minimum feed pressure closed 0,11 mbar Nominal thermal output at 0.8 times 0,1 mbar n. ther. outp.

2. IMPORTANT INFORMATION

The installation and operation information given here is of a general nature, exact regulations may vary from country to country. The rules in force in your country should always take precedence. heating unit is strictly forbidden due the danger of explosion. General Safety Instructions for the Operation of Your Stove

Placing non-heat-resistant objects on the heating unit or in the vicinity of the heating unit is forbidden.

Thoroughly read the entire manual before starting up your stove and ensure compliance with the warnings.

Your heating unit is not suitable to be used as a stand or as a ladder. The burning of fuel releases thermal energy that leads to a substantial heating up of the surface of the heating unit, the doors, the parts mounted on the door, door glass, flue pipe and in some cases the front wall of the heating unit. Do not touch any of these surfaces without respective protective clothing or without the help of accessories such as heat-resistant gloves or a cold hand. Make your children aware of this particular danger and keep them at a distance from the heating unit whenever it is in operation. Only burn approved fuels and materials listed in the section entitled Clean Burning. The burning or introduction of flammable or explosive materials, such as empty spray cans and the like into the firebox as well as the storage of such materials in the immediate vicinity of your Do not lay laundry onto the stove for drying.

Laundry hung up to dry must be kept at a safe distance from the stove because of the danger of fire. When operating your heating unit it is forbidden to use flammable or explosive materials in the same or an adjacent room to the one in which your heating unit is located. Setting Up Your Stove Safety Clearances (Minimum Distances in Fig. 2; according to DIN)

3. To nonflammable objects:

a > 400 mm b > 100 mm

4. To flammable objects and to supporting walls of

reinforced-concrete construction with convection shell: a > 800 mm b > 200 mm (a – toward the front in the radiated area) (b – to the side and to the back) Make sure that the room in which the stove is set up has at least one door or window to the outside or is directly adjacent to such a room. Subject to technical and optical modifications. Formatting and printing errors excepted.

Your heating unit may not be moved without approved means of transport with sufficient loadbearing capacity.

Do not wear loose or flammable clothing when adding fuel to the fire. english

Villa / Villa Back Floor Load Capacity Stovepipe Connection Before the heating unit is installed, make sure that the load capacity of the supporting construction is sufficient to carry the weight of the entire unit. For your own safety stringent laws apply to the connecting of the stovepipe to the chimney. Your professional dealer or distributor knows these laws. Please have your certified retailer carry out the connection of your stove.

3. CORRECT OPERATION OF YOUR STOVE

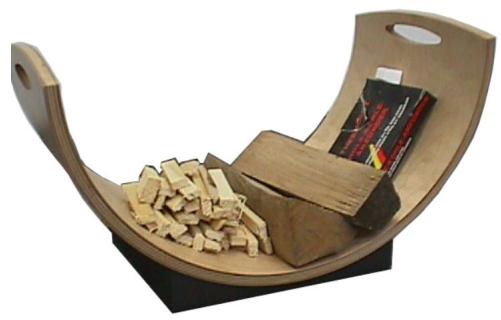

Initial startup of your stove wood. Figure 1 provides a good overview of the materials you will need. Your stove was treated with a special environmentally friendly lacquer. The lacquer surface is still soft at the time the stove is shipped. The lacquer will harden when your stove is used for the first time. The lacquer surface may not be touched when it is heated for the first time. The stove must be initially heated to a high temperature for at least 1.5 hours. Visible vapors may appear during the hardening of the lacquer. For this reason it will be necessary to open windows during initial operation in order let the vapors escape into the outdoors. PLEASE TAKE NOTE: It takes several heating sessions before for your stove releases only the pleasant smell of burning wood. Open the primary and secondary air all the way. Move both sliders. See Figure 2. Approved Fuels Dry, well cured and natural wood, wood briquettes, brown-coal briquettes. Maximum Amount of Fuel max. amount of fuel primary air secondary air Figure 3: Heating Material Wood logs 1,8 kg closed ½ open Open the stove door. Lay uncoated paper on the floor of the firebox. Lay soft wood chips onto the paper. Lay one or two logs of wood on the wood chips. Wood briquettes

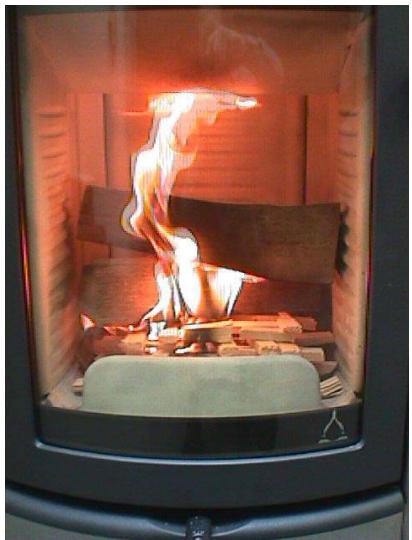

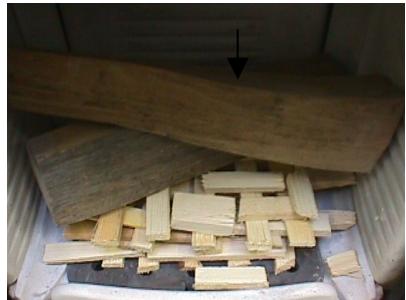

open ¼ open Larger amounts of fuel can lead to overheating and thus damage the stove. Clean Burning The wood must be dry (relative wood moisture < 15%) and untreated and the right amount of wood must be burned in order to ensure a clean fire that releases only small amounts of emissions. Figure 4: Igniting the Fire Light the paper. Close the firebox. As soon as the chips are burning well, close the primary air supply. Prepare everything you need for starting the fire— soft wood chips, igniter materials (such as Thermohit wood/coal igniter), uncoated paper, symbol figures Making a Fire Villa / Villa Back

english As soon as the wood logs are burning well, you can regulate the heating capacity with the secondary air slider. (Slider set to the maximum (“AUF”) setting produces maximum heat – see Figure 2.) When adding wood to the fire, follow the same procedure as when igniting the fire: Open primary air, open secondary air, carefully open firebox door, lay wood on the fire, close the firebox door. Wait until the added wood catches fire and is burning. Then close the primary air. Subsequently regulate the fire with the secondary air supply. Figure 5: Close the Primary Air

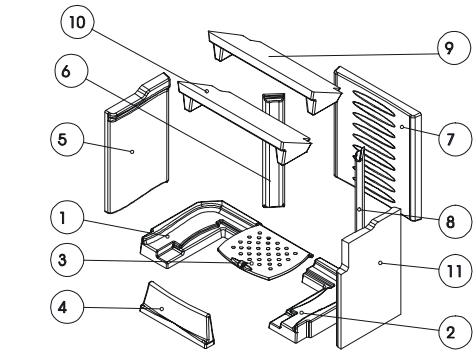

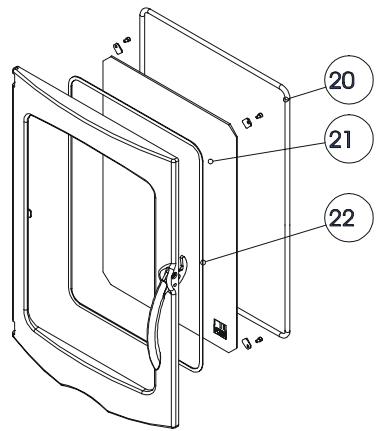

Keramott Description bottom left, keramott bottom right, keramott grate wood retainer, keramott side component left, kermott rear, keramott baffle plate, keramott cornerstone left/right, keramott side component right, keramott Keramott numbering = installation instructions! Other parts Description Villa glass Stove lacquer Wood/coal igniter Glass cleaner ½ litre Accessories You can obtain floor plates of glass or steel, fireplace utensils or care products from your certified dealer. IMPORTANT: Have defective parts replaced by your certified dealer. This will guarantee that your stove functions properly and safely. Maintenance To clean the glass, please use a specialized product such as Thermohit glass cleaner. Lacquered surfaces are to be cleaned only with a cloth (may be damp). Special cleaning agents should also be used for stainless steel surfaces. Villa / Villa Back

5. Villa / Villa Back equipment characteristics

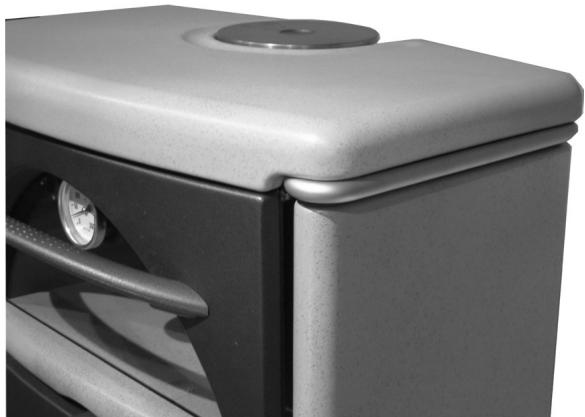

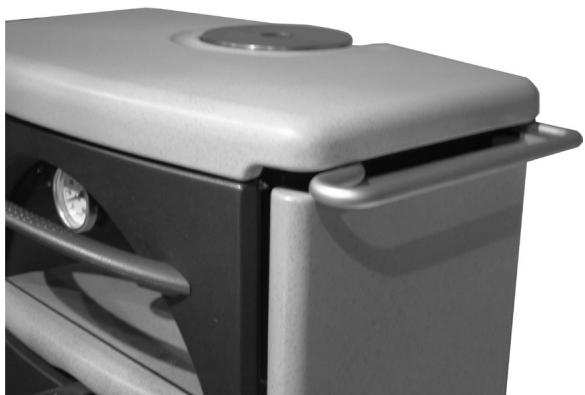

Towel rails Wood compartment Villa / Villa Back have towel rails located to the left and right under the cover plate. These can be pulled out to hang towels, etc. on them. The wood store is located underneath the stove, it can be opened by pulling on the handle.

Warning: when the stove is in use, do not hang

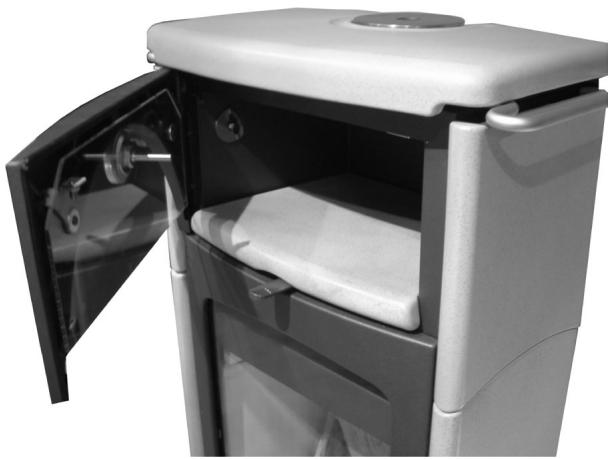

flammable objects on the towel rails! Baking compartment The Villa Back model differs from the Villa model in that it has a fully functional baking compartment This oven is heated on three sides (left, right, back). Tip: to achieve the best cooking results, turn the food being cooked around half-way through the cooking time. The temperature in the oven is controlled by the amount of wood used and the air vent (see above). The actual temperature is displayed on the oven thermometer. Fig. 6: Towel rail Fig. 7: Extended towel rail Fig. 8: View inside oven Clean the interior of the oven in the same way as the other stove components (see above). Avoid greasy vapors as these will lead to contamination that is very hard to remove. Villa / Villa Back

1. Your AUSTROFLAMM stove was installed by

a certified professional and is operated in accordance with the operator’s manual.

2. Claims to the guarantee shall be subject to a

completely filled-out Guarantee Card and submittal of the original invoice issued by a certified AUSTROFLAMM sales agent. WICHTIG: Unsere Garantieleistung umfaßt die IMPORTANT: Our guarantee includes free kostenlose Lieferung der Neuteile. Arbeits- und Wegzeiten werden dadurch nicht umfaßt. Eine ungerechtfertigte Garantieinanspruchnahme wird dem Betreiber rückbelastet. shipping of new components. Work and travel times are not included. Unwarranted claims shall be re-invoiced to the operator. --------------------------------------------------------------------------------------------------------------------------------------Im Garantiefall herausschneiden und Ihrem AUSTROFLAMM-Fachhändler vorlegen! In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer.
