USER MANUAL BFT511MSW BRANDT

FR GUIDE D'UTILISATION

EN INSTRUCTION FOR USE

ES MANUALDEINSTRUCTIONS

AR

Réfrigérateur

Tablo-Top Refrigerator

Frigorífico

4

BFT511MSW

Sommaire

AVANT D'UTILISER VOTRE APPAREIL 2

TRANSPORT ET DEPLACEMENT 11

TRANSPORT ET DEPLACEMENT

Old and out-of-order fridges 19

Safety warnings 19

Installing and operating your fridge 20

Before Using your Fridge 21

THE VARIOUS FUNCTION AND POSSIBILITIES 21

Thermostat Setting 21

Accessories 22

"Door Open" Indicator; 22

Making Ice cubes; 22

CLEANING AND MAINTENANCE 23

Defrosting 24

Replacing The Light Bulb 25

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 25

Repositioning the door 25

BEFORE CALLING YOUR AFTER SALES SERVICE 26

Tips For Saving Energy 27

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 28

PART-1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments

• farm houses and by clients in hotels, motels and other residential type environments

• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

The symbol on the product or on its packaging indicates that This product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where you purchased the product. These instructions are only valid in the EU member states.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

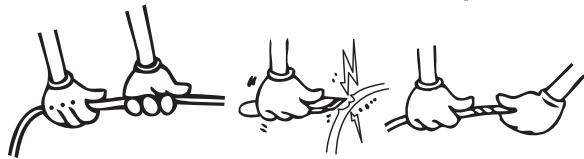

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!
• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
  Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220 - 240V at 50Hz .
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50~cm away from stoves, Gas ovens and heater cores, and should be at least 5cm away from electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15cm is available on the upper side.
• The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART-2. THE VARIOUS FUNCTION AND POSSIBILITIES

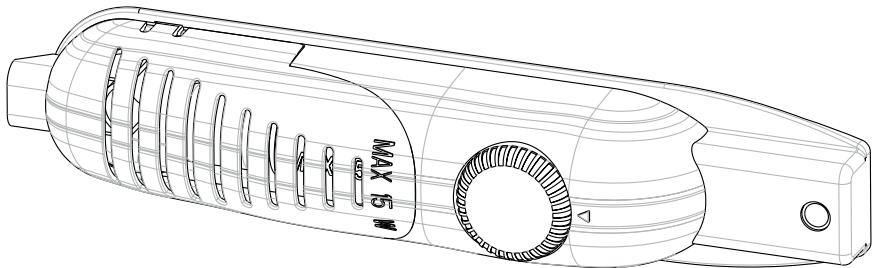

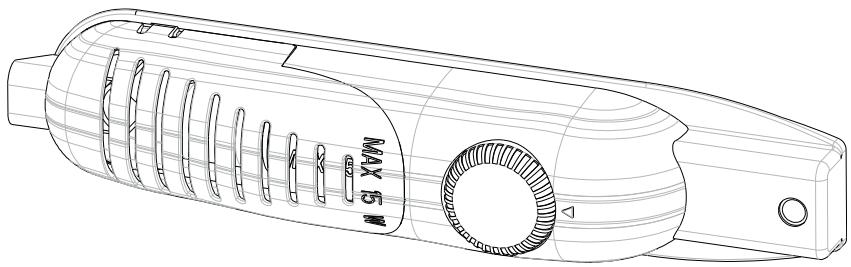

Thermostat Setting

Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1. to 5., colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

• For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.(1-3)
• For long-term storage of food in the freezer compartment, you can set knop medium position.(3-4)

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.
• The freezer of the refrigerator can cool up to -12^ C .

Accessories

"Door Open" Indicator;

• The « Door Open » indicator on the handle shows whether the door has closed properly or whether it is still open.
• If the indicator is red, the door is still open.
• If the indicator is white, the door is properly closed.
• Observe that the freezer's door should always be kept closed. This will prevent food products from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

Making Ice cubes;

Ice tray ;

• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

PART-3. CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the washing machine.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

• You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Defrosting

For cooler compartment ;

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 12 glass of the water to drain hole to clean inside.

For freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

• The day before you defrost, set the thermostat dial to 5. position to freeze the foods completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Switch the refrigerator off at the socket outlet and pull the main plug
• Leave the door open and to accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.
• Dry the inside of the unit and water tray, refit the tray plug and set the thermostat knob to 5 position.

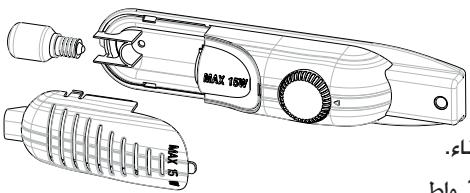

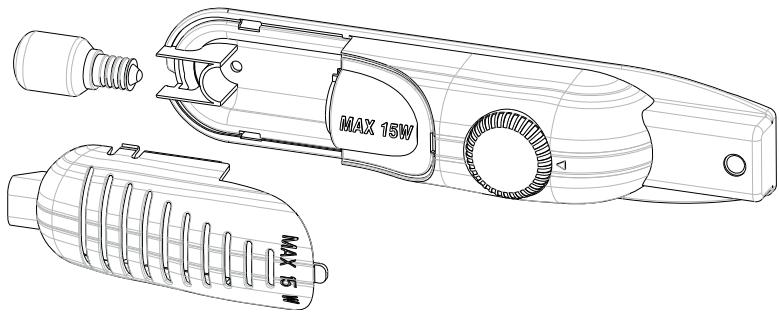

Replacing The Light Bulb

When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

PART-4.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old installation position, all the moving objects (ie, shelves, crisper...) should be taken out or fixed with bands in order to prevent the shake.

Repositioning the door

• It is not possible to change the opening direction of your refrigerator door, if the door handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your refrigerator may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART- 5. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate;

Check that ;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on "·" position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
• The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well leveled ,
• Nothing is touching the rear,
• The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (℃)
T	Between 16 and 43 (℃)
ST	Between 16 and 38 (℃)
N	Between 16 and 32 (℃)
SN	Between 10 and 32 (℃)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to weather the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays) set to thermostat knob to "·" position. Defrost and clean the refrigerator leaving the door open to prevent the formation of midew and smell.

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16^ - 43^ range.
• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips For Saving Energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

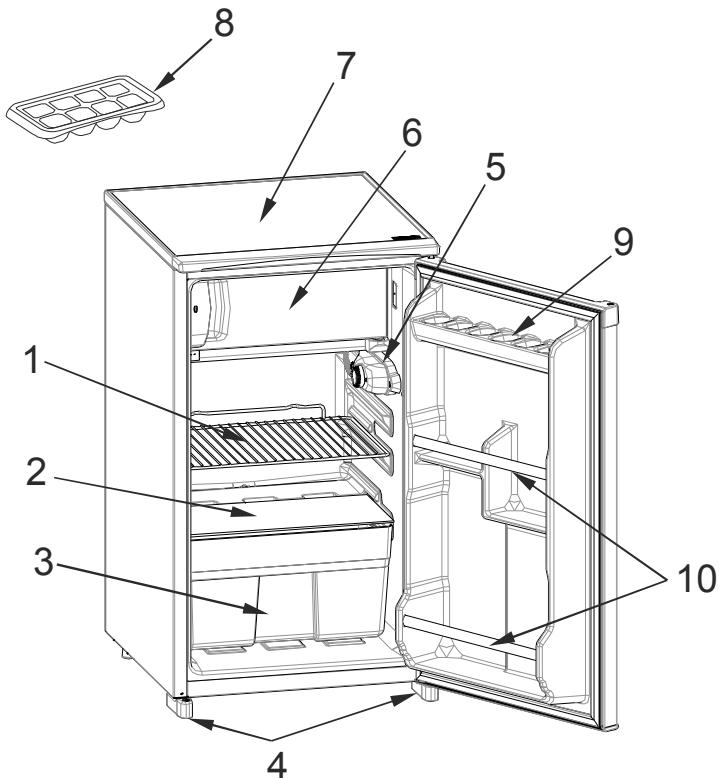

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) REFRIGERATOR SHELF
2) CRISPER COVER (SAFETY GLASS -In some models-)
3) CRISPER
4) LEVELING FEET
5) THERMOSTAT BOX
6) FREEZER COMPARTMENT
7) TOP TABLE
8) ICE TRAY
9) EGG SHELF
10) BOTTLE SHELF

Índice

ANTES DE USAR EL FRIGORÍFICO 30

aJIc aIb pluIswu 21g (JU JGLJg.

.2

g aclw gaw aonll palell ayail l 1 .aill aee aeil aonll palell yigic .3

aIbU, aIe aie 1001 ploJI gog bI. aIbU Jgag aIe IJ .gog Lioic yI O

aaii jai. Jaoi iag 1jai jai jai aig ayg w 2g .lgaiia iagai gai gai gic .4

jIgagSJJb> gcluUcIg

aic 2020 jgljg jLg jLg g g g g .5

jLgA1y aaleo alei 0yJy aie yIc bIe .6

（）

.7

sill jzjg jll .

a jll a 50

j1j jyjglgagajgagajgagjglj

g 1000

JJIJI 1000000000

a a a a a a a a a a a a a a a a a a a a a a a a

（）

aaii aiee eao gaofoia fioia i jiuwic

aBbJI bIO eo oOgJ Ioo.1

.111 111 111 111 111 111 111 111 111 111 1

15 100

LJI 5,4

(1t 127, lt 91 gjzg) : "Cgga

Lalzolil jslglw waw alg csggll 《cgoa JLL

LgjJlLo

LgfoJl Jlaa Jla 15 1

15 Lg 10 J11

1iio 1jaiwL iio (jirj) 205 jgS

（jrr）

aLJI 1gJw J aJgJwJzJzJg

Cii Cuaa Jus

1

.（juyj）a a

Jgss Jgss 10s Jgss Jgss Jgss

·

yaiy g aiee all 1j

f_1 2,3,4

Jgdo piaiwl 5jgo Jcii (jjai) 2a1g dojil gaww a bji

JLJI sLIg ggsGdJI Lgys

aIuwJg Lgaihj x.ogLalJg stll plsiuLy Jauio Jsui: Iaunl ahi

sL .abill J. gJlJI 111

gjSj jLalJI Jooj aJbll Jloc Jlo5i sic .aie: gabbi

做功

aalb1 ygjg Jg jy 1c yjyo auiSll piaiwl yaiSll bai

a.LiJy aLjg

1 5 1

g 2g g 11 11

j 1-3)

gll lcll b. (juy) aal g algb 1aeb jy J L oI .(3-4)

Jus jolgo Jc aclw 24 oJg11 Joo j Jg11 Joo

.aaolio auiia aLac Jgauuui iJxSjOjIi

j11 111 aeb21 j0 51 g 111 2. yaiia

5 1g 1 g

afo afo plaoi wlo 1000000000000000000000000000000

.

j 50 2 L

5 5

Jall 3 Lg5j j g j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

J 1 J 1 J 1 J 1 J 1 J 1 J 1

1a 1j g. (wSLell oLg2I g) aCLlJI wLc oLsLgJbJL JdJzJI bJzJI cLsc .aLwg

aLiJy ploJIg

LgSj no aLo5 aaLc gaj jai jai slly sjz zcc aJil plnuiu

LgSloJg 1s g2g. gabg aabllol.Lgahn o

90 aJ,1jL jz 2e (aIbI bIgW bIyBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBn

.1531 1531 no a.sll gil JSL

a

g LgLgog LcLw 3 oal g j g a Jl j. lgai jg Jg Lg iui

. 111111111111111111111111111

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

JaaillgddgjjLSSlUJ 10

wio jg. oJg Jjll g 2! aolssu wJc8g.Jjll g aoasusu 2 jglf1 lao,

LiiSsi jg jgl Jl aJ 1sI JpI pI I Jio JIO Wgog .jilil gJgJll pI sIu

.

wLio yg. aqelj jyj / yjil kai wLio gog jjill ge oohsiw jglf lio e i

jlll jlll jllgfoo ooc liss. aoeb21 gil gil gil gil gil

aJL31xL31

a

.111111 1

aalgl aagaaalgl aaiJgSJI JSLJ Lggi 20

JLLJg

JLLjIgJgLJIJIbUcunxJSLpIiWJgI11a

1aag5 aaeaaegal allo ygSlll lal

aJell lgl Jg Jg jj g jg jg jg jg jg jg jg jg jg jg jg jg jg

aui iill uol g. cioiui jie Jleuul alte g oia sgo 2

LgALP<=>goa>LIJIggaas gLw,aaLLcLgS

gj gil jg 100000000000000000000000000000000000000000000

Jg1j 20

1jzai 1

aill Jio aus JSLuo liu yue .gjiy jaojglwll oclp qai 2

1
