USER MANUAL LV-7292A CANON

MULTIMEDIA PROJECTOR

LV-7292A/LV-7297A

LV-7298A/LV-7392A

LV-7393A/LV-8227A

LV-7292M/LV-7297M

LV-8227M

EXPAND SERIAL COMMAND

FUNCTIONAL SPECIFICATIONS

Revision 1

Overview 1

Serial Interface Specification 2

2.1 Transfer Specification 2
2.2 Connection 2

Notes for communication 3

Name Definition 4

Functional Execution Command Table 5

5.1 Image Command Table.. 5
5.2 PC Adjust Control Command Table 5
5.3 Input Control Command Table 5
5.4 Screen Command Table 6
5.5 Lamp Command Table 6
5.6 Sound Command Table 6

Status Read Command Table 7

6.1 Image Status Read Command Table 7
6.2 PC Adjust Status Read Command Table 7
6.3 Video Status Read Command Table 7
6.4 Input Status Read Command Table 7
6.5 Screen Status Read Command Table 8
6.6 Lamp Status Read Command Table 8
6.7 Sound Status Read Command Table 8
6.8 Setting Status Read Command Table.. 9
6.9 Other Status Read Command 9

Error Code Table 10

Functional Execution Command 11

8.1 Format 11
8.2 Transfer Example 11
8.3 Operation Requirements 11
8.4 Image Command 12

8.4.1 CF_BRIGHT Command 12
8.4.2 CF_CONT Command 12
8.4.3 CF_COLOR Command. 12
8.4.4 CF_TINT Command 12
8.4.5 CF_IRIS Command (n/a LV-7292M/LV-7297M/LV-8227M) 13
8.4.6 CF_SHARP Command 13
8.4.7 CF_GAMMA Command 13
8.4.8 CF_WBAL - Command 14
8.4.9 CF_COLTEMP Command 14
8.4.10 CF_PROGV Command. 14
8.4.11 CF_NZRED Command.. 15
8.4.12 CF_IMAGE Command 15
8.4.13 CF_COLBOARD Command.. 16
8.4.14 CF_IMAGEADJ Command 16
8.5 PC Adjust Control Command 17
8.5.1 CF_FSYNC Command 17

8.5.2 CF_TDOTS Command 17
8.5.3 CF_CLAMP Command 17
8.5.4 CF_H-POS Command 18
8.5.5 CF_V - POS Command 18
8.5.6 CF_DDOTS Command 18
8.5.7 CF_DLINE Command 19
8.5.8 CF_PSTORE Command 19
8.5.9 CF_PCMODEFREE Command 19

8.6 Input Control Command 20

8.6.1 CF_INPUT Command 20
8.6.2 CF_SOURCE Command 20
8.6.3 CF_INPUT1 Command 21
8.6.4 CF_INPUT2 Command 21
8.6.5 CF_INPUT3 Command 21
8.6.6 CF_INPUT_%1_%2 Command 21
8.6.7 CF_SYSTEM Command 22

8.7 Screen Control Command

(LV-7292A/LV-7297A/LV-7298A/LV-7392A/LV-7393A/LV-7297M/LV-7292M)..23

8.7.2 CFSCREEN Command (LV-8227A/8227M) 24
8.7.3 CF_DZCENT Command 24
8.7.4 CF_VSCALE Command 25
8.7.5 CF_VPOS Command 25
8.7.6 CF_HSCALE Command 26
8.7.7 CF_HPOS Command 26
8.7.8 CF_KEYSTONE Command 27
8.7.9 CF_KYSTNMODE Command 27
8.7.10 CF_CEIL Command 27
8.7.11 CF_REAR Command 27
8.7.12 CF_SCREENASPECT Command (LV-8227A/LV-8227M) 28

8.8 Lamp Command 28

8.8.1 CF_LAMPH Command 28
8.8.2 CF_LAMPMODE Command 28

8.9 Sound Command 29

8.9.1 CF_VOLUME Command 29
8.9.2 CF_MUTE Command 29
8.9.3 CF_MIC Command 29
8.9.4 CF MICGAIN Command 29
8.9.5 CF_STANDBYMICOUT Command 30

8.10 Setting Command 30

8.10.1 CF_LANG Command 30
8.10.2 CF_MENUPOSITION Command 30
8.10.3 CF_INPUTSEARCH Command 31
8.10.4 CF_AUTOSETUPPCADJ Command 31
8.10.5 CF_AUTOSETUPKEYSTONE Command 31
8.10.6 CF_AUTOSETUP Command 31
8.10.7 CF.BackGND Command 32
8.10.8 CF_DISP Command 32
8.10.9 CF_LOGO Command 33
8.10.10 CF_HDMISETUP Command 33
8.10.11 CF_HDMISOUNDCommand 33
8.10.12 CF_P-MANE Command 34
8.10.13 CF_P-MANETIME Command 34
8.10.14 CF_ON-STA Command 34
8.10.15 CF_STANDBYMODE Command 34
8.10.16 CF_PTIMEMODE Command 35
8.10.17 CF_PTIMER Command 35
8.10.18 CF_PTIME Command 35
8.10.19 CF_CCPTIONDISP Command 35
8.10.20 CF_CCAPTIONCOLOR Command 36
8.10.21 CF_RCODE Command 36

8.10.22 CF_KEYDIS Command 36
8.10.23 CF_PJPINCODE Command 37
8.10.24 CF_FANMODE Command 37
8.10.25 CF_FANCONTROL Command 37
8.10.26 CF_DELAYCTRL Command 38
8.10.27 CF_FILTIMER Command 38
8.10.28 CF_FILH Command 38
8.10.29 CF_FDEFAULT Command 38

8.11 Other Command 39

8.11.1 CF_KEYENU Command 39
8.11.2 CF_MENU Command 39
8.11.3 CF_POWER Command 39
8.11.4 CF_FREZE Command 40
8.11.5 CF_VMUTE Command 40

Status Read Command 41

9.1 Format 41
9.2 Transfer Example 41
9.3 Operation Condition 41
9.4 I Image Status Read Command 42

9.4.1 CR_BRIGHT Command 42
9.4.2 CR_CONT Command 42
9.4.3 CR_COLOR Command 42
9.4.4 CR_TINT Command 42
9.4.5 CR_IRIS Command (n/a LV-7292M/ LV-7297M/ LV-8227M) 42
9.4.6 CR_SHARP Command 43
9.4.7 CR_GAMMA Command 43
9.4.8 CR_WBAL - R Command 43
9.4.9 CR_WBAL - G Command 43
9.4.10 CR_WBAL-B Command 43
9.4.11 CR_COLTEMP Command 44
9.4.12 CR_NZRED Command 44
9.4.13 CR_PROGV Command 44
9.4.14 CR_IMAGE Command 44
9.4.15 CR_IMGGMD Command 45
9.4.16 CR_COLBOARD Command 45

9.5 PC Adjust Status Read Command 46

9.5.1 CR_FSYNC Command 46
9.5.2 CR_TDOTS Command 46
9.5.3 CR_CLAMP Command 46
9.5.4 CR_H - POS Command 46
9.5.5 CR_V - POS Command 46
9.5.6 CR_DDOTS Command 47
9.5.7 CR_DLINE Command 47
9.5.8 CR_PCSTORE Command 47

9.6 Video Status Read Command 48
9.6.1 CR_SERSYS Command 48

9.7 Input Status Read Command 49

9.7.1 CR_INPUT Command 49
9.7.2 CR_SOURCE Command 49
9.7.3 CR SRCINP1 Command 49
9.7.4 CR SRCINP2 Command 49
9.7.5 CR SRCINP3 Command 49
9.7.6 CR_SYSTEM Command 50
9.7.7 CR_SYSLIST Command 51
9.7.8 CR_MODELIST Command 51

9.8 Screen Status Read Command 52

9.8.1 CRSCREEN Command (LV-7292A/LV-7297A/LV-7298A/LV-7392A/LV-7393A/LV-7297M/LV-7292M) 52

9.8.2 CRSCREEN Command (LV-8227A/LV-8227M) 52
9.8.3 CR_VSCALE Command 52
9.8.4 CR_VPOS Command 53
9.8.5 CR_HSCALE Command 53
9.8.6 CR_HPOS Command 53
9.8.7 CR_KYSTNMODE Command 53
9.8.8 CR_CEIL Command 53
9.8.9 CR_REAR Command 54
9.8.10 CR_SCCREENASPECT Command (LV-8227A/ LV-8227M) 54

9.9 Lamp Status Read Command 55

9.9.1 CR_LAMPREPL Command 55
9.9.2 CR_LAMPH Command 55
9.9.3 CR_LAMPCORRESPH Command 55
9.9.4 CR_LAMPMODE Command 55
9.9.5 CR_LAMPMSTS Command 56
9.9.6 CR_PROJH Command 56
9.9.7 CR_HMLAMP Command 56

9.10 Sound Status Read Command 57

9.10.1 CR_VOLUME Command 57
9.10.2 CR_MUTE Command 57
9.10.3 CR_MIC Command 57
9.10.4 CR_MICGAIN Command 57
9.10.5 CR_STANDBYMICOUT Command 57

9.11 Setting Status Read Command.. 58

9.11.1 CR_LANG Command 58
9.11.2 CR_INPUTSEARCH Command 58
9.11.3 CR_AUTOSETUPPCADJ Command 58
9.11.4 CR_AUTOSETUPKEYSTONE Command.. 59
9.11.5 CR.BackGND Command 59
9.11.6 CR_DISP Command 59
9.11.7 CR_LOGO Command 59
9.11.8 CR_HDMISETUP Command 59
9.11.9 CR_HDMISOUND Command 60
9.11.10 CR_P-MANE Command 60
9.11.11 CR_P-MANETIME Command 60
9.11.12 CR_ON-STA Command 60
9.11.13 CR_STANDBYMODE Command 60
9.11.14 CR_PTIMEMODE Command 61
9.11.15 CR_PTIMER Command 61
9.11.16 CR_PTIME Command 61
9.11.17 CR_CCPTIONDISP Command 61
9.11.18 CR_CCPTIONCOLOR Command 61
9.11.19 CR_RCODE Command 62
9.11.20 CR_SECURITY Command 62
9.11.21 CR_KEYDIS Command 62
9.11.22 CR_PJLOCKNOW Command 62
9.11.23 CR_PJLOCKMENU Command 62
9.11.24 CR_FANMODE Command 63
9.11.25 CR_FANCONTROL Command.. 63
9.11.26 CR_DELAYCTRL Command 63
9.11.27 CR_FILH Command 63
9.11.28 CR_FILREPL Command 63
9.11.29 CR_FILTIMER Command 64

9.12 Other Status Read Command 65

9.12.1 CR_STATUS Command 65
9.12.2 CR_SIGNAL Command 65
9.12.3 CR_VMUTE Command 65
9.12.4 CR_FREZE Command.. 65
9.12.5 CR_TEMPWARN Command 66
9.12.6 CR_TEMP Command 67

9.12.7 CR_TEMPFAIL Command 68
9.12.8 CR SerifALNO Command 68

Overview

1.1. This Functional Specification defines communication functions for

LV-7292A/7297A/7392A/7393A/7398A/8227A/7292M/7297M/8227M

1.2 Compatible to Firmware Ver. 1.x of the projector.
1.3 Most commands can be used to control projector remotely from PC by RS-232C. Therefore, the

commands are defined as Expand Serial Commands.

Serial Interface Specification

2.1 Transfer Specification

Item	Specification
Synchronous System	Asynchronous
Transmission Speed	9600 / 19200
Data Length	8 bit
Parity	N/A
Stop Bit	1
Flow Control	N/A

Note1) Transmission Speed: initial setting value is 19200
Note2) Transmission Speed can be changed in service mode.

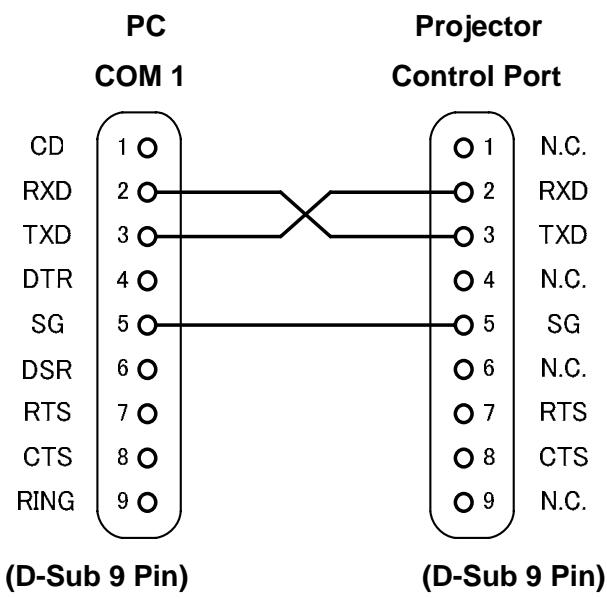

2.2 Connection

Dedicated serial cable must be used for a connection to a computer and a projector.

CANON LV-7292A - Connection - 1

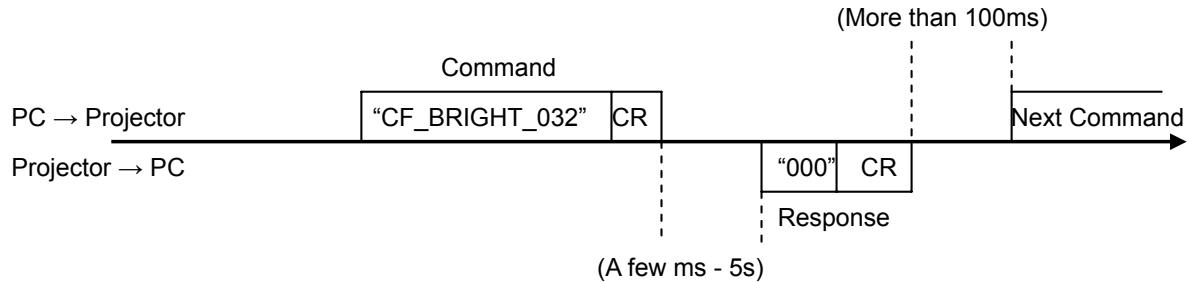

Notes for communication

Expand Serial Command is defined as one command / one line that starts with "C" and ends with carriage return (0x0D)
There are two types of commands: Functional Execution Command and Status Read Command.
Example of Functional Execution Command:"CF_BRIGHT_032"[CR]
Example of Status Read Command: "CR_RIGHT"[CR]

Note) _ means a space

When it takes more than one second to receive one command, it is not executed.

When it takes more than one second to receive carriage return (0X0D) after the projector receives the first data "C", it clears the information of buffer.

On command pipelining, wait for the interval of 100ms till sending next command after receiving a response.

CANON LV-7292A - Notes for communication - 1

When a computer sends next command before receiving a response, the projector may not operate properly, except when there is no response for more than 5 seconds.

It takes about 5 seconds for internal initialization after plugging in AC power. During this time commands cannot be processed. Do not issue any command.

Name Definition

Data from a controller to a projector is represented as COMMAND, and data from a projector to a controller for the incoming command is represented as RESPONSE.
[CR]: Carriage Return Code Command ends with cartridge return code. Response also ends with carriage return code.
: Space Code A space Code is indicated by ( ).
%1 : Parameter in Command When there are several parameters, they are defined as %2, %3...
% % : Error code returned from a projector
Acceptable: "000".
Unacceptable: See [7. Error Code Table].
%a : Parameter in Response Command When there are several parameters, they are defined as %b, %c...

Functional Execution Command Table

5.1 Image Command Table

Execute command	Item
CF_BRIGHT_%1[CR]	Set Brightness value
CF_CONT_%1[CR]	Set Contrast value
CF_COLOR_%1[CR]	Set Color value
CF_TINT_%1[CR]	Set Tint value
CF_IRIS_%1[CR]	Set Iris value
CF_SHARP_%1[CR]	Set Sharpness value
CF_GAMMA_%1[CR]	Set Gamma value
CF_WBAL-R_%1[CR]	Set White Balance Red value
CF_WBAL-G_%1[CR]	Set White Balance Green value
CF_WBAL-B_%1[CR]	Set White Balance Blue value
CF_COLTEMP_%1[CR]	Set Color Temp. value
CF_PROGV_%1[CR]	Set /Cancel Progressive Scan
CF_NZRED_%1[CR]	Set/Cancel Noise reduction
CF_IMAGE_%1[CR]	Set Image mode
CF_COLBOARD_%1[CR]	Set Colorboard mode
CF_IMAGEADJ_%1[CR]	Reset/Store for Image Adjustment

5.2 PC Adjust Control Command Table

Execute command	Item
CF_FSYNC_%1[CR]	Set Fine Sync value
CF_TDOTS_%1[CR]	Set Total Dots value
CF_CLAMP_%1[CR]	Set Clamp Value
CF_H-POS_%1[CR]	Set Horizontal Position value
CF_V-POS_%1[CR]	Set Vertical Position value
CF_DDOTS_%1[CR]	Set Display Dots value
CF_DLINE_%1[CR]	Set Display Line value
CF_PCSTORE_%1[CR]	Store current values of PC Adjust at Mode 1-10
CF_PCMODEFREE_%1[CR]	Release registered values of Mode1-10

5.3 Input Control Command Table

Execute command	Item
CF_INPUT_%1[CR]	Select Input
CF_SOURCE_%1[CR]	Select Input Source
CF_INPUT1_%1[CR]	Select computer-1 and set Input selected in %1
CF_INPUT2_%1[CR]	Select computer-2 and set Input selected in %1
CF_INPUT3_%1[CR]	Select Video and set Input selected in %1
CF_INPUT_%1_%2[CR]	Select Input and Source
CF_SYSTEM_%1[CR]	Select System

5.4 Screen Command Table

Execute command	Item
CFSCREEN_%1[CR]	Select Screen size
CF_DZCENT_%1[CR]	Cancel Digital Zoom mode
CF_VSCALE_%1[CR]	Set value of Vertical scale
CF_VPOS_%1[CR]	Set value of Vertical position
CF_HSCALE_%1[CR]	Set value of Horizontal scale
CF_HPOS_%1[CR]	Set value of Horizontal position
CF_KEYSTONE_%1[CR]	Set Keystone
CF_KYSTNMODE_%1[CR]	Set Keystone Store mode
CF_CEIL_%1[CR]	Set Ceiling function
CF_REAR_%1[CR]	Set Rear function
CFSCREENASPECT_%1[CR]	Set Screen Aspect function

5.5 Lamp Command Table

Execute command	Item
CF_LAMPH_%1[CR]	Reset total running time of each lamp
CF_LAMPMODE_%1[CR]	Select Lamp mode

5.6 Sound Command Table

Execute command	Item
CF_VOLUME_%1[CR]	Set Volume value
CF_MUTE_%1[CR]	Control ON/OFF of Sound Mute
CF_MIC_%1[CR]	Control ON/OFF of MIC
CF_MICGAIN_%1[CR]	Control value of MIC gain
CF_STANDBYMICOUT_%1[CR]	Control ON/OFF of Standby MIC out

Status Read Command Table

6.1 Image Status Read Command Table

Status read command	Item
CR_BRIGHT[CR]	Get Brightness value
CR_CONT[CR]	Get Contrast value
CR_COLOR[CR]	Get Color value
CR_TINT[CR]	Get Tint value
CR_IRIS[CR]	Get Iris value
CR_SHARP[CR]	Get Sharpness value
CR_GAMMA[CR]	Get Gamma value
CR_WBAL-R[CR]	White Balance Red value
CR_WBAL-G[CR]	White Balance Green value
CR_WBAL-B[CR]	White Balance Blue value
CR_COLTEMP[CR]	Get setting value of Color temperature
CR_NZRED[CR]	Get setting status of Noise reduction
CR_PROGV[CR]	Get setting status of Progressive scan
CR_IMAGE[CR]	Get Selected Image status
CR_IMGGMD[CR]	Get setting value of Image Gamma
CR_COLBOARD[CR]	Get Selected Colorboard mode

6.2 PC Adjust Status Read Command Table

Status read command	Item
CR_FSYNC[CR]	Get setting value of Fine Sync
CR_TDOTS[CR]	Get setting value of Total Dots
CR_CLAMP[CR]	Get setting value of Clamp
CR_H-POS[CR]	Get setting value of Horizontal Position
CR_V-POS[CR]	Get setting value of Vertical Position
CR_DDOTS[CR]	Get setting value of Display Dots
CR_DLINE[CR]	Get setting value of Display Line
CR_PCSTORE[CR]	Get Free or Stored status for PC Adj. mode1-10

6.3 Video Status Read Command Table

Status read command	Item
CR_SERSYS[CR]	Get selected current signal. When in Auto mode, it returns a result by Auto detect.

6.4 Input Status Read Command Table

Status read command	Item
CR_INPUT[CR]	Get selected Input No.
CR_SOURCE[CR]	Get selected source of currently selected Input
CR SRCINP1[CR]	Get selected source of Computer 1
CR_SRCINP2[CR]	Get selected source of Computer 2
CR_SRCINP3[CR]	Get selected source of Video
CR_SYSTEM[CR]	Get selected system status in Input mode
CR_SYSLIST[CR]	Get selectable System table
CR_MODELIST[CR]	Get selectable Mode table

6.5 Screen Status Read Command Table

Status read command	Item
CRSCREEN[CR]	Get selected screen size
CR_VSCALE[CR]	Get setting status of Vertical Scale
CR_VPOS[CR]	Get setting status of Vertical Position
CR_HSCALE[CR]	Get setting status of Horizontal Scale
CR_HPOS[CR]	Get setting status of Horizontal Position
CR_KYSTNMODE[CR]	Get setting status of Keystone Store mode
CR_CEIL [CR]	Get setting status of Ceiling
CR_REAR[CR]	Get setting status of Rear
CRSCREENASPECT[CR]	Get setting status of Screen Aspect

6.6 Lamp Status Read Command Table

Status read command	Item
CR_LAMPREPL[CR]	Get the information for Lamp replacement time
CR_LAMPH[CR]	Get lamp total running time
CR_LAMPCORRESPH[CR]	Get corresponding lamp use time
CR_LAMPMODE[CR]	Get Lamp Mode status
CR_LAMPSTS[CR]	Get lamp lighting status
CR_PROJH[CR]	Get projector total running time
CR_HMLAMP[CR]	Get lamp number

6.7 Sound Status Read Command Table

Status read command	Item
CR_volume[CR]	Get Volume value
CR_MUTE[CR]	Get Sound Mute setting status
CR_MIC[CR]	Get setting status of MIC
CR_MICGAIN[CR]	Get value of MIC gain
CR_STANDBYMICOUT[CR]	Get setting status of Standby MIC out

6.8 Setting Status Read Command Table

Status read command	Item
CRLANG[CR]	Get selected language
CR_INPUTSEARCH[CR]	Get setting status of Input search
CR_AUTOSETUPPCADJ	Get setting status of Auto PC in Auto setup
CR_AUTOSETUPKEYSTONE	Get setting status of Keystone in Auto setup
CRBackGND[CR]	Get setting status screen mode for the case of no signal
CR_DISP[CR]	Get setting status of Display
CR_LOGO[CR]	Get setting status of Logo
CR_HDMISETUP[CR]	Set setting status of HDMI Image
CR_HDMISOUND[CR]	Get setting status of HDMI Sound
CR_P-MANE[CR]	Get setting status of Power management
CR_P-MANETIME[CR]	Get setting time for Power management
CR_ON-STA[CR]	Get setting status of Direct on
CR_STANDBYMODE[CR]	Get setting status of Standby Mode
CR_PTIMEMODE[CR]	Get selected mode of P-timer
CRPTIMER[CR]	Get operation status of P-timer
CRPTIME[CR]	Get setting status of Timer for P-timer
CRCCAPTIONDISP[CR]	Get setting status of channel of Closed caption
CRCCAPTIONCOLOR[CR]	Get setting status of color of Closed caption
CRRCODE[CR]	Get selected Remote Control Code
CRSECURITY[CR]	Get setting status of Security
CRKEYDIS[CR]	Get RC/KEY disability status
CRPJLOCKNOW[CR]	Get if PJ Lock is actually in operation
CRPJLOCKMENU[CR]	Get setting status of PJ Lock on Menu
CRFANMODE[CR]	Get selected Fan mode
CRFANCONTROL[CR]	Get selected Fan Control Mode
CRDELAYCTRL[CR]	Get setting status of Video delay control
CRFILH[CR]	Get Filter used time
CRFILREPL[CR]	Get the information for Filter replacement time
CRFILTIMER[CR]	Get time when Filter warning OSD is displayed

6.9 Other Status Read Command

Status read command	Item
CR_STATUS[CR]	Get setting status of Projector behavior
CR_SIGNAL[CR]	Get Signal Status if there is a signal or not
CR_VMUTE[CR]	Get setting status of No Show
CRFREEZE[CR]	Get setting status of Freeze
CR_TEMPWARN[CR]	Get if temperature is close to abnormal temperature
CR_TEMP[CR]	Get current temperature status
CR_TEMPFAIL[CR]	Get temperature when sensors detect abnormal temperature
CR_SERIALNO[CR]	Get Serial Number

Error Code Table

Error Code	Contents
?	-When the received data cannot be decoded -Parameter determination error (digit number error, including invalid value, etc.)
101	The function is not available in the selected Mode
102	Selected value is out of range (Not reflected)
103	Command mismatched to Hardware (command for Optional function which is not installed)
201	When reached upper or lower limit of increasing or decreasing data
301	Command cannot be executed during capturing display. Resend the command after a while
302	Command cannot be executed during Auto PC operation. Resend the command after a while
402	Command cannot be executed during PIN code operation. Resend the command after a while.

Note) These error codes are applied to Expand Command, not to Basic Command.

Functional Execution Command

8.1 Format

PC issues commands in format as below:

Pattern1:“CF_COMMAND”[CR]

Pattern2:"CF_COMMAND"%1 [CR]

CF：Header

COMMAND : Character line

%1 : Parameter (Character line)

:: Space (To separate COMMAND and Parameter)

The projector decodes the received command and when it is ready to receive the next command, it returns the response.

"000" [CR] : (0x06, 0xD) When receiving Functional Execution Command

"nnn" [CR]: Except "000", when it is unable to execute command by any specific reason.

See Error Code Table for details

When the received data cannot be decoded, the projector returns "?" [CR]

8.2 Transfer Example

When setting projector's total dots to 1344 by Expand Serial Command

PC PJ:"CF_TDOTS_1344" [CR]

PC←PJ:"000"[CR]---Acceptable

8.3 Operation Requirements

1) Functional Execution Command is limited when the projector status is as below.

However, Status Read Command is effective even under these conditions.

Projector Status	Available Functional Execution Command
In Standby	C00: POWER ON
Countdown in process	C00: POWER ON(Terminates Countdown)C01: POWER OFFC02: POWER OFF(Terminates Countdown)
Cooling down in process	N/A
Cooling down in process due to Abnormal Temperature	N/A
Abnormal Temperature	N/A
Power Failure(For 60 seconds after Power Failure occurred)	N/A
Power Save / Cooling down in process	N/A
Power Save in process	C00: POWER ONC01: POWER OFF

Note:) When the projector receives the other command in this above status, it returns error code to show the status.When the projector receives the following functional execution commands, OSD menu is closed except for pop-up menu

2) When Eco mode is selected in Standby mode of Setting menu and projector is in Standby, Functional Execution Commands are invalid.

8.4 Image Command

8.4.1 CF_BRIGHT Command

Command	"CF_BRIGHT_%1"[CR]
%1	"000~063" ----- Directly select Brightness setting value "UP" ----- Current Brightness setting value + 1 "DN" ----- Current Brightness setting value - 1
Details	Set Brightness value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	"000"[CR]
	Unacceptable	"Error Code"[CR]

8.4.2 CF_CONT Command

Command	“CF_CONT_ 1”[CR]
%1	“000~063”--------Directly select Contrast setting value “UP”--------Current Contrast setting value + 1 “DN”--------Current Contrast setting value - 1
Details	Set Contrast value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.3 CF_COLOR Command

Command	“CF_COLOR_%1”[CR]
%1	“000~063”--------Directly select Color setting value “UP”--------Current Color setting value + 1 “DN”--------Current Color setting value - 1
Details	Set Color value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.4 CF_TINT Command

Command	“CF_TINT_%1”[CR]
%1	“000~063”--------Directly select Tint setting value “UP”--------Current Tint setting value + 1 “DN”--------Current Tint setting value - 1
Details	Set Tint value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.5 CF_IRIS Command (n/a LV-7292M/LV-7297M/LV-8227M)

Command	“CF_IRIS_%1” [CR]
%1	“ON”---------Set Iris to On “OFF”---------Set Iris to Off
Details	Set Iris. Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.6 CF_SHARP Command

Command	“CF_SHARP_%1”[CR]
%1	“000~015”--------Directly select Sharpness setting value “UP”--------Current Sharpness setting value + 1 “DN”--------Current Sharpness setting value - 1
Details	Set Sharpness value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.7 CF GAMMA Command

Command	“CF_GAMMA_%1”[CR]
%1	“000~015”--------Directly set Gamma setting value “UP”--------Current Gamma setting value + 1 “DN”--------Current Gamma setting value - 1
Details	Set Gamma value of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.8 CF_WBAL - Command

Command	“CF_WBAL-%1_%2”[CR]
%1	“R”——— Red “G”——— Green “B”——— Blue
%2	“000~063” —— Directly select Color value specified by White Balance%1 “UP” ——— Current Color value set by White Balance%1 + 1 “DN” ——— Current Color value set by White Balance%1 - 1
Details	Set Color value set by White Balance%1 of user control Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.9 CF_COLTEMP Command

Command	“CF_COLTEMP_%1”[CR]
%1	“000”----- Xlow “001”----- Low “002”----- Mid “003”----- High
Details	Set Color Temperature. (Available only in the normal Power ON status) The value set by this command will not be saved to the projector. Therefore, when turning into Standby-mode or ALL is OFF, the value returns to original setting. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.10 CF_PROGV Command

Command	“CF_PROGV_%1”[CR]
%1	“FILM”-------- Select Progressive Mode FILM “L1”-------- Select Progressive Mode L1 “L2”-------- Select Progressive Mode L2 “OFF”-------- Cancel Progressive scan “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Set / cancel Progressive scan Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.11 CF_NZRED Command

Command	“CF_NZRED_%1”[CR]
%1	“OFF” ---- Cancel Noise Reduction “L1” ---- Noise Reduction for moving image “L2” ---- Noise Reduction for still image “UP” ---- The same operation as pressing Up key or Left key “DN” ----The same operation as pressing Down key or Right key
Details	Noise Reduction based on frame correlation Select L1 or L2 depending on motion detection L2 is more effective in reducing noise than L1, however, L2 can have a blur in moving image Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. (The value is held in Suspend mode.) This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.12 CF_IMAGE Command

Command	“CF_IMAGE_%1”[CR]
%1	“DYNAMIC”----- Dynamic (Fixed value to enable projection with a sharp, powerful picture tone) “STAND”----- Standard (Image adjust value is set to factory default) “REAL”----- Real (Fixed value to display graphic image with natural tone) “CINEMA”----- Cinema (Fixed value to focus on tone reproduction for movie) “BLACKBOARD”- Blackboard (Fixed value to project image onto green-colored blackboard) blackboard) “COLORBOARD”- Colorboard(Fixed value to project image onto colored board) “CUSTOM1”---- Image1 (the value set and stored by a user) “CUSTOM2”---- Image2 (the value set and stored by a user) “CUSTOM3”---- Image3 (the value set and stored by a user) “CUSTOM4”---- Image4 (the value set and stored by a user)
Details	Select Image Mode Parameter “CUSTOM1” to “CUSTOM4” is the same as “Image1” to “Image4” displayed when selecting Image on OSD menu. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.13 CF_COLBOARD Command

Command	“CF_COLBOARD_%1”[CR]
%1	“RED”--------Select Red “BLUE”--------Select Blue “YELLOW”--------Select Yellow “GREEN”--------Select Green
Details	Select Color of Colorboard mode. Image mode is automatically switched to Colorboard mode by receiving this command. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.4.14 CF_IMAGEADJ Command

Command	“CF_IMAGEADJ_%1”[CR]
%1	“RST”-------- Reset Image adjustment “STR1”---- Store current Image adjustment to Image 1 “STR2”---- Store current Image adjustment to Image 2 “STR3”---- Store current Image adjustment to Image 3 “STR4”---- Store current Image adjustment to Image 4
Details	Reset / store Image adjustment. Parameter “STR1” to “STR4” is the same as “Image1” to “Image4” displayed when adjusting Image on OSD menu and selecting “Store” The value stored to “Image1-4” is saved and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5 PC Adjust Control Command

8.5.1 CF_FSYNC Command

Command	“CF_FSYNC_%1”[CR]
%1	“0000~0031”--------Directly select Fine Sync setting value “UP”--------Current Fine Sync setting value + 1 “DN”--------Current Fine Sync setting value - 1
Details	Set Fine Sync value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.2 CF_TDOTS Command

Command	“CF_TDOTS_%1”[CR]
%1	“mmm~nnnn” --- Directly select Total Dots setting value “mmm” shows minimum value, it is current Display Dots Horizontal value + Position value. “nnnn” shows maximum value, which is not over 140MHz. “UP”———————————— Current Total Dots setting value + 1 “DN”———————————— Current Total Dots setting value - 1
Details	Set Total Dots of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.3 CF_CLAMP Command

Command	“CF_CLAMP_%1”[CR]
%1	“mmm~nnnn” --- Directly select Clamp setting value “mmm” shows minimum value, fixed-value “0001”. “nnnn” shows maximum value: it depends on input signal. “UP”————————————— Current Clamp setting value + 1 “DN”————————————— Current Clamp setting value - 1
Details	Set Clamp value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.4 CF_H - POS Command

Command	“CF_H-POS_%1”[CR]
%1	“0000~nnnn” --- Directly select Horizontal Position setting value “nnnn” shows maximum value, it is current Total Dots value - Display Dots value “UP” .............................. Current Horizontal Position setting value + 1 “DN” .............................. Current Horizontal Position setting value - 1
Details	Set Horizontal Position value of PC signal. Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.5 CF_V - POS Command

Command	“CF_V-POS_%1”[CR]
%1	“0000~nnnn” --- Directly select Vertical Position setting value “nnnn” shows maximum value, it is current Total Line value - Display Line value “UP” .............................. Current Vertical Position setting value + 1 “DN” .............................. Current Vertical Position setting value - 1
Details	Set Vertical Position value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.6 CF_DDOTS Command

Command	“CF_DDOTS_%1”[CR]
%1	“0256”~“nnnn” --- Directly select Display Dots setting value “nnnn” shows maximum value, it is current Total Dots value - Horizontal Position value Even number is available and when odd number is set, it is rounded out. “UP”--------Current Display Dots setting value + 2 “DN”--------Current Display Dots setting value - 2
Details	Set Display Dots value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.7 CF_DLINE Command

Command	“CF_DLINE_%1”[CR]
%1	“0100”~“nnnn” --- Directly select Display Line setting value “nnnn” shows maximum value, it is current Total Line value – Vertical Position value “UP”————————————— Current Display Line setting value + 1 “DN”————————————— Current Display Line setting value – 1
Details	Set Display Line value of PC signal Projector does not save the value set with this command so that it resets when projector turning into Standby status or ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.8 CF_PCSTORE Command

Command	“CF_PSTORE_%1”[CR]
%1	“MODE1”---- Store current PC Adjust status to Mode1 “MODE2”---- Store current PC Adjust status to Mode2 “MODE3”---- Store current PC Adjust status to Mode3 “MODE4”---- Store current PC Adjust status to Mode4 “MODE5”---- Store current PC Adjust status to Mode5 “MODE6”---- Store current PC Adjust status to Mode6 “MODE7”---- Store current PC Adjust status to Mode7 “MODE8”---- Store current PC Adjust status to Mode8 “MODE9”---- Store current PC Adjust status to Mode9 “MODE10”---- Store current PC Adjust status to Mode10
Details	Store current PC Adjust status (each parameter status such as Total dots) to Mode1~Mode10. This command operates the same way as storing to Mode1-Mode10 in PC Adjust MENU. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.5.9 CF_PCMODEFREE Command

Command	“CF_PCMODEFREE_%1”[CR]
%1	“MODE1”---- Set Mode1 to Free status “MODE2”---- Set Mode2 to Free status “MODE3”---- Set Mode3 to Free status “MODE4”---- Set Mode4 to Free status “MODE5”---- Set Mode5 to Free status “MODE6”---- Set Mode6 to Free status “MODE7”---- Set Mode7 to Free status “MODE8”---- Set Mode8 to Free status “MODE9”---- Set Mode9 to Free status “MODE10”---- Set Mode10 to Free status
Details	Delete the registered data in Mode1-Mode10 and turns it to Free status. This command operates the same as turning Mode1-Mode10 to Free in PC Adjust Menu. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.6 Input Control Command

8.6.1 CF_INPUT Command

Command	“CF_INPUT_%1”[CR]
%1	“CONPUTER”---- Select Computer Input “HDMI”-------- Select HDMI Input “VIDEO”-------- Select Video Input “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Select Input The same operation as “INPUT” button of the projector and Remote Control. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.6.2 CF_SOURCE Command

Command	“CF_SOURCE_%1”[CR]
%1	Input is Computer	“ANALOG”-------- Select Analog Input “YPBPR”-------- Select Component Input “S Video”-------- Select S-Video Input “SCART”-------- Select Scart Input “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
	Input is HDMI	“HDMI”-------- Select HDMI Input “UP” “DN” Although no operation is executed, projector accepts parameter “UP”/“DN”
	Input is Video	“VIDEO”-------- Select Composite Video Input “UP” “DN” Although no operation is executed, projector accepts parameter “UP”/“DN”
Details	Select Source of currently selected Input When Input specified by %1 is inappropriate for selected Input, the projector returns “101” and the command is not executed. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
Response	Unacceptable	“Error Code”[CR]

8.6.3 CF_INPUT1 Command

Command	“CF_INPUT1_%1_[CR]
%1	“ANALOG”-------- Select Analog RGB Input “YPBPR”-------- Select Component “SVIDEO”-------- Select S-Video Input “SCART”-------- Select SCART
Details	Select Computer input and source specified by %1 at the same time. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.6.4 CF_INPUT2 Command

Command	“CF_INPUT2_%1_[CR]
%1	“HDMI”--------Select HDMIInput
Details	Select HDMI input and source specified by %1 at the same time. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.6.5 CF_INPUT3 Command

Command	“CF_INPUT3_%1_[CR]
%1	“VIDEO”-------- Select Composite video Input
Details	Select Video input. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.6.6 CF_INPUT_%1_%2 Command

Command	“CF_INPUT_%1_%2”[CR]
%1	“COMPUTER” ---- Select Computer Input “HDMI” ---- Select HDMI Input “VIDEO” ---- Select Analog Input
%2	When %1 is COMPUTER “ANALOG” ----Select Analog RGB Input “YPBPR” ----Select Component “S-VIDEO” ----Select S-Video Input “SCART” ----Select SCART When %1 is HDMI “HDMI” ----Select HDMI Input When %1 is VIDEO “VIDEO” ----Select Video Input
Details	Select Input specified by %1 and also Source specified by %2 at once This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.6.7 CF_SYSTEM Command

Command	“CF_SYSTEM_%1”[CR]
%1	Input is Computer	“VGA1”-------- Select VGA1 : “XGA1”-------- Select XGA1 : “WXGA3”-------- Select WXGA3 “1080I”-------- Select 1080I “1035I”-------- Select 1035I “720P”-------- Select 720P “575P”-------- Select 575P “480P”-------- Select 480P “575I”-------- Select 575I “480I”-------- Select 480I “MODE1”~“MODE10”-------- Select Mode 1~Mode 10
	Input is HDMI	“D-XGA1”-------- Select D-XGA1 : “D-WXGA3”-------- Select D-WXGA3 “D-1080I”-------- Select D-1080I “D-1035I”-------- Select D-1035I “D-720P”-------- Select D-720P “D-575P”-------- Select D-575P “D-480P”-------- Select D-480P *Returns error code “101”[CR] when no signal received.
	Input is Video	“AUTO”-------- Select System “Auto” “NTSC”-------- Select NTSC “NTSC443”-------- Select NTSC4.43 “PAL”-------- Select PAL “SECAM”-------- Select SECAM “PAL-M”-------- Select PAL-M “PAL-N”-------- Select PAL-N “1080I”-------- Select 1080i “1035I”-------- Select 1035i “720P”-------- Select 720p “575P”-------- Select 575p “480P”-------- Select 480p “575I”-------- Select 575i “480I”-------- Select 480i
Details	Select System of currently selected Input When Input specified by %1 is inappropriate for selected Input, the projector returns “101”[CR] and the command is not executed This command is available in normal Power ON status. Note1) “NTSC” / “NTSC4.43” / “PAL” / “SECAM” / “PAL-M” / “PAL-N” is available only when Input is VIDEO / S-VIDEO Note2) “1080I” / “1035I” / “720P” / “575P” / “480P” / “575I” / “480I” is available only when Input is Y / Pb/Cb / Pr/Cr
Response	Acceptable	“000”[CR]
Response	Unacceptable	“Error Code”[CR]

8.7 Screen Control Command

8.7.1 CFSCREEN Command

(LV-7292A/LV-7297A/LV-7298A/LV-7392A/LV-7393A/LV-7297M/LV-7292M)

Command	“CFSCREEN %1”[CR]
%1	Input is Computer	“NORMAL”-------- Select Normal mode “FULL”-------- Select Full screen mode “WIDE”-------- Select Wide (16:9) mode “ZOOM”-------- Select Zoom mode “TRUE”-------- Select True mode “CUSTOM”-------- Select Custom mode “DZOOM_UP”-------- Expand image size with Digital Zoom “DZOOM_DN”-------- Reduce image size with Digital Zoom “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
	Input is Video	“NORMAL”-------- Select Normal mode “FULL”-------- Select Full screen mode “WIDE”-------- Select Wide (16:9) mode “ZOOM”-------- Select Zoom mode “CUSTOM”-------- Select Custom mode “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
	AV / PC Common	“RST”-------- Reset screen adjust nent
Details	Select image size on screen. When Input specified by %1 is inappropriate for selected Input, the projector returns “101” [CR] and the command is not executed. “DZOOM UP” and “DZOOM DN” start effecting from the first command. This command is available in normal Power ON status. Note) When Input is computer and AV sorts signals (480i / 575i...etc) are entered, the signal recognized as Video Input.
Response	Acceptable	“000”[CR]
Response	Unacceptable	“Error Code”[CR]

8.7.2 CFSCREEN Command (LV-8227A/8227M)

Command	“CFSCREEN %1”[CR]
%1	Input is Computer	“NORMAL”-------- Select Normal mode “FULL”-------- Select Full screen mode “WIDE”-------- Select Wide (16:9) mode “ZOOM”-------- Select Zoom mode “TRUE”-------- Select True mode “CUSTOM”-------- Select Custom mode “DZOOM_UP”-------- Expand image size with Digital Zoom “DZOOM_DN”-------- Reduce image size with Digital Zoom “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
	Input is Video	“NORMAL”-------- Select Normal mode “FULL”-------- Select Full screen mode “WIDE”-------- Select Wide (16:9) mode “ZOOM”-------- Select Zoom mode “NATURAL”-------- Select Natural mode “CUSTOM”-------- Select Custom mode “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
	AV / PC Common	“RST”-------- Reset screen adjust nent
Details	Select image size on screen. When Input specified by %1 is inappropriate for selected Input, the projector returns “101” [CR] and the command is not executed. “DZOOM UP” and “DZOOM DN” start effecting from the first command. This command is available in normal Power ON status. Note) When Input is computer and AV sorts signals (480i / 575i...etc) are entered, the signal recognized as Video Input.
Response	Acceptable	“000”[CR]
Response	Unacceptable	“Error Code”[CR]

8.7.3 CF_DZCENT Command

Command	“CF_DZCENT_%1”[CR]
%1	“CENT”---- Cancel Digital Zoom (CENT: “CENTER”)
Details	Cancel Digital Zoom When image is expanded or shrunk, reset its value. This command is available in normal Power ON status and when Input is Computer.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.4 CF_VSCALE Command

Command	“CF_VSCALE_%1”[CR]
%1	“032”--------+32 “031”--------+31 “002”--------+2 “001”--------+1 “000”--------+0 “-01”---------1 “-02”---------2 “-31”---------31 “-32”---------32 “UP”--------Vertical Scale setting value + 1 “DN”--------Vertical Scale setting value - 1
Details	Set Vertical Scale This command is available in normal Power ON status. Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.5 CF_VPOS Command

Command	“CF_VPOS_%1”[CR]
%1	“015”--------+15 “014”--------+14 “002”--------+2 “001”--------+1 “000”--------+0 “-01”---------1 “-02”---------2 “-14”---------14 “-15”---------15 “UP”--------Vertical Position setting value + 1 “DN”--------Vertical Position setting value - 1
Details	Set Vertical Position This command is available in normal Power ON status. Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute..
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.6 CF_HSCALE Command

Command	“CF_HSCALE_%1”[CR]
%1	“032”--------+32 “031”--------+31 “002”--------+2 “001”--------+1 “000”--------+0 “-01”---------1 “-02”---------2 “-31”---------31 “-32”---------32 “UP”--------Horizontal Scale setting value + 1 “DN”--------Horizontal Scale setting value - 1
Details	Set Horizontal Scale This command is available in normal Power ON status. Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.7 CF_HPOS Command

Command	“CF_HPOS_%1”[CR]
%1	“015”--------+15 “014”--------+14 “002”--------+2 “001”--------+1 “000”--------+0 “-01”---------1 “-02”---------2 “-14”---------14 “-15”---------15 “UP”--------Horizontal Position setting value + 1 “DN”--------Horizontal Position setting value - 1
Details	Set Horizontal Position This command is available in normal Power ON status. Note1) When Screen setting is not in Custom mode, projector changes image mode into Custom by receiving this command. Note2) When there is no signal detected, projector returns 101 and the command does not execute.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.8 CF_KEYSTONE Command

Command	“CF_KEYSTONE_%1”[CR]
%1	“UP”-------- Correct Keystone distortion to reduce upper part of image “FUP”-------- Correct Keystone distortion to reduce upper part by 2steps “DN”-------- Correct Keystone distortion to reduce lower part of image “FDN”-------- Correct Keystone distortion to reduce lower part by 2steps “RST”-------- Reset Keystone
Details	Change Keystone distortion correction This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR] “201”[CR] ----When reaching the Keystone correction limit or reaching 1 step to correction limit and “FDN”/“FUP” is received. (The command is not executed)

8.7.9 CF_KYSTNMODE Command

Command	“CF_KYSTNMODE_%1”[CR]
%1	“STR”-------- Set Keystone store mode to Store “RST”-------- Set Keystone store mode to Reset
Details	Set Keystone store mode This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.10 CF_CEIL Command

Command	“CF_CEIL_%1”[CR]
%1	“ON”--------Set Ceiling to ON “OFF”--------Set Ceiling to OFF
Details	Set/Cancel Ceiling setting. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.11 CF_REAR Command

Command	“CF_REAR_%1”[CR]
%1	“ON”--------Set Rear to ON “OFF”--------Set Rear to OFF
Details	Set/Cancel Rear setting. When Rear is ON, image is left/right reversed. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.7.12 CFSCREENASPECT Command (LV-8227A/LV-8227M)

Command	“CF_SCREENASPECT_%1”[CR]
%1	“43MODE”--------Set 4:3 mode “169MODE”--------Set 16:9 mode “1610MODE”--------Set 16:10 mode
Details	Screen Aspect setting This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.8 Lamp Command

8.8.1 CF_LAMPH Command

Command	“CF_LAMPH_%1”[CR]
%1	“RST”
Details	Reset total lamp running time This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.8.2 CF_LAMPMODE Command

Command	“CF_LAMPMODE_%1”[CR]
%1	“HIGH”-------- Set lamp to High mode status “NORMAL”-------- Set lamp to Normal mode status “ECO”-------- Set lamp to 3L mode status “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Select Lamp Mode The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.9 Sound Command

8.9.1 CF_VOLUME Command

Command	“CF_VOLUME_%1”[CR]
%1	“000-063”--------Directly select Volume setting value “UP”--------Current Volume setting value +1 “DN”--------Current Volume setting value -1
Details	Control Volume value The same operation of Volume Up/Down as projector and RC, and directly select Volume setting value. When setting Volume value, the Sound Mute ON status is canceled just like RC operation. The value set by this command is stored in Projector. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.9.2 CF_MUTE Command

Command	“CF_MUTE_%1”[CR]
%1	“ON”--------Set Sound Mute to ON “OFF”--------Set Sound Mute to OFF
Details	Control Sound Mute ON/OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.9.3 CF_MIC Command

Command	“CF_MIC_%1” CR
%1	“ON”-------- Set MIC to ON “OFF”-------- Set MIC to OFF
Details	Control MIC ON/OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.9.4 CF_MICGAIN Command

Command	“CF_MICGAIN_%1”[CR]
%1	“000-063”--------Directly select MIC gain setting value “UP”--------Current MIC gain setting value +1 “DN”--------Current MIC gain setting value -1
Details	Control MIC gain value When setting MIC gain value just like operation by menu, the Sound Mute ON status is canceled. The value set by this command is stored in Projector. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.9.5 CF_STANDBYMICOUT Command

Command	“CF_STANDBYMICOUT_%1”[CR]
%1	“ON”--------Set Standby MIC out to ON “OFF”--------Set Standby MIC out to OFF
Details	Control Standby MIC out ON/OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10 Setting Command

8.10.1 CF_LANG Command

Command	“CF_LANG_%1”[CR]
%1	“ENG”——— Select English “DEU”——— Select German “FRA”——— Select French “ITA”——— Select Italian “ESP”——— Select Spanish “POR”——— Select Portuguese “NED”——— Select Dutch “SVE”——— Select Swedish “RUS”——— Select Russian “CHI”——— Select Chinese “KOR”——— Select Korean “JPN”——— Select Japanese “FIN”——— Select Finnish “POL”——— Select Polish “HUN”——— Select Hungarian “ROM”——— Select Romanian “THA”——— Select Thai “TUR”——— Select Turkish “KAZ”——— Select Kazakh “VIE”——— Select Vietnamese
Details	Set language for OSD The language set by this command is stored in EEPROM and its setting is effective after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.2 CF_MENUPOSITION Command

Command	“CF MENUPOSITION %1”[CR]
%1	“SET”-------- Move the menu display to next position
Details	Change the menu positionThis command is available in normal Power ON status.Menu position set by this command is stored in EEPROM and its setting is effective after ALL is OFF.Position: center - bottom left(bottom right - top left - top right - center-...
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.3 CF_INPUTSEARCH Command

Command	“CF_INPUTSEARCH_%1”[CR]
%1	“OFF”-------- Set Input search operation to OFF “ON1”-------- Set Input search operation to On1 “ON2”-------- Set Input search operation to On2
Details	Set Input search operation mode. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status. Note) It is unable to set Keystone, PC ADJ. and Input search to OFF at once. e.g. If projector receives Input search OFF command while Auto PC ADJ. and Keystone are OFF, it returns error code “101”.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.4 CF_AUTOSETUPPCADJ Command

Command	“CF_AUTOSETUPPCADJ_%1”[CR]
%1	“ON”-------- Set Auto PC ADJ. function to ON “OFF”-------- Set Auto PC ADJ. function to OFF
Details	Set/Cancel Auto PC adj. function This command is available in normal Power ON status. Note) It is unable to set Keystone, PC ADJ. and Input search to OFF at once. e.g. If projector receives Auto PC ADJ. OFF command while Keystone and Input search are OFF, it returns error code “101”.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.5 CF_AUTOSETUPKEYSTONE Command

Command	“CF_AUTOSETUPKEYSTONE_%1”[CR]
%1	“AUTO”-------- Set Auto Keystone function to Auto “MANUAL”-------- Set Auto Keystone function to Manual “OFF”-------- Set Auto Keystone function to OFF
Details	Set Keystone function of Auto setup This command is available in normal Power ON status. Note) It is unable to set Keystone, PC ADJ. and Input search to OFF at once. e.g. If projector receives Keystone OFF command while Auto PC ADJ. and Input search are OFF, it returns error code “101”。
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.6 CF_AUTOSETUP Command

Command	“CF_AUTOSETUP_%1”[CR]
%1	“START”-------- Execute Auto Setup
Details	Execute Auto Setup Note) CF commands does not execute while Auto setup is in process. If the command is sent during this, projector returns error code “302”
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.7 CFBackGND Command

Command	“CFBackGND %1” [CR]
%1	“BLUE”-------- Select Blue Back “USER”-------- Select User “BLACK”-------- Select Black Back “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Set Screen status for no signal.(Available only in the normal Power ON status) The status set by this command is stored in EEPROM and the setting remains even after the power is turned to ALL OFF status. *When 1="USER" is received, error code “101” is returned, in the case of Capture non-practice.
Response	Acceptable	“000” [CR]
	Unacceptable	“Error Code” [CR]

8.10.8 CF_DISP Command

Command	“CF_DISP_%1”[CR]
%1	“ON”-------- Select Display “OFF”-------- Cancel Display “CNTDWNOFF”-------- Count down OFF “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Set / Cancel Display The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.9 CF_LOGO Command

Command	“CF_LOGO_%1_%2”[CR]
%1	“0000”-“9999”-------- Set LOGO PIN CODE directly
%2	“OFF”-------- Disable Logo function “DFLT”-------- Display Default Logo “USER”-------- Display Captured Logo “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Set / Cancel Logo The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF This command is available in normal Power ON status. %1--- Set LOGO PIN CODE - When LOGO LOCK is in operation PIN CODE is correct-------- Command is valid (Acceptable) PIN CODE is incorrect-------- Command is invalid (Error Code “102”) PIN CODE is out of %1 range-------- Command is invalid (Error Code “?”)
	-When LOGO LOCK is not in operation PIN CODE is within %1 range-------- Command is valid PIN CODE is out of %1 range-------- Command is invalid (Error Code “?”) Note) Receiving correct LOGO PIN CODE while LOGO LOCK is in operation enables to change LOGO setting, but it does not release LOGO LOCK. (LOGO LOCK continues.)
	Projectile returns Error Code “101” by receiving USER in %2 when capture has not operated.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.10 CF_HDMISETUP Command

Command	“CF_HDMISETUP_%1”[CR]
%1	“NORMAL”--------- Set Normal mode “ENHANCED”--------- Set Enhanced mode
Details	Set HDMI Image setup. This command is available in normal Power ON status. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.11 CF_HDMISOUNDCommand

Command	“CF_HDMISOUND_%1”[CR]
%1	“HDMI”-------- Set PCM Digital Sound Input “EXTERNAL”-------- Set External sound Input
Details	Set HDMI Sound setup. This command is available in normal Power ON status. The value set by this command is stored in EEPROM and its setting is effective even after ALL is OFF
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.12 CF_P-MANE Command

Command	“CF_P MANE_%1”[CR]
%1	“OFF”--------Set Power Management to OFF “READY”--------Set Power Management to Ready “SHUTDOWN”--------Set Power Management to Shut Down mode “UP”--------The same operation as pressing Up key or Left key “DN”--------The same operation as pressing Down key or Right key
Details	Set/Cancel Power Management The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.13 CF_P-MANETIME Command

Command	“CF_P-MANETIME_%1”[CR]
	“01” ~ “30” Directly select setting time by the minute “UP” Plus one minute (01 → 02 → → 30 → 01) “DN” Minus one minute(30 → 29 → → 01 → 30)
Details	Set Power Management time The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.14 CF_ON-STA Command

Command	“CF_ON STA_%1”[CR]
%1	“ON”--------Set Direct on active “OFF”--------Set Direct on inactive “UP”--------The same operation as pressing Up key or Left key “DN”--------The same operation as pressing Down key or Right key
Details	Set/Cancel Direct On Start The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.15 CF_STANDBYMODE Command

Command	“CF_STANDBYMODE_%1”[CR]
%1	“ECO”--------Less standby electricity “NORMAL”--------Normal standby electricity
Details	Switch Standby Mode setting. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.16 CF_PTIMEMODE Command

Command	“CF_PTIMEMODE_%1”[CR]
%1	“COUNTUP”--------- Select Count up “COUNTDN”--------- Select Countdown
Details	Set operation mode of P-timer. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.17 CF_PTIMER Command

Command	“CF_PTOMER_%1”[CR]
%1	“START”-------- Execute P-timer “STOP”-------- Pause P-timer “RESTART”-------- Restart P-timer “RST”-------- Reset P-timer “EXIT”-------- Terminate P-timer function
Details	Control P-timer. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.18 CF_PTIME Command

Command	“CF_PTIME_%1”[CR]
%1	“001” ~ “180” ----Directly specify the timer by minutes.
Details	Set Countdown timer for P-timer function. The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.19 CF_CCAPTIONDISP Command

Command	“CF_CCAPTIONDISP_%1”[CR]
%1	“OFF”-------- Select Off “CC1”-------- Select CC1 “CC2”-------- Select CC2 “CC3”-------- Select CC3 “CC4”-------- Select CC4
Details	Select channel of Closed caption. The status set with this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Closed caption is available under conditions below; Entered signal is appropriate (Video, NTSC signal of S-video) and System is fixed to NTSC i.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.20 CF_CCAPTIONCOLOR Command

Command	“CF_CCAPTIONCOLOR_%1”[CR]
%1	“COLOR”-------- Select Color “WHITE”-------- Select White
Details	Select color of Closed caption. The status set with this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status. Closed caption is available under conditions below; Entered signal is appropriate (Video, NTSC signal of S-video) and System is fixed to NTSC.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.21 CF_RCODE Command

Command	“CF_RCODE_%1”[CR]
%1	"001"--------Select Code1 "002"--------Select Code2 "UP"--------The same operation as pressing Up key or Left key "DN"--------The same operation as pressing Down key or Right key
Details	Select Code of Remote Control The status set by this command is stored in EEPROM and its setting is effective after ALL is OFF This command is available in normal Power ON status.
Response	Acceptable	"000"[CR]
	Unacceptable	"Error Code"[CR]

8.10.22 CF_KEYDIS Command

Command	“CF_KEYDIS_%1”[CR]
%1	“NONE”-------- RC & Projector keys are valid (All are valid) “RC”-------- RC keys are invalid “KEY”-------- Projector keys are invalid
Details	Disable RC/Projector keys This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.23 CF_PJPINCODE Command

Command	“CF_PJPINCODE_%1”[CR]
%1	“0000” – “9999” -----Set PJ PIN CODE directly
Details	Set PJ PIN CODE to release PJ LOCK.PIN CODE cannot be changed by this command.-When PJ LOCK is in operationPIN CODE is correct ---- Command is valid (Acceptable)PIN CODE is incorrect ---- Command is invalid(Error Code“102”)PIN CODE is out of %1 range ---- Command is invalid (Error Code “? “)-When PJ LOCK is not in operationPIN CODE is within %1 range ---- Command is valid (Acceptable)PIN CODE is out of %1 range ---- Command is invalid (Error Code “? “)This command is valid during a dialog “PJ PIN CODE" is displayed after Power On and Count down.Also when PJ LOCK setting is “On1”, it is necessary to transmit this commandevery time lamp turns on.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.24 CF_FANMODE Command

Command	“CF_FANMODE_%1”[CR]
%1	“L1”-------- Set Fan Mode to L1 “L2”-------- Set Fan Mode to L2
Details	Switch Fan Mode When L1 is selected, fan noise after POWER OFF is louder. When L2 is selected, fan noise after POWER OFF becomes quiet, however, fan rotates longer than L1. The status set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.25 CF_FANCONTROL Command

Command	“CF_FANCONTROL_%1”[CR]
%1	“OFF”--------Set Fan control to Off “ON1”--------Set Fan control to On1 “ON2”--------Set Fan control to On2
Details	Set Fan control setting. The status set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.26 CF_DELAYCTRL Command

Command	“CF_DELAYCTRL_%1”[CR]
%1	“ON”--------Set Video delay control On “OFF”--------Set Video delay control Off
Details	Set Video delay control. The status set by this command is stored in EEPROM and its setting is effective even after ALL is OFF. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.27 CF_FILTIMER Command

Command	“CF_FILTIMER_%1”[CR]
%1	“2000”-------- Set 2000 hours “3000”-------- Set 3000 hours “4000”-------- Set 4000 hours “OFF”-------- No warning display “UP”-------- The same operation as pressing Up key or Left key “DN”-------- The same operation as pressing Down key or Right key
Details	Set timer of Filter replacement /clean-up warning display.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.28 CF FILH Command

Command	“CF_FILH_%1”[CR]
%1	“RST”--------Reset Filter used time
Details	Reset filter used time
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.10.29 CF_FDEFAULTCommand

Command	“CF_FDEFAULT_%1”[CR]
%1	“RST”
Details	Set the value to Factory Default This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.11 Other Command

8.11.1 CF_KEYENU Command

Command	“CF_KEYENU_%1”[CR]
%1	“RIGHT”-------- Shift Pointer on OSD Menu to right “LEFT”-------- Shift Pointer on OSD Menu to left “UP”-------- Shift Pointer on OSD Menu to right “DN”-------- Shift Pointer on OSD Menu to right “SELECT”-------- Behave the same as Select key “AUTOPC”-------- Execute Auto PC adj
Details	This command behave the same as corresponding keys of Remote Control / Projector Auto PC adj. keeps operating even though projector receives this command again while Auto PC adj. is in process.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.11.2 CF_MENU Command

Command	“CF_MENU_%1”[CR]
%1	“ON”-------- Display OSD Menu “OFF”-------- Cancel OSD menu
Details	Display / Cancel On Screen Display Menu This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.11.3 CF_POWER Command

Command	“CF_POWER_%1”[CR]
%1	“ON”--------Power ON projector “OFF”--------Power OFF Projector Note1) Countdown can be terminated by sending this command. Note2) Projector returns error code due to unable of command execution depends on its condition. Note3) Although projector returns “OK”, operation may not be proceeding properly. (e.g. After returning “000” for Power ON command, projector gets abnormal temperature.) Use Status read command to get projector states.
Details	Power ON / OFF projector.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.11.4 CF_FREZE Command

Command	“CFFREEZE_%1”[CR]
%1	“ON”--------Set Freeze to ON “OFF”--------Set Freeze to OFF “UP”--------The same operation as pressing Up key or Left key “DN”--------The same operation as pressing Down key or Right key
Details	Set/Cancel Freeze setting. Although projector returns “000”, receiving another Freeze command does not release Freeze operation. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

8.11.5 CF_VMUTE Command

Command	“CF_VMUTE_%1”[CR]
%1	“ON”--------Set Blank ON “OFF”--------Set Blank OFF “UP”--------The same operation as pressing Up key or Left key “DN”--------The same operation as pressing Down key or Right key
Details	Set/Cancel Blanksetting. This command is available in normal Power ON status.
Response	Acceptable	“000”[CR]
	Unacceptable	“Error Code”[CR]

Status Read Command

9.1 Format

1) PC issues commands in format as below:

"CR Command" [CR]

Command : Character Line

2) When projector receives the appropriate command, it returns a character line as the required data

"000 1 % [CR]

%1: Required Data (Character Line. See [Basic Status Read Command Table])

3) When the received data cannot be decoded, the projector returns "?"[CR]

9.2 Transfer Example

Get total dots of projector by Expand Commands

PC PJ: "CR_TDOTS" [CR]

PC←PJ:"000_1344”[CR]

9.3 Operation Condition

1) Basically Status Read Commands should be always operated.
2) When Eco mode is selected in Standby mode of Setting menu and projector is in Standby, Status Read Commands are invalid.

9.4 I Image Status Read Command

9.4.1 CR_BRIGHT Command

Command	“CR_BRIGHT”[CR]
Details	Get Brightness value of user control
Response	Acceptable	“000_ ”[CR]
	%a	“000”~“063”
	Unacceptable	“Error Code”[CR]

9.4.2 CR_CONT Command

Command	“CR_CONT”[CR]
Details	Get Contrast value of user control
Response	Acceptable	“000_ ”[CR]
	%a	“000”~“063”
	Unacceptable	“Error Code”[CR]

9.4.3 CR_COLOR Command

Command	“CR_COLOR”[CR]
Details	Get Color value of user control
Response	Acceptable	“000_%a”[CR]
	%a	“000”~“063”
	Unacceptable	“Error Code”[CR]

9.4.4 CR_TINT Command

Command	“CR_TINT”[CR]
Details	Get Tint value of user control
Response	Acceptable	“000_%a”[CR]
	%a	“000”~“063”
	Unacceptable	“Error Code”[CR]

9.4.5 CR_IRIS Command (n/a LV-7292M/LV-7297M/LV-8227M)

Command	“CR_IRIS”[CR]
Details	Get setting status of Auto Iris
Response	Acceptable	“000_%1”[CR]
	%1	“OFF”-------- Auto Iris OFF is selected “ON”-------- Auto Iris ON is selected
	Unacceptable	“Error Code”[CR]

9.4.6 CR_SHARP Command

Command	“CR_SHARP”[CR]
Details	Get Sharpness value of user control
Response	Acceptable	“000_%a”[CR]
	%a	“000”~“015”
	Unacceptable	“Error Code”[CR]

9.4.7 CR_GAMMA Command

Command	"CR GAMMA"[CR]
Details	Get Gamma value of user control
Response	Acceptable	"000 %a"[CR]
	%a	"000"~"015"
	Unacceptable	"Error Code"[CR]

9.4.8 CR_WBAL - R Command

Command	"CR_WBAL-R"[CR]
Details	Get White Balance Red value of user control
Response	Acceptable	"000_%a"[CR]
	%a	"000"~"063"
	Unacceptable	"Error Code"[CR]

9.4.9 CR_WBAL - G Command

Command	"CR_WBAL-G"[CR]
Details	Get White Balance Green value of user control
Response	Acceptable	"000_%a"[CR]
	%a	"000"~"063"
	Unacceptable	"Error Code"[CR]

9.4.10 CR_WBAL - B Command

Command	"CR_WBAL-B"[CR]
Details	Get White Balance Blue value of user control
Response	Acceptable	"000_%a"[CR]
	%a	"000"~"063"
	Unacceptable	"Error Code"[CR]

9.4.11 CR_COLTEMP Command

Command	"CR_COLTEMP"[CR]
Details	Get Color Temp. setting value
Response	Acceptable	"000_%a"[CR]
	%a	"000"--------Xlow "001"--------Low "002"--------Mid "003"--------High "BLACK"--------Blackboard(Green) mode selected "COLOR"--------Colorboard selected "BLANK"--------White Balance has been changed
	Unacceptable	"Error Code"[CR]

9.4.12 CR_NZRED Command

Command	“CR_NZRED”[CR]
Details	Get setting status of Noise Reduction
Response	Acceptable	“000_%1”[CR]
	%1	“L1”-------- Noise Reduction for moving image “L2”-------- Noise Reduction for still image “OFF”---- Noise Reduction is OFF
	Unacceptable	“Error Code”[CR]

9.4.13 CR_PROGV Command

Command	“CR_PROGV”[CR]
Details	Get setting status of Progressive scan
Response	Acceptable	“000 %a”[CR]
	%a	“L1”-------- Progressive Mode L1 is selected “L2”-------- Progressive Mode L2 is selected “FILM”-------- Progressive Model FILM is selected “OFF”-------- Progressive scan is disabled
	Unacceptable	“Error Code”[CR]

9.4.14 CR_IMAGE Command

Command	“CR_IMAGE”[CR]
Details	Get image setting status Required data “CUSTOM1” to “CUSTOM4” is the same as “User 1” to “User 4” displayed when selecting IMAGE on OSD menu
Response	Acceptable	“000_%a”[CR]
	%a	“DYNAMIC”--------Dynamic “STAND”--------Standard “REAL”--------Real “CINEMA”--------Cinema “BLACKBOARD”--------Blackboard “COLORBOARD”--------Colorboard “CUSTOM1”~“CUSTOM4”--------User 1~4
	Unacceptable	“Error Code”[CR] ---- When the command is invalid due to condition such as Input source

9.4.15 CR_IMGGMD Command

Command	"CR_IMGGMD"[CR]
Details	Get Image Gamma setting status
Response	Acceptable	"000_%a"[CR]
	%a	"DYN"--------Dynamic "STD"--------Standard "REL"--------Real "CNM"--------Cinema "BKB"--------Blackboard "CLB"--------Colorboard
	Unacceptable	"Error Code"[CR]

9.4.16 CR_COLBOARD Command

Command	“CR_COLBOARD_%1”[CR]
Details	Get Colorboard setting status
Response	Acceptable	“000_%a”[CR]
	%a	“RED”--------Select Red “BLUE”--------Select Blue “YELLOW”--------Select Yellow “GREEN”--------Select Green
	Unacceptable	“Error Code”[CR]

9.5 PC Adjust Status Read Command

9.5.1 CR_FSYNC Command

Command	"CR_FSYNC"[CR]
Details	Get Fine Sync value
Response	Acceptable	"000_%a"[CR]
	%a	"0000"~"0031"
	Unacceptable	"Error Code"[CR]

9.5.2 CR_TDOTS Command

Command	“CR_TDOTS”[CR]
Details	Get Total Dots value
Response	Acceptable	“000_%a”[CR]
	%a	“nnnn”~“mmm” (nnnn = Display Dots + Horizontal Position) (mmm= Maximum value depends on input signal)
	Unacceptable	“Error Code”[CR]

9.5.3 CR_CLAMP Command

Command	“CR_CLAMP”[CR]
Details	Get Clamp value
Response	Acceptable	“000_%a”[CR]
	%a	“0001”~“nnnnn”(”nnnn” depends on input signal)
	Unacceptable	“Error Code”[CR]

9.5.4 CR_H - POS Command

Command	“CR_H - POS”[CR]
Details	Get Horizontal Position value
Response	Acceptable	“000_%a”[CR]
	%a	“0000”~“nnnnn” (nnnn = Total Dots - Display Dots)
	Unacceptable	“Error Code”[CR]

9.5.5 CR_V - POS Command

Command	“CR_V - POS”[CR]
Details	Get Vertical Position value
Response	Acceptable	“000_%a”[CR]
	%a	“0000”~“nnnn” (nnnn = Total Line - Display Line)
	Unacceptable	“Error Code”[CR]

9.5.6 CR_DDOTS Command

Command	“CR_DDOTS”[CR]
Details	Get Display Dots value
Response	Acceptable	“000_%a”[CR]
	%a	“0256”~“nnnnn” (nnnn = Total Dots - Horizontal Position value)
	Unacceptable	“Error Code”[CR]

9.5.7 CR_DLINE Command

Command	“CR_DLINE”[CR]
Details	Get Display Line value
Response	Acceptable	“000_%a”[CR]
	%a	“0100”~“nnnnn”(nnnn = Total Line - Vertical Position value)
	Unacceptable	“Error Code”[CR]

9.5.8 CR_PCSTORE Command

Command	“CR_PCSTORE”[CR]
Details	Get Free/Stored status of MODE1 - MODE10 for PC Adjust. Each data consists of 10 bytes. Each byte indicates the status of MODE1~MODE10 respectively. (F:Free S:Stored)
Response	Acceptable	“000_%a”[CR]
	%a	“FFFFFFFFF”--------All Free “SFFFFFFFFFFF”--------MODE1 is Stored, others are Free: “FFFFFFFFF”--------MODE10 is Stored, others are Free “SSSSSSSSSS”--------All Stored
	Unacceptable	“Error Code”[CR]

9.6 Video Status Read Command

9.6.1 CR_SERSYS Command

Command	“CR_SERSYS”[CR]
Details	Get currently selected signal Returns auto-detected signal in Auto mode Only available for Video input. (N/A when Input is computer)
Response	Acceptable	“000_%a”[CR]
	%a	“1080I60”-------- 1080i 60Hz “1080I50”-------- 1080i 50Hz “1035I”.-------- 1035i “720P”-------- 720p “575P”-------- 575p “480P”-------- 480p “575I”-------- 575i (includes Composite signal such as PAL) “480I”-------- 480i (includes Composite signal such as NTSC) “NO_SIGNAL”-------- There is no signal
	Unacceptable	“Error Code”[CR]

9.7 Input Status Read Command

9.7.1 CR_INPUT Command

Command	“CR_INPUT”[CR]
Details	Get selected INPUT No.
Response	Acceptable	“000_%1”[CR]
	Request data	“1”-“3”
	Unacceptable	“Error Code”[CR]

9.7.2 CR_SOURCE Command

Command	“CR_SOURCE”[CR]
Details	Get selected Source
Response	Acceptable	“000_%1”[CR]
	Request data	“ANALOG”-------- Analog (RGB) Input is selected “SCART”-------- SCART is selected “VIDEO”-------- Video Input is selected “S-VIDEO”-------- S-Video Input is selected “YPBPR”-------- Component Input is selected “HDMI”-------- HDMI is selected
	Unacceptable	“Error Code”[CR]

9.7.3 CR SRCINP1 Command

Command	"CR_SRCINP1" [CR]
Details	Get selected source of Input 1_CMP1
Response	Acceptable	"000_%1"[CR]
	Request data	"ANALOG"--------- Analog RGB Input is selected "YPBPR"--------- YPBPR Input is selected "S-VIDEO"--------- S-Video Input is selected "SCART"--------- Scart Input is selected
	Unacceptable	"Error Code"[CR]

9.7.4 CR SRCINP2 Command

Command	"CR_SRCINP2" [CR]
Details	Get selected source of Input 2_HDMI
Response	Acceptable	"000_%1"[CR]
	Request data	"HDMI" ----HDMI Input is selected
	Unacceptable	"Error Code"[CR]

9.7.5 CR SRCINP3 Command

Command	"CR_SRCINP3" [CR]
Details	Get selected source of Input 3VIDEO
Response	Acceptable	"000_%1"[CR]
	Request data	"VIDEO" ---- Composite Video Input is selected
	Unacceptable	"Error Code"[CR]

9.7.6 CR_SYSTEM Command

Command	“CR_SYSTEM”[CR]
Details	Get selected System
Response	Acceptable	“000_%1”[CR]
	%1	Input is PC Analog
		Input is HDMI
		Input is Y,Pb/Cb,Pr /Cr
		Input is Video,S-Video
	Unacceptable	“ERROR Code”[CR]

9.7.7 CR_SYSLIST Command

Command	“CR_SYSLIST”[CR]
Details	Get selectable System titles
Response	Acceptable	“000_%1_%2_____%x” [CR]
	%1	- When Input is PC-Analog “XGA1”-------- XGA1is selectable “1080I”-------- 1080i is selectable Projector does not return Auto,Mode1-10 When there is no signal, it returns Error Code “101” - When Input is HDMI “D-XGA1”-------- D-XGA1is selectable “D-720p”-------- D-720pi is selectable -When Input is Y,Pb/Cb,Pr/Cr Returns all the System titles on Menu including Auto “AUTO”-------- Auto is selectable “1080I”-------- 1080i is selectable “1035I”-------- 1035i is selectable “575I”-------- 575i is selectable “480I”-------- 480i is selectable Projector does not return Error Code “101” even if there is no signal. -When Input is Video, S-Video Returns all the System titles on Menu including Auto “AUTO”-------- Auto is selectable “PAL”-------- PAL is selectable “SECAM”-------- SECAM is selectable “PAL-N”-------- SECAM is selectable Projector does not return Error Code “101” even if there is no signal.
	Unacceptable	““Error Code”[CR]

9.7.8 CR_MODELIST Command

Command	“CR_MODELIST”[CR]
Details	Get selectable Mode titles
Response	Acceptable	“000_%1_%2_____%x” [CR]
	%1 %2 ... %x	Returns Error code “101” when Input is other than PC-Analog Returns Error code “101” when Input is PC-Analog but no signal When Input is PC-Analog and signal is found, returns selectable Mode among Mode1 – 10 “MODE1” ... “MODE10
	Unacceptable	“Error Code”[CR]

9.8 Screen Status Read Command

9.8.1 CRSCREEN Command

(LV-7292A/LV-7297A/LV-7298A/LV-7392A/LV-7393A/LV-7297M/LV-7292M)

Command	“CRSCREEN”[CR]
Details	Get selected on-screen image size
Response	Acceptable		“000 %a”[CR]
	%a	Input is PC	“NORMAL”-------- Normal mode is selected “FULL”-------- Full mode is selected “WIDE”-------- Wide (16:9) mode is selected “ZOOM”-------- Zoom mode is selected “TRUE”-------- True mode is selected When the screen is set to D.Zoom, projector returns the previous status (NORMAL) “CUSTOM”-------- Custom mode is selected
		Input is Video	“NORMAL”-------- Normal mode is selected “FULL”-------- Full mode is selected “WIDE”-------- Wide (16:9) mode is selected “ZOOM”-------- Zoom mode is selected “CUSTOM”-------- Custom mode is selected
	Unacceptable		“Error Code”[CR]

9.8.2 CRSCREEN Command (LV-8227A/LV-8227M)

Command	“CRSCREEN”[CR]
Details	Get selected on-screen image size
Response	Acceptable		“000 %a”[CR]
	%a	Input is PC	“NORMAL”-------- Normal mode is selected “FULL”-------- Full mode is selected “WIDE”-------- Wide (16:9) mode is selected “ZOOM”-------- Zoom mode is selected “TRUE”-------- True mode is selected When the screen is set to D.Zoom, projector returns the previous status (NORMAL) “CUSTOM”-------- Custom mode is selected
		Input is Video	“NORMAL”-------- Normal mode is selected “FULL”-------- Full mode is selected “WIDE”-------- Wide (16:9) mode is selected “ZOOM”-------- Zoom mode is selected “NATURAL”-------- Natural mode is selected “CUSTOM”-------- Custom mode is selected
	Unacceptable		“Error Code”[CR]

9.8.3 CR_VSCALE Command

Command	“CR_VSCALE”[CR]
Details	Get setting status of Vertical Scale Store Mode
Response	Acceptable	“000_%1[CR]
	%1	“-32” ~ “032”
	Unacceptable	“Error Code”[CR]

9.8.4 CR_VPOS Command

Command	“CR_VPOS”[CR]
Details	Get setting status of Vertical Position Store Mode
Response	Acceptable	“000_%1”[CR]
	%1	“-15” ~ “015”
	Unacceptable	“Error Code”[CR]

9.8.5 CR_HSCALE Command

Command	“CR_HSCALE”[CR]
Details	Get setting status of Horizontal Scale Store Mode
Response	Acceptable	“000_%1”[CR]
	%1	“-32” ~ “032”
	Unacceptable	“Error Code”[CR]

9.8.6 CR_HPOS Command

Command	“CR_HPOS”[CR]
Details	Get setting status of Horizontal Position Store Mode
Response	Acceptable	“000_%1”[CR]
	%1	“-15” ~ “015”
	Unacceptable	“Error Code”[CR]

9.8.7 CR_KYSTNMODE Command

Command	“CR_KYSTNMODE”[CR]
Details	Get setting status of Keystone Store Mode
Response	Acceptable	“000_%a”[CR]
	%a	“STR”--------Store mode is “Store” “RST”--------Store mode is “Reset”
	Unacceptable	“Error Code”[CR]

9.8.8 CR_CEIL Command

Command	“CR_CEIL” [CR]
Details	Get setting status of Ceiling
Response	Acceptable	“000_%1”[CR]
	%1	“ON”____________________________ Ceiling is ON “OFF”____________________________ Ceiling is OFF
	Unacceptable	“Error Code” [CR]

9.8.9 CR_REAR Command

Command	“CR_REAR” [CR]
Details	Get setting status of Rear
Response	Acceptable	“000_%1”[CR]
	%1	“ON”--------Rear is ON “OFF”--------Rear is OFF
	Unacceptable	“Error Code” [CR]

9.8.10 CR_SCCREENASPECT Command (LV-8227A/LV-8227M)

Command	“CRSCREENASPECT” [CR]
Details	Get setting status of Screen Aspect
Response	Acceptable	“000_%1”[CR]
	%1	“43MODE”-------- 4:3 mode is selected “169MODE”-------- 16:9 mode is selected “1610MODE”-------- 16:10 mode is selected
	Unacceptable	“Error Code” [CR]

9.9 Lamp Status Read Command

9.9.1 CR_LAMPREPL Command

Command	“CR_LAMPREPL”[CR]
Details	Get information of Lamp Replacement time
Response	Acceptable	“000_%1”[CR]
	%1	“1Y”-------- Over lamp replacement time “1N”-------- Within lamp replacement time “1” means the number of lamps. (1 lamp model→“1”) “Y”/“N” means if it has reached its replacement time or not. e.g. “1Y”-------- projector is 1 lamp model and Lamp is over its replacement time
	Unacceptable	“Error Code”[CR]

9.9.2 CR_LAMPH Command

Command	“CR_LAMPH”[CR]
Details	Get total running time of lamp by hour (h) *Actual running time, not corresponding value
Response	Acceptable	“000_%1”[CR]
	%1	“00000”~“99999”
	Unacceptable	“Error Code”[CR]

9.9.3 CR_LAMPCORRESPH Command

Command	“CR_LAMPCORRESPH”[CR]
Details	Get total running time of lamp by hour (h) * Corresponding value, not actual running time
Response	Acceptable	“000_%1”[CR]
	%1	“00000”~“99999”
	Unacceptable	“Error Code”[CR]

9.9.4 CR_LAMPMODE Command

Command	“CR_LAMPMODE”[CR]
Details	Get setting status of Lamp Mode
Response	Acceptable	“000_%1”[CR]
	%1	“HIGH”———Lamp Mode is High “NORMAL”———Lamp Mode is Normal “ECO”———Lamp Mode is Eco
	Unacceptable	“Error Code”[CR]

9.9.5 CR_LAMPMSTS Command

Command	“CR_LAMPSTS”[CR]
Details	Get Lighting status of lamp
Response	Acceptable	“000_%1”[CR]
	%1	“n***” A number of should be among 1-4. First character shows how many lamps are incorporated in projector. (1,2 or 4)
		Second character shows following status in order of lamp number. “I” Lamp is ON “O” Lamp is OFF “X” Lamp failure e.g. “1I” 1 lamp model and Lamp is ON “2IO 2 lamps model and No.1 Lamp is ON and No.2Lamp is OFF “4IOXI” 4 lamps model and No.1,No.4 lamps are ON. No.2 lamp is OFF and No.3 model is failed.
	Unacceptable	“Error Code”[CR]

9.9.6 CR_PROJH Command

Command	“CR_PROJH”[CR]
Details	Get total running time of Projector by hour (h)
Response	Acceptable	“000_%1”[CR]
	%1	“0000000”~“0099999”
	Unacceptable	“Error Code”[CR]

9.9.7 CR_HMLAMP Command

Command	“CR_HMLAMP”[CR]
Details	Get lamp number.
Response	Acceptable	“000_%1”[CR]
	%1	“001”
	Unacceptable	“Error Code” [CR]

9.10 Sound Status Read Command

9.10.1 CRVolumes Command

Command	“CR_VOLUME”[CR]
Details	Get Volume value of user control
Response	Acceptable	“000_%a”[CR]
	%a	“000”~“063”
	Unacceptable	“Error Code” [CR]

9.10.2 CR_MUTE Command

Command	“CR_MUTE”[CR]
Details	Get sound mute setting status
Response	Acceptable	“000_%a”[CR]
	%a	“ON”--------Sound Mute is ON “OFF”--------Sound Mute is OFF
	Unacceptable	“Error Code” [CR]

9.10.3 CR_MIC Command

Command	“CR_MIC”[CR]
Details	Get setting status of MIC
Response	Acceptable	“000_%1”[CR]
	%1	“ON”--------MIC is ON “OFF”--------MIC is OFF
	Unacceptable	“Error Code” [CR]

9.10.4 CR_MICGAIN Command

Command	“CR_MICGAIN”[CR]
Details	Get MIC gain value of user control
Response	Acceptable	“000_%a”[CR]
	%a	“000” ~ “063”
	Unacceptable	“Error Code” [CR]

9.10.5 CR_STANDBYMICOUT Command

Command	“CR_STANDBYMICOUT”[CR]
Details	Get setting status of Standby MIC out
Response	Acceptable	“000_%1”[CR]
	%1	“ON”-------- Standby MIC out is ON “OFF”-------- Standby MIC out is OFF
	Unacceptable	“Error Code” [CR]

9.11 Setting Status Read Command

9.11.1 CR_LANG Command

Command	“CR(Language”[CR]
Details	Get selected language
Response	Acceptable	“000 %a”[CR]
	%a	“ENG”--------English is selected “DEU”--------German is selected “FRA”--------French is selected “ITA”--------Italian is selected “ESP”--------Spanish is selected “POR”--------Portuguese is selected “NED”--------Dutch is selected “SVE”--------Swedish is selected “JPN”--------Japanese is selected “CHI”--------Chinese is selected “KOR”--------Korean is selected “RUS”--------Russian is selected “FIN”--------Finnish is selected “POL”--------Polish is selected “HUN”--------Hungarian is selected “ROM”--------Romanian is selected “THA”--------Thai is selected “TUR”--------Turkish is selected “KAZ”--------Kazakh is selected. “VIE”--------Vietnamese is selected
	Unacceptable	“Error Code”[CR]

9.11.2 CR_INPUTSEARCH Command

Command	“CR_INPUTSEARCH”[CR]
Details	Get setting status of Input search
Response	Acceptable	“000_%a”[CR]
	%a	“OFF”--------Input search is OFF “ON1”--------Input search is On1 “ON2”--------Input search is On2
	Unacceptable	“Error Code”[CR]

9.11.3 CR_AUTOSETUPPCADJ Command

Command	“CR_AUTOSETUPPCADJ” [CR]
Details	Get Auto PC adj. setting status in Auto setup
Response	Acceptable	“000_%a”[CR]
	%a	“ON”-------- Auto PC ADJ. in Auto setup is ON “OFF”-------- Auto PC ADJ. in Auto setup is OFF
	Unacceptable	“Error Code”[CR]

9.11.4 CR_AUTOSETUPKEYSTONE Command

Command	“CR_AUTOSETUPKEYSTONE” [CR]
Details	Get Keystone setting status in Auto setup
Response	Acceptable	“000_%a”[CR]
	%a	“AUTO”-------- Auto Keystone is Auto “MANUAL”-------- Auto Keystone is Manual “OFF”-------- Auto Keystone is OFF
	Unacceptable	“Error Code”[CR]

9.11.5 CR_BACKGND Command

Command	“CR.BackGND” [CR]
Details	Get setting status of Screen for no signal
Response	Acceptable	“000_%1” [CR]
	%1	“BLUE”-------- Blue Back is selected “USER”-------- User is selected “BLACK”-------- Black Back is selected
	Unacceptable	“Error Code” [CR]

9.11.6 CR_DISP Command

Command	“CR_DISP”[CR]
Details	Get setting status of Display
Response	Acceptable	“000_%a”[CR]
	%a	“ON”——— Display is ON “OFF”——— Display is OFF “CNTDWNOFF”——— Countdown OFF
	Unacceptable	“Error Code” [CR]

9.11.7 CR_LOGO Command

Command	“CR_LOGO”[CR]
Details	Get setting status of Logo
Response	Acceptable	“000_%1”[CR]
	%1	“OFF”——————————— Logo function is OFF “DFLT”————————————— Default Logo is selected “USER”———————————— User Logo is selected
	Unacceptable	“Error Code” [CR]

9.11.8 CR_HDMISETUP Command

Command	“CR_HDMISETUP”[CR]
Details	Get setting status of HDMI Image setup
Response	Acceptable	“000_%1”[CR]
	%1	“NORMAL”-------- Normal is selected “ENHANCED”-------- Enhanced is selected
	Unacceptable	“Error Code” [CR]

9.11.9 CR_HDMISOUND Command

Command	“CR_HDMISOUND” [CR]
Details	Get setting status of HDMI Sound setup
Response	Acceptable	“000_%1”[CR]
	%1	“HDMI”--------PCM sound (Digital) Input is selected “EXTERNAL”--------External Audio Input is selected
	Unacceptable	“Error Code” [CR]

9.11.10CR_P-MANE Command

Command	“CR_P-MANE”[CR]
Details	Get Power management setting status
Response	Acceptable	“000_%a”[CR]
	%a	“OFF”--------Power Management is OFF “READY”--------Power Management is Ready “SHUTDOWN”----Power Management is set to Shut Down mode
	Unacceptable	“Error Code” [CR]

9.11.11 CR_P-MANETIME Command

Command	“CR_P-MANETIME”[CR]
Details	Get time to start Power Management
Response	Acceptable	“000_%a”[CR]
	%a	“001”~“030”---------1 minute to 30 minutes
	Unacceptable	“Error Code” [CR]

9.11.12 CR_ON-STA Command

Command	“CR_ON-STA”[CR]
Details	Get Direct On setting status
Response	Acceptable	“000_%a”[CR]
	%a	“ON”--------Direct On Start is ON “OFF”--------Direct On Start is OFF
	Unacceptable	“Error Code” [CR]

9.11.13CR_STANDBYMODE Command

Command	“CR_STANDBYMODE” [CR]
Details	Get Standby Mode setting status
Response	Acceptable	“000_%a”[CR]
	%a	“ECO”-------- Eco Mode “NORMAL”-------- Normal Mode
	Unacceptable	“Error Code” [CR]

9.11.14 CR_PTIMEMODE Command

Command	“CR_PTIMEMODE”[CR]
Details	Get operation mode of P-timer.
Response	Acceptable	“000_%a”[CR]
	%a	“COUNTUP”-------- Count up is selected “COUNTDN”-------- Count down is selected.
	Unacceptable	“Error code”[CR]

9.11.15 CR_PTIMER Command

Command	“CR_PTIMER”[CR]
Details	Get current status of P-timer
Response	Acceptable	“000_%a”[CR]
	%a	“ON”-------- P-timer is in execution “STOP”-------- P-timer is paused “OFF”-------- P-timer is inactive
	Unacceptable	“Error code”[CR]

9.11.16 CR_PTIME Command

Command	“CR_PTIME”[CR]
Details	Get setting status of Countdown timer.
Response	Acceptable	“000_%a”[CR]
	%a	“001”~“180” _____________1~180 minutes
	Unacceptable	“Error code”[CR]

9.11.17 CR_CCAPTIONDISP Command

Command	“CR_CCAPTIONDISP”[CR]
Details	Get selected channel of Closed caption
Response	Acceptable	“000_%a”[CR]
	a	“OFF”-------- Off “CC1”-------- CC1 is selected “CC2”-------- CC2 is selected “CC3”-------- CC3 is selected “CC4”-------- CC4 is selected
	Unacceptable	“Error Code”[CR]

9.11.18 CR_CCAPTIONCOLOR Command

Command	“CR_CCAPTIONCOLOR_%1”[CR]
Details	Get selected color of Closed caption
Response	Acceptable	“000”[CR]
	%a	“COLOR”--------Color is selected “WHITE”--------White is selected
	Unacceptable	“Error Code”[CR]

9.11.19 CR_RCODE Command

Command	“CR_RCODE”[CR]
Details	Get selected Remote Control Code
Response	Acceptable	“000_%a”[CR]
	%a	“001”--------Code1 is selected “002”--------Code2 is selected
	Unacceptable	“Error Code” [CR]

9.11.20 CR_SECURITY Command

Command	“CR_SECURITY” [CR]
Details	Get Security Mode setting status
Response	Acceptable	“000_%1[CR]
	%1	“ON”--------- PJ Lock setting on Menu is ON-1 or ON-2 “OFF”---------PJ Lock setting on Menu is OFF
	Unacceptable	“Error Code” [CR]

9.11.21 CR_KEYDIS Command

Command	“CR_KEYDIS”(CR)
Details	Get disability status of RC/Projectile keys (valid or invalid)
Response	Acceptable	“000_%a”[CR]
	%a	“NONE”-------- RC / Projector keys are valid “RC”-------- RC keys are invalid “KEY”-------- Projector keys are invalid
	Unacceptable	“Error Code” [CR]

9.11.22 CR_PJLOCKNOW Command

Command	“CR_PJLOCKNOW” [CR]
Details	Get if PJ lock is actually in operation
Response	Acceptable	"000_%1[CR]"
	%1	"LOCK"--------- PJ Lock is in operation. PJ Lock status is ON-1 or ON-2 on Menu, and PJ PIN CODE is not entered so that projector is actually locked. "FREE"--------- PJ Lock is released. PJ Lock status is OFF, or, status is ON-1 or ON-2 on Menu but PJ PIN CODE is entered correctly so that PJ Lock is released.
	Unacceptable	"Error Code” [CR]

9.11.23 CR_PJLOCKMENU Command

Command	“CR_PJLOCKMENU” [CR]
Details	Get status of PJ Lock on Menu
Response	Acceptable	“000_%1[CR]
	%1	“ON1”--------- PJ Lock status is On-1 “ON2”--------- PJ Lock status is On-2 “OFF”--------- PJ Lock status is OFF
	Unacceptable	“Error Code” [CR]

9.11.24 CR_FANMODE Command

Command	“CR_FANMODE”[CR]
Details	Get selected Fan mode
Response	Acceptable	“000_%a”[CR]
	%a	“L1”--------Fan mode is L1 “L2”--------Fan mode is L2
	Unacceptable	“Error Code” [CR]

9.11.25 CR_FANCONTROL Command

Command	“CR_FANCONTROL”[CR]
Details	Get selected Fan control setting status
Response	Acceptable	“000_%a”[CR]
	%1	“OFF”--------Fan control is OFF “ON1”--------Fan control is ON1 “ON2”--------Fan control is ON2
	Unacceptable	“Error Code” [CR]

9.11.26 CR_DELAYCTRL Command

Command	“CR_DELAYCTRL”[CR]
Details	Get setting status of Video delay control
Response	Acceptable	“000_%1”[CR]
	%1	“ON”--------Video delay control is active “OFF”--------Video delay control is inactive
	Unacceptable	“Error Code”[CR]

9.11.27 CR_FILH Command

Command	“CR_FILH”[CR]
Details	Get Filter used time
Response	Acceptable	“000_%1”[CR]
	%1	“00000”~“99999”-------- 0 hour to 99999 hours
	Unacceptable	“Error Code”[CR]

9.11.28 CR_FILREPL Command

Command	“CR_FILREPL”[CR]
Details	Get the information of Filter replacement time
Response	Acceptable	“000_%1”[CR]
	%1	“1Y”-------- Over filter replacement time “1N”-------- Within filter replacement time
	Unacceptable	“Error Code”[CR]

9.11.29 CR_FILTIMER Command

Command	“CR_FILTIMER” [CR]
Details	Get setting time which filter warning OSD is displayed
Response	Acceptable	“000_%1”[CR]
	%1	“2000”--------2000 hours “3000”--------3000 hours “4000”--------4000 hours “OFF”--------No OSD display
	Unacceptable	“Error Code”[CR]

9.12 Other Status Read Command

9.12.1 CR_STATUS Command

Command	“CR_STATUS”(CR)
Details	Get status of Projector behavior. This command affects the same as “CR0” of Basic Serial command, but this has an error code.
Response	Acceptable	“000_%1”[CR]
	%1	“00”= Power ON “80”= Stand by “40”= Count down “20”= Cooling down “10”= Power failure “28”= Cooling down due to abnormal temperature “88”= Stand by after Cooling down “24”= Power saving cooling down “04”= Power saving “21”= Cooling down due to Lamp failure “81”= Stand by after Cooling down due to Lamp failure
	Unacceptable	“Error Code”[CR]

9.12.2 CR_SIGNAL Command

Command	“CR_SIGNAL”(CR)
Details	Get Signal status if there is signal or not
Response	Acceptable	“000_%a”[CR]
	%a	“ON”--------Signal is found “OFF”--------There is no signal
	Unacceptable	“Error Code” [CR]

9.12.3 CR_VMUTE Command

Command	“CR_VMUTE”[CR]
Details	Get setting status of No Show
Response	Acceptable	“000_%a”[CR]
	%a	“ON”-------- Blank is ON “OFF”-------- Blank is OFF
	Unacceptable	“Error Code” [CR]

9.12.4 CRFREEZE Command

Command	“CRFREEZE”[CR]
Details	Get setting status of Freeze
Response	Acceptable	“000_%a”[CR]
	%a	“ON”-------- Freeze is ON “OFF”-------- Freeze is OFF
	Unacceptable	“Error Code” [CR]

9.12.5 CR_TEMPWARN Command

Command	“CR_TEMPWARN”[CR]
Details	Get the temperature inside a projector and its condition if it is abnormal temperature or close to abnormal temperatureIf there are several sensors installed, it is possible to get information from all the sensors at once.
Response	Acceptable	“000_%a_%b_%c”[CR]
	%a %b %c	%a-------- Sensor 1 status%b-------- Sensor 2 status%c-------- Sensor 3 status“W”---- Approach or reach abnormal temperature (dangerous temperature)“S”---- Far from abnormal temperature (safe temperature)“N”---- Sensor detects no abnormal temperature[Example]“S_W_S”[CR] means Sensor 1 detects safe temperature, Sensor 2 detects abnormal temperature and Sensor 3 detects safe temperatureNote) When the temperature difference between Sensor 1 and 3 reaches specific value, some of the models detect it as Abnormal temperature. In this case, the 3rd data shows if the temperature difference between Sensor 1 and 3 is dangerous state or not. The 3rd data means temperature abnormality due to Sensor 3When abnormal temperature is not detected by sensor, “N” (No connection with temperature abnormality) is returned.
	Unacceptable	“Error Code” [CR]

9.12.6 CR_TEMP Command

Command	"CR_TEMP"[CR]
Details	Get current temperature inside a projector.If there are several sensors installed, it is possible to get information from all the sensors at once.
Response	Acceptable	"000_%1_%2_%3"[CR]
	%1,%2,%3	%1=Sensor 1 temperature (Outside temperature)%2=Sensor 2 temperature (Inside temperature1)%3=Sensor 3 temperature (Inside temperature2)%1,%2are consists of 6 bites fixedThere must be 1 space between %1 and %2, and, %2 and %3e.g._31.5F“_”means a space and “_” changes into “-”, when temperature gets below freezing.e.g.-05.5FThe last character shows if corresponding sensor is under abnormal temperature.“F”-----Abnormal temperature“W”-----Close to abnormal temperature(Temperature is as high to display Warning)“S”-----Not close to abnormal temperature (Temperature is low enough and safe.)“N”-----Applicable sensor does not detect abnormal temperature“E”-----Not able to return temperature dataWhen several sensors are incorporated, projector returns values continuously.e.g.“_31.5F_35.2S_38.0W"[CR]A data of sensor 1 comes first and a data of sensor 2 follows after 1 space.As described respectively in e.g., sensor 1 detects abnormal temp., sensor 2 detects 35.2 degrees which means safety, and sensor 3 is 38 degrees which is close to abnormal temp.In case projector cannot return its data due to some hard ware failure, the last character becomes “E” such as “_00.0E”.Some of the projectors get abnormal temperature because of heat of Lamp ballast in Standby mode or Powering ON.Therefore detection of abnormal temperature is suspended while Standby mode or adequate time after Power ON, and during that time projector returns “----N” as a temperature data.
	Unacceptable	"Error Code"[CR]

9.12.7 CR_TEMPFAIL Command

Command	"CR_TEMPFAIL"[CR]
Details	Get the temperature inside a projector when abnormal temperature occurs. If there are several sensors installed, it is possible to get information from all the sensors at once.
Response	Acceptable	"000_%a_%b_%c"[CR]
	%a %b %c	%a-------- Sensor 1 temp. (External temp.) %b-------- Sensor 2 temp. (Internal temp.1) %c-------- Sensor 3 temp. (Internal temp.2) [Example]"_31.5F"[CR]"_ indicates a space. When the temperature sinks to -, the first character is "-" like "-05.5F"[CR] The last character means the sensor's status if it reaches abnormal temperature Exceeding critical temp.-------- "F" Temp. is safe-------- "S" Sensor detects no critical temp.-------- "N" The example shows that sensor 1 indicates 31.5 degrees and the temperature is abnormal. When the temperature is safe, all data are represented as "☐000S". When the projector is reset, "☐000S" is set, and every time abnormal temperature occurs, it renews the data and returns it. In short, it only returns the renewed data of the latest abnormal temperature and the previous data is deleted.
	Unacceptable	"Error Code"[CR]

9.12.8 CR SerifALNO Command

Command	“CR SerifALNO”[CR]
Details	Get setting serial number
Response	Acceptable	“000_%1”[CR]
	%1	“8 bytes alphanumeric characters
	Unacceptable	“Error Code” [CR]

LV-7292A - Professional projector CANON - Free user manual and instructions

User questions about LV-7292A CANON

USER MANUAL LV-7292A CANON

MULTIMEDIA PROJECTOR

EXPAND SERIAL COMMAND

FUNCTIONAL SPECIFICATIONS

Table of Contents

Overview 1

Serial Interface Specification 2

Notes for communication 3

Name Definition 4

Functional Execution Command Table 5

Status Read Command Table 7

Error Code Table 10

Functional Execution Command 11

Status Read Command 41

Overview

Serial Interface Specification

2.2 Connection

Notes for communication

Name Definition

Functional Execution Command Table

Status Read Command Table

Functional Execution Command

8.1 Format

8.2 Transfer Example

8.3 Operation Requirements

8.4 Image Command

8.5 PC Adjust Control Command

8.6 Input Control Command

8.7 Screen Control Command

8.7.1 CFSCREEN Command

8.8 Lamp Command

8.9 Sound Command

8.10 Setting Command

8.11 Other Command

Status Read Command

9.1 Format

9.2 Transfer Example

9.3 Operation Condition

9.4 I Image Status Read Command

9.4.1 CR_BRIGHT Command

9.4.2 CR_CONT Command

9.4.3 CR_COLOR Command

9.4.4 CR_TINT Command

9.4.5 CR_IRIS Command (n/a LV-7292M/LV-7297M/LV-8227M)

9.5 PC Adjust Status Read Command

9.5.1 CR_FSYNC Command

9.5.2 CR_TDOTS Command

9.5.3 CR_CLAMP Command

9.5.4 CR_H - POS Command

9.5.5 CR_V - POS Command

9.6 Video Status Read Command

9.7 Input Status Read Command

9.7.1 CR_INPUT Command

9.7.2 CR_SOURCE Command

9.7.3 CR SRCINP1 Command

9.7.4 CR SRCINP2 Command

9.7.5 CR SRCINP3 Command

9.8 Screen Status Read Command

9.8.1 CRSCREEN Command

9.9 Lamp Status Read Command

9.10 Sound Status Read Command

9.11 Setting Status Read Command

9.12 Other Status Read Command

9.12.1 CR_STATUS Command

9.12.2 CR_SIGNAL Command

9.12.3 CR_VMUTE Command

9.12.4 CRFREEZE Command

Other manuals CANON

DPV2411

DPV1710

XEED WUX500

LV-8227A

LV-7392A
