USER MANUAL 32LF5610 LG

Safety and Reference

LEDTV*

• LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
  Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
  An area exposed to rain or wind
  Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

The product has been impacted by shock
The product has been damaged
Foreign objects have entered the product
- The product produced smoke or a strange smell This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

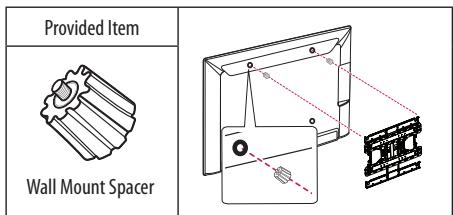

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

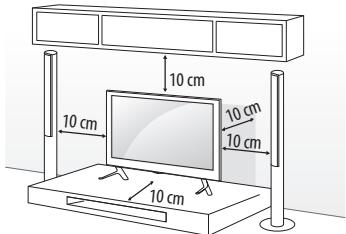

Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10cm .
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
• Do not install the product on a carpet or cushion.
• Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (Deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D imaging (Only 3D models)

WARNING

Viewing Environment

Viewing Time
- When watching 3D contents, take 5 to 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

• Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
• Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
• If your eyesight varies between your right and left eye, correct your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.
• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

Viewing Distance

• Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

• Infants/Children

• Usage/Viewing 3D contents for children under the age of 6 are prohibited.

• Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it). Special monitoring and extra attention is required for children watching 3D contents.

• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers

• Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

Elderly

• The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

Preparing

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

$$ ^ {*} A \leq 1 0 m m $$

$$ ^ {*} B \leq 1 8 m m $$

• Use a certified cable with the HDMI logo attached.

• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)

• High-Speed HDMI*/TM cable (3 m or less)

• High-Speed HDMI*/TM cable with Ethernet (3 m or less)
  How to use the ferrite core (Depending on model)
• Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L, R and AV Video, L, R.

[Cross Section of Ferrite Core]
[to an External device]

[to the TV]
20mm(+ / - 5mm)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.
• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Depending on model)

AG-F*** Cinema 3D glasses	AG-F***DP Dual play glasses
LG Audio Device

Maintenance

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage screen.

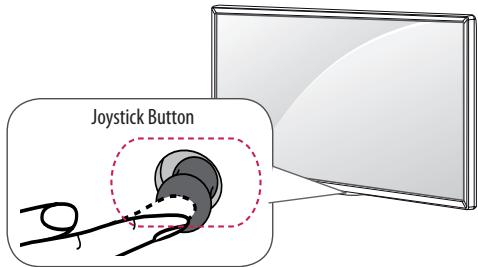

• When handling the TV, be careful not to damage the protruding joystick button.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

Using the joystick button

(Image shown may differ from your TV.)

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

NOTE

• LF51 series does not have a Joystick button but has only a power On/Off button.

Basic Functions

Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it. (However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

Adjusting the Menu

When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right.

○	Turns the power off.
×	Clears on-screen displays and returns to TV viewing.
←	Changes the input source.
→	Accesses the main menu.

NOTE

• When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved programmes.

Mounting on a table

(Image shown may differ from your TV.)

1 Lift and tilt the TV into its upright position on a table.
- Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Using the kensington security system

(This feature is not available for all models.)
- Image shown may differ from your TV.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	32/39LF56**32LF55**32LF62**32/43LF51**40/43UF67**40/43LF57**43LF54**	49/55UF67**49LF54**49LF51**
VESA (mm) (A x B)	200 x 200	300 x 300
Standard screw	M6	M6
Number of screws	4	4
Wall mount bracket	LSW240BMSW240	LSW350BMSW240
Model	60/65UF67**	42/47/50/55LF56**42/49/55LF55**42/49/55LF62**
VESA (mm) (A x B)	300 x 300	400 x 400
Standard screw	M6	M6
Number of screws	4	4
Wall mount bracket	LSW350B	LSW440BMSW240
Model	60LF56**
VESA (mm) (A x B)	400 x 400
Standard screw	M6
Number of screws	4
Wall mount bracket	LSW440B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount.
  Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

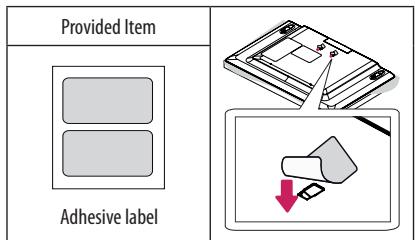

• When installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from accumulating dust and dirt. (Only when the label is provided)

• When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• This model supports 4K (ULTRA HD) videos only in HDMI input. (Only UF67**)
• ULTRA HD videos are not supported in the tuner or USB input. (Only UF67**)
• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
  Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.
• If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC's performance. (Only UF67**)

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75Ω).

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
  Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Adapter connection

Depending on model)

CAUTION

• Please be sure to connect the TV to the AC-DC power adapter before connecting the TV's power plug to a wall power outlet.

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75Ω).

HDMI ULTRA HD deep colour settings

(Only UF67**)

• SETTINGS PICTURE HDMI ULTRA HD Deep Colour HDMI (1/2) ULTRA HD Deep Colour

• On: Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)

• Off: Support 4K @ 50/60 Hz (4:2:0)

• All HDMI ports support the HDCP 2.2.

• 4K Source is only supported in HDMI input.
• 4K signal and content are not available in the RF/USB input.
• All HDMI input ports support 4K @ 50/60 Hz (For details on the supported specifications, refer to the table below.) for high-definition video. Picture or sound may not be supported depending on the specifications of the external device connected. In that case, change the settings for HDMI ULTRA HD Deep Colour.

50/60 Hz Support Format

Resolution	Frame rate (Hz)	Colour Depth / Chroma Sampling
		8 bit	10 bit	12 bit
3840 x 2160p	50.00	YCbCr 4:2:0	YCbCr 4:2:01
4096 x 2160p	59.94	YCbCr 4:2:21
	60.00	YCbCr 4:4:41	-	-
		RGB 4:4:41	-	-

1:Only supported when HDMI ULTRA HD Deep Colour turned "On".

CI module connection

Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when Cl + CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Euro Scart connection

Depending on model)

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable.

Current input mode\Output Type	AV1 (TV Out1)
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

• Any Euro scart cable used must be signal shielded.
• When watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable. (Only 3D models)

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

NOTE

Supported HDMI Audio format :

Dolby Digital (32 kHz, 44.1 kHz, 48 kHz),

DTS (44.1 kHz, 48 kHz),

PCM(32kHz,44.1kHz,48kHz,96kHz,192kHz)

Depending on model)

Remote control

Depending on model)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5

V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.
• The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV.

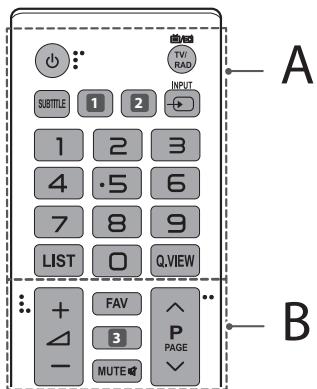

A

(POWER)Turns the TV on or off.

TV/RAD Selects Radio, TV and DTV programme.

SUBTITLE Recalls your preferred subtitle in digital mode.

AD By pressing the AD button, audio descriptions function will be enabled. (Depending on model)

GUIDe Shows programme guide. (Depending on model)

2 RATIO Resizes an image. (Depending on model)

2 AV MODE Selects an AV mode. (Depending on model)

• INPUT Changes the input source.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

B

FAV Accesses your favourite programme list.

3 GUIDE Shows programme guide. (Depending on model)
3D Used for viewing 3D video. (Depending on model)
MUTE Mutes all sounds.
+Adjuststhevolumelevel.
P Scrol1s through the saved programmes.
PAGE Moves to the previous or next screen.

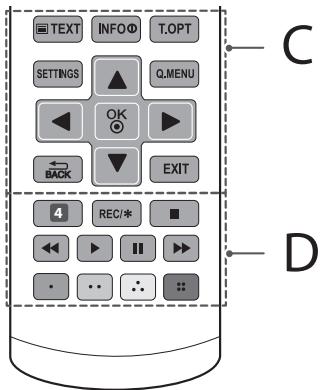

C

Teletext buttons (TEXT, T.OPT) These buttons are used for teletext.

INFO ① Views the information of the current programme and screen.

SETTINGS Accesses the main menus.

Q.MENU Accesses the Quick menus.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

业 BACK Returns to the previous level.

EXIT Clears on-screen displays and returns to TV viewing.

D

4 AV MODE Selects an AV mode. (Depending on model)

4 AD By pressing the AD button, audio descriptions function will be enabled. (Depending on model)

REC/Starts to record and displays record menu.

(Only Time Machine ^Ready supported model) (Depending on model)

Control buttons (, , , , ) Controls the MY MEDIA menus, Time Machine ^Ready control or the SIMPLINK compatible devices (USB, SIMPLINK or Time Machine ^Ready ).

Coloured buttons These access special functions in some menus.

:Red，Green,Yellow,Blue)

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL PLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Hami

HIGHPDEFINITION MULTIMEDIAINTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DIVX

HD

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.

Dts

2.0+Digital Out

(Only UF67**)

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM

for a charge covering the cost of performing such distribution (such

as the cost of media, shipping, and handling) upon email request to

[e-mail]. This offer is valid for three (3) years from the date

on which you purchased the product.

Settings

Automatically Setting Up Programme

SETTINGS SETUP Auto Tuning

Automatically tunes the programmes.

• If Input Source is not connected properly, programme registration may not work.
• Auto Tuning only finds programmes that are currently broadcasting.
• If Lock System is turned on, a pop-up window will appear asking for password.

To select Picture Mode

SETTINGS PICTURE Picture Mode

Select the picture mode optimized for the viewing environment or the programme.

• Vivid: Heightens contrast, brightness and sharpness to display vivid images.
• Standard : Displays images in standard levels of contrast, brightness and sharpness.
• Eco/APS: [Depending on model]
  The Energy Saver feature changes settings on the TV to reduce power consumption.
• Cinema/Game : Displays the optimum picture for movie, game.

• Sport: [Depending on model] Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.

• ISF Expert 1, 2: Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This is the adjustment menu provided for ISF-certified picture tuning professionals. (ISF logo can only be used on ISF-certified TVs.) ISFccc: Imaging Science Foundation Certified Calibration Control

• Depending on input signal, available range of picture modes may differ.
• Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images, the effects may not be dramatic.
• The ISF function is only available on some models.

To set advanced control

SETTINGS PICTURE Picture Mode Advanced Control / Expert Control

Calibrates the screen for each picture mode; or adjusts picture settings for a special screen. First select a Picture Mode of your choice.

• Dynamic Contrast: Adjusts the contrast to the optimal level according to the brightness of the image.
• Dynamic Colour : Adjusts colours to make the image appear in more natural colours.
• Skin Colour : Sets Skin colour spectrum separately to implement the skin colour as defined by the user.
• Sky Colour: Sky colour is set separately.
• Grass Colour: Natural colour spectrum (meadows, hills, etc.) can be separately set.
• Gamma : Sets the gradation curve according to the output of picture signal in relation to the input signal.
  Colour Gamut : Selects the range of colours that can be expressed.
• Edge Enhancer : Shows clearer and distinctive yet natural edges of the video.
• Expert Pattern : [Depending on model]

Patterns used for expert adjustment.

Colour Filter: Filters a specific colour spectrum in RGB colours to fine-tune colour saturation and hue accurately.
- Colour Temperature : Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can be set via Gamma method, etc.
- Colour Management System: This is a system that experts use when they adjust colour with a test pattern. They can select from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without affecting other colours. For normal images, adjustments may not result in noticeable colour changes.
Super Resolution: [Depending on model]

Adjusts the resolution to make dim and blurred images clearer.

• Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.

To set additional picture options

SETTINGs PICTURE Picture Mode Picture Option [Depending on model]

Adjusts detailed setting for images.

• Noise Reduction : Eliminates noise in the picture.
• MPEG Noise Reduction : Eliminates noise generated while creating digital picture signals.
• Black Level: Adjusts the brightness and contrast of the screen to suit the black level of the input picture by using the blackness (black level) of the screen.
  Real Cinema : Optimizes the screen for movie viewing.
• Motion Eye Care / Smart Energy Saving : [Depending on model] Saves power consumption by adjusting the brightness corresponding to the movement of the image on the screen.

• LED Local Dimming: [Depending on model] Brightens bright areas and darkens dark areas of the image for maximum contrast and minimum blur while reducing power consumption.

• Off: Disables the LED Local Dimming function.

• Low/Medium/High : Changes the contrast ratio.

• TruMotion: [Depending on model] Optimizes the image quality of fast-moving pictures.

• Off: Turns off the TruMotion.

• Smooth: Softens fast-moving pictures.
• Clear: Makes fast-moving pictures clearer.
• User: Sets De-Judder/De-Blur manually.

De-Judder: Adjusts juddering on the screen.

De-Blur: Reduces the blurring effects of motion.

Auto means Juddering and blurring range that depend on input video status is controlled by TruMotion mode.

• Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.

To use Energy Saving feature

SETTINGS PICTURE Energy Saving

Reduces power consumption by adjusting screen brightness.

• Auto: [Depending on model]
  The TV sensor detects the ambient lighting and automatically adjusts the screen brightness.
• Off: Turns off the Energy Saving mode.
• Minimum / Medium / Maximum : Applies the pre-set Energy Saving mode.
• Screen Off: Screen is turned off and only sound is played. Press any button except Power button on the remote control to turn the screen back on.

To use HDMI ULTRA HD Deep Colour

SETTINGS PICTURE HDMI ULTRA HD Deep Colour HDMI (1/2) ULTRA HD Deep Colour

[Depending on model]

HDMI port provides ULTRA HD Deep Colour, HDMI port provides ULTRA HD Deep Colour for a clearer picture.

• On: ULTRA HD Deep Colour enabled
• Off: ULTRA HD Deep Colour disabled

To use TV speaker

SETTINGS AUDIO Sound Out TV Speaker / Internal TV Speaker

[Depending on model]

Sound is output through the TV speaker.

To use External Speaker

SETTINGS AUDIO Sound Out External Speaker (Optical) / Audio Out (Optical)

[Depending on model]

Sound is output through the speaker connected to the optical port.

• SimpLink is supported.

To use Internal TV Speaker + Audio Out (Optical)

SETTINGS AUDIO Sound Out Internal TV Speaker + Audio Out (Optical)

[Depending on model]

Audio is played through the TV's built-in speakers and the audio device connected to the digital optical audio output port simultaneously.

To use Digital Sound Out

SETTINGS AUDIO Sound Out External Speaker (Optical) / Audio Out (Optical) / Internal TV Speaker + Audio Out (Optical)

Digital Sound Out

[Depending on model]

Sets up Digital Sound Out.

Item	Audio Input	Digital Audio Output
Auto	MPEG	PCM
	Dolby Digital	Dolby Digital
	Dolby Digital Plus	Dolby Digital
	HE-AAC	Dolby Digital
	DTS	DTS
PCM	All	PCM

To connect and use LG audio device

SETTINGs AUDIO Sound Out LG Sound Sync (Optical) [Depending on model]

Connect LG audio device with the Sound Syno logo to the optical digital audio output port. LG audio device allows you to enjoy rich powerful sound easily.

To use Headphone

SETTINGs AUDIO Sound Out Headphone

[Depending on model]

Sound is output through the headphone connected to the earphone/ headphones port.

To synchronize audio and video

SETTINGS AUDIO AV Sync. Adjust

[Depending on model]

Synchronizes video and audio directly when they do not match.

• If you set AV Sync. Adjust to ON, you can adjust the sound output (TV speakers or SPDIF) to the screen image.

To use SIMPLINK

[Depending on model]

SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu.

1 Connect the TV's HDMI IN terminal and the SIMPLINK device's HDMI output terminal using an HDMI cable.

• [Depending on model] For home theatre units with a SIMPLINK function, connect HDMI terminals as above, and use an optical cable to connect Optical Digital Audio Out from the TV to Optical Digital Audio In of the SIMPLINK device.
  2 Select INPUT(OPTION) SIMPLINK. SIMPLINK menu window appears.
  3 In SIMPLINK Setting window, set SIMPLINK function to ON.
  4 In SIMPLINK menu window, selects the device you want to control.

• This function is only compatible with devices with the SIMPLINK logo.

• To use the SIMPLINK function, you need to use a high-speed HDMI cable (with CEC (Consumer Electronics Control) feature added). High-speed HDMI cables have the No. 13 pin connected for information exchange between devices.
• If you switch to another input, the SIMPLINK device will stop.
• If a third-party device with the HDMI-CEC function is also used, the SIMPLINK device may not work normally.
• [Depending on model] If you select or play media from a device with a home theatre function, the HT Speaker(Speaker) is automatically connected. Be sure to connect with an optical cable (sold separately) to use the HT Speaker(Speaker) function.

SIMPLINK function description

• Direct Play: Plays the multimedia device on the TV instantly.
• Select multimedia device: Selects the desired device via the SIMPLINK menu to control it from the TV screen instantly.
• Disc playback: Manages the multimedia device with the TV remote control.
• Power off all devices: When you power off the TV, all connected devices are turned off.
• Sync Power on : When the equipment with SIMPLINK function connected HDMI terminal starts to play, the TV will automatically turn on.
• Speaker: [Depending on model]
  Select speaker either on the home theatre unit or the TV.

To set password

SETTINGs LOCK Set Password

Sets or changes the TV password.

The initial password is set to '0000'.

• When France is selected for Country, password is not '0000' but '1234'.
• When France is selected for Country, password cannot be set to '0000'.

To return Factory Reset

SETTINGS OPTION Factory Reset

All stored information is deleted and TV settings are reset.

The TV turns itself off and back on, and all settings are reset.

• When Lock System is in place, a pop-up window appears and asks for password.
• Do not turn off the power during initialization.

To remove the USB device

Q.MENU USB Device

Select a USB storage device that you want to remove.

When you see a message that the USB device has been removed, separate the device from the TV.

• Once a USB device has been selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it.

Using a USB storage device - warning

• If the USB storage device has a built-in auto recognition program or uses its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• Use only USB storage devices formatted with the Windows FAT32 or NTFS File System.
• For external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5V and a rated current of less than 500mA .
• It is recommended that you use USB memory sticks of 32 GB or less and USB HDDs of 2 TB or less.
• If a USB HDD with power-saving function does not work properly, turn the power off and on. For more information, refer to the user manual of the USB HDD.
• Data in the USB storage device can be damaged, so be sure to back up important files to other devices. Data maintenance is the user's responsibility and the manufacturer is not responsible for data loss.

My Media supporting file

Maximum data transfer rate: 20 Mbps (Mega bit per second)
- External supported subtitle formats: .srt (SubRip), .smi (SAMI), .sub (Subscriber, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)), .ass/.ssa (SubStation Alpha), .txt (TMplayer), .psb (PowerDivX)
- Internal supported subtitle formats: .dat/.mpg/.mpg. vob (DVD Subtitle), .ts/.tp/.m2ts/ (DVB Subtitle), .mp4 (DVD Subtitle, UTF-8 Plain Text), .mkv (ASS, SSA, UTF-8 Plain Text, Universal Subtitle Format, VobSub, DVD Subtitle), .divx/.avi (XSUB1, XSUB+)
1 XSUB: Supports internal subtitles generated from DivX6

Supported Video Formats

Maximum: 1920 × 1080 @ 30p (only Motion JPEG 640 × 480 @ 30p )
.asf, .wmv

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43
[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, MP3, 3D WMV Single Stream.
divx,avi

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC
[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3), *DTS
.1s, trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC, *DTS
.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM
. mp4,m4v,mov

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC
[Audio] AAC, MPEG-1 Layer III (MP3), *DTS
. mkv

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC
[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), *DTS, LPCM
- motion JPEG

[Video]MJPEG

[Audio] LPCM, ADPCM
.mpg,mpeg,mpe

[Video] MPEG-1, MPEG-2
[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM
- dat

[Video] MPEG-1, MPEG-2
[Audio] MP2
- flv

[Video] Sorenson H.263, H.264/AVC
[Audio] MP3, AAC, HE-AAC
*rm, *rmvb

[Video] RV30, RV40
[Audio] Dolby Digital, AAC, HE-AAC, RA6(Cook)
- 3gp,3gp2

[Video] H.264/AVC, MPEG-4 Part2

[Audio] AAC, AMR(NB/WB)

• DTS / rm / *rmvb : Depending on model

Supported Audio Formats

• File type: mp3

[Bit rate] 32 Kbps - 320 Kbps

[Sample freq.] 16kHz - 48kHz

[Support] MPEG1, MPEG2, Layer2, Layer3

• File Type: AAC

[Bit rate] Free Format

[Sample freq.] 8kHz 48kHz

[Support] ADIF, ADTS

• File Type: M4A

[Bit rate] Free Format

[Sample freq.] 8kHz 48kHz

[Support] MPEG-4

• File Type: WMA

[Bit rate] 128 Kbps 320 Kbps

[Sample freq.] 8kHz 48kHz

[Support]WMA7,WMA8,WMA9 Standard

• File Type:WMA10 Pro

[Bit rate] 768 Kbps

[Channel / Sample freq.]

M0:up to 2 Channel @ 48 kHz

(Except LBR mode),

M1: up to 5.1 Channel @ 48 kHz,

M2: up to 5.1 Channel @ 96 kHz

[Support]WMA10 Pro

• File Type: OGG

[Bit rate] Free Format

[Sample freq.] 48kHz

[Support]OGG Voris

Supported Photo Formats

Category:2D (jpeg,jpg,jpe),3D (jps)
[Available file type] SOFO: Baseline,
SOF1: Extend Sequential,
SOF2:Progressive
[Photo size] Minimum: 64 × 64
Maximum: Normal Type: 15360 (W) x 8640 (H),
Progressive Type: 1920 (W) x 1440 (H)
Category:BMP
[Photo size] Minimum: 64 × 64 , Maximum: 9600 × 6400
- Category: PNG
[Available file type] Interface, Non-Interface
[Photo size] Minimum: 64 × 64 , Maximum: Interlace: 1200 × 800
Non-Interlace : 9600 x 6400
Category:MPO (3D)
[Photo size] 4:3 Size : 3648 x 2736 / 2592 x 1944 / 2048 x 1536, 3:2
Size:3648x2432
- BMP and PNG format files may be slower to display than JPEG.
- The 3D function may differ depending on the model.

To see web manual

To obtain detailed User Guide information, please visit www.lg.com.

External control device setup

To obtain the external control device setup information, please visit www.lg.com.

Troubleshooting

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed (⊕ to ⊙, ⊙ to ⊙).

No image display and no sound is produced.

• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Automatic Standby (Depending on model) / Sleep Timer / Off Time is activated in the TIME settings.
• If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
• Restart the PC with the TV on.

BENUTZERHANDBUCH

PCM (32 kHz, 44,1 kHz, 48 kHz, 96 kHz, 192 kHz)

[Bitrate] 32 kbit/s - 320 kbit/s

[Bitrate] Freies Format

[Abtastfrequenz] 8kHz 48kHz

[Unterstutzung] ADIF, ADTS

• Dateɪtyp: M4A

[Bitrate] Freies Format

[Abtastfrequenz] 8kHz 48kHz

[Bitrate] Freies Format

[Abtastfrequenz] 48kHz

SOF1: Extend Sequential,

SOF2: Progressive

[BildgroBe] Minimum: 64× 64

Maximum: Normales Modell: 15360 (B) x 8640 (H),

Progressive: 1920 (B) x 1440 (H)

• Kategorie: BMP

[BildgroBe] Minimum: 64 x 64, Maximum : 9600 x 6400

• Kategorie: PNG

PCM (32 kHz, 44,1 kHz, 48 kHz, 96 kHz, 192 kHz)

(In base al modello)

Telecomando

(In base al modello)

[Formati supportati] ADIF, ADTS

• Tipo di file: M4A

No permitted that the children are to be given food.

PCM (32 kHz, 44,1 kHz, 48 kHz, 96 kHz, 192 kHz)

(Enfunciondelmodelo)

Mando a distancia

[Audio] WMA Standard, WMA9 (Pro), MP3, AAC, AC3, MP3, 3D WMV SingleStream

<divx,avi

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3), *DTS

. ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC, *DTS

.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

PCM (32 kHz, 44,1 kHz, 48 kHz, 96 kHz, 192 kHz)

[Geluid] WMA-norm, WMA9(Pro), MP3, AAC, AC3, MP3, 3D WMV Single Stream.

divx.avi

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Geluid] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3), *DTS

. ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Geluid] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC, *DTS

.vob

[Video] MPEG-1, MPEG-2

[Geluid] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

Xnouoioouvtai yia to teletext.

De-Judder: IpooapoiOeI to tpeiOnaiymaTc oBvNc.

De-Blur:MeiwveTaεΦeθaμiωμatoTcKivnOngs.

Autopatn leitoupyia onaivei ot to eupoc tpeonaiyato cai
thetauatao, nou esaptatai anotnv katotaan biVteo eioodou,
eelyctai anot neitoupyia TruMotion.

Ta 0toxieia nou penei va puthetaouv aeioepoc ouva diaepovuv avaloya me to onma eioobu npapetpoc tnc EIKoVAC.

Tia xipnTnc Ieitoupyiac Eoikovounonc evpveic

SETTINGSEIKONA Eeokovopon Evpyeetac

Eoiokovoei nalekpiik Evepyia npoapuocovtac Tn ooteivotnta tnc obovnc.

Autopato: [Avaoya me to vovtelo]
O aiothnpac nTn aeopaoan avivyeu Tov oWtioo tou nepiBalavotc kai poujcei autouata tn oEvitota Tc oovnic.
- Anevpy/vo: Anevpyoioei tv Evokovon EvpeiaC.
ElambdaioT/MeOo/MeyiToN:EvpyoioTeynpokaoOpouEv npuO EcoikovouonC Evpeiaac.
Kleioo 08oVnc; H oBvN KAEivei KAI aKoUyetao mO vnoXoc. Patntote OIOIOHnote KOUmI OTO nAeEpiotnio (EKTO ano To koumi aeIooupyiac) yia va evepyoiuaete EavTnO bovn.

Xpion tnc λειτουργiac HDMI ULTRA HD Deep Colour

SETTINGS EIKONA HDMI ULTRA HD Deep Colour HDMI (1/2) ULTRA HD Deep Colour

[AvaIoya meoovtelo]

H upa HDMI napexi T duvatotnta ULTRA HD Deep Colour etoi wote va anolauabave tio kaapj eikova.

• Evεργ/νο: Yποστηριζεαι ηλείουργia ULTRA HD Deep Colour
• Anevpy/vo: ev unootnpicetai n λeitoupyia ULTRA HD Deep Colour

Tia xpon twv nxeiow TV

SETTINGs HXO 'EgOoc nXou Hxieia TV / Evosmuatomega neio tnaleopaoanc

[Avaoya meo movtEko]

Svypovici aeueuethia tyn evikova kai tov npo otav unapxia anoklian avaeoa touc.

[Hxoc] WMA Standard, WMA9(Pro), MP3, AAC, AC3, MP3, 3D WMV Single Stream.

divx.avi

[Bivtεο] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Hxoc] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3), *DTS

. ts, .trp, .tp, .mts, .m2ts

[Bivtεo] H.264/AVC, MPEG-2, AVS, VC1

[Hxoc] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC,*DTS

.vob

[Bivte] MPEG-1, MPEG-2

[Hxoc] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

CI Module Size (W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV	Digital TV	Analogue TV
Television system	DVB-T/T2	DVB-T	PAL/SECAM B/G/D/K/I, SECAM L/L'
	DVB-C	DVB-C
	DVB-S/S2	DVB-T/T2*
Programme coverage	VHF, UHF C-Band, Ku-Band	VHF, UHF	VHF: E2 to E12, UHF: E21to E69, CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable programmes	6,000	1,500
External antenna impedance	75 Ω

• Only DVB-T2/C/S2 support models.

3D supported mode

(Only 3D models)

Video, which is input as below media contents is switched into the 3D screen automatically.

The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images.

Input	Signal	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p	1280 x 720	37.50	50	Side by Side(half), Top and Bottom
			45	60
			75	50	Frame packing
			89.90 / 90	59.94 / 60
	1080i	1920 x 1080	28.125	50	Side by Side(half), Top and Bottom
			33.70	60
	1080p	1920 x 1080	27.00	24	Side by Side(half), Top and Bottom
			33.70	30
			53.95 / 54	23.98 / 24	Frame packing
			56.30	50	Side by Side(half), Top and Bottom, Single frame sequential
			67.50	60
DTV	720p	1280 x 720	37.50	50	Side by Side, Top and Bottom
	1080i	1920 x 1080	28.125	50
USB	1080p	1920 x 1080	33.75	30	Side by Side, Top and Bottom, JPS, MPO(Photo)

HDMI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 480	31.46	59.94
	31.50	60.00
720 x 480	31.47	59.94
	31.50	60.00
720 x 576	31.25	50.00
1280 x 720	37.50	50.00
1280 x 720	45.00	60.00
1280 x 720	44.96	59.94
1920 x 1080	28.12	50.00
	33.75	60.00
	33.72	59.94
	56.25	50.00
	67.50	60.00
	67.43	59.94
	27.00	24.00
	26.97	23.97
	33.75	30.00
	33.71	29.97
3840 x 2160	53.95	23.98
	54	24.00
	56.25	25.00
	61.43	29.97
	67.5	30.00
	112.5	50.00
	135	59.94
	135	60.00
4096 x 2160	53.95	23.98
	54	24.00
	56.25	25.00
	61.43	29.97
	67.5	30.00
	112.5	50.00
	135	59,94
	135	60.00

1: Support dual play for 3D models
2:Only UF67**

HDMI-PC supported mode

Use HDMI IN 1 for PC mode (Except for UF67**)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350	31.46	70.09
720 x 400	31.46	70.08
640 x 480	31.46	59.94
800 x 600	37.87	60.31
1024 x 768	48.36	60.00
1152 x 864	54.34	60.05
1360 x 768	47.71	60.01
1280 x 1024	63.98	60.02
1920 x 1080	67.50	60.00
3840 x 2160	54	24.00
3840 x 2160	56.25	25.00
3840 x 2160	67.5	30.00
4096 x 2160	53.95	23.97
4096 x 2160	54	24

1: Except for 32LF55U, 32LF56U, 32LF62U
2:Only UF67*

Component port connecting information

Component ports on the TV

Y

PB

PR

Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

Signal	Component
480i / 576i	0
480p / 576p	0
720p / 1080i	0
1080p	0 (Only 50 Hz / 60 Hz)

Regulatory

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www/lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

• Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,
• Putting the television into standby mode, will reduce energy consumption, but will still draw some power,
• Reducing the brightness of the screen will reduce energy use.

Isolator (Only Sweden, Norway)

• "Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"
• "Utrustning som ar kopplad till skyddsjord via jordat vagguttag och/eller via annan utrusting och samtidigt ar kopplad till kabel-TV nat kan i vissa fall medfora risk for brand. For att undvika detta skull vid anslutnng av utrustingen till kabel-TV nat galvanisk isolator finnas mellan utrustingen och kabel-TV nabet."
• "Utstyr som er koplet til beskyttelsensjord via nettplugg og/eller via annet jordtilkoplet utstyr - og er tilkoplet et kabel-TV nett, kan forårsake brannfare.

Better for the environment...

High Energy Efficiency
- Reduced CO2 emissions
- Designed to facilitate repair and recycling

... better for you.

EU Ecolabel : PL/22/004

LGE announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment- friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine) 06mexeHHa YkpaIHn Ha hAraBHiCt b He6e3neuHx peOvBNH

• The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
• YctaKyBaHHa BiiDnOBiAe BmOram TexHicHoTo perNaMeHTy 0do 6MExeHHo BRKOpCTAHHe He63neHnx peOvHn B eIekTpHuOMy i enektpohHomy oBlaHaHHi.

Packing Information (Only Russia, Kazakhstan, Belarus)

Pycckn

CMMBON «He dIa IINuEBoI npOdyKuIM» pImMeHReTCA B COOTBcTBNe C TEXHueckMn PERIaMeHToM TaMOxEHOrO coIO3a «06e3OnaCHOCTyNAOKoBIM» 005/2011 u yka3bIbaet ha To, tO ynaOKoBA daHORo npOdyKta He npedHa3NaHeA daI naOBtropHO mCNoIb3ObaHn I nOndekHTyTNiHaazm. YnakOBky DaHORo npOdyKta ZanpeaTa cNcNoJIb3ObaTb dIra XpAHEnia IINuEBoI npOdyKUIM.

Ka3aKawa

CmBON KeIeHik OaKbIH 005/2011 texnkaIbIK perIameHTIhe cEkeKC KOIaHaNbIaDbI XHe OcbI eHMHIN KANTaMaCbIH ekHsi pet naIdaNaHyFa apHaImaHaBIn KHe JIOFa JataTbIH IN KepCteTei. OcbI eHMHIN KANTaMaCbIH a3bIK-TyIK eHMdePiN caTay yIsh naiDaNaHyTa bIM calbHaDbI.

Pycckn

CMMBOI yKa3bIaBaeHa B03MOKHOCTb yTNIM3aUINyNakOBKn. CMMBOI MOKeT 6bITb DOIOJIHeH O6O3HaueHHeM MaTePnAna yNakOBKn B VnDE ZIΦpOBOrO N/INN bYKBENHOrO 6O3NaueHIna.

Ka3aKawa

CmBON KANTAMAbI XOIO MymKInDirIN KepcTei. CmBON caNdbIK KOJXaHe/Hemece apin 6nriinepi TpyiDeri KaNTAMa MaTePnAIBHbH 6nRicimEn ToJIbIKTbIPbIyblMmKiH.

LG

Life's Good

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB

Digital Video Broadcasting

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

LG Customer Information Centre
Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
Belgien	015 200 255	Norge	800 187 40
Luxembourg	0032 15 200255	Polska	801 54 54 54
Бulgaria	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	Romania	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	España	963 05 05 00
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01806 11 54 11 (0,20€ pro Anruf aus dem Festnetz der DTAG; Mobilfunk: max 0,60€ pro Anruf)	Schweiz	0848 543 543
Еλλάδα	801 11 200 900, 210 4800 564	United Kingdom	0344 847 5454
		Rocsnja	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	01 686 9454	Уkraine	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805, 2255(GSM)
Беларcsb	8 820 0071 1111
Latvija	80200201	УзEKистан	8 800 120 2222
Lietuva	880008081	Кыръзстан	0-800-805-8050
Türkye	444 6 543	Slovenija	080 543 543

www.lg.com
