USER MANUAL YSM8 YORKVILLE

YSM O WN ER' S MAN UAL M ANUE L D E L 'U TI LI SATEU R YSM5 MODEL TYPE: YS1089 YSM6 & YSM8 MODEL TYPE: YS1090

IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilatereal triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Le point d’exclamation à l’intérieur d’un triangle équilatéral est prévu pour alerter l’utilisateur de la présence d’instructions importantes dans la littérature accompagnant l’appareil en ce qui concerne l’opération et la maintenance de cet appareil.

Ce symbole d’éclair avec tête de flèche dans un triangle équilatéral est prévu pour alerter l’utilisateur de la présence d’un « voltage dangereux » non-isolé à proximité de l’enceinte du produit qui pourrait être d’ampleur suffisante pour présenter un risque de choque électrique.

S2125A FOLLOW ALL INSTRUCTIONS Instructions pertaining to a risk of fire, electric shock, or injury to a person

CONSULTEZ UN TECHNICIEN QUALIFIE POUR L’ENTRETIENT Read Instructions: The Owner’s Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and heed all warnings. Clean only with dry cloth.

Veuillez Lire le Manuel: Il contient des informations qui devraient êtres comprises avant l’opération de votre appareil. Conservez. Gardez S.V.P. ces instructions pour consultations ultérieures et observez tous les avertissements. Nettoyez seulement avec le tissu sec.

Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.

Emballage: Conservez la boite au cas ou l’appareil devait être retourner pour réparation.

Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!

Avertissement: Pour réduire le risque de feu ou la décharge électrique, n'exposez pas cet appareil à la pluie ou à l'humidité. N’utilisez pas cet appareil près de l’eau!

Warning: When using electric products, basic precautions should always be followed, including the following:

Attention: Lors de l’utilisation de produits électrique, assurez-vous d’adhérer à des précautions de bases incluant celle qui suivent:

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing ground. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. Only use attachments/accessories specified by the manufacturer Note: Prolonged use of headphones at a high volume may cause health damage on your ears. The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus. Terminals marked with the “lightning bolt” are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords. Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. Protect the power cord from being walked on or pinched particularly at plugs. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. The mains plug of the power supply cord shall remain readily operable. Unplug this apparatus during lightning storms or when unused for long periods of time.

The unit should be serviced only by qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Consultez un technicien qualifié pour l’entretien de votre appareil. L'entretien est nécessaire quand l'appareil a été endommagé de quelque façon que se soit. Par exemple si le cordon d’alimentation ou la prise du cordon sont endommagés, si il y a eu du liquide qui a été renversé à l’intérieur ou des objets sont tombés dans l'appareil, si l'appareil a été exposé à la pluie ou à l'humidité, si il ne fonctionne pas normalement, ou a été échappé. safety-4v7 • May 7/2008

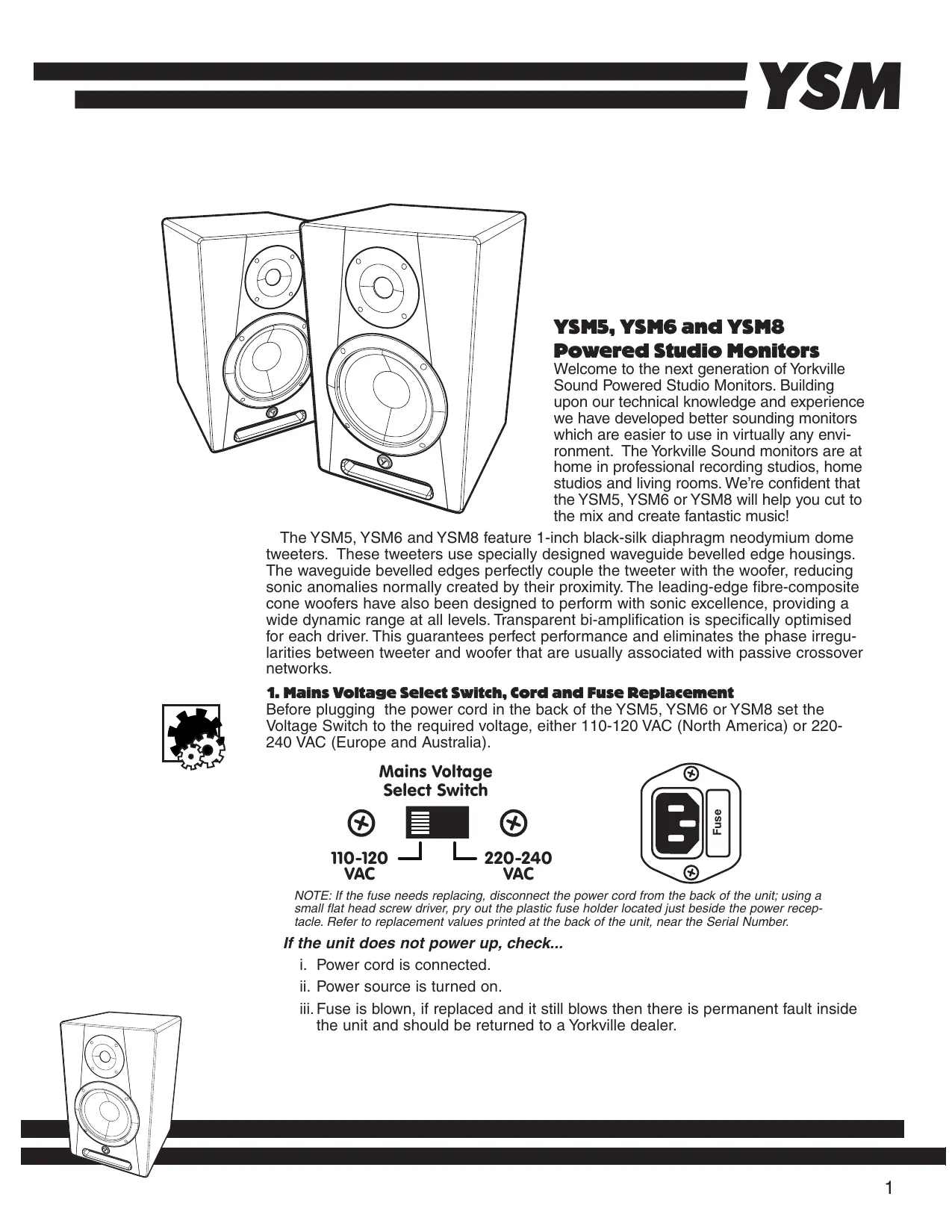

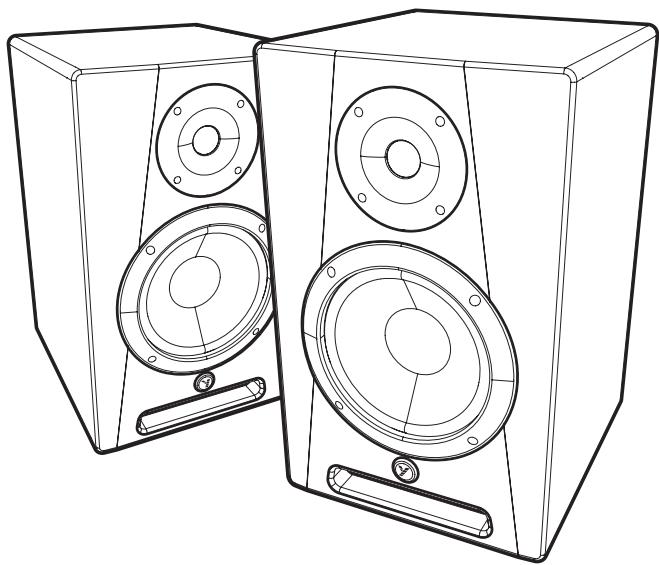

YSM YSM5, YSM6 and YSM8 Powered Studio Monitors

Welcome to the next generation of Yorkville Sound Powered Studio Monitors. Building upon our technical knowledge and experience we have developed better sounding monitors which are easier to use in virtually any environment. The Yorkville Sound monitors are at home in professional recording studios, home studios and living rooms. We’re confident that the YSM5, YSM6 or YSM8 will help you cut to the mix and create fantastic music! The YSM5, YSM6 and YSM8 feature 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters use specially designed waveguide bevelled edge housings. The waveguide bevelled edges perfectly couple the tweeter with the woofer, reducing sonic anomalies normally created by their proximity. The leading-edge fibre-composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Transparent bi-amplification is specifically optimised for each driver. This guarantees perfect performance and eliminates the phase irregularities between tweeter and woofer that are usually associated with passive crossover networks. 1. Mains Voltage Select Switch, Cord and Fuse Replacement Before plugging the power cord in the back of the YSM5, YSM6 or YSM8 set the Voltage Switch to the required voltage, either 110-120 VAC (North America) or 220240 VAC (Europe and Australia).

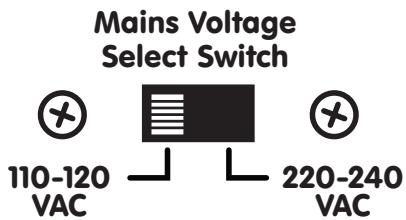

VAC NOTE: If the fuse needs replacing, disconnect the power cord from the back of the unit; using a small flat head screw driver, pry out the plastic fuse holder located just beside the power receptacle. Refer to replacement values printed at the back of the unit, near the Serial Number.

If the unit does not power up, check... i. Power cord is connected. ii. Power source is turned on. iii. Fuse is blown, if replaced and it still blows then there is permanent fault inside the unit and should be returned to a Yorkville dealer.

YSM 2. Input Jack The inputs of all three monitors are balanced and can use a ¼-inch TRS phone jack or XLR connector. If you need to use an RCA cable to connect, use a standard RCA > ¼-inch adapter such as the APEX AA1/6. Similarly, If you wish to use an 1/8inch (3.5MM) cable you will need the APEX AA49 adapter.

Combi INPUT 1/4-inch/XLR

3. Input Sensitivity (YSM5, YSM6 and YSM8) The Input Sensitivity control enables the YSM5, YSM6 and YSM8 monitors to be properly matched to various systems enabling the best calibration between the devices. 1 = Ground 2 = (+) 0° The Input Sensitivity can be adjusted in two ways, 3 = (-) 180° i. as a Volume Control. Connect a line in from the line-level source into the YSM’s input located at the back of the unit, proceed to rotate the Input Sensitivity control located at the rear of the monitor counter clockwise for minimum/off and full clockwise for maximum gain (sensitivity). Please note, always start with the volume control at minimum (off) and slowly bring up to desired level. ii. If you are using a mixing console to feed the input of the YSM powered monitor, set the db gain control to the desired level and then proceed to the Input Sensitivity control on the YSM powered monitor and adjust to same db level as the mixer, this insures that the overall desired gain is not too much or too little. Hi Presets -1 0 -2

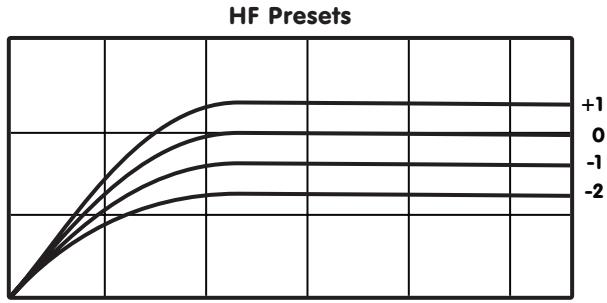

4. HF Presets Control Settings (YSM5, YSM6 and YSM8) The default setting for the HF (high frequency) is 0 which is a flat response in normal near field conditions. If the room is over dampened it might be desirable to increase the HF trim to +1, this will increase the High Frequency response, the opposite would hold for an under dampened room with a lot of reflections that can become quite challenging for the ears, try settings -1 and -2. HF Presets

YSM 5. Low Frequency Control Settings (YSM6 and YSM8) The default setting for the LF (low frequency) is 0. As an example, if the monitors are placed in the middle of a room and more low end response is needed, set the select switch to +1.5 A. As another example, if your monitors are placed against the back wall as shown in the diagram below, it is recommended that you set the LF setting to -1. Accordingly, if the monitors are placed in the corner of the room, set to -2. LF Presets

Full Space Placement (full area)

1/2 Space Placement (against the wall)

1/4 Space Placement (in corner)

6. Bi-Amplification The common term is bi-amplification, a process which uses two power amplifiers and an electronically accurate ‘active’ crossover network. This type of crossover network divides the signal much more precisely than traditional passive crossover networks. All three monitors, the YSM5, YSM6 and YSM8 use bi-amplification, an amplifier dedicated for the tweeter and another for the woofer.

Full Space Placement (full area)

1/2 Space Placement (against the wall)

1/4 Space Placement (in corner)

6. Bi-Amplification Le terme commun est la bi-amplification, un processus qui utilise deux amplificateurs de puissance et un réseau électronique actif précis pour le filtre de coupure . Ce type de réseau de filtre de coupure divise le signal beaucoup plus précisément que les réseaux traditionnels de filtre passif. Les trois modèles de moniteurs, le YSM5, YSM6 et YSM8 utilisent la bi-amplification. Un amplificateur dédié pour le tweeter et un autre pour le woofer.

D E S I G N E D & M A N U FA C T U R E D B Y Y O R K V I L L E S O U N D Max

Two & Ten Year Warranty Two &Ten Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. This includes all Yorkville products, except for the YSM Series studio monitors, Coliseum Mini Series and TX Series Loudspeakers. Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes or par bulbs. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.

Canada U.S.A. Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 w w w . y o r k v i l l e . c o m Yorkville Sound 550 Granite Court Pickering, Ontario

L1W-3Y8 CANADA Yorkville Sound Inc. 4625 Witmer Industrial Estate Niagara Falls, New York

14305 USA Printed in China

REAL Gear. REAL People.

WORLD HEADQUARTERS CANADA U.S.A.

Printed in China Manual-Owners-ysm5_6_8-00-1v0 • March 11, 2011
