USER MANUAL YSM1P YORKVILLE

YSM1P E N V I R O N M E N TA L LY P R O C E S S E D

INSTRUCTIONS RELATIVES AU RISQUE

Warning: To reduce the risk or fire or electric shock, do

not expose this apparatus to rain or moisture.

Warning: When using electric products, basic precau-

tions should always be followed, including the following: Attention: Lors de l’utilisation de produits électrique, Power Sources Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated. Hazards Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus. Terminals marked with the “lightning bolt” are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords. No naked flame sources, such as lighted candles, should be placed on the apparatus. The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. Unplug this apparatus during lightning storms or when unused for long periods of time. Service The unit should be serviced only by qualified service personnel. assurez-vous d’adhérer à des précautions de bases incluant celle qui suivent: Alimentation L’appareil ne doit être branché qu’à une source d’alimentation correspondant au voltage spécifié dans le manuel ou tel qu’indiqué sur l’appareil. Cet appareil est équipé d’une prise d’alimentation polarisée. Ne pas utiliser cet appareil avec un cordon de raccordement à moins qu’il soit possible d’insérer complètement les trois lames. Des précautions doivent êtres prises afin d’eviter que le système de mise à la terre de l’appareil ne soit désengagé. Risque Ne pas placer cet appareil sur un chariot, un support, un trépied ou une table instables. L’appareil pourrait tomber et blesser quelqu’un ou subir des dommages importants. Utiliser seulement un chariot, un support, un trépied ou une table recommandés par le fabricant ou vendus avec le produit. Suivre les instructions du fabricant pour installer l’appareil et utiliser les accessoires recommandés par le fabricant. Il convient de ne pas placer sur l’appareil de sources de flammes nues, telles que des bougies allumées. Ensure that proper ventilation is provided around the appliance. Power Cord devait être retourner pour réparation.

Avertissement: Pour réduire le risque de feu ou la

décharge électrique, n'exposez pas cet appareil à la pluie ou à l'humidité. L’appeil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures et qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil. Assurez que lappareil est fourni de la propre ventilation. Les dispositifs marqués d’une symbole “d’éclair” sont des parties dangereuses au toucher et que les câblages extérieurs connectés à ces dispositifs de connection extérieure doivent être effectivés par un opérateur formé ou en utilisant des cordons déjà préparés. Cordon d’Alimentation Évitez d’endommager le cordon d’alimentation. N’UTILISEZ PAS L’APPAREIL si le cordon d’alimentation est endommagé. Débranchez cet appareil durant les orages ou si inutilisé pendant de longues périodes. Service Consultez un technicien qualifié pour l’entretien de votre appareil. safety-4v4.eps • Jan.16/2007 YSM1P YSM1p Contemporary Active Studio Monitor Crisp, clean, loud, flat and accurate. Introduction The YSM1p system is an advanced powered studio monitors. Designed specifically for recording and home audio applications. Nearly a year of research and development has helped us provide the YSM1p with the precise audio response needed for critical post-production as well as realtime recording applications. Comprehensive protection features further ensure long-term uninterrupted performance (even when life’s little audio accidents occur). Building on the success of the Yorkville studio monitor line, the active YSM1p uses the same cabinet and similar components as the popular Yorkville YSM1i. This is comprised of a rugged, shielded 6.5 inch 100-Watt woofer and a shielded 1 inch silk dome tweeter. The drivers are center aligned vertically and mounted slightly forward to minimize reflections off the baffle. A precisely tuned 2 inch cylindrical port, directly below the woofer, increases bass response and allows the cabinet size to be kept compact. The YSM1p incorporates a bi-amped power module that delivers 115 watts (85 Watts of power to the woofer, 30 Watts to the tweeter) and generates less than 0.05% distortion. The YSM1p also features a +9dB / -6dB input trim control, a defeatable limiter, specialized tweeter overpower limiting and woofer over-excursion limiting. While designing the YSM1i and YSM1p a concerted effort was made to instill the overall sonic characteristics of the popular original YSM-1. Similar in performance to the YSM1i, the YSM1p is capable of reproducing the nuances of a recording or mixing chain without contributing sonic coloration. It’s suitable for home and project-studio recording and even moderate volume sound reinforcement applications. It has the clarity and bass response that you would expect to hear from a much larger cabinet and reproduces timbres with near pinpoint accuracy. The sound quality is pristine, the finest details are well defined, and the harmonics are uncolored. The rocksolid YSM1p is constructed of 3/4 inch MDF, a 3/4 inch thick PVC clad MDF baffle and features ample internal dampening material ensuring that there are no unwanted resonances. Unique to active near field monitors in this price range, the YSM1p features user selectable filtering. A series of dipswitches on the back panel allow you to select the overall tone shape of the cabinet.In order to fine tune the response according to room placement.

• Full Space, for placing monitors in the center of the room (+2dB boost @ 20Hz to 80 Hz).
• ½ space (for placing monitors against a flat wall (0 dB boost or cut)
• ¼ space for placing monitors in corners (-2 dB @ 20 Hz to 80 Hz). This ensures smooth frequency response, regardless of placement in home studio, writing room or professional studio. An additional user-selectable high frequency filter (+2 dB boost @ 10kHz to 20kHz) has been added to allow further tweaking of the monitor to individual tastes. The input cable can be either XLR or ¼ inch T.R.S. (balanced). On the front of the YSM1p a blue Power LED and a red input Clip LED are featured for quick status checks from the engineer’s chair. The cabinet is finished in an attractive, charcoal gray vinyl that resists scuffs and is easily cleaned.

• The extremely flat frequency response of the YSM1p creates a wide aural working area for the listener.
• Selectable High and Low frequency optimization allow subtle adjustments to the speaker/room response without compromising linearity.
• Sophisticated onboard Limiting includes a selectable Clip limiter, over-voltage limiting which protects the tweeter (at all times) and an over-current limiter that constantly guards the woofer ensuring clean reproduction.
• Actively crossed-over biamplification provides precise control over each driver’s operation.
• Thermal amplifier protection assures reliable operation if the YSM1p overheats during extenuating operating conditions. The circuit is also designed to reset automatically.
• The balanced/unbalanced “combi” input jack is capable of accepting either a ¼” or XLR connector.
• The YSM1p is electro-magnetically shielded to allow close proximity to video monitors or magnetically sensitive devices.

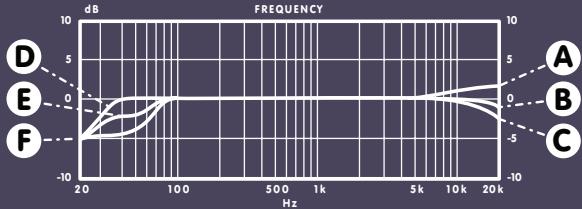

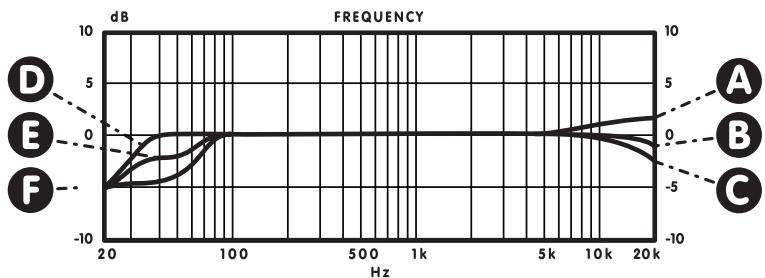

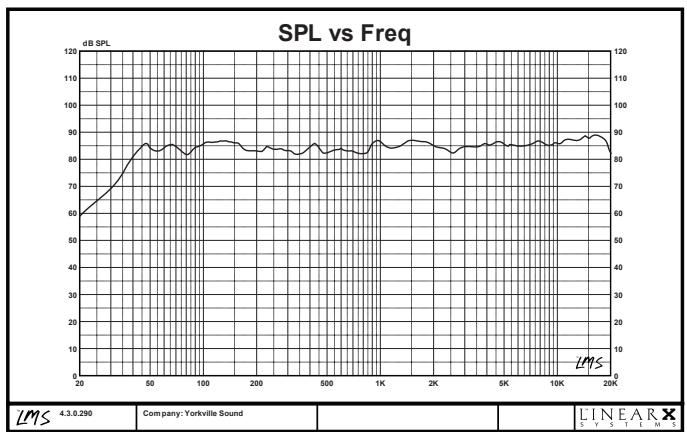

20K Com pany: Yorkville Sound YSM1p frequency response YSM1p Environmental Processing YSM1p Speaker Placement

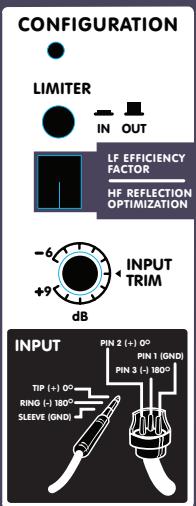

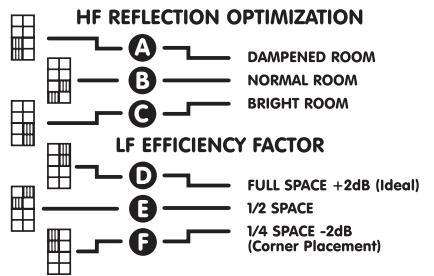

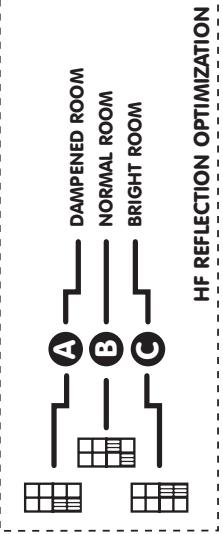

YSM1P Input Connection The input, located on the bottom part of the chassis, accepts line-level signal only (not speaker level). It is recommended to use balanced, shielded cables with ¼ inch (T.R.S.) or XLR connectors (unbalanced ¼ inch jacks can be used). Each YSM1p should be connected to a single line-level source; e.g., the Right or Left line output from a mixer or preamp. If you want to use multiple YSM1ps, they can be interconnected using “Y” adaptors. Input Trim Control The Input Trim control allows you to adjust the sensitivity of the input circuit. Control range is –6 dB to + 9 dB. Adjust accordingly until the desired sound level is achieved (a normal setting would be 0 dB). If clipping is indicated (see Clip LED), reduce the Input Trim level. If more control is needed, adjust your line level from the source. Hi Frequency Reflection Optimization DIP Switches Walls, ceilings and furnishings reflect high frequencies, this affects the listening environment. For most room acoustics set the lower two DIP switches to the “Normal Room” [B] configuration (settings are shown on the back-panel. Otherwise select one of the other two settings to reach the desired response within the environment. Low Frequency Efficiency Factor DIP Switches Due to the long wavelengths of low frequencies, a woofYSM1p configuration options er’s acoustic efficiency is affected by its location within the room, relative to the walls. The diagrams shown on the YSM1p rear control panel depict three typical speaker/room placements referred to as “Full, ½ and ¼ Space.” Set the upper two DIP switches in accordance with the cabinet’s placement; Full Space, ½ Space or ¼ Space (corner placement). 1/2 Space [E] is considered default. Power Switch The power switch is located at the bottom of the rear panel near the AC cord. Blue Power LED (blue) When the LED marked PWR is illuminated, the unit is turned on. Clip LED (red) The red clip LED, located on the front of the cabinet beside the Blue Power LED, indicates when the outputs of the internal amplifiers are close to clipping. To maintain ideal performance, adjust the YSM1p’s Input Trim (or the output level on your mixer or preamplifier) until the Clip LED stops flickering. Engaging the Clip Limiter (see Limiter Pushbutton) will help avoid distortion on peaks. Limiter Pushbutton The Limiter pushbutton enables the onboard Clip limiter. Set to the IN position, the internal Clip Limiter is activated. This feature is used to help limit distortion when the amplifier is driven to full power. The red Clip LED, located on the front of the cabinet, indicates the Limiter’s threshold. Biamplification The YSM1p uses two amplifiers, one for the tweeter and one for the woofer. The common term is biamplification, a process which utilizes an electronically active crossover network. This type of crossover network divides the signal much more precise than traditional passive crossover networks. Amplifier Thermal Protection and Limiting Please ensure that there is adequate space provided around the rear of the speaker cabinet. Allowing good ventilation to prevent the amplifier from overheating will help prevent the unit from shutting down. NOTE: Both of the internal amplifiers are thermally protected, should the back be covered, preventing adequate heat dissipation (or should some other condition lead to overheating), the amplifiers will shut down. The amplifiers should reset automatically after a few minutes. This feature should only engage under severe overheating conditions, proper measures should be taken to permit adequate cooling. TECH: The woofer and tweeter are protected against sustained overdriving (e.g., feedback) and clipping. Should the amplifier sense that either condition exists, limiters will begin to reduce the overall output until more ideal conditions are met. To ensure full-time driver protection (when the Clip limiter is disabled) the internal limiters will remain on. If the Clip LED becomes active, reduce the Trim Level on the YSM1p, the preamp, or mixer output level to maintain normal operation.

41.65 cm x 24.40 cm x 28.44 cm

25 lbs. / 11.5 kg YSM1P YSM1p STUDIO MONITOR FEATURES & SPECIFICATIONS Type Contemporary 2-way Active Active Biamp Power 115 W Total 85 W LF / 30 W HF Burst (2 Cycle) Active Biamp Power 85 W Total 65 W LF / 20 W HF Continuous Amplifier A (High frequency amplifier) Amplifier B (Low frequency amp) 30 watts, 8 ohm load, 2 cycle burst 20 watts continuous @ 0.1% THD 85 Watts, 8 ohm load, 2 cycle burst 65 Watts continuous @ 0.1% THD the above data was taken with the limiters disabled. HF Amplifier Distortion < 0.05% LF Amplifier Distortion < 0.05% Frequency Response Speakers Magnetic Shielding Crossover Frequency Controls 40 Hz - 20 kHz (+/-3 dB)

6.5 inch foam-surround, 100 watt woofer

1 inch soft-dome tweeter, ferro-fluid cooled the YSM1p is electro-magnetically shielded to protect your computer monitor by using dual magnets on woofer and tweeter

Input Trim (+9 dB / -6 dB) Limiter On/Off Environmental Processor w/ Four Dip Switches HF Processing HF Reflection Optimization (Configurable) +/-2 dB boost / cut 10 - 20 kHz LF Processing LF Efficiency Factor (Configurable) +/- 2 dB boost/cut

20 - 80 Hz Full Space, 1/2 Space, 1/4 Space

Limiter Protection LED Indicators Inputs Input Impedance Rear Panel (switchable) Tweeter overpower Woofer over-excursion Clip-Red, Blue Power - Front Mounted Balanced XLR / TRS 1/4 inch Neutrik Combi-Jack 10k ohms Input Sensitivity 1 Vrms Cooling Passive Enclosure Baffle Port Power Charcoal Gray, Laminate MDF Wood Gray PVC Clad MDF Wood Tuned 2 inch Cylindrical Rear Mounted Power Switch Detachable IEC Line Cord Other Details Shipped in mirrored pairs Dimensions HxWxD Weight

YSM1P YSM1P E N V I R O N M E N TA L LY P R O C E S S ED

Full Space Placement 1/2 Space Placement (full area) (against the wall) CONFIGURATION 10k

THIS APPARATUS TO RAIN OR MOISTURE

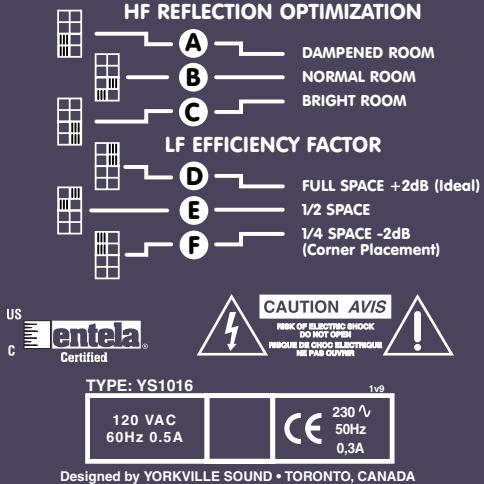

DIP SWITCH DEFAULT SETTING

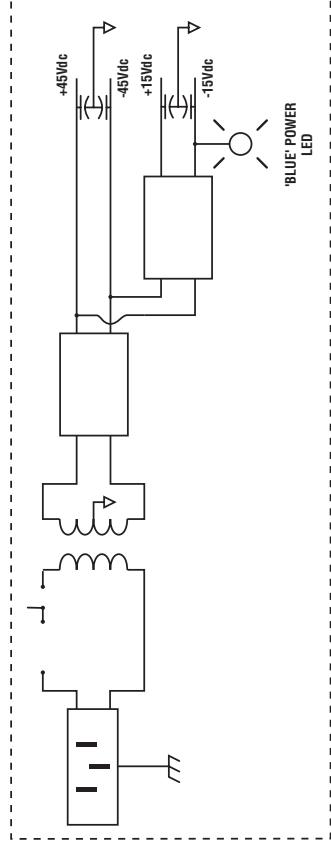

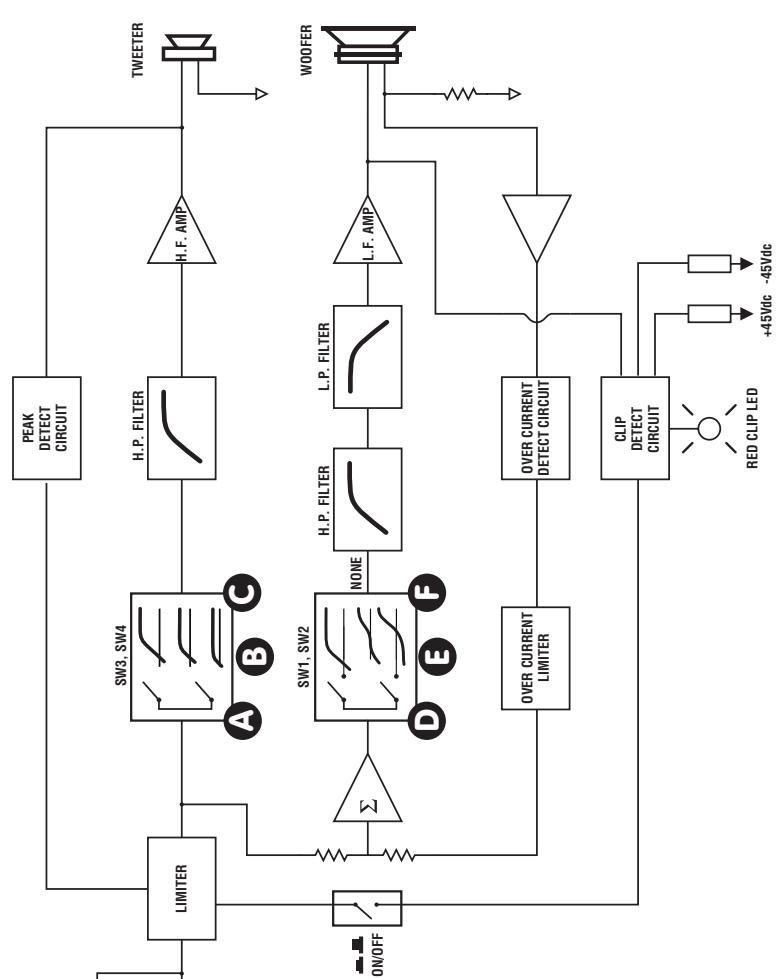

1/4" / XLR Combi-Jack -6dB ON/OFF LIMITER D E S I G N E D & M A N U FA C T U R E D B Y Y O R K V I L L E S O U N D Block Diagram for YSM1P

'BLUE' POWER LED +45Vdc -45Vdc
