USER MANUAL SRP5002/10 PHILIPS

Register your product and get support at www.philips.com/welcome

SRP5004/86

EN User Manual 3

1 Your SRP5004 3
2 Getting started. 4-8

2.1 Inserting the batteries 4
2.2 Testing the universal remote control 4
2.3 Setting up the universal remote control 5-8

3 Using the universal remote control. 8-12

3.1 Keys and functions.. 8-10
3.2 Learning key functions 10-11
3.3 Resetting a key to its original function.. 12

4 Service and support. 12-14

4.1 Frequently asked questions 12-13
4.2 Need help? 14

Helpline 99
Code list for TV brands. 100-107
Code list for STB brands. 107-113
Code list for DVD brands 113-116
Code list for VCR brands. 116-118
Information to the consumer 119

1 Your SRP5004

Congratulations on your purchase of the Philips SRP5004 universal remote control. After setting up the remote control you can operate up to 4 different devices with it.

Improved with Philips patented (pending) Simple Setup technology, the SRP5004 can be set up easily for TV, DVD player / recorder, VCR and all common set-top boxes, such as Sky, British Telecom, Orange, Freebox, TNT, Canal Digital, Telefonica, Premiere, Kabel Deutschland, Belgacom TV, Telenet, Viasat and many more.

Simply follow the instructions in chapter 2.3 to set up the remote control for your devices.

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

2 Getting started

2.1 Inserting the batteries

• Insert 2 AAA type batteries, noting the + and - configuration in the battery compartment.

Note

When replacing the batteries, all user settings will be retained in the remote control memory for an unlimited period of time.

2.2 Testing the universal remote control

It is advised to test whether your device(s) already respond(s) to the SRP5004 before setting it up (see chapter
2.3). The example below instructs you how to do this for your TV. You can repeat the same steps for other devices (STB, DVD player/ recorder and VCR) which you want to operate using the SRP5004.

Example: testing the universal remote control on your TV:

1 Turn ON your TV manually or use the original remote control for this. Tune to channel 1.
2 Press the device selection key to select TV.

The key lights up.

If the key does not light up, check whether the batteries are properly inserted (see chapter 2.1).
3 Check whether the keys that you need for operating your TV are working. For an overview of the keys and their functions see chapter 3.1.

If the TV responds as it should to all of the key commands, the SRP5004 is ready for use.

• If the device does not respond at all or not to all of the key commands, follow the instructions in chapter 2.3.

4 EN

2.3 Setting up the universal remote control

This is only necessary if your device does not respond to the SRP5004. If that is the case, the SRP5004 does not recognize the brand and / or model of your device and you need to set up the remote control to do so.

The example below instructs you how to do this for your TV. You can repeat the same steps for other devices (STB, DVD player/recorder and VCR) which you want to operate, using the SRP5004.

The remote control can be set up to operate any 4 of the following devices:

Device name	Description
TV	Traditional TV, flat screen TV and projection TV,TV part of TV / VCR,TV / VCR / DVD and TV / DVD combos
STB	Cable box, satellite receiver, Digital Video Broadcasting Terrestrial device (DVB-T), Internet Protocol TV (IPTV), Free To Air TV, High Definition Television decoder (HDTV)
DVD	DVD player / recorder (DVDR), DVD / Hard Disk Drive combination (DVDR-HDD), Blu-Ray player, High Definition DVD player (HD-DVD), DVD part of TV / DVD,TV / VCR / DVD and VCR / DVD combos
VCR	Video cassette player / recorder,VCR part of TV / VCR,TV / VCR / DVD and VCR / DVD combos

Example: setting up the universal remote control to operate your TV:

1 Turn ON the TV manually or use the original remote control for this. Tune to channel 1.
2 Press and hold the

device selection key for 5 seconds until the red Setup LED @ lights up.

• The remote control is now in setup mode.

EN 5

3 Look up the brand of your TV in the Code list for TV brands at the back of this user manual. A four-digit code is shown for each brand. Use the digit keys to enter the code for your brand (e.g. PhilipsTV, ② 1 9 5 ).

If the red Setup LED turns off, an invalid code was entered. In this case, try again.

4 Aim the remote control at the TV. Press and hold the key and immediately release it when the TV turns off (standby).

This step normally takes between 5 and 60 seconds. In extreme circumstances this step can take up to 15 minutes.

5 Turn on the TV and check if all keys that you need for operating your TV are working. Try, for example, if the - CH + and digit keys function properly.

If a key does not function as expected, press and hold it and immediatley release it as soon as it works. For more information, see chapter 2.3.2.

6 Press the device selection key twice to save your settings and exit setup mode.

• When no key is pressed for 5 minutes or more, the remote control will exit setup mode, automatically saving all your settings.

Note

If you wish to restart setup, you can start again from the beginning at any time.

6 EN

• If the device does not respond at all or not to all of the key commands or if you cannot find the code for your brand, enter '9, 9, 9, 9' in step 3 and continue with step 4. The remote control will now search its full database for a code that works with your TV. Full database search may take up to 15 minutes.
• Alternatively you can set up the universal remote control with the learn feature as described in chapter 3.2.

2.3.1 Setting up the remote control for other devices (STB, DVD player / recorder and VCR)

1 Make sure the device is turned on, fully operational and able to respond to remote control commands. E.g. insert a disc in the DVD player / recorder or a video cassette in the VCR.
2 Then follow steps 2 to 6 of 'Setting up the remote control for your TV'. Make sure to use the correct device selection key: STB, OV or VCB.

2.3.2 Improving keys

When correctly set up, the remote control should be able to operate all your devices. However, when using the remote control for the first time it might occur that some keys do not yet function as expected.

In this case you can have the remote control search for alternatives.

Note

Improving keys is not possible when the code was found during full database search (with code '9, 9, 9, 9').

During initial setup

1 Make sure the receiving device is able to respond. E.g. when you try to repair the Play key for your DVD player, make sure to insert a DVD into the DVD player otherwise the Play key is not able to function.
2 Press the key that does not function, keep it pressed and immediately release it when the device responds. Repeat this for every key that does not function.
- If the key still does not function as expected, try pressing it again for a longer period of time.

After initial setup

1 Make sure the receiving device is able to respond. E.g. when you try to repair the Play key for your DVD player, make sure to insert a DVD into the DVD player otherwise the Play key is not able to function.

2 Select the device you wish to operate (e.g. DVD). Press the device selection key to select DVD.

3 Keep keys ① and ④ pressed simultaneously for 5 seconds.

• The red Setup LED @ lights up. The remote control is now in setup mode.

4 Press and hold the key that does not function and immediately release it when the device responds.

If the key still does not function as expected, try pressing it again for a longer period of time.

5 Press the device selection key twice to save your settings and exit setup mode.

• When no key is pressed for 5 minutes or more, the remote control will exit setup mode, automatically saving all your settings.

3 Using the universal remote control

3.1 Keys and functions

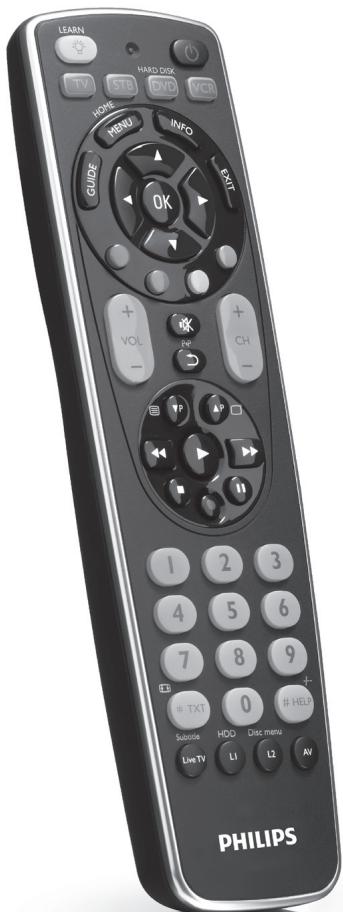

The illustration on page 2 gives an overview of all keys on the remote control. Try out the keys you need for operating your devices.

Notes

• Keys having the same functions as the keys on your original remote control may have different namings on the SRP5004 (e.g. Info / Display).
  Only functions that are available on your original remote control can be used for operating your devices with the SRP5004.

1 Setup LED. Lights up red when the remote control is in setup or learn mode.
2 ① turns the backlight on / off.
3 1T 1ST vDv ...device selection keys.

• select the device to be operated.
• light up when a remote control command is being sent.

GUIDE..... electronic program guide.

MENU / HOME...menu on / off.

INFO............on-screen channel information.

EXIT exits / clears on-screen menu displays.

.........cursor up, down, left, right in a menu.

OK......... confirms your selection.

Colored keys..... Teletext / context sensitivity keys.

+VOL -............ adjusts TV volume.

※ mutes TV sound.

念 previous program/Last.

• CH -.............. previous / next channel.

P P . previous ( P) / next ( P) page / track in various modes.
口 /口 teletext on (国) / off (口).
rewind.
play.
fast forward.
stop.
. record.
..pause.

EN 9

7

• TXT / ...... wide screen.
• STB: text.

Live TV / Subtitle. • subtitles.

Live TV.

L1 / HDD. stores learned key commands.
- opens Hard Disk Drive menu.

L2 / Disc menu ... stores learned key commands.

• opens disc menu.

AV.........switches between external (Audio / video) inputs of your equipment.

HELP / --- ....... selects between one and two-figure channel numbers and channel numbers with more than two or three figures.

STB:Help.

8 ① ② ③ ......... digit keys for direct channel / track ④ ⑤ ⑥ selection.

9 ⑤…………………turns the selected device on / off.

Note

For some TV brands / types, this key will only turn off the TV. You will have to press a digit button (direct channel selection) to turn on the TV again.

3.2 Learning key functions

If you miss certain functions from your original remote control on the SRP5004, the SRP5004 can learn these functions. You can store a function under any of the available keys, except under the device selection keys (STARDCK) and the key.Any function already stored under a key will be deleted.

The SRP5004 is equipped with two dedicated keys for learning additional functions: and . These keys do not have a default function and enable you to add extra key functions without deleting any SRP5004 functionality.

1 Make sure that you have the original remote control at hand.
2 Select the desired device (e.g. DVD). Press the device selection key to select DVD.

The key lights up.

3 Place both remote controls on a flat surface (like a table) and aim them head-to-head with about 5 -10 cm in between.

4 Keep the key and the key you wish to learn on the SRP5004 (e.g. the INFO key) pressed simultaneously for 5 seconds, until the red Setup LED light up.

The remote control is now in learn mode.

5 Press and hold the key that you wish to learn on the original remote control until the device selection key gives two short blinks and both key and Setup LED go out to confirm that learning was successful.
- The remote control has now learned the new function.

Note

It may occur that learning a key function fails the first time. The device selection key will then give a long blink and both key and Setup LED 忍 will go out. In this case, please try again.
- If you keep having trouble learning key functions, check the batteries in both SRP5004 and original remote control and replace if necessary.
- It may also be that the remote control learn memory is full (a total of 60 keys can be learned). In this case you can reset one or more keys to their all original functions in order to create memory space. For this, see chapter 3.3.

3.3 Resetting a key to its original function

When resetting a key to its original function, any learned function stored under the key will be deleted.

1 In the current device mode, keep digit keys ① and ⑥ pressed simultaneously for 5 seconds until the red Setup LED @ lights up.

The remote control is now in setup mode.

2 Press digit keys ⑨, ⑨, and ⑥, in that order.

After each key press the device selection key blinks once.

3 Press the key you wish to reset twice. E.g. the key.

After each key press the device selection key blinks once.
- The device selection key will blink one more time to confirm that the key was successfully reset to its original function.
The key can now also learn a new function, if desired.

4 Service and support

4.1 Frequently asked questions

In this chapter you will find answers to the most frequently asked questions about your universal remote control.

Setup

I cannot enter setup mode.

Battery level too low or battery lifetime came to an end.

• Replace the batteries. For this see chapter 2.1.

12 EN

How do I set the remote control for combo devices (TV / VCR, TV / DVD, DVD / VCR, etc)?

Some combo devices require you to set up two different source selection keys to control both parts of the combo device. For example, if you have a TV / DVD combo, you might need to set up the remote control for both TV and DVD to operate your TV / DVD combo.

Operation

The remote control does not wake up anymore.

Battery level too low or battery lifetime came to an end.

• Replace the batteries. See chapter 2.1.

The device I want to operate does not respond at all / does not respond to all of the key commands.

• Check if the keys you press are available on the original remote control of the device.
  Try improving keys. See chapter 2.3.2.

Not all key functions are available in the database of the remote control.

Try learning key functions from the original remote control. See chapter 3.2.

Wrong code selected during setup.

• Set up the remote control again for the device. Always test if the device responds, before leaving setup mode. See chapter 2.2.

It may be that the keys that you are trying to use have a different naming on the original remote control.

Try out all keys to find the one(s) you need.

The Teletext keys do not work.

Find out whether your TV is equipped with Teletext.
Try improving the Teletext keys. See chapter 2.3.2.
- Check whether you are using the correct keys to switch on Teletext. For TV this is the 密 key; for STB this is the 密 key.

Batteries

Will my settings be deleted when I replace the batteries?

No. All user settings will be retained in the remote control memory during battery replacement.

4.2 Need help?

We advise you to first read this user manual carefully. It is provided to help you set up and use the remote control.

If, however, you require extra information or have additional questions about setup, usage, spare parts, warranty, etc. of the SRP5004, you can always contact us.

When calling our helpline, make sure to have the SRP5004 at hand when you call, so that our operators can help you determine whether the SRP5004 is working properly.

You will find our contact details at the end of this user manual.

The model number of your Philips universal remote control is SRP5004/86.

Date of purchase:

/

(day/month/year)

For online support go to: www.philips.com/welcome.

• Click 'Support' and follow the on-screen instructions.

Inhaltsverzeichnis

Improving keys is not possible when the code was found during full database search (with code '9, 9, 9, 9').

The Teletext keys do not work.

Find out whether your TV is equipped with Teletext.
Try improving the Teletext keys. See chapter 2.3.2.

Text-TV-knapparna fungerar inte.

2.3.2 Forbedring at taster

In this chapter you will find answers to the most frequently asked questions about your universal remote control.

Opsætning

4.2 Brug for hjaelp?

MENU / HOME...menu on / off.

Code list for TV brands

A

A.R. Systems. 0023

Acme 1294

Acura .0023

ADA. 1337

ADC. 1765

Addison .0822

Admiral. 0000

Adyson. 1098

Agashi. 1098

Agazi. 1765

AGB. .0721

Aiko .0023

Aim 1170

Aiwa. 0792

Akai. 0051

Akiba. 0085

Akito. 0664

Akura. 0023

Alaron. 1098

Alba .0051

Alcyon 1672

Alkos 1459

Allorgan. 0394

Allstar. 1170

AMOi. 1243

Amplivision. 0023

Amstrad. 0085

Anam. 0144

Anam National.0721

Anglo .0023

Anitech .0243

Ansonic. 0113

AOC. 0822

Apollo. 0582

Arc en Ciel. 0932

Arcam. 1098

Arcam Delta. 1294

Ardem. 0023

Aristona. 0792

Arthur Martin.0582

ASA .0000

Asberg. 0306

Astra. 1337

Asuka. 0023

Atlantic. 0023

Atori. 0023

Auchan. .0582

Audiosonic. 0023

AudioTon. 0023

Ausind. 1672

Autovox. 0144

Awa .0362

Ayomi. 1533

B

Baird. .0522

Bang & Olufsen. 0000

BARON .0000

Basic Line. 0023

Bastide. 1098

Baur .0901

Bazin. 1098

Beijing 0236

Beko .0306

Beng 1759

Beon. 0306

Best. 0023

Bestar. 0172

Bestar-Daewoo 1248

Binatone. 1098

Black Star. 0306

Blacktron. 1649

Blackway. 1649

Blaupunkt. 1759

Blue Sky. 0085

Blue Star. 0422

Bondstec. 0306

Boots. .0731

BPL. 0206

Brandt. .0932

Brinkmann. 0306

Brionvega. 0664

Britannia 1098

Bruns. 1452

BSkyB. 1703

BSR. 0394

BTC 0023

Bush. 0206

C

Caihong. 0236

Cameron. 1358

Capsonic. 1765

Carad. 0721

Carena. 0085

Carrefour.0451

Cascade. 0023

Casio 1170

Catha .0721

Cathay. 1170

CCE. 0023

Centurion. 1170

Century. 0000

CGE. 0306

Changcheng. 0236

Changfei. 0236

Changhai. 0236

Changhong. 0236

Chimei. 1235

Chuangjia. 0236

Chunfeng. 0236

Chung Hsin. 0822

Chunsun. 0236

Cimline. 0023

City. 0023

Clarivox. 1170

Clatronic. 0243

CMS. 1782

CMS Hightec. 1098

Concorde. 0023

Condor. 0243

Conrowa. 0236

Contec. 0272

Continental Edison.0932

Cosmel. 0023

Crosley. 0334

Crown. 0306

CS Electronics.0334

CTC. 0334

Cybertron. 0023

D

D-Vision. 1098

Daewoo. 0362

Dainichi. 0334

Dansai. 0760

Dantax .0693

Datsura. 0942

Dawa. 1170

Daytron. 0023

De Graaf. 1337

Decca. 0362

Deitron.0721

Denver. 0085

Desmet. 0023

Diamant. 1170

Diamond. 0023

Digatron. 1098

Digline. 0721

Dixi. 0023

DongDa. 0236

Donghai. 0236

Drean. .0721

DSE(Digital) .0901

DTS .0023

Dual. 1026

Dual-Tec. 0113

Dumont. .0113

Duongjie. 0236

Dux. 1170

Dynatron. 1170

Dynex. 1790

E

Elbe. .0113

Elbe-Sharp. .0721

Elcit. 0334

Electa. 1408

ELECTROTECH. 1337

Elektra 1649

Element 1790

ELG. 1170

Elin. 0272

Elite. 0023

Elman. 0334

Elta. .0023

Emerson. 0085

Emperor. 1649

Epson. 1358

Erres. .0792

ESC. 0023

Etron .0023

Eurofeel. .0023

Euroline. .0693

Euroman. 0023

Europa. 1170

Europhon.0113

Expert .0023

Exquisit. 1170

F

Fagor Life. 0721

Feilang. 0236

Feilu .0236

Feiyue .0236

Fenmenti. 1098

Fenner. .0023

Ferguson. 1170

Fidelity. 0272

Filsai 1098

Finlandia. 0000

Finlux. 0113

Firstline. 0394

Fisher. 0394

Flint .0085

FNR. 1771

Formenti. 0272

Formenti-Phoenix.1098

Fortress. 1452

Fraba. 0394

Friac. 0023

Frontech. 0901

Fujitsu. 0394

Fujitsu General. 0394

Funai. 0085

G

Galaxi. 0306

Galaxis. 0306

GBC. 0206

Geant Casino.0582

GEC. 0422

Geloso. 1109

General Technic. 0023

Genexxa .0422

GFM. 1790

Giant. 1098

Goldhand. 1098

Goldline.0721

GoldStar. 0272

Goodmans.0451

Gorenje. 0721

GPM. 0023

Gradient. .0721

Graetz .0422

Granada. 0451

Grandin. 0206

Great Wall. 1248

Gronic 1098

Grundig. 0306

H

Haier. 0236

HaiHong. 0236

Halifax 0023

Hampton. 1098

Hanseatic. 0488

Hantarex. 0085

Hantor. 1170

Harwood. 0023

Hauppauge. 0206

HCM. 0422

Hema. 0023

Hemmermann.0582

Hifivox. 1459

Higashi. 1782

Highline. 1170

Hikona. 0023

HiLine .0721

Hinari. 0206

Hisawa. 0422

Hisense. 0236

Hitachi .0522

Hitachi Fujian.0522

Hitsu. 1248

Hoeher.0932

Hongmei. 0236

Hornyphone. 1170

Hoshai. 0085

Huafa. 0236

Huanghaimei. 0236

Huanghe. 0236

Huanglong. 0236

Huangshan. 0236

Huanyu 0334

Huari. 0236

Hygashi 1098

Huijiaban. 0236

Hyper. 0394

Hypson .0422

Hyundai. 0552

1

Iberia 1170

ICE. 0051

ICeS. 0334

Imperial. 0306

Indesit. 1337

Indiana. 1170

Ingelen. 0932

Ingersol. 0023

Inno Hit. 0553

Innovation .0144

Interactive. 0721

Interbuy. 0306

Interfunk. 0488

Internal. 1170

International. 1782

Intervention. 0488

IR. .0394

Irradio. 0553

Isukai. 0085

ITC. 0394

ITS .0553

ITT. 0582

ITV. 0553

J JEC. 1187

Jiahua. 0236

Jinhai. 0236

Jinxing. 0236

JVC. 1026

Kaisui. .0593

Kamosonic. 1294

Kamp. 1098

Kangchong. 0236

Kanghua. 0236

Kangwei 0236

Kapsch. 0000

Karcher. 0488

Kawa. 0000

Kawasho. 1098

Kendo. 0630

Kennedy. 1452

KIC. 1098

Kingsley. 1098

Kiota. 0000

Kiton. 1098

Kneissel. 0630

Kolin. 0822

Kolster 1170

Konig. 1260

Konka. 0243

Korpel. 1170

Korting. 0334

Kosmos. 1170

Koyoda. 1337

KTV. 1098

Kuro. 0942

Kyoshu. 1243

Kyoto. 1098

L
L&S Electronic.0932

Lasat. .0721

Layco. 0085

Lecson. 1170

Lenco. 0023

Lenoir. .0023

Lesa. 0306

Leyco .0664

LG. 0693

LG/GoldStar. 1379

Liesenk. 1442

Liesenk & Tter. 1170

Liesenkotter.0721

Life. .0144

Lifetec. .0792

Lloyd's. 1790

Local India TV. 0000

Loewe. 0721

Loewe Opta. 0664

Logik. .0731

Luma. 0630

Lumatron. 0630

Lux May. 1170

Luxor .0942

M

Madison. 1098

Magnadyne .0834

Magnafon. 0334

Magnavox.0721

Magnum .0792

Mandor. 1765

Manesth. .0593

Manhattan 1170

Marantz. .0901

Marelli. 1452

Mark. 1109

Masuda. 0023

Matsui. .0731

Matsushita. 0822

McMichael. 1442

Mediator.0792

Medion.0792

Medison. .0721

Melectronic 1109

Melvox. 0582

Memorex. 0023

Memphis. 0023

Mercury. .0023

Metz. 0172

Micromaxx.0792

Microstar. .0144

Minato. 1098

Minerva 1207

Minoka. 1170

TV 103

Mitsubishi. 0172

Mivar. 0334

Morgans 1170

Motion 1672

MTC. 0334

MTEC. 1653

MTlogic. 0932

MuDan. 0236

Multistandard. 1771

Multitec. 1098

Multitech. .0593

Multisystem 1442

Murphy .0051

Musikland. 0023

NAD. 0932

Naiko 1170

Nakimura. 1170

Naonis. 1337

N

NEC. 0172

Neckermann.0630

NEI .0172

Nesco. 0306

Netsat. 1170

Network. 0023

Neufunk. 0023

New Tech. 0023

NewWorld.0023

Nicamagic. 1098

Nikkai. 0760

Noblex. .0721

Nobliko. 0334

Nogamatic. 1459

Nokia. 0582

Nordic. 1098

Nordmende.0172

Normerel 1098

Novatronic. 0023

0

Oceanic. 0582

Okano .0023

Okana. 1170

Onimax. 0932

ONCEAS. 1294

Onwa. 0085

Opera. 1170

Orbit 1170

Orion. 0792

Online. 0023

Ormond. 1442

Orsowe. 0721

Osaki. 0630

Osio. 1207

Oso. 0023

Oulin. 0236

Osume. 0760

Otto Versand.0172

P

Pacific 0932

Pael. 1098

Palladium. 1026

Palsonic 1207

Panama .0243

Panasonic. 0822

Panasonic/National 1170

Panavision. .0394

Panda .0236

Pathe Cinema 0334

Pathe Marconi.0932

Pausa .0023

Pensonic 1243

Perdio. 0023

Perfekt 1170

Philco .0834

Philharmonic. 1098

Philips. 0864

Phoenix. 0760

Phonola. 0760

Phonotrend.0721

Pioneer. 0488

Pionier. 1098

Plantron. 0023

Playsonic. 0023

Polaroid. 1713

Poppy. 0023

Portland. 1248

Powerpoint. 1098

Prandoni Prince.0664

Precision. 1098

Prima. 0306

Prinz. 0394

Profekt. 0721

Profex. 0085

Profilo. 1442

Profitronic. 0306

Proline. 0760

Promax. 1260

Prosonic .0272

Protech. 0760

Provision .0792

Pye. .0792

Pymi. .0023

Q

Quandra Vision. 0582

Quasar. 1452

Quelle. 0901

Questa 1098

R

Radio. 0932

R-Line 1170

Radialva. 0023

Radiola .0792

Radiomarelli. 0834

RADIONETTE.1337

RadioShack. 1170

Radiotone. 0023

Rank. 1187

RBM. 1337

RCA .0582

Recor 1170

Rectiligne 1098

Rediffusion.0932

Redstar. 1170

Reflex. 1170

Reoc. 0932

Revox. 0023

Rex. 0000

RFT. 0630

Rhapsody. 1098

Roadstar.0792

Robotron. 1452

Rowa. 1098

Royal Lux. 0721

RTF. 1452

S

Saba. 0932

Sagem. 0085

Saisho. 0792

Saivod. 1098

Salora. 0942

Sambers. 0334

Samsung. 0958

Sandra 1098

Sansui. 0023

Sanyo .0996

Sanyuan 0236

SBR. 0864

Schaub Lorenz.0582

Schneider. 1026

SEG. 0996

SEI. 0834

SEI-Sinudyne. 0834

Seleco. 0000

Sencora. 0023

Sentra .0760

Serino .0593

Shanghai. 0236

Shanshui 0236

Shaofeng 0236

Sharp. 1058

Shencai. 0236

ShengCai. 0236

Shenyang. 0236

Shintoshi. 1170

Shivaki. 1098

Shorai. 1568

Siam. .0721

Siarem .0334

Siemens. 1170

Siera. .0792

Siesta. 0721

Silva. 1098

Silva Schneider. 1098

Silver 0394

Singer. 0834

Sinudyne. 0834

Skantic. 0942

Sky. 1170

Skyworth. 0236

S crypton. 1098

Sogera. 0023

Solavox. 0422

Sonawa. 0023

Songdian. 0236

Soniko. 1098

Sonitron. 0996

Sonneclair. 1098

Sonoko. 0023

Sonolor. 0582

Sontec 1207

Sony. 1076

Sound & Vision. 0334

Soundwave. 0664

Standard. 0023

Starlite. 0023

Stenway. 0422

Stern. 0000

Strato. 0023

Stylandia. 1098

Sunkai .0085

Sunstar. 0085

Sunwood. 0023

Superla. 0334

SuperTech. 0760

Supervision. 0932

Supra. 0023

Susumu 1459

Sutron. 0023

Sydney. 1098

Sylvania. 1790

Symphonic. 1790

Sysline. 1170

Sytong. 1098

T

Tactus. 1653

Taishan. 0236

Tandberg. 1207

Tandy. 1140

Tashiko 1098

Tatung. 1109

TCL. 1187

TCM. 0901

Teac. 0422

Teachimagen.0932

Tec. 1140

Tech Line 1098

Techica .0023

Technema. 0023

Technics. 0822

TechniSat. 1294

TEDELEX. 1098

Teleavia .0932

Telecor. 0023

Telefunken. 1170

Telefusion. 1098

Telegazi 0023

Telemeister. 0023

Telesonic 1170

Telestar. 1170

Teletech. 0834

Teleton. 0144

Television. 0334

Teleview 1098

Televiso .0582

Temco. 1568

Tennessee. 1170

Tensai. 1140

Tenson. 0023

Tesmet. 1408

Tevion.0792

Texet. 0394

Thomson. 1170

Thom. 0664

Tiankeban. 0236

TOBO .0236

Tokai. 0023

Tokyo. 0023

Tomashi .0422

Toshiba. 1187

Towada .0901

Toyoda. 0000

Trakton 1098

Trans Continens. 0023

Transfec. 1248

Transonic 1098

Transtec. 1782

Trident. 1207

Tristar. 0023

Triumph. .0721

U

Uher. 0664

Ultravox. 0834

Unic Line. 1207

United .0664

Union. 1252

Universal. 1098

Universum 1207

Univox. 0023

V

Vestel 1109

Vexa. 0023

Vibrant. 1653

Victor. 1026

Videologic. 1098

Videologique. 0023

Videosat 1452

VideoSystem. 1170

Videotechnic. 0023

Videoton. 0942

Viewsonic. 1374

Visiola. 1098

Vision. 0023

Vistar. 0582

Vortec 1170

Voxson. .0664

W

Waltham. 1026

Watson. .0792

Watt Radio. 0334

Wega. 0394

Wegavox. 1790

Weltblick. 0023

Weston. 1452

Wharfedale. 1098

White Westinghouse.....0760

Windstar. 1649

X

Xiahua. 0236

Xiangyu. 0236

Xingfu. 0236

Xinghai. 0236

Xinrisong. 0236

Xrypton. 1170

Xuelian. 0236

Y

Yamishi .0422

Yokan 1170

Yoko. 0023

Yorx. 0023

Yuhang. 0236

Z

Zanussi. 1098

Zhuhai. 0236

Code list for STB brands

A

1&1 1346

ABC. 1649

AB Sat. 1653

ADB. 0000

Aegir. 1235

AGS. 0721

Akai. 1489

Alba 1464

Alcatel 1487

Aldes. 1464

Allantide. 0000

Allegro. 1488

Allsat. 1489

Allsonic 1489

Alltech. 1672

Alpha. 1790

Altai. 1759

Amitronica. 1672

Ampere. 1505

Amstrad 1505

Andover. 0942

Anglo 1672

Ankaro. 1588

Anttron. 1421

Apollo. 1782

Arcon. 1533

Armstrong. 1489

Asat. 1489

ASLF. 1672

AST 1573

Astacom.0721

Aston 1464

Astra. 1679

Astro. 1538

AudioTon. 1421

Aurora. 1568

Austar. 1568

Avalon. 1759

AVM. 1346

Axiel. 0721

Axis. 1588

B

Barcom 1533

BBT 1566

Belgacom TV. 1170

Bell Atlantic. 0582

Benjamin 0236

Best. 1573

Birmingham Cable

Communications.0582

Blaupunkt. 1824

Blue Sky. 1464

Boca. 1505

Boston. 1464

Brandt. 1617

Brain Wave 1026

British Telecom 1649

Broadcast. 1252

Broco. 1672

BSkyB. 1713

BT .0721

BT Satellite. 1617

BTVision. 1649

Bubu Sat. 1672

Bush. 1358

BVV. 1533

C

Cabletime 1235

Cambridge. 1790

Camundosat. 0236

Canal Digital. 0023

Canal Satellite. .0958

Canal+ 1790

Channel Master. 1358

Chaparral. 1243

CHEROKEE. 1653

Chess 1771

CityCom 1805

Clatronic 1358

Clyde. 0864

Clyde Cablevision.0864

CNT. 1260

Colombia. 1374

Columbia. 1374

COLUMBUS 1573

Comag. 1374

Comcrypt. 1459

Commlink.1771

Comtech. 1588

Condor. 1538

Connexions. 1573

Conrad. 1538

Conrad Electronic.1805

Contec. 1588

Cosat. 1489

Coship. 1567

Crown. 1337

Cryptovision.0693

Cybermaxx. 0822

Cyrus .0721

D

D-Box. 1703

Daeryung. 1759

Daewoo 1672

Dansat. 1358

Darty Box. 1838

DDC. 1358

Decca. 1260

Decsat. 0582

Delega. 1358

Dew. 1358

Diamond. 1058

Digiality. 1824

Digipro. 1782

Digiturk. 0236

Discoverer 1771

Discovery.0721

Diseqc. .0721

Diskxpress.1533

Distratel. 1260

Ditristrad. 1489

Distrisat. 1790

DNR. 1533

DNT. 1489

Drake. 1374

DStv. 1568

Dual. 0236

Dune 1782

Dynasat. 1489

E

Echostar. 1266

Einhell 1505

Elap. 1805

Electus. 1303

Elekta 1260

Elsat. 1672

Elta. 1489

Emanon 1782

Emme Esse 1489

Engel. 1672

Ep Sat. 1672

EURIEULT 1505

Eurocrypt. 1703

Eurodec. 1765

Europa. 1538

European. .0721

Europhon. 1538

Eurosat. 1337

Eurosky. 1538

Eurospace. 1058

Eurostar. 1538

Eutelsat 1672

Eutra. 1759

Exator. 1421

F

Fenner 1538

Ferguson 1358

Fidelity. 1617

Filmnet 1459

Filmnet Cablecrypt.....1294

Filmnet Comcrypt.1294

Finlandia. 1703

Finlux. 1703

FinnSat. 1358

Flair Mate. 1672

Foxtel. 1568

France Satellite/TV.1573

France Telecom.1732

Free. 1140

Freebox. 1140

Freecom. 1464

Freesat. 1759

FTE 1187

FTEmaximal. 1538

Fuba. 1573

Fugionkyo. 1782

Fujitsu. 0932

G

G-Sat. 1358

Galaxi. 1533

Galaxis. 1588

Galaxisat. 1573

Gardiner. 1573

GEC. 0864

General Instrument.....1649

GMI. 1337

Goldbox. 1790

Golden Channel. 0000

GoldStar. 1782

Gooding. 1672

Goodmans. 1379

Granada. 1703

Grandin. 1187

Grothusen. 1782

Grundig. 1617

H

Hänsel & Gretel. 1538

Hanseatic. 1294

Hantor. 1489

Hanuri 1260

Micro electronic. 1679

Morgan Sydney.1464

Mr Zapp. 1765

N

Navex. 1358

NEC. .0721

Network. 1358

NeufTelecom.0552

Neuhaus. 1679

Neusat. 1672

NextWave. 1098

Nikko 1679

Nokia. 1703

Nomex. 1252

Noos. 1765

Nordmende. 1464

Northcoast. 1710

Nova. 1568

Novaplex. 1711

Novis. 1358

NTC. 1243

NTL. 1712

0

Oceanic. 1058

Octagon 1421

Okano. 1337

Ono. 1649

Optex. 1489

Optus. 1588

Orange. 1187

Orbitech. 1505

Origo 1058

Osat. 1782

Otto Versand. 1824

Oxford. 1260

M

Macab. 1765

Manata. 1464

Manhattan. 1464

Marantz. 1346

Mascom. 1260

Maspro. 1672

Master's. .0822

Matav. 0236

Matsui. 1617

Max. 1824

Mediabox.1790

Mediamarkt. 1337

Mediasat. 1679

Medion. 1588

Medison. 1672

Mega. 1489

Metronic. 1464

Metz 1824

Micro Technology. 1679

Micromaxx. 1538

Microstar. 1538

Microtec. 1672

Minerva 1824

Mitsubishi. 1617

Mnet. 1459

Morgan's. 1505

Motorola. .0942

Movie Time. 1303

Multichoice. 0000

Multitec. 1771

Muratto. 1058

Mysat. 1672

P

Pace 1713

Pacific 1058

Packsat .0721

Palcom. 1076

Palladium. 1058

Palsat 1790

Panasat. 1568

Panasonic. 1505

Panda 1679

Patriot. 1464

Philips. 1732

Phoenix. 1358

Phonotrend. 1076

Pioneer 1058

Polsat. 1765

Predki 1358

Premiere 1588

Preisner. 1505

Priesner. 1337

Profile. 0721

Promax. 1672

Prosat. 1076

Prosonic 1824

Protek. 1058

Provision 1260

PVP Stereo

Visual Matrix. 1649

Pye. 1672

Pyxis. 1243

Q

Quadral. 1588

Quelle. 1824

Quiero 1765

R

Radiola 1489

Radix. 1759

Rainbow. 1421

Rediffusion.0721

Redpoint. 1255

RedStar 1782

Regency. 1764

RFT. 1489

Roadstar. 1672

Roch. 1187

Rockdale 1098

Rover 1588

S

Saba. 1679

Sabre. 1672

Sagem 1765

Sakura. 1358

Salora. 0721

Samsung. 1379

SAT 1058

SatCruiser. 1098

Sat Partner. 1464

Sat Team. 1672

Satbox. 0000

Satcom. 1588

Satec. 1679

Satel. 0085

Satelco. 1782

Satford. 1252

Satline. 1771

Satmaster. 1252

Satplus. 1771

Schacke. 1653

Schneider. 1538

Schwaiger 1505

Scientific Atlanta 1303

SCS. 1374

Sedea Electronique.....0958

Seemann. 1489

SEG. 1489

Seleco. 1489

Septimo. 1260

Servi Sat. 1464

Sharp. 1769

Siemens. 1617

Silva. 1782

Skantin. 1672

Skardin 1255

Skinsat. 1790

SKR. 1672

SKY. 1255

SkyCable 1770

Sky Digital. 1294

Skymaster. 1771

Skymax 1489

SkySat 1505

Skyvision. 1489

Skyworth 1780

SL. 1533

SM Electronic. 1771

Smart. 1266

Sony. 1058

SR. 1421

StarTrak. 1782

Starcom. 1649

Stargate. 1781

Starland. 1672

Starring. 1358

Strong. 1782

STVI. 1187

Sumida 1337

Sunny Sound. 1782

Sunsat. 1672

Sunstar 1538

Super Sat. 1489

Supermax. 1098

Systec. 1374

T

Tandberg. 1765

Tandy. 1309

Tantec. 1076

Tatung. 1260

TCM. 1538

Techniland. 1252

TechniSat. 1790

Technology 1568

Technosat. 1098

TechnoTrend .0582

Technowelt. 1505

Teco. 1337

Tee-Comm. 0932

Teknika 1802

Telanor 1358

Telasat. 1266

Tele+1 .0000

Teleciel 1653

Telecom. 1672

Teledirekt. 1358

Telefonica. 0085

Telefunken. 1379

Telegant. 1803

Teleka. 1679

Telemaster 1260

Telenet 1804

Telepiu. 1459

Telesat 1266

Telestar. 1790

Teletech. 0000

Televes. 1464

Telewest. 1712

Telewire. 1489

Tempo. 1098

Tevion. 1538

Thomson. 1805

Thorens. 1058

Thorn. 1672

Tioko. 1374

Tiscali 1837

Tocom. 1822

Tokai 1790

Tonna. 1464

Topfield. 0693

Torx 1649

TNT. 1790

TPS. 1346

Triad 1058

Triasat. 1790

Triax. 1266

Tudi 1303

Turnsat. 1672

Tvonics. 1358

Twinner. 1464

U

UEC. 1568

Uher. 1771

Uniden 1170

Unisat. 1421

United Cable. 1649

Unitor. 1464

Universal. 1823

Universum 1824

V

Variosat. 1824

Vector. 1058

Vega. 1782

Ventana. 1489

Vestel 1824

Via Digital. 1805

Viasat. 1459

Videoway. 1831

VideoWorks 1832

Vidtech. 1833

Viewstar 1834

Virgin. 1712

Vision. 1835

Visionetics. 1836

Visionic. 1782

Visiopass. 1732

Visiosat. 1464

Vivanco. 1346

Vivid. 1568

Vortec. 1782

VTech. 1573

W

Wela. 1187

Welltech. 1771

WeTeKom. 1505

Wevasat 1672

Wewa. 1672

Winersat. 1358

Wintergarten 1771

Wisi. 1679

Wittenberg. 1533

Woorisat. 1260

Worldsat. 0721

X

Xcom Multimedia. 0000

Xrypton. 1782

XSat. 1653

Z

Zaunkonig. 1533

Zehnder 1573

Zenith. 0942

Zinwell 1568

Zodiac. 1421

Zwergnase. 1337

Code list fort DVD brands A

4Kus. 0000

AEG. 1243

Airis. 0000

Aiwa. 1617

Akai. 1533

Akura. 1248

Alba 1170

Alize. 1098

Amitech. 1243

AMOi. 0864

AMW. 1243

Apex 1058

Asono. 0000

ATACOM. 0000

Avious. 1235

Awa. 1243

B

Bang & Olufsen. 1170

Baze 1235

BBK. 0000

Bellagio. 1243

Best Buy. 1260

Boghe. 1255

BPL. 0236

Brainwave. 1243

Brandt. 1309

Britannia 1782

Bush. 1235

C

C-Tech. 0721

Cambridge Audio. 1568

CAT. 0822

Celestial. 0932

Centrex. 1255

Centrum .0822

CGV. 1235
Changhong. 0236
Cinetec 1243
CineVision. 0721
Classic. 1358
Clatronic. 1235
Coby. 1248
Conia 1759
Continental Edison.1243
Crown. 0834
CVG. 1243
CyberHome. 1442

D

Daenyx. 1243
Daewoo. 1243
Dansai. 1207
Datron. 0236
Daytek. 1243
Dayton. 1243
DEC. 1248
Decca. 1243
Denon. 1713
Denver. 1248
Denzel. 1260
Desay. 0000
Diamond. 0942
Digitor. 0023
DK Digital. 1805
Dmtech 1358
Dual 1260
DVX. .0721
Dynex. 1358
Easy Home 1260
E-Dem. 0000
Element 1358

E

Eclipse. 1568
Electrohome. 1243
Elin. 1243
Elta. 0306
Emerson. 1713
Enzer 1260

F

Finlux. 1235
Fintec 1243
Fisher. 1252
Funai. 1358

G

Gericom. 1255

GFM. 1358

Giec. 1255

Global Solutions.0721

Global Sphere.0721

Go Video. 1260

Goodmans. 1255

Graetz 1260

Grundig. 1255

Grunkel. 0306

GVG. 1243

H

Haaz. .0942

Haier. 0236

Harman/Kardon.1672

H&B. 0000

HiMAX. 1260

Hisense. 0236

Hitachi 1260

Hoeher. 0000

Home Tech Industries....0000

Humax. 1838

Hyundai. .0932

1

Innovation. 1358

J

JVC. 1266

K

Kansai. 1248

Kennex. 1243

Kenwood. 1653

KeyPlug. 1243

Kiiro 1243

Kingavon. 1248

Kiss .0901

Koda. 1248

KXD 1260

L

Lafayette. 0236

Lawson. .0721

Leccson. 1098

Lenco. 1235

LG. 1294

Life 1759

Lifetec. 1358

Limit. .0721

Liteon. 0000

Loewe. 1588

LogicLab. 0721

Luxor 1255

M

Magnavox. 0000

Magnex. 1235

Magnum 1260

Majestic. 1248

Marantz. 1568

Marquant. 1243

Matsui. 1759

Mecotec. 1243

Mediencom. 1782

Medion. 1358

Metz 1337

MiCO. 0942

Micromaxx. 1358

Micromedia 1568

Micromega. 1255

Microstar. 1358

Minoka. 1243

Minowa. 1235

Mizuda. 0000

Monyka. 1260

Mustek. 1358

Mx Onda. 1568

Mystral. 0932

N

NAD. 1374

Naiko. 0306

Nakamichi 1058

Neufunk. 1260

Nevir. 1243

Next Base .0693

NU-TEC. 1759

0

Omni. 1782

Onida. 1255

Onkyo 1617

Oopla 0000

Optim. 1098

Orava. 1248

Orbit 1243

Orion. 1235

Oritron 1759

P

P&B. 1248

Pacific .0721

Palsonic. 1243

Panasonic. 1303

peeKTON. 0000

Pensonic. 1243

Philco .0236

Philips. 1309

Philips Magnavox.1782

Phonotrend. 1235

Pioneer 1337

Pointer. 1243

Portland. 1243

Powerpoint. 1243

Proline. 1255

Prosonic .0582

Provision 1248

R

Raite 1260

REC. 1782

RedStar .0664

Reoc.0721

Revoy. 0000

Rimax. 1098

Roadstar 0000

Ronin. 1243

Rowa. 0306

Rownsonic.0822

Royal. 0236

S

Saba 1309

Sabaki. .0721

Saivod. 1243

Sampo. 1358

Samsung. 1346

Sansui 1207

Sanyo 1252

ScanMagic. 1358

Schaub Lorenz. 1243

Schneider. 1358

Scientific Labs.0721

Scott. 0236

Seeltech. 0000

SEG. 1358

Sharp. 1374

Sherwood. 1489

Sigmatek. 0000

Silva. 1248

Singer. 0942

Skymaster. 1358

Skyworth 1248

Slim Art 1243

SM Electronic.0721

Sontech. 0932

Sony. 1379

Soundmaster.0721

Soundmax.0721

Spectra. 1243

Standard. .0721

Star Cluster 0721

Starmedia .0000

Sunkai 1243

Supersonic. 0236

Supervision.0721

Sylvania. 1358

Symphonic. 1358

Synn.0721

T

T.D.E. Systems .0932

Tatung. 1243

TCM. 1358

Teac. 1505

Tec. 1248

Technika. 1235

Telefunken. 0822

Tensai 1243

Tevion 1358

Thomson 1408

Tokai .0362

Top Suxess. 0000

Toshiba. 1421

TRANS-continents.0051

Transonic 1235

Trio. 1243

TruVision. 1260

TSM. 0000

U

Umax. 1098

United 1235

Universal 1703

V

Viewmaster. 0000

W

Waitec. 0000

Welltech. 1255

Wharfedale. 0942

Woxter. 0085

X

Xbox. 0236

Xlogic. 1207

XMS. 1243

Xoro. 1255

Y

Yakumo. 1255

Yamada 1140

Yamaha 1771

Yamakawa 1358

Yukai. 1358

Z

Zenith. 1617

Code list for VCR brands

Adelsound. 1459

Adyson. 1442

Aiwa. 0144

Akai. 0932

Akiba. 1442

Akura. 0144

Alba .0144

Ambassador. 0582

Amstrad. 1732

Anitech 1442

Ansonic. 1459

ASA. 1459

Asuka .0144

Audiosonic. 1442

AudioTon. 0932

B

Baird. 0144

Bang & Olufsen.0582

Basic Line. 0144

Baur 1459

Bestar. 0144

Black Panther Line.1442

Blaupunkt. 1459

Blue Sky. 1459

Bondstec. 0144

Bush. 1442

C

Cathay. 1442

Catron. 0582

CGE. 0144

Cimline. 1442

Clatronic. 0144

Condor. 0144

Crown. 0144

D

Daewoo. 0144

Dansai. 1442

Dantax 1765

Daytron. 1442

De Graaf. 1459

Decca. 0144

Denko 1442

Diamant. 1459

Dual. 0144

Dumont. 0144

E

Elbe 1442

Elcatech 1442

Elsay. 1442

Elta. 1442

Emerson. 1442

ESC. .0144

Etzuko. 1442

Europhon.0932

F

Ferguson. 1452

Fidelity. 1732

Finlandia. 1459

Finlux. 0144

Firstline. 1442

Fisher. 0932

Flint 1765

Formenti-Phoenix. 1459

Frontech. 0582

Fujitsu. 1303

Funai. 0144

G

Galaxi. 1303

GBC. 0144

GEC. 1459

Geloso. 1337

General. 0582

General Technic 1765

GoldHand 1442

GoldStar. 0144

Goodmans.0144

Graetz 1452

Granada. 1459

Grandin. 0144

Grundig. 0144

H

Hanseatic.0144

Hantor. 0932

Harwood 1442

HCM. 1442

Hinari. 0144

Hisawa. 1765

Hitachi. 0144

Hypson. 1442

1

Impego. .0582

Imperial 1303

Ingersol. 1459

Inno Hit .0144

Innovation. 1765

Interbuy. 1442

Interfunk. 1459

Intervention. 1732

Irradio. 1442

ITT. 1452

ITV. 0144

J

JVC. 1379

K
Kaisui. 1442

Karcher. 1459

Kendo.0144

Kenwood. 1452

Korpel. 1442

Kyoto. 1442

L Lenco. 1294

Leyco 1442

LG. 0144

Lifetec. 1765

Logik. 0144

Lumatron. 1442

Luxor 1442

M Manesth.1442

Marantz. 1459

Mark. 1442

Matsui. 0144

Mediator. 1459

Medion. 1765

Memorex. 0144

Memphis. 1442

Melectronic 1732

Metz. 1459

Micromaxx. 1765

Microstar. 1765

Migros. 1303

Mitsubishi. 0144

Multitech.0144

Murphy. 1303

N National. 1459

NEC. 1452

Neckermann. 1452

NEI 1459

Nesco. 1442

Nikkai. 0144

Nokia. 0144

Nordmende.1452

0

Oceanic. 0144

Okano 1442

Orion. 0144

Orson. 1303

Osaki. 0144

Otto Versand. 1459

P

Palladium. 0144

Panasonic. 1379

Pathe Cinema 1459

Pathe Marconi. 1452

Perdio 1303

Philco 1442

Philips. 1309

Phonola. 1459

Pioneer. 0593

Portland. 0144

Prinz. 1303

Profex. 1337

Proline. 1303

Prosonic 1442

Pye. 1459

Q

Quelle. 0144

R

Radialva. 1442

Radiola 1459

Rex. 1452

RFT. 0144

Roadstar. 1442

Royal. 1442

S

Saba. 1452

Saisho. 0144

Samsung. 0942

Samurai. 0023

Sansui. 1452

Sanwa. 1459

Sanyo 1408

Saville 1442

SBR. 1459

Schaub Lorenz.0144

Schneider. 0144

SEG 1442

SEI-Sinudyne 1459

Seleco. 0144

Sentra .0144

Sentron. 1442

Sharp. 1346

Shintom. 1442

Shivaki. 1459

Shorai. 1459

Siemens. 1459

Silva. 1459

Silver. 1442

Sinudyne. 1459

Solavox. 0582

Sonneclair. 1442

Sonoko. 1442

Sontec. 1459

Sony. 1309

Soundwave. 1459

Standard. 1442

Starlite. 1459

Stern. 1442

Sunkai 1765

Sunstar 1303

Suntronic. 1303

Sunwood 1442

Supra. 1459

Symphonic. 1442

T

Taisho. 0144

Tandberg. 1442

Tashiko 1732

Tatung. 0144

TCM. 1765

Teac. 1442

Tec. 0144

Teleavia 1452

Telefunken 1452

Teletech. 1442

Tenosal. 1442

Tensai 0144

Tevion. 1765

Thomson 1452

Thorn. 0144

Tokai 1442

Tonsai. 1337

Toshiba. 1452

Towada 1442

Towika. 1442

TVA. 0582

U

Uher. 1459

Ultravox. 1442

Universum. 0144

United Quick Star 1442

V

Videon. 1765

W

Weltblick. 1459

Y

Yamishi. 1442

Yokan 1442

Yoko. 0144

EN Information to the consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Battery information

Your product operates on batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because the correct disposal will help prevent negative consequences for the environmental and human health.

DE Kundeninformationen

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Document order number: 313923552201

www.philips.com

RTP/RR/2209
