USER MANUAL BFD1420NS BRANDT
Chere CLIENT, Cher Client
2006/95, 2004/108, 96/57, 92/31, 94/62
- RELATIONS CONSOMMATEURS
You have just acquired a fridge-freezer BRANDT and we would like to thank you.
We have invested all our dedication and know-how in this appliance so that it would best meet your needs. With innovation and performance, we designed it to be always easy to use.
In the BRANDT product range, you will also find a wide choice of ovens, microwaves, cooking hobs, ventilation hoods, cookers, dishwashers, washing machines, dryers, and freezers, that you can coordinate with your new BRANDT fridge-freezer.
Visit our website www.brandt.com where you will find all of our products, as well as useful and complementary information.
BRANDT
As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.
A Warning:
Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.
www.brandt.com
1 Safety Instructions
- Environmental Protection and saving Energy. 17
2 Product description
- No frost : significance and operation. 18
3 Installing your appliance
- Installing your appliance 19
- Electrical connection. 19
4 Using the refrigerator compartment
- Manipulating thermostat 20
- Setting the temperature 20
Temperature indicator 20
Air cooling system 20 - Preparing food for the refrigerator 20
Arranging food in your refrigerator. 20
Automatic Defrosting 20 - Accessories 21
- Removing the vegetable drawer shelf (Concerns only model 76cm Width)................................21
5 Using the freezer compartment
Frozen and deep-frozen food 22
- Preparing food for freezing 22
· Food freezing guide 22
- Setting your freezer's temperature 23

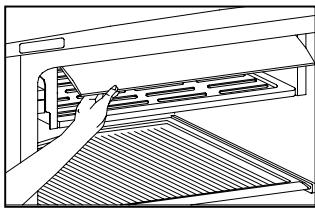

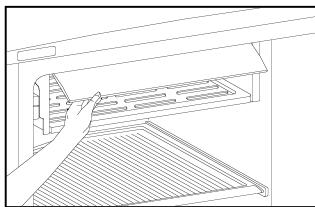

Super freeze:"Speed Freezer" 23
- Ice maker : "Twist Ice" 24
· Arranging food in your freezer 24
Defrosting food 24
Automatic freezer defrosting 24
6 Ongoing maintenance
- Cleaning your appliance 25

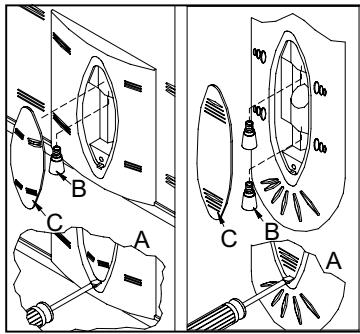

- Changing the light bulb. 25
7 Operating problems
8 After sales service
26
26
This guide to installing and using your fridge-freezer is applicable to several models. There may be slight differences between your appliance's details and features and those described here.

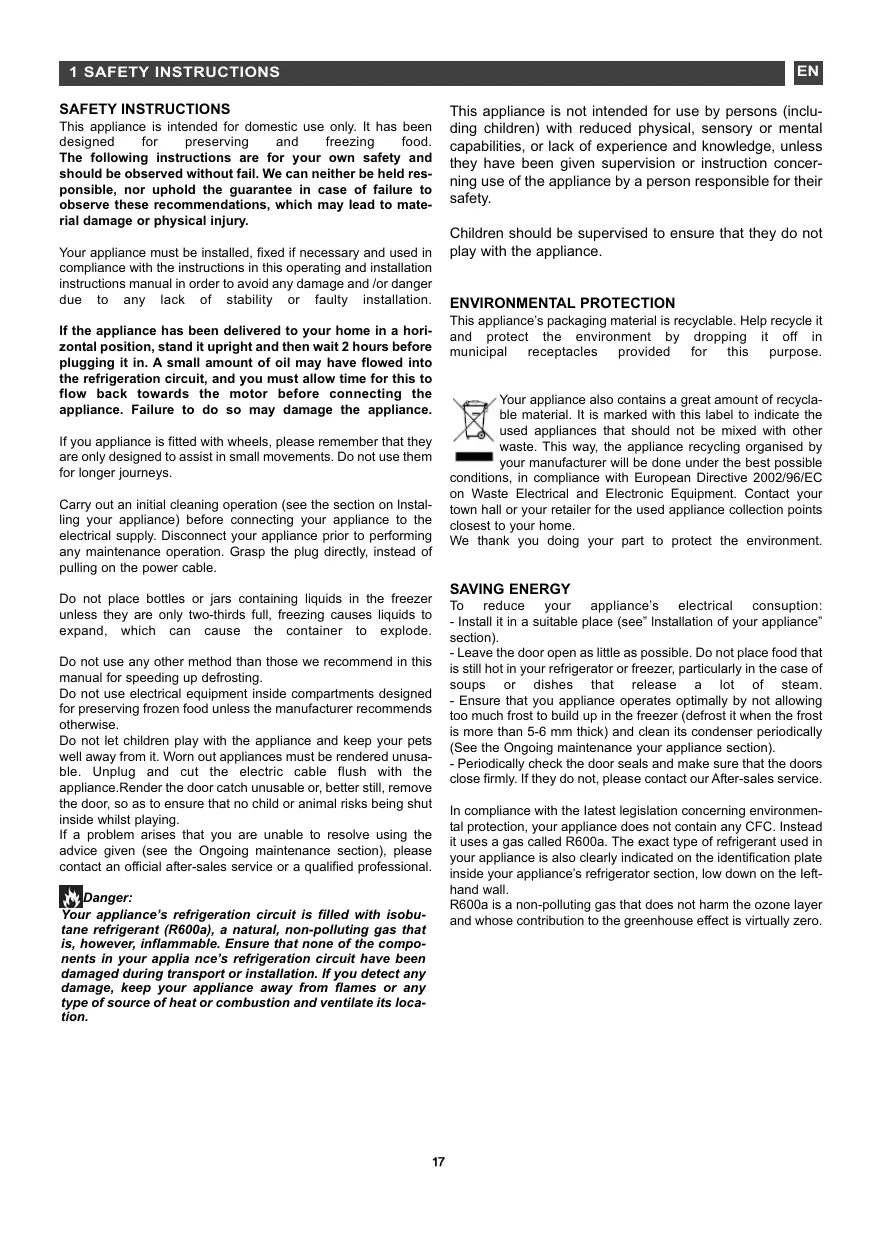

SAFETY INSTRUCTIONS
This appliance is intended for domestic use only. It has been designed for preserving and freezing food. The following instructions are for your own safety and should be observed without fail. We can neither be held responsible, nor uphold the guarantee in case of failure to observe these recommendations, which may lead to material damage or physical injury.
Your appliance must be installed, fixed if necessary and used in compliance with the instructions in this operating and installation instructions manual in order to avoid any damage and/or danger due to any lack of stability or faulty installation.
If the appliance has been delivered to your home in a horizontal position, stand it upright and then wait 2 hours before plugging it in. A small amount of oil may have flowed into the refrigeration circuit, and you must allow time for this to flow back towards the motor before connecting the appliance. Failure to do so may damage the appliance.
If you appliance is fitted with wheels, please remember that they are only designed to assist in small movements. Do not use them for longer journeys.
Carry out an initial cleaning operation (see the section on Installing your appliance) before connecting your appliance to the electrical supply. Disconnect your appliance prior to performing any maintenance operation. Grasp the plug directly, instead of pulling on the power cable.
Do not place bottles or jars containing liquids in the freezer unless they are only two-thirds full, freezing causes liquids to expand, which can cause the container to explode.
Do not use any other method than those we recommend in this manual for speeding up defrosting.
Do not use electrical equipment inside compartments designed for preserving frozen food unless the manufacturer recommends otherwise.
Do not let children play with the appliance and keep your pets well away from it. Worn out appliances must be rendered unusable. Unplug and cut the electric cable flush with the appliance. Render the door catch unusable or, better still, remove the door, so as to ensure that no child or animal risks being shut inside whilst playing.
If a problem arises that you are unable to resolve using the advice given (see the Ongoing maintenance section), please contact an official after-sales service or a qualified professional.
Danger:
Your appliance's refrigeration circuit is filled with isobutane refrigerant (R600a), a natural, non-polluting gas that is, however, inflammable. Ensure that none of the components in your applia nce's refrigeration circuit have been damaged during transport or installation. If you detect any damage, keep your appliance away from flames or any type of source of heat or combustion and ventilate its location.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
ENVIRONMENTAL PROTECTION
This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in municipal receptacles provided for this purpose.
Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other
waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible
conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.
We thank you doing your part to protect the environment.
SAVING ENERGY
To reduce your appliance's electrical consumption:
- Install it in a suitable place (see "Installation of your appliance" section).
- Leave the door open as little as possible. Do not place food that is still hot in your refrigerator or freezer, particularly in the case of soups or dishes that release a lot of steam.
- Ensure that you appliance operates optimally by not allowing too much frost to build up in the freezer (defrost it when the frost is more than 5-6 mm thick) and clean its condenser periodically (See the Ongoing maintenance your appliance section).
- Periodically check the door seals and make sure that the doors close firmly. If they do not, please contact our After-sales service.
In compliance with the latest legislation concerning environmental protection, your appliance does not contain any CFC. Instead it uses a gas called R600a. The exact type of refrigerant used in your appliance is also clearly indicated on the identification plate inside your appliance's refrigerator section, low down on the left-hand wall.
R600a is a non-polluting gas that does not harm the ozone layer and whose contribution to the greenhouse effect is virtually zero.

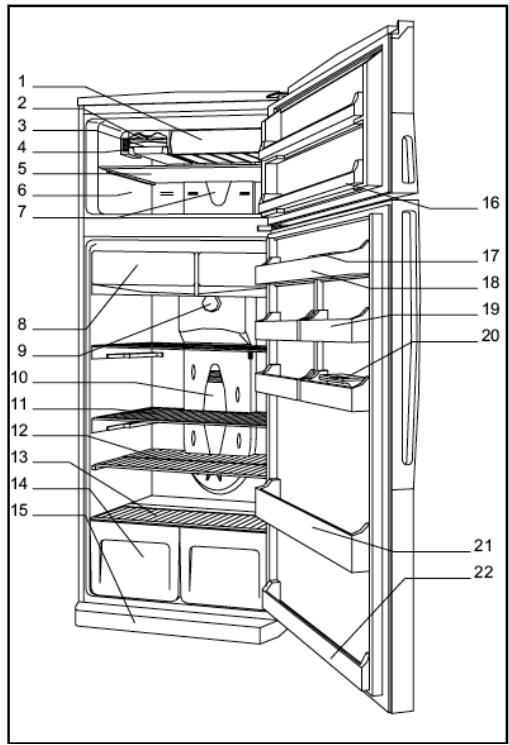

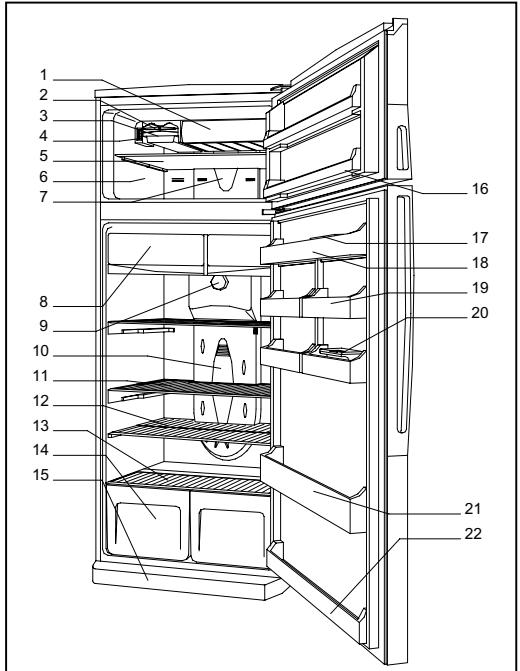

1) Speed Freezer compartment
2) Ice Maker - Ice trays
3) Ice cubes drawer
4) Frezer thermostat
5) Freezer shelf
6) Feezer compartment
7) Frezer lamp box / cover
8) Chillier boxes "Maxi fresh"
9) Refrigerator thermostat
10) Refrigerator lamp box / Air flow cooling system
11) Refrigerator shelves
12) Removable shelf (*)
13) Vegetable drawer shelf
14) Vegetable drawers
15) Plinth
16) Freezer balcony
17 et 18) Balcony with flap
19) Eggs balconies and eggs support
20) Balconies
21) et 22) Bottle balconies
(*) Depending on the model
This user manual is applicable to several models. There may be slight differences between your appliance's details and features and those described here.
Information: No Frost
This appliance has been designed and manufactured to avoid frost accumulating inside it. A system automatically melts away any frost and the water produced flows through a small pipe into the container provided, where it evaporates away. You do not need to defrost the appliance yourself.
Attention:
Your appliance must be installed in compliance with the instructions given in this "Operating and installation instructions manual" in order to keep your food under optimum conditions and with optimal energy consumption.
INSTALLING
- The appliance should be installed in a dry, well-ventilated room.
- Avoid balconies, verandas, and patios, the excessive heat in summer and the cold in winter could prevent your appliance from functioning properly, or may even damage it.
- Do not place your appliance near a heat source such as an oven or radiator.
- Your appliance has been designed for optimum functioning at a certain ambient temperature; it is designed for a particular climate class. This climate class is clearly indicated on the identification plate situated on the inside of your appliance, low down on the left wall. Outside of this temperature range, the performance of your appliance may be reduced.
- Leave a minimum distance between your refrigerator and your other units of 3 to 5cm at the sides and 10cm at the top, to maximise air circulation around the appliance.
- Position the appliance at a suitable distance from the wall using the spacers provided in the accessories packet. The spacers should be mounted on the back of the appliance.
Climate Classe
N
ST
T
Ambient Temperatures
+18° to +32°C
+18° to +38°C
+18° to +43°C
Advise:
Once you have installed your appliance, adjust its feet so that it is tilting backwards slightly, this helps the door to close correctly.
Before placing any food in your appliance, clean it inside and out with a bicarbonate of soda solution (1 dessertpoon of bicarbonate to 4 litres of water). Do blot use alcohol, scouring powder or detergents, which could damage the surfaces.
See the section on "Cleaning your Appliance".
ELECTRICAL CONNECTION
Attention:
For your own safety, you must comply with the instructions given below.
Electrical installation must comply with Standard NF C *15-100, in particular concerning the Earth.
Three-core flex 3 × 2.5 ~mm^2 , 230V single-phase connected to:
- 20A single-phase 230V - 50Hz supply
- ELCB and an individual fuse (10 or 16A depending on the model)
We cannot be held responsible for any incident caused by faulty electrical installation.
Recommendations for the electrical installation of your appliance:
- Do not use extension leads, adaptors, or socket strips.
- Always make sure your circuit is earthed.
- The socket must always remain accessible, yet be out of the reach of children.
If you have any doubts, contact your installer.
Your appliance is compliant with European Directives CEE/73/23 (low voltage directive), CEE/89/336 (electromagnetic compatibility) and CEE/96/57 (energy efficiency) as well as their modifications.
A Attention:
If the appliance has been delivered to your home in a horizontal position, stand it upright and then wait 2 hours before plugging it in. A small amount of oil may have flowed into the refrigeration circuit, and you must allow time for this to flow back towards the motor before connecting the appliance. Failure to do so may damage the appliance. Carry out an initial cleaning operation (see the section on "Installing your appliance") before connecting your appliance to the electrical supply. Disconnect your appliance prior to performing any maintenance operation. Grasp the plug directly, instead of pulling on the power cable.

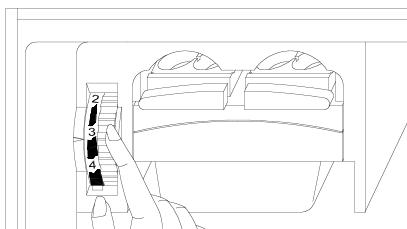

MANIPULATING THERMOSTAT
To adjust the temperature, set the thermostat knob on one of the surrounding figures. Position 1 corresponds to the least cold setting, the higher the number, the colder the temperature setting. When the thermostat is in position "0" your refrigerator is off. The appliance is always powered.:
"COLD ZONE" SYMBOLS (Depending on models)
You will find the symbol opposite in your refrigerator. It clearly
shows the location of your appliance's coldest zone: the temperature here is +4^ or less. A temperature indicator here enables you to check that your refrigerator is working correctly:
TEMPERATURE INDICATOR (Depending on models)
Temperature to set
Correct temperature
Attention:
Prolonged opening of the door will cause the internal temperature to rise. You must therefore read the indicator within 30 seconds of the door being opened for the reading to be correct.
Setting the temperature
When putting your appliance into service, set the thermostat to a medium position. Check the temperature indicator 4 hours after putting your appliance into service, or after any change in the thermostat setting, observe the temperature light :
- If the indicator is still black, lower the temperature gradually by selecting a higher number around the thermostat and checking the temperature indicator again after 4 hours. Repeat this operation as many times as necessary.
- If the indicator goes green and "OK" is indicated, the temperature in your refrigerator is correctly set.
Advise:
Your refrigerator's internal temperature is closely linked to the ambient temperature, how frequently the door is opened and the amount and temperature of the food you have put in your refrigerator. You must therefore check the temperature indicator regularly and adjust the setting if necessary, as explained above.
AIR COOLING SYSTEM: Regulated Cold
Your appliance is equipped with a cold air ventilation system.
A distribution column directs the air to every level, providing a very homogeneous temperature and avoiding any condensation forming on the shelves.
PREPARING FOOD FOR THE REFRIGERATOR
Carefully wrap fresh foods: they will then keep their flavour, colour, humidity content and freshness. You also avoid the taste of some foods contaminating the taste of others. Only vegetables, fruit and salad vegetables can be stored in the vegetable compartment without being packed. Let hot dishes and drinks cool down outside the appliance. Remove the cardboard packs from around yoghurt pots. Check the consume-by dates on the products you have bought. You should not exceed these.
ARRANGING FOOD IN YOUR REFRIGERATOR
The temperature inside your refrigerator is not uniform. Some areas are colder than others and you must store your food in the appropriate areas according to their type to ensure that they can be kept safely.
Leave a space between the food items to allow the air to circulate freely and avoid different products contaminating each other. Do not put packages and food in contact with the wall at the back of the appliance, this is a particularly cold and damp area of the appliance and water droplets and frost condense there as part of your refrigerator's normal operation.
The coldest area, indicated by the logo, is designed for delicate, sensitive and highly perishable food: meat, poultry, fish, cooked meats, prepared dishes, ready-made salads, egg or cream-based dishes and pastries, fresh pasta, pastry, pizza/quiches, fresh produce and raw milk cheese, ready-to-use vegetables sold in plastic bags and, more generally, any fresh product whose consume-by date is linked to its storage at a temperature of +4^ or below.
AUTOMATIC DEFROSTING
The refrigerator section of your appliance defrosts fully automatically. The water created by defrosting flows to a collection tank situated over the motor.
The heat the motor releases evaporates the contents of this tank. It is quite normal for droplets of water or frost to appear on the wall at the back of your refrigerator. This is a particularly cold and damp area in your appliance and water droplets and frost condense out as part of your appliance's normal operation. This frost is removed regularly during your refrigerator's automatic defrosting phases.
ACCESSIONS
Your refrigerator has been designed to make arranging food in it easily. You can adjust the shelves and the racks to suit your wishes.
- Chillier compartment : “Maxi Fresh”
The MAXI-FRESH compartment is recommended for storing fish and meat.

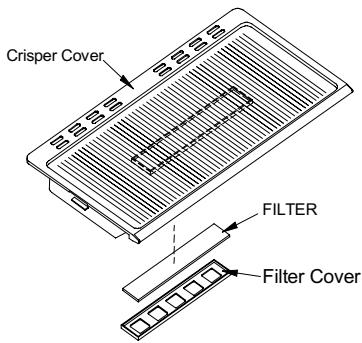

- Vegetable drawer and vegetable drawer shelf
The crisper compartment absorbs and decomposes ethylene gas (^*) emitted from fruits and vegetables thanks to a "FILTER" in the crisper shelf, keeping fruits and vegetables fresh.
The filter also eliminates unpleasant odours from inside the crisper, and control the excess water released by the vegetables, maintaining a high humidity environment inside the crisper. When the crisper shelf become dirty, remove the filter by taking out the filter cover and wash the crisper cover with water.
A Attention:
Do not wash the "Humidity-Control Filter" with water.
Remark\*:
Ethylene gas is a gas, produced from fruits and vegetables, which accelerates the ageing of fruits and vegetables. For example, spinach and broccoli turn to yellow colour easily in places where ethylene gas is abundant.

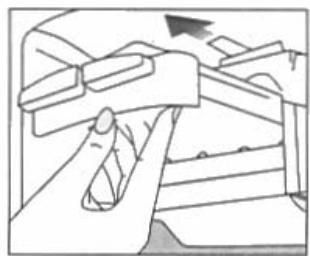

REMOVING THE VEGETABLE DRAWER SHELF (Concerns model 76cm width)
First step:
Remove the vegetable drawer
- it is easy to pull out the drawers as they have rollers.
- Pull the drawers out as far as possible and pull the front part up and out.
Second step:
Take out the partition drawer center between the drawers.
- Bend the partition toward left from the bottom of the part.
Take out the partition crisper.
Third step:
Take out the vegetable drawer shelf
Pull out the shelf until the nails of the shelf come on the cavities (right and left side) of the cabinet.
- When the nails come in the cavity, pull up and take out the shelf.
FROZEN AND DEEP-FROZEN FOOD
Your domestic appliance enables you to freeze food, it lowers its core temperature rapidly and you can therefore keep it longer. Deep-freezing is an industrial process that is quicker and more intense that domestic freezing. The products you purchase from the shops are deep-frozen.
PREPARING FOOD FOR FREEZING
Attention:
Freezing does not sterilise. It is therefore important to observe some simple hygiene rules when preparing your food for freezing: wash your hands before you touch the food and clean the kitchen tools you have just used before using them again.
Only freeze fresh, good quality food. Refer to the table "Food Freezing Guide" to know which products you can freeze and how long you can keep them.
Blanch fruit and vegetables before freezing them to preserve their colour, smell, taste and vitamins: plunge them in boiling water for few moments.
Divide the food you wish to freeze into small individual portions corresponding to one meal each. Small portions freeze quicker at their core.
Pack the food hermetically so that they do not lose their flavour or dry up. Use plastic bags, polyethylene film, aluminium foil or special freezer containers for this. If you are using plastic bags, compress them to eliminate the air before sealing them hermetically.
Attention:
Do not place bottles or jars containing liquids in the freezer unless they are only two-thirds full: freezing causes liquids to expand, which can cause the container to explode.
Note on each package:
-The freezing date
- The consume-by date
- The type of food contained
-The number of portions contained
If you are purchasing deep-frozen food, pick it up last when you are shopping.
Check that:
- The packaging isn't damaged
- They are not covered in a layer of frost (which means that they have partially defrosted)
Pack them in an isothermic bag or in newspaper. Transport them quickly and store them immediately. Comply with the maximum storage dates shown on the pack. Your appliance has a **** freezer compartment, this enables you to keep deep-frozen food in an optimal manner.
FOOD FREEZING GUIDE
Fresh Meat
| Product | Valid for |
| Lamb | 8 months |
| Roast pork | 5 months |
| Pork ribs | 4 months |
| Boiled beef, roast beef | 10 months |
| Beef steak, entrecote, veal | 8 months |
| Veal steaks, cutlets | 10 months |
| Mince meat | 4 months |
| Giblets, offal | 3 months |
| Sausages | 2 months |
Farmyard animals.
Prepare them plucked, skinned, gutted, cut into pieces if necessary, washed and rinsed
| Product | Valid for |
| Duck | 4 months |
| Rabbit | 6 months |
| Boiling fowl | 7 months |
| Goose | 4 months |
| Chicken | 10 months |
| Turkey | 6 months |
| Giblets, offal | 3 months |
Game
| Product | Valid for |
| Wild duck, woodcock, pheasant | 8 months |
| Hare | 6 months |
| Partridge, quail | 8 months |
Fish
| Product | Valid for |
| Carp | 2 months |
| Pike | |
| Turbot | |
| Salmon | |
| Mackerel | |
| Tench | |
| Trout | |
| Sea bream | 3 months |
| Sole |
Cooked food
| Product | Valid for |
| Sauce with meat juice | 3 months |
| Tomato sauce | |
| Minestrone with vegetables | 2 months |
| Lasagne | 4 months |
| Roats | 2 months |
| Calf's leg | 1 month |
| Meat in sauce | 3 months |
| Stew ed game | 2 months |
| Boiled fish, grilled or baked fish | 2 months |
| Sw eet pepers, aubergines, courgettes stuffed with meat | 2 months |
| Mushrooms with garlic and parsley | 2 months |
| Steamed spinach | 2 months |
| Pizza | 6 months |
FOOD FREEZING GUIDE
Vegetables
We recommend that you blench the vegetables with steam.
| Product | Validity |
| Asparagus | 12 months |
| Cabbage, cauliflower | 6 months |
| Artichokes | 12 months |
| Beans | |
| Green beans | |
| Mushrooms | |
| Aubergines | |
| Sweet peppers | |
| Peas, Tomatoes | |
| Parsley, basil | 8 months |
| Spinach | 12 months |
Fruits
Fruit must be covered with sugar or syrup, as appropriate. The amount of sugar to use is around 250g for a kilo of fruit. Syrups are used in varying percentages; these are prepared by boiling sugared wa- ter. The various concentrations are as follows: · 30% solution, 450 g of sugar per litre of water; · 40% solution, 650 g of sugar per litre of water; · 50% solution, 800 g of sugar per litre of water; So that the fruit's colour does not change, place it in lemon juice before covering it with sugar or pour lemon juice into the syrup. The receptacles for the fruit to be frozen must remain in the refrigerator for one hour before being re-inserted into the freezer. The fruit must be completely covered in syrup
| Product | Validity |
| Apricots | 8 months |
| Pineapple | 10 months |
| Oranges | |
| Cherries | |
| Straw berries | 12 months |
| Melon | |
| Peaches | 8 months |
| Grapefruit | 12 months |
| Juice from citrus fruit | 10 months |
| Plums | 12 months |
| Grapes | |
| Bilberries, blackberries, blackcurrants, raspberries red currants | 10 months |
Bread
This can be kept for 2 months. Defrost in an oven set to 50^ , switching it on after inserting the bread.
Butter and cheese
Freeze butter and cheese by dividing them up into pieces for weekly consumption. Butter and hard cheese (e.g. Parmesan) can be kept for 8 months, other cheese 4 months. They must be defrosted in the refrigerator, keeping an eye on the condensation that forms on these products.
ARRANGING FOOD IN YOUR FREEZER
Do not put fresh food next to food that has already been frozen to avoid causing the frozen food to warm up.
Information:
The maximum weight of food that you can freeze over 24 hours is shown on the information plate (inside your appliance's refrigerator section near the bottom of the left-hand wall) under the heading: "CAPACITE DE CONGELATION/FREEZING CAPACITY (kg/24h) ".
SETTING FREEZER THERMOSTAST
Freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.
In cold seasons, you can set lower positions in order to decrease the energy consumption.

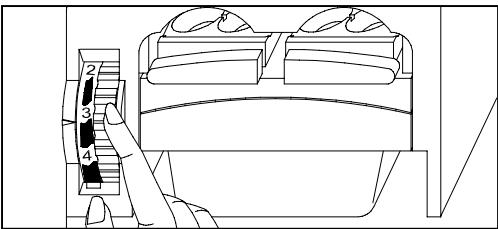

Freezer Thermostat Setting:
1-2: For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position. 3-4: For long-term storage of food in the freezer compartment, you can set knob in medium position.
5: For freezing the fresh food. The appliance will work longer. After the freezing you must position the thermostat to its original position.
SUPER FREEZE : "SPEED FREEZER"
- Use the fast freezing shelf to freeze home cooking (and fresh foods) more quickly because of the freezing room's greater freezing power.
- For opening the shelf pull the cover up, and slide it in to the compartment. You can close it in the same way.
- Be sure that the cover of fast freezing shelf is closed before closing the compartment door. If not, it can not show its fast freezing power.
Information:
The food must be frozen right through as quickly as possible in order to preserve its vitamins, its nutritional value, its appearance and its taste.
ICE MAKER: "TWIST ICE"
Take out the ice making tray
- Fill the water in level of line.
- Place the ice making tray in its original position
- When ice cubes are formed, twist the handle to drop off ice cubes into the icebox.
Attention:
Do not fill the icebox with water in order to make ice. It can be broken.
DEFROSTING FOOD
You can defrost food in five different ways:
- By putting them in your appliance's refrigerator section for several hours
- By leaving them to defrost gently at ambient temperature
- In a conventional oven at a very low temperature (40 / 50^)
- In a microwave oven
- By cooking them immediately
Defrosting them in the refrigerator is the slowest but safest method.
Attention:
Never refreeze food once it has defrosted, even partially, without cooking it first.
We would advise you not to place any items you have just taken out of the freezer straight into your mouth (ice cream, ice cubes, etc.), they will be at a very low temperature and you risk frostbite. Avoid touching frozen or deep-frozen food with wet hands; you may stick to the food. We recommend that you only defrost food for immediate use.
AUTOMATIC FREEZER DEFROSTING
- Defrosting occurs fully automatically during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
- The evaporating tray should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator. (see section "Product Description")
CLEANING YOUR APPLIANCE
Attention:
Disconnect your appliance prior to performing any maintenance operation. Grasp the plug directly, instead of pulling on the power cable.
We recommend that you clean and disinfect your appliance regularly for improved hygiene and to keep your food completely safe.
Remove all the food from the freezer. Place it in isothermic bags or wrap it in newspaper and store it in a cool place.
Clean your appliance inside and out with a bicarbonate of soda solution (1 dessertspoon of bicarbonate to 4 litres of water). Do not use alcohol, scouring powder or detergents, which could damage the surfaces.
Danger:
Do not use a high-pressure steam cleaner. The very hot steam could damage the surfaces and the electrical circuits; you would expose yourself to a risk of electrocution.
Don't forget to clean the condenser from time to time: this is at the back of the appliance. Use a dry paintbrush to do this or, better yet, your vacuum cleaner.
Reconnect your appliance, and adjust the refrigerator's thermostat if necessary, as shown in the section on "Adjusting your refrigerator's temperature Wait 3/4 of an hour before placing the food back in your appliance.
Professional expertise for the general public
To keep your appliance in good working order, we recommend that you use Clearit household products.
Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances. You may find them in conventional retail outlets, along with a complete line of by-products and consumables.
CHANGING THE LIGHT BULB
!Attenion:
Disconnect your appliance before proceeding.
- Unplug the appliance from the power supply.
- Remove the refrigerator light cover with a small screw driver, and take out the cover (A).
- Change the present light bulb with a new one of not more than 15 W (B).
- Replace the light cover and after waiting 5 minutes plug the unit (C).
OPERATING PROBLEMS
There are some noises that it is quite normal for a refrigerator to make:
- The refrigerant gas can produce a gurgling sound as it travels through the circuits.
- The compressor may produce a buzzing noise, which can be more noticeable during start-up.
- The "cracking" noise produced by expansion and contraction of the materials used.
| PROBLEM | SOLUTION |
| The appliance does not work. | Check that the plug is correctly connected, that the fuse hasn't blown or that the circuit-breaker has not jumped. |
| The refrigerator vibrates or is noisy. | Check that it is level. Adjust the feet. |
| The refrigerator gets too cold or not cold enough. | Check the position of the thermostat and set it to a more suitable temperature. |
| The refrigerator's bulb does not light. | Check the bulb and replace it if necessary. If the problem persists, check that your appliance is connected. |
| The compressor does not start after a change in the temperature. | This is normal; the compressor will restart after a certain time. |
| There is water on the floor or on the shelves. | The hole for draining away the defrosting water must be blocked. Unblock it with a knitting needle. |
TECHNICAL ASSISTANCE DEPARTMENT
If you have already performed the indicated checks and your problem still persists, DO NOT ATTEMPT TO MAKE ANY REPAIRS YOURSELF. Contact your nearest Technical Assistance Department.
THIS APPLIANCE COMPLIES WITH EEC DIRECTIVES
2006/95, 2004/108, 96/57, 92/31, 94/62
Any work on your appliance must be performed by a Brandt-accredited qualified professional.
When you call, please mention the complete reference for your machine (model, type, serial number): this information is provided on your guarantee certificate and the information plate on your appliance.
ORIGINAL SPARE PARTS: when any maintenance work is being performed, ask that only certified original spare parts be used.
Ayatttn tIeAatooa,ayattne tIeAatn,
Eaç éuxapiotoué Tnou ayopáoate éva yuyéio-kataúktn BRANDT.
Bálae o' autn t n oukeun olo to t aoc kai nTv texvoywoia mac yia va avtanokpiéi katov kautepe duvato troto otic avaykcs aoc. O oxediaaouc ts osuokueuc oc suvduacei tv kalvotoia kai nTv aouykpitn anto0oan me nTv eukolia otn xphon.
H eipia npoiovtwv nC BRANDT nepiaiabavei etionc ia eyaln toiklia foypwv miPKojuatw, yapeipikw eotiw, atoppoqntpwv, nEeKPIKW KOUivw, Pauvtnpiw Tlatw, oeyvwntpW pouxw kai katauuktwv TOItopeite va ouvuaaete ME To veo yueio-katauuktn oac BRANDT.
Mepiuwvtac navtoe wote ta pioovta ma va atavtouv, me tov kautepo duvato tpo, otic attainoeis oas, n utnpesia eutnpetnans tealaw evial ot thaioan oac npokeievou va atavtnoei oe 05c tic epwnoeis oac kai va kataypaei tic npotaeic oac (avatpeTe OTO TELOc tou pfuaaloiou).
Mtopeite va etnokepeite etionc to diktuakoc taTTO www.brandt.com oToV 0toio Bpeite 6a mac ta TPOIOvta, kaOw cai xipaiuecs kai ouuIAPWmuAtiKcpiNpoopie.
BRANDT
Mepiuvvvtas yia tn ouvexn 9eAiown tw npoiovtwu ma, etipulaaoopaote navrcs bikaiwpatoc xetikae tnv troptoinon tn wv texviikow, aeitoupyikow n aiogntikowxapaktniptikw tou tsou uayopeetai ato tn vexvooyikn ExiIg.
Ipoooxi:
Ipiiv thee t n oukeun e ae ioupyia, napakaaleite va diaafoe TPOeKTKa autes tic obnyies Ekyataotans kai xno npokeiEvou va eoikeiwte ypnyoporepa me tn aeioupyia ts.
www.brandt.com
Apaipoe Ta Tnoula, To bepa Ka TEvToBia, Tluve To Kpeac Ka Koute To eKoupatia edv to EtnBuie
Kaepiote, aedote kai apapeote to kepaai Nuvete kaiokoutiote
YINHPEIA TEXNIKHES YNOSTHPIEHS
EavexETe paymuToTioReI OIoUs Touc Elyxouos Touo aoc exouv EtniunavTei KAI TO np6Blaua emuvei, MHN IPOBEITE SE KAMIA ENIISKKEYH MONOI SA. Ateuuvthetaite otyn vyyutepn Ytnpesia TeviKys TTOOTPiigns.
AYTH H ΣΥΣKEYH EINAI ΣΥΜΦΩNH ME TΙΣ EYPΩΠΑIKEΣΟΔHΓΕΣ EOK 2006/95, 2004/108, 96/57, 92/31, 94/62
OeEvexoevee Tapeuabeic otoukeun oac tha pentei va tpaayatotioovtai aTIO EeiikeuEvo TPOoTIKO eouoiobotnevo ato nTv avntpoosweia.
Kata t n diapkeia tns nAeawvikns oas knoans, avapepe 0a ta 0toixea ts ouakeuncs aos (ovteo, tuioc, eipiakoc apiOuc); autes oi I npopopie c epaviigovtai oTo TIOOTIOINTKO Eyyunons kai otivn TIVAKiob anuavng.
- IAPAEMBAΣEΙΣ
OEvEyoec Taeipbaeoc stn aoukeun oac ba tpeTei va tpaayatoioovta ato eEIOKEUevo Tpoawntko EoiouofoTnevo atto nV avtinoowteia. Kata n diapkeia nTs nIepawvikns ackna, avapepe Oda ta oioxieia nC oukeun cac (ovteLo, tucoc, oeipiaKc apriuoc). Aute os nnnpopoeies avayapovatn otny mivkaiOn anavonC.
- TNH2IA ANTANAKTIKA
Kata Tn diapkeia TwTapeupeaeuw ouvtnpno, attaitote Tny atokleiotikxphon yvnoiv EyekpiEvwavtaaaktikwv.
jnnnnaa a nnaa aaa
Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai Lai
a
aLg 1000
2006/95, 2004/108, 96/57, 92/31, 94/62
CE
I 1
a aalll aagllg jlaalall aegl (ac gssu clogaleol oj! (aegeaae jgill jll) aaiyayll alldalalalalalalal
12
Caiia Jiauilyi caiui. ayiyil 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 101 10
2
A
- 1941 je giljgill jlll plaaui jui dule iiau uuae aei elj! Ja
clauai jui clue jui iallalu ayjulll lllw yae agblln oii i
palsy eay
daii Ios 1s 504 aie piae jaiy alilj yalll iaiy daiy aiia
aaii jaiy jaiy allj ayiaei jaiy aaiy aiay
blizell lisi Jt Jt lo 12j.aaesl aasLg ciai zj I tJ L
Jg 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 154 15
J
:adz 5 aabll all kaly
ailllll lssss sssse cclw
gaiy 3j y a jie gic jy qaall
（a50/40）d
.
.3juljlllglgao
a a a a a a a a a a a a a a a a a a a a
( xt^2 + x) a + bt^2 = 5| 8y|
g 15 gai i jsi. ie qai aaii dji gai aaiiaai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai iai
L 10000000000000000000000000000000000000000000000000000000000000
aai 1
aaii aii i 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
：
Jauuall aal gla aalgl aal bll gla daliell 152-1 Jauuall aal al aagglg ae jayl caii qai ni j clle Jauuall aal gla aalgl aal bll gla daliell 154-3 Jauuall aal gla aalgl aal caii qai ni j clle aalbl oai i Jla aalall aal jilall aaalb y la 5 Jauuall cai Jao Jao Jao Jao Jao
(SPEED FREEZER) a
j 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 1021 102
Ulog
e 1
a#
jies
jll jlll lsln
a aaa a aaa aaa aa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa
glll lclk, cccccc aalll aalll aalll allln 1 kall n 1 kall l lll l l l l l l l l l l l l l l l l l l l
Lgki,lgjglge lalai g Lgai jiaai aai alaai jil dlae
alaal alal g laai n all gai. gai alalallalalal
aay yauu aal ayu uauu aauy baaol ai jdlae caii
Lgss Lgsls yraaall aai kll
LaIgaiyglagaii yIyaiiaaalbll aaiii ll gaiie 1.aaaiuayaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai
A
Jgus gni gui yuogj yugn gi uuyugj 1yduu jiu 2
la Jgulpa n ga uuyuaauii ui i. kuiu uaiu uaiu
= - y1x1
:aii tai aieaia aai 1 i jui dui
.
LgA Lw Lgai!
.
Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn
.
Lae juiuaii jil yue la) aaiia jaaaiy Jia 1a LsLiie (Jzj
Laii jai aaiy aaiy yaiy baiy cali jui Lai i jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jali yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai yai
Jzll jll glaiaaall aalil alalloally
jusuui jguiua aaiui 2auiu uui uui
(1juaa 76 lgee glll lglalb)
(1)
julzill jylin allj aiaS
jiazllg jyj 1000
y = - 12x + 3 BC//l
JyjIe JyjIe jyjIe JyjIe JyjIe JyjIe JyjIe JyjIe
:aa
J 1
y
.
.
:
aikn jiaiie aaijia 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
(1) (2) (3) (4)
Juaaill 3g 1
a>101
cawg y aaeaae buiy juyuay aayyuyy 1a1s o uj
yag y buiy yda! clew y dliS. gI yLs aeaae buiy da! .LiLi Las Aasll Cgl
(Maxi-fresh)
julldalalzglg julldalq
J 1200000000000000000000000000000
e 5 clll lal gll aalll aalll clle y
oie iol .gai alall aaiy y gaiyaiy gaiyaiy gaiyaiy
aikaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai kaiy ai
J 1234567890
j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j
y j 1000000000000000000000000000000000000000000000000000000000000000000000
- OK" 0jL jll Jlaa aaiyajlll 0i i 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j 0j
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa
a.11 1
jI clde, jlll al oJy Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn Jnn
（）"a"g)“aaalal"gl aalalal alalal jy jy jy yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj y
（）
jzjzdaui jdu
aalilai jrjell a
4.1
ydy ydy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy dy
1
aIg cIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg aIg a12
a12
a12
a12
a12
a12
a12
a12
a12
a12
a12
a12
a12
a12
a12
a
aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal
255 255
2g. 2g.
2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
aLbLaLs.(aBlaJ)CEE/96/57.
.
A
gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag gag
2541 5121 jj jssal jiaogb
- 1981 u c gilg jlll gaii jui duc iiau uauc aei elj! Jd uaiui jui duu jiaallb ujiulll uue yue ogbaln siiis
S AOB = S COD + S OBC + S BOC
m : x = 1 或 3x + 4y + 1 = 0
aLalu L aag uauuuaa uuuuuege aayaaayaae aee yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yae yAEy
a
auiuui 12
.
i! 1. glalw lgl g, aiklll ciall alg i, ciall alge alal .
stll lalag aiaaiiaaiol alg g, ciailll lalag aaiaiaiy alay
Igaiai y llaiu aig ayaiyall alal y alu y alu y alu
jglg jn rgrle alrall uan aaiyall alal
alall allll aalr lal
32,18 18
N
38,18
(3) (12)(12)(12)(12) ST
43,°18
T
glaeggiaglalglayjui gao jia jaiyulld 100 ouo cuy la ldu Jilai jia dusie la ogll yllabaae aaiu aai
(“auiyssi 2581 aaiii" uigic i (uaiy)
L 2581 J
aaii 155
2.NFC 15-100 aLalai jn jy yj k
1 11 11 11 11 11 11 11 11
230 25 X 3 a
= 1.0 - 0 = - 1
50-230 230
jIabla 16 jI 10)JusuU Jull JusuUu Uauu
(2) a1 = 4,a2 = 32,a_3 = - 32
auiy 125
11
（204
（3）
a 4
aJ 1 aJ 2 aJ 3 aJ 4
6
a11111/21c（7
8
a 9
aigjul pui /aui 10
11
(x) 23456789011111111111111111111
jusuui jgua uai i auiiaa uua (13
jusuui 14
_j_k_l (15
aJ 16
3JU JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ
3JU JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ
a 19
（20
Jzjjj 22g (21)
yjlll jg jfo
a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
mawall usuiu uaiu
aalglgallge aalllssydlaldoaaaylgyllal 0o 1
yali gale aaiyrlsall al 0o yagall aylgall 0u
ooe agd jao ygi y aalall oia jc agilall oaiy
jzj n jyrgnall qn .yqell jgagogagbll oai aydl
. daiyai aylgall 0f
JlalbI Lao 2)olzLJI Jn Jlaeunu oes yz a111010 n!
guy Ls. aaein aiaig ayauy uagauy uall (paa
jay la cllg ayqally ayell yale vaii Jn laaiee
pecluael pcl laiiy jay g j. qalec allyy paoa
aaiy
aii glc jia
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1
Jiai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jali jali jali jali jali jali jali jali jali jali jali jali jali jali jali jali jali jali jali
B
aaiie glaiae
a1
aaiyall aallll 1dlaai y dao y la 12
(aylln alw yj) waiiail kall gao iiau Ljji y aaibgi y aiaa ay aaiy y aaiy aaiy aaiy
6 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Laiai ci i aill lalag yaiylll Llaiaa ayra yda yda calee n 1
Lall ay laiai y aell cai yaiy ai y al 1a 1a kaiy
Lall aiai y aoi na aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai y aiai
- a1111111111111111111111111111111111111111111111111111 2. a222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222
aJU Jgaa 0d j g aal aai
JL
aablll lalilll aag (jlll laiiia aiaea a 12
a jn jnnn n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn
JyI JyI JyI JyI JyI JyI JyI JyI
g iL aL 111111111111111111111111111111111111111
a
aas lai gaa 2. aoyoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo yoo
.
a a a a a a a a a a a a a a a a a a a
Lg 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y
Llal lal lal y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y 1y
ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy ggy
auiy 15012 aaiy gii 123aiy
1
42
42 43
43 2
43 1gac auiuiei gaiis bll oia cay: gannl Jaua aib
3
44 2
44
J 4
45 3
45.
45 (1)
45 45
45.
45.
45.
46 1
46 (jiaai 76 lglg c glll aal ylly jaii jaiil qai iai ai aai ai aai ai
5
47 48
47 1
47
48 49
48 49
49 1
49 2
49 4aebbl jge aalll
49 2
6
50 2
50 1
51 2
52 8
a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
a
