USER MANUAL AT-LP60BKBT AUDIO TECHNICA

AT-LP60-BT Wireless Turntable Turntable belt needs to be attached or turntable will not operate. See page 5 for instructions. For assistance, contact our Audio Solutions Department at 330-686-2600 x5000 or audio-solutions@atus.com.

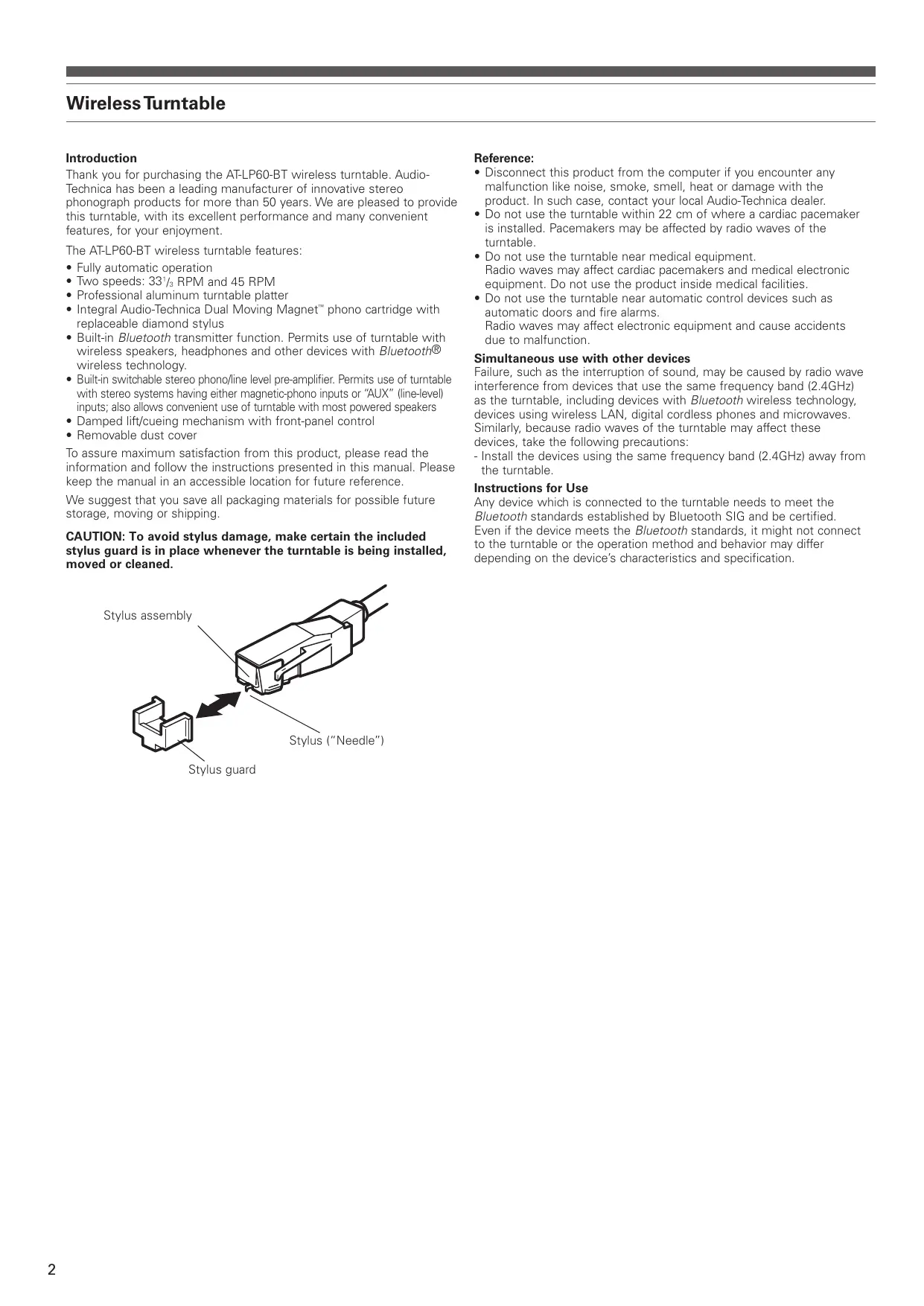

Wireless Turntable Introduction Thank you for purchasing the AT-LP60-BT wireless turntable. AudioTechnica has been a leading manufacturer of innovative stereo phonograph products for more than 50 years. We are pleased to provide this turntable, with its excellent performance and many convenient features, for your enjoyment. The AT-LP60-BT wireless turntable features:

• Fully automatic operation
• Two speeds: 331/3 RPM and 45 RPM
• Professional aluminum turntable platter
• Integral Audio-Technica Dual Moving Magnet™ phono cartridge with replaceable diamond stylus
• Built-in Bluetooth transmitter function. Permits use of turntable with wireless speakers, headphones and other devices with Bluetooth® wireless technology.
• Built-in switchable stereo phono/line level pre-amplifier. Permits use of turntable with stereo systems having either magnetic-phono inputs or “AUX” (line-level) inputs; also allows convenient use of turntable with most powered speakers
• Damped lift/cueing mechanism with front-panel control
• Removable dust cover To assure maximum satisfaction from this product, please read the information and follow the instructions presented in this manual. Please keep the manual in an accessible location for future reference. We suggest that you save all packaging materials for possible future storage, moving or shipping. CAUTION: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being installed, moved or cleaned. Stylus assembly Stylus (“Needle”) Stylus guard

• Disconnect this product from the computer if you encounter any malfunction like noise, smoke, smell, heat or damage with the product. In such case, contact your local Audio-Technica dealer.
• Do not use the turntable within 22 cm of where a cardiac pacemaker is installed. Pacemakers may be affected by radio waves of the turntable.
• Do not use the turntable near medical equipment. Radio waves may affect cardiac pacemakers and medical electronic equipment. Do not use the product inside medical facilities.
• Do not use the turntable near automatic control devices such as automatic doors and fire alarms. Radio waves may affect electronic equipment and cause accidents due to malfunction. Simultaneous use with other devices Failure, such as the interruption of sound, may be caused by radio wave interference from devices that use the same frequency band (2.4GHz) as the turntable, including devices with Bluetooth wireless technology, devices using wireless LAN, digital cordless phones and microwaves. Similarly, because radio waves of the turntable may affect these devices, take the following precautions: - Install the devices using the same frequency band (2.4GHz) away from the turntable. Instructions for Use Any device which is connected to the turntable needs to meet the Bluetooth standards established by Bluetooth SIG and be certified. Even if the device meets the Bluetooth standards, it might not connect to the turntable or the operation method and behavior may differ depending on the device’s characteristics and specification. English Wireless Turntable (continued) Important information FCC Notice

Warning:

• To prevent fire or shock hazard, do not expose this apparatus to rain or moisture.

Warning:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution:

• Do not expose this apparatus to drips or splashes.
• To avoid electric shock, do not open the cabinet.
• Refer servicing to qualified personnel only.
• Do not expose this apparatus to excessive heat such as sunshine, fire or the like.
• Do not subject this apparatus to strong impact.
• This apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time.
• In case of emergency, disconnect the power cord plug of this apparatus quickly.
• Do not place any objects filled with liquids, such as vases, on this apparatus.
• To prevent fire, do not place any naked flame sources (such as lighted candles) on this apparatus.
• Do not install this apparatus in a confined space such as a bookcase or similar unit.
• To install this apparatus only in the place where ventilation is good.
• To prevent fire, do not cover the ventilation of this apparatus with newspapers, table-clothes, curtains, etc. For customers in the USA/Canada CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Caution: To prevent electric shock, do not remove the cover. There are no user-serviceable parts inside. Internal adjustments are for qualified professionals only. Refer all servicing to qualified service personnel. The lightning Flash Symbol, with “The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons”. The exclamation Point Symbol, with “The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product”. Caution: To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. Safety instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with

the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Caution: You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter used in other systems. This device comply with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation. (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body. IC statement: CAN ICES-3 (B)/NMB-3(B) This device complies with INDUSTRY CANADA R.S.S. 247. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference which may cause undesired operation. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20 cm between the radiator & your body.

Main Features 12" SIZE

Figure 1 Front 11 SPEED

Back STOP PHONO LINE ANALOG OUT AT-LP60-BT WIRELESS TURNTABLE PHONO

START BUTTON Engages the motor/platter and begins automatic operation.

45-RPM ADAPTER (shown in receptacle) Adapts 7" records with large center holes to fit center spindle. SPEED

STOP BUTTON Disengages the motor/platter and returns tone arm to rest. SPEED

TONE ARM LIFT BUTTON

Lifts and lowers tone arm for manual selection.

PLATTER SPEED BUTTON

Select 33 RPM (button in high position) or 45 RPM (button in low position) platter speed. WIRELESS FUNCTION BUTTON (with Indicator LED) Use to perform initial pairing with a Bluetooth receiver device (speakers, headphones, receiver, sound bar, et al.) and to start/stop wireless signal transmission.

SIZE SELECTOR Select the size of the record: 12" or 7".

PLATTER Aluminum platter mounts directly to center spindle/ motor shaft.

• Illustration shows platter with turntable mat placed on top of it.

CENTER SPINDLE Centering pin for record positioning. STOP AT-LP60-BT WIRELESS TURNTABLE

DUST COVER HINGE HOLDERS

Attachment points for removable hinged dust cover. START STOP AT-LP60-BT WIRELESS TURNTABLE

TONE ARM/HEADSHELL ASSEMBLY

Tone arm is permanently attached to the headshell assembly.

16 PRE-AMPLIFIER SELECTOR SWITCH (PHONO/LINE) (On back of turntable) Use PHONO setting when you connect to the phono input on your home stereo via output cable. Use the LINE level when you connect to CD/TAPE/AUX inputs of your home stereo via output cable. 17 ANALOG OUT Use this output to connect to your home stereo or powered speakers via the included 3.5 mm stereo mini-plug to dual RCA output cable. English Initial Setup Assembling the Turntable The AT-LP60-BT requires some assembly before first use. IMPORTANT: Do not connect the AC power cable until assembly is complete.

Carefully place the turntable platter on the center spindle, making certain the platter is fully seated on the spindle.

While holding both ends of the red tape ribbon on the turntable belt, carefully pull the belt over the brass motor pulley (Fig. 2a). (If the belt drops off, remove the turntable platter and put the belt back on it, as described on page 8.)

Once the belt is seated in the pulley’s groove, carefully remove the ribbon. Make certain the belt is not twisted. Figure 2 – Assembling the turntable 2a – Drive belt Brass motor pulley Red ribbon Drive belt (NOTE: If the belt is not correctly positioned around the motor pulley, the turntable will not operate. Please doublecheck to make sure that the belt is positioned correctly.)

Place the turntable mat on top of the turntable platter (Fig. 2b).

If desired, the hinged dust cover may be removed. Hold both sides of the dust cover and pull upward gently and evenly to detach the cover from the turntable (Fig. 2c). Keep the cover in a safe, clean place.

To re-install the dust cover, guide the dust cover hinges into the two hinge receptacles located at the back of the turntable housing. Setting the Pre-amplifier Selector Switch (PHONO/LINE) For increased flexibility of use, this turntable has an internal stereo phono pre-amplifier. The pre-amplifier selector switch (PHONO/LINE) switch is located on the back of the turntable. If the stereo system you are using has a PHONO input, set the pre-amplifier selector switch to the “PHONO” position. If your stereo system does not have a PHONO input, set the pre-amplifier selector switch to the “LINE” position and connect the turntable’s output cables to the AUX or other high-level input on your stereo system (described later) (Fig. 3). 2b – Record mat 45-RPM adapter 2c – Dust cover removal The pre-amplifier selector switch does not affect wireless connection. You can leave the switch in either position when connecting the turntable to a Bluetooth receiver device. Figure 3 PHONO AUX Stereo system Input jacks Pre-amplifier selector switch White Red

Initial Setup (continued) Connecting to Stereo System (Wireless Connection) About Pairing To connect the turntable to a Bluetooth receiver device, the turntable needs to pair (register) with the device. Once it is paired, you will not need to pair it again with that device, except in the following cases:

• If the turntable is deleted from the Bluetooth receiver device connection history,
• If the turntable is sent out for repair,
• If the turntable is paired with 9 devices or more. (The turntable can be paired with up to 8 devices. When you pair with a new device after pairing with 8 devices, pairing information for the device with the oldest connection date will be overwritten by information for the new device.) How to Perform Pairing
• Read the user manual for the Bluetooth receiver device. lace the Bluetooth receiver device within 1 meter of the turntable to perform pairing correctly.

1. Set the Bluetooth receiver device into “pairing mode”.

2. After connecting the turntable’s power cable plug to an AC

outlet, press and hold the wireless function button for about 4 seconds. The button’s Indicator LED will begin flashing red/ blue.

3. When the pairing is successfully performed, the Indicator will

turn blue. Connecting to Stereo System (Wired Connection)

1. Connect the output cable’s mini-plug to the ANALOG OUT on

Connect the output cable’s red RCA-type pin-plug to the right channel input and the white RCA-type pin-plug to the left channel input of your stereo system (Fig. 3, page 5).

With the tone arm still fastened to the tone arm rest, slowly turn the turntable platter clockwise ten times, to make certain the automatic mechanism is fully cycled.

Remove the vinyl tie that holds the tone arm on its rest.

Connect the power cable plug to an AC outlet. Make sure the AC outlet supplies the proper voltage for the AT-LP60-BT you are using. Listening to Music

1. Once pairing has been performed, press and hold the wireless

function button for about 2 seconds to turn on the Bluetooth function. Turn on the Bluetooth receiver device. Indicator will turn blue when the signal is transmitted correctly.

2. Play and enjoy music according to the Automatic Operation

(See below) or Manual Operation (See Page 7) instructions.

3. Press and hold the wireless function button for 2 seconds to

cut the connection to the Bluetooth receiver device. Indicator will turn off. About Indicator Display The wireless function button’s Indicator LED displays the following wireless operating status by flashing or turning on: Operating status Pairing Connect Searching for device Waiting to be connected Connecting Flashing Lit Operation Automatic Operation

1. Remove the stylus guard from the stylus assembly

Put a record on the turntable. If needed, use the 45 RPM adapter (Fig. 5).

Select the size of record: 12" or 7" (Fig. 6).

Select the speed: 331/3 RPM or 45 RPM (Fig. 7).

Start: Gently push the START button (Fig. 8a). The turntable will start and the tone arm automatically will move to the lead-in groove. When the record has finished playing, the tone arm automatically will return to the tone arm rest and the turntable will shut off.

Stop: To stop playing the record before it reaches the end, press the STOP button (Fig. 8b). The tone arm will lift and return to the tone arm rest, and the turntable will shut off.

Pause: To pause the record before it has completed playing, press the tone arm Lift button (Fig. 8c). Press the Lift button again to continue playing the record. Figure 4 Stylus assembly Stylus (“Needle”) Stylus guard Figure 5 45 RPM adapter English Operation (continued) Caution: When the tone arm reaches the end of the record, it will lift and return to the tone arm rest automatically. When this happens, do not interfere with the tone arm’s motion, or damage to the mechanism may occur. If the tone arm does not return automatically to the tone arm rest after the record has finished playing, simply press the STOP button to complete operation. Figure 6 Figure 7 Manual Operation

1. Remove the stylus guard from the stylus assembly (Fig. 4).

Put a record on the turntable. If needed, use the 45 RPM adapter (Fig. 5).

Select the size of record: 12" or 7" (Fig. 6). Figure 8

Select the speed: 33 /3 RPM or 45 RPM (Fig. 7).

Press the Lift button in to raise the tone arm (Fig. 8c).

Gently move the tone arm so the stylus is over the point on the record where play is desired to begin.

Press the Lift button again to gently lower the tone arm and play record.

Button Position: Out In Tone Arm Action: Lower Raise Replacing the Stylus While holding the head of the tone arm, rotate the front of the stylus assembly in a forward and down motion to remove it (Fig. 9). (As you remove the old assembly, note its position and “feel,” to aid in properly installing the new one.) Figure 9 – Removing the stylus Install the new stylus assembly as shown in Figures 10a/10b, being careful not to touch the actual stylus. Make certain that the projection at the back of the assembly is fully seated in the cartridge body first (Fig. 10a), and that the assembly “clicks” up into place, with no gap between its top edge and the front of the black plastic tone arm head (Fig. 10b). Replace the stylus after 400 hours of use. To maintain original performance, insist upon a genuine Audio-Technica brand replacement stylus. Look for the Audio-Technica trademark ( ) on the front of the stylus assembly and on the packaging. Figure 10 – Installing a new stylus 10a Engage in body first 10b No gap here

Troubleshooting Turntable does not operate

1. Make certain the turntable’s AC cable is plugged into an AC

outlet, and that the AC outlet is “live.”

Check the drive belt to make certain it is on correctly. (See Fig. 11.) A) Remove the record mat from the turntable platter (Fig. 11a). Place the mat in the cardboard packaging sleeve for safekeeping. Through an opening in the turntable platter, visually inspect to see if the drive belt is around the brass motor pulley (Fig. 11b). (NOTE: If the belt is not correctly positioned around the brass motor pulley, the turntable will not operate. Please doublecheck to make sure that the belt is positioned correctly.) B) If the drive belt is not around the brass motor pulley: Lift and remove the turntable platter. Place a thumb into each of the left and right openings on the turntable platter; and, using the fingers to press down on the turntable housing’s surface, pull the platter straight up (Fig. 11c). Avoid pressing on the tone arm. C) With the turntable platter bottom side up, place the belt along the outside wall of the turntable platter’s drive rim, making certain that the belt is smooth and flat all the way around (Fig. 11d). D) Put the turntable platter back on the center spindle, make certain it is fully seated, and align one of its openings over the brass motor pulley position. E) Through the opening, carefully hook the turntable belt with a finger or with the original red ribbon (never use a sharp object) and pull the belt over the brass motor pulley (Fig. 11e). Make certain the belt is not twisted between the pulley and the platter’s drive rim. F) Put the record mat back on the platter. G) While holding the tone arm in its rest position, slowly turn the platter by hand clockwise at least 10 rotations to clear the mechanism’s automatic cycle. Figure 11 – Checking the drive belt 11a 11b Turntable operates, but no sound at all

1. The stylus guard is still in place.

The tone arm Lift button is pressed in.

Amplifier controls set incorrectly: wrong input selected, tape monitor on, speakers switched off, etc.

Check the stylus on phono cartridge for correct placement. Refer to the instructions for replacing the stylus on page 7.

If connected to a Bluetooth device, make sure the wireless connection has been performed correctly. (See page 6.) Drive belt Turntable operates, but no sound, or sound not loud enough

1. If the turntable is connected to an AUX (high-level) input: The

pre-amplifier selector switch may be set to the “PHONO” position (phono-input level). Move switch to the “LINE” position.

The input gain of the amplified speaker or similar device may be too low.

The stylus assembly may not be fully seated in the cartridge body. (See Fig. 10 on page 7.) Sound is very distorted

1. Turntable connected to an amplifier’s PHONO input: If the

pre-amplifier selector switch is set to the “LINE” position (AUX high-level output), a phono input will be overloaded. Record/Tone Arm moves slightly up and down

1. Usually this is a normal condition and not a problem. If this

causes the turntable to be unable to track the record, please contact your dealer or our service department. Ensure the surface upon which the turntable is resting is not picking up vibrations from the floor or walls, or from direct speaker sound.

Specifications Tips For Better Performance

When opening or closing the turntable cover, handle it gently, moving it either at the center or equally from both sides.

Do not touch the stylus tip with your fingers; avoid bumping the stylus on the turntable mat or a record’s edge.

Clean the stylus tip frequently, using a soft brush with a back-to-front motion only.

If you use a stylus cleaning fluid, use it very sparingly.

Wipe the dust cover and turntable housing gently with a soft cloth. Use only a small amount of mild detergent solution to clean the turntable and dust cover.

Never apply harsh chemicals or solvents to any part of the turntable system.

Prior to moving the turntable, always unplug it from the AC outlet and fasten the tone arm on the tone arm rest with the vinyl twist-tie. Specifications Communication system Output Maximum communication range Compatible Bluetooth profile Support codec Type Platter Motor Speeds Bluetooth Ver. 3.0 Bluetooth Specification Power Class 2 Line of sight - approx. 10m A2DP SBC Belt drive turntable, fully automatic Aluminum DC servo-controlled 331/3 RPM, 45 RPM Wow and flutter Less than 0.25% (WTD) @ 3 kHz (JIS) Signal-to-noise ratio >50 dB (DIN-B) Cartridge Integral Dual Moving Magnet™ stereo cartridge with diamond stylus Output level Pre-amplifier “PHONO”

2.5 mV nominal at 1 kHz, 5 cm/sec

Pre-amplifier “LINE” 150 mV nominal at 1 kHz, 5 cm/sec Phono pre-amp gain 36 dB nominal, RIAA equalized Power 120V AC, 60 Hz, 3W (U.S. and Canada) Dimensions 360.0mm (14.17”) W x 97.5 mm (3.84”) H x 356.0mm (14.2”) D Net weight

2.98 kg (6.6lbs.)

Accessories 3.5 mm (1/8”) mini-plug (male) to dual RCA (male) stereo output cable, 45 RPM adapter, removable hinged dust cover Replacement stylus ATN3600L

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Audio-Technica Corporation is under license. All other trademarks are property of their respective owners. For product improvement, the product is subject to modification without notice.

AT-LP60-BT WIRELESS TURNTABLE PHONO

AT-LP60-BT WIRELESS TURNTABLE

AT-LP60-BT WIRELESS TURNTABLE START STOP

AT-LP60-BT WIRELESS TURNTABLE PHONO

AT-LP60-BT WIRELESS TURNTABLE STOP AT-LP60-BT WIRELESS TURNTABLE STOP

CUBIERTA ANTIPOLVO Visit our Web Site: www.audio-technica.com One-Year Limited Warranty Audio-Technica brand products purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions. This warranty is void in the event of unauthorized repair or modification, or removal or defacing of the product labeling. For return approval and shipping information, contact the Service Dept., Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224. Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any consequential, incidental, or special damages; any warranty of merchantability or tness for particular purpose expires when this warranty expires. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Outside the U.S.A., please contact your local dealer for warranty details. Audio-Technica Corporation ©2016 Audio-Technica Corp. 45mm 未満は
