USER MANUAL HX750W 80PLUS GOLD CORSAIR

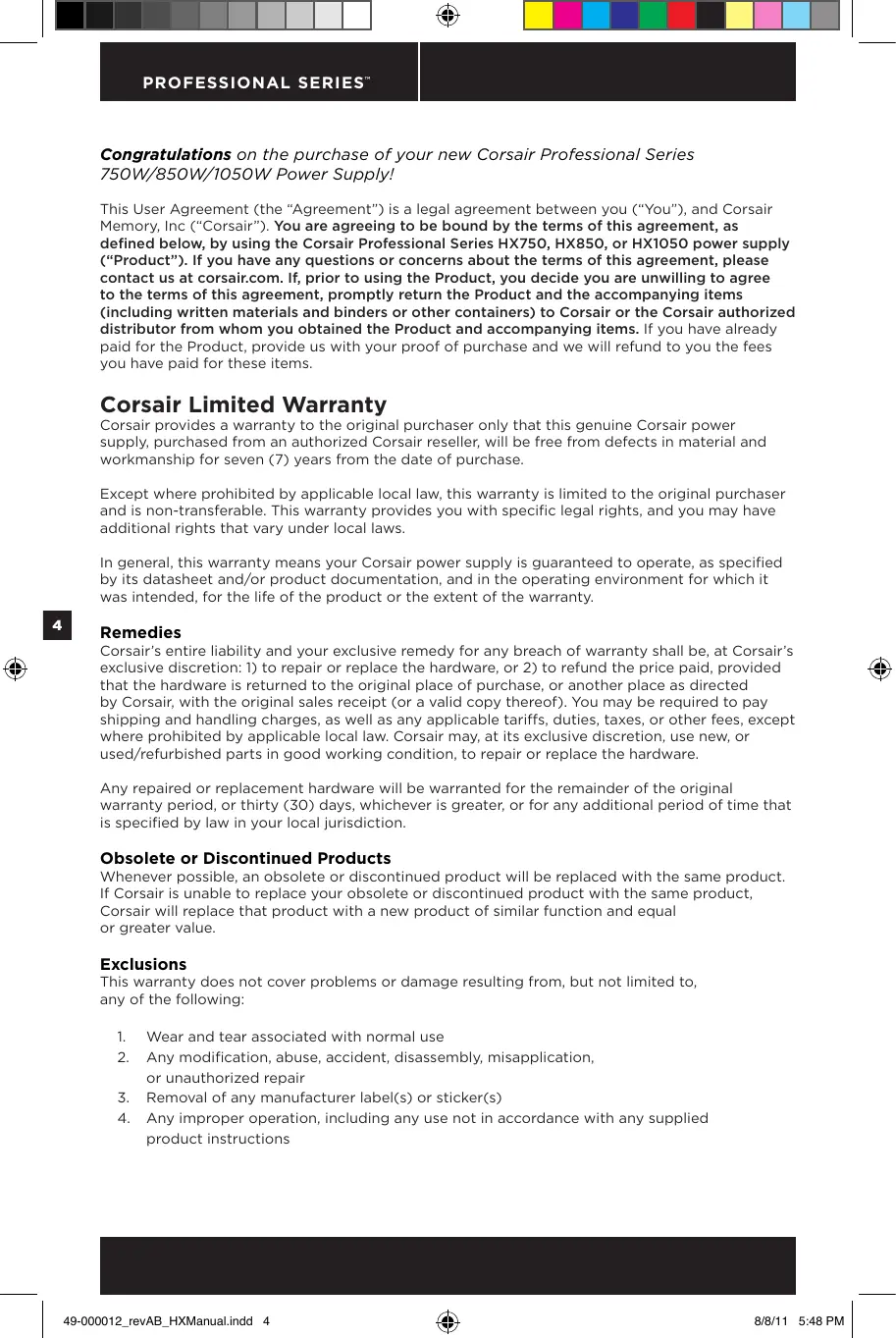

Congratulations on the purchase of your new Corsair Professional Series 750W/850W/1050W Power Supply!
This User Agreement (the "Agreement") is a legal agreement between you ("You"), and Corsair Memory, Inc ("Corsair"). You are agreeing to be bound by the terms of this agreement, as defined below, by using the Corsair Professional Series HX750, HX850, or HX1050 power supply ("Product"). If you have any questions or concerns about the terms of this agreement, please contact us at corsair.com. If, prior to using the Product, you decide you are unwilling to agree to the terms of this agreement, promptly return the Product and the accompanying items (including written materials and binders or other containers) to Corsair or the Corsair authorized distributor from whom you obtained the Product and accompanying items. If you have already paid for the Product, provide us with your proof of purchase and we will refund to you the fees you have paid for these items.
Corsair Limited Warranty
Corsair provides a warranty to the original purchaser only that this genuine Corsair power supply, purchased from an authorized Corsair reseller, will be free from defects in material and workmanship for seven (7) years from the date of purchase.
Except where prohibited by applicable local law, this warranty is limited to the original purchaser and is non-transferable. This warranty provides you with specific legal rights, and you may have additional rights that vary under local laws.
In general, this warranty means your Corsair power supply is guaranteed to operate, as specified by its datasheet and/or product documentation, and in the operating environment for which it was intended, for the life of the product or the extent of the warranty.
Remedies
Corsair's entire liability and your exclusive remedy for any breach of warranty shall be, at Corsair's exclusive discretion: 1) to repair or replace the hardware, or 2) to refund the price paid, provided that the hardware is returned to the original place of purchase, or another place as directed by Corsair, with the original sales receipt (or a valid copy thereof). You may be required to pay shipping and handling charges, as well as any applicable tariffs, duties, taxes, or other fees, except where prohibited by applicable local law. Corsair may, at its exclusive discretion, use new, or used/refurbished parts in good working condition, to repair or replace the hardware.
Any repaired or replacement hardware will be warranted for the remainder of the original warranty period, or thirty (30) days, whichever is greater, or for any additional period of time that is specified by law in your local jurisdiction.
Obsolete or Discontinued Products
Whenever possible, an obsolete or discontinued product will be replaced with the same product. If Corsair is unable to replace your obsolete or discontinued product with the same product, Corsair will replace that product with a new product of similar function and equal or greater value.
Exclusions
This warranty does not cover problems or damage resulting from, but not limited to, any of the following:
- Wear and tear associated with normal use
- Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair
- Removal of any manufacturer label(s) or sticker(s)
- Any improper operation, including any use not in accordance with any supplied product instructions
- Connection to any improper voltage supply
- Use of consumables, such as replacement batteries, not supplied by Corsair, except where such restriction is prohibited by applicable local law.
- Any other cause which does not relate to a product defect in materials or workmanship
Also excluded from this warranty are counterfeit products; that is, products that Corsair, at its sole discretion, determines were not manufactured by Corsair or any of its authorized manufacturing partners.
Limitation of Liability
CORSAIR SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE, OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF CORSAIR HAS BEEN ADVISED PREVIOUSLY OF THE POSSIBILITY OF SUCH DAMAGES. Some local laws do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so this limitation or exclusion may not apply in your jurisdiction.
Duration of Implied Warranties
EXCEPT AS PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some local laws do not allow limitations on how long an implied warranty may last, so this limitation may not apply in your jurisdiction.
National Statutory Rights
Consumers may have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.
No Other Warranties
No Corsair employee, dealer, or other agent is authorized to make any modification, extension, or addition to this warranty.
How to Make a Warranty Claim
Before submitting a warranty claim, we suggest you contact our technical support group or visit corsair.com and review the support section for technical assistance. A simple fix for your problem may be found there.
Generally, valid warranty claims should be processed through your original point of purchase during the first thirty (30) days after purchase. This period may vary depending on where you purchased your product; please verify the return policy with the retailer where you purchased your product. Any warranty claims that cannot be processed through your original point of purchase should be addressed directly to Corsair. Our customer service contact information can be found on the web at _corsair.com/contact or in the documentation included with your product.
Introduction
Easy-to-configure Single-rail Architecture & Semi-Modular Cable Set
The single +12V rail simplifies your setup and gives you maximum compatibility in dual- and triple-graphics cards configurations. Combined with the semi-modular design, this makes building or upgrading your PC fast and easy, using only the cables you need.
Certified 80PLUS Silver Efficiency & Low-noise Thermally Controlled Fan
With up to 88% energy-efficiency, Corsair Professional Series power supply produces less waste heat and noise, and can even help reduces your energy. The thermally-controlled double ball-bearing fan runs at minimum speed at low loads, so your PC runs quieter.
Corsair Engineering, Corsair Quality and Backed by a 7-year Warranty
Built using only high quality Japanese capacitors, a custom-designed PCB, and premium, industrial-grade components, Corsair Professional Series power supply delivers clean, stable power with very low electrical ripple and noise, ensuring high reliability and a long operating life.
Corsair Advantages
Your Corsair Professional Series power supply is packed with the latest technology and features:
It supports the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
- An ultra-quiet 140mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
- Up to 88% energy efficiency at real world load conditions means less heat generation and lower energy bills.
0.99 Active Power Factor Correction provides clean and reliable power.
Universal AC input from 90-264V. No more hassle of flipping that tiny red switch to select the voltage input!
- A dedicated single +12V rail offers maximum compatibility with the latest components.
- Over-current, over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
- High-quality Japanese capacitors provide uncompromised performance and reliability.
- Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis.
- A seven year warranty and lifetime access to Corsair's legendary technical support and customer service.
Power Supply Specifications
Dimensions: 150mm (W) × 86mm (H) × 180mm (L)
MTBF: 100,000 hours
| Model | CMPSU-750HX | CMPSU-850HX | CMPSU-1050HX | |||
| AC Input Rating | ||||||
| AC Input | 100-240V | 100-240V | 100-240V | |||
| Input Current | 10A | 12A | 13-6.5A | |||
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||
| DC Output Rating | DC Output Rating | DC Output Rating | ||||
| Max Load | Max Output | Max Load | Max Output | Max Load | Max Output | |
| +3.3V | 25A | 150W | 25A | 150W | 30A | 180W |
| +5V | 25A | 25A | 30A | |||
| +12V | 62A | 744W | 70A | 840W | 87.5A | 1050W |
| -12V | 0.8A | 9.6W | 0.8A | 9.6W | 0.8A | 9.6W |
| +5Vsb | 3A | 15W | 3A | 15W | 3.5A | 17.5W |
| Total Power | 750W | 850W | 1050W | |||
Package Contents
- Corsair Professional Series power supply unit
Modular cable set - User Manual
AC power cord
Cable ties
Mounting screws - Corsair case badge
- Carrying bag
Corsair Cable Configuration
| CMPSU-750HX | |||
| Qty | Length | Number of connectors per cable | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 4 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 2 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-850HX | |||
| Qty | Length | Number of connectors per cable | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-1050HX | |||
| Qty | Length | Number of connectors per cable | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 2 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
Notes:
- The ATX power connector has a detachable four-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
- The EPS12V power connector has a detachable four-pin mechanism in order to support either an eight-pin socket or a four-pin "P4/12V" socket on the motherboard.
Installation
Before proceeding with installation, please read this manual in its entirety.
Step A: Removing your existing power supply
If you are building a new system, skip to Step B.
- Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
- Disconnect all the power cables from your video card, motherboard and all other peripherals.
- Follow the directions in your chassis manual and uninstall your existing power supply.
- Proceed to Step B.
Step B: Installing the Corsair Professional Series power supply
- Make sure the power supply's AC power cable is not connected.
- Follow the directions in your chassis manual and install the power supply with the screws provided.
- The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
a. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
b. If your motherboard has a 20-pin socket, you must detach the four-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the four-pin connector.
- Connect the eight-pin +12V (EPS12V) cable to the motherboard.
a. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
b. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.
Warning: The detachable four-pin from the 24-pin main connector is not a "P4" or "+12V" connector. Serious damage can be caused if you use it in place of a "P4" or "+12V" connector.
5. Connect the peripheral cables, PCI-Express cables, and SATA cables.
a. Connect the peripherals cables to your hard drive and CD-ROM/DVD-ROM power sockets.
b. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
c. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required
d. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
e. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.
- Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").
Congratulations! You have completed installation of your new Corsair Professional Series power supply and your system is ready to go!
Important Safety Information CAUTION ELECTRIC SHOCK HAZARD!
- Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
- High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
- This product is designed for indoor use only.
- Do not use the power supply near water, or in high temperature or high humidity environments.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
- Do not insert any objects into the open ventilation or fan grill area of the power supply.
- Do not modify the cables and/or connectors included with this power supply.
- If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
- The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
- Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.
Safety and Agency Approvals
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B EN61000-3-2:2006 Class A EN61000-3-3:1995 + A1:2001 + A2:2005 EN55024:1998 + A1:2001 + A2:2003 IEC61000-4-2:1995 + A1:1998 + A2:2000 IEC61000-4-3:2006 IEC61000-4-4:2004 IEC61000-4-5:2005 IEC61000-4-6:2003 + A1:2004 + A2:2006 IEC61000-4-8:1993 + A1:2000 IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC, Restriction of Hazardous Substances Directive
WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive
ROHS China Order No.39, Administration on the Control of Pollution Caused By
(China) Electronic Information Products
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B
EN61000-3-2:2006 Class A
EN61000-3-3: 1995 + A1:2001 + A2:2005
EN55024:1998 + A1:2001 + A2:2003
IEC61000-4-2:1995 + A1:1998 + A2:2000
IEC61000-4-3:2006
IEC61000-4-4:2004
IEC61000-4-5:2005
IEC61000-4-6:2003 + A1:2004 + A2:2006
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC, Restriction of Hazardous Substances Directive (Directive européenne limitant l'utilisation de substances dangereuses)
WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive (Directive européenne)
EcnBb co6npaTe HOByo cnCTeMy, nepeiDnte K shary B.
- OToeHnHTe shypr nHTaHnI nepeMeHHoro TOKa oT hAcTeHHo 3JeKtpnuecko pOzETKn nnN IbP, a TaKxE oT mHeoUeGcR 6NoKa PnTaHnI.
- OToeHnHTe Bc Ka6eJI, NIOBODaIe NITaHne K BUNeOKeApTe, MaTePNHcko INaTe n npOUM nepuΦepuNbIM yCTpoCTBaM.
- Cnényra yka3aHnM pyKOBoDCTBa nO ekCnIyatauN cNCTeMHOro 6Ioka, DEMOHtUpyTe 6JOK nITaHnI.
- IpeeJnte K 7aury b.
Uar 5. Uctanobka 6Ioka nITaHnI cepu Corsair Professional Series
- Y6eIntecb, yTo Ka6eJIb nepemehnHO rToKa 6NoKA nITaHnHe NoDKlIOUeH.
- Cnéýra yka3aHnM pykoBODCTBa no 3KcπIyatauIN CNTeMHOrO 6IOKa, yctahOBInTe 6IOK nITaHnI 3aKpeNITe pnpIoKeHHbIM BnHTAMn,
- ПдклочиTe 24-KoHTaKThbI 6LoKy nTuTahnI K MaTePunHcKoi PnIate. OChOBHOJ 24-KoHTaKThbI Ka6eJIb nTuTahNIO OCHAseH CbeMHbIM 4-KOHTaKTHbIM MExaHn3MOM, 6laorOapra YEmy o6ecneuBaetcO BmecCTMmOCTb KaK c 24-KoHTaKTHbIM, TaK n C 20-KoHTaKTHbIMn pa3BeMaAMn Ha MaTePunHcKIN X PnIatax.
a. EcIn Ha MaTePNHcKo PnIaTe UMeeTcR 24-KoHTaKTThbI pa3beM, K HeM MoXHo HApPMyIO NOkJIooHTb 24-KoHTaKTThbI OCHOBHO Ka6JIb PntAHnO T 6JOKa NITAHn.
b. EcnMATEpHNCkA PJIaTcOCHaIeHa 20-KoHTaKTHbIM pa3beMOM, CneJyET OTOeDINHTb 4-KoHTaKTHbI Ka6eIb OT 24-KoHTaKTHOro pa3beMa n 3aTeM NOdkJIIOuHTb 20-KoHTaKTHbI Ka6eJIb K MATEpHNCKo INaTe, He NOdKJIIOUaY 4-KOHTaKTHOrO pa3beMa.
- ПОДКЛЮЧИТЕ BOCBMUNKOHTaKTHbI Ka6eJIb LInHn +12B (EPS12V) K MaTePnHcKo ПlaTe.
a. EcIN MaTePNHcKa PnIaT OCHaUeHa 8-KoHTaKTbIM WTeNCEbHbIM pa3beMOM +12B, CneJyET PNOKNIuHTb Ka6eJIb C8-KoHTaKTbIM pa3beMOM HeNoCpeDCTBeHHO K MaTePNHcKOI PnIaTe.
b. EcIN MaTePHNCKaI PaTaOcHaSeHa 4-KoHTaKTThbIM pa3beMOM, cNeIyET OTCoeDInHtB 4-KoHTaKTThbI Ka6eIb OT 8-KoHTaKTHorO pa3BeMa I 3aTe MIOKJIIOUHTb 4-KoHTaKTThbI Ka6eIb HEnOCpeICTBeHHO K MaTePHNCKo I Pnate.
IpeynpexdHe. CbemHbI 4-KoHTaKTHbI pa3bEm Ka6eJIc 24-KoHTaKTHbIM OCHOBHbIM pa3bEMOM He IaBJIeTcra pa3bEMOM TnIa "P4" nII "+12B". Ero nCnoJIb3OBAHne BmecTo pa3bema TnIa "P4" nII "+12B" MoKeT bI3BaTbcEpe3HbIe HenOnaJKn.
- Поdkлочи Кабелдя перпфериньх устюстВ, КабелPCI-Expressи SATA.
a. Поdkлочп Кабел Дд перифериньх устpoистК раьемam петаняжесTKOROДИССАИ CD-ROM/DVD-ROM.
b. Поdkлочи-te ka6elen SATA K pa3bemam nHTaHna BaWero SATA SSD nI INJXECTKOro DnCKa.
c. Пин Heo6xOIMOCnI NOkKIOUHTe COOTBETCTBYUHne Ka6JIIN PCI-Express K pa3bemy NITaHnHa BIVdeOKapTe PCI-Express.
PROFESSIONAL SERIES
d. Пожклочи Кабелп петаши пошних устюг CB Лобим пошши Ньим устюг CB Маленьим 4-KOTaKTHbIM pa3beMOM.
e. 86eHITcB TOM, qTO BCE Ka6eI NIOKJIIOUeHb IaJExHo. He 3a6yIbTe coXpaHITb BCE HEnCNoIb3OBAHbIe MoJyIbHbIe Ka6eI Na 6dyuJe, OHN pInrOJaTcPnI NOkJIIOUeHIM DOnONHHTeNbHbIX KOMIOHOHTOB.
(KHP) 3NEKTPOHHO-HHΦOPMaUHOBHbIMN pOdyKTAMN
| CMPSU-750HX | |||
| 数量 | 长度 | 连接器/线缆 | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 4 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 2 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-850HX | |||
| 数量 | 长度 | 连接器/线缆 | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 1 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
| CMPSU-1050HX | |||
| 数量 | 长度 | 连接器/线缆 | |
| 1 | 610mm ± 25mm | 1 | ATX Cable (24-PIN) |
| 2 | 650mm ± 25mm | 1 | EPS12V CPU Cable (8-PIN) |
| 6 | 600mm ± 25mm | 1 | PCI-E Cable |
| 3 | 850mm ± 25mm | 4 | SATA CABLE |
| 3 | 750mm ± 25mm | 4 | Peripheral Cable |
| 2 | 101mm ± 5mm | 1 | Floppy Adapter |
注意：
- ATX电源接口中可分离的4-pin接口于主板24-pin或20-pin电源插槽
- EPS12V 电源接口中可分离的4-pin接口于主板8-pin socket 或4-pin “P4/12V”插槽
安装
在继续安装电源前，请先通读本手册
步骤A：更换现有电源
如果您组建全新系统，请转至步骤B.
Safety and Agency Approvals
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B
EN61000-3-2:2006 Class A
EN61000-3-3: 1995 + A1:2001 + A2:2005
EN55024:1998 + A1:2001 + A2:2003
IEC61000-4-2:1995 + A1:1998 + A2:2000
IEC61000-4-3:2006
IEC61000-4-4:2004
IEC61000-4-5:2005
IEC61000-4-6:2003 + A1:2004 + A2:2006
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC, Restriction of Hazardous Substances Directive
WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive
ROHS China Order No.39, Administration on the Control of Pollution Caused By
(China) Electronic Information Products
- 15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.15.
80PLUS SILVER認證to取得的高功率電源，温度制御了静音Fran
FCC FCC Rules Part 15, Class B
ICES ICES-003
CE EN 55022:2006 + A1:2007, Class B
EN61000-3-2:2006 Class A
EN61000-3-3: 1995 + A1:2001 + A2:2005
EN55024:1998 + A1:2001 + A2:2003
IEC61000-4-2:1995 + A1:1998 + A2:2000
IEC61000-4-3:2006
IEC61000-4-4:2004
IEC61000-4-5:2005
IEC61000-4-6:2003 + A1:2004 + A2:2006
IEC61000-4-8:1993 + A1:2000
IEC61000-4-11:2004
UL/CUL UL60950-1
CSA C22.2 NO.60950-1
C-TICK AS/NZS CISPR 22:2006,CLASS B
TUV EN 60950-1
CB IEC 60950-1
CCC GB4943
GB9254
GB17625.1
BSMI CNS14336
CNS13438
GOST R IEC 60950-1-2005
R 51318.22-99
R 51318.24-99
R 51317.3.2-2006
R 51317.3.3-99
ROHS 2002/95/EC,特定有害物質除去に閲る指令
EMAIL: support@corsair.com
FACEBOOK: facebook.com/corsair
BLOG: blog.corsair.com
FORUM: forum.corsair.com
TWITTER: twitter.com/corsairmemory
AUDIO PAGE: corsair.com/audio
USA and CANADA: (800) 205-7657
INTERNATIONAL: (510) 657-8747
FAX: (510) 657-8748
CORSAIR
46221 Landing Parkway • Fremont • California • 94538 • USA
© 2011 Corsair Memory, Inc. All rights reserved. Corsair and the sails logo are registered trademarks and Professional Series is a trademark in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured. Document Number: 49-000012 rev AB
