USER MANUAL CX600M 80PLUS BRONZE CORSAIR

B U I L D E R S E R I E S

CX430V2

CX500V2

CX600V2

CXV2 POWER SUPPLY

MANUAL · MANUEL · MANUALE · MANUELLE

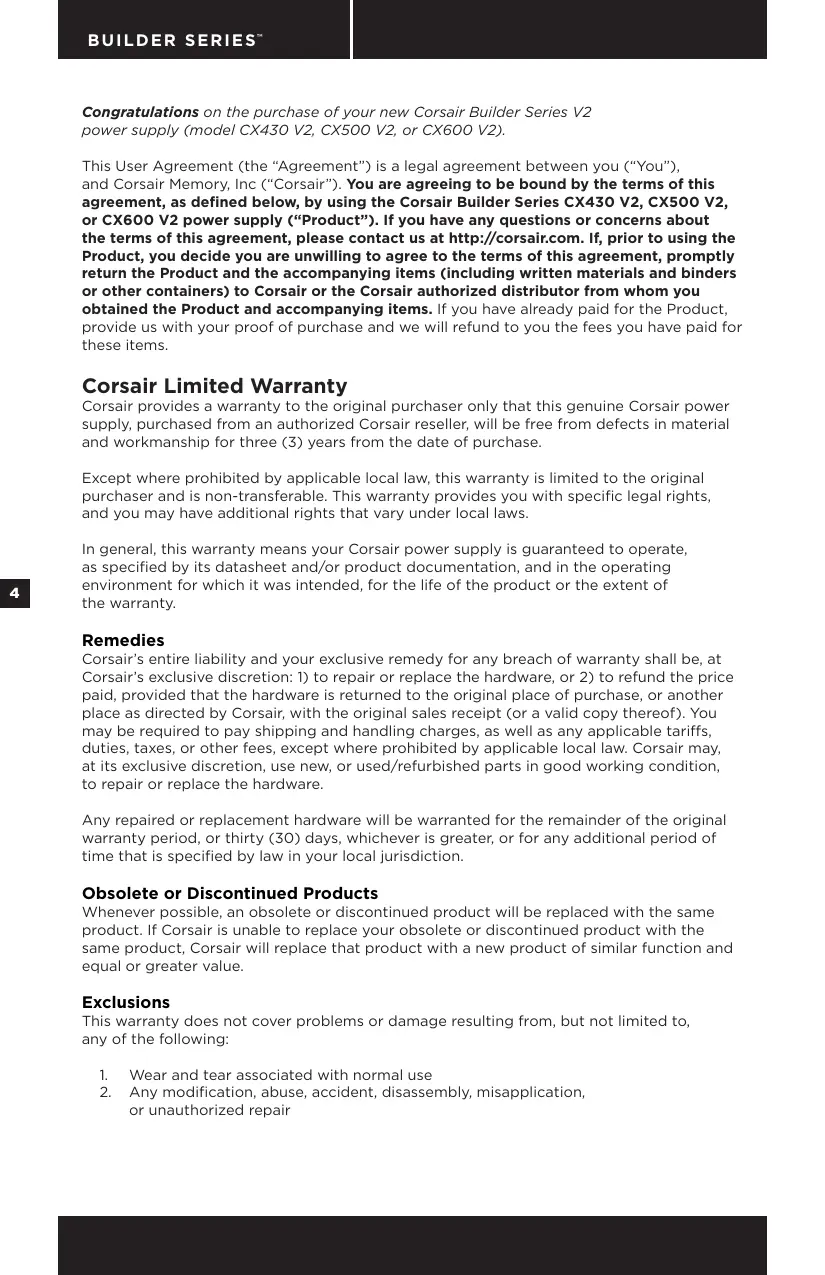

Congratulations on the purchase of your new Corsair Builder Series V2 power supply (model CX430 V2, CX500 V2, or CX600 V2).

This User Agreement (the "Agreement") is a legal agreement between you ("You"), and Corsair Memory, Inc ("Corsair"). You are agreeing to be bound by the terms of this agreement, as defined below, by using the Corsair Builder Series CX430 V2, CX500 V2, or CX600 V2 power supply ("Product"). If you have any questions or concerns about the terms of this agreement, please contact us at http://corsair.com. If, prior to using the Product, you decide you are unwilling to agree to the terms of this agreement, promptly return the Product and the accompanying items (including written materials and binders or other containers) to Corsair or the Corsair authorized distributor from whom you obtained the Product and accompanying items. If you have already paid for the Product, provide us with your proof of purchase and we will refund to you the fees you have paid for these items.

Corsair Limited Warranty

Corsair provides a warranty to the original purchaser only that this genuine Corsair power supply, purchased from an authorized Corsair reseller, will be free from defects in material and workmanship for three (3) years from the date of purchase.

Except where prohibited by applicable local law, this warranty is limited to the original purchaser and is non-transferable. This warranty provides you with specific legal rights, and you may have additional rights that vary under local laws.

In general, this warranty means your Corsair power supply is guaranteed to operate, as specified by its datasheet and/or product documentation, and in the operating environment for which it was intended, for the life of the product or the extent of the warranty.

Remedies

Corsair's entire liability and your exclusive remedy for any breach of warranty shall be, at Corsair's exclusive discretion: 1) to repair or replace the hardware, or 2) to refund the price paid, provided that the hardware is returned to the original place of purchase, or another place as directed by Corsair, with the original sales receipt (or a valid copy thereof). You may be required to pay shipping and handling charges, as well as any applicable tariffs, duties, or other fees, except where prohibited by applicable local law. Corsair may, at its exclusive discretion, use new, or used/refurbished parts in good working condition, to repair or replace the hardware.

Any repaired or replacement hardware will be warranted for the remainder of the original warranty period, or thirty (30) days, whichever is greater, or for any additional period of time that is specified by law in your local jurisdiction.

Obsolete or Discontinued Products

Whenever possible, an obsolete or discontinued product will be replaced with the same product. If Corsair is unable to replace your obsolete or discontinued product with the same product, Corsair will replace that product with a new product of similar function and equal or greater value.

Exclusions

This warranty does not cover problems or damage resulting from, but not limited to, any of the following:

1. Wear and tear associated with normal use

2. Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair

3. Removal of any manufacturer label(s) or sticker(s)

4. Any improper operation, including any use not in accordance with any supplied product instructions
5. Connection to any improper voltage supply
6. Use of consumables, such as replacement batteries, not supplied by Corsair, except where such restriction is prohibited by applicable local law.
7. Any other cause which does not relate to a product defect in materials or workmanship

Also excluded from this warranty are counterfeit products; that is, products that Corsair, at its sole discretion, determines were not manufactured by Corsair or any of its authorized manufacturing partners.

Limitation of Liability

CORSAIR SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE, OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF CORSAIR HAS BEEN ADVISED PREVIOUSLY OF THE POSSIBILITY OF SUCH DAMAGES. Some local laws do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so this limitation or exclusion may not apply in your jurisdiction.

Duration of Implied Warranties

EXCEPT AS PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some local laws do not allow limitations on how long an implied warranty may last, so this limitation may not apply in your jurisdiction.

National Statutory Rights

Consumers may have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.

No Other Warranties

No Corsair employee, dealer, or other agent is authorized to make any modification, extension, or addition to this warranty.

How to Make a Warranty Claim

Before submitting a warranty claim, we suggest you contact our technical support group or visit corsair.com and review the support section for technical assistance. A simple fix for your problem may be found there.

Generally, valid warranty claims should be processed through your original point of purchase during the first thirty (30) days after purchase. This period may vary depending on where you purchased your product; please verify the return policy with the retailer where you purchased your product. Any warranty claims that cannot be processed through your original point of purchase should be addressed directly to Corsair. Our customer service contact information can be found on the web at corsair.com/contact or in the documentation included with your product.

Introduction

Ideal for Home and Office Use

The Corsair Builder Series of PSUs are designed for worry-free compatibility for your home desktop PC system build or upgrade. With features usually reserved for premium power supplies, it's a great choice for systems where continuous and reliable power delivery and low noise are essential.

Corsair Advantages

Your Corsair Builder Series power supply is packed with the latest technology and features:

It supports the latest ATX12V 2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
- An ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
- 80%+ energy efficiency at 20% , 50% and 100% load conditions means less heat generation and lower energy bills.
0.99 Active Power Factor Correction provides clean and reliable power.
Universal AC input from 90-264V. No more hassle of flipping that tiny red switch to select the voltage input!
- A dedicated single +12V rail offers maximum compatibility with the latest components.
Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
- Extra long fully-sleeved cables support full tower chassis. A three year warranty and lifetime access to Corsair's legendary technical support and customer service.

Power Supply Specifications

Dimensions: 150mm (W) x 86mm (H) x 140mm (L)
MTBF: 100,000 hours

MODEL	CX430 V2		CX500 V2		CX600 V2
	AC Input Rating
AC Input	90-264V
Input Current	6-3A		8-4A		10-5A
Frequency	47Hz-63Hz
	DC Output Rating
	Max Load	Max Output	Max Load	Max Output	Max Load	Max Output
+3.3V	20A	120W	25A	130W	25A	150W
+5V	20A		20A		25A
+12V	28A	336W	34A	408W	40A	480W
-12V	0.8A	9.6W	0.8A	9.6W	0.8A	9.6W
+5Vsb	3A	15W	3A	15W	3A	15W
Total Power	430W		500W		600W

Package Contents

• Corsair Builder Series power supply unit
  AC power cord
  Cable ties
  Mounting screws

Corsair Cable Configuration

MODEL		CX430 V2	CX500 V2		CX600 V2
ATX Cable (24-pin)	Qty.	1	1		1
	Connectors per Cable	1	1		1
	Length	600mm	600mm		600mm
EPS12V CPU Cable (8-pin)	Qty.	1	1		1
	Connectors per Cable	1	1		1
	Length	600mm	600mm		600mm
PCI-E Cable	Qty.	1	2		2
	Connectors per Cable	1	1		1
	Length	600mm	600mm		600mm
SATA Cable	Qty.	2	1	1	2
	Connectors per Cable	2	2	3	3
	Length	550mm	550mm	700mm	550mm
Peripheral Cable	Qty.	1	1		1
	Connectors per Cable	4	5		5
	Length	850mm	1050mm		1050mm

Notes:

• Floppy connectors are attached to the end of the peripheral cable.
• The ATX power connector has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
• The EPS12V power connector has a detachable 4-pin mechanism in order to support either an 8-pin socket or a 4-pin "P4/12V" socket on the motherboard.

Installation

Before proceeding with installation, please read this manual in its entirety.

Step A: Removing your existing power supply

If you are building a new system, skip to Step B.

1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing power supply.
4. Proceed to Step B.

Step B: Installing the Corsair Builder Series power supply

1. Make sure the power supply's AC power cable is not connected.
2. Follow the directions in your chassis manual and install the power supply with the screws provided.
3. Connect the main 24-pin power cable. The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.

a. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
b. If your motherboard has a 20-pin socket, you must detach the 4-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the 4-pin connector.

1. Connect the 8-pin +12V (EPS12V) cable.

a. If your motherboard has an 8-pin +12V socket, connect the 8-pin cable directly to your motherboard.
b. If your motherboard has a 4-pin socket, detach the 4-pin from the 8-pin cable, and then plug this 4-pin cable directly to your motherboard.

WARNING: The detachable 4-pin from the 24-pin main connector is not a "P4" or "+" connector. Serious damage can be caused if you use it in place of a "P4" or "+" connector.

1. Connect the peripheral cables, PCI-Express cables, and SATA cables.

a. Connect the peripheral cables to your hard drive and CD-ROM/DVD-ROM power sockets.
b. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
c. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
d. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
e. Make sure all the cables are tightly connected.

1. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").

Congratulations! You have completed installation of your new Corsair Builder Series power supply and your system is ready to go!

Important Safety Information CAUTION ELECTRIC SHOCK HAZARD!

1. Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
2. High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
3. This product is designed for indoor use only.
4. Do not use the power supply near water, or in high temperature or high humidity environments.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
6. Do not insert any objects into the open ventilation or fan grill area of the power supply.
7. Do not modify the cables and/or connectors included with this power supply.
8. If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
9. The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
10. Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.

Safety and Agency Approvals

FCC	FCC Rules Part 15, Class B
ICES	ICES-003
CE	EN 55022:2006 + A1:2007, Class BEN61000-3-2:2006 Class DEN61000-3-3:1995 + A1:2001 + A2:2005EN55024:1998 + A1:2001 + A2:2003IEC61000-4-2:1995 + A1:1998 + A2:2000IEC61000-4-3:2006IEC61000-4-4:2004IEC61000-4-5:2005IEC61000-4-6:2003 + A1:2004 + A2:2006IEC61000-4-8:1993 + A1:2000IEC61000-4-11:2004
UL / CUL	UL 60950-1
CSA	C22.2 NO. 60950-1
C-TICK	AS/NZS CISPR 22:2006, CLASS B
TUV	EN 60950-1
CB	IEC 60950-1
CCC	GB4943GB9254GB17625.1
BSMI	CNS14336CNS13438
GOST	R IEC 60950-1-2005R 51318.22-99R 51318.24-99R 51317.3.2-2006R 51317.3.3-99
ROHS	2002/95/EC, Restriction of Hazardous Substances, Class B, Section 101
WEEE	2002/96/EC, Waste Electrical and Electronic Waste, Class B, Section 101
ROHS	China Order No.39, Administration on the Market, Cause By Electronic Information Products, Section 101
(China)

ROHS 2002/95/EC, Restriction of Hazardous Substances Directive

2002/96/EC, Waste Electrical and Electronic Equipment Directive

ROHS China Order No. 39, ,Administration on the Control of Pollution

CpeICTBaOpuIuYeCKo3aunTbI

O6uIoum o6bEm OTBETCTBEHNOCTKOMMaHnN Corsair n BAue NCKLIIOHTeBHOe CpeCTBO kUdIyuecko 3aunTbI B CNYaHae HAPUeHnna RapaHTn COCTABJAE, NO yCMOTPEHnIO KOMNaHn Corsair, cIeJeIoUee: 1) pemOH nI IaMeHa aannapatHoro OBeCneueHn IIN 2) Bo3BpAT bIIpaHHeNcNeBt, npu YCNOBn B03BPATA anpanpatHoro OBeCneueHn BOUPrNtBHO MeCTo nOKyInk, nI IN dpyroE MeCto, yka3aHnHO KOMMaHnei Corsair, c OPrrnHaJIbHbIM TOBaPbHM YekOM (IIN erO deIeCTBNTeBHOH KOIne).OT BAC MOKeT notpe6oBaTcB ONnA TcONMOCTN DOCTaBKn nO6Ba6OTKn, a TAKke liIObEx pinnmuEnMbIX TaNPoB, nooiHN, hAnorOB nI IN dpyrnx Bblnlat, 3a NCKLIIOHcHEM Cnyaeb, KOrDa 3TO 3aPpeSeHO MeCTHBm 3aKOHOdaTeBCTBOM. KomNaHn Corsair MOKeT IO CBOemy NCKLIIOHTeBHOmy UCMOTpeHnIO NCIOJIb3OBAbTB HOBbe IIN NCIOJIb3OBAhBHe/ BOCCTaHOBLeHbte Detanl B XopoWem pa6OeHm CoCToAHn DJIra pEOHTa IIN 3aMeHbI annapathaHoro o6ecneueHn.

Ha OtpemontpoBaHHOe mIz 3aMeHeHHOe aInpaTHoe o6ecneHHe npeoctablaetcra paoTnHa oCTaBnCmocTo cKpO npHnA hBHo rapaHTHO rapHnHO repNOda mIHa cPOK 30 (TpNduTaB) dNeH, 3aBACMOCTo OT TOR, YTO 6oNbIse, IHI NaIObO donoJHNTbHbI nepNoD BpemeHN, ONpeJeHHb 3aKOHOaTeBCTOM BaSeH MeCTHOJ IOPICSNKUIN.

YctapeBwne nn ChraTbIe c npOn3BoDCTBa npOdyKtbl

EcnI 3TO BO3MOJHXO, yCTapeBWHne IINI CHTbIe C pONU3BOIDCTBa pNOyKTbI 6yDyt 3aMeHeHbI pNOyKTAMI TOI JVE MOJELN. EcnI KOMPnAHnI Corsair He MOxET 3aMeHITb Bau yCTapeBWHn IINI CHTbIM C pONU3BOIDCTBa pNOyKT dpyrIM m pNOyKTOM ToI JVE MOJELN, OHa 3aMeHIT 3OT pNOyKT HOBtIM pNOyKTOM CO xOxDHBIMI fHyHKUHOHaNbHbIMI BO3MOXHOCTAMN n paBHOn IINI 60Jee BBICOKO CTOnMOCTbIO.

MckloueHna

Hactoia rapaHTna He pacnpoCTpaHReTcHa npObIeMbI nII NOBpeJdeHn, Bo3NkaIOuNe, B uactHOCTn, NO cJeDyUoiM npuHnHAM:

1. n3HOC BCJeCTBnE HopMaJIbHOJ 3KcIpyaTuN;
2. IIO6oe N3MeHeHne, HApUeHne NcIPOb3OBAHnA, abApN, pa36OpKa, He npBaUNbHOe IOKJIIOUeHne INI peMOHT HeyIPOHOMOeHHbIMN JINiAmM;
   3.ydaJIeHHe MapKnpOBKn HnHaKJIeEe N3rTOBNTeJIa;
3. liobble clyuahn HnpabunbHOn 3KcPnyaTaun, BKJIOua nCNoIb3OBaHne C hapyuhenem npinloXeHHbIX K pOdykTy INHCTpykUn;
4. NOdkIIOUeHHe N KIOCTOUYHKy TOKa C HecOOBTBeTCTByIOUIM HAnpRJaKeHMe;
5. Исторыней расховдьх матерпалов, Наширем сменыб 6атураек, He посторыней сkomпаней Сorsair, за лкlioюевим сfluуав, korда ТAKOE орразнueleпизларпс Ho MeCTHbIM 3aKOHODaTeJIbCTBOM;
6. liobbIe npyIe cIyau, KOtOpBIE He CBa3aHbI C haJIuNcIeΦeKToB B MaTePnIaX IINI pON3BODCTBe npOdykTa.

Kpome TOrO, daHnHa rapaHTnHe paCnpocTpaHneTcHa KOHTpaKaTKhIe IpOpyKtbl,TO eCTb Ha npOdyKtbl, KOTpbIe KOMnHaHna Corsair nCBOemy co6CTBeHHOMy yCMOTpeHIO ONpeJeAET KaK He n3rOToBLeHHBe Corsair nn IIO6bIM 3 ee abTOpN3OBaHHbIX NapTHePOB NO pON3BOCTBy.

OrpaHnueHne OTBeTCTBehHOCTN

KOMNAHRA CORSAIR HE HECET OTBETCTBEHHOCTN 3A CNEUANbHbIE, CUYAHbIE, KOCBEHNBIE IJIN NOCLEYIOUIE YbIbTKIJIIO5OToPODA,B TOM YICNE BKIOUAY UTPATY INbblIIN DOXIA IINI DAHNbIX (BbIb TO IPRMYIOI KOCBEHHU) IJIN KOMMEPCKEKN YbIbTKI, Bbl3BAHHbHE HAPUJEHEMI JIOBOI RBOH IINI IOPA3UMEBAEMOI IAPAHTMN HA BAII PNOyKT, IAXE ECNI KOMNAHRA CORSAIR BbILA 3APAHEE PDEUNPEKDEHA O BO3MOXHOCTN TAKNX YbIbTKOB. HeKOTOpbIMn

MeCTbIMn 3aKoHOaTeBbAMn He OJrOyCKaTcN IckIIOueHMe IIN OPGaHueHne CNEuAIBbIX, KOCBeHHbX, cIyuaHbIX NIOPOLeNyUOxN y6bITKOB, PO3OMy DAHHe ORpaHueHne IIN NCKIOueHne MOKet 6bTb HENPIMeHbIMN B VAuei JOpCIMKnI.

Cpok deiCTBnnoDpa3yMaebbIX rapaTni

3A NCKIIOUOHEHEM CNYAEB, KOGDA 3TO 3ANPEUHEO PPIMEHIMbIM
3AKOHODATENBCTBOM, JIOBIE IIOPA3YMEBAEMBIE TAPAHTNI UIN YCNOBIA
TOBAPHORO COCTOHN INI INPINOHOCTN DIKOHKPETHO NOIPOJB3OBAHNA
DAHHTO ANIAPATHOIOPOJDKTA OPRAMHMBAOTCR B TEECHNE CPOKA DEJECTBNA
IPIMEHMOI ORPAHNUEHHO IAPAHTNI HA BAII PIOJKT. HeKOTOpBMIM MecTHbIMN

3aKHOATEbCTBAMn HE IONYCKaTcI ORpaHnueHeN pIOJOLNXITbHOCHT cPoKa DeIcTBnI NOpaZymBaemO rapaHTm, NpOTOMy DaHnOE oPraHnueHne MOKeT 6bITb HENpIMeHMo B VaSeI JUPOcDIMuN.

Ppaba no HaunohalbHomy 3aKoHodaTeNbCTBy

Iotppe6nteMnMOrT mMeT bOpnduueckne npaba NpnpmeHmOMy HaaioHaNbHOMy 3aKoHoaTeBCTBy, pernynpuyouemmy npdoaxy nTope6ntbcknx Tobapob. Hactoiaa OrganuueHHa rapaHTn He 3atparnaBaet TaKne npaba.

OTka3 OT dpyrnx rapaHTn

Hn Ondn n3 cOTpydNkOB, dIJIePob NnI dpyrNX aERHTOB KOMpaHnn Corsair He IMeET nonHomOChy BHOcITb n3MeHeHn, paCUnpeHn nn DoabNeHn B Hactoayu rapaHTIO.

Otnpabka Tpe6oBaHn no rapaHTm

Ipepe OTnpabKoTpe6oBaHnNo rapaHTmMb peKOMeHdyem Bam CBra3aTbcS C haWe cnyk60B texHnuecko NpOdepKKn IIN NoCetNTb Be6-caITcorsair.com IN3yUHTb MaTePnaJIbIo TExHnuecko npOdepKKe. Bo3MOxHNO, 3TO NOMoXET Bam hAItn pnoCToe peSeHne BO3HNKJeu npo6JIeMbl.

Kak npabuHIO, Tpe6obAHnI NO rapaHTmN DoJxHbI 6bIb O6pa6oTaHbI MecTOM opunHaNbHO npOdaJnx npOduyKaT B TeueHne nepBbIX 30 (TpuiDauT) dHe c MOMeTA pnpO6pTeHn.

IpoJOnKInTeJIbHocTb 3TOrO nepiNoa MoKeT I3MeHrTaBc B 3aBcNcMOnCTn O MeCTa npNo6peTeHHa npOyKTa.Y3HaHTe Y npOdaBaC npAbaN bO3BaPATA npOdyKTa. Bce Tpe6oBaHAn no rapaHtNi, KOTOpBle He mOryt 6bItb o6paOtaHb B MeCTe opUInHaNbHo N pOdoXn, DOnJXbHb 6bItb nepeDaHb HeNoCePctBeHHo KOMNaHm Corsair. KOHTAKTHyIOHΦOpMaUHn Hsaei cnyk6bI npOdeRjkx MOxHO Na HBe-6-caTe corsair.com/contact nIN B DOkUMeHtAUH N BaWemy npOdyKTy.

BVeJeHne

IdeaneHdIuNCnOJb3OBaHnI DomuHa pa6ote

Пи разрабове блкови патаня сери Corsair Builder ocoboe bHMaHne ydЯлocьnx COBMeCTMOCNT npi co3dAnHи nIIMоDEpHn3aunH NaCtoNbHbIX PK. O6naJaX xaPakTePrcntKamn, 06bIHyO CBOICTBeHNbIMn NIIb6JOKAM npemnaJIbHO rKnacca, OHI RAJIYOTcR ndeAJIbHbIM Bbl6OpOM ДЯСNTeM, Гд Вaxны HeNPpepbIBHoe И nadeJxHoe 3eKtpOnITaNHeи nH3Kk ypoBeHbUyMa.

PpenmyeCTBa 6JOKOB nHTaHna Corsair

BLOK ПИТАнЯ Corsair cepin Builder co3dAn ha ochobe HOBeIshux TexHOLorn I o6laaet cambIMN COBepWeHHbIMx xapaKTePncTnKaMn.

Подэржka НовшeroстадраТ ATS12V 2.3иобразная COBMECTIMOCt b Cсntemamn ATS12V 2.2и ATS12V 2.01.
- Празнтугески Себшунь 120mм Вettingларето с руглиурем ксорoctьврашиени NB.MH.ВЗавсимостOTТeпмератypы,обсеньчыюи OTЛУньшовп рпснклочиьно ИИЗКOMурбЕшУMa.
3Hepeo3phiekTmbocb 60nee 80% npi pa6ote c 20%, 50% n 100% harpy3ko, Mehbwn HapeB o6OpyObaHn, Mehbwn 3aTaPbHa onnAty 3neKtpo3eprn.
- Aktubhaj Koppekuzia kaKtopa moUHcTn (APFC) c K03ΦmIeHTom O.99, 06ecneuBaIOJaa CTa6MbHyIO nHaJeKHyIO pOauy NITAHIN.
- YnHbepcaIbHa nOdEpeKka BxOndHO nHaPjaKeHn: 90-264B. BoJIbe HnKaKnx KpaChbIX nepeKlIoUaTeNe!
BbIeHnHa eHnHa HnHa nHTaHn+12B dJa MaKcImaJIbHOJ COBMeCTmOCTN C HOBeIshMN KOMNoHEHTAMN.
MakImaHnA 3a6InbHocTb 3HePrcOHa6KHeHn KpTtueckn BaxKbIX CNTeMHbIX KOMNoHETOB, 3aUHTa OT pReBbIeHn HaprrKeHn IIN MOuHcToN, NOHNKeHn HAprrKeHn IN KOPOTKO r3AmbKaHn.
CbepxdHnHbIe Ka6eJI nIa IcNoIb3OBAHnC IOnHopa3MePbIMn KopNycamn full tower.
Tpno ropaHTn n IocTy n K yCnyram OTnUHO 3apeKoMeHDoBaIwe Ce6b cnJy6b TeHNueckoN noDpejXKn n NocJe npOdaJxHorO oClyJxNbHaNn KOMNaHn Corsair.

TexHnueckne xapaKTepeNtuk6Ioka nHTaHna

Pa3Mepbl: 150mm (L) x 86mm (B) x 140mm (F)
CpeDHee Bpem 6e30Ka3HOn pa60Tb1: 100,000 yacOB

MOДЕЛь	СX430 V2		СX500 V2		СX600 V2
	Вховский ток (перем.)
Вховские наразожения (перем.)	90-264В
Вхов. ток	6-3A		8-4A		10-5A
Частota	47Гц-63Гц
	Выховский ток (пост.)
	Мakс. Нагузka	Мakс. мошноctь	Мakс. Нагузka	Мakс. мошноctь	Мakс. Нагузka	Мakс. мошноctь
+3.3B	20A	120Вt	25A	130Вt	25A	150Вt
+5B	20A		20A		25A
+12B	28A	336Вt	34A	408Вt	40A	480Вt
-12B	0.8A	9.6Вt	0.8A	9.6Вt	0.8A	9.6Вt
+5B (畴егваяшина)	3A	15Вt	3A	15Вt	3A	15Вt
Полная мошноctь	430Вt		500Вt		600Вt

KomiJIeKtaUra

Blok nitaHn Corsair cepnn Builder
Ka6eJIb nITaHnI nepemHeHOro ToKa
CTaKKnIpaKa6eNei
MOHTIPOBOUHbIe 60NTbl

KoHnpyaunKa6ene Corsair

WEEE DnpeKtNa 6yTuNn3aunn 3NeKtpnueckoro n 3NeKtpoHnoro 6OpynobHa 2002/96/EC

ROHS Yka3 KHP N°39, YnpabHeHne KOHTpOra 3a 3arpa3HeHnAIM, Bbl3BaHHbIMN

(KHP) 3NeKToPOHHo-IIIΦOpMaUHOHHbIMN npOyKTAMN

Safety and Agency Approvals

FCC FCC规则第15部分，B类

ICES ICES-003

CE EN55022:2006+A1:2007,B类

EN61000-3-2:2006 D类

EN61000-3-3: 1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

FCC FCC Rules Part 15, Class B

ICES ICES-003

CE EN 55022:2006 + A1:2007, Class B

EN61000-3-2:2006 Class D

EN61000-3-3: 1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

CSA C22.2 NO.60950-1

C-TICK AS/NZS CISPR 22:2006,CLASS B

TUV EN 60950-1

CB IEC 60950-1

CCC GB4943

GB9254

GB17625.1

BSMI CNS14336

CNS13438

GOST R IEC 60950-1-2005

R 51318.22-99

R 51318.24-99

R 51317.3.2-2006

R 51317.3.3-99

ROHS 2002/95/EC,特定有害物质除去|閲る指令

WEEE 2002/96/EC, 廢電氣·電子製品|閲る指令

EMAIL: [e-mail]

FACEBOOK: facebook.com/corsair

BLOG: blog.corsair.com

FORUM:forum.corsair.com

TWITTER: twitter.com/corsairmemory

AUDIO PAGE: corsair.com/audio

USA and CANADA: [phone]

INTERNATIONAL: [phone]

FAX: [phone]

CORSAIR

46221 Landing Parkway • Fremont • California • 94538 • USA
