USER MANUAL PJD5233 VIEWSONIC

Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfül interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oceur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by

the party responsible for compliance could void your authority to operate the equipment For Canada + This Class B digital apparatus complies with Canadian ICES-003. C € + Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC Following information is only for EU-member states: The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE) The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal wvaste, but use mem the return and collection systems available. If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this unit near water. Clean with a sofi, dry cloth. Do not block any ventilation openings. Install the unit in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs. Convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the unit. When a cart is used, © use caution when moving the cart/unit combination to avoid injury from tipping over. Unplug this unit when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95 EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Substance Maximum Actual Concentration Concentration Lead (Pb) 01% <0.1% Mercury (Hg) 01% <0.1% Cadmium (Cd) 0.01% <0.01% Hexavalent Chromium (Cr*) <01% Polybrominated biphenyls (PBB) 01% <0.1% Polybrominated diphenyl ethers 1% Loi (PBDE) Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below Examples of exempted components are:

1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other

lamps not specifically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and

electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (ie. lead-based alloys containing 85% by weight

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium

containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight

Copyright Information Copyright ® ViewSonic ® Corporation, 2011. AI rights reserved Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic, the three birds logo, OnView, ViewMaich, and ViewMeter are registered trademarks of ViewSonic Corporation. VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. PS2, VGA and XGA are registered trademarks of International Busines Corporation Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or ns contained herein; nor for incidental or consequential damages resulting from hing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. Product Registration To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may mail or fax 10 ViewSonic. For Your Records Machines Product Name: PJD5133/PJD5233/PJD5523w ViewSonic DLP Projector Model Number: VS14112(PJD5133)/VS14114(PJD5233)/VS13870(PJD5523w) Document Number: PJD5133/PJD5233/PJD5523w_UG_ENG Rev. 1A 03-15-11 Serial Number: Purchase Date: Product disposal at end of product life The lamp in this product contains mercury which can be dangerous to you and the environment. Please use care and dispose of in accordance with local, state or federal laws. ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more USA & Canada: http:/hwww.viewsonic.com/company/green/recycle-program Europe: htip:/www.viewsoniceurope.com/uk/support/recycling-information/ Taiwan: http://recycle.epa.govtw/recycle/index2.aspx

Notes on the AC Power Cord AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. fthe supplied AC Power Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent signal interference due to voltage fluctuations. Ground For Australia and Mainland China For Continental Europe For the UK.

CONTENTS Introduction Projector Features Package Contents . Projector Overview Using the Product . Control Panel . Connection Ports Remote Control . Installing the Batteries Remote Control Operation …. Connection . Connecting a computer or monitor . Connecting Video source devices .. Operation . Powering On/Off the Projector . Adjusting the Projector Heïght … Adjusting the Projector Zoom and Focus . Adjusting Projection Image Size . Locking control keys . Setting the presentation timer .… Menu Operation Maintenance . Cleaning the Lens Cleaning the Projector Housing Replacing the Lamp ….. Specifications . Dimensions... Ceiling mount installation . Appendix LED Indicator Messages . Compatibility Modes Troubleshooting RS-232 Command and Configuration IR Control Code

Introduction Projector Features The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use. The projector offers the following features: SVGA (800 x 600 pixels) XGA (1024 x 768 pixels) WXGA (1280 x 800 pixels) Compatibility with Macintosh® computers Compatibility with NTSC, PAL, SECAM and HDTV D-Sub 15-pin terminal for analog video connectivity User-friendiy, multi-language on-screen display Advanced electronic keystone correction RS-232 connector for serial control Less than 1 W power consumption in standby mode HDMI compatibility () M The information in this manual is subject to change without notices. M The reproduction, transfer or copy of all or any part of this document is not permitted without express writen consent.

Package Contents When you unpack the projector, make sure you have all these components: Projector AC Power Cord Remote Control (IR) & batteries (AAA *2 PCS) VGA Cable (D-SUB to D- ViewSonic CD Wizard Quick Start Guide UB) the unit does not work. M Save the original shipping carton and Packing material: they will come-in handy if ou ever to ship your unit. for maximum protection, repack your unit as itwas onginaly packed at the factory. () M Contact you dealer immediately i any items are missing, appear damaged, or

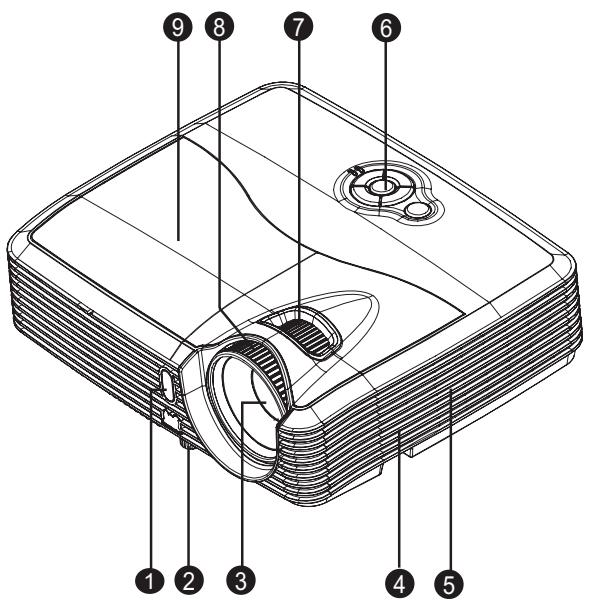

Projector Overview Front View @ Front IR remote control sensor © Control panel @ Elevator foot @ Zoomring @ Projection lens © Focus ring @ Speaker © Lamp cover © Ventilation holes

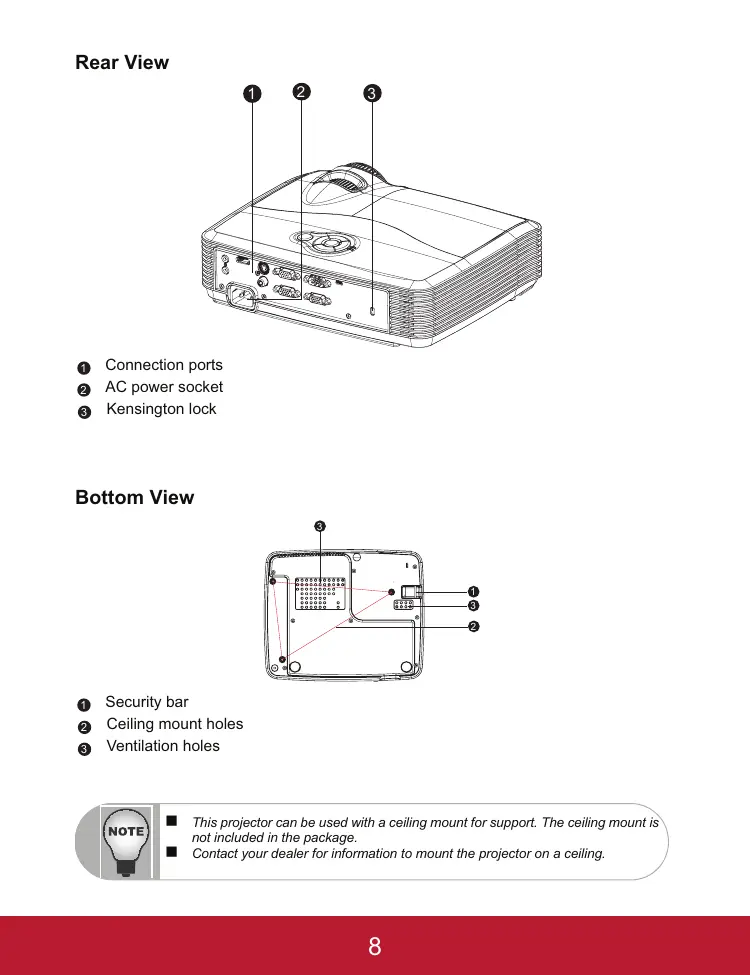

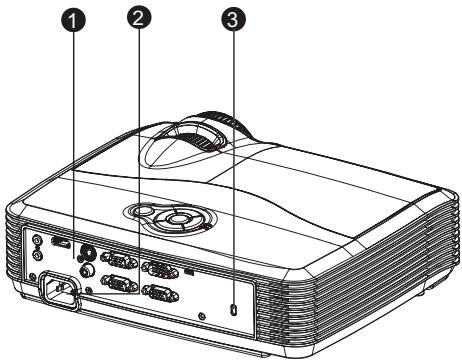

Rear View @ Connection ports @ AC power socket © Kensington lock Bottom View @ Security bar @ Ceiling mount holes © Ventilation holes M his projector can be used with a ceiling mount for support. The ceiling mount is not included in the package. M Contact your dealer for information to mount the projector on a ceilng.

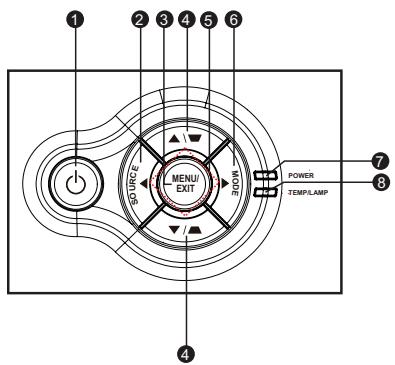

Using the Product Control Panel © Power Tum the projector on or off. @ SOURCE Display the source selection bar. © MENUZEXIT Display or exit the on-screen display menus. @ Keystone/Arrow keys (A/Up, Y /Down) Manually correct distorted images resulting from an angled projection © Four directional buttons Use four directional buttons to select items or make adjustments to your selection @ MODE Change the color mode setting by sequence. POWER (Power LED indicator) Refer to “LED Indicator Messages”. TEMP/LAMP (Temp/Lamp LED indicator) Refer to “LED Indicator Messages”.

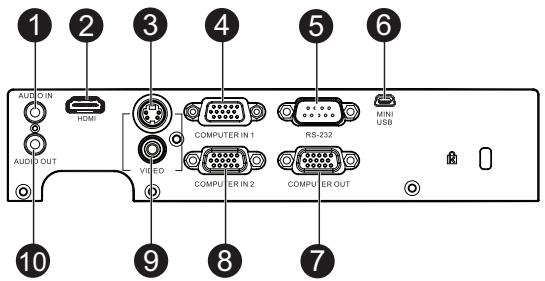

Connection Ports ®@ © © © e 6 © © © © AUDIO IN Connect an audio output from video equipment or computer to this jack. HDMI Connect HDMI output from video equipment to this jack. S-VIDEO Connect S-Video output from video equipment to this jack COMPUTER IN 1 Connect image input signal (analog RGB or component) to this jack. RS-232 When operating the projector via a computer, connect this to the controlling computers RS-232C port. MINI USB This connector is for firmware update and mouse function support. COMPUTER OUT Connect to a computer display, etc. COMPUTER IN 2 Connect image input signal (analog RGB or component) to this jack. VIDEO Connect composite video output from video equipment to this jack. AUDIO OUT Connect to a speaker or other audio input equipment.

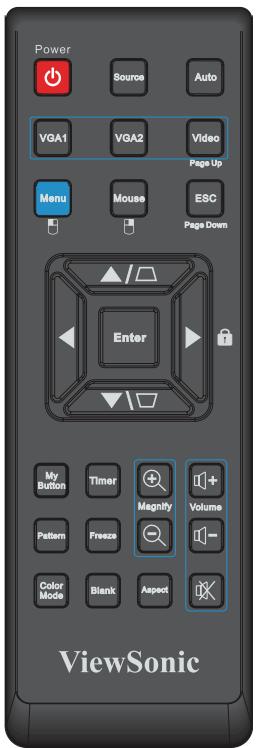

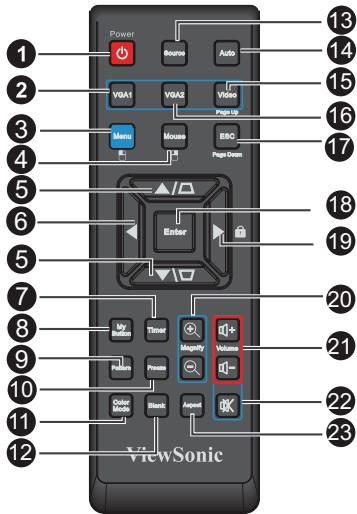

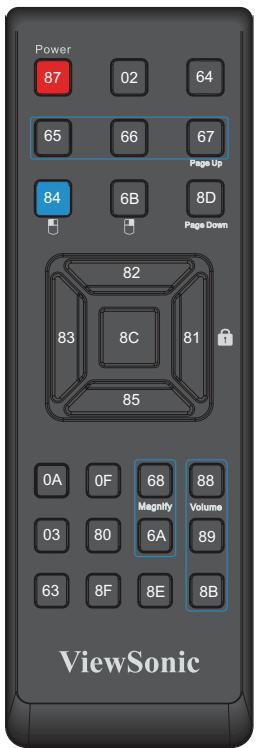

Remote Control @ Power Turn the projector on or off. e VGAi Display COMPUTER IN 1 signal. © Menu/ 5 Left mouse Display on-screen display menus. Perform the left button of the mouse when mouse mode is activated © Mouse/ F3 Right mouse Switch between the normal and mouse modes. Perform the right button of the mouse when mouse mode is activated @ Keystone/Arrow keys (A/Up, Y Down) Manually correct distorted images resulting from an angled

666006 © 6060 6® projection © «Left When the On-Screen Display (OSD) menu is activated, the #5, #6, and #19 keys are used as @ Color Mode directional arrows to select the Select the picture setup mode. desired menu items and to make adjusiments. @ Blank Timer Hide the screen picture. Activate P-Timer OSD menu. My Button User definable key for customized_ ® Source function Display the source selection bar. @ Pattern ®æ Auto Display embedded test pattern. Automatically determines the best picture timings for the displayed image. @ Freeze Freeze the projected image.

@ Video/Page Up Using the remote mouse control Switch input source to Composite! S-Video/HDMI by sequence. The capability of operating your computer Perform page up function when with the remote control gives you more mouse mode is activated flexibilty when delivering presentations: VGA2 1. Connect the projector to your PC or Display COMPUTER IN 2 signal. notebook with a USB cable prior to ESCIPage Down using the remote control in place of Goes back to previous OSD menu. your computer's mouse. See Perform page down function when “Connecting a computer’ on page 16 mouse mode is activated for details. Œ Enter 2. Set the input signal to COMPUTER IN Confirmed selections. 1 0r COMPUTER IN 2. © > Right @ Lock 3. Press Mouse on the remote control to Activate panel key lock. switch from the normal mode to the ® Magnify mouse mode. An icon appears on the Magnifies or reduces the projected screen to indicate the activation of the picture size. mouse mode. Volume 4. Perform the desired mouse controls on Adjust the volume level. your remote control Mute M To move the cursor on the screen, Cut off the sound temporarily. press A! / 41» M Toleft-click, press 5. M Toright-click, press 6. M To drag-and-drop, press and hold Enter, press A/ Y / 4/B to drag. When itis where you want it, press Enter again M To operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint), press Page Up/Page Down. M To retum to the normal mode, press Mouse again or other keys except for the mouse related multi- function keys. Aspect Select the display aspect ratio.

Open the battery cover in the direction shown. Install batteries as indicated by the diagram inside the compartment.

Close the battery cover into position. Caution = Risk of explosion if battery is replaced by an incorrect type. = Dispose of used batteries according to the instructions. = Make sure the plus and minus terminals are correctly aligned when loading a battery. Keep the batteries out ofthe reach of children. There is a danger of death by accidentally swallowing the batteries. \ Remove batteries from remote control when not using for extended periods. Do not dispose of the used batteries along with household waste. Dispose of used batteries according to local regulations. Danger of explosion may happen if batteries are incorrect replaced. Replce all the batteries with new ones.

Batteries should not be in or near to fire or water, keep batteries in a dark, cool and dry place. I suspect battery leakage, wipe out the leakage and then replace new batteries. Hthe leakage adheres lo your body or clothes, inse well with water immediately. |

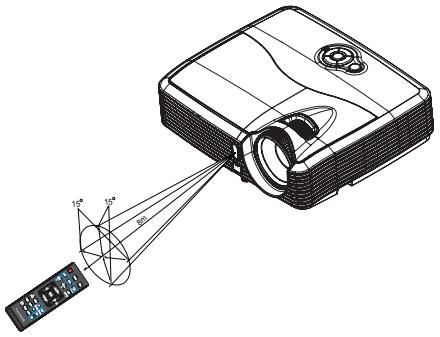

Remote Control Operation Point the remote control at the infrared remote sensor and press a button. M Operating the projector from the front M The remote control may not operate when there is sunlight or other strong Ÿ light such as a fluorescent lamp shining on the remate sensor. M Operate the remote control from a position where the remote sensor is visible. M Do not drop the remote control or jok it. M Kocp the remote control out of locations with excessively high temperature or humidit. M Do not get water on the remote control or place wet objects on it. M Do not disassemble the remote control. »

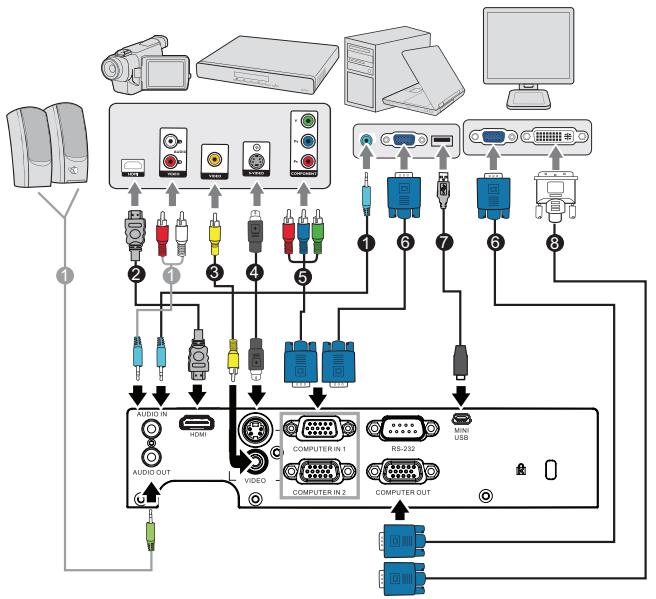

Connection When connecting a signal source to the projector, be sure to:

1. Tum all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

© Audio cable © VGA (D-Sub) to HDTV (RCA) cable e HDMicable © VGA cable (D-Sub to D-Sub) © Composite Video cable © USB cable © S-Video cable © VGA to DVIA cable CF Important M in the connections shown above, some cables may not be included with the projector (see "Package Contents” on page 6). They are commercialy available from electronics stores. m The connection illustrations above are for reference only. The rear connecting jacks available on the projector vary with each projector model m For detailed connection methods, see pages 16-19.

Connecting a computer or monitor Connecting a computer The projector provides two VGA input sockets that allow you to connect them to both IBMŸ compatibles and Macintosh® computers. À Mac adapter is needed if you are connecting legacy version Macintosh computers. To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of

2. Connectthe other end of the VGA cable to the COMPUTER IN 1 or COMPUTER

IN 2 signal input socket on the projector. CF Important M Many notebooks do not turn on their extemal video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination. Connecting a monitor If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the COMPUTER OUT signal output socket on the projector to an extemal monitor with a VGA cable following the instructions below To connect the projector to a monitor:

1. Connect the projector to a computer as described in “Connecting a computer” on

2. Take a suitable VGA cable (only one supplied) and connect one end ofthe cable

to the D-Sub input socket of the video monitor. Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable and connect the DVI end of the cable to the DVI input socket of the video monitor.

3. Connect the other end of the cable to the COMPUTER OUT socket on the

projector. CF Important M The COMPUTER OUT output only works when COMPUTER IN 1 or COMPUTER IN 2 is made to the projector.

Connecting Video source devices You can connect your projector to various Video source devices that provide any one of the following output sockets: = HDMI M Component Video M S-Video M Video (composite) You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below: Terminalname | Terminal appearance Reference Picture quality FDMT “Connecting an HDMI HDMI source device” on Best COMPUTER “Connect a Component Video source device” on page 18 “Connecting an S- Video source device’ Good on page 18 Component Video Better S-Video “Connect a composite Video source device” on page 19 Video Normal Connecting an HDMI source device Examine your Video source device to determine if it has a set of unused HDMI output jacks available: M {fs0, you can continue with this procedure. M ifnot, you will need to reassess which method you can use to connect to the device. To connect the projector to an HDMI source device:

2. Connect the other end of the HDMI cable to the HDMI jack on the projector.

Connecting a Component Video source device Examine your Video source device to determine if it has a set of unused Component Video output sockets available: M ifs0, you can continue with this procedure. M ifnot, you will need to reassess which method you can use to connect to the device. To connect the projector to a Component Video source device: 1... Take a VGA (D-Sub) to HDTV (RCA) cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red

2. Connectthe other end of the cable (with a D-Sub type connector) to the

COMPUTER IN 1 or COMPUTER IN 2 socket on the projector. CF Important M ifthe selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is tumed on and operating correctly. Also check that the signal cables have been connected correctiy. Connecting an S-Video source device Examine your Video source device to determine if it has an unused S-Video output socket available: M ifs0, you can continue with this procedure. M ifnot, you will need to reassess which method you can use to connect to the device. To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the

Video source device.

2. Connect the other end of the S-Video cable to the S-VIDEO socket on the

projector. CF Important M Ifthe selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctiy. Also check that the signal cables have been connected correctly. M If you have already made a Component Video connection between the projector and this S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See “Connecting Video source devices” on page 17 for

details. Connecting a composite Video source device Examine your Video source device to determine if it has a set of unused composite Video output sockets available: M ifso, you can continue with this procedure. M lfnot, you will need to reassess which method you can use to connect to the device. To connect the projector to a composite Video source device: 1... Take a Video cable and connect one end to the composite Video output socket of the Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector.

CF Important M ifthe selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is tumed on and operating correctly. Also check that the signal cables have been connected correctiy. M You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are unavaïlable for use. See “Connecting Video source devices” on page 17 for details.

Operation Powering On/Off the Projector Powering On the Projector:

1. Complete the AC power cord and peripheral signal cable(s) connections.

2. Press (l) to turn onthe projector.

The projector takes a minute or so to warm up.

3. Turn on your source (computer, notebook, DVD, etc.). The projector

automatically detects your source. M if you are connecting multiple sources to the projector simultaneousiy, press SOURCE on the projector or Source on the remote control to select your desired signal or press your desired signal key on the remote control. Warning M Never look into the lens when the lamp is on. This can damage your eyes. M This focal point concentrates high temperature. Do not place any object near itto avoid possible fire hazard. Powering Off the Projector:

1. Press (to tum off the projector lamp. You will see a message "Power off?

Press Power again appear on the screen.

2. Press (D) again to confimm

M The cooling fans continue to operate for cooling cycle. M When green mode is turned off, the Power LED begins flashing and the projector has entered stand-by mode. M When green mode is tumed on, the Power LED becomes steady light and the projector has entered stand-by mode. M lfyou want to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered stand-by mode. Once in stand by mode, simply press (D to restart the projector.

3. Disconnect the AC power cord from the electrical outlet and the projector.

4. Do not tu on the projector right after power of.

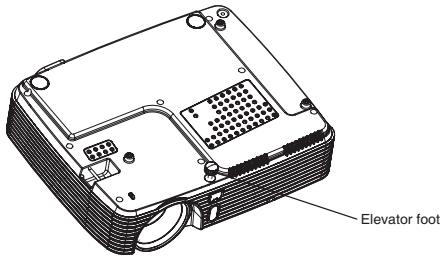

Adjusting the Projector Height The projector is equipped with an elevator foot to adjust the image height. To raise or lower the image, tum the elevator foot to fine-tune the height.

M To avoid damaging the projector, make sure that the elevator foot is fully \ retracted before placing the projector in its carrying case. Adjusting the Projector Zoom and Focus

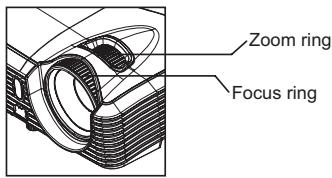

1. Focus the image by rotating the focus ring. À still image is recommended for focusing.

2... Adjust the image size by rotating the zoom ring.

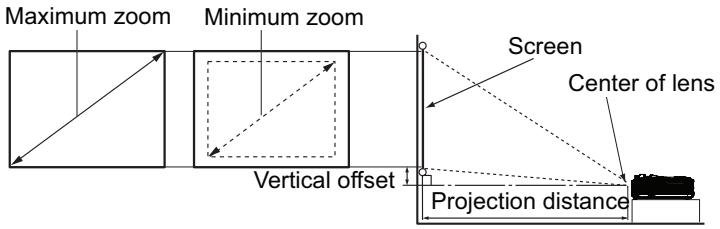

Adjusting Projection Image Size Refer to the graphic and table below to determine the screen size and projection distance. Maximum zoom Minimum zoom | Screen Center of lens Vertical offset [| Projection distai ==

Locking control keys With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except () Power.

1. Press D on the remote control.

2. A confirmation message is displayed. Select Yes to

confirm. To release panel key lock:

1. Press D on the remote control.

2. A confirmation message is displayed. Select Yes to

confirm. CF Important Mifyou press (D Power to turn off the projector without disabling panel key lock, the projector will stil be in locked status the next time it is tumed on.

Setting the presentation timer The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilze this function:

2. Highlight Timer Period and decide the timer period by pressing 4 /B .

CF Important M ifthe timer is already on, the timer will restart whenever the Timer Period is reset.

3. Press Y_ to highlight Display Timer and choose if you want the timer to show up

on the screen by pressing 4 /» . Always Displays the timer on screen throughout the presentation 1 Min/2 Min/3 Min | Displays the timer on screen in the last 1/2/3 minute(s). Never Hides the timer throughout the presentation time.

4. Press Y to highlight Timer Position and set the timer position by pressing </

Top-Left — Bottom-Left — Top-Right — Bottom-Right

5. Press Y to highlight Timer Counting Direction and select your desired

counting direction by pressing 4 /D . Count Up Increases from O to the preset time. Count Down Decrease from the preset time to 0.

6. To activate the presentation timer, press Y to highlight Start Counting and press

D on the projector or Enter on the remote control.

7. A confirmation message displays. Highlight Yes and press Bon the projector or

Enter on the remote control to confirm:

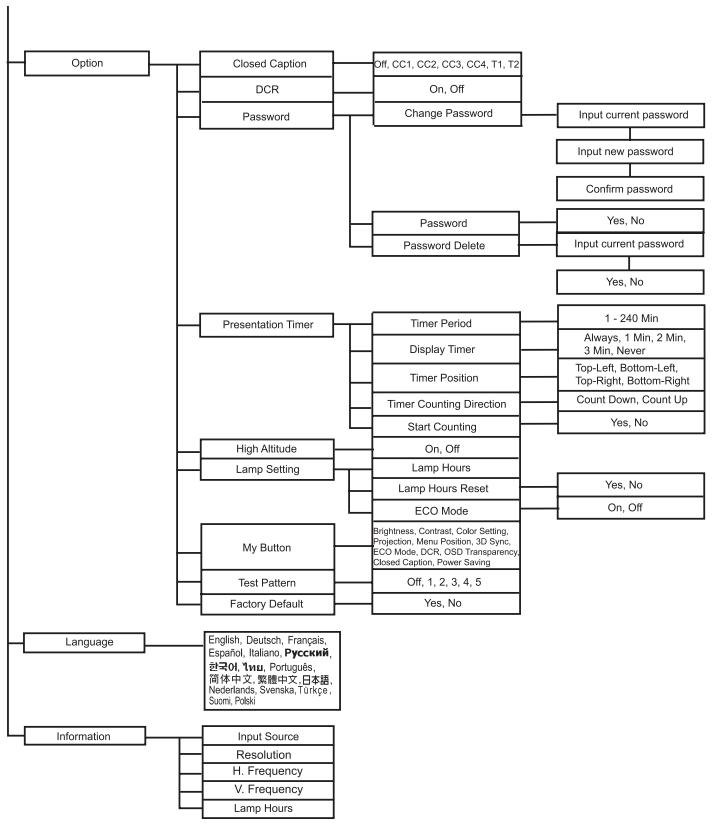

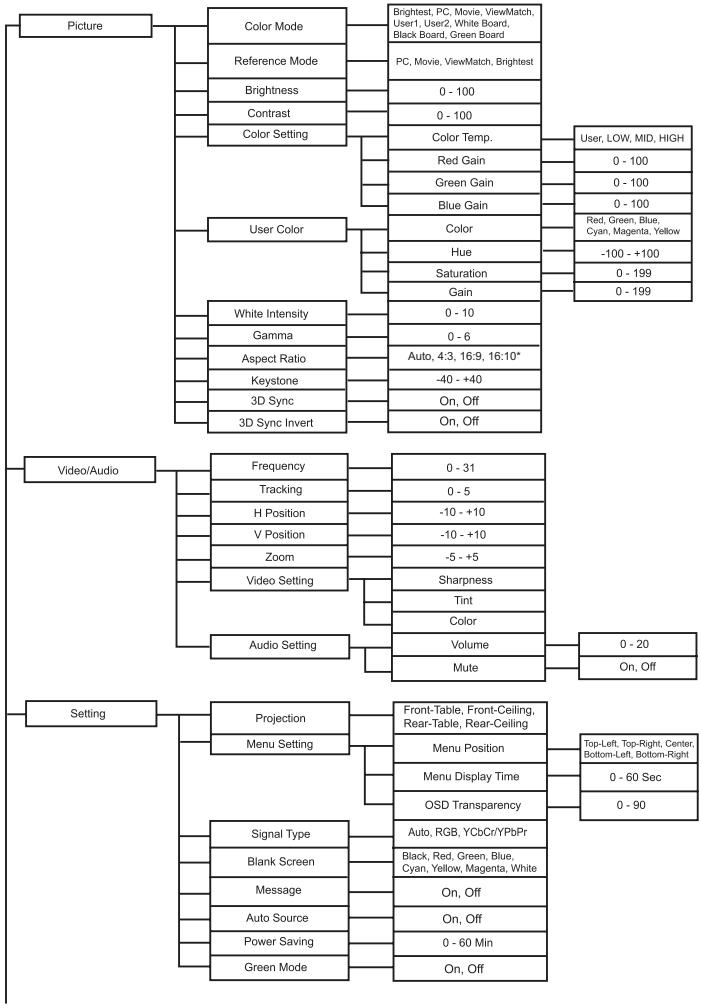

Menu Operation The projector has multlingual on-screen display menus that allow you to make image adjustments and change a variety of settings. LE cars ee E ne Hs Fos ss — es = rue ES ACTE | Fr EC H Sotirg } Projection. DTITLI ET ei Sora ps, Des on.om ee On. o7 EE TT nor

1. Press MENU on the projector or Menu on the remote control to open the OSD

4. Use A/Y to select the desired item and adjust the settings with </

5. Press MENU on the projector or Menu on the remote control, the screen will

retum to the main menu.

6. To exit OSD, Press MENU on the projector or Menu on the remote control again

The OSD menu will close and the projector will automatically save the new settings. Picture Color Mode There are many factory presets optimized for various types of images. M Brightest : Forthe brightest environment. m pc 2 For computer or notebook. M Movie 2 For home theater. M ViewMatch : For accuracy color performance. nm User1 2 Memorize user 1 defined settings. m User2 2 Memorize user 2 defined settings. M White Board: For white projection screen type. M BlackBoard: For black projection screen type. M Green Board: For green projection screen type. Reference Mode Select a picture mode that best suits your need for the image quality and further fine- tune the image. This function is only available when User 1 or User 2 is selected m pc 2 For computer or notebook. M Movie 2 For home theater. M ViewMatch : For accuracy color performance. M Brightest : Forthe brightest environment. Brightness Brighten or darken the image. Contrast Set the difference between light and dark areas. Color Setting Adjust the color temperature. At higher temperature the screen looks colder at lower temperature, the screen looks warmer. If you select “User”, then you can change the intensity of each of 3 color (Red, Green, Blue) to customize user color temperature.

User Color User Color provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independentiy adjust its range, hue, saturation and gain according to your preference. White Intensity Increase the brightness of white areas. Gamma Effect the represent of dark scenery. With greater gamma value, dark scenery will look brighter. Aspect Ratio Select how the picture fits on the screen: M Auto: Scales an image proportionally to fitthe projectors native resolution in its horizontal or vertical width. M 43 : Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. : Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. M 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. Keystone Manually correct distorted images resulting from an angled projection. 3D Sync M On: Enable 3D function. M Off Disable 3D function 3D Sync Invert (for TI 3D DLP-LINK only) M On: Invert left and right frame contents. M Off: Default frame contents. Video/Audio Frequency Adjust the timing of the projector relative to the computer. Tracking Adjust the phase of the projector relative to the computer. H Position (Horizontal Position) Adjust the image left or right within the projection area. V Position (Vertical Position) Adjust the image up or down within the projection area. Zoom Zoom in and out the images.

Video Setting Allow you to enter the Video Setting menu M Sharpness: Sharpen or soften the image. M Tint: Shift colors toward red or green M Color: Adjust the color saturation level. Audio Setting Allow you to enter the Audio Setting menu. M Volume: Adjust the projector's volume level. M Mute: Cut offthe sound temporarily. Setting Projector Projection Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly. Menu Setting Allow you to enter the Menu Setting menu. M Menu Position: Choose the menu location on the display screen. M Menu Display Time: Duration of OSD menu display countly starts (at idle state by second). M OSD Transparency: Select to change the transparency level of the OSD background. Signal Type Specify the source to the COMPUTER IN 1/COMPUTER IN 2 terminal that you wish to project. M Auto: Automatically detect the input signal type from COMPUTER IN 1 and COMPUTER IN 2 terminals. = RGB : For VGA signal M YCbCr/YPbPr:For component signal Blank Screen Blank the screen temporarily, and select the screen color when this function is active. Message Enable or disable the message box at the right bottom of the screen Auto Source Automatically scan through all the input source. Power Saving Ifthe input source is not detected and no operation is performed for a specific period of time, projector will automatically turn off. Green Mode

Enable this function when power consumption is under 1W. Option Closed Caption Enable or disable closed captions by selecting CC1 (closed captiont, the most common channel), CC2, CC3, CC4, T1, T2 or OFF. DCR (Dynamic Contrast Ratio) Enable DCR will further enhance contrast ratio by darkening the black scenes. Disable DCR will resume to normal contrast performance. DCR will impact lamp life and system noise performance. Password Set, change or delete the password. When the password function is added, image projection will require to input the preset password when tuming on the projector. Presentation Timer Remind the presenter to finish the presentation within a certain time frame. High Altitude Use this function to allow the fans operates at full speed continuously to achieve proper high altitude cooling of the projector. Lamp Setting Allow you to enter the Lamp Setting menu. M Lamp Hours: Display the lamp's elapsed operating time (in hours). M Lamp Hours Reset: Reset the lamp Hour to O hours. M ECO Mode: Use this function to dim the projector lamp light output which will lower power consumption and increase lamp life. This function will be unavailable when the DCR function is on. My Button Allow user to define a short cut key on the remote control, and the function item is selected in OSD menu. Test Pattern Display embedded test pattern: Factory Default Restore settings to factory default Language Select the language used by the on-screen menu. Information Input Source Display the current input source.

Resolution Display current input source resolution. H. Frequency Display current image horizontal frequency.

Display current image vertical frequency. Lamp Hours Display the lamp's elapsed operating time (in hours).

Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first. Warning Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Cleaning the Lens Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands. Cleaning the Projector Housing Gentiy wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.

Tum off the projector and remove the AC power cord from the power outlet before beginning maintenance work. Make sure the lens is cool before cleaning. Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners. Do not use chemical sprays. Use a soft cloth or lens paper only.

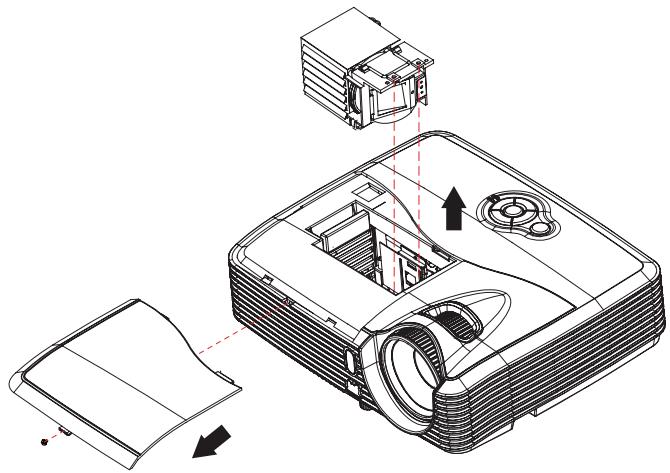

Replacing the Lamp As the projector operates over time, the brightness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement. The lamp is extremely hot right after tuming off the projector. f you touch de lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down. Do not touch the lamp glass at any time. The lamp may explode due to improper handling, including the touching of the lamp glass. Lamp lfetime may difer from lamp to lamp and according to the environment ofuse. There is no guarantee of the same lfetime for each lamp. Some lamps may fail or terminate their lfetime in a shorter period of time than other similar may explode as a result of vibration, shock or degradation as a result of of use as its fetime draws to an end. Risk of explosion may differ rding (the environment or concions in which the projector and lamp are 19 used. r protective gloves and eyeglasses when fxing or detaching the lamp. ler on-off-cycles will damage the lamp and reduce lamp life. Wait at least minutes to tum off the projector after powering on. ot operate the lamp in proximity to paper, cloth, or other combustible ial nor cover i with such materials. jt operate the lamp in an atmosphere containing an inflammable substance, such as thinner. Thoroughly ventilate the area or the room when operating the lamp in an oxygen atmosphere (in the air). f ozone is inhaled, it could cause headaches, nausea, dizziness, and other symptoms. The inorganic mercury is involved in the lamp. the lamp bursts, the mercury inside the lamp will be exposed. Leave the area immediately i the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful to users health. /

Turn off the projector. Ifthe projector is installed in a ceiling mount, remove it Unplug the power cord. Loosen the screw in the side of the lamp cover and remove the cover. Remove the screws from the lamp module, raise the handle, and lift out the module.

6. Insert the new lamp module into the projector and tighten the screws.

7... Replace the lamp cover and tighten the screw.

8. Turn on the projector. Ifthe lamp does not tum on after the warm-up period, try

nseN= Dispose the used lamp according to local regulations. à Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents. Since the lamp is made of glass, do not drop the unit and do not scratch the glass. Do not reuse the old lamp. This could cause the lamp to explode. Be sure to tum off the projector and unplug the AC power cord before replacing the lamp. Do not use the projector with the lamp cover removed. ]

SECAM, HDTV (480ï/p, 576p, 720p, 1080i/p), Composite video Scanning frequency Horizontal frequency |31 - 100 KHz [Vertical frequency [50-120 Hz Environment Operating Temperature: 0°C to 40°C Humidity: 10%-80% Storage: Temperature: -20°C to 60°C Humidity: 30%-85% Power requirement AC 100-240 V, 50 - 60 Hz, Z.6A Power consumption 245 W (Max) Dimension 284.0 x 234.3 x 81.5 mm (WxD xH) Weight 26kg (5.71) Note: Design and Specificaions are subject fo change without prior nolice.

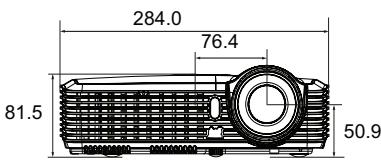

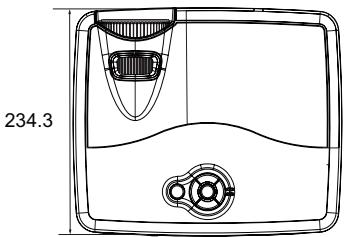

Ceiling mount installation

5 Ceiling mount screws: F M4 x 8 (Max. L = 8 mm)

Appendix LED Indicator Messages empLamp LED LED Type | Color | Status Meaning PowerLED [Blue [Soïd |Standby mode when green mode is tumedon. TemplLamp —— [Blus/Red [Of LED PowerLED [Blue [Flash |Standby mode when green mode is lumed of. TemplLamp — [Blue/Red [Of LED PowerLED [Blue [Soi |Powerngup TempLamp —— [Blus/Red [Of LED PowerLED [Blue [Soi [Normaloperaton TemplLamp — [Blue/Red [Of LED PowerLED [Blue [Flash |Powerng down empLams—|ElueRed Of {The projector needs Lo cool for 35 seconds after LED the projector is turned off.) PowerLED [Blue [Flash [The projector system has some problems wiinis FempLamp Magenta [Flash —|'ans, so the projector cannot start up LED PowerLED [Blue [Soi |Thelamphasreachediis endofie and mustbo empLams —|Lamp— [Flash ——|changed soon. The lamp will continue to operate LED (Red) until i fails. Change the lamp. If he lamp is of, then the ballast will become malfunction: PowerLED [Blue [Soi |1. Temperalureis too high. The lamp wil tum off. FempLamp —fTemp {Flash ——|7he fan motor is cooling the lamp. LED (Blue) or

2. The cooling process is not complete after the

peojector is shut down and re-started right away. PowerLED [Blue [Soi [The lampigniion failed. INemperaurois too high, Magenta [Flash —|tne fans wil cool the lamp.

• for PJD5233 and PJD5523w ** for PJD5523w only

Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. Ifthe problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well. Start-up problems If no lights turn on: M Be sure thatthe power cord is securely connected to the projector and the other end is plugged into an outlet with power. M Press the power button again. M Unplug the power cord and wait for a short while, then plug it in and press the power button again Image problems If the searching source is displayed: M Press SOURCE on the projector or Source on the remote control to select an active input source. M Be sure the external source is tumed on and connected. M For a computer connection, ensure your notebook computer's external video port is turned on. Refer to the computer manual. If the image is out of focus: M While displaying the on-screen menu, adjust the focus ring. (The image size should not change: if it does, you are adjusting the zoom, not the focus.) M Check the projection lens to see if it needs cleaning. the image is flickering or unstable for a computer connection: M Press MENU on the projector or Menu on the remote control, go to Video/Audio and adjust Frequency or Tracking. Remote control problems If he remote control does not operate: M Be sure nothing is blocking the remote control receiver on the front of the projector. Use the remote control within the effective range. M Aimthe remote control at the screen or at the front of the projector. M Move the remote control so it is more directly in front of the projector and not as far to the side.

Customer Support For technical support or product service, see the table below or contact your reseller. Note : You will need the product serial number. Country/Region Website T= Telephone F=FAX Email AustraliaiNew Zealand ww viewsonic.comau AUS= 1800 880 818

Limited Warranty VIEWSONIC ® PROJECTOR What the warranty covers: ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or wworkmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. Limited Three (3) year General Warranty Subject to the more limited one (1) year warranty set out below, North and South America: Three G) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase; Europe except Poland: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Poland: Two (2) years warranty for all parts excluding the lamp, two (2) years for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase Limited One (1) year Heavy Usage Warranty Under heavy usage settings, where a projector”s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information. Lamp warranty subject to terms and conditio: manufacturer’s installed lamp only. Al a for 90 days. Who the warranty protects: This warranty is valid only for the first consumer purchas What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration, failure, or malfunction resulting from

se, misuse, neglect, fire, improper maintenance, unauthorized product modification, or failure to follow pplied with the product b.. Operation outside of product specifications. <. Operation of the product for other than the normal intended use or not under normal conditions. d.._ Repair or attempted repair by anyone not authorized by ViewSonic. &.. Any damage of the product due to shipment. £ Removal or installation of the product. , verification and approval. Applies to ory lamps purchased separately are warranted a ter, lightning, or other acts of nature, instructions

Causes external to the product, such as electric power fluctuations or failure. Use of supplies or parts not meeting ViewSonic’ specifications. Normal wear and tear. À. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

1. For information about receiving service under warranty, contact ViewSonic Customer

Support (please refer to “Customer Support” page). You will need to provide your products serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b)

your name, (€) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized

ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact

ViewSonic. Limitation of implied warrant There are no warranties, express or implied, which extend beyond the description contained hercin including the implied warranty of merchantability and fitness for a particular purpose. Exclusion of damages: ViewSonic’ liability is limited to the cost of repair or replacement of the product. ViewSonic Shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon

inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill,interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of state law: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you. Sales outside the U.S.A. and Canada: For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www. viewsoniceurope.com under Support Warranty Information.

43: Projector Warranty PRJ_LWO1 Rev. 1h 06-25-07

Mexico Limited Warranty VIEWSONIC” PROJECTOR What the warranty covers: ViewSonie warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories. How long the warranty is effect 3 years for al parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer rchase. Lang warany subject tes and condiions, wesicaoa and approval. Apple 1 manfactrer nstall ln och, Al accessory lamps purchased separately are warranted for 90 days. Who the warranty protects: This warranty is valid only for the first consumer purchaser. What the warranty does not cove

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, detcrioration or malfanction resulting from-

‘Accident, misuse, neglect, re, water, lighining, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product. Any damage of the product due to shipment. Causes extemal to the product, such as electrical power fluctuations or failure. Use of supplies or parts not mecting ViewSonic's spccifications. Normal wear and tear. ‘Any other cause which does not relate to a product defect

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static

image is displayed on the produt for an extended period of time. tallation, insurance, and set-up service charges. sers For information about receiving service under warranty, contact ViewSonic Customer Support (Please refèr to the attached Customer Support page). You will need to provide your product serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim. For Your Records Product Narnc: Model Number: Document Number: Serial Number: Purchase Date: Extended Warranty Purchase? w

If s0, what date does warranty expire?

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, () your

rame, (c) your address, (d) a description of the problem, and (e) the serial rumber of the product ‘Take or ship the product in the original container packaging to an authorized ViewSonic service center. Round trip transportation costs for in-warranty products will be paid by ViewSonic. itation of implied warrar There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purposc. Exclusion of damages: ViewSonie bi is imied ot os rpair or relcement aie produt ViewSonic sal not be able fr Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the produet, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages. Any other damages, whether incidental, consequential or otherwise Any claim against the customer by any other party. Repair or attempted repair by anyone not authorized by ViewSonic.
