You have just purchased a BRANDT product and we thank you for your trust.

We designed and manufactured this product with you, your lifestyle and your needs in mind, in order to best meet your expectations. We have put into it our expertise, our spirit of innovation and all the passion which has driven us for over 60 years.

We make every effort to ensure our products better meet your requirements, and our Customer Relations Department is at your disposal and will be happy to hear any questions or suggestions you may have.

You may also visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is happy to assist you in your daily life and hopes you will fully enjoy your purchase.

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

Contents

Safety and warning instructions...2

Installing your new appliance.....6

Description of the appliance.....8

Display controls. 9

Using your appliance. 11

Helpful hints and tips. 13

Cleaning and care. 14

Troubleshooting. 16

Disposal of the appliance.18

Important Safety Instructions

For your safety and correct usage before installing the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance it is moved or sold, so that anyone using it through its life will be properly informed on its usage and safety notices.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damage caused by omissions.

Safety for children and others who are vulnerable persons

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep all packaging away blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do note expose to flame.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire, and/or electric shock.

Electrical safety

1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the from children as there is risk of suffocation.

7. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.

8. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING -This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications

WARNING-Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• WARNING -If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING-Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING-Do not use mechanical devices or other means to accelerate the defrosting process, other than recommended by the manufacturer.

• WARNING-Do not damage the refrigerant circuit.

• WARNING-Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• WARNING-The refrigerant and insulation appliance without the interior lighting lamp cover.

• The fridge is only applied with power supply of single phase alternating current of 220-240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its

plug must match the socket with ground wire.

Daily use

• Do not store flammable gass or liquids in the appliance, There is a risk of an explosion.
• Do not operate any electrical appliances in the

Appliance (e.g.electric ice cream makers, mixers etc.).

• When unplugging always pull the plug from the mains socket, do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.
• The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.

• Do not place the appliance in direct sunlight.

• Keep buring candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.

• The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet.

• The appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Never use the base, drawers, doors etc. to stand on or as supports.

• Frozen food must not be refrozen once it has been thawed out.

• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.

• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Caution!

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaner,

ethereal oils, organic solvents or abrasive cleansers.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

• For electrical connection carefully, follow the instructions given in this manual.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.

• The appliance must not be locate close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance

should be carried out by qualified electrician or competent person.

• This product must be services by an authorized Service Center, and only genuine spare parts must be used.

1) If the appliance is Frost Free
2) If the appliance contains freezer compartment.

Installing your new appliance

Before using the appliance for the first time, you should be informed of the following tips.

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggestion: it is recommended to have 75~mm of space between the back of the appliance and the wall, at least 100mm from its top, at least 100mm between its side and the wall and a clear space in front to allow the doors to at 145^ angle. As shown in following diagrams.

Relevant information (Constant / mm)

W	W1	D	D1
908	387	600	1140

Note!

• This appliance performs well in the below climate class. It may not work properly if left at a temperature above or below the indicated range for a long period.

Climate Class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

• Place your appliance in a dry place to avoid high moisture.

• Keep the appliance out of direct sunlight, rain or frost. Place the appliance away from heat sources such as stoves, fires or heaters.

Leveling the appliance

• For optimal levelling and air circulation in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner.
• To allow the door to self-close, tilt back the top backwards for about 100mm or 0.5^ by turning the adjustable feet.
• Whenever you want to move the appliance remember to tum the feet back up so that the appliance can roll freely. Reinstall the appliance when relocating.

Caution! The rollers, which are not castors, should only be used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

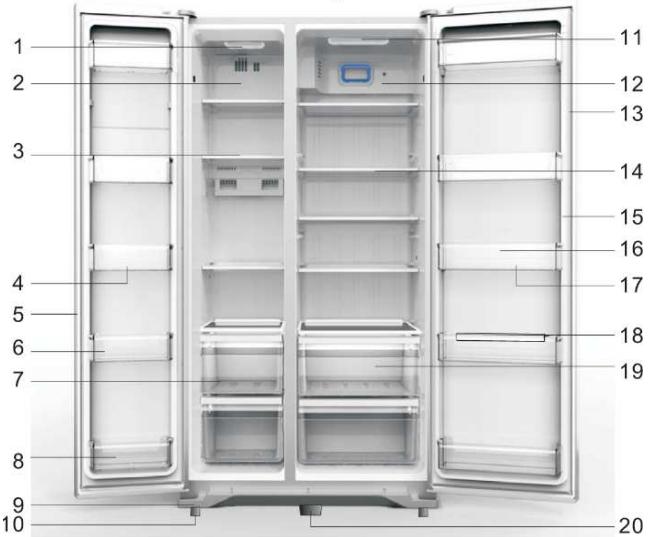

View of the appliance (HR6AFF366SD, HR6AFF355D)

View of the appliance

1. Freezer zone LED light
2. Wind channel cover in freezer
3. Freezer shelf
4. Ice tray (optional)
5. Freezer door seal
6. Freezer door Rack (four star zone)
7. Freezer drawer
8. Freezer door Rack (two star zone)
9. Bottom cover (optional)

10. Adjustable bottom feet

11. Fresh zone LED light

12. Wind channel cover in fresh
13. Temperature regulator (on fresh door)
14. Fresh shelf
15. Fresh door seal
16. Fresh door Rack
17. Egg tray (optional)
18. Bottles block stripe
19. Fruit and vegetables Crisper
20. Roll wheel

Note: Due to constant improvement of our products, your refrigerator may be slightly different from this illustration manual, but its functions and using methods remain the same.

Display controls

Use your appliance according to the following control regulations. The corresponding functions and modes as the control panels showed in the picture below.

When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off after 60 seconds.

The control panel consists of two areas about temperature, one area about different modes.

Controlling the temperature

We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 5^ and the freezer to -18^ . If you want to change the temperature, follow the instructions below.

Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperature inside each compartment may vary from the temperatures displayed on

the panel, depending on how much food you store and where you place it. High or low room temperature may also affect the actual temperature inside the appliance.

Mode/Unlock

You can select different modes by pressing the "Mode/Unlock" button. When certain mode is selected, wait for the corresponding icon to flash for 10 seconds.

All the buttons are locked if the icon

"O" is illuminated, press the "Mode/Unlock" button for 3 seconds to unlock them.

Super Cool

Super cool can refrigerate your food much faster, keeping food fresh for a longer period.

• Press "Mode/Unlock" button to select the super cool function. The light will be illuminated.

• When the super cool function is activated, the corresponding icon will be illuminated.

Holiday

If you are going to be away for a long period of time, holiday function will be your best choice.

• Press "Mode/Unlock" button to select the Holiday function. The light will be illuminated.

• When the holiday function is activated, the temperature of the fridge is automatically switched to

15^ C and the freezer to -18^ C to minimize energy consumption.

Important! Do not store any food in the fridge during this time.

Super Freeze

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer.

Press "Mode/Unlock" button to select the Super Freeze function. The light will be illuminated. For the maximum amount of food to be frozen, please wait about 24 h.

Super freeze automatically switches off after 26 hours and the freezer temperature automatically sets to -25^ .

Artificial Intelligence When the action is selected, the temperature the appliance is automatically vested.

When the Artificial Intelligence function is activated, the temperature of the fridge is automatically switched to 5^ and the freezer to -18^ .

Energy saving

When the function is selected, the refrigerator will run in the most energy saving mode. The temperature will be adjusted to automatically save energy.

When the Energy saving function is activated, the temperature of the fridge is automatically switched to 6^ and the freezer to -17^ .

Fridge

You can press the "Fridge" button to control the fridge temperature. When you press the button continuously, the temperature will itself following this sequence.

Freezer

You can press the "Freezer" button to activate the mode to control the freezer temperature. When you press the button continuously, the temperature will set itself following this sequence.

Door Alarm

• If the fridge or freezer door is open for more than 2 minutes, the door alarm will sound. The buzzer will automatically stop 10 minutes later.

• To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be turned off by closing the door.

Using your appliance

This section tells you how to use most of the useful features. We recommend that you read through carefully before using the appliance.

1. Fixing the bottom cover optional

Before you use the appliance, please fix it with a hexangular screwdriver in the clockwise direction until bottom cover is securely in place.

2.Using your refrigerator compartment

The refrigerator compartment is suitable for storing fruits and vegetables.

-Food stored inside should be packed in order to avoid losing moisture or flavor permeating into other foods.

Caution! Never close the refrigerator door while the shelves, crisper and/or telescopic slides are extended; it may damage both them and the refrigerator.

Glass shelves and Door racks

The refrigerator compartment is provided with 3 glass shelves and several different door racks, which are suitable for the storage of eggs, canned liquid, bottled drinks and packed food. They can be placed at different heights according to your need. Before you lift up the door shelf vertically, please take the food

out.

• When you remove the shelves, gently pull them forward until the shelf comes clear of the shelf guides.
• When you reinstall the shelves, make sure there is no obstacle behind and gently push the shelf back into its position.

Crisper

The crisper, mounted on telescopic extension slides, is for storing fruits and vegetables.

When you remove the crisper, pull the slides forward, then lift the crisper off the slides. Remember to first empty the food in the crisper. Once you have removed the drawers, ensure slides are fully pushed back.

Bottle holder operation

The bottle holder can be used to fix the bottle. You can place it on the middle or lower door rack and slide it to the left or right as you prefer.

Note: All the door racks and covers are completely removable for cleaning.

3. Using your freezer compartment

The freezer compartment is suitable for storing food that need to be frozen, ie. meat, ice cream and others.

Caution! Ensure that bottles are not left in the freezer for longer than needed as freezing may cause the bottle to break.

Drawers

The drawers, mounted on telescopic extension slides, can be used to store more food.

• The method for removing the drawers is the same as the crisper in the refrigerator chamber.

Energy saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods of time in order to conserve energy.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, humidity free, room. Please refer to installing your new appliance chapter.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to do the most energy efficient configuration.

Hints for refrigeration

• Avoid putting warm food into the refrigerator, as the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Properly place the food so that air can circulate freely around it.
• Meat (All Types): Wrap in polythene and place on the glass shelf above the vegetable drawer. Always refer to food storage times

and use by dates suggested by manufacturers.

Cooked food, cold dishes, etc.:
They should be covered and may be placed on any of the shelves.
Fruits and vegetables:
They should be stored in the special drawer provided.
-Butter and cheese: should be wrapped in airtight foil or plastic film wrap.
Milk bottles: should have a lid and be stored in the door racks.

Hints for storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period of time, the following steps should be taken to prevent mould from forming the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

Cleaning and care

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

Clean your appliance regularly to maintain its good appearance.

-Wipe the digital panel and display panel with a clean, soft cloth.

-Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.

-Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Caution!

• Don't use sharp objects as they are likely to scratch the surface.

-Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause tire.

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of soda bicarbonate, and then rinse with warm water using a wrung-out

sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts.

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's mentor walls if the freezer door is opened frequently or kept open too long.

However, complete defrosting will become necessary approximately four times per year, or if the frost layer exceeds 4mm (1 / 4^ ) affecting the system efficiency. Complete defrosting should be carried out if frost cannot be scraped away, or if it begins to interfere with the food storage. Choose a time when the supply of food is low and proceed as follows:

1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.
2. Scrape away as much frost as possible using the plastic scraper (scaper not included).
3. If necessary, place a cloth soaked with warm water on the frost layer's surface to accelerate the thawing process.
4. When defrosting is completed, clean your freezer as described -see interior cleaning.

Caution! Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash the seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light:

Warning: The LED light must not be replaced by the user If the LED light is damaged, contact the customer helpline for assistance.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
	It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
Odours from the compartments	The interior may need to be cleaned
	Soma food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal: • Compressor running noises. • Air movement noise from the small fan motor in the freezer compartment or other compartments. • Gurgling sound similar to water boiling. • Popping noise during automatic defrosting. • Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action: The cabinet is not leveled. The back of appliance touches the wall. Bottles or containers have fallen or are rolling.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances: •Temperature setting is set colder than necessary •Large quantity of warm food has recently been stored within the appliance. •The temperature outside the appliance is too high. •Doors are kept open too long or too often. •After you installed the appliance or it has been switched off for a long time.
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that is fully dosed. To remove the frost, please refer to cleaning and care chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top
Temperature inside is too cold	Increase the temperature by following the "Display controls" chapter.
Doors can't be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout.
The light is not working	•The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. •The control system has disabled the lights due to the door being kept open for too long. Close and reopen the door to reactivate the lights.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug

Warning! Refrigerators contain refrigerants and gases in the insulation. Refrigerants and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
