USER MANUAL 190S BRAUN

Stapled booklet, 105 x1 48mm, 64 pages (incl. 8 pages cover), 2/2c = black+HKS43N Series 1

852-25249377 (Audio Supplies Company Ltd.)

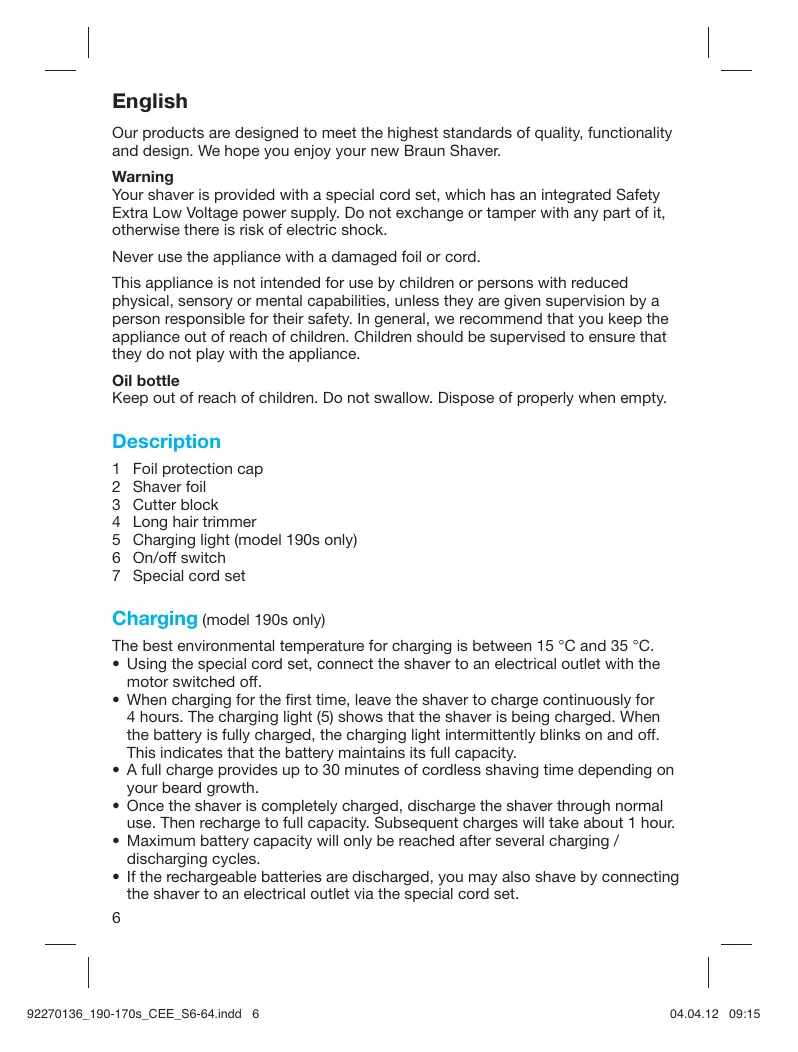

English Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver. Warning Your shaver is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of electric shock. Never use the appliance with a damaged foil or cord. This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance. Oil bottle Keep out of reach of children. Do not swallow. Dispose of properly when empty.

Description 1 2 3 4 5 6 7

Foil protection cap Shaver foil Cutter block Long hair trimmer Charging light (model 190s only) On/off switch Special cord set

Charging (model 190s only) The best environmental temperature for charging is between 15 °C and 35 °C. • Using the special cord set, connect the shaver to an electrical outlet with the motor switched off. • When charging for the first time, leave the shaver to charge continuously for 4 hours. The charging light (5) shows that the shaver is being charged. When the battery is fully charged, the charging light intermittently blinks on and off. This indicates that the battery maintains its full capacity. • A full charge provides up to 30 minutes of cordless shaving time depending on your beard growth. • Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour. • Maximum battery capacity will only be reached after several charging / discharging cycles. • If the rechargeable batteries are discharged, you may also shave by connecting the shaver to an electrical outlet via the special cord set. 6

92270136_190-170s_CEE_S6-64.indd 6

Shaving Remove the foil protection cap (1). Activate the on/off switch (6). The floating foil frame automatically adapts to your skin surface for a close, smooth shave. For pre-shaving after a few days of not having shaved, use the long hair trimmer (4) to pre-cut long hairs. For a close, smooth shave, finish with the foil. Trimming Push out the long hair trimmer (a). It allows controlled trimming of moustache and sideburns. It evenly cuts and trims larger areas: ideal for shaping sideburns, moustaches and partial short beards. Frequent use of the long hair trimmer may reduce the battery capacity (model 190s only). Tips for the perfect shave For best shaving results, Braun recommends you to follow 3 simple steps: 1. Always shave before washing your face. 2. At all times, hold the shaver at right angles (90°) to your skin. 3. Stretch your skin and shave against the direction of your beard growth.

Cleaning The shaver head is suitable for cleaning under running tap water. Warning: Detach the shaver from the power supply before cleaning the shaver head in water. Regular cleaning ensures better shaving performance. Rinsing the shaving head under running water after each shave is an easy and fast way to keep it clean (b): Model 190s only: • Switch the shaver on and rinse the shaver head under hot running water. • You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds. • Next, switch off the shaver, remove the shaver foil (2) and cutter block (3). Then leave the disassembled shaving parts to dry. • If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer and shaver foil (d). Model 170s only: • After each shave, rinse the shaver head under hot running water (b). You may use liquid soap without abrasive substances. Rinse off all foam. • Next, remove the shaver foil (2) and cutter block (3). Then leave the disassembled shaving parts to dry. 7

92270136_190-170s_CEE_S6-64.indd 7

Alternatively, you may clean the shaver using the brush provided (c): • Switch off the shaver. Remove the shaver foil and tap it out on a flat surface. • Using the brush, clean the cutter block and the inner area of the shaver head. However, do not clean the shaver foil with the brush as this will damage the foil.

Keeping your shaver in top shape About every four weeks, clean the cutter block with Braun cleaning agents. Put a drop of light machine oil onto the long hair trimmer and the shaver foil (d). Replacing the shaver foil and cutter block To maintain 100% shaving performance, replace the shaver foil (2) and cutter block (3) at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: 10B) Preserving the batteries (model 190s only) In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

Environmental notice This appliance contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice. For electric specifications, see printing on the special cord set.

Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. 8

92270136_190-170s_CEE_S6-64.indd 8

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law.
