USER MANUAL LASERJET PRO M125A HP

7 HP LaserJet Pro MFP M125, M126, M127, M128

Copyright and License

© 2013, 2014 Copyright Hewlett-Packard Development Company, L.P.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Part number: CZ172-90910

Adobe”, Acrobat”, and PostScript are trademarks of Adobe Systems Incorporated.

Apple and the Apple logo are trademarks of Apple Computer, Inc. registered in the U.S. and other countries. iPod is a trademark of Apple Computer, Inc. iPod is for legal or rightholder- authorized copying only. Don't steal music.

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license.

Microsoft®, Windows®, Windows® XP, and Windows Vista® are U.S. registered trademarks of Microsoft Corporation.

Product introduction …

Product comparison Product views

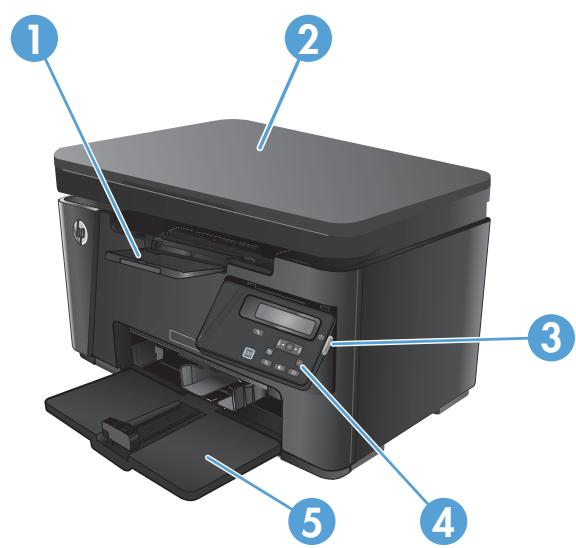

Product front view Product back view Control panel overview M125a,M125r, M125ra, M126a M125nw, M125rnw, M126nw M127fn, M128fn, M127fp, M128fp . M127fw and M128fw Control-panel Home screen (touchscreen only)

Supported paper sizes and types Supported paper sizes

Supported paper types Load the input tray

Tray adjustment for small paper sizes

Print tasks (Windows) … How to print (Windows) . Manually print on both sides (Windows)

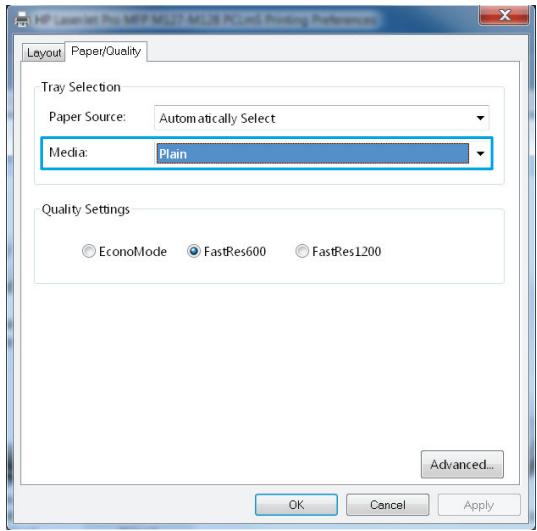

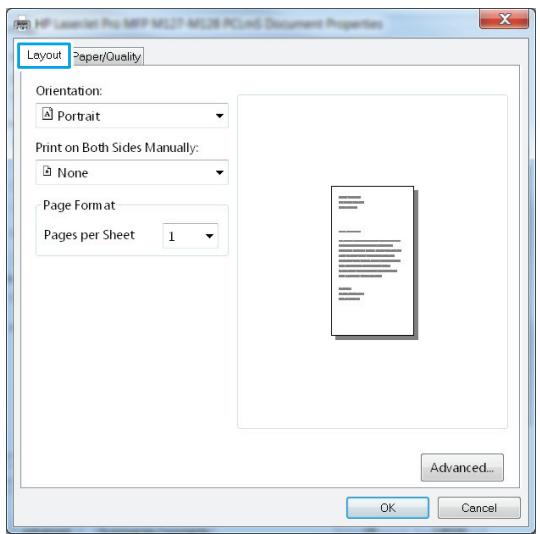

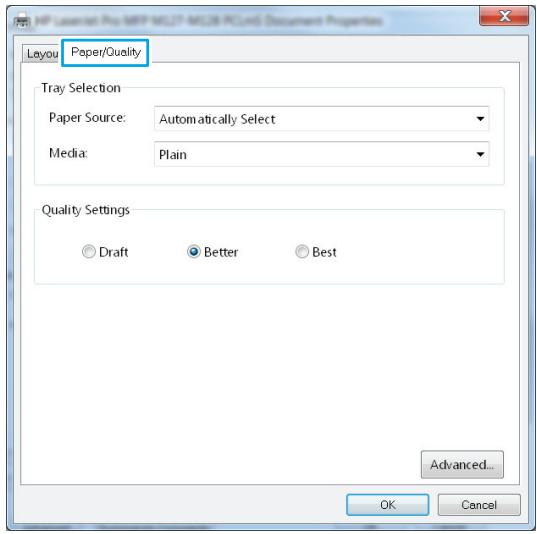

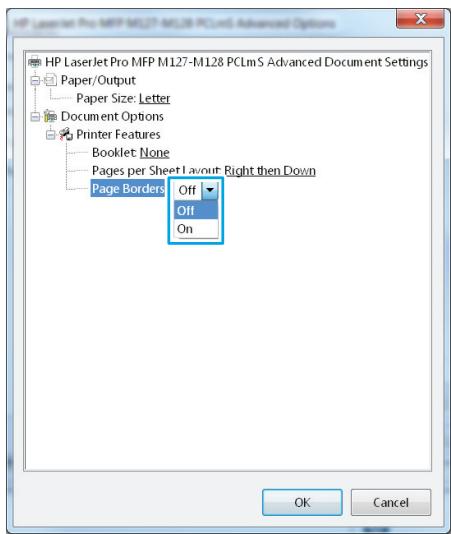

Print multiple pages per sheet (Windows) . Select the paper type (Windows) … Additional printing information Print tasks (Mac OS X) How to print (Mac OS X) . Manually print on both sides (Mac OS X) .… Print multiple pages per sheet (Mac OS X) . Select the paper type (Mac OS X).

Additional printing information … Web-based printing HP ePrint HP ePrint software .

Copy on both sides (duplex Optimize copy quality … Adjust the lightness or darkness for copies (LED control panel only)

Reduce or enlarge copies (LED control panel only)

Scan by using the HP Scan software (Windows) Scan by using the HP Scan software (Mac OS X) …

Connect and configure the product for fax Connect the product Configure the product …

Configure fax time, date, and header . Control pane HP Fax Setup Wizard (Windows) Configure for stand-alone fax

Configure for an answering machine

Configure for an extension phone

Install the HP Fax software (Windows, optional] Send a fax …

Send a fax by dialing manually from the product control panel … Send a fax using the HP software (Windows) Create, edit, and delete speed-dial entries … Create and edit speed-dial entries

Delete speed-dial entries

Change the product connection type (Windows Use HP Web Services applications (touchscreen models only) HP Device Toolbox (Windows)

ENWW HP Utility for Mac OS X Open the HP Utility HP Utility features Product security features … Set or change the product password … Lock the product … Economy settings …

Print with EconoMode Configure the Sleep/Auto Off After setting … À Cartridge is low or Cartridge is very low message displays on the product control panel .

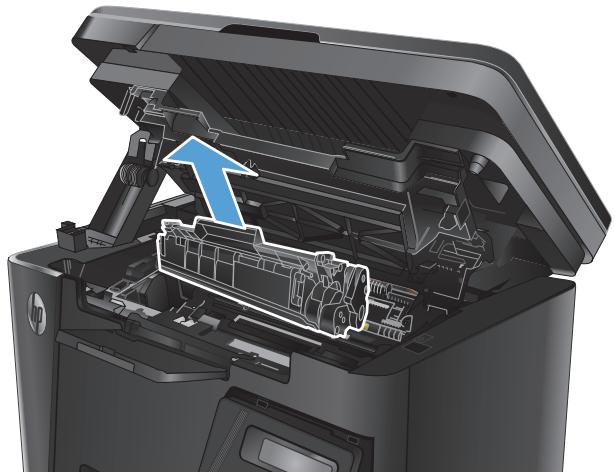

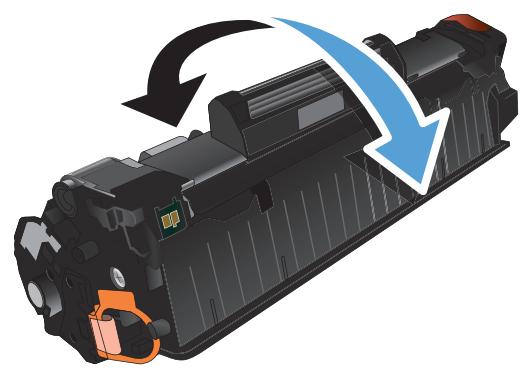

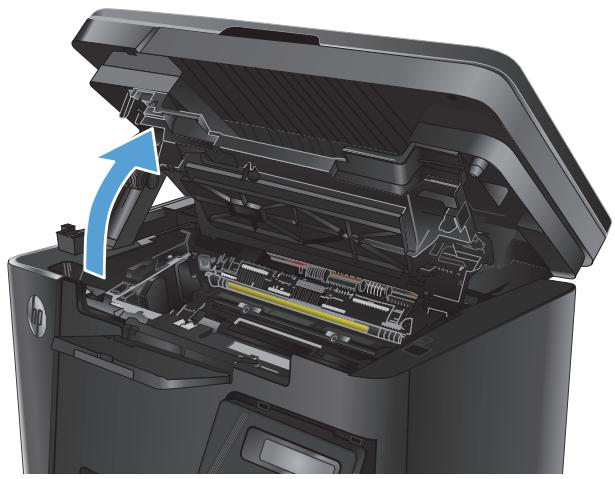

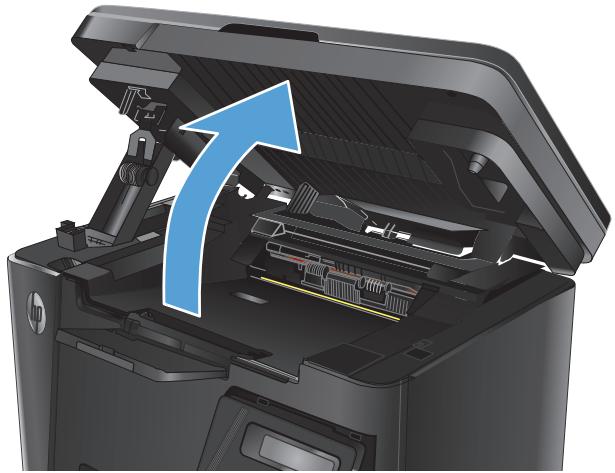

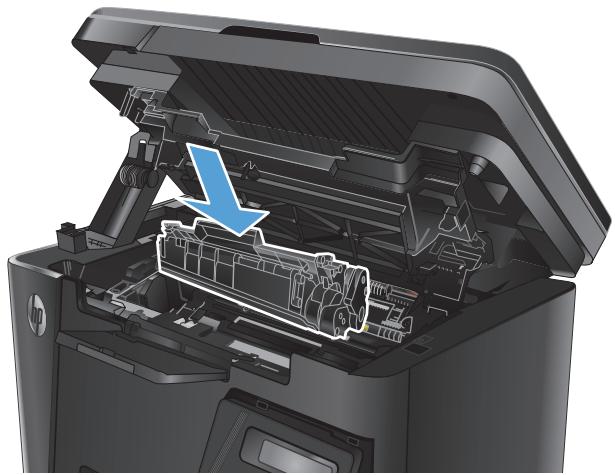

Enable or disable the Very Low settings … Replace the toner cartridge ……

Control panel help system (touchscreen models only) …

Interpret control-panel light patterns (LED model only) .… Print information pages … Configuration page

Supplies status page Restore the factory-set defaults Solve paper feed or jam problems .

The product does not pick up paper … The product picks up multiple sheets of paper … Frequent or recurring paper jams

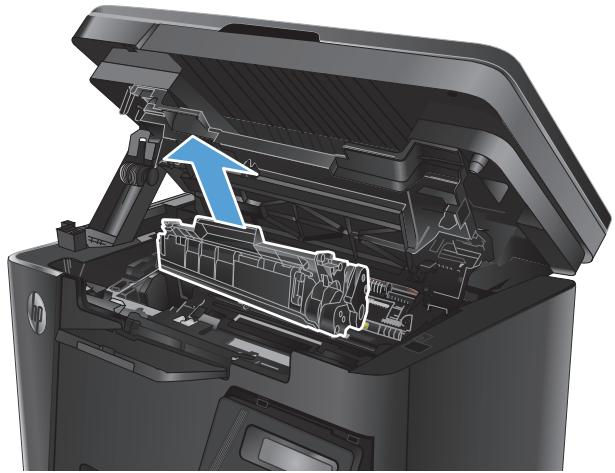

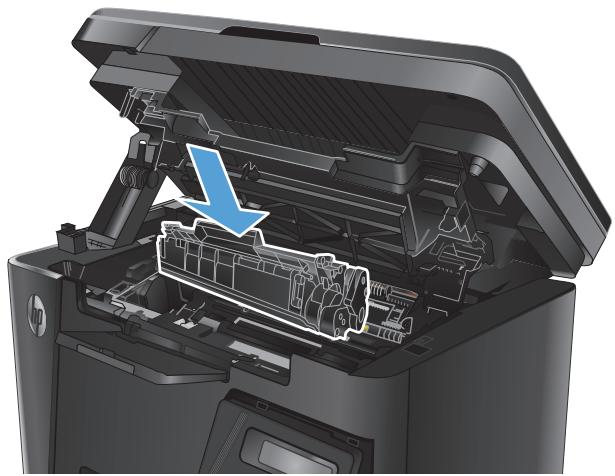

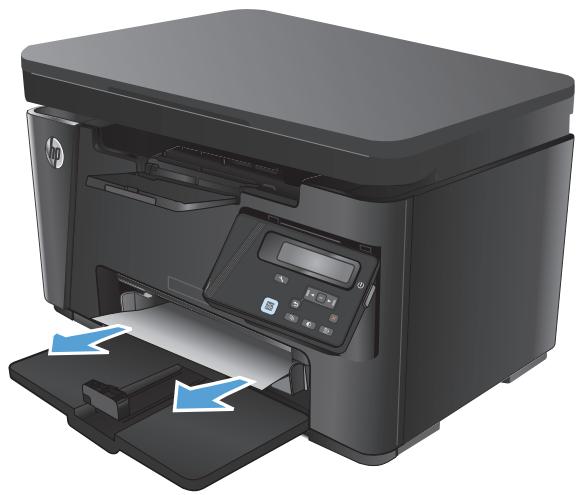

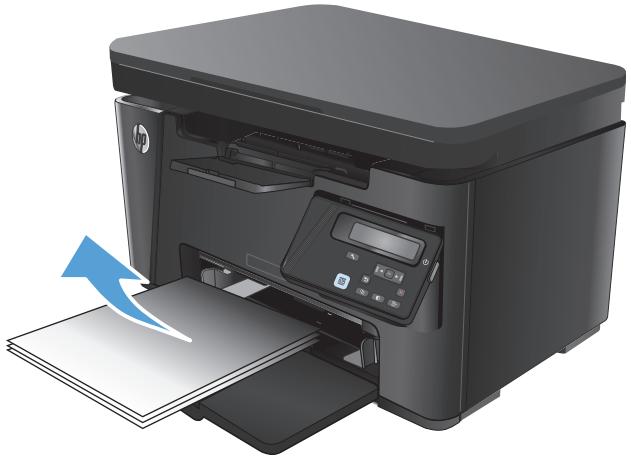

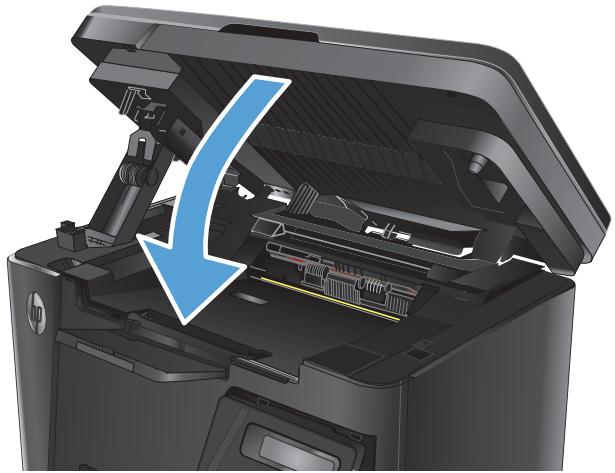

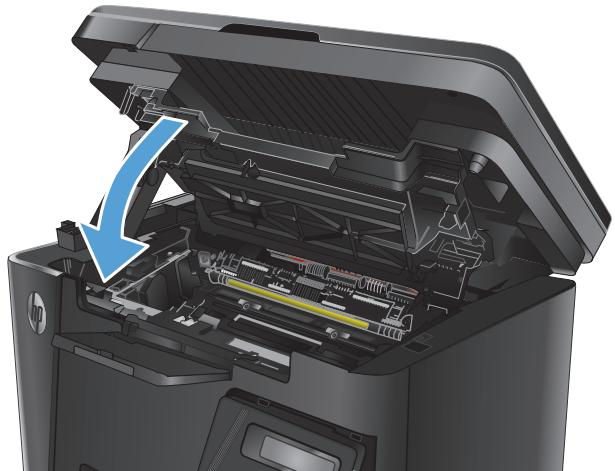

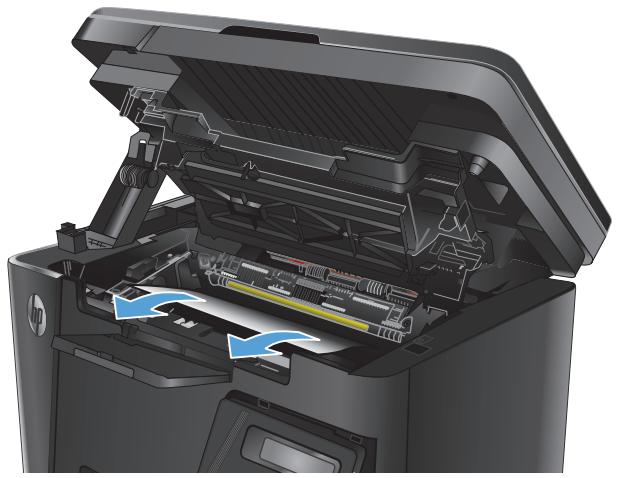

Prevent paper jams Clear jams from the input tray Clear jams in the toner-cartridge area.

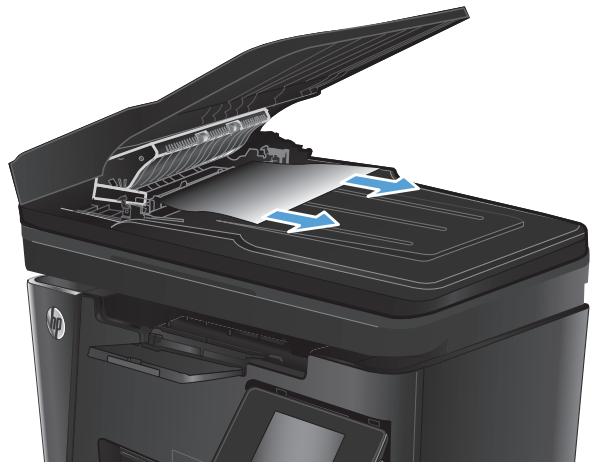

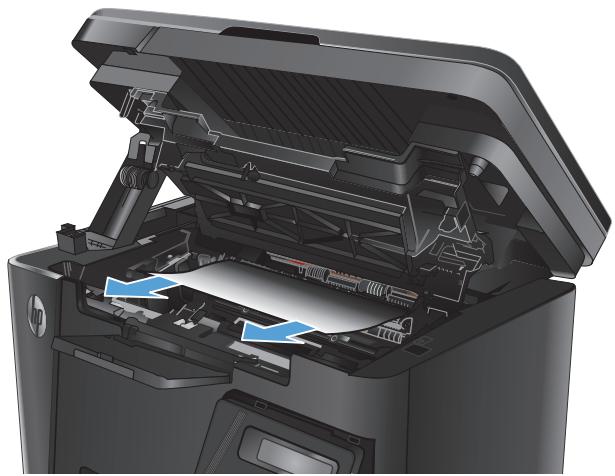

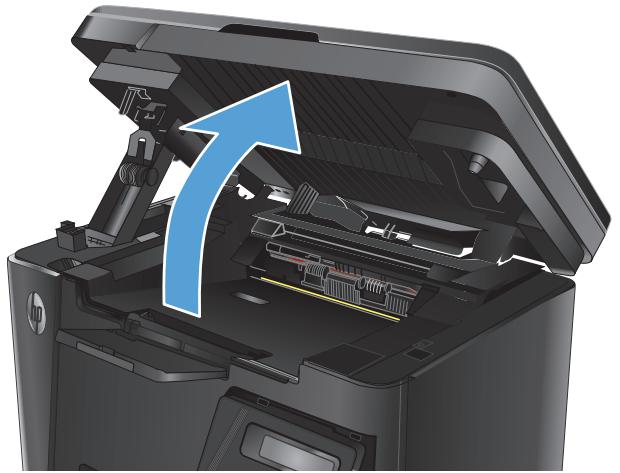

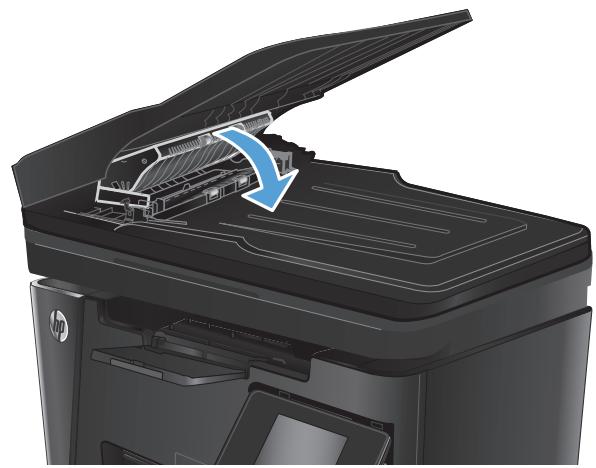

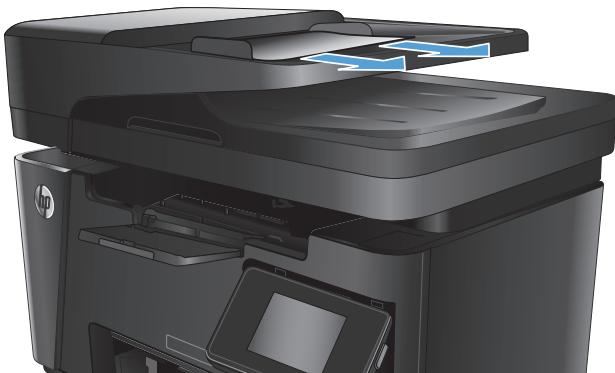

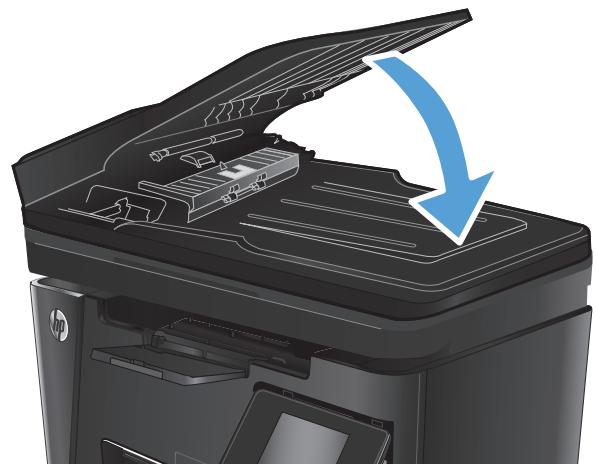

Clear jams in the output bin … Clear jams in the document feeder … Improve print quality …

Print from a different software program … Set the paper-type setting for the print job Check the paper-type setting (Windows.

Check the paper-type setting (Mac OS X) Check the toner-cartridge status Print a cleaning page …

Inspect the toner cartridge for damage Check the paper and printing environment Use paper that meets HP specifications

Check the product environment Check the EconoMode settings

Improve copy and scan quality … Check the scanner glass for dirt and smudges Check the paper settings .

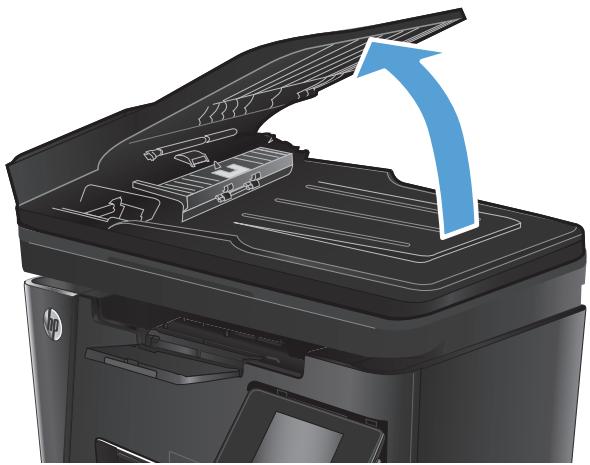

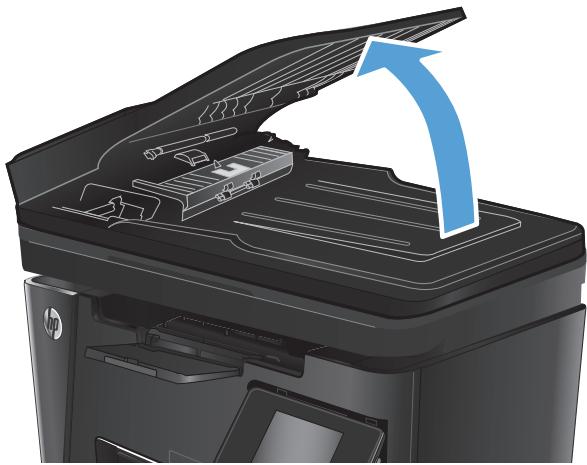

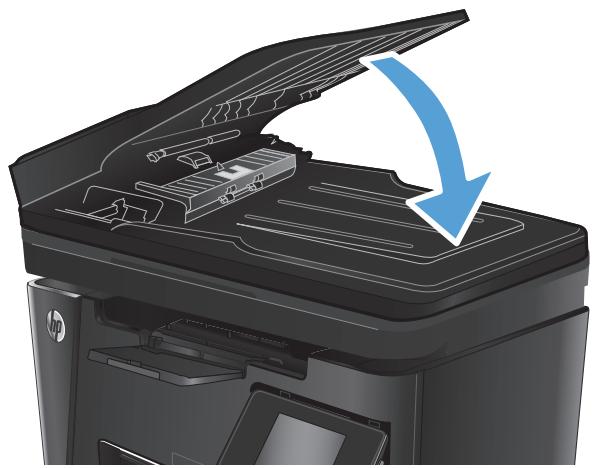

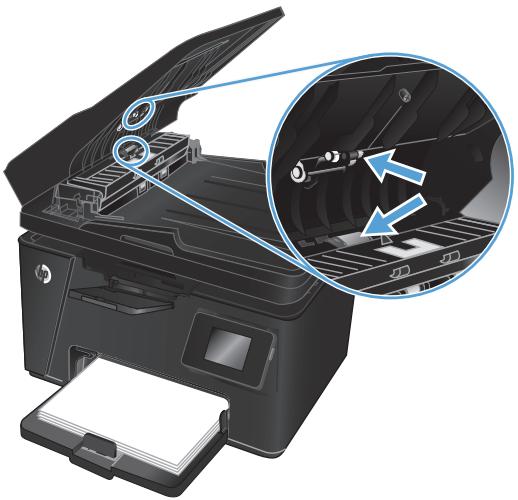

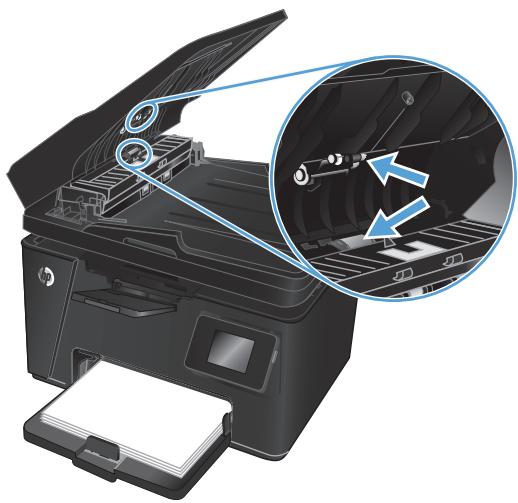

Optimize for text or picture: Edge-to-edge copying Clean the pickup rollers and separation pad in the document feeder …

Improve fax image quality … Check the scanner glass for dirt or smudges … Check the send-fax resolution setting Check the lightness/darkness setting . Check the Error Correction setting … Check the Fit-to-Page setting … Clean the pickup rollers and separation pad in the document feeder … Send to a different fax machine … Check the sender's fax machine

Solve wired network problems Poor physical connection The computer is using the incorrect IP address for the produc The computer is unable to communicate with the product … The product is using incorrect link and duplex settings for the network New software programs might be causing compatibility problems …

The computer or workstation might be set up incorrectly …

The product is disabled, or other network settings are incorrect Solve wireless network problems

Wireless connectivity checklist

The product does not print after the wireless configuration completes … The product does not print, and the computer has a third-party firewall installed … The wireless connection does not work after moving the wireless router or product …...

Cannot connect more computers to the wireless product …. The wireless product loses communication when connected to a VPN.

The network does not appear in the wireless networks list The wireless network is not functioning …. Perform a wireless network diagnostic test Reduce interference on a wireless network

Solve fax problems … Check the hardware setup Faxes are sending slowly

Fax quality is poor … Fax cuts off or prints on two pages

9 Parts, supplies, and accessories Order parts, accessories, and supplies … Customer self-repair parts

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

ENWW Product comparison

Short-paper extender tool

Supported Windows XP, 32- operating bit systems

Windows Vista, 32-bit and 64-bit

Windows 7, 32-bit and 64-bit

Windows 8, 32-bit and 64-bit

Windows 2003 Server (32-bit and 64-bit), print and scan drivers only

NN NN KL OK NN Windows 2008 Server (32-bit and 64-bit), print and scan drivers only

NN N N N N Windows 2012 Server, print and scan drivers only

Mac OS X v10.6.8 or later

N N N N N Supported print drivers V4

N N N N The HP PCLmS print driver is included on the in-box CD as the default print driver.

Connectivity Hi-Speed USB20 V4 V4 10/10/1000 Ethernet LAN Ÿ Ÿ connection

Wireless network connection

NN NN NN EN Memory 128 MB RAM V4

2 Chapter 1 Product introduction ENWW M125a, M125r, M125ra, M126a

M125nw, M125rnw, M126nw

Prints 20 pages per minute (ppm) on A4-size paper and 21 ppmon

Flatbed scanner supports paper up to A4 or Letter- size

Copy resolution is 300 dots per inch (dpi)

Scan resolution up to 1200 dpi

V.34 with two RJ-11 fax ports

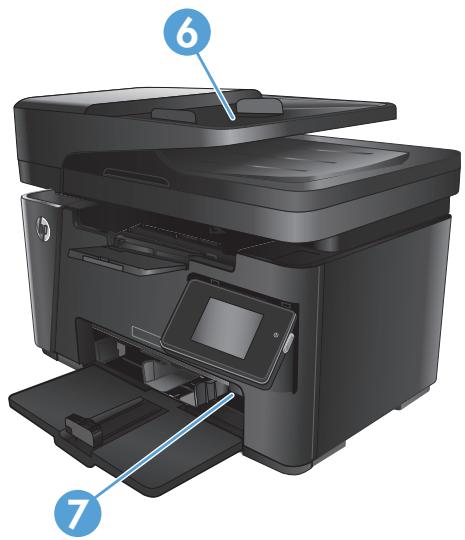

4 Control panel (tilts up for easier viewing and type varies by model) 5 Input tray

7 Short-paper extender tool

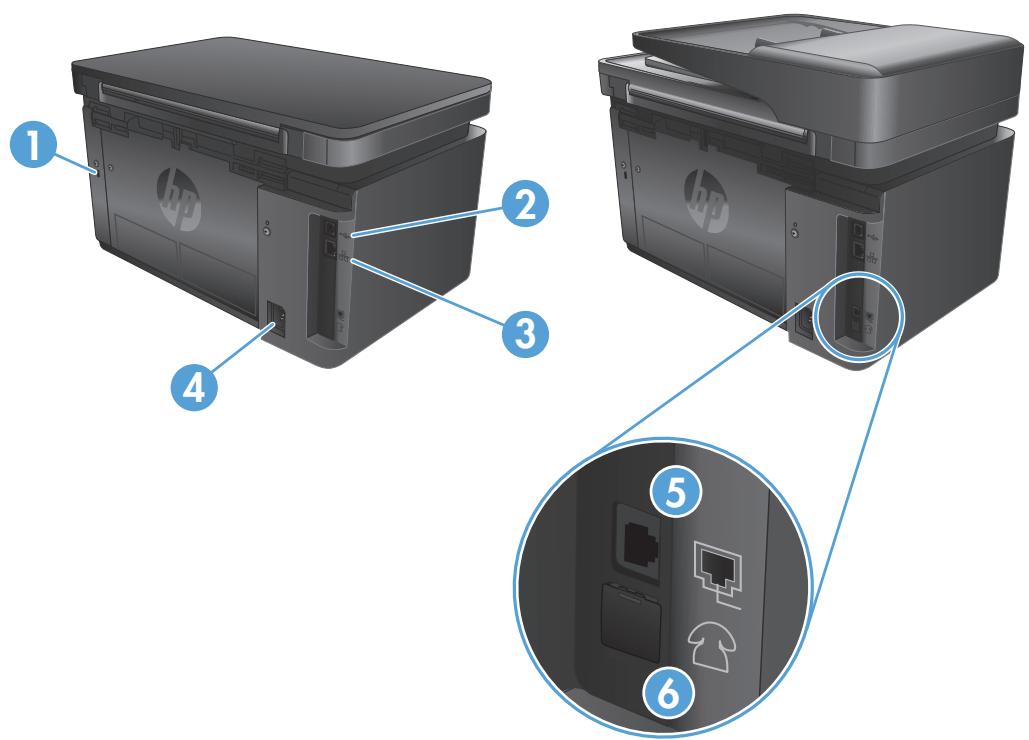

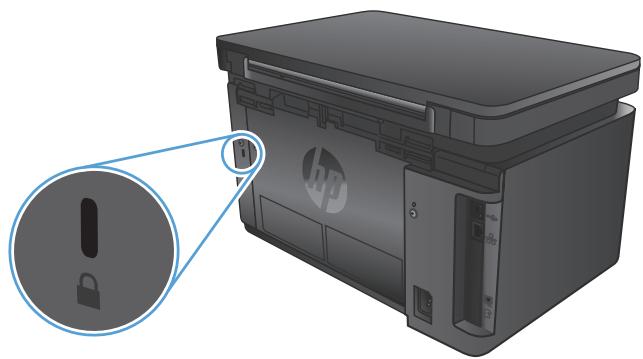

1 Slot for cable-type security lock

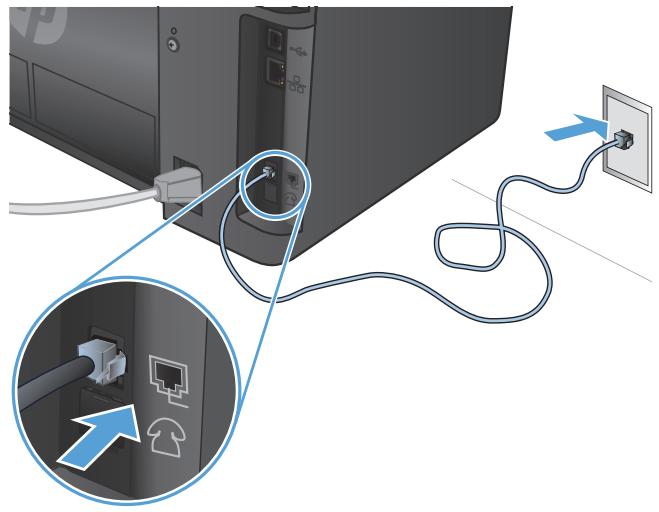

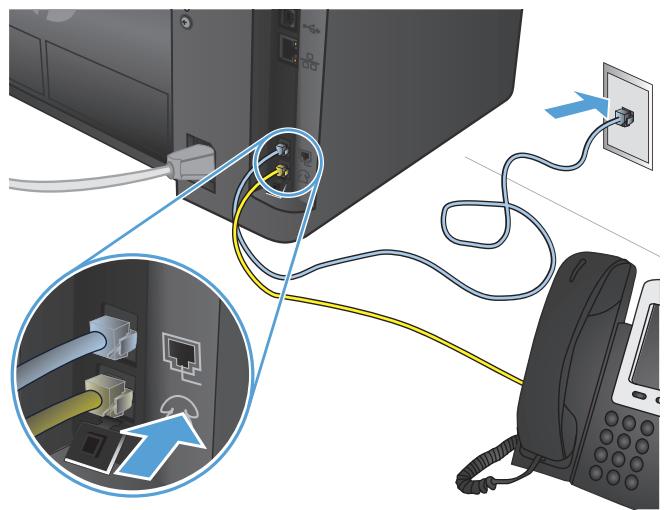

5 Fax “line in° port for attaching the fax phone line to the product

6 Telephone “line out" port for attaching an extension phone, answering machine, or other device

ENWW Product views 5

© Control-panel Home screen (touchscreen only)

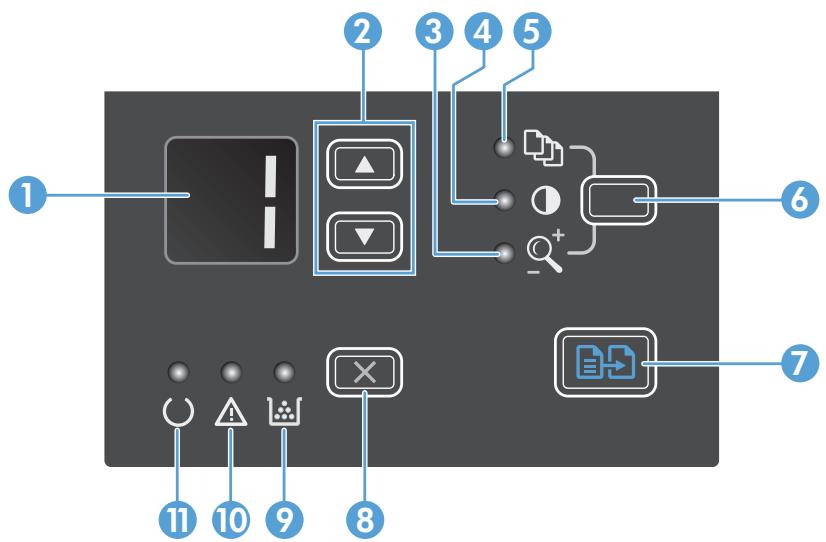

M125a, M125r, M125ra, M126a

1 LED display screen Displays the number of copies, the level of darkness for copies, and the percentage of copysize reduction or enlargement. It also shows error codes that alert you of problems that require attention.

2 Up and down arrows increases or decreases the number of copies, the level of darkness for copies, or the percentage

of copy-size reduction or enlargement.

+ Number of copies: Press the buttons for Less than one second to increase or decrease by 1 increment. Press the buttons for one second or longer to increase or decrease by 10 increments.

+ Level of darkness for copies: Press the buttons for less than one second to increase or decrease by 1 increment. Press the buttons for one second or longer to increase or decrease to the maximum or minimum value.

+ Percentage of copy-size reduction or enlargement: Press the buttons for less than one second to increase or decrease by 10% increments. Press the buttons for one second or longer to increase or decrease by 100% increments.

3 Reduce/Enlarge copy light Indicates the copy-size reduction or enlargement feature is active.

4 Darker/Lighter copy light Indicates the copy-darkness feature is active.

5 Number Of Copies light Indicates the number-of-copies feature is active.

6 Setup button Scrolls between the copy settings for number of copies, darkness, and copy size for each job. The

default option is the number of copies. To change the default settings for all jobs, scroll to the setting and then press and hold the button for 3 seconds. When the light is blinking, adjust the setting. Press this button again to save the setting.

6 Chapter 1 Product introduction ENWW

7 Start Copy button Starts a copy job.

8 Cancel button Cancels the current job, or clears the last setting you made. When the product is in the Ready state, press this button to reset the copy settings to the default values.

9 Toner-level status light Indicates the level of toner in the print cartridge is Low.

10 Attention light Indicates a problem with the product.

11 Ready light Indicates the product is ready or is processing a job.

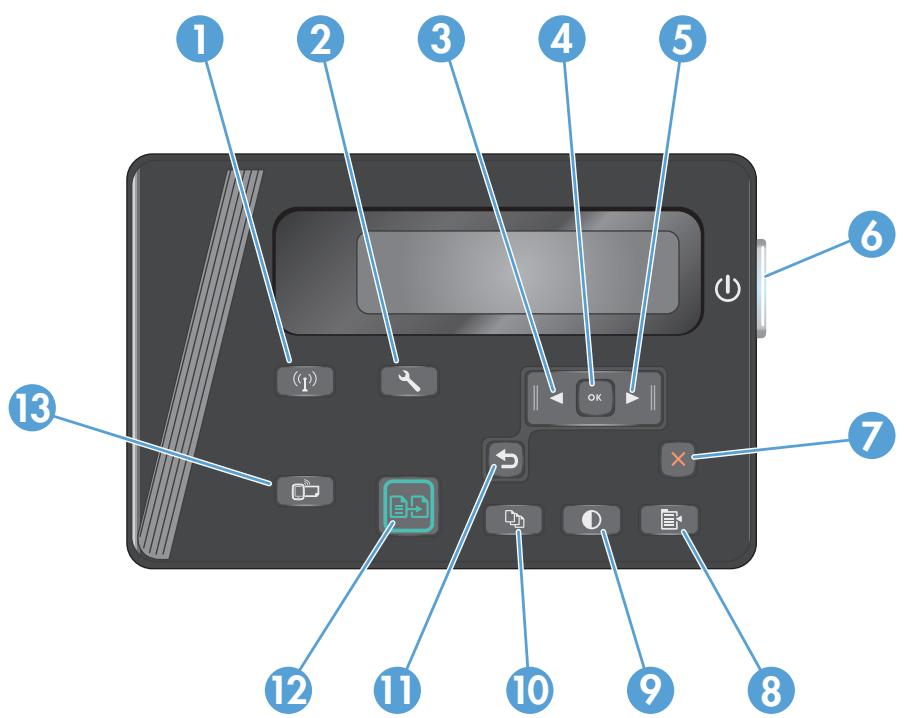

M125nw, M125rnw, M126nw

1 Wireless button Enable/Disable wireless 2 Setup button Opens the Setup menu 3 Left arrow button Moves the cursor to the left or scrolls through menu options 4 OK button Confirms a setting or confirms an action to proceed 5 Right arrow button Moves the cursor to the right or scrolls through menu options 6 Power on/off button Turns the product on or off 7 Cancel button Clears settings, cancels the current job, or exits the current menu 8 Copy Settings button Opens the Copy Settings menu 9 Lighter/Darker button Adjusts the darkness setting for the current copy job 10 Number of Copies button Sets the number of copies 1 Back button Returns to the previous screen ENWW Control panel overview

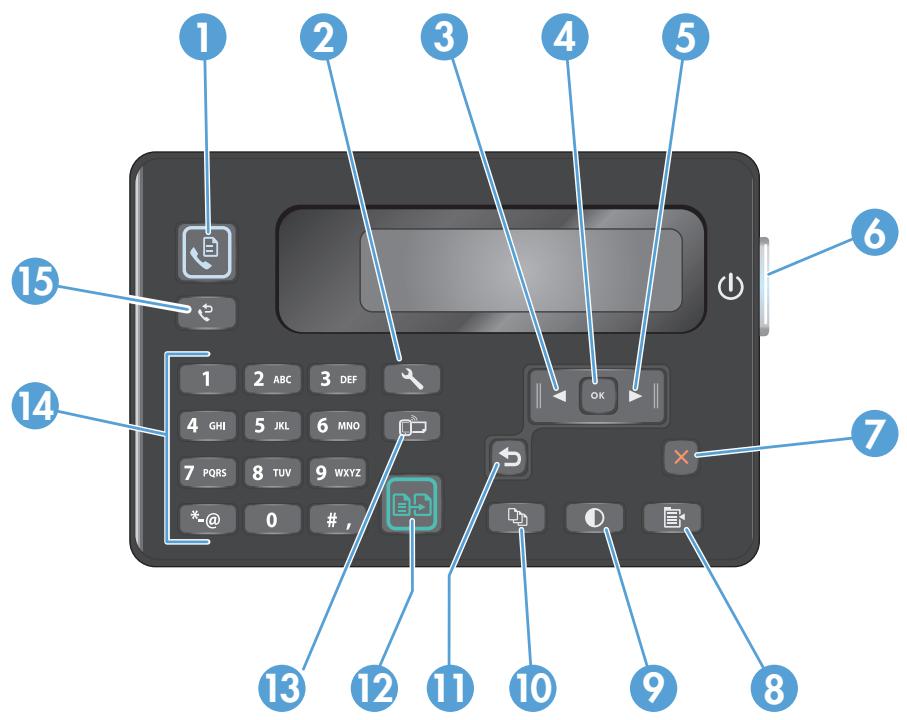

M127fn, M128fn, M127fp, M128fp

3 Left arrow button Moves the cursor to the left or scrolls through menu options 4 OK button Confirms a setting or an action to proceed

5 Right arrow button Moves the cursor to the right or scrolls through menu options 6 Power on/off button Turns the product on or off

7 Cancel button Clears settings, cancels the current job, or exits the current menu 8 Copy Settings button Opens the Copy Settings menu

9 Lighter/Darker button Adjusts the darkness setting for the current copy job

10 Number of Copies button Sets the number of copies

mn Back button Returns to the previous screen

Recalls the fax number used for the previous fax job

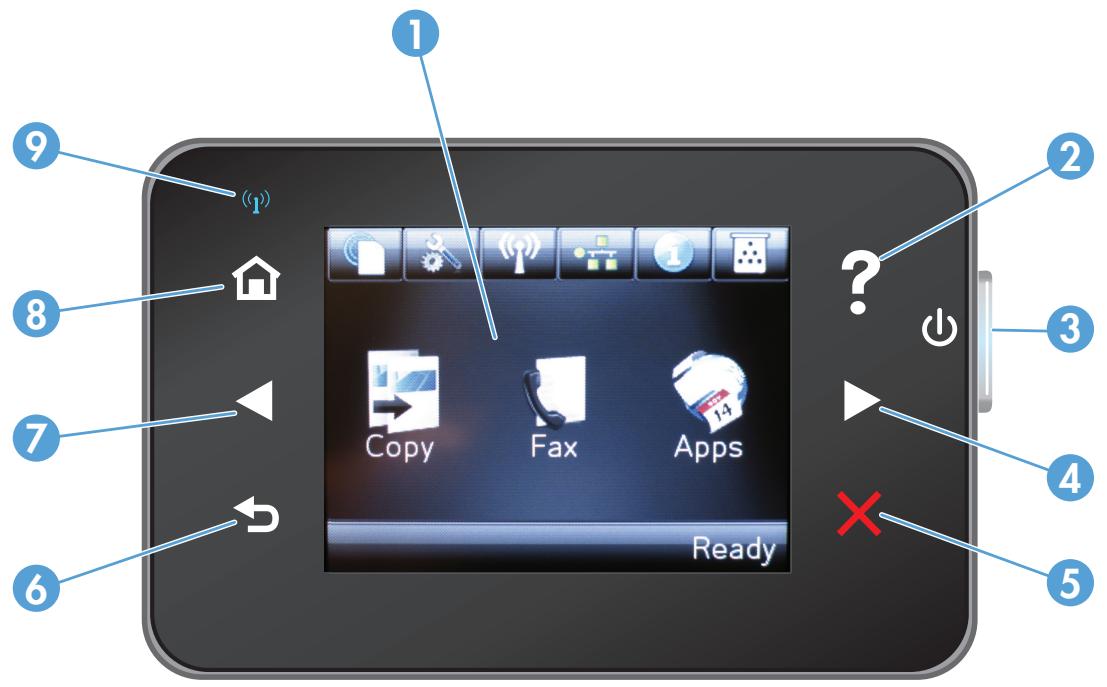

1 Touchscreen display Provides access to the product features and indicates the current status of the product 2 Help button and light Provides access to the control-panel help system 3 Power on/off button Turns the product on or off 4 Right arrow button Moves the cursor to the right or moves the display to the next screen NOTE: | This button illuminates only when the current screen can use this feature. 5 Cancel button Clears settings, cancels the current job, or exits the current screen NOTE: | This button illuminates only when the current screen can use this feature. 6 Back button and light Returns to the previous screen NOTE: | This button illuminates only when the current screen can use this feature. 7 Left arrow button Moves the cursor to the left or moves the display to the previous screen NOTE: | This button illuminates only when the current screen can use this feature. ENWW Control panel overview

8 Home button and light

Provides access to the Home screen

Indicates the wireless network is enabled. The light blinks while the product is establishing a connection to the wireless network.

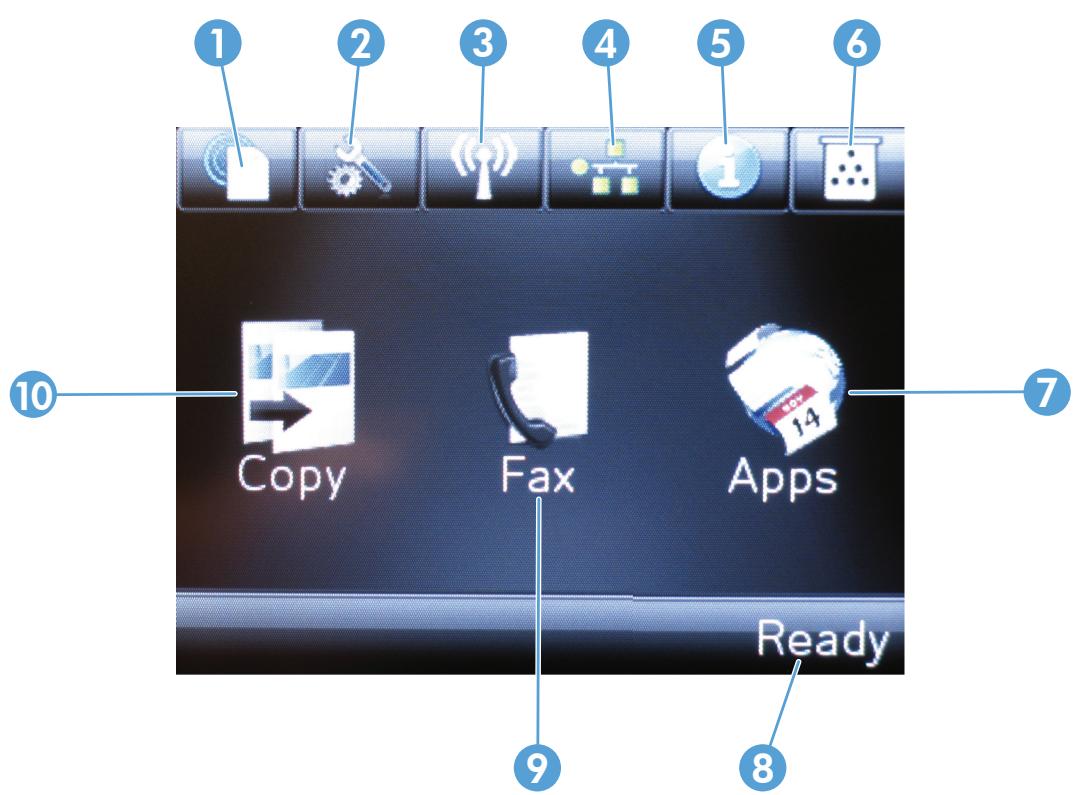

Control-panel Home screen (touchscreen only)

The Home screen provides access to the product features, and it indicates the product status.

ÊYNOTE: Depending on the product configuration, the features on the Home screen can vary. The layout might also be reversed for some languages.

1 HP Web Services button Provides quick access to HP Web Services features, including HP ePrint 2 Setup button Opens the Setup menu 3 Wireless button Provides access to the Wireless menu and wireless status information NOTE: When you are connected to a wireless network, this icon changes to a set of signal. strength bars. a Network button Provides access to network settings and information NOTE: This button displays only when the product is connected to a network. 5 Information button Provides product status information 6 Supplies button Provides information about supplies status

10 Chapter 1 Product introduction

7 Apps button Provides access to the Apps menu to print directly from select Web applications

8 Product status Provides information about the overall product status 9 Fax button Provides access to the fax feature 10 Copy button Provides access to the copy feature

ENWW Control panel overview 11

12 Chapter 1 Product introduction ENWW ENWW Paper trays

e Supported paper sizes and types e Loadtheinputtray

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

Supported paper sizes and types

e Supported paper sizes e Supported paper types

Supported paper sizes

ÊYNOTE: To obtain the best results, select the correct paper size and type in the print driver before printing.

Custom 76x 127 mmto 216 x 356 mm (3 x 5 into 8.5 x 14 in)

14 Chapter2 Paper trays

ENWW Supported paper types

ÊY NOTE: To obtain the best results, select the correct paper size and type in the print driver before printing.

ENWW Supported paper sizes andtypes 15

ÊY NOTE: When you add new paper, make sure that you remove all of the paper from the input tray and straighten the stack. Do not fan the paper. This reduces jams by preventing multiple sheets of paper from feeding through the product at one time.

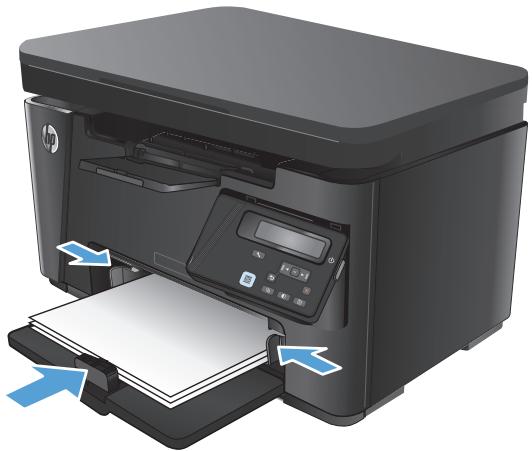

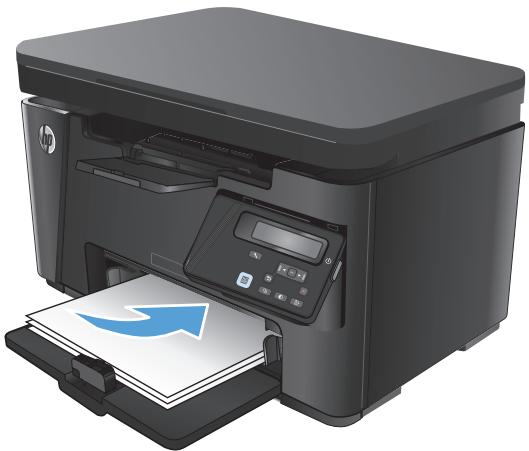

1. Load the paper face-up with the top forward in the input tray.

The orientation of the paper in the tray varies depending on the type of print job. For additional information, see Table 2-1 Input tray paper orientation on page 17.

2. Adjust the paper guides until they are snug against the paper.

16 Chapter2 Paper trays ENWW Table 2-1 Input tray paper orientation

Paper type Duplex mode How to Load paper

Preprinted or Letterhead 1-sided printing or 2-sided printing Face-up Top edge leading into the product

Prepunched 1-sided printing or 2-sided printing Face-up Holes toward the left side of the product

Envelopes 1-sided printing Face-up Top edge toward the right of the tray, postage end entering the product last

ENWW Load the input tray

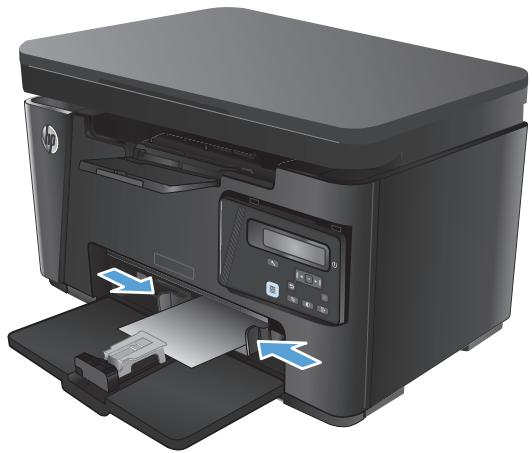

Tray adjustment for small paper sizes

To print on paper shorter than 185 mm (7.3 in), use the short-paper extender to modify the input tray.

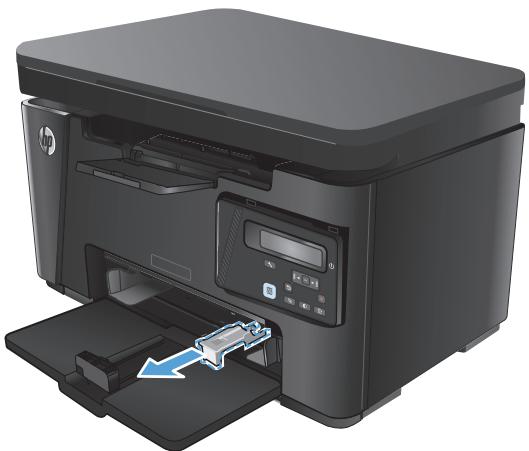

1. Remove the short-paper extender tool from the storage slot on the right side of the input area.

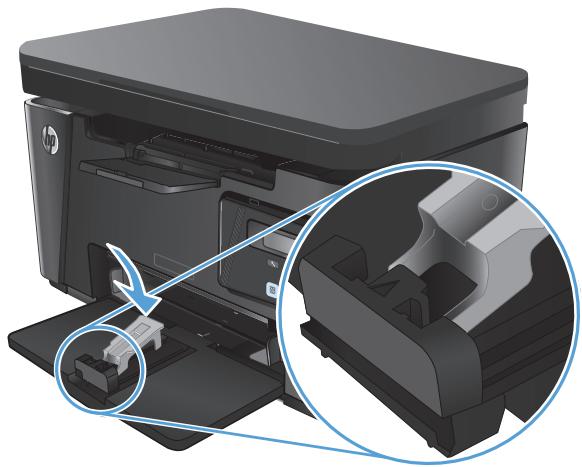

2. Attachthe tool to the paper length guide on the input tray.

3. Loadthe paper into the tray, and then adjust the paper guides until they are snug against the

18 Chapter2 Paper trays ENWW

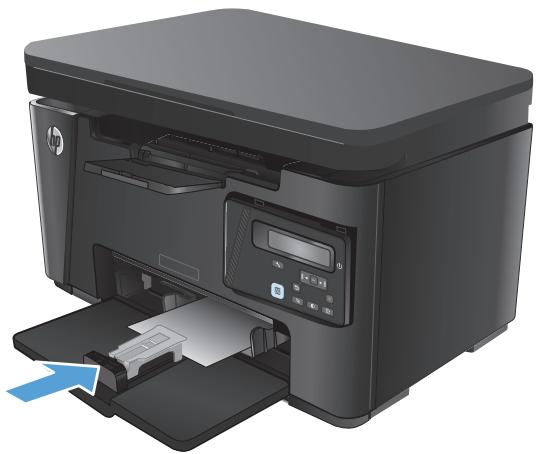

4. Pushthe paper into the product until it stops, and then push the paper Length guide in so the extender tool supports the paper.

5. When finished printing on short paper, remove the short-paper extender tool from the input tray, and then place it in the storage slot.

ENWW Loadtheinputtray 19

20 Chapter2 Paper trays ENWW ENWW Print

e Printtasks (Windows)

e Printtasks (Mac OS X)

e Web-based printing

e Setup HP Wireless Direct Printing

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

Print tasks (Windows) e How to print (Windows

© Manually print on both sides (Windows)

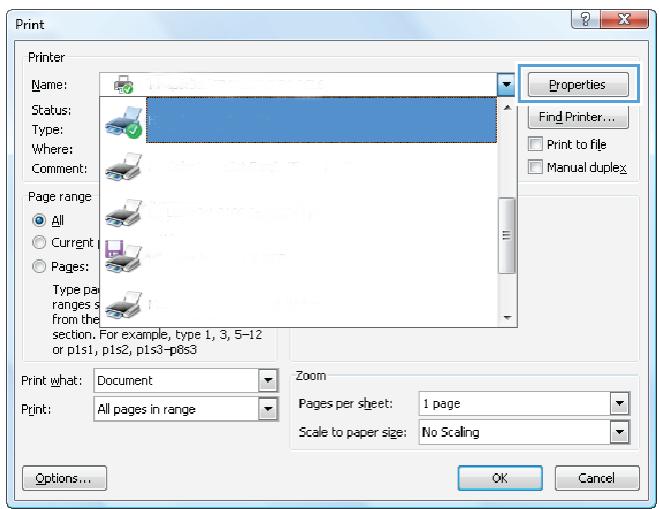

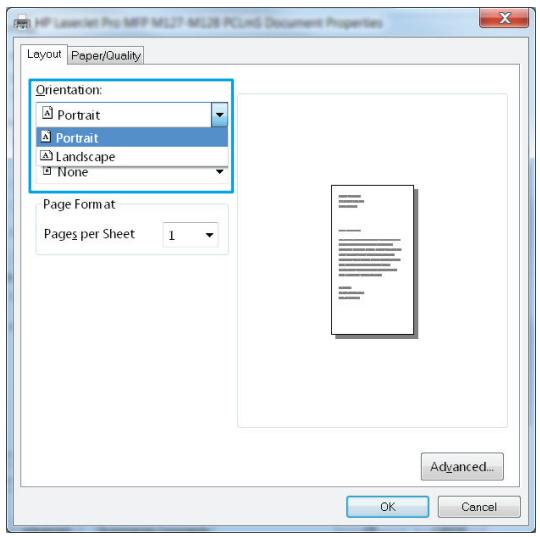

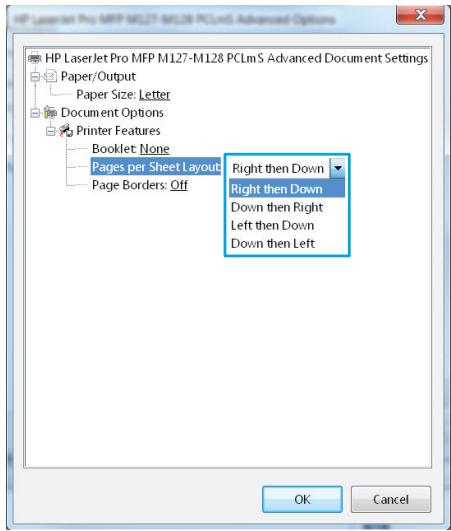

e Print multiple pages per sheet (Windows) e Select the paper type (Windows e Additional printing information

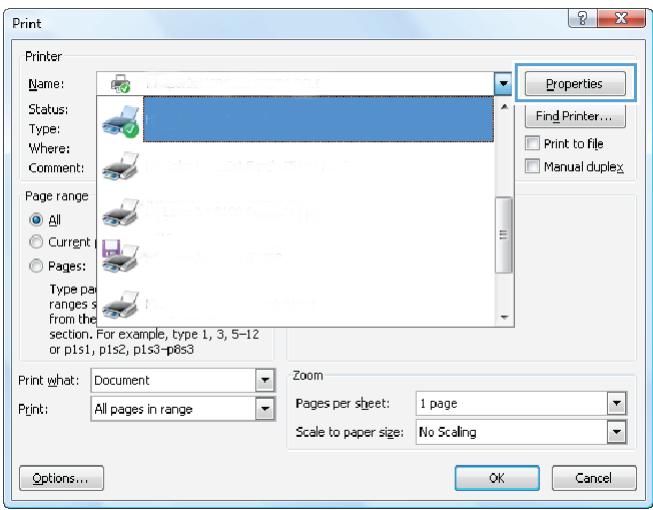

How to print (Windows) The following procedure describes the basic printing process for Windows. 1. Fromthe software program, select the Print option.

2. Select the product from the list of printers, and then click or tap the Properties or Preferences button to open the print driver.

ÊY NorE: The name of the button varies for different software programs.

3. Click or tap the tabs in the print driver to configure the available options.

4. Click or tap the OK button to return to the Print dialog box. Select the number of copies to print from this screen.

5. Click or tap the OK button to print the job.

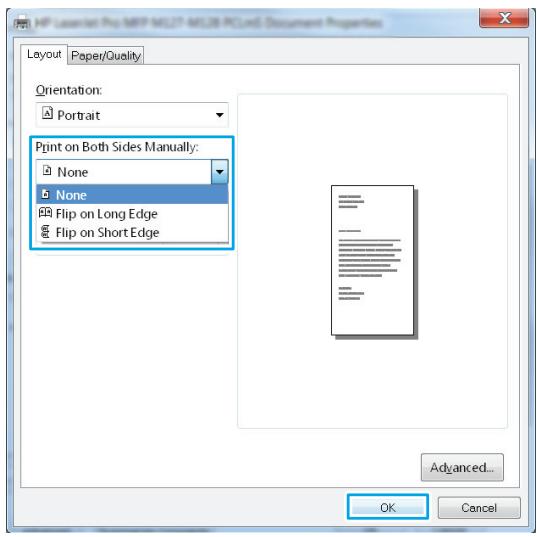

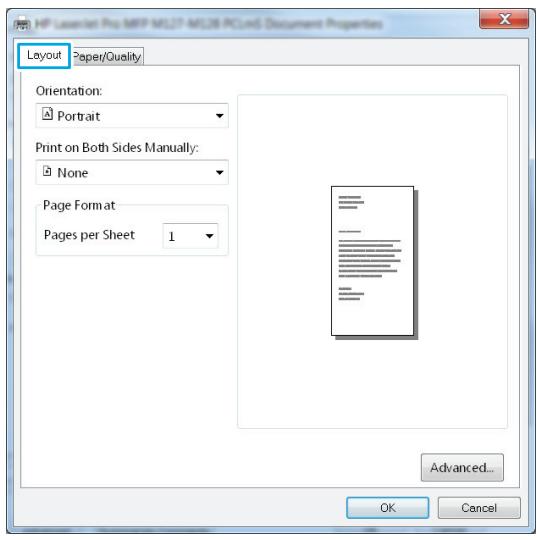

Manually print on both sides (Windows)

1. Fromthe software program, select the Print option.

2. Select the product from the list of printers, and Print then click or tap the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

secton. For exemple, pe 1, 3, 5-12 Or pist, pis2 pLsS-p6es

Brin (Al psges in serge D] More Die FH “Sale to peper sige: Mo Scahng El

Print on Both Sides Harnal & Hone -

Ft on Both Sides Hama 5 Hone

A Fhp an Long Edge E Hp an shorcedge

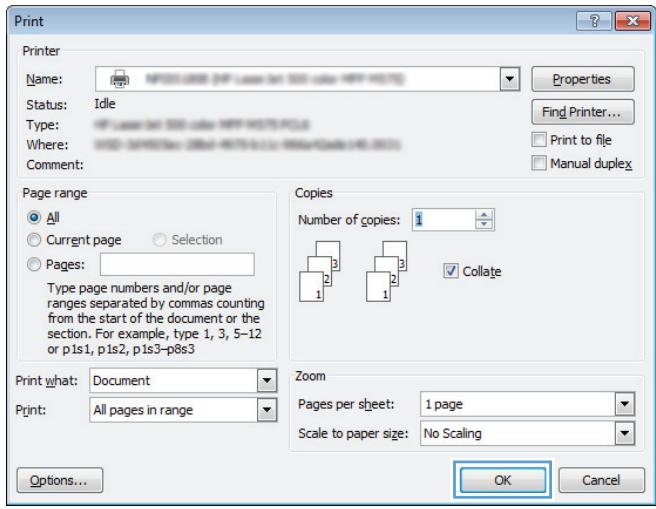

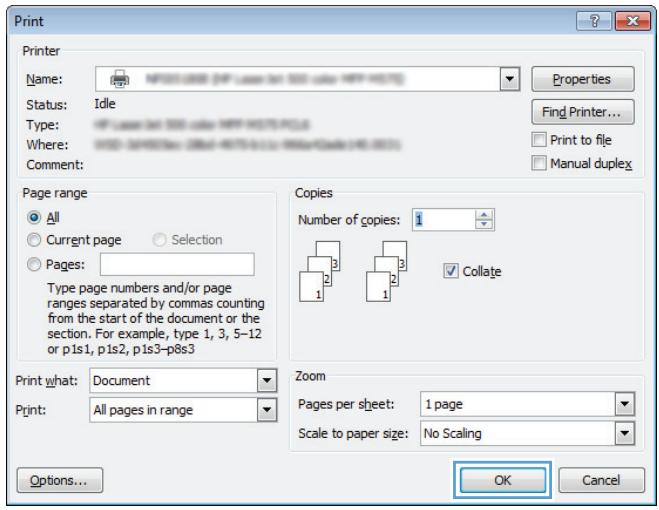

5. _Inthe Print dialog box, click or tap the OK button CC | to print the job. The product will print the first side of all the pages in the document first.

Pintuhat [Document F] 2 Pont (Alpagesniene g

ENWW Print tasks (Windows) 23

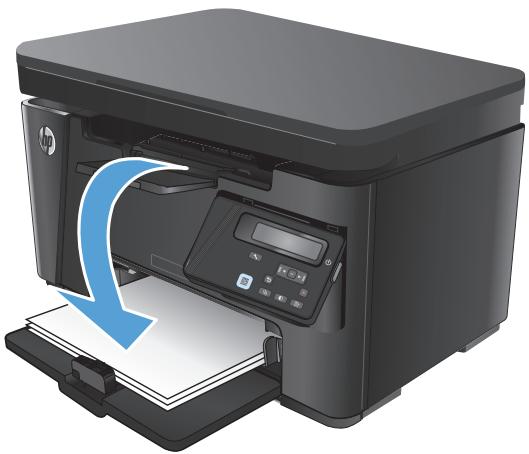

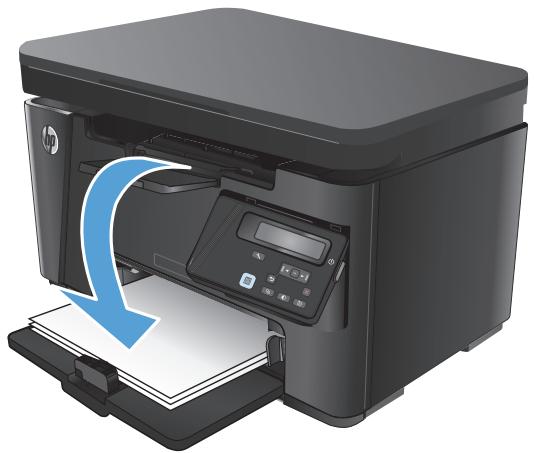

6. Retrieve the printed stack from the output bin, and place it with the printed-side facing down, top edge first in the input tray.

7. Atthe computer, click or tap the OK button to print the second side of the job.

8. If prompted, touch or press the appropriate control panel button to continue.

ENWW From the software program, select the Print option.

Select the product from the list of printers, and

then click or tap the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

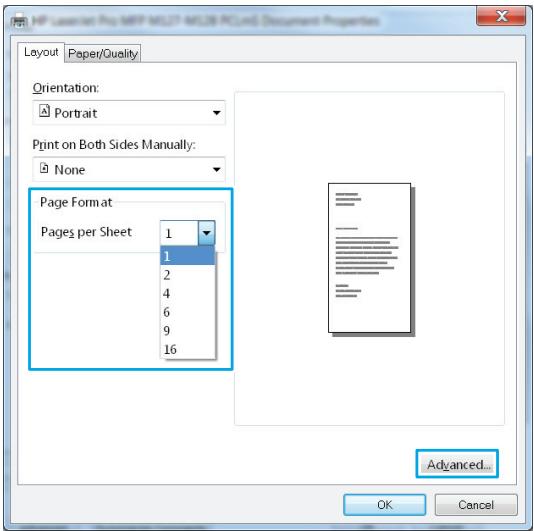

Click or tap the Layout tab.

Select the correct Orientation option from the drop-down list.

from the drop-down list.

26 Chapter3 Print ENWW

7. Select the correct Page Borders option from the drop-down list, click or tap the OK button to close the Advanced Options dialog box, and then click or tap the OK button to close the Properties or Preferences dialog box.

8. Inthe Print dialog box, click or tap the OK button to print the job.

Select the paper type (Windows)

1. Fromthe software program, select the Print option.

2. Select the product from the list of printers, and then click or tap the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

ENWW Laser ro AFP HAL N12E CLS Acance Dam enr Serange Papet/Output Paper Szs:Latee 5 Document Gpaons 8 Pants Feanes BockleeHone | Pages per

3. Click or tapthe Paper/Quality tab.

4. Fromthe Media: drop-down list, select the correct paper type, and then click or tap the OK button to close the Properties or Preferences dialog box.

5. _Inthe Print dialog box, click the OK button to print the job.

Additional printing information

Seal to paper 8e: Ne Scaing

Go to www.hp.com/support to visit the support Web site for this product and for details about performing

specific print tasks, such as the following:

ENWW ENWW Select the paper size Select the page orientation Create a booklet

Select the quality settings

Print tasks (Windows)

Print tasks (Mac OS X)

e Howto print (Mac OS X) © Manually print on both sides (Mac OS X)

e Print multiple pages per sheet (Mac OS X)

e Select the paper type (Mac OS X e Additional printing information

How to print (Mac OS X) The following procedure describes the basic printing process for Mac OS X. 1. Clickthe File menu, and then click the Print option. 2. Inthe Printer menu, select the product.

3. Openthe menus drop-down list or click Show Details, and then select other menus to adjust the print settings.

4. Clickthe Print button.

Manually print on both sides (Mac OS X)

ÊYNOTE: This feature is available if you install the HP print driver. It might not be available if you are using AïirPrint.

1. Clickthe File menu, and then click the Print option.

2. Inthe Printer menu, select the product.

5. Clickthe Print button. The product will print the first side of all the pages in the document first.

30 Chapter3 Print ENWW

6. Retrieve the printed stack from the output bin, and place it with the printed-side facing down, top edge first in the input tray.

7. Atthe computer, click the Continue button to print the second side of the job.

8. If prompted, touch the appropriate control panel button to continue.

Print multiple pages per sheet (Mac OS X) 1. Clickthe File menu, and then click the Print option. 2. Inthe Printer menu, select the product. 3. Openthe menus drop-down list or click Show Details, and then click the Layout menu.

4. Fromthe Pages per Sheet drop-down list, select the number of pages that you want to print on each sheet.

5. _Inthe Layout Direction area, select the order and placement of the pages on the sheet. 6. Fromthe Borders menu, select the type of border to print around each page on the sheet.

7. Clickthe Print button.

Select the paper type (Mac OS X) 1. Clickthe File menu, and then click the Print option. 2. Inthe Printer menu, select the product. 3. Openthe menus drop-down list or click Show Details, and then click the Finishing menu. 4. Select a type from the Media-type drop-down list.

5. Clickthe Print button.

Additional printing information

Go to www.hp.com/support to visit the support Web site for this product and for details about performing specific print tasks, such as the following:

ENWW Print tasks (Mac OS X)

e Create and use printing shortcuts or presets

e Select the paper size, or use a custom paper size

e Select the page orientation

e Scale a document to fit a specific paper size

e Printthe first or last pages of the document on different paper

e Print watermarks on a document

32 Chapter3 Print ENWW Web-based printing

Several options are available for remote printing over the Internet.

Use HP ePrint to print documents by sending them as an email attachment to the product's email address from any email enabled device.

To use HP ePrint, the product must meet these requirements: e The product must be connected to a wired or wireless network and have Internet access.

e HP Web Services must be enabled on the product, and the product must be registered with HP Connected.

LCD control panel 1. Findthe product IP address. a. Onthe product control panel, press the Setup X button. b. Openthe following menus: e Network Setup e ShowlIP Address

2. Toopen the HP Embedded Web Server, enter the product IP address into the address line of a Web browser on the computer.

3. Click the HP Web Services tab on the HP Embedded Web Server, and then click Enable. The product enables Web Services, and then prints an information page.

The information page contains the printer code that you use to register your HP product at HP Connected.

4. Goto www.hpconnected.com to create an HP ePrint account and complete the setup process.

Touchscreen control panel

1. Fromthe Home screen on the product control panel, touch the Web Services

2. Touchthe Enable Web Services button. The product enables Web Services, and then prints an information page.

The information page contains the printer code that you use to register your HP product at HP Connected.

3. Goto www.hpconnected.com to create an HP ePrint account and complete the setup process.

For more information, go to www.hp.com/support to view additional information for your product.

HP ePrint software The HP ePrint software makes it easy to print from a desktop or laptop computer to any HP ePrint-capable

product. After installing the software, open the Print option from your application, and then select HP ePrint from the installed printers list. This software makes it easy to find HP ePrint-enabled products that are

ENWW Web-based printing 33

registered to your HP Connected account. The target HP product can be at your desk or in a remote location, such as a branch office or across the globe.

For Windows, the HP ePrint software also supports traditional direct IP printing to local network printers on the network (LAN or WAN) to supported PostScript® products.

Go to www.hp.com/go/eprintsoftware for drivers and information.

ÊY NOTE: The HP ePrint software is a PDF workflow utility for Mac, and is not technically a print driver. HP ePrint software for Mac supports print paths only through HP Connected and does not support direct IP printing to local network printers.

Direct printing using Apple's AirPrint is supported for i0S 4.2 or later. Use AirPrint to print directly to the product from an iPad, iPhone (3GS or later), or iPod touch (third generation or later) in the following applications:

e Photos e Safari e _iBooks

e Select third-party applications

To use AirPrint, the product must be connected to the same wireless network as the Apple device. For more information about using AirPrint and about which HP products are compatible with AirPrint, go to

www.hp.com/go/airprint.

2? NOTE: AirPrint does not support USB connections. AirPrint provides print-only mobile functionality. AirPrint does not support scanning.

34 Chapter3 Print ENWW Set up HP Wireless Direct Printing

ÊY NOTE: This feature is available with wireless models only and the product might require a firmware update to use this feature.

The HP Wireless Direct Printing feature lets you print from your wireless mobile device directly to an HP Wireless Direct-enabled product without requiring connection to an established network or the Internet. Use HP Wireless Direct to print wirelessly from the following devices:

e iPhone, iPad, or iTouch using Apple AirPrint or the HP ePrint mobile app e Mobile devices that run Android or Symbian using the HP ePrint Home & Biz application e Any Wi-Fi capable computer with any operating system.

For more information on HP Wireless Direct, go to www.hp.com/go/wirelessprinting, and then click HP Wireless Direct.

To set up HP Wireless Direct from the control panel, complete the following steps:

LCD control panel 1. Atthe product control panel, press the OK button to open the menus. 2. Openthe following menus: e Network Setup e Wireless Menu e Wireless Direct

3. Select the On option, and then press the OK button. The product saves the setting and then returns the control panel to the Wireless Direct Settings menu.

Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Wireless ti button. 2. Openthe following menus: e Wireless Menu e Wireless Direct Settings e On/Off

3. Touch the On menuitem. The product saves the setting and then returns the control panel to the Wireless Direct Settings menu.

ENWW Set up HP Wireless Direct Printing 35

36 Chapter3 Print ENWW ENWW Copy

e Make a copy e Copy on both sides (duplex) e Optimize copy quality

e Adjust the lightness or darkness for copies (LED control panel only)

e Reduce or enlarge copies (LED control panel only)

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/ljMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

LED control panel 1. Load the document on the scanner glass according to the indicators on the product. 2. Closethe scanner. 3. Atthe product control panel, press the Setup (C7) button, and make sure that the Number of Copies D light is on. 4. Press the arrow buttons to adjust the number of copies. 5. Press the Start Copy 5 button to start copying. LCD control panel 1. Load the document on the scanner glass according to the indicators on the product. 2. Closethe scanner. 3. Atthe product control panel, press the Number of Copies BB button. 4. Select the number of copies. 5. Press the Start Copy 5) button to start copying.

Load the document on the scanner glass according to the indicators on the product. Close the scanner. From the Home screen on the product control panel, touch the Copy button.

Touch the arrows to change the number of copies, or touch the existing number and type the number of copies.

Touch the Start Copy button to start copying.

38 Chapter4 Copy ENWW Copy on both sides (duplex)

Load the document on the scanner glass according to the indicators on the product.

e LED and LCD control panels: On the product control panel, press the Start Copy 5) button

e Touchscreen control panel: From the Home screen on the product control panel, touch the Copy button.

Retrieve the printed page from the output bin, and place it with the printed-side facing down, top edge first in the input tray.

Flip the original document on the scanner glass to copy the second side. Start the copy job. e LED and LCD control panels: On the product control panel, press the Start Copy 5) button

e Touchscreen control panel: From the Home screen on the product control panel, touch the Copy button.

Repeat this process until you have copied all of the pages.

Copy on both sides (duplex)

Optimize copy quality

The following copy-quality settings are available:

Auto Select: Use this setting when you are not concerned about the quality of the copy. Mixed: Use this setting for documents that contain a mixture of text and graphics.

Text: Use this setting for documents that contain mostly text. This is the default setting for Copy Optimize.

Picture: Use this setting for documents that contain mostly graphics.

LED control panel 1. Clickthe Start button, and then click the Programs item. 2. Click your HP product group, and then click the HP Device Toolbox item. 3. Onthe Systems tab, click Copy Setup. LCD control panel 1. Load the document on the scanner glass according to the indicators on the product. 2. Closethe scanner. 3. Onthe product control panel, press the Copy Menu Ex button. 4. Openthe Optimize menu. 5. Use the arrow buttons to scroll through the options, and then press the OK button to select it. 6. Press the Start Copy B£) button to start copying.

Touchscreen control panel

Load the document on the scanner glass according to the indicators on the product.

From the Home screen on the product control panel, touch the Copy button.

Touch the Settings button, and then scroll to and touch the Optimize button.

Touch the arrow buttons to scroll through the options, and then touch an option to select it.

Touch the Start Copy button to start copying.

ENWW Adjust the lightness or darkness for copies (LED control panel only)

1... Onthe product control panel, press the Setup (C7) button repeatedly until the Darker/Lighter © light is on.

2. Use the arrow buttons to increase or decrease the Darker/Lighter setting.

ÉY NOTE: The setting returns to the default value after two minutes.

ENWW Adjust the lightness or darkness for copies (LED control panel only) 41

Reduce or enlarge copies (LED control panel only)

1. Load the document onto the scanner glass.

2. Onthe product control panel, press the Setup (7) button repeatedly until the Reduce/Enlarge & Light is on.

3. Press the up arrow to increase the copy size, or press the down arrow to decrease the copy size.

4. Press the Start Copy 5 button to start copying.

42 Chapter4 Copy ENWW

Scan by using the HP Scan software (Windows)

Scan by using the HP Scan software (Mac OS X)

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your

Solve problems. Download software updates. Join support forums.

Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

Scan by using the HP Scan software (Windows)

Use the HP Scan software to initiate scanning from software on your computer. You can save the scanned image as a file or send it to another software application.

Load the document on the scanner glass according to the indicators on the product.

ÊY NoTE: For best results, load small-size paper (Letter, A4, or smaller) with the long edge of the paper

along the left side of the scanner glass.

Click Start, and then click Programs (or Al Programs in Windows XP). Click HP, and then select your product. Click HP Scan, select a scanning shortcut, and then adjust the settings if necessary.

ÊYNoTE: Click Advanced Settings to gain access to more options.

Click Create New Shorteut to create a customized set of settings and save it in the list of shortcuts.

ENWW Scan by using the HP Scan software (Windows) 43

Scan by using the HP Scan software (Mac OS X)

Use the HP Scan software to initiate scanning from software on your computer.

1. Load the document on the scanner glass according to the indicators on the product.

ÊY NoTE: For best results, load small-size paper (letter, A4, or smaller) with the long edge of the paper along the left side of the scanner glass.

2. Openthe HP Scan software, whichis located in the Hewlett-Packard folder inside the Applications folder.

3. Followthe on-screen instructions to scan the document.

4. When you have scanned all the pages, click the Done button to save them to a file.

44 Chapter5 Scan ENWW ENWW Fax

e Connect and configure the product for fax

e Create, edit, and delete speed-dial entries

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

Connect and configure the product for fax

e Connectthe product e Configure the product

e Install the HP Fax software (Windows, optional)

The product is an analog device. HP recommends using the product on a dedicated analog telephone line.

ÊY NOTE: Some countries/regions might require an adapter for the telephone cable that came with the product.

1. Connect the telephone cable to the fax port

on the product and to the telephone jack on the wall.

2. (Optional) To connect an answering machine or extension phone, pull down the rubber plug from the telephone port £3 onthe product. Connect another telephone cable to the telephone port on the product and to the “line in” port on the answering machine or extension phone.

46 Chapter6 Fax ENWW Configure the product

How you configure the product varies depending on whether you set it up for standalone fax, with an answering machine, or with an extension phone.

ÊYNoTE: Configuring the fax time, date, and header settings is required to use the fax feature.

e Confiqure fax time, date, and header

e Confiqure for stand-alone fax

e Configure for an answering machine

e Configure for an extension phone

Configure fax time, date, and header

You might have configured these settings when you installed the software. You can configure these settings at any time by using the product control panel or the HP Fax Setup Wizard.

e Control panel e HP Fax Setup Wizard (Windows Control panel LCD control panel 1... Onthe product control panel, press the Setup X button. 2. Select System Setup, and then select Time/Date. 3. Select the 12-hour clock or 24-hour clock. 4. Use the keypad to enter the current time, and then press the OK button. 5. Select the date format. 6. Use the keypad to enter the current date, and then press the OK button. 7. Select Fax Setup, and then select Fax Header.

8. Use the keypad to enter your fax number, and then press the OK button.

ÊYNoTE: The maximum number of characters for the fax number is 20.

9. Use the keypad to enter your company name or header, and then press the OK button.

ÊÿNorE: The maximum number of characters for the fax header is 40.

Touchscreen control panel

1. Fromthe Home screen on the product control panel, touch the Setup EN button. 2. Select Fax Setup, and then select Basic Setup.

3. Select Time/Date.

ENWW Connect and configure the product for fax

4. Select the 12-hour clock or 24-hour clock.

5. Use the keypad to enter the current time, and then touch the OK button. 6. Select the date format.

7. Use the keypad to enter the current date, and then touch the OK button. 8. Select Fax Header.

9. Use the keypad to enter your fax number, and then touch the OK button.

ÊYNoTE: The maximum number of characters for the fax number is 20.

10. Use the keypad to enter your company name or header, and then touch the OK button.

To enter special characters that are not on the standard keypad, touch the @#$ button to open a keypad that contains special characters.

2f NOTE: The maximum number of characters for the fax header is 40.

HP Fax Setup Wizard (Windows) 1. Click Start, and then click Programs. 2. ClickHP, click the name of the product, and then click Fax Setup Wizard.

3. Follow the on-screen instructions to configure the fax settings.

Configure for stand-alone fax

You can use the product as a stand-alone fax machine without connecting it to a computer or a network.

LCD control panel 1. Onthe product control panel, press the Setup X button. 2. Select System Setup, and then select Time/Date. 3. Select the 12-hour clock or 24-hour clock. 4. Use the keypad to enter the current time, and then press the OK button. 5. Select the date format. 6. Use the keypad to enter the current date, and then press the OK button. 7. Select Fax Setup, and then select Fax Header.

8. Use the keypad to enter your fax number, and then press the OK button.

ÊYNorE: The maximum number of characters for the fax number is 20.

9. Use the keypad to enter your company name or header, and then press the OK button.

2f NOTE: The maximum number of characters for the fax header is 40.

48 Chapter6 Fax ENWW Touchscreen control panel 1. From the Home screen on the product control panel, select Setup à 2. Select Fax Setup, and then select Fax Set-Up Utility.

3. Follow the on-screen prompts and select the appropriate response for each question.

E NOTE: The maximum number of characters for the fax number is 20. The maximum number of characters for the fax header is 40.

ENWW Connect and configure the product for fax 49

Configure for an answering machine

If you connect a telephone answering machine to the product, you need to configure the Rings to Answer and Answer Mode settings for the product. Follow these steps to configure the product:

1. Onthe product control panel, press the Setup N button.

2. Select Fax Setup, and then select Fax Recv. Setup.

3. Select Rings to Answer.

4. Setthe product rings-to-answer setting for at least one ring more than the number of rings for which the answering machine is set. Use the keypad to enter the number of rings, and then press the OK button.

5. Press the Back + button to return to the Fax Recv. Setup menu.

6. Select Answer Mode.

With this setting, the product listens for fax tones after the answering machine has picked up the call. The product picks up a call if fax tones are detected.

From the Home screen on the product control panel, select Setup EN Select Fax Setup, and then select Basic Setup. Select Rings to Answer.

Set the product rings-to-answer setting for at least one ring more than the number of rings for which the answering machine is set. Use the keypad to enter the number of rings, and then touch the OK button.

Select Back # to return to the Basic Setup menu. Select Answer Mode. Select TAM, and then touch the OK button.

With this setting, the product listens for fax tones after the answering machine has picked up the call. The product picks up a call if fax tones are detected.

Configure for an extension phone

If you connect an extension phone to the product, you need to change some fax settings for the product to work with this configuration. Follow these steps to configure the product:

LCD control panel 1. Onthe product control panel, press the Setup N button. 2. Select Fax Setup, and then select Fax Recv. Setup. 3. Select Extension Phone.

Chapter 6 Fax ENWW Make sure that the On option is selected.

With this setting turned on, you can alert the product to pick up the incoming fax call by pressing 1-2-3 sequentially on the telephone keypad. Turn this setting off only if you use pulse dialing or if you have a service from your telephone company that also uses the 1-2-3 sequence. The telephone company service does not work if it conflicts with the product.

Press the Back + button to return to the Fax Recv. Setup menu. Select Answer Mode. Select Fax/Tel, and then press the OK button.

With this setting, the product automatically picks up all calls and determines if the call is a voice or fax call. If the call is a fax call, the product handles the call as an incoming fax. If the incoming call is detected as a voice call, the product generates an audible synthesized ring to alert you of an incoming voice call.

Press the Back + button to return to the Fax Recv. Setup menu. Select Fax/Tel Ring Time.

Select the number of seconds after which the product should stop sounding the Fax/Tel audible ring to notify you of an incoming voice call, and then press the OK button.

From the Home screen on the product control panel, select Setup à Select Fax Setup, and then select Advanced Setup.

Select Extension Phone.

Make sure that the On option is selected.

With this setting turned on, you can alert the product to pick up the incoming fax call by pressing 1-2-3 sequentially on the telephone keypad. Turn this setting off only if you use pulse dialing or if you have a service from your telephone company that also uses the 1-2-3 sequence. The telephone company service does not work ifit conflicts with the product.

Select Back & twice to return to the Fax Setup menu. Select Basic Setup, and then select Answer Mode. Select Fax/Tel.

With this setting, the product automatically picks up all calls and determines if the call is a voice or fax call. If the call is a fax call, the product handles the call as an incoming fax. If the incoming call is detected as a voice call, the product generates an audible synthesized ring to alert you of an incoming voice call.

Select Back + twice to return to the Fax Setup menu. Select Advanced Setup, and then select Fax/Tel Ring Time.

Select the number of seconds after which the product should stop sounding the Fax/Tel audible ring to notify you of an incoming voice call.

Connect and configure the product for fax

Install the HP Fax software (Windows, optional)

With the HP Fax software, you can fax electronic documents from a computer if you meet the following requirements:

e The product is connected directly to the computer or to a network to which the computer is connected. e The product softwareis installed on the computer.

e The computer operating system is one that this product supports.

ÊY NOTE: The HP Fax software that came with the product is the only computer fax program that works With the product. The product is not compatible with fax software produced by other manufacturers.

If the HP Fax software is not installed on your computer, use one of the following methods to install the software.

e Software CD: Insert the software CD that shipped with your HP product into the computer, and then follow the on-screen instructions.

e. Download from the Web: Go to www.hp.com/support, click Drivers & Software, and then follow the on-screen instructions to download the latest HP software.

ÉYNOTE: When prompted by the software installer, make sure that HP Fax Software is selected as one of the software components to install.

52 Chapter6 Fax ENWW Send a fax

e Send a fax by dialing manually from the product control panel

e Send afax using the HP software (Windows)

ÂÀ CAUTION: To prevent damage to the product, do not use an original that contains correction tape, correction fluid, paper clips, or staples. Also, do not load photographs, small originals, or fragile originals into the document feeder.

Send a fax by dialing manually from the product control panel

LCD control panel 1. Loadthe document.

e _Ifyou are loading an original on the scanner glass, place it on the scanner glass face-down, in the left rear corner of the scanner glass.

e _Ifyou are loading multiple pages in the document feeder, load the pages face-up, and then adjust the paper guides until they are snug against the paper.

ÊY NOTE: If documents are in the document feeder and on the scanner glass at the same time, the product processes the document in the document feeder and not the one on the scanner glass.

2. Onthe product control panel, use the keypad to enter the fax number.

ÊÿNorE: To use access codes, credit cards, or calling cards, you must dial the fax number manually to allow for pauses and dialing codes. To send a fax to an international destination, dial manually to allow for pauses and international dialing codes. You cannot use speed dials with access codes, credit cards, calling cards, or to dial international destinations.

3. Pressthe Start Fax & button. The product starts the fax job.

ÊYNoTE: If you are faxing from the scanner glass and your document includes multiple pages, follow the control panel prompts to confirm and Load additional pages.

Touchscreen control panel 1. Loadthe document.

e _Ifyou are loading an original on the scanner glass, place it on the scanner glass face-down, in the left rear corner of the scanner glass.

e _Ifyou are loading multiple pages in the document feeder, load the pages face-up, and then adjust the paper guides until they are snug against the paper.

ÊYNoTE: If documents are in the document feeder and on the scanner glass at the same time, the product processes the document in the document feeder and not the one on the scanner glass.

2. Fromthe Home screen on the product control panel, select Fax.

3. Use the keypad to enter the fax number.

ÊY NorE: To use access codes, credit cards, or calling cards, you must dial the fax number manually to allow for pauses and dialing codes. To send a fax to an international destination, dial manually to allow for pauses and international dialing codes. You cannot use speed dials with access codes, credit cards, calling cards, or to dial international destinations.

4. Select Start Fax.

ÊFNore: If you are faxing from the scanner glass and your document includes multiple pages, follow the control panel prompts to confirm and load additional pages.

Send a fax using the HP software (Windows) 1. Loadthe document.

e If you are loading an original on the scanner glass, place it on the scanner glass face-down, in the left rear corner of the scanner glass.

e If you are loading multiple pages in the document feeder, load the pages face-up, and then adjust the paper guides until they are snug against the paper.

# NOTE: If documents are in the document feeder and on the scanner glass at the same time, the product processes the document in the document feeder and not the one on the scanner glass.

2. Click Start, click Programs (or All Programs in Windows XP), and then click HP. 3. Clickthe product name, and then click HP Send Fax. The fax software opens. 4. Enter the fax number of one or more recipients.

54 Chapter6 Fax ENWW Create, edit, and delete speed-dial entries You can store frequently dialed fax numbers (up to 100 entries) as speed-dial entries. e Create and edit speed-dial entries e Delete speed-dial entries

Create and edit speed-dial entries

LCD control panel 1... Onthe product control panel, press the Setup X button. 2. Select Fax Setup, and then select Phone Book. 3. Select Add/Edit. 4. Select an unassigned number for the new entry, and then press the OK button. 5. Use the keypad to enter the fax number for the entry, and then press the OK button.

6. Use the keypad to enter a name for the entry, and then press the OK button.

Touchscreen control panel 1. From the Home screen on the product control panel, touch the Fax button. 2. Select Fax Menu, and then select Phone Book Setup. 3. Select Individual Setup. 4. Select an unassigned number from the list. 5. Use the keypad to enter a name for the entry, and then touch the OK button.

6. Use the keypad to enter the fax number for the entry, and then touch the OK button.

Delete speed-dial entries

LCD control panel 1... Onthe product control panel, press the Setup X button. 2. Select Fax Setup, and then select Phone Book. 3. Select Delete.

4. Select the entry you want to delete, and then press the OK button.

ÊY NoTE: If you want to delete all speed-dial entries, select Delete AlL.

Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Fax button.

2. Select Fax Menu, and then select Phone Book Setup.

ENWW Create, edit, and delete speed-dial entries

3. Select Delete Entry.

4. Select the entry you want to delete, and then touch the OK button.

ÊYNoTE: If you want to delete all speed-dial entries, select Delete All Entries.

56 Chapter6 Fax ENWW ENWW Manage the product

e Change the product connection type (Windows)

e Use HP Web Services applications (touchscreen models only)

e HP Device Toolbox (Windows e HP Utility for Mac OS X

e Product security features ° Economysettings

e ACartridgeis low or Cartridge is very low message displays on the product control panel

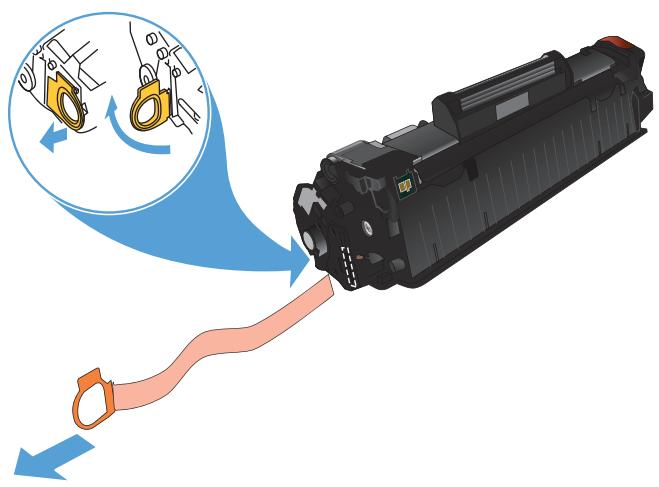

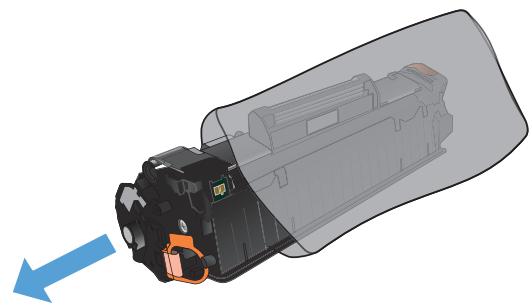

e Replacethe toner cartridge

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

Change the product connection type (Windows)

If you are already using the product and you wish to change the way it is connected, use the Reconfigure your HP Device shortcut on your computer desktop to change the connection. For example, you can reconfigure the product to use a different wireless address, to connect to a wired or wireless network, or change from a network connection to a USB connection. You can change the configuration without inserting the product CD. After you select the type of connection you wish to make, the program goes directly to the portion of the product setup procedure that needs to change.

58 Chapter7 Manage the product ENWW Use HP Web Services applications (touchscreen models only)

Several innovative applications are available for this product that you can download directly from the Internet. For more information and to download these applications go to the HP Connected Web site at www.hpconnected.com.

To use this feature, the product must be connected to a computer or network that has an Internet connection. HP Web Services must be enabled on the product.

1. From the Home screen on the product control panel, touch the Web Services

2. Touchthe Enable Web Services button.

After you download an application from the HP Connected Web site, it is available in the Apps menu on the product control panel. This process enables both HP Web Services and the Apps menu.

ENWW Use HP Web Services applications (touchscreen models only) 59

HP Device Toolbox (Windows)

Use the HP Device Toolbox for Windows to check product status or to view or change product settings from your computer. This tool opens the HP Embedded Web Server for the product.

ÊYNOTE: This tool is available only if you performed a full installation when you installed the product. Depending on how the product is connected, some features might not be available.

1. Clickthe Start button, and then click the Programs item.

2. Click your HP product group, and then click the HP Device Toolbox item.

Provides product, status, and configuration information.

Device Status: Shows the product status and shows the approximate percent Life remaining of HP supplies.

Supplies Status: Shows the approximate percent life remaining of HP supplies. Actual supply life remaining can vary. Consider having a replacement supply available to install when print quality is no longer acceptable. The supply does not need to be replaced unless the print quality is no longer acceptable.

Device Configuration: Shows the information found on the product configuration page.

Network Summary: Shows the information found on the product network configuration page.

Reports: Print the configuration and supplies status pages that the product generates.

Event Log: Shows a list of all product events and errors.

Provides the ability to configure the product from your computer.

Device Information: Provides basic product and company information. Paper Setup: Change the default paper-handling settings for the product. Print Quality: Change the default print-quality settings for the product.

EcoSMART Console: Change the default times for entering Sleep mode or Auto Power Down mode. Configure which events cause the product to wake.

Paper Types: Configure print modes that correspond to the paper types that the product accepts.

System Setup: Change the system defaults for the product. Service: Perform the cleaning procedure on the product.

Save and Restore: Save the current settings for the product to a file on the computer. Use this file to load the same settings onto another product or to restore these settings

to this product at a later time.

Administration: Set or change the product password. Enable or disable product features.

NOTE: _ The System tab can be password-protected. Ifthis product is on a network, always consult with the administrator before changing settings on this tab.

Provides the ability to change default print settings from your computer.

Printing: Change the default product print settings, such as number of copies and paper orientation. These are the same options that are available on the control panel.

60 Chapter7 Manage the product

ENWW ENWW Tab or section Description Fax tab < Phone Book: Add or delete entries in the fax phone book.

+ Junk Fax List: Set fax numbers to block from ending faxes to the product.

+ Fax Activity Log: Review recent fax activity for the product. Networking tab Network administrators can use this tab to control network-related settings for the product

Provides the ability to change network settings from your computer.

when it is connected to an IP-based network. It also allows the network administrator to set up Wireless Direct functionality. This tab does not appear if the product is directly connected to a computer.

Use this tab to set up and use various Web tools with the product.

HP Device Toolbox (Windows)

HP Utility for Mac OS X Use the HP Utility for Mac OS X to view or change product settings from your computer.

You can use the HP Utility when the product is connected with a USB cable or is connected to a TCP/IP-based network.

Open the HP Utility From the Finder, click Applications, click Hewlett-Packard, and then click HP Utility.

If HP Utility is not included, use the following procedure to openit:

1. Atthe computer, open the Apple @& menu, click the System Preferences menu, and then click the Print & Fax icon or the Print & Scan icon.

2. Select the product in the left side of the window.

The HP Utility toolbar is at the top of every page. It includes these items:

e Devices: Click this button to show or hide Mac products found by the HP Utility in the Printers pane at the left side of the screen.

e AllSettings: Click this button to return to the HP Utility main page.

e HP Support: Click this button to open a browser and go to the HP support Web site for the product.

e Supplies: Click this button to open the HP SureSupply Web site.

e Registration: Click this button to open the HP registration Web site.

e Recycling: Click this button to open the HP Planet Partners Recycling Program Web site.

HP Utility consists of pages that you open by clicking in the AU Settings list. The following table describes the tasks that you can perform with HP Utility.

Menu Item Description

Information and Support Supplies Status Show the product supplies status and provides links for ordering

Device Information Show information about the currently selected product, including the product Service ID (if assigned), the firmware version (FW Version), the Serial Number, and the IP address.

62 Chapter7 Manage the product ENWW ENWW Menu item Description File Upload Transfer files from the computer to the product. You can upload the following types of files: + HP LaserJet printer command language (.PRN) + Portable document format (.PDF) + Text (.TXT) HP Connected Access the HP Connected Web site. Information Message Center Display error events that have occurred with the product. Printer Settings Auto-off Configure the product to automatically turn off after a period of inactivity. You can adjust the number of minutes after which the product turns off. Network Settings Configure the network settings, such as the IPv4 settings, IPV6 settings, Bonjour settings, and other settings. Supplies Management Configure how the product should behave when supplies are nearing the end of their estimated life. Trays Configuration Change the paper size and type for each of the trays. Additional Settings Open the HP Embedded Web Server (EWS) for the product. NOTE: USB connections are not supported. Fax Settings Basic Fax Settings Set up the fields in the fax header and configure how the product answers incoming calls. Junk Fax Blocking Store the fax numbers you want to block. Fax Forwarding Set up the product to send the incoming faxes to a different number. Fax Logs View the Logs of all faxes. Fax Speed Dials Add fax numbers to the speed dial list.

HP Utility for Mac OS X

Product security features

The product supports security standards and recommended protocols that help you keep the product secure, protect critical information on your network, and simplify the way you monitor and maintain the product.

For in-depth information about HP's secure imaging and printing solutions, visit www.hp.com/go/ secureprinting. The site provides links to white papers and FAQ documents about security features.

Set or change the product password

Use the HP Embedded Web Server to set a password or change an existing password for a product on a network.

LCD control panel 1. Findthe product IP address. a. Onthe product control panel, press the Setup X button. b. Openthe following menus: e Network Setup e ShowlIP Address

2. To open the HP Embedded Web Server, enter the product IP address into the address line of a Web browser.

ÊYNoTE: You can also access the HP Embedded Web Server from the HP Device Toolbox for Windows or the HP Utility for Mac OS X.

3. Clickthe System tab, and then click the Product Security Link.

ÊYNorE: If a password has previously been set, you are prompted to provide the password. Enter the password, and then click the Apply button.

4. Enter the new password in the New Password box and in the Verify Password box.

5. Atthe bottom of the window, click the Apply button to save the password.

Touchscreen control panel

1: Fromthe Home screen onthe product control panel, touch the Network CE button to find the

2. To open the HP Embedded Web Server, enter the product IP address into the address line of a Web browser.

ÊY NOTE: You can also access the HP Embedded Web Server from the HP Device Toolbox for Windows or the HP Utility for Mac OS X.

3. Clickthe System tab, and then click the Product Security Link.

ÊY NoTE: If a password has previously been set, you are prompted to provide the password. Enter the password, and then click the Apply button.

64 Chapter7 Manage the product ENWW

4. Enter the new password in the New Password box and in the Verify Password box.

5. Atthe bottom of the window, click the Apply button to save the password.

1. You can attach a security cable to the slot onthe back of the product.

ENWW Product security features 65

Economy settings e Print with EconoMode

e Configure the Sleep/Auto Off After setting

Print with EconoMode

This product has an EconoMode option for printing drafts of documents. Using EconoMode can use less toner. However, using EconoMode can also reduce print quality.

HP does not recommend the full-time use of EconoMode. If EconoMode is used full-time, the toner supply might outlast the mechanical parts in the toner cartridge. lf print quality begins to degrade and is no longer acceptable, consider replacing the toner cartridge.

ÊY NoTE: If this option is not available in your print driver, you can set it using the HP Embedded Web Server.

1. Fromthe software program, select the Print option. 2. Select the product, and then click the Properties or Preferences button. 3. Clickthe Paper/Quality tab.

4. Click the EconoMode check box.

Configure the Sleep/Auto Off After setting

LCD control panel 1. Onthe product control panel, press the Setup N button. 2. Openthe following menus: e System Setup e Energy Settings e Sleep/Auto Off After

3. Use the arrow keys to select the time for the Sleep/Auto Off delay, and then press the OK button.

ÊY NorE: The default value is 15 Minutes.

4. The product automatically wakes when it receives jobs or when you press a button on the product control panel. You can change which events cause the product to wake. Open the following menus:

e System Setup e Energy Settings e Wake/Auto On Events

To turn off a wake event, select the event, and then select the No option.

66 Chapter7 Manage the product ENWW Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Setup EN button. 2. Openthe following menus: e System Setup © Energy Settings e Sleep/Auto Off After 3. Select the time for the Sleep/Auto Off delay.

ÊYNoTE: The default value is 15 Minutes.

4. The product automatically wakes when it receives jobs or when you touch the screen on the product control panel. You can change which events cause the product to wake. Open the following menus:

e System Setup e Energy Settings e Wake/Auto On Events

To turn off a wake event, select the event, and then select the No option.

ENWW Economy settings 67

A Cartridge is low or Cartridge is very low message displays on the product control panel

A Cartridge is low or Cartridge is very low message displays on the product control panel, and the product does not print.

ÊYNOTE: Toner level warnings and indicators provide estimates for planning purposes only. When an indicator shows low-toner levels, consider having a replacement cartridge available to avoid possible printing delays. You do not need to replace cartridges until print quality becomes unacceptable.

Once an HP toner cartridge has reached “very Low”, HP's Premium Protection Warranty on that toner cartridge has ended.

You can change the way the product reacts when supplies reach the Very Low state. You do not have to re- establish these settings when you install a new toner cartridge.

Enable or disable the Very Low settings

You can enable or disable the default settings at any time, and you do not have to re-enable them when you install a new toner cartridge.

1. Onthe product control panel, press the Setup X button.

2. Openthe following menus: e System Setup e Supply Settings e Black Cartridge e VeryLowSetting

3. Select one of the following options, and then press the OK button: e Select the Stop option to set the product to stop printing until you replace the toner cartridge.

e Select the Prompt option to set the product to stop printing and prompt you to replace the toner cartridge. You can acknowledge the prompt and continue printing.

e Select the Continue option to set the product to alert you that the toner cartridge is very Low, but to continue printing.

Touchscreen control panel 1. From the Home screen on the product control panel, touch the Setup EN button. 2. Openthe following menus: e System Setup

68 Chapter7 Manage the product ENWW

e Black Cartridge e VeryLowSetting 3. Select one of the following options: e Select the Stop option to set the product to stop printing until you replace the toner cartridge.

e Select the Prompt option to set the product to stop printing and prompt you to replace the toner cartridge. You can acknowledge the prompt and continue printing.

e Select the Continue option to set the product to alert you that the toner cartridge is very Low, but to continue printing.

For models with fax, when the product is set to the Stop option there is some risk that faxes will not print after the new cartridge is installed if your product has received more faxes than the memory can hold while stopped.

For models with fax, when the product is set to the Prompt option there is some risk that faxes will not print after the new cartridge is installed if your product has received more faxes than the memory can hold while the product is waiting for the prompt to be acknowledged.

Once an HP toner cartridge has reached Very Low, HP's Premium Protection Warranty on that toner cartridge has ended. Al print defects or cartridge failures incurred when an HP toner cartridge is used in Continue at very low mode will not be considered to be defects in materials or workmanship in the toner cartridge under the HP Print Cartridge Warranty Statement.

ENWW À Cartridge is Low or Cartridge is very low message displays on the product control panel 69

Replace the toner cartridge

When a toner cartridge approaches the end of useful life, you are prompted to order a replacement. You can continue printing with the current cartridge until redistributing the toner no longer yields acceptable print quality.

1. Liftthe scanner assembly.

2. Openthe top cover.

3. Remove the toner cartridge.

70 Chapter7 Manage the product ENWW

4. Remove the new toner cartridge from the bag. Place the used toner cartridge in the bag for recycling.

5. Grasp both sides of the toner cartridge and distribute the toner by gently rocking the cartridge.

CAUTION: Do not touch the shutter or the surface of the roller.

6. Bend the tab on the left side of the cartridge until the tab breaks loose. Pull the tab until all the tape is removed from the cartridge. Place the tab and tape in the toner cartridge box to return for recycling.

ENWW Replace the toner cartridge 71

7. Align the toner cartridge with the tracks inside the product, and then insert the toner cartridge untilit is firmly seated.

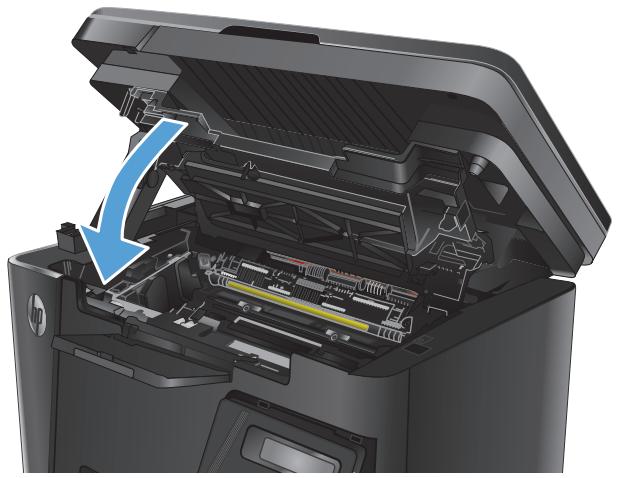

8. Closethe top cover.

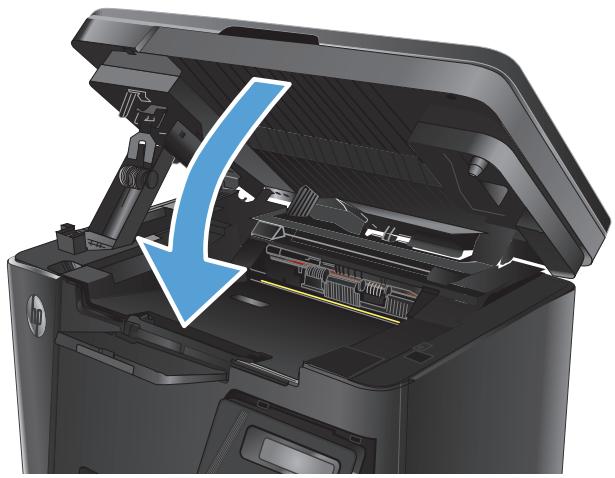

9. Lower the scanner assembly.

72 Chapter7 Manage the product ENWW

e Control panel help system (touchscreen models only)

e Interpret control-panel light patterns (LED model only)

e Print information pages

e Clearjamsin the document feeder e improve print quality

e improve copy and scan quality

e improve fax image quality

e Solve wired network problems

e Solve wireless network problems e Solve fax problems

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

ENWW Control panel help system (touchscreen models only)

The product has a built-in Help system that explains how to use each screen. To open the Help system, touch the Help ? button in the upper-right corner of the screen.

For some screens, the Help opens to a global menu where you can search for specific topics. You can browse through the menu structure by touching the buttons in the menu.

Some Help screens include animations that guide you through procedures, such as clearing jams.

For screens that contain settings for individual jobs, the Help opens to a topic that explains the options for that screen.

If the product alerts you of an error or warning, touch the Help ? button to open a message that describes the problem. The message also contains instructions to help solve the problem.

74 Chapter8 Solve problems ENWW Interpret control-panel light patterns (LED model only)

If the product requires attention, an error code appears on the control-panel display.

Table 8-1 Status-light legend

Le] Symbol for “light off"

© Symbol for “light on"

I Symbol for “light blinking" de —9-—

Table 8-2 Control-panel light patterns

Light status Error code

State of the product

The product is turned off or in low power mode.

Press the power button to turn on the product.

Ready and attention lights blink.

The status lights cycle during the formater initialization period or when the product is processing a cleaning page.

No action is required. Wait for the initialization period to end. The product should enter the ready state when the initialization period is finished.

The product is in the ready state.

No action is required. The product is ready to receive à print job.

Ready light is blinking.

The product is receiving or processing data.

No action is required. The product is receiving or processing a print job.

ENWW Interpret control-panel light patterns (LED model only)

Table 8-2 Control-panel light patterns (continued)

Light status Error code State of the product Action

Attention light is blinking. E0 Paper is jammed in the product. Clear the jam.

El The input tray is empty. Load the tray.

E2 A door is open. Verify that the print-cartridge door is fully closed.

E4 The toner cartridge is very low. Press the Start Copy button to continue or replace the toner cartridge.

ES The toner cartridge is very low. Replace the toner cartridge.

Ho The product is inmanual-feed Load the correct paper type

mode. and size into the input tray. Press the Start Copy button to continue.

H1 The product is processing à Load the pages into the input

manual duplex job. tray to print the second sides. Press the Start Copy button to continue.

The attention and toner lights E3 The print cartridge is missing or Install the print cartridge.

are blinking. is not installed correctly.

The toner light is on. The print cartridge has reached You do not need to replace the the endofits estimated useful print cartridge at this time life. When the supply has unless print quality is no longer reached this condition, the HP. acceptable.

Premium Protection warranty for that supply has ended.

The attention andready lights E6 The product has experienceda 1. Turn off the product or

are on. fatal error from which it cannot disconnect the power

E7 recover. cord from the product.

E8 2. Wait 30 seconds, and

then turn on the product

or reconnect the power cord to the product.

3. Wait for the product to initialize.

Ifthe error persists, contact HP customer support.

Chapter 8 Solve problems

ENWW Print information pages

Information pages reside within the product memory. These pages help diagnose and solve problems with the product. Configuration page

The configuration page lists current product settings and properties. It also contains a status log report. To print a configuration page, do the following:

1. Fromthe product control panel, press and hold the Cancel (X) button for 10 seconds.

2. Release the Cancel(X)button.

LCD control panel 1. Fromthe product control panel, press the Setup N button. 2. Openthe Reports menu.

3. Use the arrow keys to select Config Report and then press the OK button to begin printing the report.

3. Touchthe Configuration Report button. Supplies status page

1. Fromthe product control panel, press and hold the Cancel (X) button for 10 seconds.

2. Release the Cancel(X)button.

The supplies status page prints after the configuration page prints.

LCD control panel 1. Onthe product control panel, press the Setup X button. 2. Openthe following menus: e Reports e Supplies status

3. Use the arrow keys to select Print Supplies status page, and then press the OK button.

ENWW Print information pages

Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Supplies & button.

2. Touchthe Report button to print the supplies status page.

78 Chapter8 Solve problems ENWW Restore the factory-set defaults

Restoring the factory-set defaults returns all of the product and network settings to the factory defaults. It Will not reset the page count, tray size, or language. To restore the product to the factory-default settings, follow these steps.

À CAUTION: Restoring the factory-set defaults returns all of the settings to the factory defaults, and it also deletes any pages that are stored in the memory.

LCD control panel 1. Fromthe product control panel, press the Setup N button. 2. Openthe Service menu. 3. Select the Restore Defaults option, and then touch the OK button. The product automatically restarts. Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Setup EN button. 2. Touchthe Service menu. 3. Select the Restore Defaults option, and then touch the OK button.

The product automatically restarts.

ENWW Restore the factory-set defaults

Solve paper feed or jam problems

If the product has recurring problems with paper feeding or with jams, use the following information to reduce the number of occurrences.

The product does not pick up paper

If the product does not pick up paper from the tray, try these solutions.

Open the product and remove any jammed sheets of paper. Load the tray with the correct size of paper for your job. Make sure the paper size and type are set correctly on the product control panel.

Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides to the appropriate indentation in the tray.

Check the product control panel to see if the product is waiting for you to acknowledge a prompt to feed the paper manually. Load paper, and continue.

The pickup roller and separation pad might be contaminated.

The product picks up multiple sheets of paper

If the product picks up multiple sheets of paper from the tray, try these solutions.

Remove the stack of paper from the tray and flex it, rotate it 180 degrees, and flip it over. Do not fan the paper. Return the stack of paper to the tray.

Use only paper that meets HP specifications for this product. Use paper that is not wrinkled, folded, or damaged. If necessary, use paper from a different package.

Make sure the tray is not overfilled. If it is, remove the entire stack of paper from the tray, straighten the stack, and then return some of the paper to the tray.

Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides to the appropriate indentation in the tray.

Make sure the printing environment is within recommended specifications.

Frequent or recurring paper jams

Follow these steps to solve problems with frequent paper jams. If the first step does not resolve the problem continue with the next step until you have resolved the problem.

If paper has jammed in the product, clear the jam and then print a configuration page to test the product.

Check that the tray is configured for the correct paper size and type on the product control panel. Adjust paper settings if necessary.

Turn the product off, wait 30 seconds, and then turn it on again.

Print a cleaning page to remove excess toner from inside the product.

Chapter 8 Solve problems ENWW ENWW LED control panel a. Clickthe Start button, and then click the Programs item. b. Click your HP product group, and then click the HP Device Toolbox item.

The product prints the first side and then prompts you to remove the page from the output bin and reload it in Tray 1, keeping the same orientation. Wait until the process is complete. Discard the page that prints.

a. Fromthe Home screen on the product control panel, touch the Setup X button. b. Touchthe Service menu.

€ Touchthe Cleaning Page button.

d. Load plain letter or A4 paper when you are prompted.

e. Touchthe OK button to begin the cleaning process.

The product prints the first side and then prompts you to remove the page from the output bin and reload it in Tray 1, keeping the same orientation. Wait until the process is complete. Discard the page that prints.

Print a configuration page to test the product.

a. Press and hold the Cancel fX) button until the Ready © light starts blinking.

Solve paper feed or jam problems

If none of these steps resolves the problem, the product might need service. Contact HP customer support.

To reduce the number of paper jams, try these solutions.

Use only paper that meets HP specifications for this product. Use paper that is not wrinkled, folded, or damaged. If necessary, use paper from a different package. Use paper that has not previously been printed or copied on.

Make sure the tray is not overfilled. If it is, remove the entire stack of paper from the tray, straighten the stack, and then return some of the paper to the tray.

Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides so they are touching the paper stack without bendingit.

Make sure that the tray is fully inserted in the product.

If you are printing on heavy, embossed, or perforated paper, use the manual feed feature and feed sheets one at a time.

Verify that the tray is configured correctly for the paper type and size.

Make sure the printing environment is within recommended specifications.

Chapter 8 Solve problems ENWW Clear jams from the input tray

À Jam in tray 1. Clear Jam and press [OK] message displays on the product control panel.

1. Remove any Loose paper from the input tray.

FR ENWW Clear jams fromthe inputtray 83

2. Liftthe scanner assembly.

3. Openthe top cover.

4. Remove the toner cartridge.

5. Remove any jammed paper visible in the input tray area. Use both hands to remove jammed paper to avoid tearing the paper.

6. Remove any jammed paper from the toner- cartridge area.

84 Chapter8 Solve problems ENWW

7. Reinsert the toner cartridge.

8. Close the top cover.

9. Lower the scanner assembly.

ENWW Clear jams fromthe inputtray 85

Clear jams in the toner-cartridge area

À Jam in cartridge area message displays on the product control panel.

1. Lift the scanner assembly.

3. Remove the toner cartridge.

4. Remove any jammed paper from the toner- cartridge area. Use both hands to remove jammed paper to avoid tearing the paper.

5. Reinsert the toner cartridge.

ENWW Clear jams in the toner-cartridge area 87

6. Close the top cover.

7. Lower the scanner assembly.

88 Chapter8 Solve problems ENWW Clear jams in the output bin

À Jam in output bin message displays on the product control panel.

1. Liftthe scanner assembly.

2. Openthe top cover.

3. Remove any jammed paper from the output bin area. Use both hands to remove jammed paper to avoid tearing the paper.

ENWW Clear jams in the output bin 89

4. Remove the toner cartridge.

5. Remove any jammed paper from the toner- cartridge area.

6. Reinsert the toner cartridge.

90 Chapter8 Solve problems ENWW

7. Close the top cover.

8. Lower the scanner assembly.

ENWW Clear jams in the output bin 91

Clear jams in the document feeder

À Jam in the document feeder message displays on the product control panel.

1. Remove any loose paper from the input tray of the document feeder.

2. Remove any jammed paper visible in the input tray area. Use both hands to remove jammed paper to avoid tearing the paper.

3. Liftthe document-feeder input tray.

4. Liftthe jam-access cover in the document feeder.

92 Chapter8 Solve problems ENWW

5. Remove any jammed paper.

6. Close the jam-access cover.

7. Close the document-feeder input tray.

ENWW Clear jams in the document feeder 93

Improve print quality

Print from a different software program

Set the paper-type setting for the print job

Check the toner-cartridge status Print a cleaning page

Inspect the toner cartridge for damage

Check the paper and printing environment

Check the EconoMode settings

Print from a different software program

Try printing from a different software program. If the page prints correctly, the problem is with the software program from which you were printing.

Set the paper-type setting for the print job

Check the paper-type setting if you are printing from a software program and the pages have any of these problems:

scattered dots of toner loose toner

small areas of missing toner

Check the paper-type setting (Windows)

From the software program, select the Print option.

Select the product, and then click the Properties or Preferences button. Click the Paper/Quality tab.

From the Media: drop-down list, select the correct paper type.

Click the OK button to close the Document Properties dialog box. In the Print dialog, click the OK button to print the job.

Check the paper-type setting (Mac OS X)

4. Select a type from the Media-type drop-down list.

5. Clickthe Print button.

Check the toner-cartridge status

LED control panel A The Toner-level status |:Jlight indicates the level of toner in the print cartridge is very Low. LCD control panel 1. Onthe product control panel, press the Setup X button. 2. Openthe following menus: e Reports e Supplies status 3. Use the arrow keys to select Print Supplies status page, and then press the OK button. Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Supplies & button. 2. Touchthe Report button to print the supplies status page. The supplies status page contains the following information: e Estimated percentage of cartridge life remaining e Approximate pages remaining e Part numbers for HP toner cartridges

e Number of pages printed

Print a cleaning page LED control panel 1. Clickthe Start button, and then click the Programs item.

2. Click your HP product group, and then click the HP Device Toolbox item.

3. Onthe Systems tab, click Service.

ENWW Improve print quality 95

1. Fromthe product control panel, press the Setup X button. 2. Openthe Service menu. 3. Use the arrow keys to select the Cleaning mode option, and then press the OK button.

The product prints the first side and then prompts you to remove the page from the output bin and reload it in Tray 1, keeping the same orientation. Wait until the process is complete. Discard the page that prints.

Touchscreen control panel 1. From the Home screen on the product control panel, touch the Setup EN button. 2. Touchthe Service menu. 3. Touchthe Cleaning Page button. 4. Load plain Letter or A4 paper when you are prompted. 5. Touch the OK button to begin the cleaning process.

The product prints the first side and then prompts you to remove the page from the output bin and reload it in Tray 1, keeping the same orientation. Wait until the process is complete. Discard the page that prints.

Inspect the toner cartridge for damage 1... Remove the toner cartridge from the product, and verify that the sealing tape has been removed. 2. Grasp both sides of the toner cartridge and distribute the toner by gently rocking the cartridge. 3. Check the memory chip for damage.

4. Examine the surface of the imaging drum on the toner cartridge.

ÂÀ CAUTION: Do not touch the roller (imaging drum) on the cartridge. Fingerprints on the imaging drum can cause print-quality problems.

e If you see any scratches, fingerprints, or other damage on the imaging drum, replace the toner cartridge.

e _Ifthe imaging drum does not appear to be damaged, rock the toner cartridge gently several times andreinstall it.

5. Print a few pages to see if these steps resolved the issue.

Check the paper and printing environment

Use paper that meets HP specifications Use different paper if you are having any of the following problems: + Theprintingis too light or seems faded in areas.

e Specks of toner are on the printed pages.

96 Chapter8 Solve problems ENWW

e Toneris smearing on the printed pages. e Printed characters seem misformed. e Printed pages are curled.

Always use a paper type and weight that this product supports. In addition, follow these guidelines when selecting paper:

0 Use paper that is of good quality and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, staples, and curled or bent edges.

e Use paper that has not been previously printed on.

e Use paper that is designed for use in laser printers. Do not use paper that is designed only for use in inkjet printers.

e Use paper that is not too rough. Using smoother paper generally results in better print quality.

Check the product environment

Verify that the product is operating within the environmental specifications listed in the product Warranty and Legal Guide.

Check the EconoMode settings

ENWW HP does not recommend the full-time use of EconoMode. If EconoMode is used full-time, the toner supply might outlast the mechanical parts in the toner cartridge. If print quality begins to degrade and is no longer acceptable, consider replacing the toner cartridge.

Follow these steps if the entire page is too dark or too light. 1. Fromthe software program, select the Print option. 2. Select the product, and then click the Properties or Preferences button. 3. Clickthe Paper/Quality tab, and then locate the Quality Settings area. © Ifthe entire pageis too dark, select the EconoMode setting. e Ifthe entire pageis too light, select the FastRes 1200 setting.

4. Clickthe OK button to close the Document Properties dialog box. In the Print dialog, click the OK button to print the job.

Improve print quality

Improve copy and scan quality

Check the scanner glass for dirt and smudges

Over time, specks of debris might collect on the scanner glass and white plastic backing, which can affect performance. Use the following procedure to clean the scanner.

1. Press the power button to turn the product off, and then disconnect the power cable from the electrical outlet.

2. Openthe scanner lid.

3. Clean the scanner glass and the white plastic backing underneath the scanner lid with a soft cloth or sponge that has been moistened with nonabrasive glass cleaner.

ÂÀ CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the product; these can damage the product. Do not place liquids directly on the glass or platen. They might seep and damage the product.

4. Drythe glass and white plastic parts with a chamois or a cellulose sponge to prevent spotting.

5. Connect the power cable to an outlet, and then press the power button to turn the product on.

Check the paper settings LED control panel 1. Clickthe Start button, and then click the Programs item. 2. Click your HP product group, and then click the HP Device Toolbox item. 3. Onthe Systems tab, click Paper Setup. LCD control panel 1. Onthe product control panel, press the Setup X button. 2. Openthe following menus: e System Setup e Paper Setup 3. Select Def. paper size. 4. Select the name of the paper size that is in the input tray, and then press the OK button. 5. Select Def. paper type.

6. Select the name of the paper type that is in the input tray, and then press the OK button.

Touchscreen control panel

1. From the Home screen on the product control panel, touch the Setup EN button.

2. Openthe following menus:

98 Chapter8 Solve problems ENWW

e System Setup e Paper Setup 3. Select the Paper Size option, and then touch the name of the paper size that is in the input tray.

4. Select the Paper Type option, and then touch the name of the paper type that is in the input tray.

Optimize for text or pictures

The following copy-quality settings are available: e Auto Select: Use this setting when you are not concerned about the quality of the copy. e Mixed: Use this setting for documents that contain a mixture of text and graphics.

e Text: Use this setting for documents that contain mostly text. This is the default setting for Copy Optimize.

e Picture: Use this setting for documents that contain mostly graphics.

1. Load the document on the scanner glass according to the indicators on the product.

2. Onthe product control panel, press the Copy Menu Ex button.

3. Select the Optimize menu.

4. Use the arrow buttons to scroll through the options, and then press the OK button to select an option.

5. Touch the Start Copy 5) button to start copying.

Touchscreen control panel

1. Loadthe document on the scanner glass according to the indicators on the product. 2. Fromthe Home screen on the product control panel, touch the Copy button.

3. Touchthe Settings button, and then scroll to and touch the Optimize button. Touch the arrow buttons to scroll through the options, and then touch an option to select it.

4. Touchthe Start Copy button to start copying.

Edge-to-edge copying

The product cannot print fully edge-to-edge. There is a 4 mm (0.2 inch) unprintable border around the page.

Considerations for printing or scanning documents with cropped edges:

e Whenthe original is smaller than the output size, move the original 4 mm (0.2 inch) away from the corner indicated by the icon on the scanner. Recopy or scan in this position.

e Whenthe original is the size of the printed output that you want, use the Reduce/Enlarge feature to reduce the image so the copy is not cropped.

Improve copy and scan quality

Clean the pickup rollers and separation pad in the document feeder

If the document feeder experiences paper-handling problems, such as jams or multiple-page feeds, clean the document-feeder rollers and separation pad.

1. Liftthe document-feeder input tray.

2. Use a moist, lint-free cloth to wipe both pickup rollers and the separation pad to remove dirt.

CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the product; these can damage the product. Do not place liquids directly on the glass or platen. They might seep and damage the product.

3. Close the document-feeder input tray.

100 Chapter 8 Solve problems ENWW Improve fax image quality

e Check the scanner glass for dirt or smudges

e Check the send-fax resolution setting

e Checkthelightness/darkness setting

e Check the Error Correction settinq e ChecktheFit-to-Page setting

© Cleanthe pickup rollers and separation pad in the document feeder

e Sendto a different fax machine

e Check the sender's fax machine

Check the scanner glass for dirt or smudges

Over time, specks of debris might collect on the scanner glass and white plastic backing, which can affect performance. Use the following procedure to clean the scanner.

1. Press the power button to turn the product off, and then disconnect the power cable from the electrical outlet.

2. Openthe scanner lid.

3. Clean the scanner glass, the document feeder strips, and the white plastic backing with a soft cloth or sponge that has been moistened with nonabrasive glass cleaner.

VAN CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the product; these can damage the product. Do not place liquids directly on the glass or platen. They might seep and damage the product.

4. Drythe glass and white plastic parts with a chamois or a cellulose sponge to prevent spotting. 5. Close the scanner lid.

6. Connect the power cable to an outlet, and then press the power button to turn the product on.

Check the send-fax resolution setting LCD control panel

1... Onthe product control panel, press the Setup X button.

2. Select Fax Setup.

3. Select Send Fax Setup, and then select Def. Resolution.

4. Select the desired resolution setting, and then press the OK button. Touchscreen control panel

1. Fromthe Home screen on the product control panel, touch the Setup EN button.

2. Select Fax Setup.

ENWW Improve fax image quality 101

3. Select Advanced Setup, and then select Fax Resolution.

4. Select the desired resolution setting, and then touch OK.

Check the lightness/darkness setting

Ifthe fax output is too light or too dark, check the lightness/darkness setting to make sure it is appropriate for the fax job.

LCD control panel 1. Onthe product control panel, press the Setup X button. 2. Select Fax Setup. 3. Select Fax Send Setup, and then select Def. Light/Dark.

4. Adjust the setting for your fax job, and then press the OK button.

Touchscreen control panel 1. From the Home screen on the product control panel, touch the Setup EN button. 2. Select Fax Setup, and then select Advanced Setup.

3. Select Lighter/Darker, and then adjust the setting for your fax job.

Check the Error Correction setting

Usually, the product monitors the signals on the telephone line while it is sending or receiving a fax. If the product detects an error during the transmission and the error-correction setting is On, the product can request that the portion of the fax be resent. The factory-set default for error correction is On.

You should turn off error correction only if you are having trouble sending or receiving a fax, and you are Willing to accept the errors in the transmission. Turning off the setting might be useful when you are trying to send a fax overseas or receive one from overseas, or if you are using a satellite telephone connection.

LCD control panel 1. Onthe product control panel, press the Setup N button. 2. Select Fax Setup, and then select All Faxes. 3. Select Error Correction, and then select On. Touchscreen control panel 1. From the Home screen on the product control panel, touch the Setup EN button. 2. Select Service, and then select Fax Service.

3. Select Error Correction, and then select On.

102 Chapter8 Solve problems ENWW Check the Fit-to-Page setting

If the product printed a fax job off the page, turn on the fit-to-page feature from the product control panel.

ÊYNoTE: Make sure that the default paper size setting matches the size of the paper in the tray.

LCD control panel 1. Onthe product control panel, press the Setup X button. 2. Select Fax Setup, and then select Recv. Fax Setup.

3. Select Fit to Page, and then select On.

Touchscreen control panel

1. Fromthe Home screen on the product control panel, touch the Setup EN button.

2. Select Fax Setup, and then select Advanced Setup.

3. Select Fit to Page, and then select On.

Clean the pickup rollers and separation pad in the document feeder

If the document feeder experiences paper-handling problems, such as jams or multiple-page feeds, clean the document-feeder rollers and separation pad.

1. Liftthe document-feeder input tray.

ENWW Improve fax image quality 103

2. Use a moist, lint-free cloth to wipe both pickup rollers and the separation pad to remove dirt.

CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the product; these can damage the product. Do not place liquids directly on the glass or platen. They might seep and damage the product.

3. Close the document-feeder input tray.

Send to a different fax machine Send the fax job to a different fax machine to see if another machine will successfully receive the fax job.

e If another fax machine receives the fax successfully, check the connection and settings on the original receiving fax machine.

e If another fax machine does not receive the fax successfully, check the fax settings on your product. If the fax is still unsuccessful, there might be interference on the phone line. Try to resend the fax later.

Check the sender's fax machine Ask the sender to darken the contrast setting on the sending fax machine, and then resend the fax.

If the received fax quality is still poor, check the fax settings on your product.

104 Chapter 8 Solve problems ENWW Solve wired network problems

Check the following items to verify that the product is communicating with the network. Before beginning, print a configuration page from the product control panel and locate the product IP address that is listed on this page.

e Poor physical connection

e The computeris usingthe incorrect IP address for the product

e The computeris unable to communicate with the product

e The product is using incorrect Link and duplex settings for the network

e New software programs might be causing compatibility problems

e The computer or workstation might be set up incorrectly

e The productis disabled, or other network settings are incorrect

ÊYNoTE: HP does not support peer-to-peer networking, as the feature is a function of Microsoft operating systems and not of the HP print drivers. For more information, go to Microsoft at www.microsoft.com.

Poor physical connection 1. Verifythat the product is attached to the correct network port using a cable of the correct length. 2. Verify that cable connections are secure.

3. Look at the network port connection on the back of the product, and verify that the amber activity light and the green link-status light are lit.

4. Ifthe problem continues, try a different cable or port on the hub.

The computer is using the incorrect IP address for the product

1. Openthe printer properties and click the Ports tab. Verify that the current IP address for the product is selected. The product IP address is listed on the product configuration page.

2. lfyouinstalled the product using the HP standard TCP/IP port, select the box labeled Always print to this printer, even if its IP address changes.

3. lfyouinstalled the product using a Microsoft standard TCP/IP port, use the hostname instead of the IP address.

4. IfthelP addressis correct, delete the product and then add it again.

The computer is unable to communicate with the product

1. Test network communication by pinging the network.

ENWW Solve wired network problems 105

a. Open a command-line prompt on your computer. For Windows, click Start, click Run, type cma, and then press Enter.

b. Type ping followed by the IP address for your product.

For Mac OS X, open the Network Utility, and then supply the IP address in the correct field in the Ping pane.

c _lfthe window displays round-trip times, the network is working.

2. lfthe ping command failed, verify that the network hubs are on, and then verify that the network settings, the product, and the computer are all configured for the same network.

The product is using incorrect link and duplex settings for the network

Hewlett-Packard recommends leaving these settings in automatic mode (the default setting). If you change these settings, you must also change them for your network.

New software programs might be causing compatibility problems

Verify that any new software programs are correctly installed and that they use the correct print driver.

The computer or workstation might be set up incorrectly 1. Checkthe network drivers, print drivers, and the network redirection settings.

2. Verify that the operating systemis configured correctly.

The product is disabled, or other network settings are incorrect 1. Review the configuration page to check the status of the network protocol. Enable it if necessary.

2. Reconfigure the network settings if necessary.

106 Chapter 8 Solve problems ENWW Solve wireless network problems

Wireless connectivity checklist

The product does not print after the wireless configuration completes

The product does not print, and the computer has a third-party firewall installed

The wireless connection does not work after moving the wireless router or product

Cannot connect more computers to the wireless product

The wireless product loses communication when connected to a VPN The network does not appear in the wireless networks list

The wireless network is not functioninq

Perform a wireless network diagnostic test

Reduce interference on a wireless network

Wireless connectivity checklist

ENWW Verify that the network cable is not connected.

Verify that the product and the wireless router are turned on and have power. Also make sure that the Wireless radio in the product is turned on.

Verify that the service set identifier (SSID) is correct. Print a configuration page to determine the SSID. If you are not sure the SSID is correct, run the wireless setup again.

With secured networks, verify that the security information is correct. If the security information is incorrect, run the wireless setup again.

If the wireless network is working correctly, try accessing other computers on the wireless network. If the network has Internet access, try connecting to the Internet over a wireless connection.

Verify that the encryption method (AES or TKIP) is the same for the product as it is for the wireless access point (on networks using WPA security).

Verify that the product is within the range of the wireless network. For most networks, the product must be within 30 m (100 ft) of the wireless access point (wireless router).

Verify that obstacles do not block the wireless signal. Remove any large metal objects between the access point and the product. Make sure poles, walls, or support columns containing metal or concrete do not separate the product and wireless access point.

Verify that the product is located away from electronic devices that might interfere with the wireless signal. Many devices can interfere with the wireless signal including motors, cordless phones, security system cameras, other wireless networks, and some Bluetooth devices.

Verify that the print driver is installed on the computer. Verify that you have selected the correct printer port. Verify that the computer and product connect to the same wireless network.

For Mac OS X, verify that the wireless router supports Bonjour.

Solve wireless network problems 107

The product does not print after the wireless configuration completes 1. Make sure that the product is turned on and in the ready state. 2. Turnoff anythird-party firewalls on your computer. 3. Make sure that the wireless network is working correctly. 4. Make sure that your computer is working correctly. If necessary, restart the computer.

5. Verify that you can open the product HP Embedded Web Server from a computer on the network.

The product does not print, and the computer has a third-party firewall installed 1. Update the firewall with the most recent update available from the manufacturer.

2. If programs request firewall access when you install the product or try to print, make sure you allow the programs to run.

3. Temporarily turn off the firewall, and then install the wireless product on the computer. Enable the firewall when you have completed the wireless installation.

The wireless connection does not work after moving the wireless router or product 1. Make sure that the router or product connects to the same network that your computer connects to. 2. Print a configuration page.

3. Compare the service set identifier (SSID) on the configuration page to the SSID in the printer configuration for the computer.

4. Ifthe numbers are not the same, the devices are not connecting to the same network. Reconfigure the wireless setup for the product.

Cannot connect more computers to the wireless product

1. Make sure that the other computers are within the wireless range and that no obstacles block the signal. For most networks, the wireless range is within 30 m (100 ft) of the wireless access point.

2. Make sure that the product is turned on and in the ready state. 3. Turnoff anythird-party firewalls on your computer. 4. Make sure that the wireless network is working correctly.

5. Make sure that your computer is working correctly. If necessary, restart the computer.

The wireless product loses communication when connected to a VPN

+ Typically, you cannot connect to a VPN and other networks at the same time.

The network does not appear in the wireless networks list e Make sure the wireless router is turned on and has power.

e The network might be hidden. However, you can still connect to a hidden network.

108 Chapter 8 Solve problems ENWW The wireless network is not functioning 1... Make sure that the network cable is not connected. 2. To verifyif the network has lost communication, try connecting other devices to the network. 3. Test network communication by pinging the network.

a. Open a command-line prompt on your computer. For Windows, click Start, click Run, type cma, and then press Enter.

b. Type ping followed by the router IP address.

For Mac OS X, open the Network Utility, and then supply the IP address in the correct field in the Ping pane.

c _Ifthe window displays round-trip times, the network is working. 4. Make sure that the router or product connects to the same network that the computer connects to. a. Print a configuration page.

b. Compare the service set identifier (SSID) on the configuration report to the SSID in the printer configuration for the computer.

€ _Ifthe numbers are not the same, the devices are not connecting to the same network. Reconfigure the wireless setup for the product.

Perform a wireless network diagnostic test

From the product control panel, you can run a diagnostic test that provides information about the wireless network settings.

LCD control panel 1. Onthe product control panel, press the Setup K button. 2. Select Network Setup, and then select Wireless Menu.

3. Select Network Test, and then press the OK button. The product prints a test page that shows test results.

Touchscreen control panel 1. Fromthe Home screen on the product control panel, touch the Setup EN button. 2. Select Network Setup, and then select Wireless Menu.

3. Select Run Network Test. The product prints a test page that shows test results.

Reduce interference on a wireless network

The following tips can reduce interference in a wireless network:

ENWW Solve wireless network problems 109

e Keep the wireless devices away from large metal objects, such as filing cabinets, and other electromagnetic devices, such as microwaves and cordless telephones. These objects can disrupt radio signals.

e Keep the wireless devices away from large masonry structures and other building structures. These objects can absorb radio waves and lower signal strength.

e Position the wireless router in a central location in line of sight with the wireless products on the network.

110 Chapter8 Solve problems ENWW Solve fax problems e Check the hardware setup e Faxes are sending slowly e Fax qualityis poor

e Fax cuts off or prints on two pages

Check the hardware setup

e Several possible fixes are available. After each recommended action, retry faxing to see if the problem is resolved.

e For best results during fax problem solving, make sure the line from the product is connected directly to the wall phone port. Disconnect all other devices that are connected to the product.

1. Verify that the telephone cord is connected to the correct port on the back of the product.

2. Check the phone line by using the fax test:

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. From the Home screen on the product control panel, touch the Setup EN button. 2. Select Service, and then select Run Fax Test. The

product prints a fax test report. 2. Select Service, and then select Fax Service.

3. Select Run Fax Test. The product prints a fax test report.

The report contains the following possible results: e Pass: The report contains all of the current fax settings for review.

e Fail: The report indicates the nature of the error and contains suggestions for how to resolve the issue.

3. Verify that the product firmware is current:

a. Goto www.hp.com/support.

b. Click Drivers & Software, type your product number in the window, and then click Search. If necessary, click your model in a list of similar products.

The Software & Driver Downloads page opens. € Select your operating system from the drop-down menu, and then click Next. d. Clickthe plus sign next to Firmware, and then click HP LaserJet Firmware Update Utility.

ENWW Solve fax problems 111

f. Whenthe download is complete, follow the on-screen instructions to install and run the utility.

The utility checks for firmware updates for your HP product. If updates are found, the utility installs the available update.

g. When firmware updates are complete, try to resend the fax. 4. Verify that the fax was set up when the product software was installed. From the computer, in the HP program folder, run the Fax Setup Utility.

5. Verify that the telephone service supports analog fax.

ÊYNoTE: HP products are designed specifically for use with analog phone services.

e _ Ifusing ISDN or digital PBX, contact your service provider for information about configuring to an analog fax line.

e lfusing a VolP service, change the Fax Speed to Slow(V.29) from the control panel. Ask if your service provider supports fax and for the recommended fax modem speed. Some companies might require an adapter.

e Ifyou are using a DSL service, make sure that a filter is included on the phone-line connection to the product. Contact the DSL service provider, or purchase a DSL filter if you do not have one. If a DSL filter is installed, try another filter because filters can be defective.

6. lfthe error persists, find more detailed problem-solving solutions in the sections that follow this one.

Faxes are sending slowly The product is experiencing poor phone line quality. e Retry sending the fax when the line conditions have improved. e Check with the phone service provider that the line supports fax. e Use white paper for the original. Do not use colors such as gray, yellow, or pink. e Divide large fax jobs into smaller sections, and then fax them individually.

e Turnoffthe Error Correction setting.

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À\ button. 1. Fromthe Home screen on the product control panel,

touch the Setup EN button. 2. Select Fax Setup, and then select AILFaxes.

2. Select Service, and then select Fax Service. 3. Select Error Correction, and then select Off.

3. Select Error Correction, and then select Off.

ÊY NOTE: Turning off Error Correction can reduce image quality.

e Increase the Fax Speed setting.

112 Chapter8 Solve problems ENWW LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. From the Home screen onthe product control panel,

touch the Setup EN button. 2. Select Fax Setup, and then select All Faxes.

. Select Fax Setup, and then select Advanced Setup. 3. Select Fax Speed, and then select the correct setting.

3. Select Fax Speed, and then select the correct setting.

e Change the fax settings on the control panel to a lower resolution.

NOTE: Higher resolution faxes can take longer to send than lower resolution faxes.

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. From the Home screen onthe product control panel, touch the Setup EN button. 2. Select Fax Setup, and then select Fax Send Setup.

2. Select Fax Setup, and then select Advanced Setup. 3. Select Def. Resolution, and then select the correct

setting. 3. Select Fax Resolution, and then select the correct setting.

Fax quality is poor Fax is blurry or too light.

e Increase fax resolution when sending faxes. Resolution does not affect received faxes.

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. From the Home screen onthe product control panel, touch the Setup EN button. 2. Select Fax Setup, and then select Fax Send Setup.

2. Select Fax Setup, and then select Advanced Setup. 3. Select Def. Resolution, and then select the correct

setting. 3. Select Fax Resolution, and then select the correct setting.

NOTE: increasing resolution slows transmission speed.

e TurnontheError Correction setting from the control panel.

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. From the Home screen onthe product control panel,

touch the Setup EN button. 2. Select Fax Setup, and then select All Faxes.

2. Select Service, and then select Fax Service. 3. Select Error Correction, and then select On.

3. Select Error Correction, and then select On.

e Checkthe toner cartridges and replace the cartridge if necessary.

e _ Askthe sender to darken the contrast setting on the sending fax machine, and then resend the fax.

ENWW Solve fax problems 113

Fax cuts off or prints on two pages

e Setthe Default Paper Size setting. Faxes print on a single size of paper based on the Default Paper Size settings.

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. From the Home screen on the product control panel,

touch the Setup EN button. 2. Select System Setup, andthen select Paper Setup.

2. Select System Setup, and then select Paper Setup. 3. Select Def. Paper Size, and then select the correct

setting. 3. Select Paper Size, and then select the correct setting.

e Setthe paper type and size for the tray used for faxes.

+ TurnontheFit to Page setting to print longer length faxes on letter or A4 size paper.

LCD control panel Touchscreen control panel

1. Onthe product control panel, press the Setup À button. 1. Fromthe Home screen on the product control panel,

touch the Setup EN button. 2. Select Fax Setup, and then select Recv. Fax Setup.

2. Select Fax Setup, and then select Advanced Setup. 3. Select Fit to Page, and then select On.

3. Select Fit to Page, and then select On.

ÉYNOTE: If the Fit to Page setting is off and the Default Paper Size setting is set to Letter, a Legal-size original prints on two pages.

114 Chapter 8 Solve problems ENWW ENWW Parts, supplies, and accessories

e Order parts, accessories, and supplies

e Customer self-repair parts

Go to www.hp.com/support/jMFPM125series, www.hp.com/support/ljMFPM126series, www.hp.com/ support/jMFPM127series, or www.hp.com/support/ljMFPM128series for HP's all-inclusive help for your product:

e Download software updates.

e Join support forums.

e Find warranty and regulatory information.

You can also go to www.hp.com/support for Worldwide support and other HP products.

Order parts, accessories, and supplies

HP original toner cartridges and paper

www.hp.com/go/suresupply

Order genuine HP parts or accessories

www.hp.com/buy/parts

Order through service or support providers

Contact an HP-authorized service or support provider.

Customer self-repair parts

The following customer self-repair parts are available for the product.

e Parts listed as Mandatory self-replacement are to be installed by customers, unless you are willing to pay HP service personnel to perform the repair. For these parts, on-site or return-to-depot support is not provided under the HP product warranty.

e Parts listed as Optional self-replacement can be installed by HP service personnel at your request for no additional charge during the product warranty period.

item Description Self-replacement options Part number

Telephone handset kit for China Replacement handset for China fax Mandatory CZ185-65001 models

116 Chapter9 Parts, supplies, and accessories

A accessories ordering 116 part numbers 116 AïirPrint 34 applications downloading 59 Apps menu 59

C cartridge replacing 70 checklist wireless connectivity 107 cleaning glass 98 paperpath 95 configuration page printing 77 control panel buttons and lights 6 help 74 Home screen 10 LED light patterns 75 locating 4 copy quality improving 98 copying edges of documents 99 multiple copies 38 optimizing for text or pictures 99 quality, adjusting 40 setting paper size andtype 98

single copies 38 two-sided documents 39 covers, locating 4 customer self-repair part numbers 116

D defaults, restoring 79 document feeder 39

copying two-sided documents

double-sided copying 39 drivers

duplex 39 duplex printing Mac 30

duplex printing (double-sided) settings (Windows) 22

G glass, cleaning 98

H hardware setup fax troubleshooting 111 help, control panel 74 Home screen, control panel 10

HP Device Toolbox, using 60 HP Embedded Web Server changing password 64 opening 64 HP ePrint 33 HP ePrint software 33 HP Scan software (Mac) 44 HP Scan software (Windows) 43 HPUtility 62 HP Utility for Mac Bonjour 62 features 62 HP Utility, Mac 62 HP Web Services applications 59 enabling 59 HP Wireless Direct Printing 35

interface ports locating 5

product 65 M Macintosh HPUtility 62

maintenance kits part numbers 116

media supported sizes 14 memory included 2 multiple pages per sheet printing (Mac) 31 printing (Windows) 25

N network password, changing 64 password, setting 64 network installation 58 networking 2 networks installing the product 58

number of copies, changing 38

0 on/off button, locating 4 online help, control panel 74 ordering

supplies and accessories output bin

P pages per minute 2 pages per sheet selecting (Mac) 31 selecting (Windows) 25 paper jams 82 ordering 116 selecting 96 supported sizes 14 supportedtypes 15 paper pickup problems solving 80 paper types selecting (Mac) 31 selecting (Windows) 27 part numbers customer self-repair 116 maintenance kits 116 supplies 116 power connection locating 5 power switch, locating 4 print on both sides Mac 30

print quality improving 94

printing on both sides settings (Windows) 22

R replacing toner cartridge 70 restoring factory-set defaults 79

s scan quality improving 98 scanner glass cleaning 98 scanning from HP Scan software (Mac) 44 from HP Scan software (Windows) 43 settings factory-set defaults, restoring 79

sleep delay setting 66 software HP Utility 62

special paper printing (Windows) 27 status Home screen, control panel 10 HP Utility, Mac 62 LED, control panel lights 75 supplies low threshold settings 68 ordering 116 part numbers 116 replacing toner cartridge 70 status, viewing with HP Utility for Mac 62 using when low 68 supplies status checking 95 supplies status page printing 77,95 supported media 14 supported operating systems 2

amount remaining 95 toner cartridge

checking for damage 96

low threshold settings 68

locating 4 troubleshooting

LED, light patterns 75

network problems 105

paper feed problems 80

supplies status page 77

wireless network 107 two-sided copying 39 two-sided printing

wireless network interference
