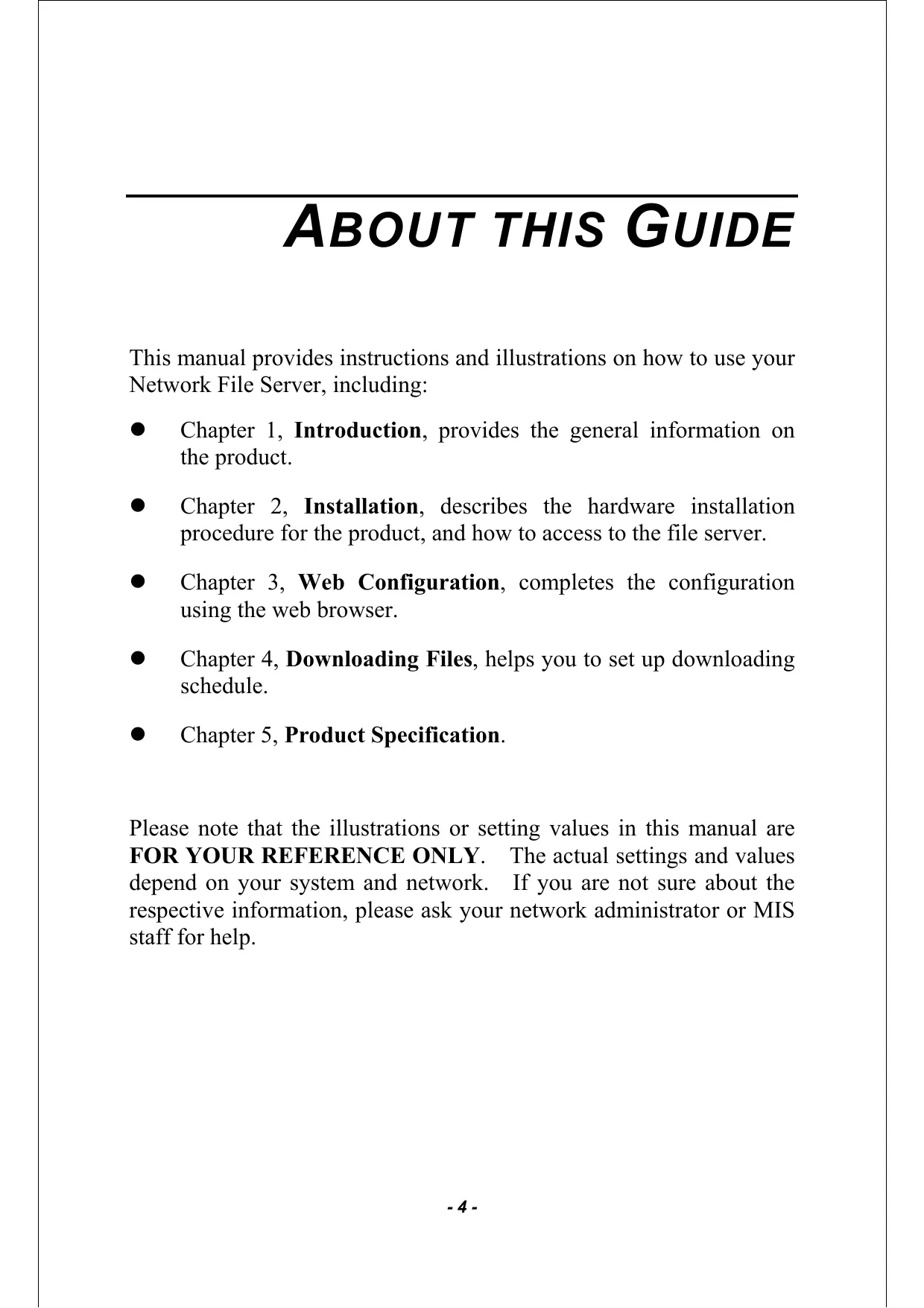

This manual provides instructions and illustrations on how to use your Network File Server, including: © Chapter 1, Introduction, provides the general information on the product. © Chapter 2, Installation, describes the hardware installation procedure for the product, and how to access to the file server. © Chapter 3, Web Configuration, completes the configuration using the web browser. © Chapter 4, Downloading Files, helps you to set up downloading schedule. © Chapter 5, Product Specification. Please note that the illustrations or setting values in this manual are FOR YOUR REFERENCE ONLY. The actual settings and values depend on your system and network. If you are not sure about the respective information, please ask your network administrator or MIS staff for help.

INTRODUCTION Congratulations on purchasing your Network File Server, the easiest and fastest way to share data, file, and resource in your network. This entry-level file server is the value-added equipment in your network that allows you to control file-sharing needs within a small office/home office (SOHO) environment. With expandable function (through its two USB ports) in a compact form-factor, the Network File Server is ideal for sharing data, rich-media files, and for storage in a small office, remote corporate office or residential gateway environments.

General Features + + + + + + + + Compact-sized design. Compliant with USB1.1 and USB2.0. Provide one 10/100Mbps auto-MDIX fast Ethernet LAN port. Support “Hot-plug” function. Two operating modes support: Open mode and Account mode. Support Auto-IP function. Support IP assignment for DHCP and Auto-IP. Support IP address filtering for Ethernet access with either DENY or ALLOVW setting. Support external USB storage (Hard-disk, flash disk, CD-ROM, MO, and Micro Drive). Provide download assistance, making users download files without PC and schedule-able (support ftp and http). + Support NTP (network time protocol). + Web-based administrative program is stored in flash ROM of the + + + + + + file server. No setup necessary in open mode. Firmware upgrade-able by Web-based administrative program. Support Windows 98/ME/NT/2000/XP and Linux SMB. Provide FTP Server service. Support UPnP for windows XP. Provide an easy-search program for different IP domain setting.

Package Contents Unpack the package and check all the items carefully, and be certain that you have: + One Network File Server. + One AC Power Adapter suitable for your country’s electric power service. + One Quick Installation Guide. + One Installation CD-ROM containing the manual files (PDF). If any item contained is damaged or missing, please contact your local dealer immediately. Also, keep the box and packing materials in case you need to ship the unit in the future.

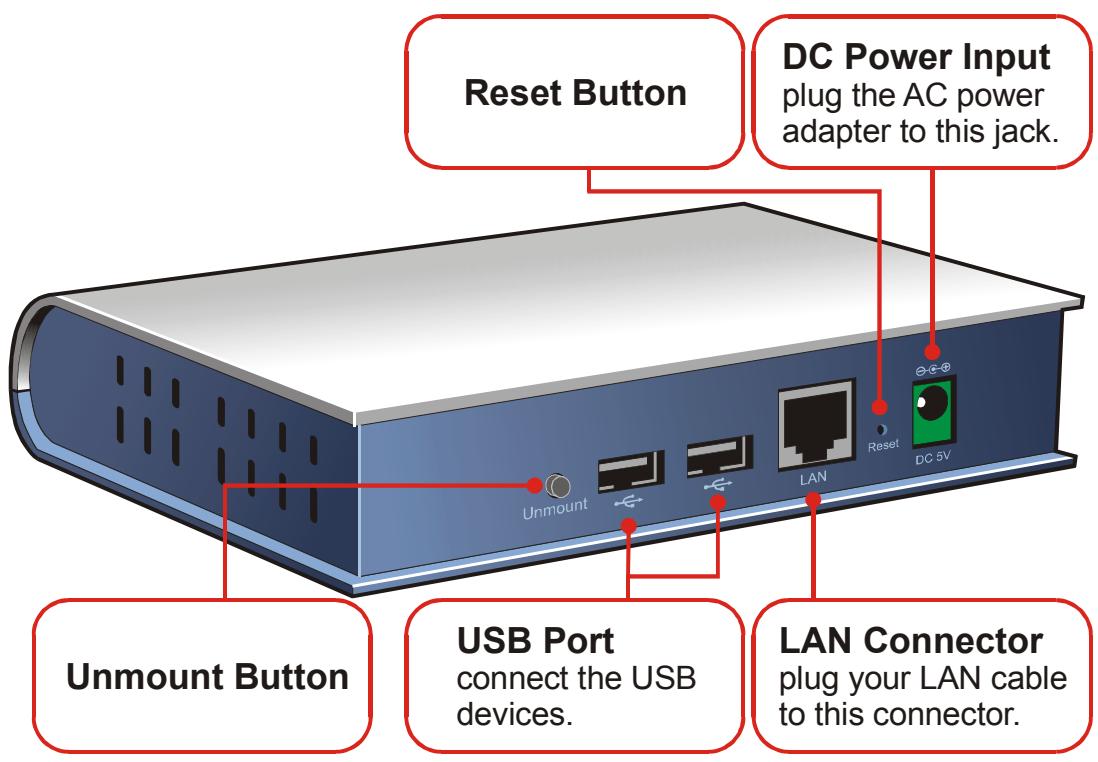

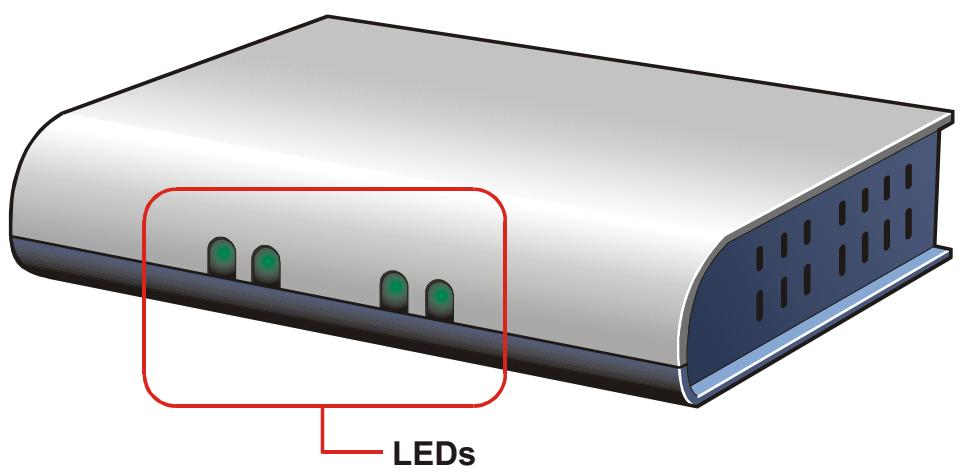

Product View This section describes the externally visible features of the file server. Front View —— LEDs Rear View DC Power Input Reset Button plug the AC power adapter to this jack. USB Port LAN Connector Unmount Button connect the USB plug your LAN cable devices. to this connector.

LEDs There are three LEDs on the front panel (four for wireless model): LEDs Description Power A steady Green light confirms that the file server is powered on. LAN A steady Green light confirms that the file server has a good connection to your network. When it blinks, the file server is receiving/transmitting data from/to the network. WLAN A steady Green light confirms that the file server has (for wireless a good connection to your wireless network. model) When it blinks, the file server is receiving/transmitting data from/to the wireless network. Mode Off: no devices attached to the file server. (green/red) Green: when you connect a USB device to the file server, it starts blinking Green slowly; when the system has detected the device, it lights Green steadily to indicate that the attached device is OK. Red: when you press the Unmount Button to remove the attached device, it starts blinking Red slowly. If the last connected device failed, it lights Red steadily; you have to re-connect the device. Reset Button Press and hold the Reset Button for 4 seconds to reset the file server. Unmount Button Press this button to remove the connected USB device safely.

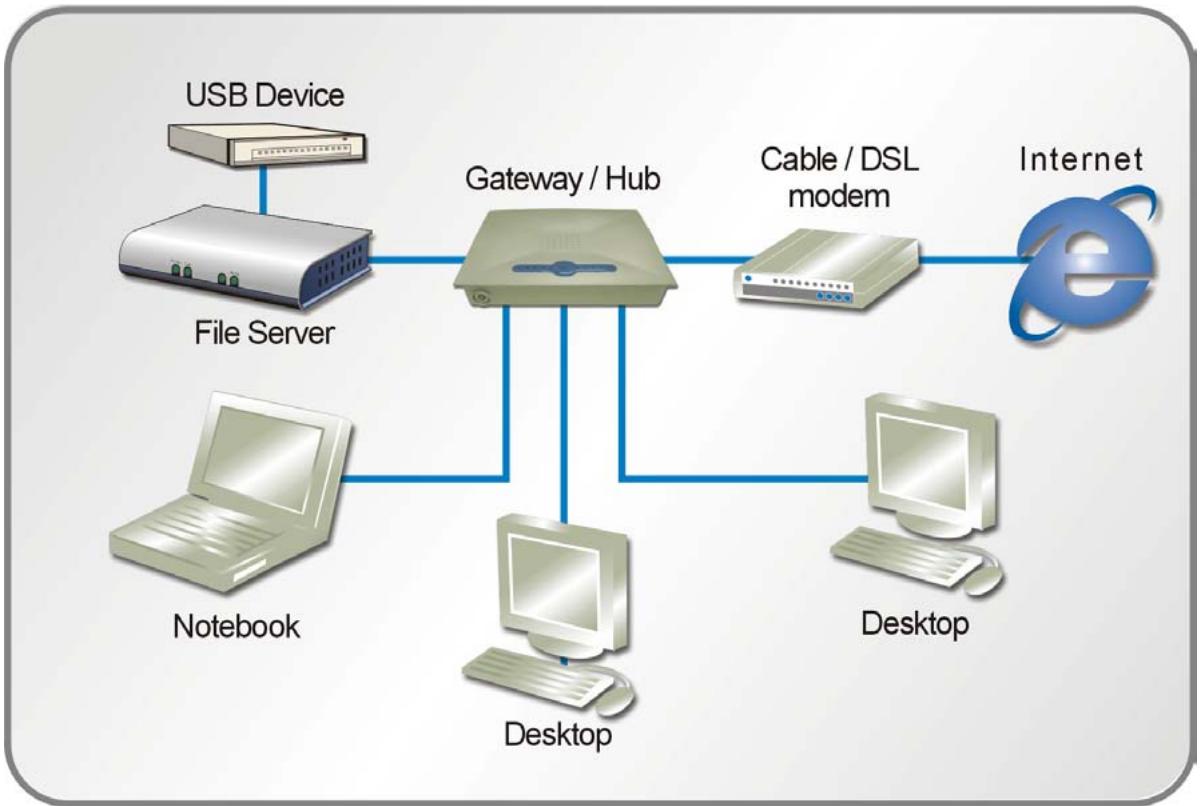

INSTALLATION Networking Application The following diagram explains the application of your print server.

Desktop File Server in Your Network Environment

Installing the File Server Follow these steps for a trouble-free start of file server operations with your Network File Server. Connecting to the Network

1. Confirm proper operation of the gateway/hub to be connected in

2. Connect the file server to the gateway/hub through the RJ-45 cable.

3. Connect the power adapter of the file server to the wall outlet.

This will supply power to the file server immediately. Connecting to a Client Workstation For some reasons, you may need to connect the file server to a client workstation directly. For example, you build a direct connection between your desktop PC and the file server to configure the file server. In this event, you should set up the computer’s IP address as instructions in next section. Expanding the USB Devices The file server provides two USB ports that allow you to expand the file server’s function, such as connecting a large storage device. To connect the USB device, simply plug the USB device into one of the file server’s USB ports. Alternately, you can connect the USB device through a USB cable.

Using the File Server Configuring a Dynamic IP Address When you connect your computer to the file server directly to configure the file server, you need to check the computer’s IP address, and set up the IP address within the file server’s IP address range.

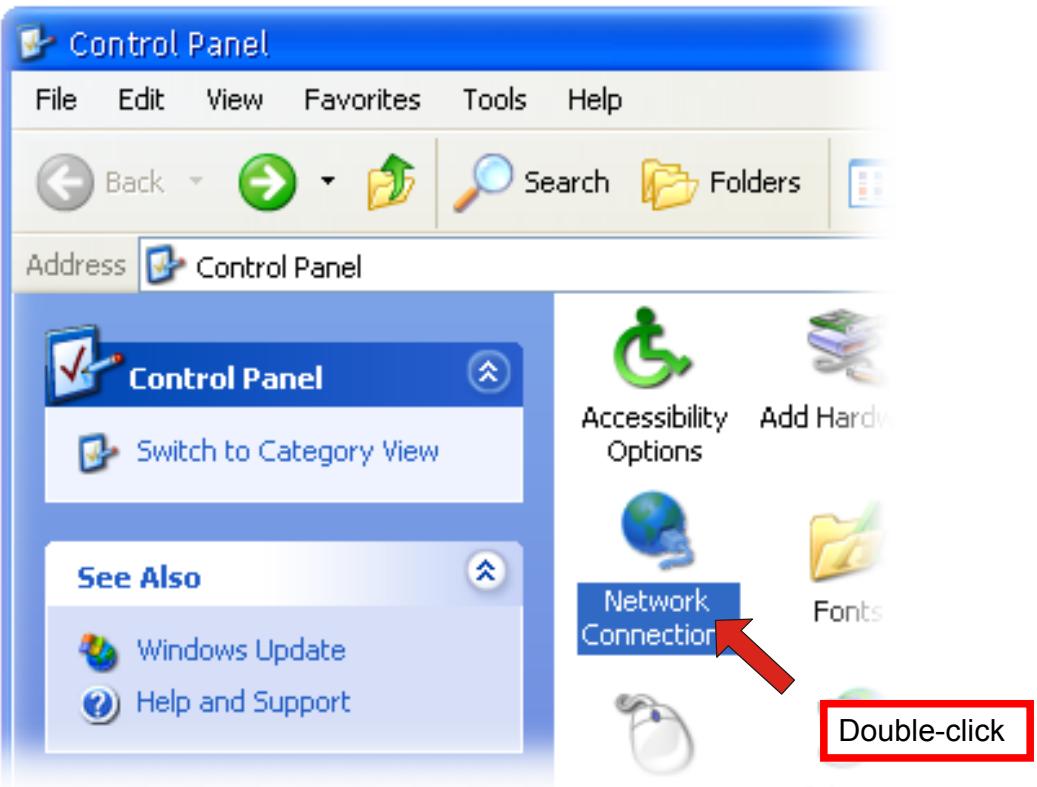

1. Click Start and choose Control Panel to open the Control Panel

2. Double-click the Network Connection icon to open the Network

Connection window. File Edit View Favorites Tools Help ee) Q Le œ pe Search [7 Folders [ C Control Panel Address VE Control Panel À CF Switch to Category View See Also Accessibility Add Har Options

Foni © Windows Update (2) Help and Support Double-click

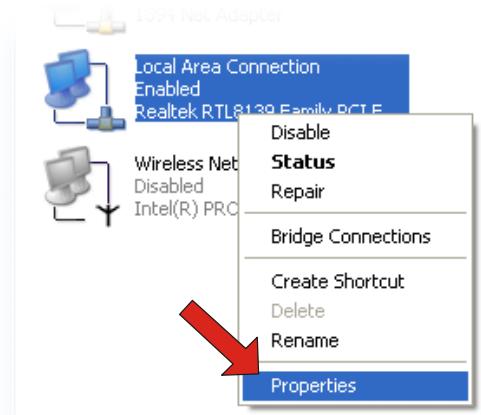

3. Right-click the Local Area Connection icon and click Properties

from the shortcut menu. ek RTLSÿ = Disable CU- wircesshet Status Disabled | Repair D À melR)PR P Bridge Connections Create Shortcut >” Rename

4. When the Local Area Connection Properties window appears,

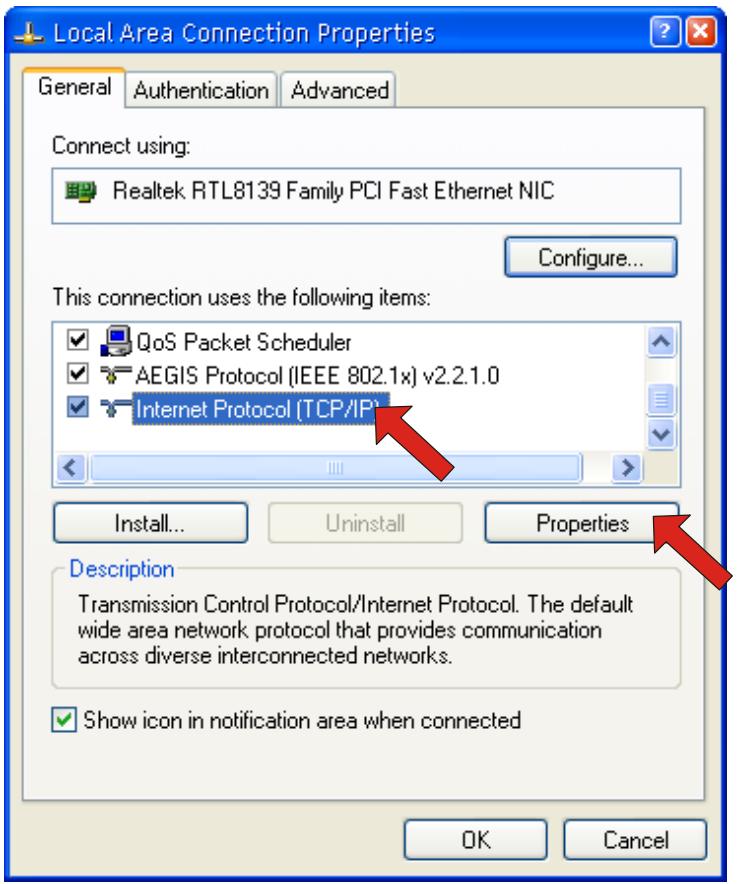

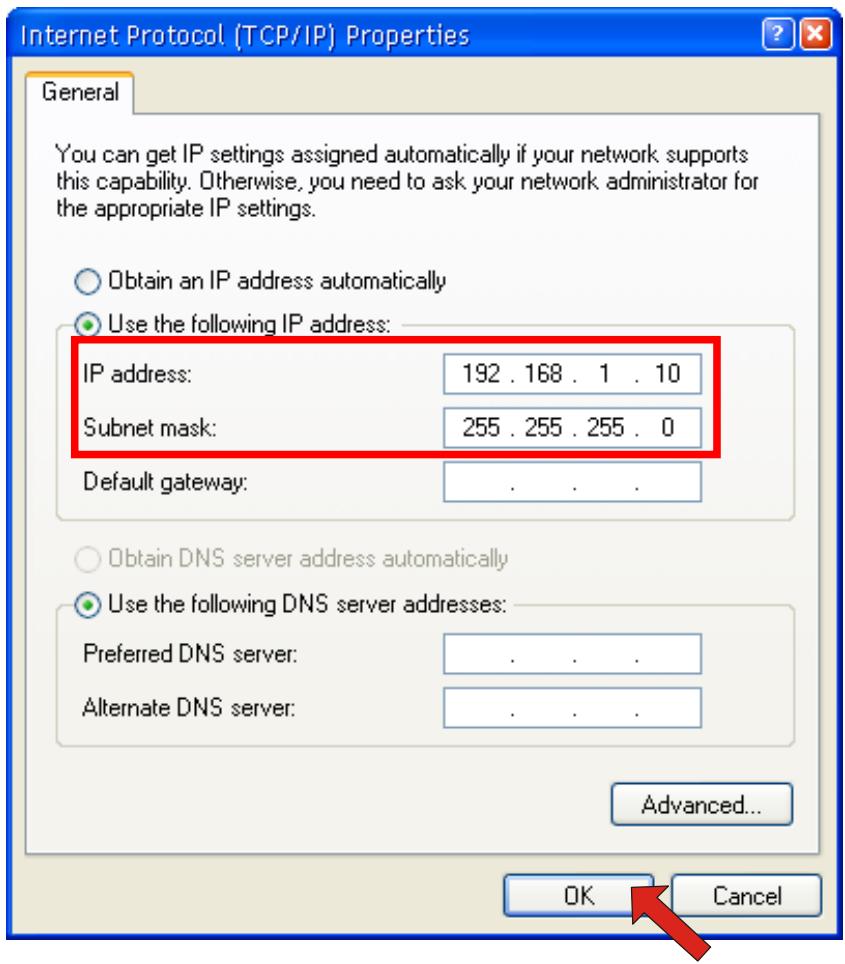

choose General tab and select Internet Protocol [TCP/IP], and then click Properties to bring up the Internet Protocol [TCP/IP] Properties window. General | uthentication | Advanced Connect using: E9 Realtek RTL8139 Family PCI Fast Ethernet NIC This connection uses the following items: M 95 QoS Packet Scheduler a AP AEGIS Protocol (IEEE 802.14] v2.2.1.0 Description Transmission Control Protacol/Intemet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected

5. To configure a fixed IP address, check the “Use the following IP

address” option. Then, enter an IP address into the empty field. Suggested IP Address is 792.168.1.x (x is 3-254), and suggested Subnet Mask is 255.255.255.0. General You can get IP settings assigned automatically if your network supports this capabilty. Otherwise, vou need to ask your network administrator for the appropriate IP settings. © Obtain an IP address automatically @ Use the following IP address: IP address: [182 168. 1 . 10 Subnet mask: [ 255 .255.255. 0 Default gateway: [ 0 DNS server ac \ icall, © Use the following DNS server addresses: Preferred DNS server [ Altemate DNS server: - - MON GE

6. Click OK to complete the configuration.

Accessing the File Server Since you have made the connection between your computer and the file server, and configured the computer”’s IP address, you can access the file server through the following steps.

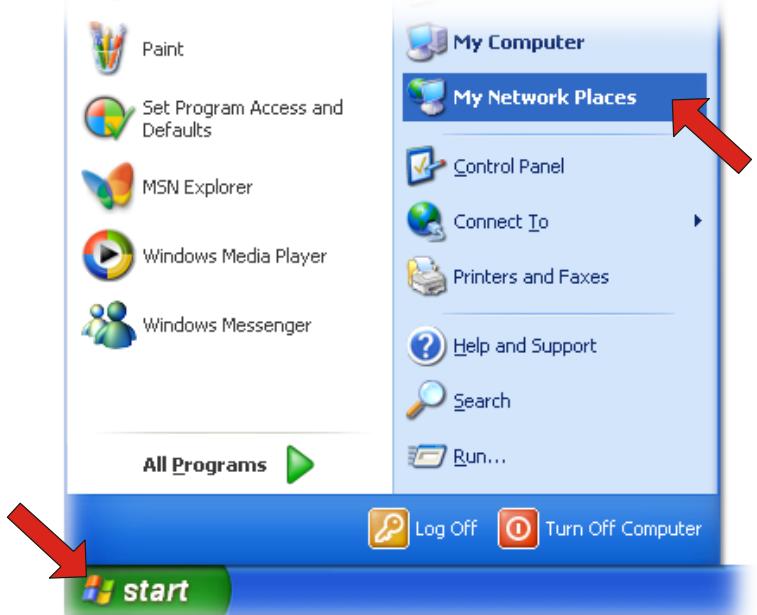

1. Click Start and choose My Network Places.

ÿ Paint 95 My Computer Set Program Access and + nor eces Defaults a C CEE) x? MSN Explorer @ cc: » ® Windows Media Player = { Printers and Faxes 2% Windows Messenger © Help and Support À ssh All Programs D T7 Run. (Bios of [O) rurn off computer

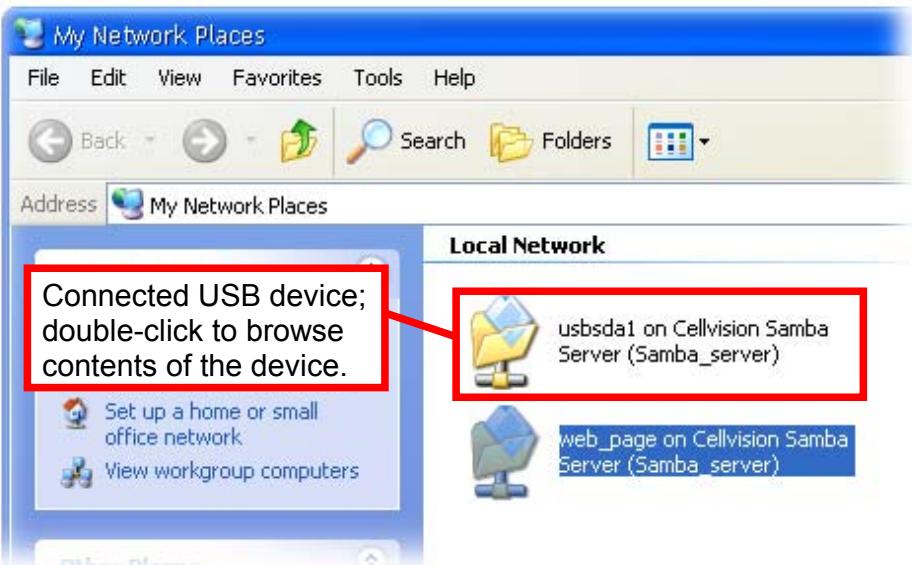

2. The file server is named as Sambe server. If you connect the

USB device, it also appears in the window. File Edit View Favorites Tools Help € E£s ] œ Fe ) Search (E> Foiders F]- Address | My Network Places Local Network ? usbsdal on CelWision Samba L9 Server (Samba_server) doubl to browse contents of the device. Set up a home or small office netwark dl “iew workgroup computers

3. Double-click the web_page shared folder, and then double-click

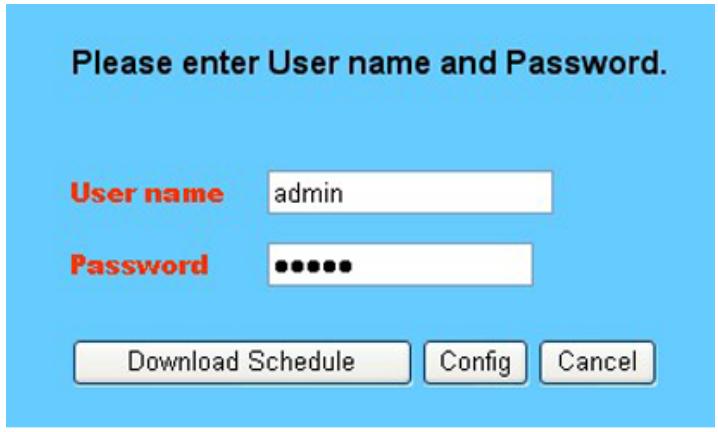

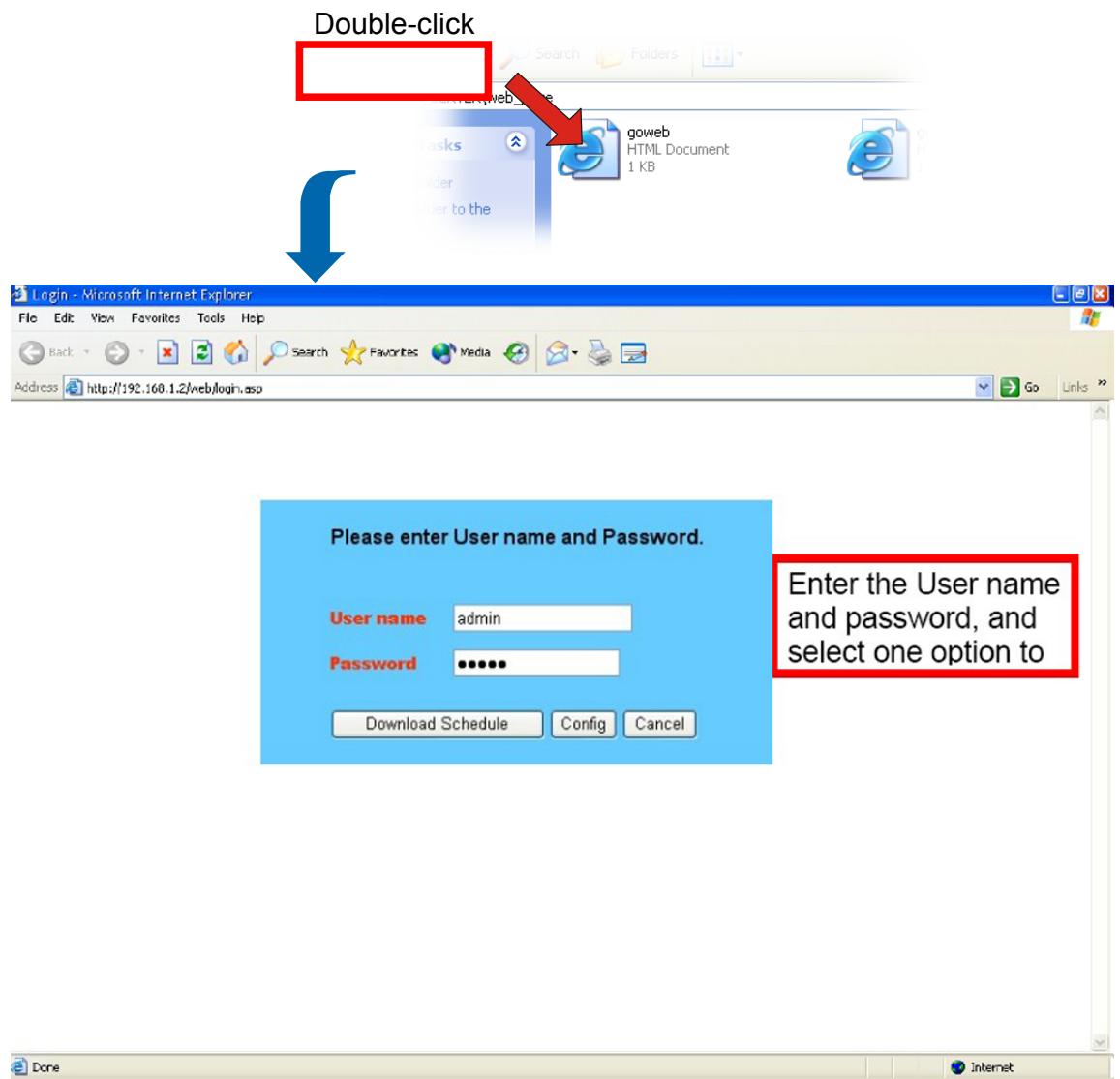

the goweb item to launch your web browser and enter the web configuration utility. The login window will show as below. Double-click cs M €) 2 AE @| Pr from Qns GE: SE dress [@) nie: :90.160.1.2hneboni so Do Lie” Enter the User name el sérin ___| and password, and eur | select one option to Download Schedule Arc eme Login Window of Web Configuration Utility To enter the configuration utility, type admin in User name box and airlive in Password box. Select the Config to login TIP: Selecting the Download schedule option allows you to enter the Download page.

Easy Search To access and manage the file server easily, the conveniently utility Easy Search is provided for you in the Installation CD-ROM. Easy Search is a tool that allows you to set up the file server’s connection. To use Easy Search:

2. Click the Easy Search item to launch the utility. The control

panel will appear as below.

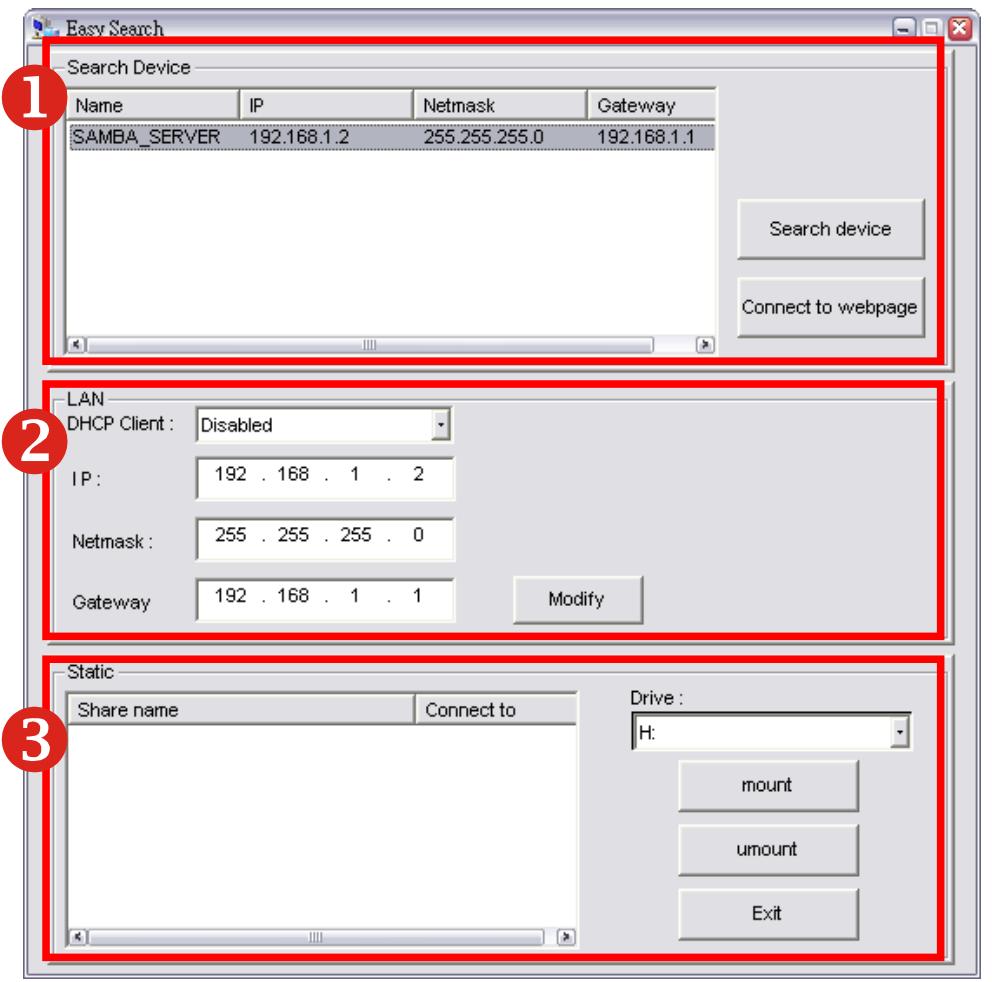

Share name [ Connectto Control Panel of Easy Search [1] Search Device — when launching the utility, it will search the connected file server(s) automatically, and display the results in the list. To refresh the list, click the Search device button again. Clicking the Connect to webpage button will lead you to the web configuration utility. LAN — select one file server in the device list, and you can change its settings in this field. When you change the settings, click the Modify button to apply changed configuration.

Static — when you connect the USB device to the file server, click the mount/umount button to attach/remove the device to your system. Click the Exit button to close the utility.

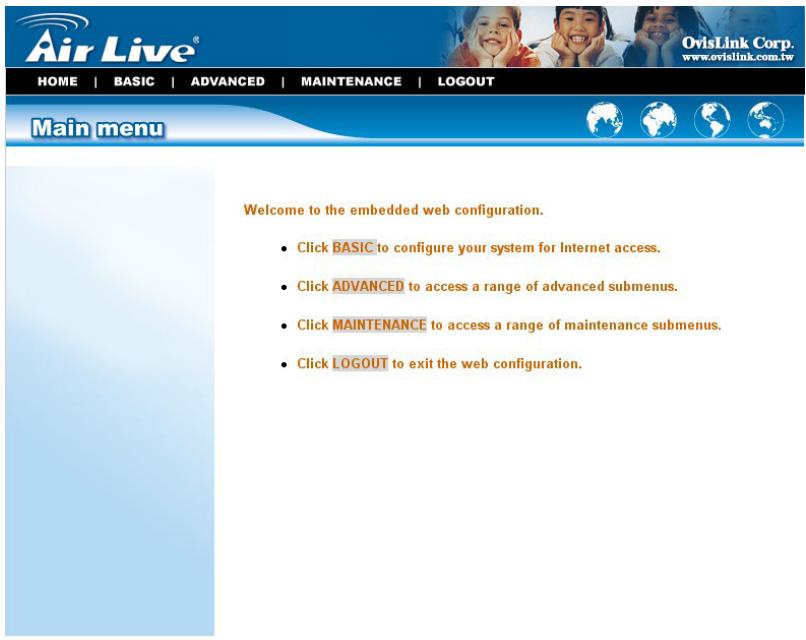

WEB CONFIGURATION You can access and manage the File Server through a web browser. This chapter provides you with instructions of the Web Configuration Utility, and explains how to set up your file server with the web browser. Web Configuration Utility First, login the web configuration utility as described in the previous section. The Home menu will display as below. Wolcame to the embodd£ Click BASIGMo co + Ciick ADVANCED + Ciick MAINTENAN + Click LOGOUT to oxit

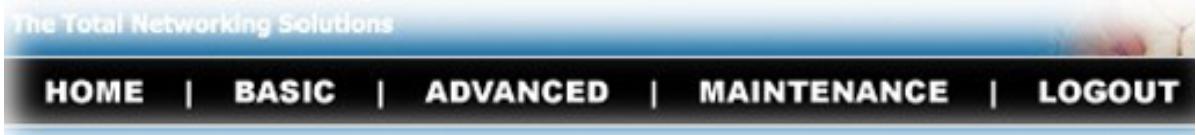

There is a menu bar in the top of the configuration page, containing five items that allow you to set up your file server.

The Menu Bar © Home -— main screen of the utility, providing the brief instructions of the buttons on menu bar. © Basic — allows you to configure your file server for Internet access through a step-by-step procedure. © Advanced - contains more submenus that allow you to set up advanced configuration. © Maintenance — provides maintenance tasks for the file server, such as upgrading firmware and reloading factory defaults. © Logout- clicks to exit web configuration utility. TIP: The computer's IP address must correspond with the file server's IP address in the same segment for the two devices to communicate. Extensive knowledge of LAN will be helpful in configuring the file server.

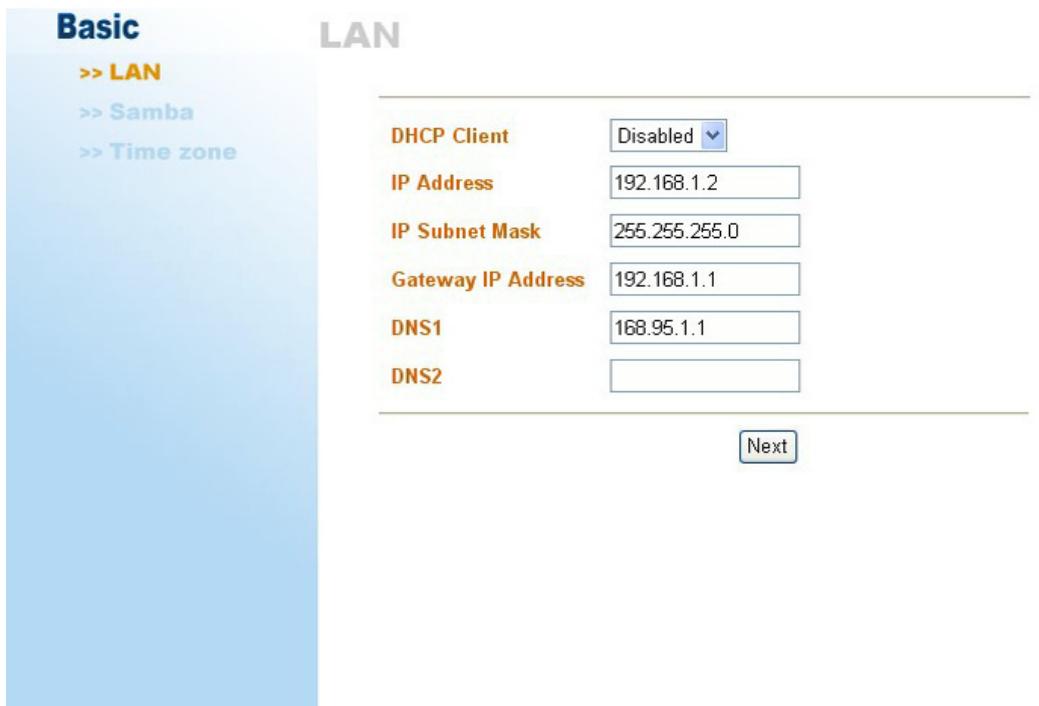

Configuration - Basic The Basic menu contains three steps that will guide you through the basic configuration for the file server. Click Basic in the top menu bar to start the step-by-step configuration. DHCP Client Disabled w} IP Address 192.168.1.2 IP Subnet Mask 255.255.255.0 Gateway IP Address [192.168.1.1 DNS1 168.95.1.1 DNS2 Basic Menu - LAN Basic — LAN The first step is to configure the LAN settings. These options in this step display the current IP address and DHCP service of the file server, and can be modified manually. When complete, click Next.

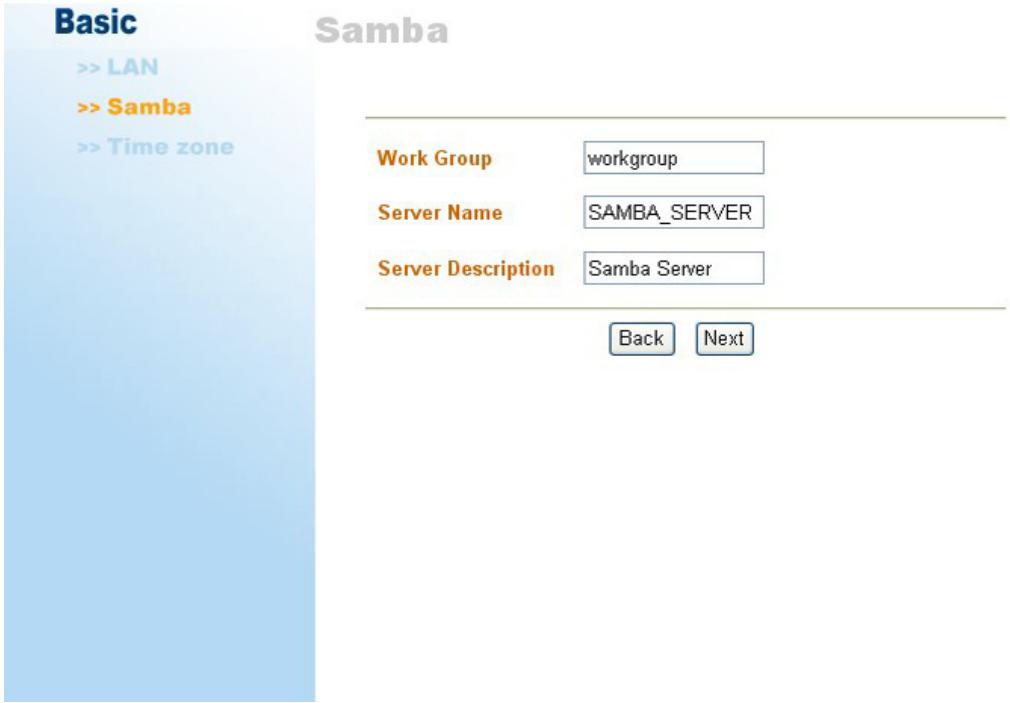

Basic — Samba This screen allows you to set up the Workgroup name for the file server. You can also change the name and description of the file Server. OvisLink Corp. rmovislinlc.com. fr Work Group workgroup Server Name SAMBA_SERVER Server Description [Samba Serer Basic Menu - Samba When complete, click Next.

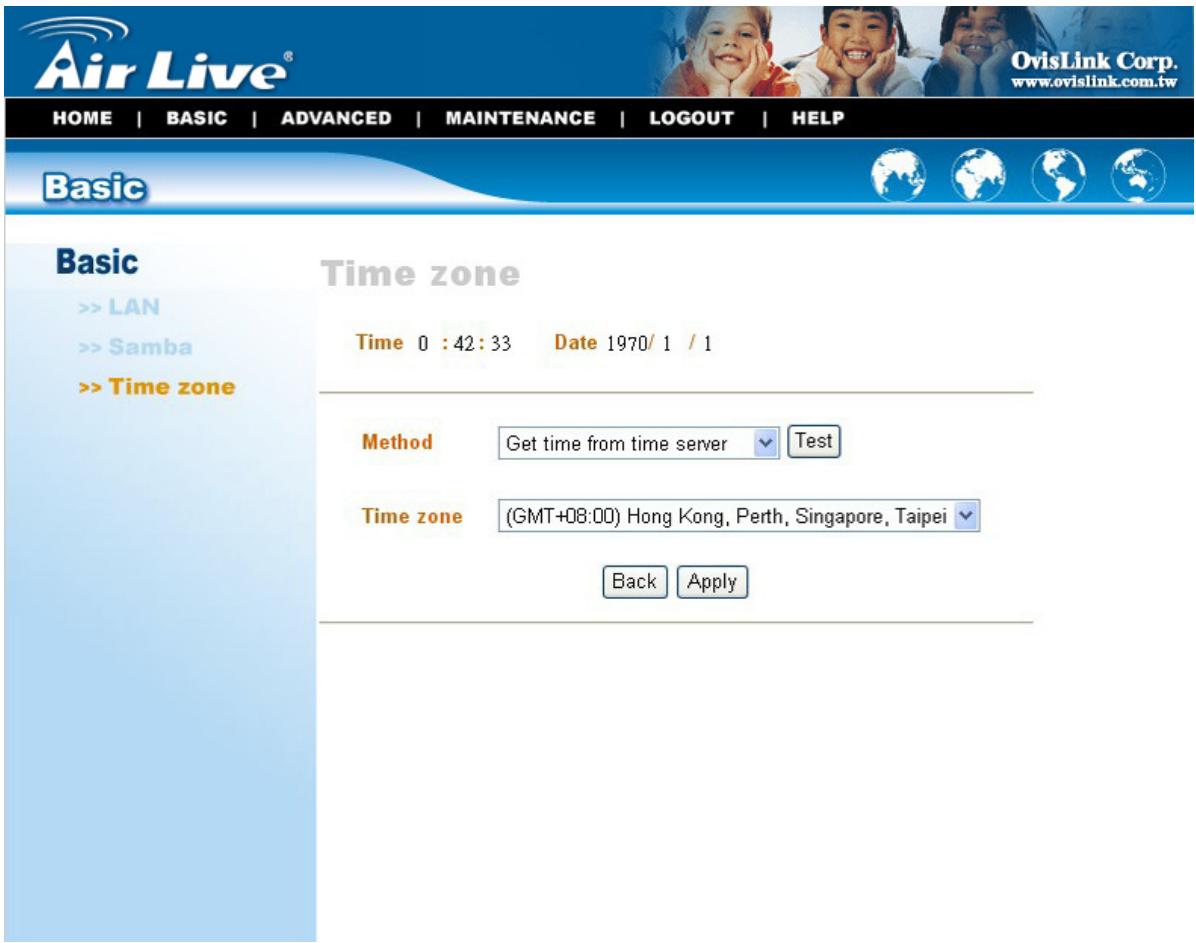

Basic — Time Zone This screen displays the current time setting of the file server. For system management purpose, a correct time setting is critical to have accurate time stamps on the system logs. Basic Time 0 :42:33 Date 1970/ 1 /1 >> Time zone Method [Get time from time server] Time zone | (GMT+08:00) Hong Kong, Perth, Singapore, Taipei M Basic Menu - Time Zone The Method pull-down menu allows you to set up the correct time by getting time from the computer or time server (need an Internet connection). In the Time Zone pull-down menu, select a time zone according to your location. When complete, click Apply.

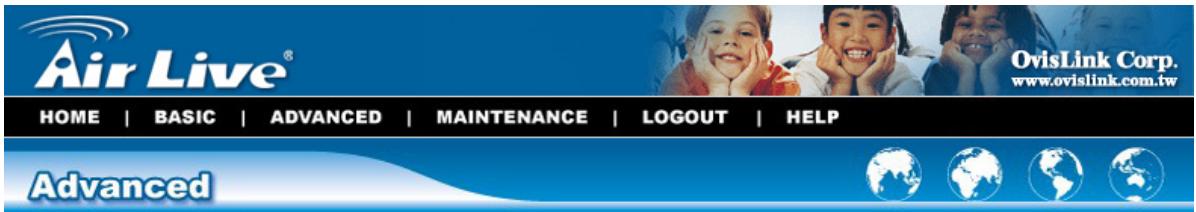

Configuration - Advanced The Advanced menu contains six submenus: Account, Samba, LAN, Time zone, FTP server, and Status. Advanced — Account The Account submenu contains the options that allow you to add/delete users. Also, you can manage the users of the file server.

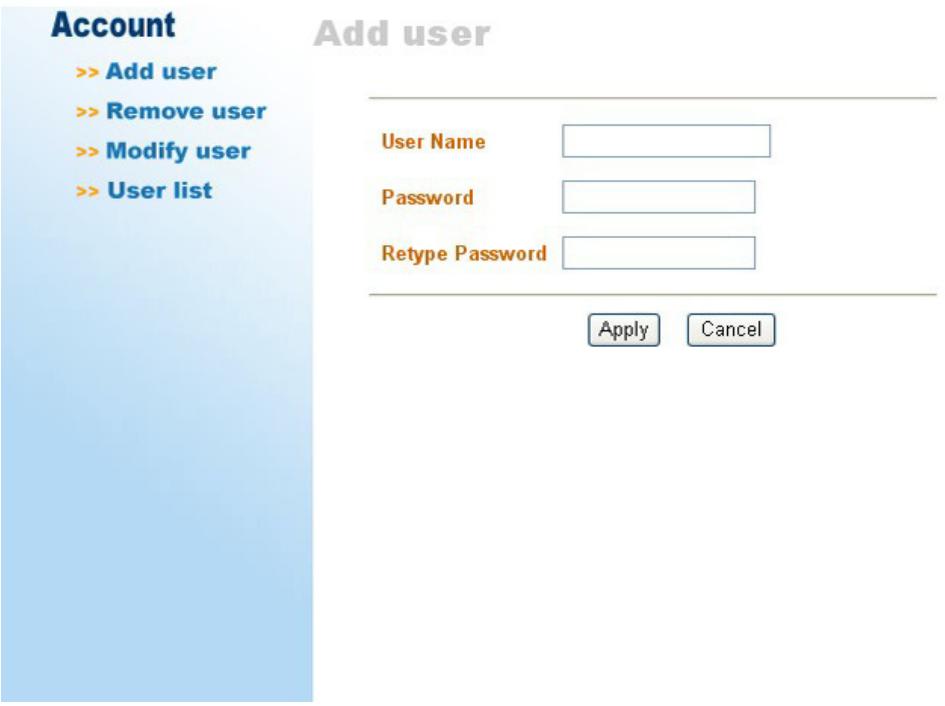

Add user: You can add user of the file server by entering a name in the User name box, and the corresponding password in the Password box. When complete, click Apply to activate the user’s account. Remove user: You can delete an existing user’s account in this option. Check the box associated to the user you want to delete and click Apply. Modify user: You can change the password of an existing user’s account. Select the radio button associated to the user you want to modify and click Apply. Enter the original password in the Old password box, and then enter a new password twice in the New password and Retype new password boxes. When complete, click Apply. User list: Click this item to display the existing users of the file server. NOTE:

1. The file server uses four pre-defined accounts in the firmware,

which cannot be used as the users’ account names, including: root, admin, ftp, and nobody.

2. The password you entered in the Password box must be longer

than five characters.

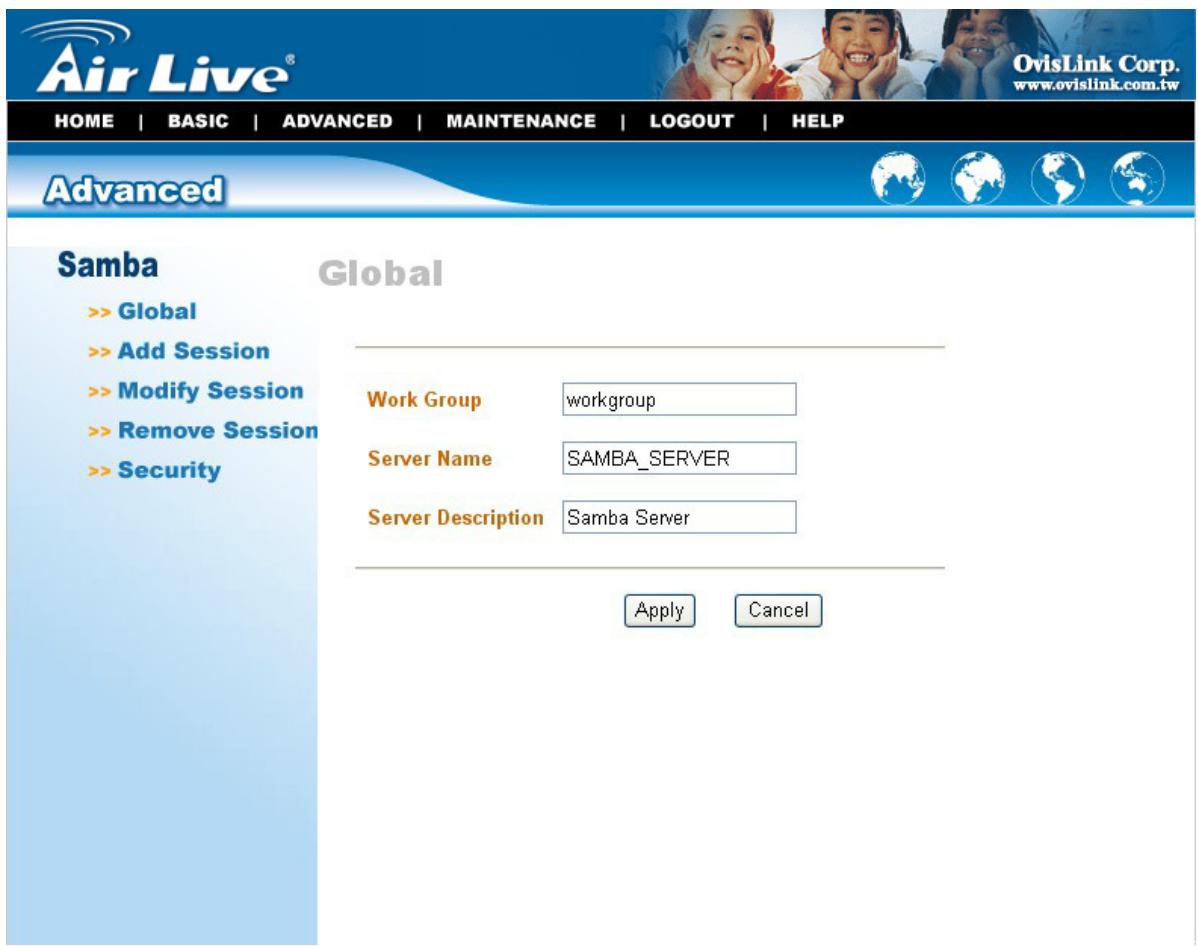

Advanced -— Samba The Samba submenu allows you to set up the Workgroup name for the file server, and change the name and description of the file server. You can also manage the session in this submenu. Samba >> Global >> Add Session >> Modify Session Work Group workgroup >> Remove Session D oui, Server Name SAMBA_SERVER Server Description |Samba Server Advanced Menu - Samba © Global: Enter the Workgroup name for the file server; and you can change the name and description of the file server © Add/Modify/Remove Session: You can add/modify/remove the tasks in these relative options.

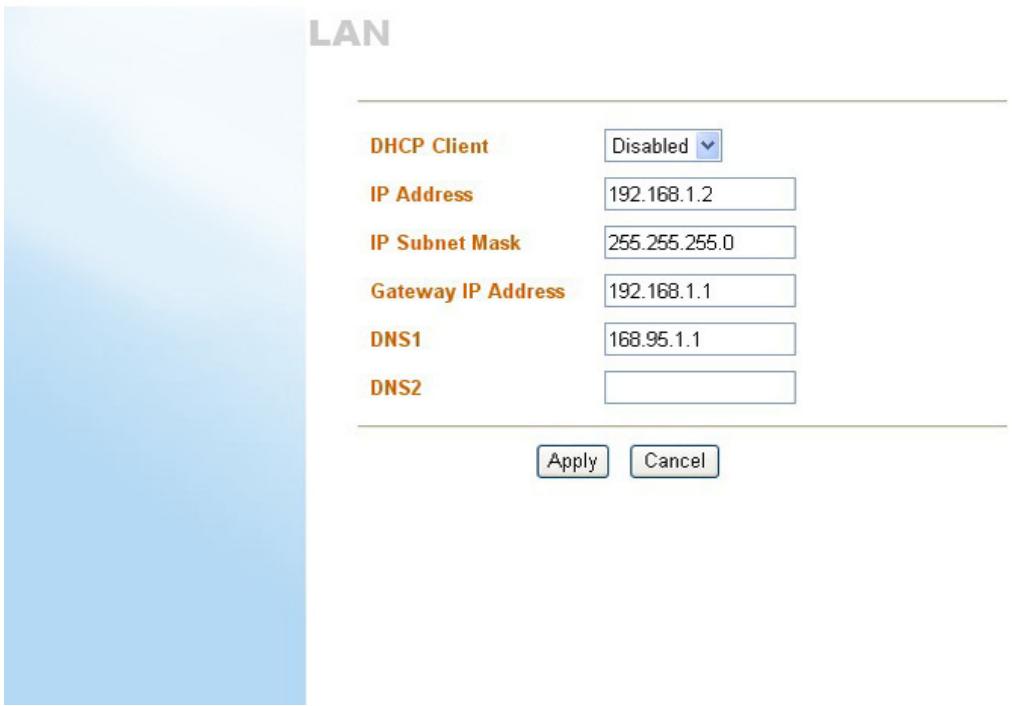

© Security: You can configure the security function by selecting NO, Allow IP, and Deny IP through the Filter Action pull-down menu. Advanced -— LAN The LAN submenu displays the current IP address and DHCP service of the file server, and can be modified manually. OvisLink Corp. rmovislinlc.com. fr DHCP Client Disabled M IP Address 192.168.1.2 1P Subnet Mask 255.255.255.0 Gateway IP Address 192.168.1.1 DNS1 168.95.1.1 DNS2 Advanced Menu - LAN

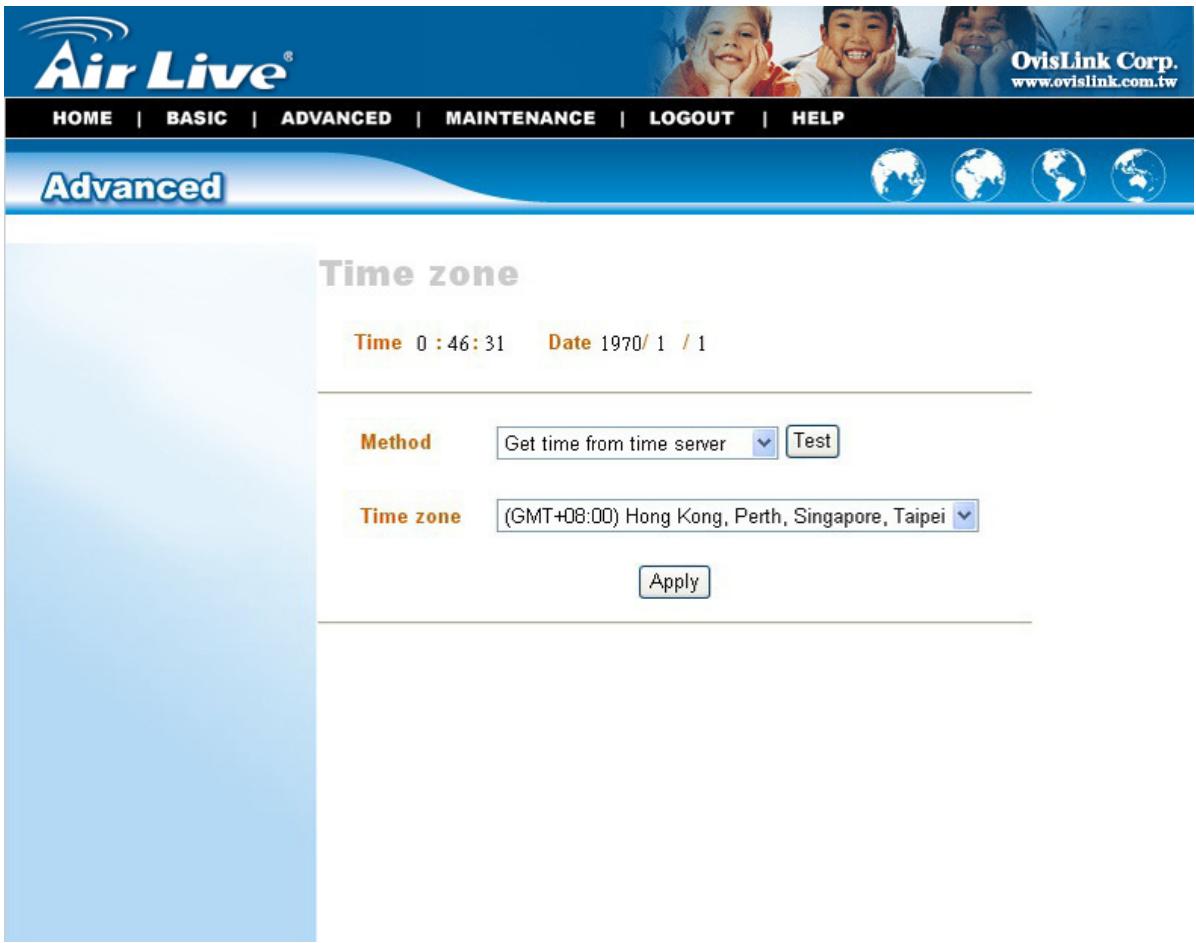

Advanced - Time Zone The Time zone submenu displays the current time setting of the file server. For system management purpose, a correct time setting is critical to have accurate time stamps on the system logs. Time 0 :46:31 Date 1970/1 /1 Method |Gettimefromtime semer] Time zone | (GMT+08:00) Hong Kong, Perth, Singapore, Taipei M Advanced Menu - Time Zone The Method pull-down menu allows you to set up the correct time by getting time from the computer or time server (need an Internet connection). In the Time Zone pull-down menu, select a time zone according to your location.

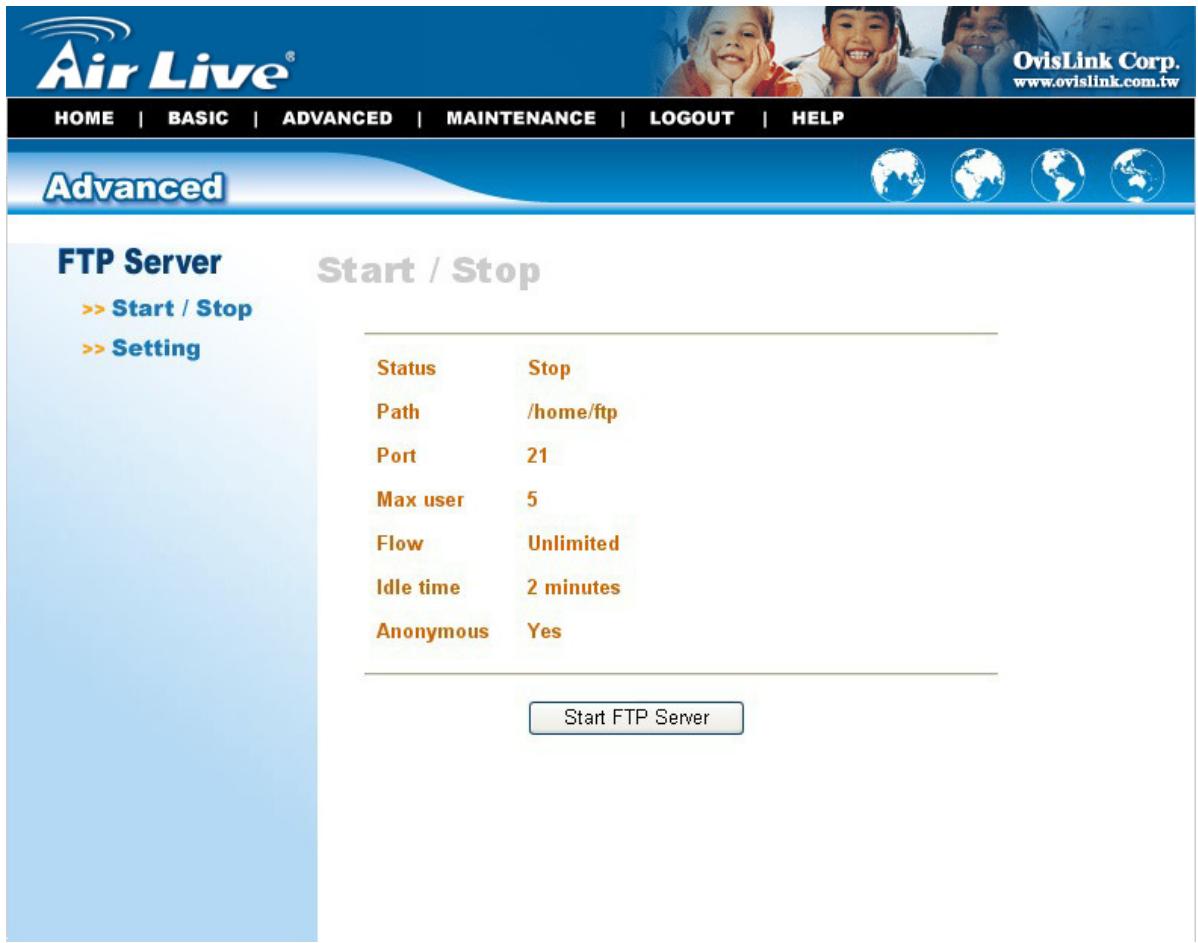

Advanced -— FTP Server The FTP server submenu contains the options that allow you to enable/disable the FTP service of the file server, as well as the relative FTP settings. FTP Server >> Start / Stop >> Setting RE ss Path /home/ftp Port 21 Max user 5 Flow Unlimited Idle time 2 minutes Anonymous Yes Start FTP Server Advanced Menu - FTP Server © Start/Stop: Click Start FTP Server to enable the FTP server of the file server. The status field displays the information of your FTP server settings. Once you enabled the FTP server, click Stop FTP Server to disable the service.

© Setting: This option contains the relative FTP server settings. -_ Path: Choose a destination for your FTP server. - Port: Assign a port (1-65535). - Max user: The users allowed to connect to the FTP server (1-10). - Anonymous: Choose Yes will allow the user connect to the FTP server anonymously. - Idle time: Set up the idle time for the FTP server (1-10 minutes). - Flow: Give limit on transmission flow of the FTP server.

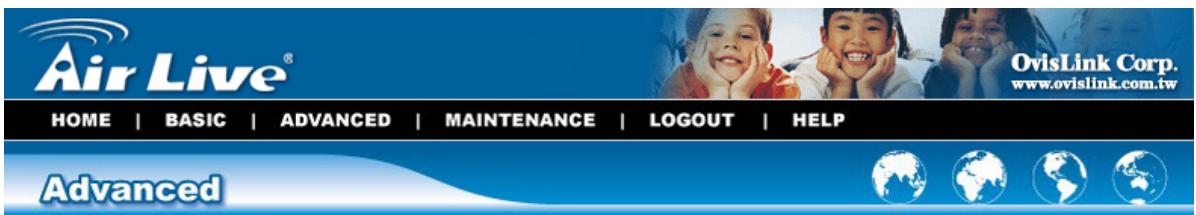

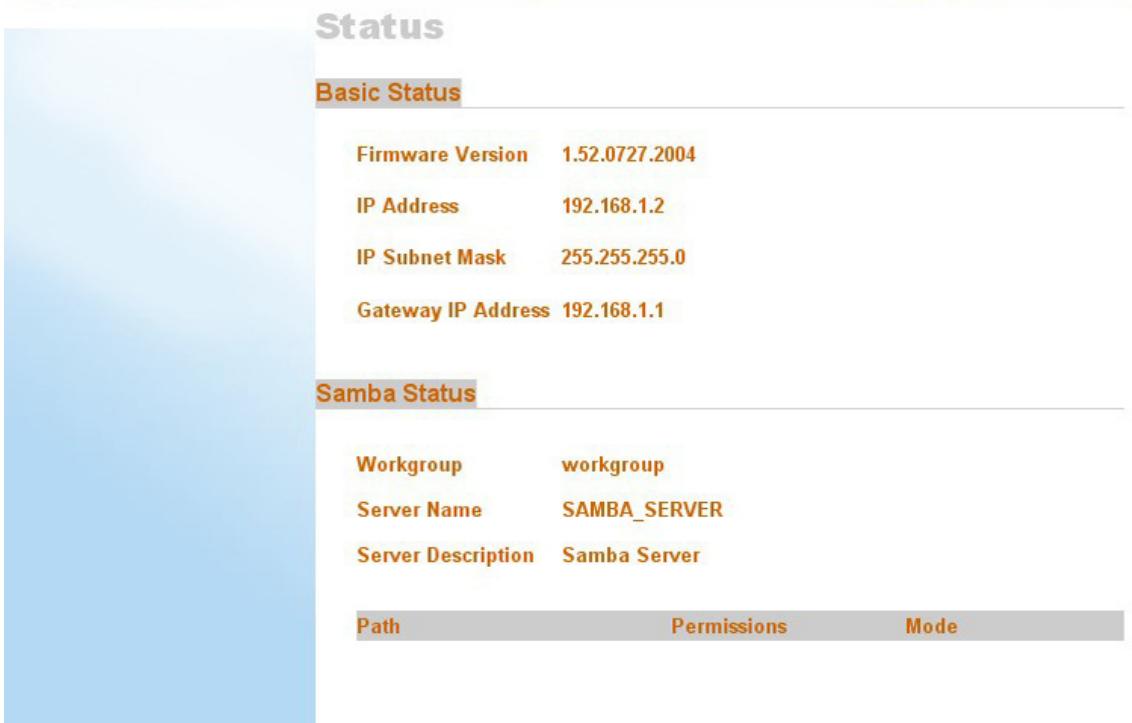

Advanced - Status The Status submenu contains information of the file server, including its basic status and the Samba server status. OvisLink Corp. ù rmovialinlccom. fr

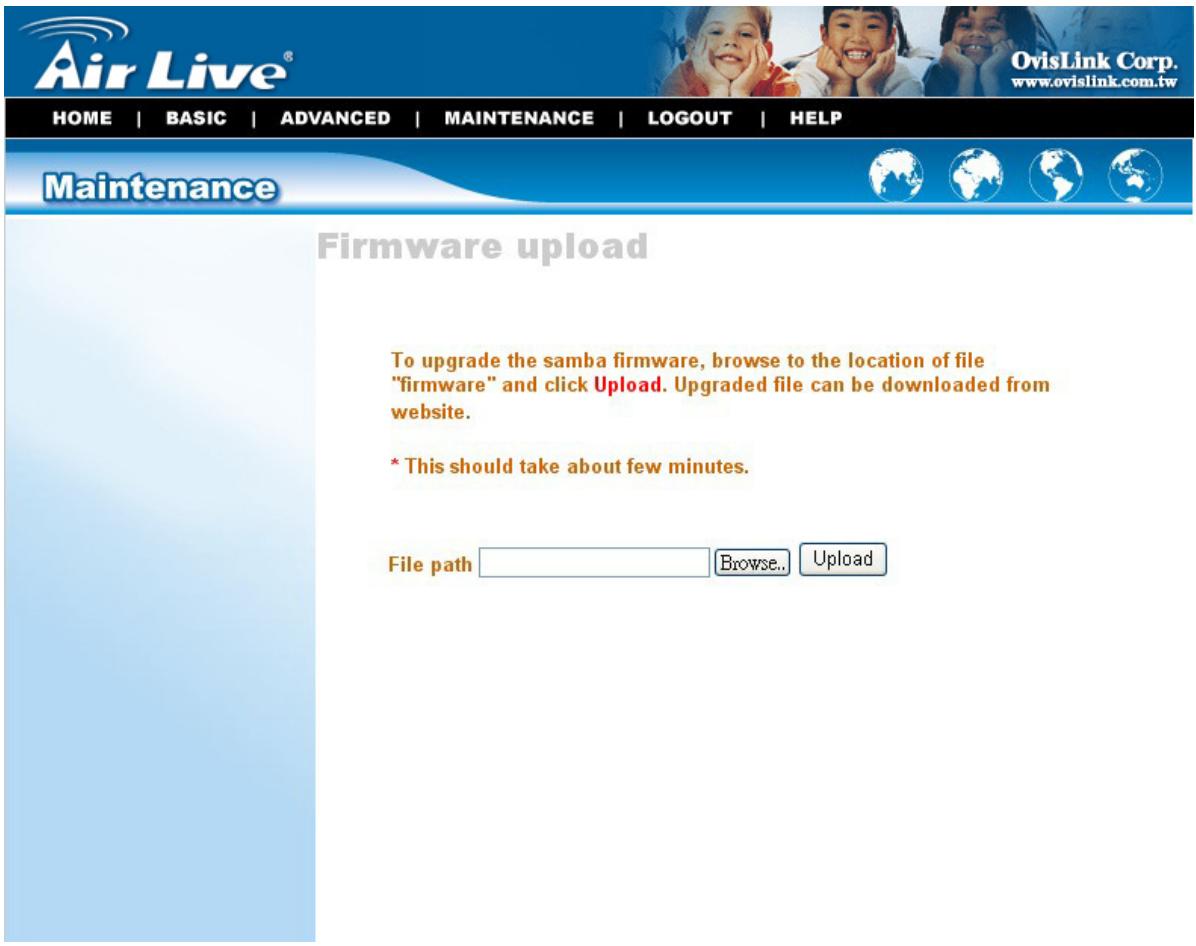

Configuration - Maintenance The Maintenance menu contains two submenus: Firmware upload and Configuration. Maintenance -— Firmware Upload The Firmware upload submenu allows you to update the firmware of your file server once you obtained a latest version of firmware. Click Browse to point to the firmware file, and then click Upload. To upgrade the samba firmware, browse to the location of file “firmware” and click Upload. Upgraded file can be downloaded from website.

• This should take about few minutes. File path Upload Maintenance Menu — Firmware Upload

Maintenance — Configuration The Configuration submenu allows you to reload the factory default settings of the file server. Also, you can set up the Idle time in this submenu. Configuration >> Default Back to Factory Defaults . >> Idle time Maintenance Menu — Configuration © Default: Clicking Reset allows you to resume the factory default settings of the file server. This function is the same as pressing the Reset button on the machine. © Idle time: If the user does nothing within the specified time in this option, then, the system would automatically logout. The idle time must be larger than 0.

Configuration - Logout Click the Logout button to exit the web configuration utility, and it will return to the login screen of the utility. Download Schedule You can re-login using the admin User name. Alternately, if you set up a new user for the file server, you can login the utility using the given user account.

1. If you are in the configuration mode, click Logout to exit the web

configuration utility, and re-login the utility’s download page by selecting the Download schedule item on the login dialog box. Download Schedule TIP: If the administrator has added users of the file server, the users can login the Download page with their user name and password.

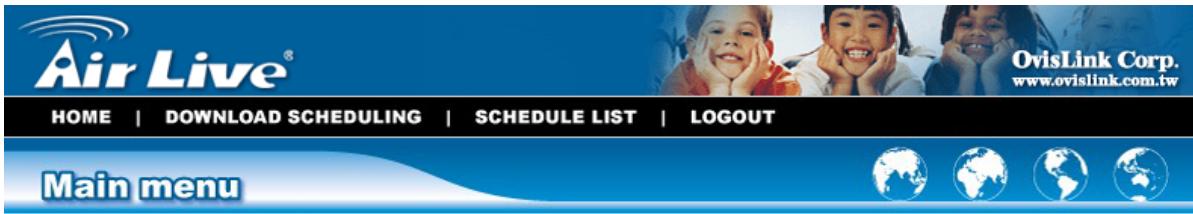

2. The Main menu of Download page will display as below.

= OvisLink Corp. rmovislinlccom. fr Lé L'4 | DOWNLO; jo SCHEDULING | SCHEDULE LIST | LOGOUT Welcome to the embedded web configuration. ° Click DOWNEOAD/SCHEDUEING to set your schedule. + Click SCHEDUPEMIST to list your download scheduling. + Click EOGOUT to exit the web configuration. © Home — main screen of the download page, providing the brief instructions of the buttons on menu bar. © Download Scheduling — clicks to set up your download schedule. © Schedule List — contains the information of scheduled download tasks. © Logout- clicks to exit the download page.

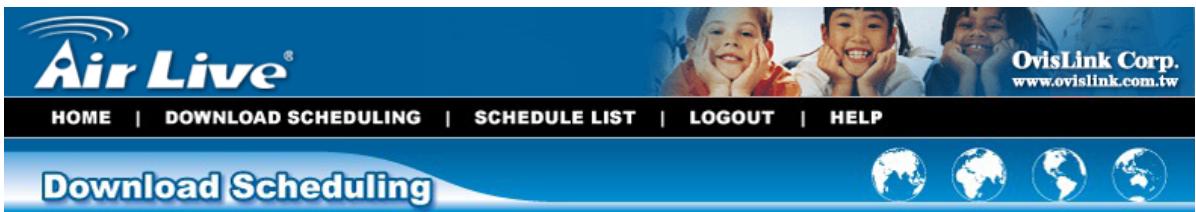

Scheduling Download Task Click the Download Scheduling menu to set up your download tasks. Enter the required information in the relative fields.

| SCHEDULE LIST | LOGOUT | HELP

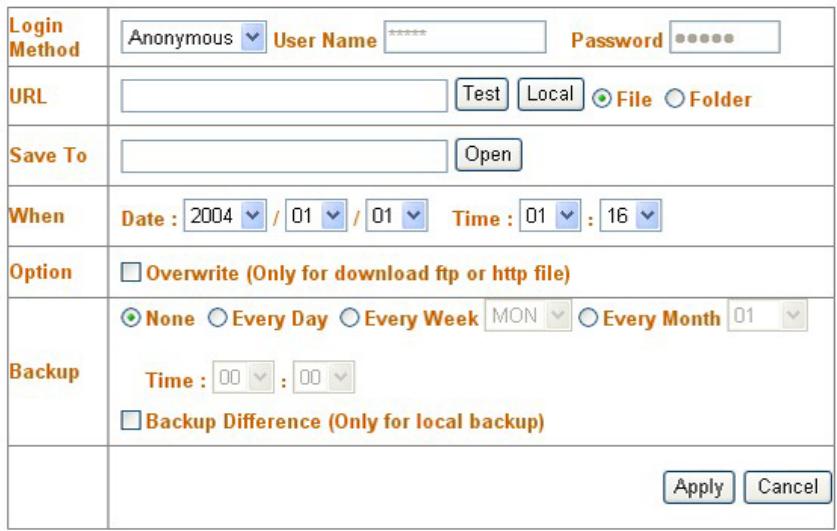

Login M a | LAnonymous W] ser Name Password [°o0ee URL ©fite OFolder (Save To When Date : [2004 M) ,[01 Ml/[01 M rime :[01 M):[16 M Option | [JOverwrite (Only for download ftp or http file) @©None O Every Day O Every Week O Every Month |0 Backup | Time : [Backup Difference (Only for local backup} Setup Screen of Download Scheduling © Login Method: According to the settings of target server, choose Anonymous or Account from pull-down menu. When you choose Account, you have to enter the correct User name and Password. © URL: Enter the URL address of target server. Click test to test the connection.

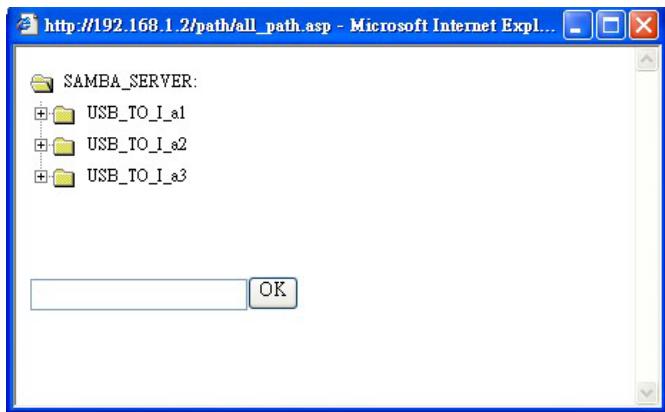

© Save to: Click open to bring up the following window that allows you to assign the destination folder to save the downloaded files. When completed, click OK. À 102.168, 2athal path asp - Microsoft Intemet Ex. (© E(X] &ù SAMBA SERVER: #@ USB_TO La #@ WB_T0 12 #@ WB_T0 LS © When: You have to set up the start-up time to download files from the pull-down menu of the Date and Time options. © Overwrite: When the downloaded files have the same filename as the files in the destination folder, checking this option will overwrite the old file in the folder. When completed, click Apply to save this download task to the Schedule List.

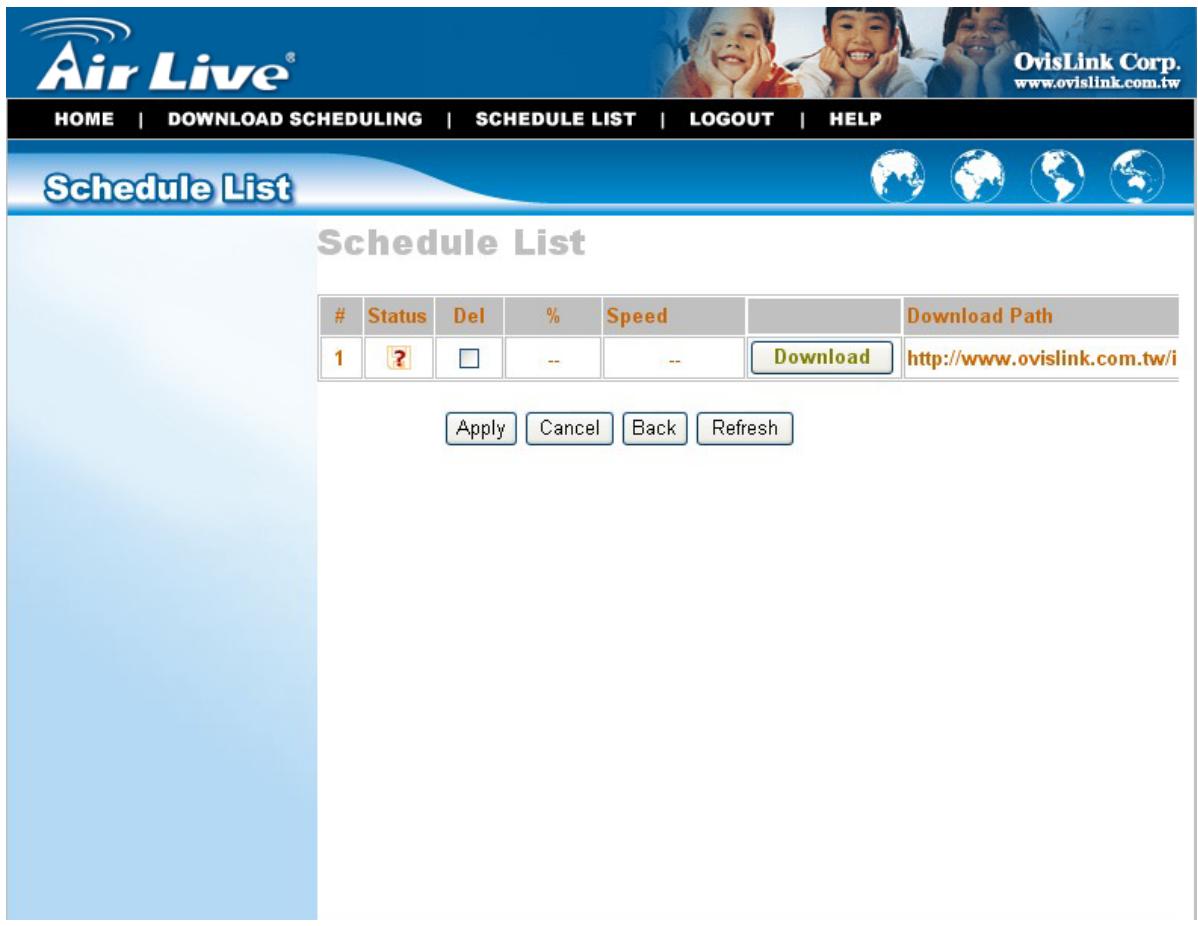

Schedule List Click the Schedule List menu to display the scheduled download tasks as below.

HOME | DOWNLOAD SCHEDULING | SCHEDULI | LOGOUT | HELP

# Status Del ‘% Speed Download Path 11mlo É É (Download } httpz/Awvww.ovistink.com.twri Scheduled Download Tasks Vou can edit, delete and view these download tasks from the list. When you change the settings of selected task, click Apply to save the configuration. Click Refresh to reload the status of these tasks.

Logout Click the Logout button to exit the download page, and it will return to the login screen of the utility. Download Schedule

LEDs Power, LAN, Mode, and WLAN (for wireless model). Management - Web-based administrative program - Easy Search Operating System Support - Windows 98/ME, Windows NT, Windows 2000/XP; - Linux SMB. Environmental and Physical Power Supply: 5VDC, 2.4 Amp. Operating Temperature: 0°C to 50°C. Storage Temperature: -20°C to 50°C. Humidity: 10% to 90%, non-condensing at 30°C. EMI Compliance FCC Class B, CE Class B, VCCI.
