USER MANUAL A3 PREMIUM HOME AND OFFICE GEHA

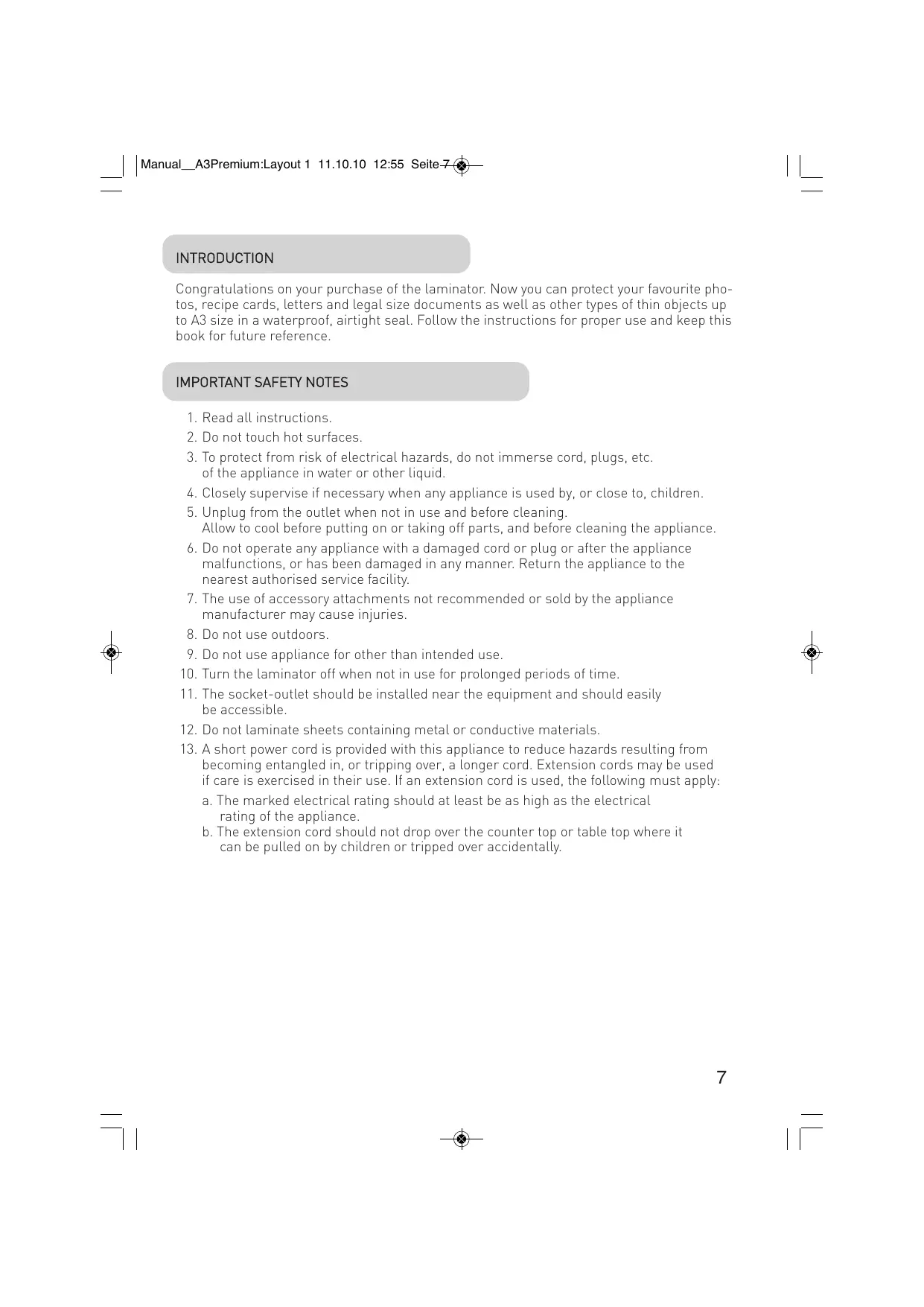

Congratulations on your purchase of the laminator. Now you can protect your favourite photos, recipe cards, letters and legal size documents as well as other types of thin objects up to A3 size in a waterproof, airtight seal. Follow the instructions for proper use and keep this book for future reference.

IMPORTANT SAFETY NOTES

1. Read all instructions.
2. Do not touch hot surfaces.
3. To protect from risk of electrical hazards, do not immerse cord, plugs, etc. of the appliance in water or other liquid.
4. Closely supervise if necessary when any appliance is used by, or close to, children.
5. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorised service facility.
7. The use of accessory attachments not recommended or sold by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not use appliance for other than intended use.
10. Turn the laminator off when not in use for prolonged periods of time.
11. The socket-outlet should be installed near the equipment and should easily be accessible.
12. Do not laminate sheets containing metal or conductive materials.
13. A short power cord is provided with this appliance to reduce hazards resulting from becoming entangled in, or tripping over, a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the following must apply:

a. The marked electrical rating should at least be as high as the electrical rating of the appliance.

b. The extension cord should not drop over the counter top or table top where it can be pulled on by children or tripped over accidentally.

• We do not recommend laminating any type of self-developing photo.
• Any photo to be laminated must be dry before processing.
• Do not laminate any documents that appear thick or heavy, as they will get stuck in the laminator. If this occurs, please contact your local service centre for servicing.
• This product bonds the laminate sleeve to the items processed. It is a permanent seal and cannot be removed.
• We do not recommend laminating any collector's items of value or any item you may wish to remove at a later date. Do not attempt to laminate coins or thicker items.

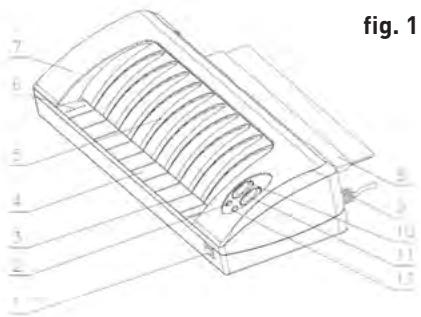

fig.1

1 Power switch (cold/off/hot)
2 LED indicator (function LED)
3 Housing base
4 Film insert direction
5 Decorative cover
6 Max. laminating line
7 Housing top
8 Document tray
9 Power cord
10 Pouches select switch (80 - 125 micron transfer)
11 Reverse switch (forward - reverse)
12 LED indicator (power LED)

1. Before operation, select a suitable temperature according to your pouch thickness.

2. To switch the laminator on, press the tilt switch to the right (hot). The red light is illuminated. When the green light is also illuminated, the device is ready to start laminating. The laminator requires about 3 - 5 minutes to heat up.

3. For cold lamination, press the tilt switch to the left (cold). The red and green lights are illuminated. Now, you can start laminating. If hot lamination was previously completed, only the red light will be initially illuminated. Please wait 40 - 60 minutes until the laminator cools down. When the green light is also illuminated, the laminator is ready to use.

4. Place the item to be laminated into the laminating sleeve, centring it within the sleeve. Please make sure your document or picture is positioned as close to the sealed edge as possible.

5. The laminator does not require the use of a carrier in order to operate.

6. The laminator can laminate pouches from 80 microns to 125 microns. It works with most types of heat-sealing laminating pouches.

7. Insert the sealed edge of the laminating sleeve straight into the CENTRE of the laminator opening.

8. Remove the sleeve from the rear of the machine after it has stopped moving.
9. Some types of paper do not laminate evenly, or appear somewhat cloudy. In such cases, the lamination can be fed through the machine a second time and the lamination process may be repeated.
10. If any materials are jammed in the laminator, please use the reverse switch (Ill. 1, No. 11).

CARE AND CLEANING

Only authorised service teams should perform any servicing other than cleaning and user maintenance. Do not immerse in water.

To reduce the risk of fire or electrical shock, do not remove the base. No user serviceable parts are inside. Repair should be done by authorised service personnel only.

• Keep your hands and the cord away from hot parts of the appliance during operation.
• Never clean with scrubbing powders or hard implements.
• Wipe clean with a soft cloth.

TECHNICAL DATA

Voltage

220-240V,50Hz

Current

2.0 A

Power

max. 500 W

Film thickness

80-125 microns

Max. document size

A3

Warm-up time

approx. 3-5 mins

Laminating speed

approx. 300 mm/min

Max. document thickness

0.7 mm

DISPOSAL

The crossed out wheelie bin symbol on this product is to remind you that electrical products should not be disposed of with household waste.

Please dispose of in a responsible manner at an approved waste or recycling facility.

WARRANTY

The warranty period for your appliance is 24 months.

It is essential that you retain your proof of purchase and the original packaging.

Should any problem arise with your appliance, please contact your dealer.
