USER MANUAL T1-DVC AUDIO DESIGN

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.
No is Covered
This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

	10"	12"
Dual 2-Ohm	T1D210	T1D212
Dual 4-Ohm	T1D410	T1D412

Installation & Operation

WARNING

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

CAUTION

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION

To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.

CAUTION

If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.

CAUTION

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire adn/or possible injury.

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

DESIGN FEATURES

These woofers were designed for use primarily in small ported enclosures. By utilizing the latest materials and construction techniques, we are able to offer a speaker with high output at low frequencies while requiring a minimum of operating space.

CARTON CONTENTS

(1) Power DVC Subwoofer
(1) Trim ring
(4) Socket head trim ring screws
(8) Socket head wood screws
(1) Socket head driver bit
(1) Installation & operation manual

VENTED ENCLOSURES

Vented enclosures vary only from the sealed enclosure in that a vent or port is added to "tune" the enclosure. The enclosures recommended are designed for great overall performance. Larger boxes tend to be easy to tune to lower frequencies while medium and small boxes are easier to tune to higher frequencies. The vented design is less linear in response than the sealed box but with noticeably more output at the tuning frequency.

Advantages of vented enclosures:

Higher average output than sealed
- Tuning frequency can be easily adjusted by changing port length
- Deep bass response with lower power requirements
- Great for high output with limited power

BUILDING AN ENCLOSURE

To work properly, the walls of the enclosure must be rigid and not flex when subjected to the high pressures generated by the speaker's operation. For optimum performance, we recommend using 3/4'' MDF (Medium Density Fiberboard) and internal bracing. The enclosure should be glued together and secured with nails or screws.

CALCULATING VOLUME

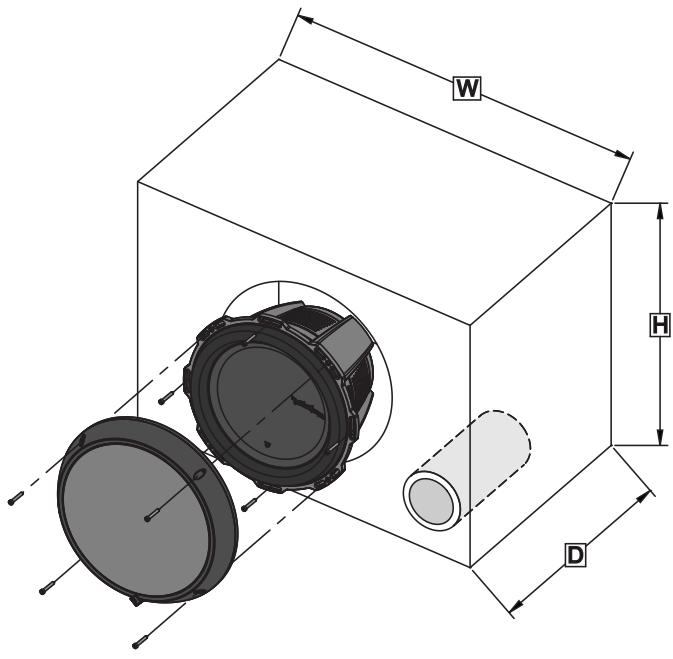

Calculating volume is merely a matter of measuring the dimensions in inches and using the formula: H × W × D divided by 1728 (cubic feet). See block below.

Box Volume Height" x Width" x Depth"
Divided by (cubic feet) 1728

If two facing sides are of uneven length, add them together and divide by two to take the average. Using this number will give you the volume without the necessity of calculating the box in sections and adding the sections together. The thickness of the baffle material reduces the internal volume so this must be subtracted from the outside dimensions to determine the internal volume. The speaker itself also reduces the internal volume. The amount of air displaced by each model is listed on the specification sheet and should also be subtracted from the gross volume calculation.

NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4'' (1.90cm) materials.
NOTE: When using enclosures other than recommended, call Technical Support for correct application.

Optimum Vented (Ported) Enclosure Sizes

VENTED ENCLOSURES	10" T1D210 / T1D410	12" T1D212 / T1D412
Vb- Internal Area cu. ft.	1.50	1.75
(Liter)	(42.47)	(49.55)
Fb- Tuning Frequency (Hz)	40.0	40.0
F3- -3dB Point (Hz)	32.0	32.0
H - Height-inch	15.5	16.5
(cm)	(39.37)	(41.91)
W - Width-inch	20.25	25.5
(cm)	(51.44)	(64.77)
D - Depth-inch	12.5	10
(cm)	(31.75)	(25.40)
P - Port Diameter and Length-inch	(1) 4 x 11	(1) 4 x 9
(cm)	(1) (10.16 x 27.94)	(1) (10.16 x 22.86)
SEALED ENCLOSURES	10" T1D210 / T1D410	12" T1D212 / T1D412
Vb- Internal Area cu. ft.	0.75	1.25
(Liter)	(21.24)	(35.39)

Number of ports noted in ()
Specifications subject to change without notice
NOTE: The port shown can be placed on any face of the enclosure as long as the port ends are not obstructed.
NOTE: When using vented enclosures, for maximum reliability and power handling ensure that a subsonic or "infrasonic" filter is used so that only usable low frequency signal is sent to the subwoofer.

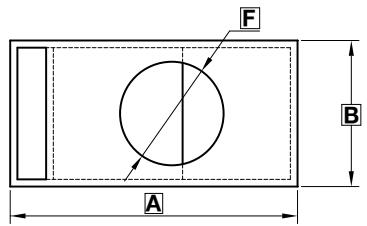

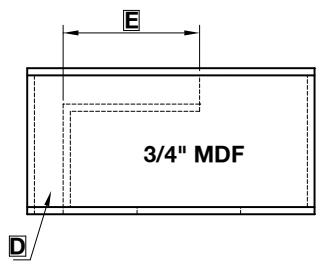

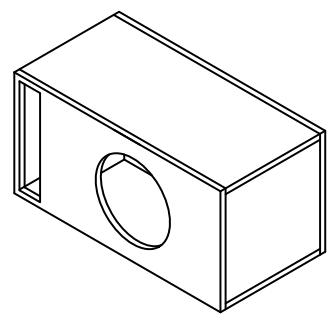

" HIGH OUTPUT " SLOT LOADED ENCLOSURES

VENTED ENCLOSURES		10" T1D210 / T1D410	12" T1D212 / T1D412
Vb- Box Volume Net / Gross - cu. ft. (Liter)		1.5 / 2.04 (42.48 / 57.77)	2.25 / 3.12 (63.71 / 88.35)
Fb- Tuning Frequency (Hz)		38.0	40.0
A - Width-inch (cm)		26.0 (66.04)	30.0 (76.20)
B - Height-inch (cm)		13.5 (34.29)	15.25 (38.74)
C - Depth-inch (cm)		13.5 (34.29)	15.25 (38.74)
D - Port area and Length - inch (cm)		(1) 2 x 12.0 x 25.5 (1) (5.08 x 30.48 x 64.77)	(1) 3 x 13.75 x 25.75 (1) (7.62 x 34.93 x 65.41)
E - Length-inch (cm)		14.75 (37.47)	14.25 (36.20)
F - Mounting Diameter-inch (cm)		9-5/16 (23.66)	11-7/16 (29.05)
Cut List
	Baffle / Back-inch (cm)	26 x 13.5 (66.04 x 34.29)	30 x 15.25 (76.20 x 38.74)
	Top / Bottom-inch (cm)	26 x 12 (66.04 x 30.48)	30 x 13.75 (76.20 x 34.93)
	Ends -inch (cm)	12 x 12 (30.48 x 30.48)	13.75 x 13.75 (34.93 x 34.93)
	Port -inch (cm)	14 x 12 - 10 x12 (35.56 x 30.48 - 25.4 x 30.48)	13.75 x 13.5 - 13.75 x 10.75 (34.93 x 34.29 - 34.93 x 27.31)

Number of ports noted in ()
Specifications subject to change without notice

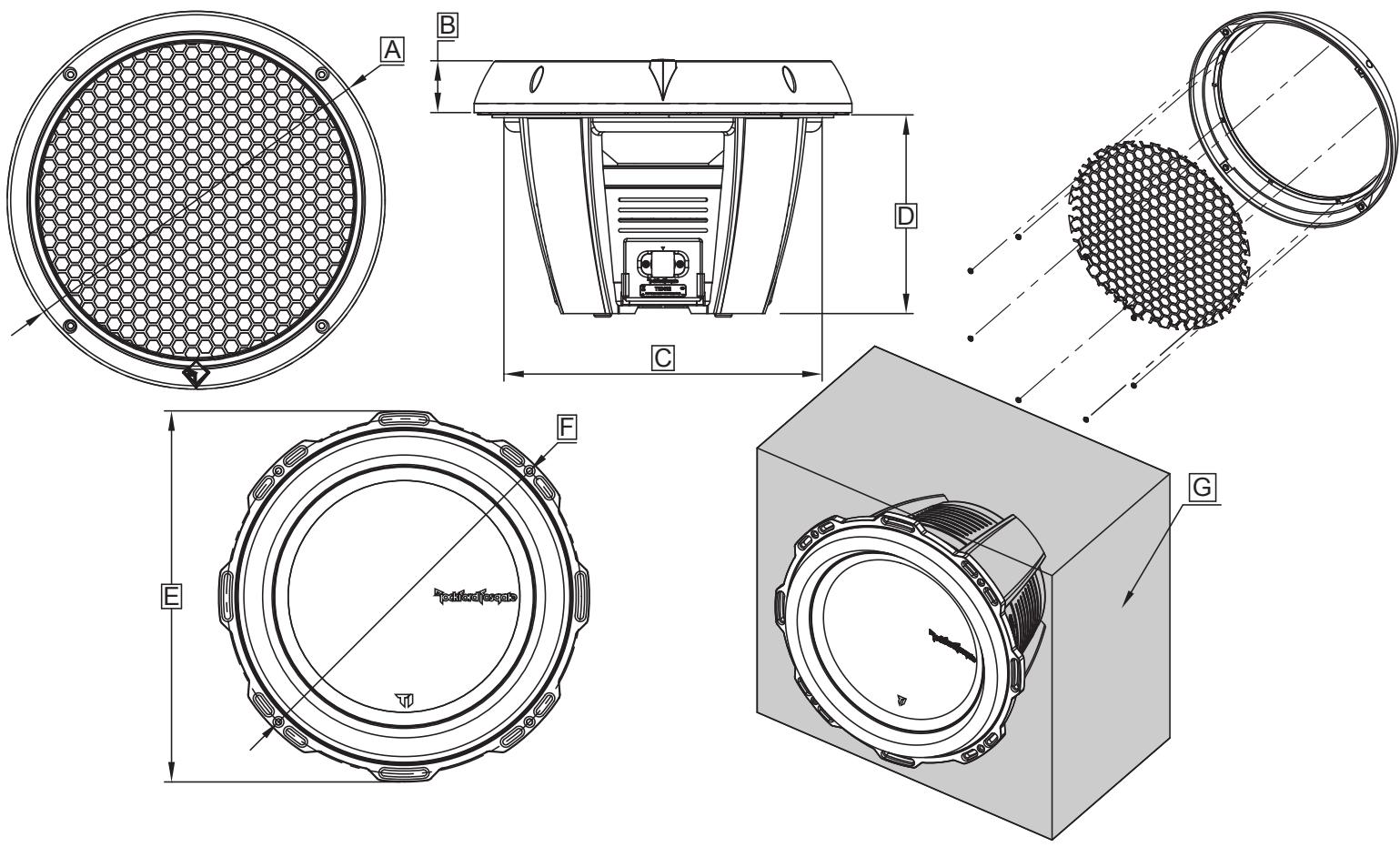

POWER T1-DVC	10" T1D210 / T1D410	12" T1D212 / T1D412
A - Trim Ring Diameter-inch (cm)	11.02	13.07
	(28.0)	(33.2)
B - Trim Ring Height-inch (cm)	1.79	1.79
	(4.55)	(4.55)
C - Mounting Diameter-inch (cm)	9-5/16	11-7/16
	(23.66)	(29.05)
D - Mounting Depth-inch (cm)	6-1/2	6-7/8
	(16.51)	(17.46)
E - Overall Diameter-inch (cm)	10.79	12.84
	(27.40)	(32.60)
F - Screw Hole Diameter-inch (cm)	10.16	12.29
	(25.80)	(31.20)
G - Speaker Displacement - cu. ft. (Liter)	0.203	0.308
	(5.75)	(8.73)

Specifications subject to change without notice

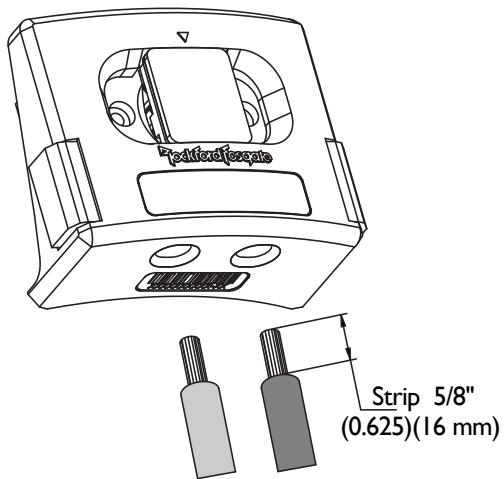

TERMINAL

Rockford's proprietary SWIFT™ Terminal provides simple convenient selection of nominal impedance load of the dual voice coil sub-woofer.

The removable impedance selection jumper also provides fused protection in severe overload conditions and should only be replaced by an authorized dealer.

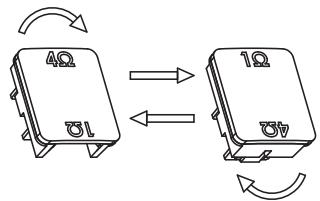

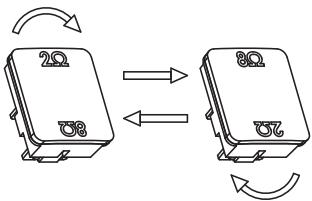

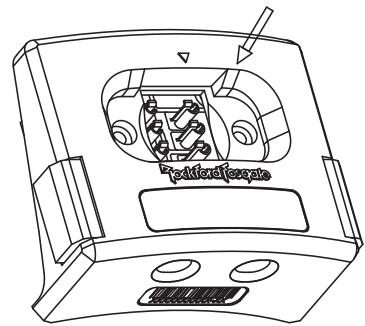

As per the illustration, by inverting the center plug the dual voice coil's are connected in either a "series of parallel" configuration allowing for convenient configuration for optimal amplifier loading. Please make sure that this center plug is securely fitted. This should only be done by an authorized Rockford dealer to insure the system is properly configured.

SPECIFICATIONS

TID210/TID212

TID410/TID412

NOTE: Sub also includes non fused jumper.

Model - Power DVC	TID210	TID410	TID212	TID412
Nominal Impedance (ohms)	2Ω (2)	4Ω (2)	2Ω (2)	4Ω (2)
Voice Coil Diameter-inch (mm)	3 (75.5)	3 (75.5)	3 (75.5)	3 (75.5)
FS (Hz)	34.5	36.0	31.5	33.0
QTS	0.54	0.65	0.52	0.61
VAS-cu.ft. (liter)	0.54 (15.4)	0.55 (15.7)	1.55 (43.8)	1.53 (43.2)
Xmax-inch (mm)	0.65 (16.4)	0.65 (16.4)	0.65 (16.4)	0.65 (16.4)
SPL (dB @ 1w/lm)	83.0	83.0	86.0	86.0
Power Handling (RMS)	600	600	800	800
Power Handling (Max)	1200	1200	1600	1600
Mounting Dia.-inch (mm)	9-5/16 (236.54)	9-5/16 (236.54)	11-7/16 (290.51)	11-7/16 (290.51)
Mounting Depth-inch (mm)	6-1/2 (16.51)	6-1/2 (16.51)	6-7/8 (17.46)	6-7/8 (17.46)
Speaker Dis.-cu.ft. (liter)	0.203 (5.75)	0.203 (5.75)	0.308 (8.73)	0.308 (8.73)
Sealed Box Vol.-cu.ft.(liter)	0.75 (21.24)	0.75 (21.24)	1.25 (35.39)	1.25 (35.39)
Vented Box Vol.-cu.ft.(liter)	1.5 (42.47)	1.5 (42.47)	1.75 (49.55)	1.75 (49.55)
Port Diameter & Length (in.)	(I) 4 x 11	(I) 4 x 11	(I) 4 x 9	(I) 4 x 9
Port Diameter & Length (cm)	(I) 10.16 x 27.94	(I) 10.16 x 27.94	(I) 10.16 x 22.86	(I) 10.16 x 22.86

Français

• Hard anodized aluminum dust cap.
• Kevlar fiber reinforced semi-pressed paper cone.
• Tear & fatigue resistant poly-cotton spider with integrated stitched balanced leads.
• High durability VAST™ Santoprene™ surround..
• Ultra-High temp aluminum voice coil with spun-laced Nomex™ insulating reinforcement collar.
• Optimized motor magnetics with extended vented pole and bumped backplate.
• Double stack ferrite magnet structure.
• Proprietary spider cooling vents.
• Multi-point high-temp/high-strength neck joint bonding technique.
• Rigid die-cast aluminum frame.
• Proprietary SWIFT™ terminal (Selectable Woofer Impedance Fused Termination)
• IDHS™ Inductive Damping Heat Sink.
• Proprietary SWIFT™ Terminal with balance 10 gauge lead-in wire connections.
• Removable and reversible screw concealing ring.
