Product type	Wood stove
Brand	AUSTRO FLAMM
Model	PI
Height	1229 mm
Width	488 mm
Depth	488 mm
Weight	142 kg
Flue pipe diameter	130 mm
Nominal heat output	6 kW
Maximum heat output	8 kW
Minimum heat output	3.5 kW
Heated volume	50 - 130 m³
Permitted fuel	Dry wood (<15% humidity), wood briquettes or lignite
Maximum fuel quantity	1.3 kg of wood or 1 kg of briquettes
Flue gas flow rate (nominal)	7 g/s
Flue gas temperature (nominal)	360 °C
Minimum draft (nominal)	0.12 mbar
Safety distances (front / sides / rear)	800 mm / 800 mm / 250 mm
Warranty	2 years (excluding wear parts)
Annual maintenance	Cleaning and sweeping by a specialist
Main spare parts	Refractory ceramics, grate, door, glass window, handle, seals

Frequently Asked Questions - PI AUSTRO FLAMM

What fuels can I use in the PI AUSTRO FLAMM stove?

You can use dry natural wood (humidity < 15%), wood briquettes, or lignite. Never burn waste, plastics, or treated wood.

What is the maximum fuel quantity that should not be exceeded?

The maximum load is 1.3 kg of wood or 1 kg of briquettes. Exceeding this would cause overheating damaging the stove.

How to properly light the stove?

Open the primary and secondary air inlets fully. Place paper, kindling, then 1-2 logs. Light the paper, close the door, and wait for the logs to burn well before adjusting the power.

What safety distances must be observed around the stove?

Front: > 800 mm, sides: > 800 mm, rear: > 250 mm. Respect these distances to avoid any fire risk.

The stove emits odors during first use, is this normal?

Yes, it's normal. The special varnish cures during the first heating. Heat strongly for at least 1.5 hours while opening a window to evacuate fumes.

How to clean the stove glass?

Use a stove glass cleaner like Thermohit. Painted parts are cleaned with a damp cloth, stainless steel with specific products.

What to do in case of a chimney fire?

Immediately close all air inlets of the stove and chimney, then call the fire department. After the fire, have the flue checked by a specialist.

How to install the stove?

Installation must be carried out by a qualified professional. Check the load-bearing capacity of the floor and respect safety distances. Connection to the flue must comply with standards.

What regular maintenance should be performed?

The stove, flue, and pipes must be cleaned at least once a year by a chimney sweep. An annual inspection by a specialist is recommended.

What does the 2-year warranty cover?

The warranty covers manufacturing defects of steel and cast iron components. Wear parts (ceramics, seals, grate, glass) and varnish are not covered. Installation must be done by a professional.

USER MANUAL PI AUSTRO FLAMM

secondary air supply

primary air supply

english

Contents

1. Techn. data 4
2. Important information 4
3. Correct operation of your stove 5
4. The most important spare parts - overview 6 Guarantee 13

italiano

aperto - chiuso

As a stove of construction type 1, it is possible to connect it to the flue pipe of an existing other stove or another furnace for solid and liquid fuels, as long as the chimney does complies with DIN 4705, Part 3.

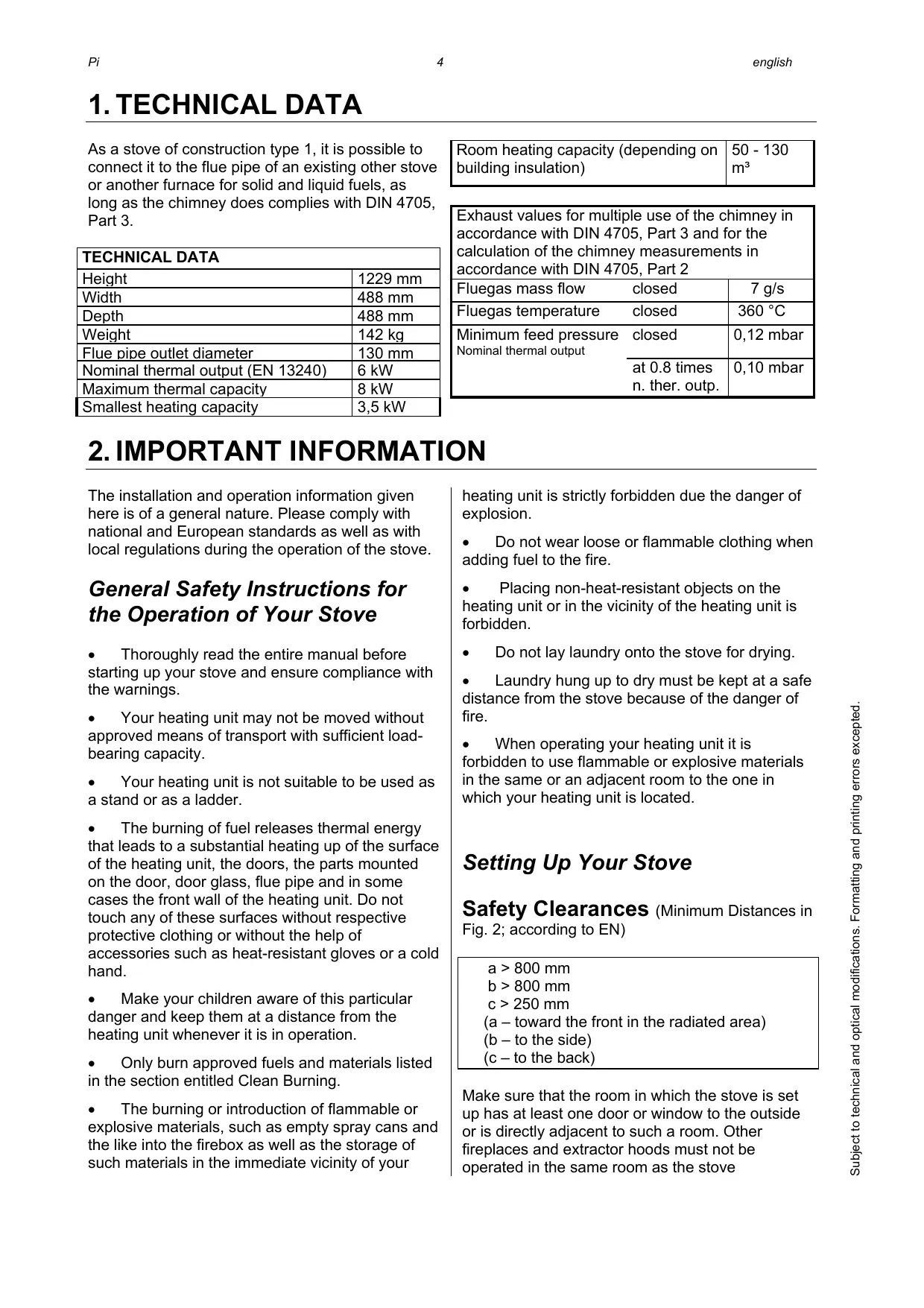

TECHNICAL DATA
Height	1229 mm
Width	488 mm
Depth	488 mm
Weight	142 kg
Flue pipe outlet diameter	130 mm
Nominal thermal output (EN 13240)	6 kW
Maximum thermal capacity	8 kW
Smallest heating capacity	3,5 kW

Room heating capacity (depending on building insulation)

50 - 130 m³

Exhaust values for multiple use of the chimney in accordance with DIN 4705, Part 3 and for the calculation of the chimney measurements in accordance with DIN 4705, Part 2
Fluegas mass flow	closed	7 g/s
Fluegas temperature	closed	360 °C
Minimum feed pressure Nominal thermal output	closed	0,12 mbar
	at 0.8 times n. ther. outp.	0,10 mbar

2. IMPORTANT INFORMATION

The installation and operation information given here is of a general nature. Please comply with national and European standards as well as with local regulations during the operation of the stove.

General Safety Instructions for the Operation of Your Stove

• Thoroughly read the entire manual before starting up your stove and ensure compliance with the warnings.
• Your heating unit may not be moved without approved means of transport with sufficient load-bearing capacity.

• Your heating unit is not suitable to be used as a stand or as a ladder.

• The burning of fuel releases thermal energy that leads to a substantial heating up of the surface of the heating unit, the doors, the parts mounted on the door, door glass, flue pipe and in some cases the front wall of the heating unit. Do not touch any of these surfaces without respective protective clothing or without the help of accessories such as heat-resistant gloves or a cold hand.

Make your children aware of this particular danger and keep them at a distance from the heating unit whenever it is in operation.
- Only burn approved fuels and materials listed in the section entitled Clean Burning.
- The burning or introduction of flammable or explosive materials, such as empty spray cans and the like into the firebox as well as the storage of such materials in the immediate vicinity of your

heating unit is strictly forbidden due the danger of explosion.

• Do not wear loose or flammable clothing when adding fuel to the fire.
• Placing non-heat-resistant objects on the heating unit or in the vicinity of the heating unit is forbidden.
• Do not lay laundry onto the stove for drying.
• Laundry hung up to dry must be kept at a safe distance from the stove because of the danger of fire.
• When operating your heating unit it is forbidden to use flammable or explosive materials in the same or an adjacent room to the one in which your heating unit is located.

Setting Up Your Stove

Safety Clearances (Minimum Distances in

Fig. 2; according to EN)

a > 800 mm
b>800mm
c > 250 mm

(a - toward the front in the radiated area)
(b-to the side)
(c-to the back)

Make sure that the room in which the stove is set up has at least one door or window to the outside or is directly adjacent to such a room. Other fireplaces and extractor hoods must not be operated in the same room as the stove

Floor Load Capacity

Before the heating unit is installed, make sure that the load capacity of the supporting construction is sufficient to carry the weight of the entire unit.

Stovepipe Connection

For your own safety stringent laws apply to the connecting of the stovepipe to the chimney. Your professional dealer or distributor knows these laws. Please have your certified retailer carry out the connection of your stove.

Initial startup of your stove

Your stove was treated with a special environmentally friendly lacquer. The lacquer surface is still soft at the time the stove is shipped. The lacquer will harden when your stove is used for the first time. The lacquer surface may not be touched when it is heated for the first time. The stove must be initially heated to a high temperature for at least 1.5 hours. Visible vapors may appear during the hardening of the lacquer. For this reason it will be necessary to open windows during initial operation in order let the vapors escape into the outdoors.

PLEASE TAKE NOTE: It takes several heating sessions before for your stove releases only the pleasant smell of burning wood.

Approved Fuels

Dry, well cured and natural wood, wood briquettes.

Maximum Amount of Fuel

Maximum amount of fuel to be added: 1,3 kg wood or 1 kg wood briquettes. Larger amounts of fuel can lead to overheating and thus damage the stove.

Clean Burning

The wood must be dry (relative wood moisture < 15% ) and untreated and the right amount of wood must be burned in order to ensure a clean fire that releases only small amounts of emissions. The burning of rubbish especially plastic is prohibited.

Making a Fire

Prepare everything you need for starting the fire—soft wood chips, igniter materials (such as Thermohit wood/coal igniter), uncoated paper, wood.

Open the air slide all the way (see Figure 2).

Open the stove door.

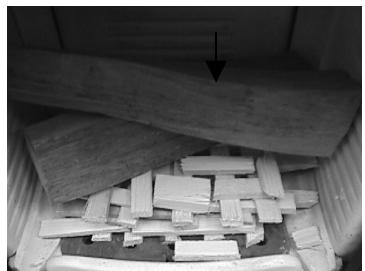

Lay uncoated paper on the floor of the firebox. Lay soft wood chips onto the paper. Lay one or two logs of wood on the wood chips.

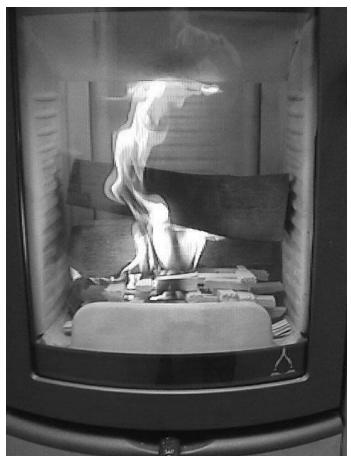

Figure 3: Igniting the Fire

Light the paper. Close the firebox.

Figure 4: Regulate the air slider

As soon as the wood logs are burning well, you can regulate the heating capacity with the air slider. (Slider set to the maximum ("AUF") setting produces maximum heat – see Figure 2.)

When adding wood to the fire, follow the same procedure as when igniting the fire: Open the air slider, carefully open firebox door, lay wood on the fire, close the firebox door.

Wait until the added wood catches fire and is burning. Then regulate the air slider again

Heating in-between seasons

Heating the stove in between seasons, when the outside temperatures are higher, the flue gases are not able to escape completely and this may lead to disturbances in the chimney draught, especially if the temperatures are rising suddenly. The stove has to be charged with less wood and the primary air has to be increased so that the wood can burn down faster (with visible flames) and thus the chimney flue can stabilize.

Chimney fire

Chimney fire may occur, due to sooting and deposits in the chimney, if wrong or humid fuel are used. Close all air inlets on the fireplace/chimney immediately and call the fire brigade. Please have an expert inspect your chimney for cracks and airtightness after the burning out of the chimney.

4. THE MOST IMPORTANT SPARES—OVERVIEW

Gaskets

Description	Nr. drawing	Part number
Flat gasket 8 x 2 mm glas	16	710096
Round gasket 14 mm door	17	714223
Round gasket 8 mm door	18	710049

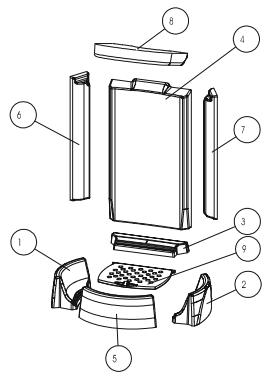

Keramott

Description	Nr. drawing	Part number
Bottom Keramott left	1	712933
Bottom Keramott right	2	712931
Bottom Keramott rear	3	712930
Rear Keramott	4	712934
Bottom Keramott front	5	712932
Side Keramott left	6	714390
Side Keramott right	7	714391
Keramott baffle plate	8	712841
Grade	9	716408

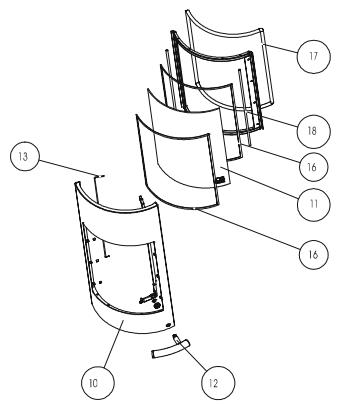

Other parts

Description	Nr. drawing	Part number
Pi door	10	712936-29
Pi glass	11	712920
Pi door handle	12	712919
Pi BA 1 spring	13	714422-15
Wood lighter sachets 100 pcs. per can	--	640162
Stove lacquer	--	650002
Glass cleaner ½ litre	--	640070

order of Keramott installation acc. to numbering!

Accessories

You can obtain floor plates of glass or steel, fireplace utensils, care products or the Heat Memory System for heat storage from your certified dealer.

IMPORTANT: Have defective parts replaced by your certified dealer. This will guarantee that your stove functions properly and safely.

Maintenance

To clean the glass, please use a specialized product such as Thermohit glass cleaner. Lacquered surfaces are to be cleaned only with a cloth (may be damp). Special cleaning agents should also be used for stainless steel surfaces.

Cleaning

The stove, flue outlets and smoke pipes should be cleaned and inspected for deposits every year – if necessary more often, e.g. after the cleaning of the chimney. The chimney also has to be cleaned regularly by the chimneysweeper. Your chimneysweeper will inform you of the necessary inspection intervals. An expert should inspect the stove annually.

1. DATI TECHNICI

We guarantee full functionality of all AUSTROFLAMM stove components made of steel or cast iron for a full two years from the date of purchase. Steel and cast-iron components which show defect in materials or workmanship during the guarantee period shall be replaced with new components.

We do not guarantee wearable components (such as Keramott, gaskets, floor grid), surface coatings, lacquer, glass and ceramics.

Conditions of the Guarantee:

1. Your AUSTROFLAMM stove was installed by a certified professional and is operated in accordance with the operator's manual.
2. Claims to the guarantee shall be subject to a completely filled-out Guarantee Card and submittal of the original invoice issued by a certified AUSTROFLAMM sales agent.

IMPORTANT: Our guarantee includes free shipping of new components. Work and travel times are not included. Unwarranted claims shall be re-invoiced to the operator.

In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer.
