Classic name, classic tone, the Traynor DG60R is a professional solid-state guitar combo which is the latest addition to the Traynor line. This combo amp truly breaks new sonic ground while still remaining firmly grounded in tradition. Drawing on the rich heritage of Traynor guitar amplifiers, the DG60R mates the best of vintage design with modern technology and manufacturing techniques.

Features

• Designed in North America.
• All solid-state design with multi-stage analog tube emulation.
• A Single 12-inch Celestion® 7080 speaker for exceptional performance and classic sound.
• Flexibility, there are separate tone controls on each of the two channels (lead and clean).
  24-bit DSP (Reverb)
• External speaker jack for the ultimate in versatility.
• The best warranty in the business: 2-year unlimited, transferable "even if you break it" warranty (valid in the USA and Canada only).

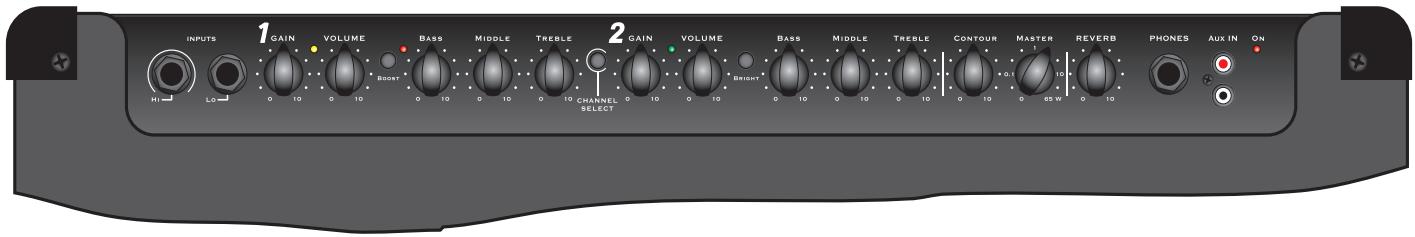

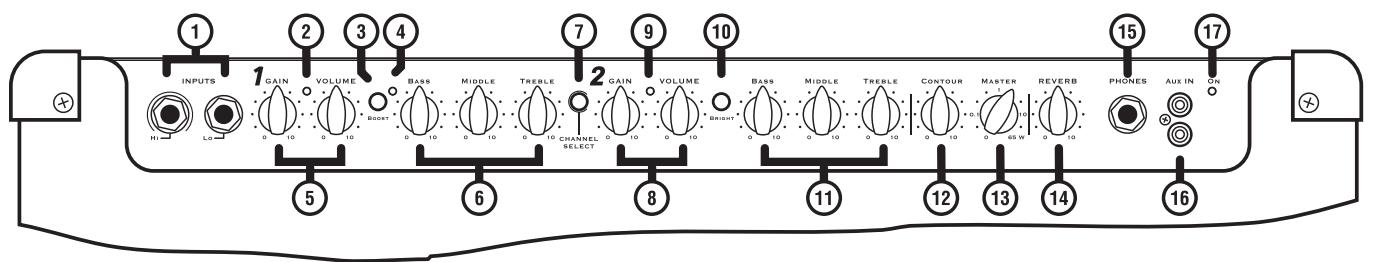

Top

① Input Jacks – two 1/4 -inch phone jacks. Hi and Lo gain.
② Channel 1 indicator LED - Illuminates yellow when active.
③ Channel 1 Boost Switch - Activates the boost circuitry for extra crunch.
④ Boost LED - Illuminates red when the boost is active.
⑤ Channel 1 Gain and Volume controls.
⑥ Channel 1 Tone Controls – Treble, Bass, and Middle.
⑦ Channel Select Switch - Channel 1 is optimized for lead, Channel 2 for clean sound
Channel 2 Gain and Volume Controls.
Channel 2 Indicator LED - Illuminates green when active.
Channel 2 Brightness Switch - Add sparkle to your clean sound.
11 Channel 2 Tone Controls - Treble, Bass, and Middle.
12 Contour Control – Adjusts the character from vintage tones to modern sounds.
13 Master Control – Adjusts the amount of output power available.
14 Reverb Control – Adjusts the 24-bit DSP reverb level for both channels
15 Headphone Jack - Speaker emulated output. Can also be used as a line out.
16 Aux In – For connection of CD-player or an MP3 player.
⑦ Power Indicator - Illuminates green when the amplifier is turned on.

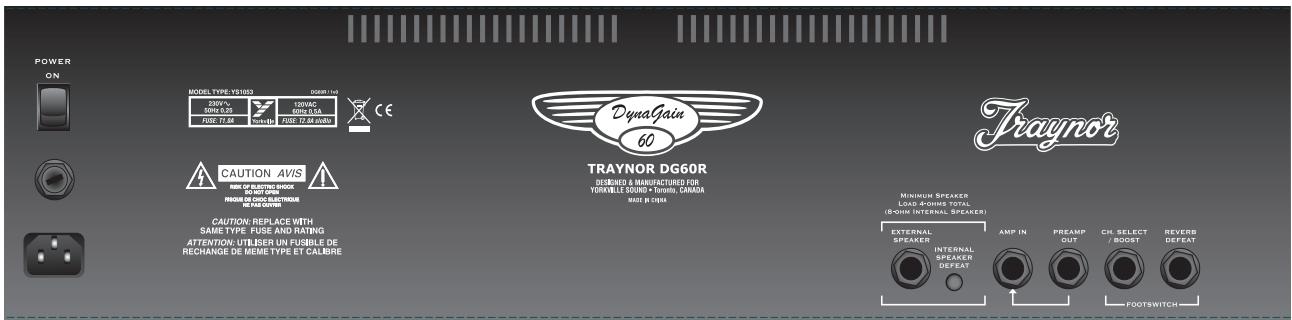

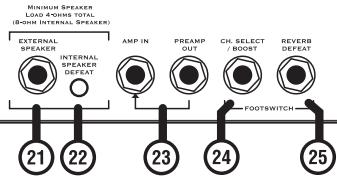

Rear

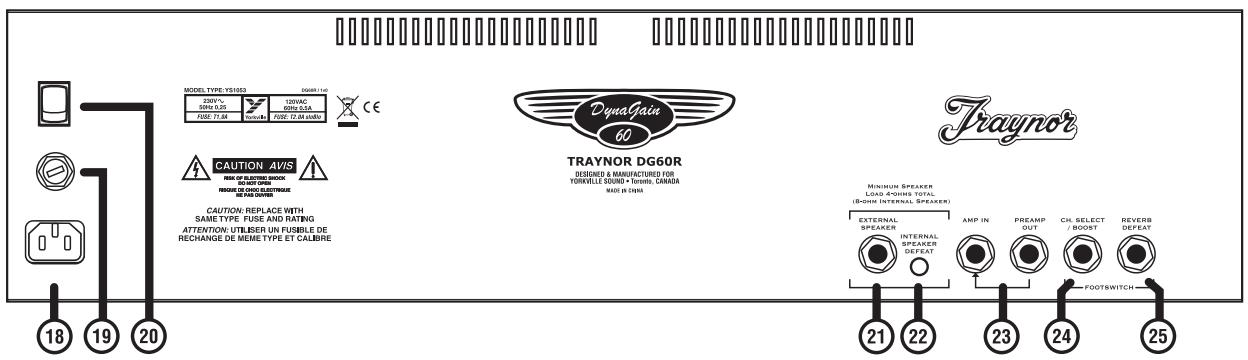

18 Power Receptacle.
Fuse holder.
20 Power Switch
② Extension Speaker jack -14 -inch phone jack.
② Internal Speaker Defeat switch- disconnects the internal speaker from the amplifier.
23 Amp In and Preamp Out jacks - 14 -inch phone input and output jacks.
② Channel Select Footswitch jack - uses a 1 / 4 -inch TRS standard latching dual-footswitch.
Effects Defeat jack- uses a 1 / 4 -inch TRS standard latching dual-footswitch.

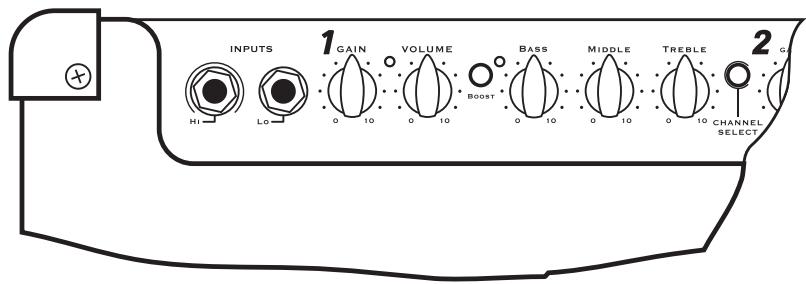

Channel 1

Channel 1 is the lead/ overdrive channel and is selected in one of two ways, via the Channel Select switch on the control panel, or via the Channel Select button on the footswitch pedal. A

yellow LED located next to the Channel 1 Volume control illuminates when Channel 1 is active.

*Note: Plugging in the footswitch deactivates the panel-mounted Channel and Boost controls.

Master Controls

Master Control 13

This Master control not only adjusts the overall volume level of the DG60R but also provides control of the output power. The DG60R's

power amplifier has been designed to behave akin to a "tube" power amplifier stage and will provide the same level of compression and soft clipping at all volume levels. The dial has been calibrated to let you know how many watts you're working with.

Gain & Volume Controls ⑤ ⑧

Channel 1 uses a Gain control in conjunction with a Volume control to determine the amount of tube-emulated overdrive and volume. The Gain control is used to adjust the amount of overdrive, while the Volume control allows you to set the actual loudness of the amplifier.

Boost Switch ③ ④

The boost circuit enables you to achieve 'a-bit-more' overdrive for leads when needed. The Boost can be selected via the front panel switch or through the footswitch pedal. A red LED illuminates to indicate when the boost is active.

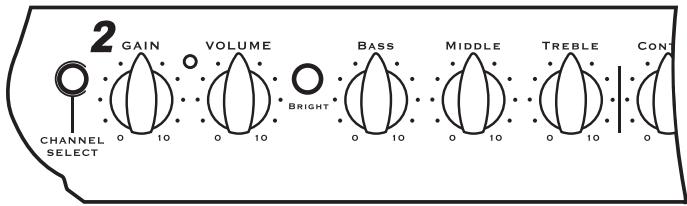

Channel 1 Tone Controls

The Treble, Bass, and Middle tone controls are used to help shape your sound. They are post-gain and pre-volume. These are active only when Channel 1 is selected.

Channel 2

Channel 2 is the clean channel. The layout is the same as that of Channel 1, with independent Gain, Volume, Treble, Bass, and Middle tone controls. When channel 2 is active the green LED located next to the Channel 2 Volume control is illuminated.

Brightness Switch 10

Channel 2 includes a Brightness switch that activates circuitry providing an additional treble boost, which helps make your tone sparkle.

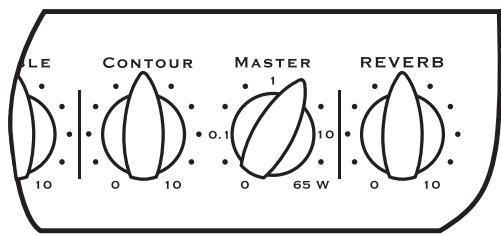

Contour Control 12

The Contour control adjusts the amount of mid-scoop, which allows you to dial-in character to your tone from vintage to modern, and all points in between.

Reverb Control 10

The Reverb control adjusts the overall reverb level for both channels. The DG60R is equipped with a 24-bit DSP based effects processor for lush large room reverb.

EFX / Line Preamp Out & Amp In Jacks 23

The Preamp Out and Amp In jacks of the DG60R allow convenient use of an external effects unit. Simply connect a 1 / 4 -inch phone cable to the Preamp Out jack and connect this cable to the input of your effects unit. To send the processed signal back to the DG60R, connect the output of the effects unit to the Amp In jack of the DG60R.

The 14 -inch T.R.S. Preamp Out jack can also be used as a direct line out. The -10 dBu output is ideal for most guitar effects pedals and professional signal processors. You can also use this output to slave the DG60R with another guitar amplifier by plugging into the Amp In jack of the slave amplifier.

The 1/4 -inch T.R.S. Amp In jack accepts an input signal that is passed to the power amplifier, so it can be used as a power amp in. And, since the Master control section affects the Amp In signal, you can use Contour and Reverb to further shape your tone.

Footswitch Jack (Channel Select/Boost) 24

When connected, the footswitch pedal is the exclusive control for the Channel Select and Boost functions, bypassing the switches on the DG60R's control panel. It features dual-latching switches, each with a separate LED indicator.

Footswitch-induced noise is never an issue. The switching is accomplished with internal FET's so there is no audio flowing through the footswitch cable. The DG60R is compatible with most aftermarket latching dual-footswitch pedals although we do recommend the Traynor TFS-2B latching dual-footswitch, with 10-foot cable.

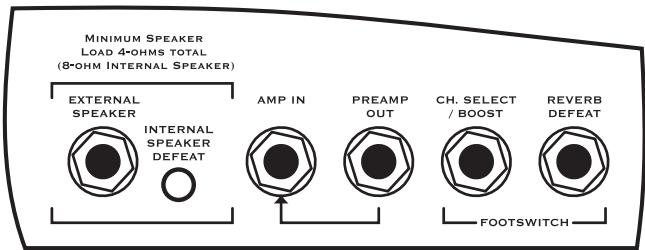

Reverb Defeat Jack 25

Connecting a footswitch to the rear mounted Reverb defeat jack can defeat the internal effects. A footswitch can be used for this purpose. Again, since switching is accomplished using internal FET's, no audio is flowing through the footswitch cable and noise is not an issue.

External Speaker Jack and Internal Speaker Defeat Switch 21 22

The chassis mounted 1 / 4 -inch jack allows convenient connection of an 8-ohm external speaker cabinet. If you disconnect the internal 12-inch Celestion® 7080 speaker by

depressing the Internal Speaker Defeat switch, you can connect up to two 8-ohm external cabinets (minimum speaker load of 4-ohms).

Headphone Jack & Speaker Defeat 15

The headphone jack can be used with any stereo headphones. The headphone signal is post-preamp and pre-master. This means the signal is affected by all controls, including reverb, but not the Master Volume. For practicing silently, don't forget to disengage the speaker outputs by depressing the Speaker Defeat button.

Specifications

Type	Solid-State Guitar Amplifier
Cabinet Program Power (Watts)	65
Cabinet Impedance (ohms)	8
Power @ 8-ohm impedance (Watts)	65
Minimum Impedance (ohms)	4
Burst Power - 2 cycle	85-watts
Speaker Configuration - LF (Size / Power)	12 inch / 75 Watts
Input Channels	Hi / Lo
Channel 1 - inputs	1/4 inch phone
Channel 1 - controls	Gain, Volume, Treble, Bass, Middle
Channel 1 - switches	Boost
Channel 2 - inputs	Shares ch 1 input
Channel 2 - controls	Gain, Volume, Treble, Bass, Middle
Channel 2 - switches	Bright
Channel Switching	Yes / Footswitchable
Master Volume Control	Yes
Main Tone Controls	Contour
Input Sensitivity (mV)	20
Master Outputs	Preamp Out / Headphone Out
Line Out (type / configuration)	1/4 inch TRS / Rear (Effects Send)
Line Out Sensitivity (Vrms)	300mV
Effects Volume	Reverb
Effects Loop / Location	Post Preamp / Rear
Effects Footswitch / Function	Yes / Channel Select, Boost
Effects Return Sensitivity (Vrms)	300mV
Internal Reverb	24-bit DSP
LED Indicators	Channel Select, Boost, Power
Protection	Short Circuit, Thermal
External speaker output / location	1/4-inch, Rear / Internal Speaker Defeat Switch
Headphone Jack	Yes / Front Panel / Dyna-Sound Speaker Emulation
Other Features	3-Stage Dynamic Tube Emulation
	Transconductance Power Amplifier for further tube
	All Plywood Contraction
	vintage-style cloth grille
Dimensions (DWH, inches)	10 x 24.5 x 18
Dimensions (DWH, cm)	25 x 62 x 46
Weight (Ibs / kg)	40 / 18
