1M50 - Watch BREIL - Free user manual and instructions

Product type	Wrist watch
Brand	BREIL
Model	1M50
Movement	Quartz (battery-powered)
Main functions	Display of hours, minutes, seconds; date (on certain models)
Water resistance	5 ATM (50 meters) – category C: suitable for swimming, not recommended for diving
Shock resistance	Yes, for daily use and sports without direct contact (golf, baseball)
Magnetic resistance	Up to 60 Gauss
Power supply	Battery (type not specified, estimated battery life 2-3 years)
Crown	Positions 0, 1, 2; some models with locking screw
Strap	Metal, plastic, rubber or leather depending on model
Cleaning	Soft cloth; metal strap: toothbrush and soapy water; plastic/rubber strap: water; avoid solvents
Periodic inspection	Recommended every 1 to 2 years by an approved center
Usage precautions	Avoid strong magnetic fields, chemicals, extreme temperatures and violent shocks
Warranty	Present the warranty card at the time of purchase to benefit from services

Frequently Asked Questions - 1M50 BREIL

How to set the time on the BREIL 1M50 watch?

Pull the crown to position 1 (or 2 if the watch has a date function) to stop the hands. Turn the crown to set the hands to the desired time. Push the crown back to position 0 to restart the watch.

How to set the date?

Pull the crown to position 1. Turn it to adjust the date. Push the crown back to position 0. Caution: do not set the date between 9 PM and 3 AM to avoid damaging the mechanism.

What is the water resistance of the BREIL 1M50 watch?

The watch is water-resistant up to 5 ATM (50 meters). It resists splashes, sweat, light rain and swimming, but is not suitable for diving.

Can I swim with my BREIL 1M50 watch?

Yes, the watch is classified in category C (50 meters), it can be worn while swimming. However, avoid operating the crown underwater and rinse it with fresh water after exposure to salt water.

How to maintain the leather strap?

Clean the leather strap with a soft dry cloth. Avoid any contact with water, solvents or chemicals. Regular maintenance extends its lifespan.

Is the watch shock resistant?

Yes, it withstands normal shocks from daily life and sports without direct contact such as golf. In case of a violent fall, have it checked by an approved center.

What to do if the glass fogs up?

If the fog is temporary and disappears quickly, it is normal. If it persists, the watch has probably taken on moisture. Consult a retailer or an authorized service center.

How to change the watch battery?

Battery replacement must be done by a professional at an authorized center. Do not attempt to open it yourself to avoid damaging the water resistance.

Is the watch resistant to magnetic fields?

Yes, it is antimagnetic up to 60 Gauss. It is not affected by common household appliances, but avoid very strong magnetic fields (e.g., powerful speakers).

Where to get my BREIL watch serviced?

It is recommended to have the watch checked every 1 to 2 years by an authorized BREIL service center to ensure its proper functioning and longevity.

USER MANUAL 1M50 BREIL

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

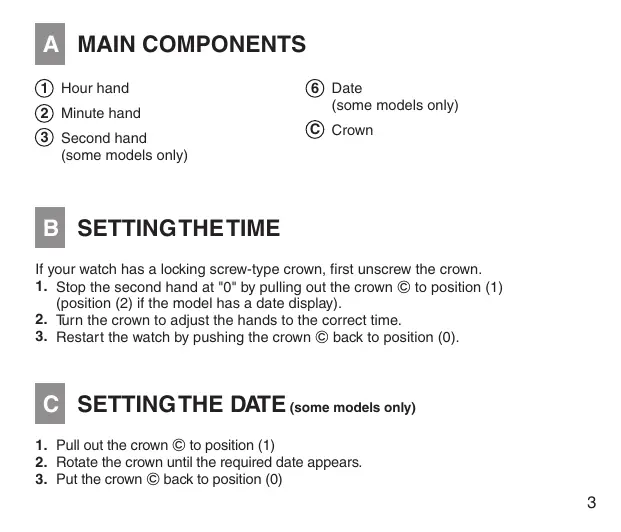

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

① Hour hand
② Minute hand
③ Second hand (some models only)

(6) Date (some models only)
Crown

B SETTINGTHETIME

If your watch has a locking screw-type crown, first unscrew the crown.

1. Stop the second hand at "0" by pulling out the crown © to position (1) (position (2) if the model has a date display).
2. Turn the crown to adjust the hands to the correct time.
3. Restart the watch by pushing the crown back to position (0).

C SETTING THE DATE (some models only)

1. Pull out the crown © to position (1)
2. Rotate the crown until the required date appears.
3. Put the crown back to position (0)

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use in
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	-	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5bar)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10bar)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20bar) or more	WATER RESISTANT	YES	YES
The words “WATER RESISTANT” may sometimes be abbreviated to “WATER RESIST”.

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.
• Contact with water may cause a deterioration in the quality of some leather straps.

Water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	Not water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving
YES	YES	Suitable for scuba diving
*Always keep the crown in its normal position. *Fully tighten crown screw lock.

• As the internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up. This phenomenon is purely temporary and should not create any problems. However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports such as golf and baseball. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances.

Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergents, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass.

Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Keeping the watch clean also keeps shirt cuffs clean.

Cleaning the watch strap.

Metal bands: use a toothbrush and soapy warm water to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an authorised assistance centre once every 12 months or two years.

If your watch is fitted with a quartz movement

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Keep batteries out of the reach of children

In order to improve the product, the technical specifications may be modified without prior notice.

INDEX

A PIECES PRINCIPALES 9
B COMMENT REGLER L'HEURE 9
C COMMENT REGLER LA DATE 9
PRECAUTIONS D'UTILISATION ET INFORMATIONS UTILES 10

A PIECES PRINCIPALES
