Product type	Automatic winding wristwatch
Brand	BREIL
Model	8215
Caliber	8215 (date) or 8205 (day/date)
Movement	Automatic mechanical
Accuracy	±20 seconds per day
Frequency	21,600 alternations per hour
Display	Hour, minute, second hands, date window (and day for caliber 8205)
Water resistance	Water Resistant 30 meters (3 ATM) (estimate based on manual)
Case	Stainless steel (estimate)
Strap/Bracelet	Leather or metal (depending on version)
Crown	Screw-down crown (for water resistance)
Power source	Automatic winding via wrist movement
Functions	Hours, minutes, seconds, date (and day)
Cleaning	Soft cloth; metal bracelet: soapy water; rubber: water; leather: dry cloth or alcohol
Maintenance	Inspection every 2 years by authorized center
Precautions	Avoid shocks, magnetic fields >60 Gauss, extreme temperatures, chemicals
Use underwater	Do not operate the crown underwater
Warranty	Present at time of purchase (not detailed)
Manual	54 pages, available in multiple languages

Frequently Asked Questions - 8215 BREIL

How to set the time on my BREIL 8215 watch?

Unscrew the crown (2), pull it out fully and stop the second hand at 0. Turn the crown counterclockwise to set the hands to the desired time. Return the crown to the original position (0).

How to set the date?

Pull out the crown to position (1). Turn the crown counterclockwise to display the desired date. Return the crown to position (0).

How to set the day (for models with day)?

Pull out the crown to (1). Turn the winding crown counterclockwise to display the desired day. Return the crown to position (0).

Is my watch water-resistant? What depth?

The watch has a WATER RESISTANT indication with a level (30M, 50M, etc.). Refer to the chart in the manual for permitted uses. Never operate the crown underwater.

What if the watch fogs up?

If fogging is temporary, no problem. If it persists, contact an Authorized Service Center.

How to clean the leather strap?

Gently rub the outer side with a soft dry cloth. For the inside, use a cloth moistened with alcohol.

Can I swim with my watch?

Only if the water resistance indication allows it (at least 50M for swimming). Check the level on the watch.

Does the watch have a battery?

No, this watch is automatic winding. It winds through wrist movements.

How to wind an automatic watch if it has stopped?

Simply wearing the watch on the wrist winds it automatically. If it has stopped, shake it gently or turn the crown clockwise (position 0) for manual winding.

What if the watch seems magnetized?

The watch is anti-magnetic up to 60 Gauss. If exposed to stronger fields, consult an authorized center.

USER MANUAL 8215 BREIL

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

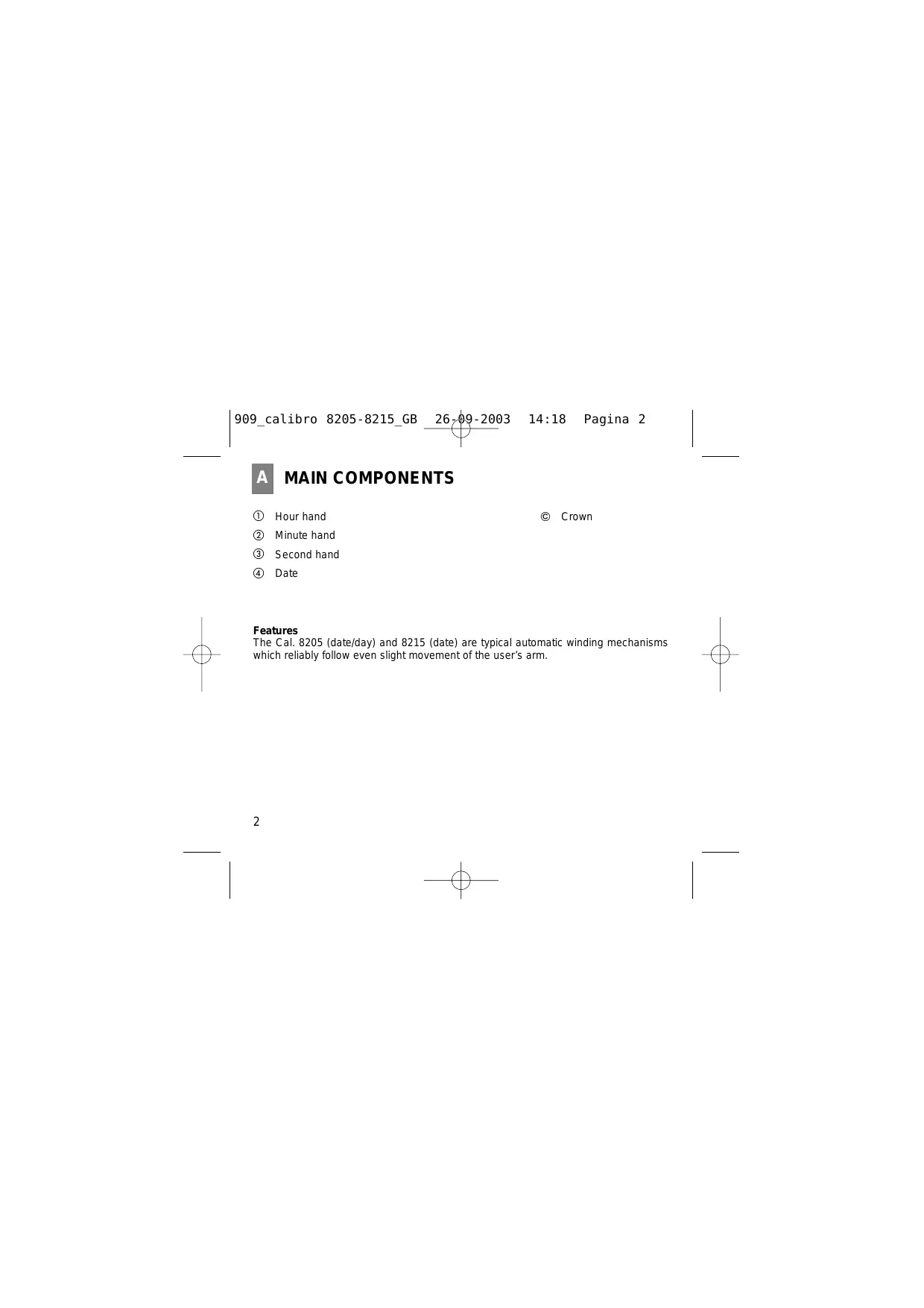

① Hour hand
② Minute hand
③ Second hand
④ Date

Crown

Features

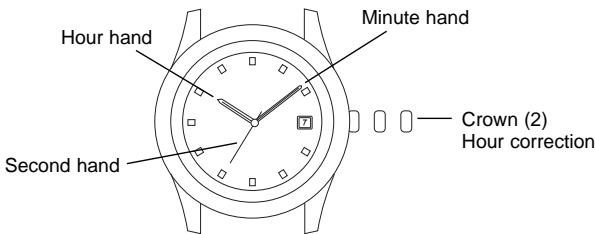

The Cal. 8205 (date/day) and 8215 (date) are typical automatic winding mechanisms which reliably follow even slight movement of the user's arm.

[Setting the time]

1. Unscrew the crown ©.
2. Stop the second hand at "0" by pulling out the crown © to position (2).
3. Turn the crown clockwise to adjust the hands to the correct time.
4. Restart the watch by pushing the crown back to position (0).

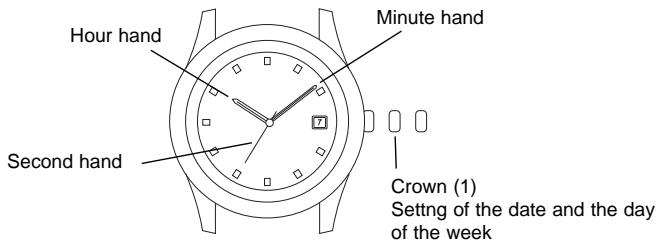

SETTING THE DATE AND THE DAY OF THE WEEK

[Setting the date]

1. Pull out the crown © to position (1).
2. Rotate the crown counter clockwise until the required date appears.
3. Put the crown back to position (0).

[Setting the day of the week] (some models only)

1. Pull out the crown © to position (1).
2. Rotate the crown clockwise until the required day appears.
3. Put the crown back to position (0).

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	WATER RESISTANT 30M (3ATM)	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5ATM)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10ATM)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20ATM) or more	WATER RESISTANT	YES	YES
"WATER RESISTANT" may sometimes be abbreviated to "WATER RESIST"

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.

in water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	No water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving.
YES	YES	Suitable for scuba diving.
* Always keep the crown in its normal position. * Full tighten crown screw lock.

• Contact with water may cause a deterioration in the quality of some leather straps.
• As internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up.

This phenomenon is purely temporary and should not create any problems. However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances. Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergent, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass. Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Cleaning the watch strap:

Metal bands: use a toothbrush and soapy warm to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an Authorised Assistance Centre once every two years.

TECHNICAL DATA

Model:

8215-8205

Type:

automatic winding mechanism

Accuracy:

± 20 seconds per day

Vibrations:

21,600 per hour

Time:

hours, minutes, seconds

Day/date:

day indicator and calendar

• In order to improve the product, the technical specifications may be modified without prior notice

INDEX

A PRINCIPAUX ELEMENTS 12
B REGLAGE DE L'HEURE 13
C REGLAGE DE LA DATE ET DU JOUR DE LA SEMAINE 14
PRECAUTIONS D'UTILISATION ET INFORMATIONST UTILES ..16
DONNES TECHNIQUES 20

A PRINCIPAUX ELEMENTS
