USER MANUAL AP1020 YORKVILLE

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Read Instructions

The Owner's Manuals should be read and understood before operation of your unit. Please, save these instructions for future reference.

Packaging

Keep the box and packaging materials, in case the unit needs to be returned for service.

Warning

When using electric products, basic precautions should always be followed, including the following:

Power Sources

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated.

Hazards

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer.

The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.

Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Power Cord

The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT OPERATE THE UNIT.

Service

The unit should be serviced only by qualified service personnel.

INSTRUCTIONS RELATIVES AU RISQUE DE FEU, CHOC ÉLECTRIQUE, OU BLESSURES AUX PERSONNES

AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, N'ENLEVEZ PAS LE COUVERT (OU LE PANNEAU ARRIERE) NE CONTIENT AUCUNE PIECE REPARABLE PAR L'UTILISATEUR.

CONSULTEZ UN TECHNICIEN QUALIFIE POUR L'ENTRETIENT

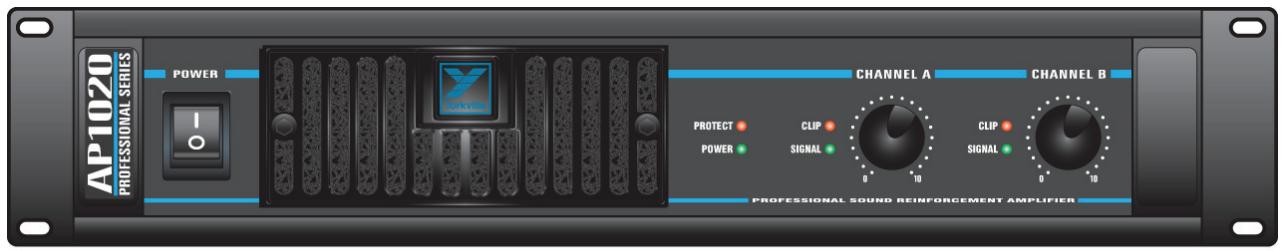

Your new Yorkville AP1020 power amplifier has been designed and built to provide years of trouble free performance. The AP1020 starts with the field-proven reliability of our Audiopro amplifiers and customer requested features like switchable limiters and a Mono/Stereo/Bridge switch. We've made the AP1020 power configurable, (see Power Configuration), which makes it one of the most versatile amp in its class.

The AP1020 weighs a comfortable, but solid, 39 pounds; it fits into two rack spaces and reproduces music with over 1200 Watts of headroom. It will drive reactive phase shifted loads with no difficulty - even though it is fully protected from accidental short circuits. Our design goal was to create an amplifier, which would do exactly what an amplifier should do: reproduce music with great power, complete reliability, and uncompromising signal fidelity. We think you will agree that the Yorkville AP1020 does exactly that. We hope this manual will provide answers to any questions you may have about the features, controls, and characteristics of this amplifier.

Inputs

Balanced Inputs

Either XLR or two circuit Ring, Tip, Sleeve stereo 1/4 -inch PHONE cords may be used. Each channel's XLR input is internally paralleled with its phone input: The Tip of the Channel A Phone input is connected to pin 2 of its XLR input, the Ring is connected to pin 3, and the Sleeve is connected to pin 1. Pin 2 is in phase, pin 3 is 180 degrees out of phase, and pin 1 is ground. We recommend using balanced lines for the best hum-free performance, particularly when chaining multiple amplifiers.

Unbalanced Inputs

Ordinary single circuit standard 1/4 inch phone plugs may be used to connect unbalanced signals. Important Note: Such plugs effectively connect the ring terminal to sleeve ground, so they work correctly. However, if you use a stereo 14 -inch phone plug on an unbalanced line, you must short the ring terminal to the sleeve terminal, otherwise the sensitivity will be 6 dB lower than is specified! (The same applies to the XLR input; to connect an unbalanced source via the XLR input, you must connect the signal to pin 2 and ground both pin 1 and pin 3).

Remote Referencing

You can approach balanced performance with unbalanced sources by utilizing the remote reference feature of the AP1020 Connect a balanced cable to the AP1020 just as you would if you were running a balanced line. At the other end, connect pin 3 and pin 1 together, (or connect ring to sleeve if you are using a phone plug cable), and plug this modified end into your unbalanced piece of equipment. This connection enables the AP1020's input to "look" down the cable directly at the output jack of the unbalanced equipment. Any hum voltage generated across the cable's impedance will be attenuated by the common mode rejection of the AP1020.

Driving Multiple AP1020s

In large installations it is often desirable to operate many amplifiers in tandem. Since each channel's XLR input is internally paralleled with its phone input, you may use the remaining input jack

as an output to the next amplifier. Obviously you will need both XLR-to-XLR and phone-to-phone patch cords if you are going to tandem more than two amplifiers.

Note: These patch cords must be balanced whether the input signal is balanced or unbalanced!

Ground Switch

Switching the ground switch on the rear panel will disconnect chassis ground from circuit ground. Safety (earth) ground is still connected to the chassis. We do not recommend lifting the ground strap unless you are experiencing problems with ground loop hum in multiple amplifier setups where lifting the ground straps of all but one amplifier cures the hum problem.

CAUTION: Sometimes hum problems are an indication of improper AC wiring somewhere else in your system. Don't just doctor the symptom by lifting grounds. Fix the cause by making sure that the proper electrical wiring safety regulations have been adhered to.

Modes

The AP1020 can be configured for dual-Mono, Stereo, or Bridged Mono operation via this rear panel Mode switch. The following is a description of each mode:

Mono Mode

• Channels A and B inputs are paralleled
  Each gain control adjusts the signal level for its respective channel
• Output signals are of equal phase.
• Two loads are driven.
• Loads are connected between the black and red post on each channel.

Stereo Mode

• Channels A and B inputs are separate.
• Two independent amplifiers, Amp A and Amp B.
• Two loads are driven.
• Loads are connected

between the black and red posts on each channel.

Bridge Mode

• Channels A and B inputs are paralleled. Gain B has no effect.
• Output signals are equal in amplitude but opposite in phase.
• One load is driven.
• The load is connected between the two red binding posts. The black posts are not used.

Subsonic Filter Switch

The AP1020 features a specially designed subsonic filter, which effectively blocks potentially destructive energy in the band below 40Hz . The filter provides a 12 dB/octave skirt below 40Hz . It is implemented with a two-pole network designed to minimize phase shift down to 40Hz . We recommend using this filter in conjunction with some subwoofer and with all high power full range cabinets. With the filter disabled, the AP1020 is flat down to 6Hz and rolls off at 12 dB/octave below that.

Limiter Switch

When the internal limiters are activated, the AP1020's gain is continuously self-adjusted to fit the signal within the available dynamic range. Occasional clipping is permitted. The limiters will not only help to protect your system's mid-horns and tweeters, but will automatically make the best use of the available dynamic headroom. With the limiters activated, all you need to do is turn up the signal level until you start to see some clipping. The limiters will make sure that you are getting the maximum clean power output at all times. Setting the switch to the Out position completely disables both limiters.

Protect LED

In the event of a shorted load, or a load which is of too low an impedance for the amplifier to handle, the Protect LED will flash alternately in about 7-second intervals. The sound may come on and off at 1/2 -second. In this case, the fault is in the speakers or the speaker cables and should be located and remedied. No reset of the AP1020 is required to restore proper operation. The Protect LED will stay on if the amplifier has overheated. Check the speaker load impedance, the position of the load select switch, and any restrictions to air flow at the air intake or exhaust vents of the amplifier.

Short-Circuit Protection

The AP1020 is fully protected against all possible passive load conditions. It can operate with a dead short continuously without damage. We don't recommend that you short your AP1020 "just for fun," short-circuits create a lot of stress on the output devices. The output stage uses a unique triple-slope VL limiting scheme

that is sophisticated enough to remain inert during transient currents in excess of 40 Amperes and phase angles of more than 45 degrees, yet is capable of protecting the output stage from damage due to accidental short circuits and improper loads.

DC Protection

In the unlikely event of the AP1020's outputs "going DC," a thyristor circuit will short the output terminals and divert all potentially harmful currents away from your speakers.

Thermal Protection

In the unlikely event that the AP1020 overheats, the signal will be sporadically cut off and the Protect LED will stay on. If further heating occurs, due to a malfunction, the internal thermal breaker will interrupt the primary circuit. There is no visible indication of this rare condition. The AP1020 is designed and tested to operate under "worst case" conditions without shutting down, check for blocked airflow if you experience a thermal shutdown.

Cooling

The fan draws air inward from the front and expels hot air through the rear vents on the amplifier. This is compatible with other Yorkville power amplifiers (and with most installations). Since hot air rises, the heated air forcibly expelled from the back tends to rise away from the equipment rack, this draws cool air from the floor upwards into the front of the rack. In some cases, where the rear of the rack is obstructed, it may be necessary to install fans in the rack to aid cooling. If there are no obstructions, secondary cooling is not required.

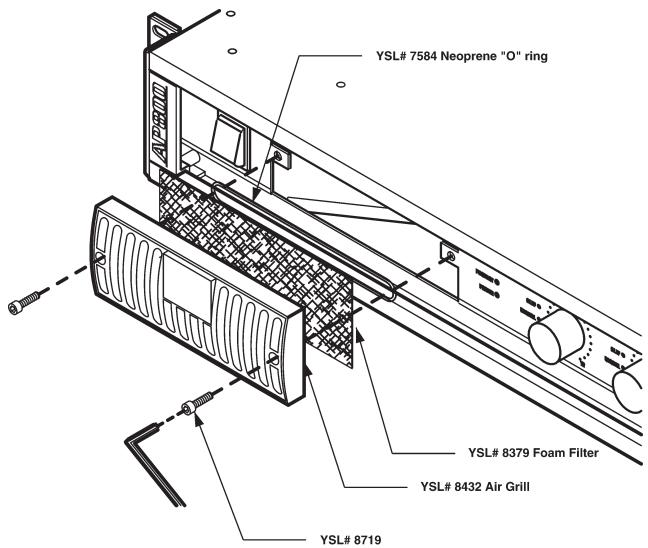

Fan Filter Maintenance

The AP1020 is factory equipped with a fan filter mounted on the air intake grill on the amplifier's front panel. Regular cleaning of this filter will increase the amplifier's long-term reliability. The filter should be removed and washed at the first sign of visible clogging. This will typically occur every four to six weeks depending on use and environment. Replacement filters are inexpensive and can be ordered through Yorkville dealers. The foam filter should be removed if a regular inspection schedule is not going to be followed. The amplifier can operate without the filter in place, but the amplifier should be cleaned internally (by a qualified service technician) when dust is visible on the heatsink fins.

Note: In an unusually dusty location removing the foam filter can extend the operating time before thermal shutdown could occur. At that time, the internal heatsinks should be cleaned thoroughly.

CAUTION: The AP1020 can deliver over 800 Watts of power into a bridged load. Yorkville's own high power speaker systems have circuit-breaker protection built in. Although these speakers will protect themselves, they are unlikely to be damaged by a bridged AP1020. However, many other speaker manufacturers make "high power cabinets" with no protection features at all

Yorkville Sound is not responsible for any damage, which may result as a consequence of exceeding such a speaker's power handling capability. Yorkville's two-year unconditional warranty does not cover any consequential damages to non-Yorkville equipment. Please consider these facts carefully before you choose to run your AP1020 in bridged mode!

Clip LEDs

The Clip LEDs on the front panel will visibly indicate any signal excursion beyond the dynamic headroom of the amplifier.

Reliability

The AP1020 is designed by Yorkville Sound. Each unit undergoes a thorough, temperature cycled burn-in period, and each circuit is tested by both manual and sophisticated computer-controlled equipment, which is capable of identifying any deviation from the design parameters. The design of the AP1020 is conservative, with respect to the power handling capabilities of the output devices. The topology guarantees that thermal stress, not secondary breakdown, will set the limits of operation while the computer-optimized heat dissipation system insures that excessive thermal stress will not occur.

The AP1020 is not only suitable for use in both heavy duty touring sound reinforcement systems but also when high headroom and low distortion are needed to fully reproduce the dynamic range and clarity of today's CD recordings. The AP1020 is built to survive grueling road conditions and constant 2-ohm operation. Its reliability is a fixed installation running 4 or 8-ohm studio monitors is without parallel.

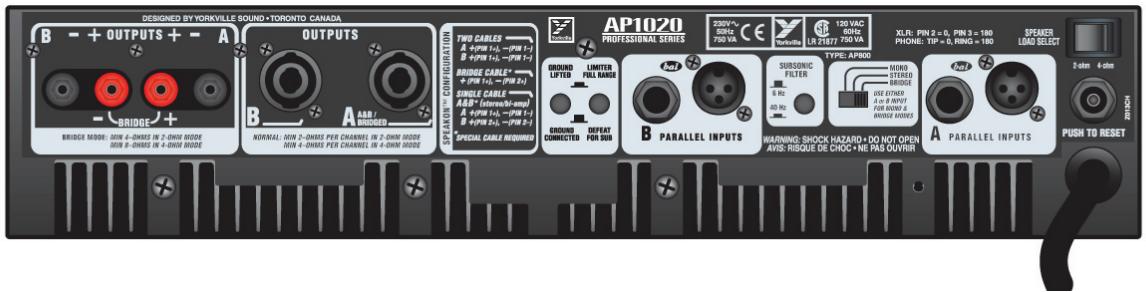

Output Connections

The AP1020 has 5-way binding posts and Neutrik four contact Speakon™ connectors for output speaker connections. Connection to the binding posts can either be made with a banana plug inserted into the end of the post.

There are two Speakon™ connectors. The Speakons™ are connected to the amplifier's outputs whether the amplifier is in Stereo, Mono or Bridge modes. Each Speakon™ output connector (Output A and Output B) is wired in parallel with its respective binding posts for two channel two cable connections (figure 1).

Speakon^TM Output A also doubles as the A-B/Bridge connector. This Speakon^TM contains both channels on one connector. This is convenient when connecting one speaker to the amplifier in bridge mode where the speaker is connected across the positives of each amplifier output. Configure the Mode switch for Bridge and connect the speaker to pins +1 and +2 of the bridge/biamp SpeakonTM (figure 3).

To connect a biamp speaker, configure the amplifier for Stereo and connect to the bridge/biamp connector but use all four terminals in the Speakon™ connector which will connect A and B Outputs separately to the speaker (figure 2). Connection configurations are labeled on the back panel.

Impedance Mode Switch

The AP1020 comes factory-configured to deliver its maximum power into a 2-ohm load. However, it is possible to switch your AP1020 to deliver its maximum power into 4-ohms. The switch is located on the rear panel above the line cord. To prevent damage to the amplifier's circuitry, only switch modes when the amplifier's power switch is off. This feature is meant to be used when the speaker load is known. Please Note: In the 4-ohm configuration, the minimum load per channel is 4-ohms. The minimum Bridge load is 8-ohms. Attempting to operate into 2-ohm loads while in the 4-ohm configuration will cause the amplifier to go into current limit, thermal limit or both.

The Power specification chart in this manual shows the powers that can be obtained for various configurations and loads.

Power Output

One Channel Driven

Load (ohms)	1 kHz Cont. Average	1 kHz Burst	1 kHz Cont. Average	1 kHz Burst
	2-ohm Mode	2-ohm Mode	4-ohm Mode	4-ohm Mode
8	180	200	280	310
4	310	380	500	590
2	520	650	n/a	n/a

Both Channels Driven

Load (ohms)	1 kHz Cont. Average	1 kHz Burst	1 kHz Cont. Average	1 kHz Burst
	2-ohm Mode	2-ohm Mode	4-ohm Mode	4-ohm Mode
8	165	250	250	290
4	270	350	400	560
2	400	600	n/a	n/a

Bridge Mode

Load (ohms)	1 kHz Cont. Average	1 kHz Burst	1 kHz Cont. Average	1 kHz Burst
	2-ohm Mode	2-ohm Mode	4-ohm Mode	4-ohm Mode
8	550	700	840	1100
4	840	1200	n/a	n/a
2	n/a		n/a	n/a

All values are in Watts. Measurements were made at the 0.1% distortion point. Some continuous average power measurements required line currents greater than 15 amps. The amplifier under test was plugged into an ideal power line consisting of a Regulated 120 VAC RMS 60 Hz pure sine wave. Ordinary AC wall-outlet lines will always exhibit varying and unpredictable amounts of sag. To produce objectively verifiable and accurate specifications these unknown factors must be eliminated by using an ideal AC line. When using an ordinary electrical outlet, it will usually be possible to get 800 Watts when the AP1020 is bridged into 4-ohms. The burst measurement uses a 10 ms burst at 1 kHz with a pause of 1/8 second between bursts. The 1 kHz burst represents the maximum possible sine wave output power.

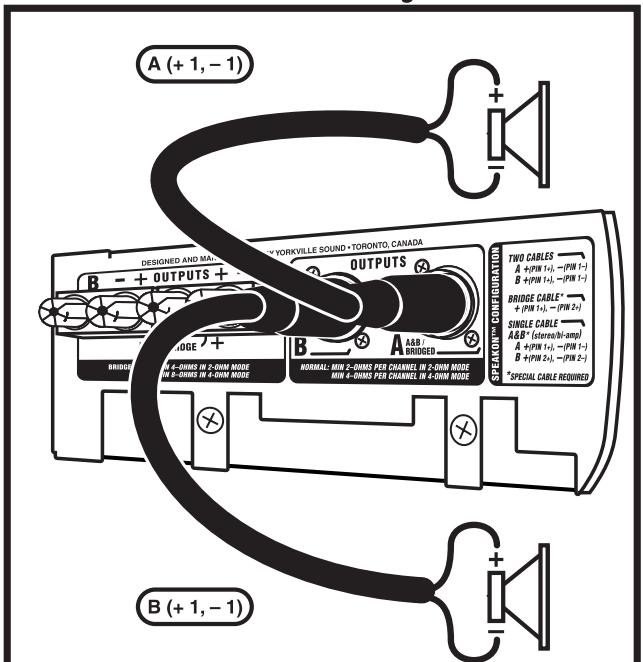

Two Channel Configuration
Figure 1

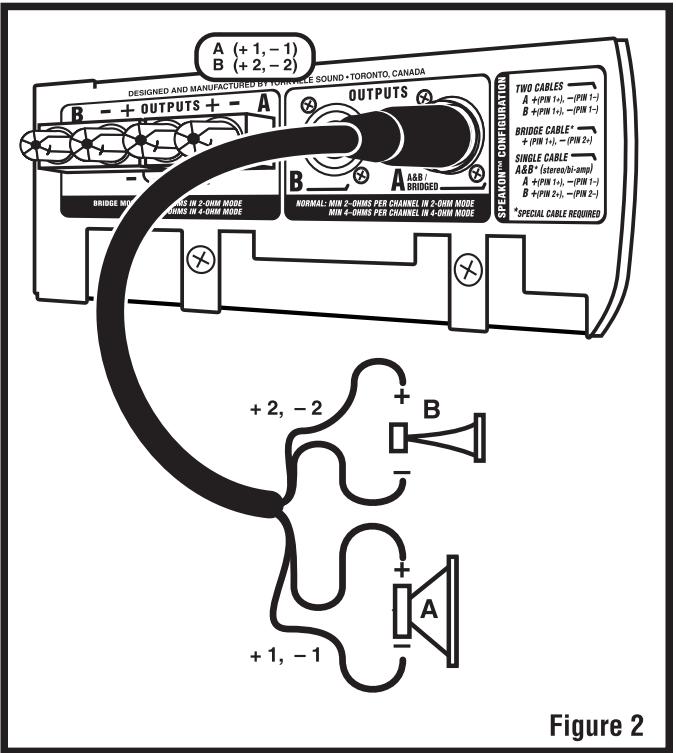

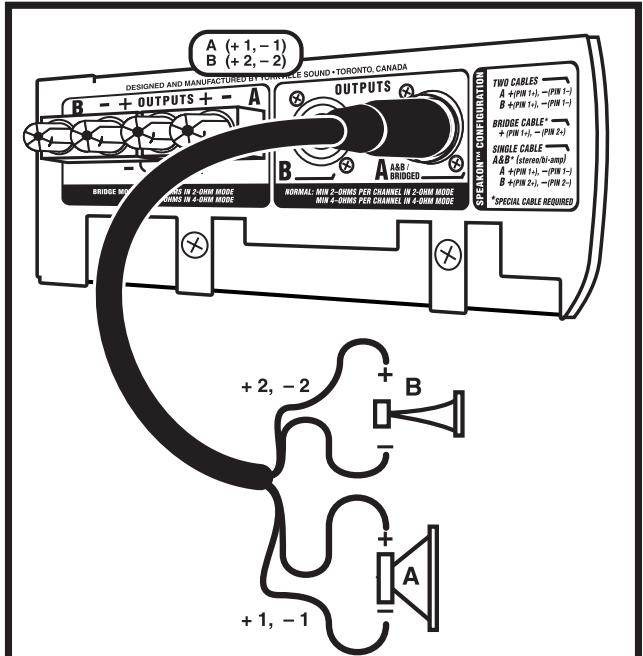

Bi Amp Configuration
Figure 2

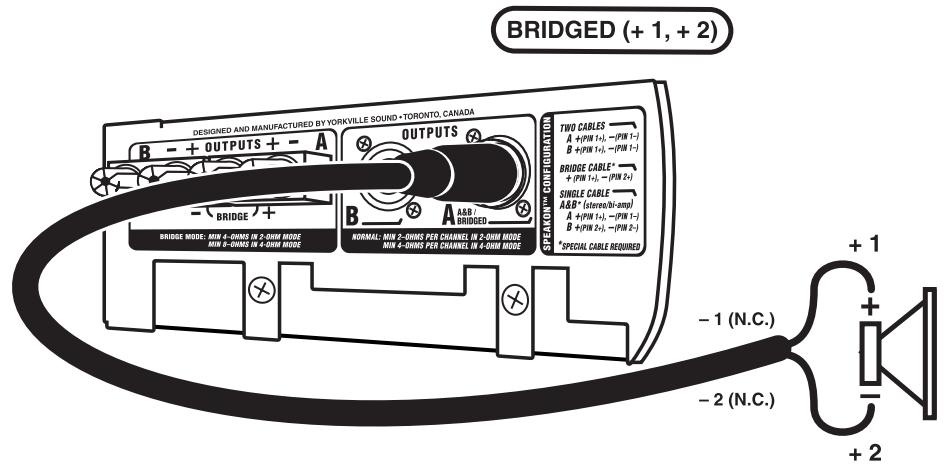

Bridged Configuration

NOTE: A four conductor Speakon™ cable cannot be used to bridge into Speakon™ Standard cabinets. This will short the output of Channel B (+2) to Channel A (-1) inside the speaker cabinet.

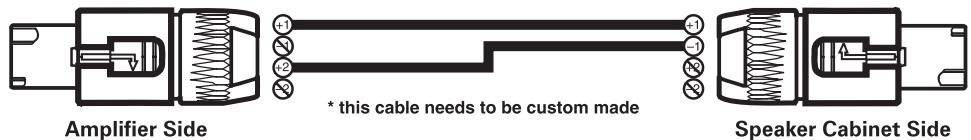

Yorkville BRIDGE Mode SPEAKON™ Cable Hook-Up*
Figure 3

Introduction

Configuration Bi-Amp

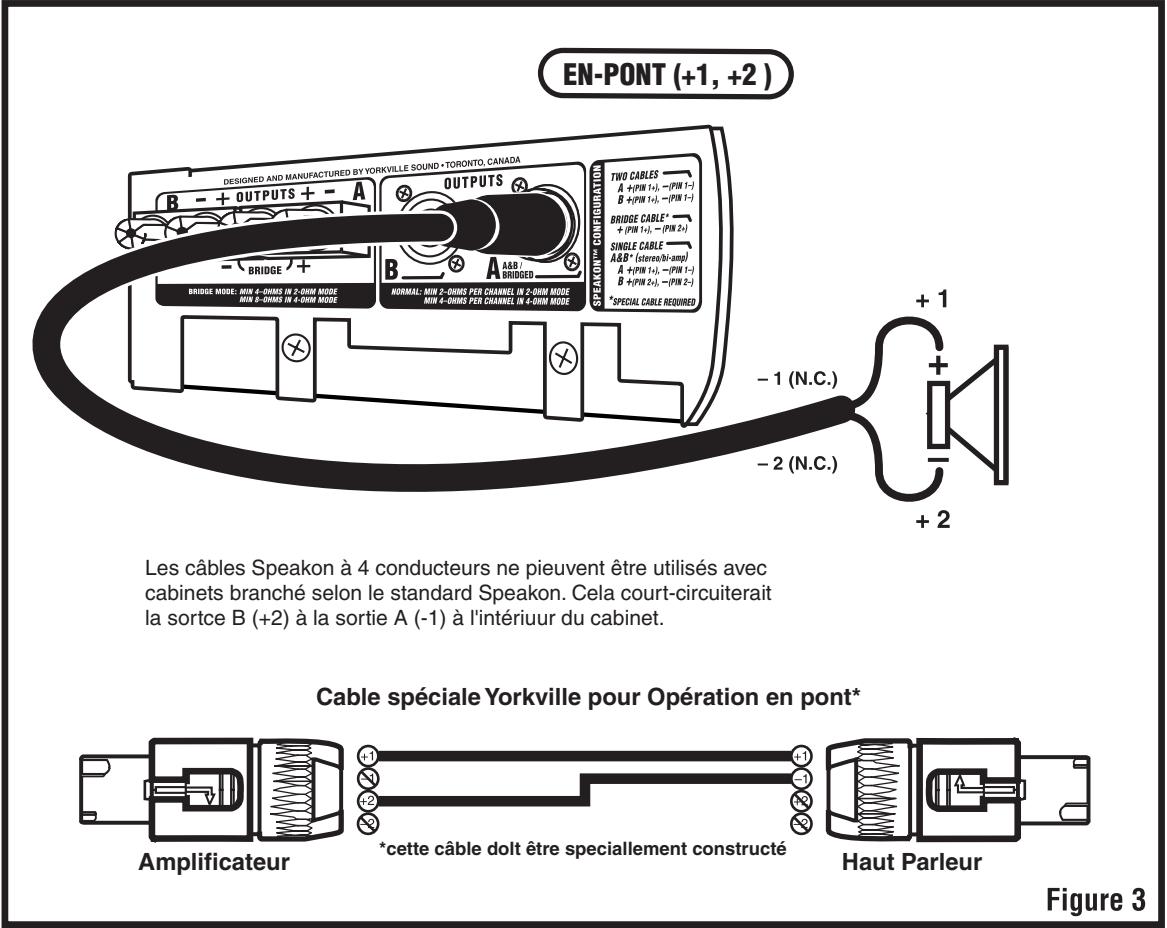

Configuration En-Pont

Specifications
Amplifier class	A/B
Continuous Average Power @ 8 ohms BCD (Watts)	160 (x2)/250 (x2)*
Continuous Average Power @ 4 ohms BCD (Watts)	260 (x2)/400 (x2)*
Continuous Average Power @ 2 ohms BCD (Watts)	400 (x2)/NA*
Continuous Average Power Bridged BCD (Watts)	800 @ 4/8 ohms
Burst Average Power @ 8 ohms BCD (Watts)	200 (x2)/320 (x2)*
Burst Average Power @ 4 ohms BCD (Watts)	360 (x2)/560 (x2)*
Burst Average Power @ 2 ohms BCD (Watts)	600 (x2)/NA*
Burst Average Power Bridged BCD (Watts)	1200 @ 4 ohms / 1100 @ 8 ohms
Frequency Response (Hz, +/-1dB)	20-20,000
Hum and Noise (un / A-weighted -dB)	-101 /-104
THD -1kHz-4 ohms	0.01 %
THD -20Hz-20kHz, 4 ohms	less than 0.1%
Slew Rate (V/uS)	20
Slew Rate Bridged (V/uS)	40
Damping Factor (30 Hz - 400 Hz @ 8 ohms)	300
Crosstalk (1kHz / 20Hz-20kHz)	-80 /-75 dB
Input Impedance - Bal/Unbal (ohms)	22,000/12,000
Input Sensitivity (Vrms) For Full Power Out	1.0/1.4 V*
Max Voltage Gain (dB)	29
CMRR @ 60Hz (min/type)	48/56 dB
Stereo / Mono / Bridge (S/M/B)	S/M/B
Protection	DC, Load, Thermal
Limiter	Peak
High Pass Filter	40 Hz, 12dB Octave
Cooling	Internal Fan
Cooling Path	Front to Rear
Fan Filter	User Serviceable
Inputs - XLR	2
Inputs - 1/4-inch Jacks	2
Outputs - Speakon 4-pin	2
Outputs - Binding Post	2
Power Consumption (typ/max)	750/1440 Watts
Rack Spaces	2
Transformer Type	Toroidal
Exterior Finish	Baked, Black Painted
Other Features	* Max power into 2 ohms / Max power into 4 ohms
Dimensions (DWH /D fm ears, inches)	19 x 16.8 x 3.5 x 15.7
Dimensions (DWH /D fm ears, cm)	48.3 x 43 x 8.9 x 40
Weight (Ibs / kg)	31.5 / 14.3
Spécifications
Classe d' amplificateur	A/B
Puisance Moyenne Continue @ 8 ohms DCF (Watts)	160 (x2)/250 (x2)*
Puisance Moyenne Continue @ 4 ohms DCF (Watts)	260 (x2)/400 (x2)*
Puisance Moyenne Continue @ 2 ohms DCF (Watts)	400 (x2)/NA*
Puisance Moyenne Continue En Pont (Watts)	800 @ 4/8 ohms
Puisance Moyenne d'Écartement @ 8 ohms DCF (Watts)	200 (x2)/320 (x2)*
Puisance Moyenne d'Écartement @ 4 ohms DCF (Watts)	360 (x2)/560 (x2)*
Puisance Moyenne d'Écartement @ 2 ohms DCF (Watts)	600 (x2)/NA*
Puisance Moyenne d'Écartement En Pont (Watts)	1200 @ 4 ohms / 1100 @ 8 ohms
Réponse en Fréquence (Hz, +/-1 dB)	20-20,000
Bruit et Bourdonnement (non / A Pondéré -dB)	-101 /-104
DHT -1kHz-4 ohms	0.01%
DHT-20Hz-20kHz, 4 ohms	Moins de 0.1%
Vitesse de propagation (V/μS)	20
Vitesse de propagation En Pont (V/μS)	40
Facteur d'Amortissement (30 Hz - 400 Hz @ 8 ohms)	300
Couplage parasite (1kHz / 20Hz-20kHz)	-80 /-75 dB
Impédance d'Entrée - symétrique/asymétrique (ohms)	22,000/12,000
Sensibilité d'Entrée (Vrms) pour pleine puissance à la sortie	1.0/1.4 V*
Gain maximum de voltage (dB)	29
Rapport de réjection en mode commun @ 60Hz (min/type)	48/56 dB
Stériso / Mono / En Pont (S/M/B)	S/M/B
Protection	CC, Charge, Thermique
Limiter	Pointe
Filtre Passe Haut	40 Hz, 12 dB Octave
Refroidissement	Ventilateur Interne
Acheminement du Refroidissement	Devant à Arrière
Filtre du Ventilateur	Entrenderent par l'Utilisateur (Filtre)
Entrées - XLR	2
Entrées - 1/4-pouce Jacks	2
Sorties - Speakon 4-tiges	2
Sorites - Borne de raccordement	2
Consommation de Puissance (typ/max)	750/1440 Watts
Espace requise pour montrage en Rack	2
Type de Transformateur	Toroidal
Finit Extérieur	Peinture Noire Cuite
Autres Caracteristques	* Puissance Max avec 2 ohms / Puissance Max avec 4 ohms
Dimensions (PLH /Pf ears, pouces)	19 x 16.8 x 3.5 x 15.7
Dimensions (PLH /Pf ears, cm)	48.3 x 43 x 8.9 x 40
Poids (livres/kg)	31.5 / 14.3

Volume Detectors Full Clockwise			db Gain Reduction*
0			0.0	0.0
1			0.0	0.0
2			0.0	0.0
3			0.0	0.0
4			0.6	0.6
5			2.1	2.1
6			3.5	3.5
7			4.7	4.7
8			5.8	5.8
9			6.9	6.9
10			8.0	8.0
11			8.8	8.8
12			9.9	9.9
13			10.7	10.7
14			11.6	11.6
15			12.3	12.3
16			12.9	12.9
17			13.3	13.3
18			13.7	13.7
19			14.1	14.1
20			14.5	14.5
21			15.0	15.0
22			15.5	15.5
23			15.9	15.9
24			16.3	16.3
25			16.9	16.9
26			17.4	17.4
27			18.0	18.0
28			18.6	18.6
29			19.5	19.5
30			20.4	20.4
31			21.4	21.4
32			22.7	22.7
33			24.1	24.1
34			26.1	26.1
35			28.1	28.1
36			33.0	33.0
37			42.5	42.5
38			∞	∞
40			∞	∞

*typical

ap-detents-1v1.pdf July 17/2001

Unlimited Warranty

Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. This includes all Yorkville products, except for the YSM Series studio monitors, Coliseum Mini Series and TX Series Loudspeakers.

Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes or par bulbs. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.
