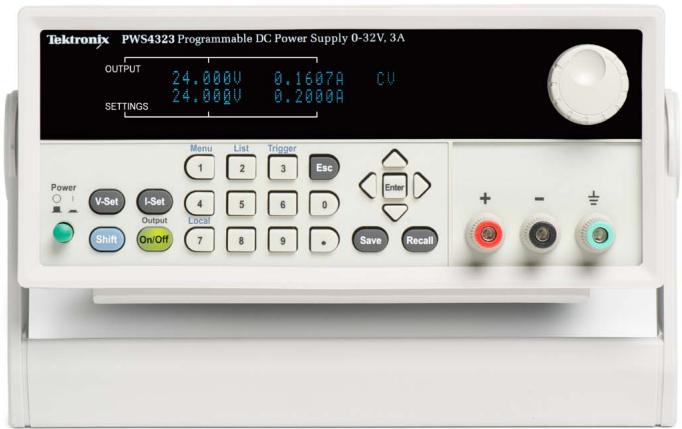

Alimentations CC programmables Programmable DC Power Supplies

Fiche technique de la gamme Tektronix PWS4000 / Tektronix PWS4000 Series Data Sheet

Des performances fiables

Specifications	PWS4205	PWS4305	PWS4323	PWS4602	PWS4721
DC Output Rating
Voltage	0 to 20 V	0 to 30 V	0 to 32 V	0 to 60 V	0 to 72 V
Current	0 to 5 A	0 to 5 A	0 to 3 A	0 to 2.5 A	0 to 1.2 A
Maximum Power	100 W	150 W	96 W	150 W	86 W
Load Regulation
Voltage			<0.01% + 2 mV
Current	<0.05% + 0.1 mA	<0.05% + 1.5 mA	<0.05% + 0.1 mA	<0.05% + 0.5 mA	<0.05% + 0.1 mA
Line Regulation
Voltage	<0.01% + 1 mV	<0.01% + 1 mV	<0.01% + 1 mV	<0.01% + 2 mV	<0.01% + 1 mV
Current	<0.05% + 0.1 mA	<0.05% + 0.1 mA	<0.05% + 0.1 mA	<0.05% + 0.05 mA	<0.05% + 0.1 mA
Ripple and Noise (20 Hz to 7 MHz)
Voltage	<1 mVRMS	<1 mVRMS	<1 mVRMS	<1 mVRMS	<1 mVRMS
	<3 mVRMS	<4 mVRMS	<4 mVRMS	<5 mVRMS	<3 mVRMS
Current	<3 mA RMS	<4 mA RMS	<3 mA RMS	<3 mA RMS	<3 mA RMS
Setting Resolution
Voltage	1 mV	1 mV	1 mV	1 mV	2 mV
Current			0.1 mA
Setting Accuracy (using remote sense, 25 °C ± 5 °C)
Voltage	±0.03% + 3 mV	±0.03% + 3 mV	±0.03% + 3 mV	±0.03% + 6 mV	±0.03% + 6 mV
Current	±0.05% + 2 mA	±0.05% + 2.5 mA	±0.05% + 2 mA	±0.05% + 1.5 mA	±0.05% + 1 mA
Readback Resolution
Voltage			1 mV
Current			0.1 mA
Readback Accuracy (25 °C ± 5 °C)
Voltage	±0.02% + 3 mV	±0.02% + 2.5 mV	±0.02% + 3 mV	±0.02% + 6 mV	±0.02% + 5 mV
Current	±0.05% + 2 mA	±0.05% + 2.5 mA	±0.05% + 2 mA	±0.05% + 1.5 mA	±0.05% + 1 mA
Voltage Transient Response, Settling Time
Load change		<150 μs to within 75 mV of final value following a change from 0.1 A to 1 A
Setting change, rising		<150 μs to within 75 mV of final value following a change from 1 V to 11 V
Setting change, falling		<150 μs to within 75 mV of final value following a change from 11 V to 1 V
Overvoltage Protection
Range (typical)	1 V to 19 V	1 V to 29 V	1 V to 31 V	1 V to 59 V	1 V to 71 V
Accuracy (typical)			±0.5% + 0.5 V
Response time (typical)			<10 ms

Display

Vacuum fluorescent display.

Memory

40 setup memories.

List Mode

Up to 7 lists can be defined, each with up to 80 steps. Each step includes a voltage limit and a current limit. For continuous sequences each step also includes a duration.

Rear-panel Connections

Characteristic	Description
Communications	USB Device Port, Type B connector, USBMC compatible GPIB, optional (requires TEK-USB-488 GPIB to USB adapter)
Output, Sense, Status, and Control	Removable screw terminal block carries the following signals:
Output channel	Duplicates the front-panel outputs
Remote sense lines	Connection for remote sense
Control input	Multifunction TTL input which can function as a trigger input, output control line, or digital input
Status output	Multifunction TTL output which can function as a fault indication, or digital output

Power Source

Characteristic	Description
110 V AC Setting	99 VRMS to 132 VRMS
220 V AC Setting	198 VRMS to 264 VRMS
Frequency	47 Hz to 63 Hz
Power Consumption
PWS4205/4323/4721	350 VA
PWS4305/4602	700 VA

Physical Characteristics

Dimension	mm	in.
Height	88	3.47
Width	214	8.45
Depth	355	13.9
Weight	kg	lb.
PWS4205	9.0	19.8
PWS4305	9.6	21.2
PWS4323	9.0	19.8
PWS4602	9.6	21.2
PWS4721	9.0	19.8

Environmental and Safety

Characteristic	Description
Temperature
Operating	0 °C to +40 °C
Storage	-20 °C to +70 °C
Relative Humidity (Noncondensing)
Operating	5% to 95% relative humidity at up to +40 °C
Storage	5% to 95% relative humidity at up to +40 °C 5% to 60% RH above +40 °C up to +70 °C
Altitude
Operating	Up to 2,000 m
Storage	Up to 4,000 m
Electromagnetic Compatibility	European Union: EN 55011, Class A; IEC 61000-3-2; IEC 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 USA: FCC, CFR Title 47, Part 15, Subpart B, Class A Australia: EMC Framework, demonstrated per Emission Standard AS/NZS 2064 (Industrial, Scientific, and Medical Equipment)
Safety	European Union: Low Voltage directive 2006/95/EC; EN61010-1 2001 USA: Nationally recognized testing laboratory listing UL61010-1-2004 Canada: CAN/CSA C22.2 No. 61010-1 2004

Warranty

Three years.

Ordering Information

Models

Model	Description
PWS4205	Programmable DC Power Supply, 20 V, 5 A
PWS4305	Programmable DC Power Supply, 30 V, 5 A
PWS4323	Programmable DC Power Supply, 32 V, 3 A
PWS4602	Programmable DC Power Supply, 60 V, 2 A
PWS4721	Programmable DC Power Supply, 72 V, 1.2 A

PWS4000 Includes: Power supply, line cord, Quick Start User Manual, Traceable Certificate of Calibration, documentation CD (includes user manuals, programmer's manual, and technical reference), and National Instruments LabVIEW SignalExpress Tektronix Edition CD.

Please specify power plug and preferred language option when ordering.

Instrument Options

Power Plug Options

Option	Description
A0	North America
A1	Universal Euro
A2	United Kingdom
A3	Australia
A5	Switzerland
A10	China
A11	India
A12	Brazil

Language Options

Option	Description
L0	English
L1	French
L2	Italian
L3	German
L4	Spanish
L6	Portuguese
L7	Simplified Chinese
L8	Traditional Chinese
L9	Korean
L10	Russian

Service Options

Option	Description
C3	Calibration Service 3 Years
C5	Calibration Service 5 Years
CA1	Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
D1	Calibration Data Report
D3	Calibration Data Report 3 Years (with Option C3)
D5	Calibration Data Report 5 Years (with Option C5)
R5	Repair Service 5 Years

C

Product(s) are manufactured in ISO registered facilities.

For Further Information

Tektronix maintains a comprehensive, constantly expanding collection of application notes, technical briefs and other resources to help engineers working on the cutting edge of technology. Please visit www.tektronix.com

Copyright © 2010, Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

6 Aug 2010

3GF-25253-0
