D3II - Speaker stand ECLIPSE - Free user manual and instructions

Product Type	Speaker Stand
Brand	ECLIPSE
Model	D3II
Compatibility	TD508 speaker only
Dimensions (approx)	Height: 70 cm, Base: 30 x 30 cm
Weight (approx)	4.5 kg
Material	Steel (pole and base), metal (fasteners)
Color	Black (typical)
Tilt Angle	Adjustable by screwing
Main Function	Hold the speaker at ear height with angle adjustment
Power Supply	None (passive)
Assembly	Requires assembly with included Allen key
Maintenance	Clean with a soft cloth and mild neutral solution. Do not use solvents.
Safety Precautions	Do not place on a height, unstable surface, or in a walkway. Assemble with two people.
Included Parts	Joint, pole, base plate, bolts (hexagonal and round head), Allen key, pads (5)
Optional Accessories	M8 spikes (not included)
Repairability	Repairable by replacing standard parts
Intended Use	Indoor, flat and solid floor
Maximum Load	Designed for TD508 speaker (weight approx. 5 kg)
Warranty	Not specified, refer to retailer

Frequently Asked Questions - D3II ECLIPSE

How to assemble the D3II stand?

Assemble the base plate and pole with the round head bolt. Insert the hexagonal bolt (anti-rotation) into the joint, then assemble the joint and pole with the hexagonal bolt. Install the anti-tip caps and feet into the holes of the base plate. See the manual for detailed steps.

How to adjust the speaker angle?

Loosen the angle adjustment screw on the right side of the speaker. Slide the speaker to the right to disengage the joint tab, adjust to the desired angle, then retighten the screw firmly. Support the speaker while adjusting.

Which speakers are compatible with the D3II?

The D3II stand is designed exclusively for the ECLIPSE TD508 speaker. Do not use with other models.

What are the important safety precautions?

Do not place the stand on a height or shelf. Assemble it on a flat, stable floor. Do not place it in a walkway. Do not climb on the stand. Move it with two people due to its weight.

How to clean the stand?

Wipe gently with a soft cloth dampened with a mild cleaning solution. Do not use thinners or benzene.

Can I use spikes instead of pads?

Yes, you can install commercially available M8 spikes instead of the supplied anti-tip caps and feet. Screw the spikes into the holes of the base plate.

How to remove the speaker from the stand?

Remove the screws of the speaker bracket, remove the base cover, then the angle adjustment screw and washer. Slide the speaker to the right and lift it. Hold the speaker with both hands as it is heavy.

Is the D3II stand height adjustable?

No, the height is fixed. Only the tilt angle is adjustable via the side screw.

What to do if the stand is unstable?

Check that the stand is properly assembled on a flat floor. Make sure all bolts are tightened. Use the supplied pads or spikes for better stability.

Where to find the full manual?

The manual is available for free download in PDF format on notice-facile.com. You can also request a translation in your language.

USER MANUAL D3II ECLIPSE

SPEAKER STAND (for TD508 speaker only)

D3 II

SPEAKER STAND (for TD510 speaker only)

D6

OWNER'S MANUAL

Thank you for purchasing this high quality speaker stand. Please read this installation manual before assembling the stand, and be sure to use it properly. An accident or injury can result if the stand is incorrectly assembled or unspecified parts are used. After assembly, keep this manual where it can be consulted when necessary.

Contents

Before installation

Included Parts 2

Using this product safely and properly 3

Cautions before use 3

Installation

Removing the speakers 4

Assembling the speaker stand 5

7

Speaker angle adjustment 7

D3 components

1 Joint

2 Post

(3) Base plate

(4) Hexagonal bolt
X2

5
Pan-head bolt
X1

6
Allen key
X1

7
Spike hole seal
X5

(8)
Foot
X5

D6 components

1
Joint
X1

(2) Post
X1

3
Base plate
X1

4
Screw (binding)
X2

5
Pan-head bolt
X2

6
Allen key
X1

7
Spike (M8X25)
X5

8
Hexagonal nut
X5

9
Insulator
X5

The indicator symbols shown below are used in this manual and on the stand to ensure proper and safe use of the product, prevent injuries and avoid damage to surrounding items. Please become familiar

with these symbols and their associated information before proceeding to the assembly instructions of this manual.

Warning

This "Warning" sign indicates a situation in which incorrect handling may result in death or serious personal injury.

Caution

This "Caution" sign indicates a situation in which incorrect handling may result in personal injury or may result solely in damage to property.

Tip

This section contains information that can help to prevent problems and damage to the unit, and also contain other useful information.

Warning

• Do not place this stand on a tall object or high shelf. If the stand were to fall, it could cause an injury.

Caution

• This stand is meant for use with the TD508 speaker or TD510 speaker. Do not use the stand for other purposes. Improper use of the stand can result in an unstable condition with the potential to cause an injury by falling.
• Assemble the stand on a level surface. Placing the stand on an uneven surface can lead to overturning and result in an injury.
• Do not place the stand where people regularly move past it. Bumping into the stand can cause an injury.

• Place the stand on a solid and level floor. Installing the stand in a location that is unstable can cause it to fall and result in an injury.

• Do not drop or drag the stand when assembling or transporting it. Pushing over or dragging the stand can result in an injury or cause damage to the floor.

• Do not climb onto or hang from the stand. Be especially careful about children trying to do this. If the stand falls over it can cause an injury.
• The stand is heavy, so be sure 2 or more people cooperate in unpacking or moving it. Improper lifting can cause a back injury and dropping the stand can injure feet.

Cautions before use

• This is a stand for a speaker system. Avoid using the stand for other purposes.
• The stand is very heavy. Use caution when handling it.
• Be careful not to tip over the stand.
• Be careful that the speaker system does not fall from the stand.
• If the stand becomes dirty, clean it by lightly wiping with a soft cloth having a neutral cleaning solution on it. Do not use a substance like thinner or benzene.

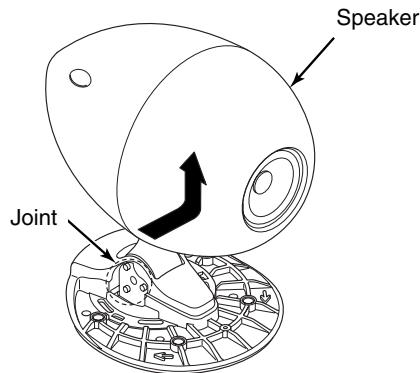

- Removing the speakers -

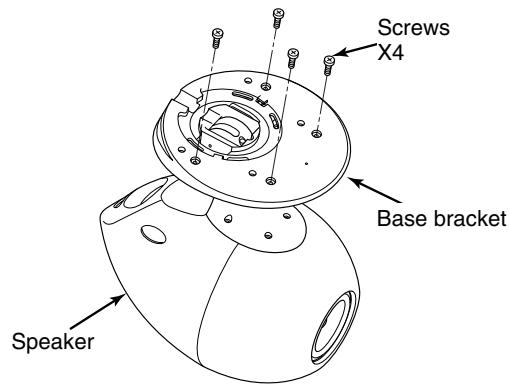

1 Remove the screws from the bottom of the speaker base bracket.

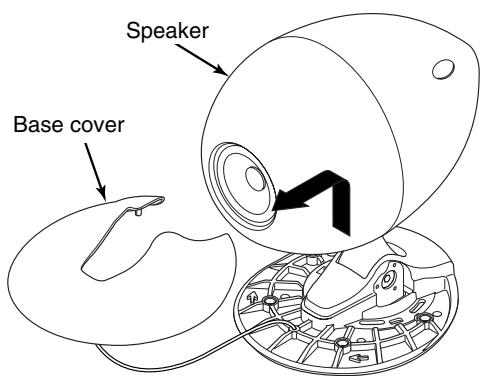

2 Remove the base cover.

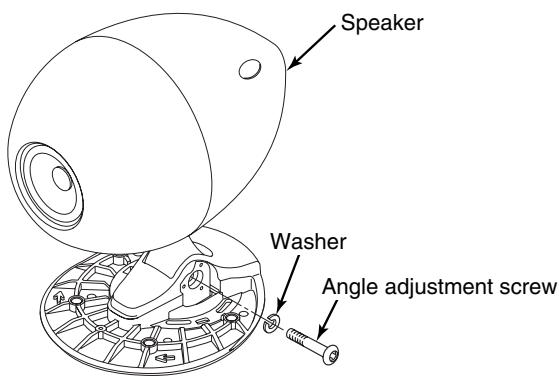

3 Remove the angle adjustment screw and the washer.

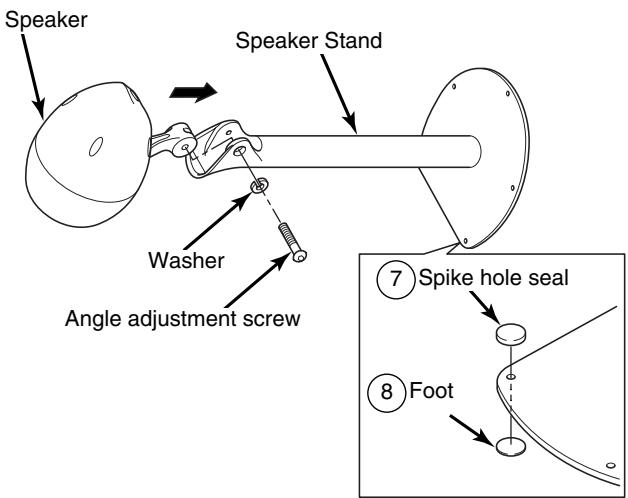

4 Slide the speaker to the right and then lift it up to remove it.

The speaker is heavy, so hold it with both hands when removing it.

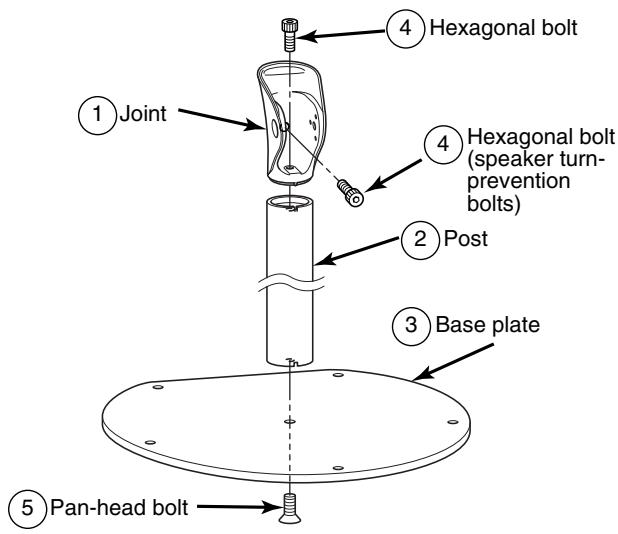

1 Install the base plate and the post with the pan-head bolt.
2 Insert the Hexagonal bolt (speaker turn-prevention bolts) into the joint.
3 Assemble the joint and the post with the Hexagonal bolt.

4 Install the spike hole seals and feet into the spike mounting holes in the base plate (5 places).
Commercially-available spikes (M8) can also be installed instead of the accessory spike hole seals and feet.
5 Commercially-available spikes (M8) can also be installed instead of the accessory spike hole seals and feet.

Caution

• The speaker is heavy, so lie it on the floor and place your hands around it when installing it.
• Lay a soft cloth or similar on the floor to prevent any damage to the speaker and the floor while working.

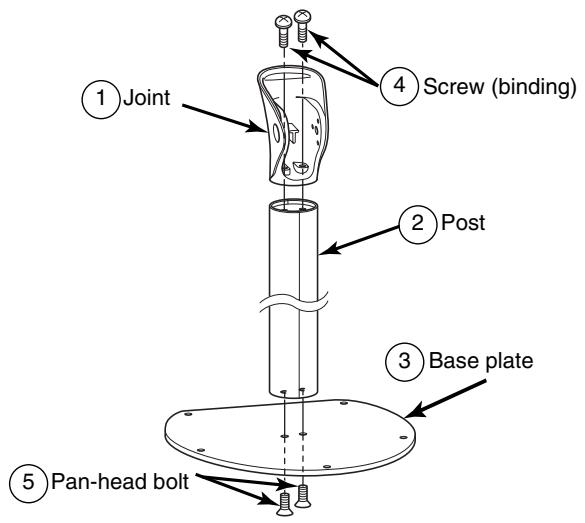

1 Install the base plate and the post with the pan-head bolt.
2 Assemble the joint and the post with the Screw (binding).

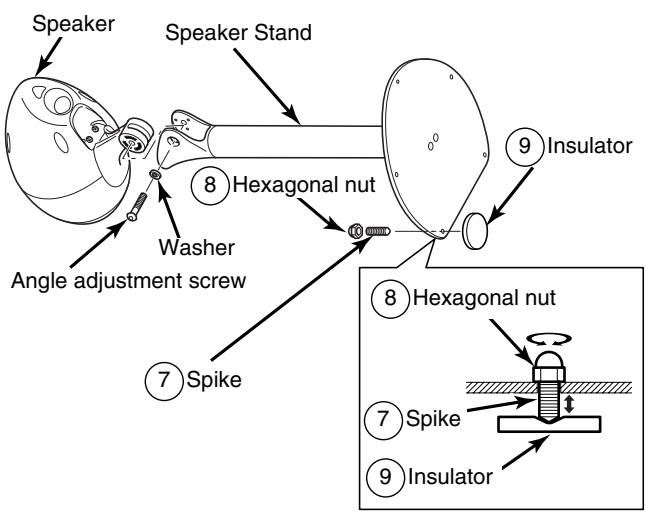

3 Place the insulator under the base plate, and then install the spikes and nuts to the base plate.

Tip

• Turn the spikes clockwise one at a time. Once the end of the spike feels as though it is touching the insulator, secure with the nut.
  4 Insert the speaker into the joint, adjust it to the preferred angle, and then tighten the washer and angle adjustment screw to secure it in that position.

Caution

• The speaker is heavy, so lie it on the floor and place your hands around it when installing it.
• Lay a soft cloth or similar on the floor to prevent any damage to the speaker and the floor while working.

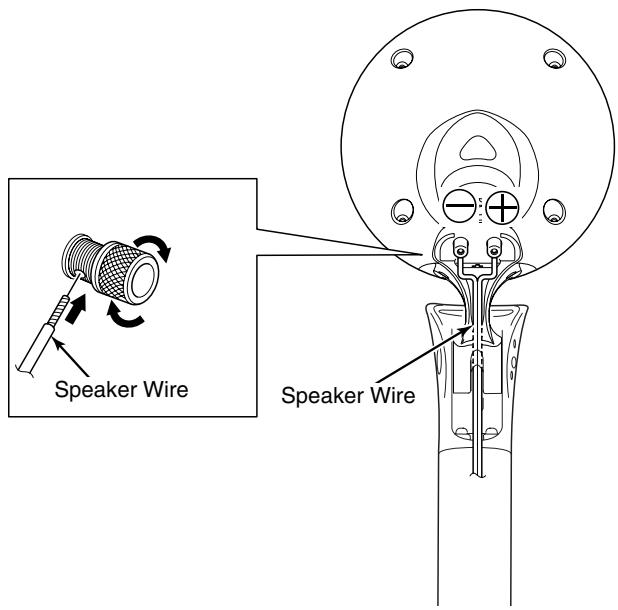

When connecting the speaker wire, connect it securely so that the end of the speaker wire does not touch any neighboring terminals.

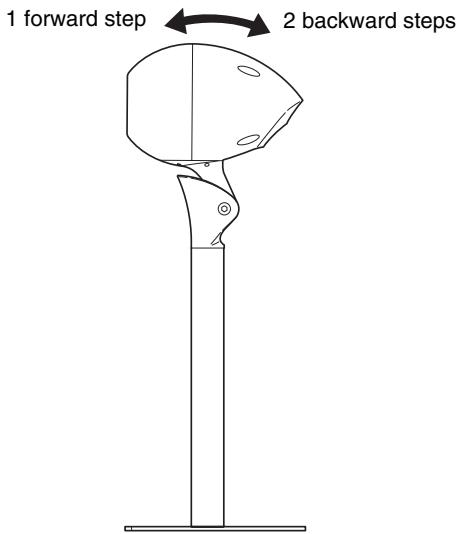

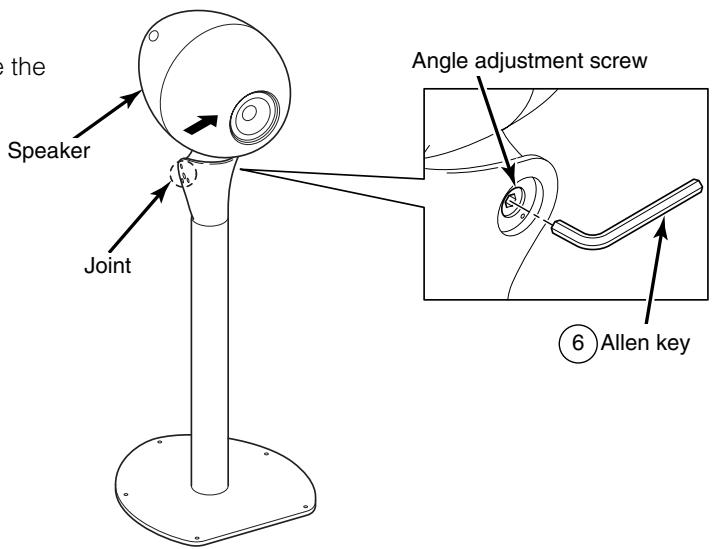

- Speaker angle adjustment -

Loosen the angle adjustment screw on the right side of the speaker.

Slide the speaker to the right slightly to disengage the tab of the joint.

Adjust the speaker to the desired angle.

Securely tighten the angle adjustment screw.

Tip

• Hold the speaker securely while adjusting the angle.
