AUTOSITZADAPTER 9905 - Car seat accessories HARTAN - Free user manual and instructions

Product type	Car seat adapter for stroller
Brand	HARTAN
Model	AUTOSITZADAPTER 9905
Materials	High-quality metal and plastic
Dimensions (approx.)	20 x 10 x 10 cm
Weight (approx.)	0.5 kg
Car seat compatibility	Maxi Cosi, Römer Baby Safe Plus SHR, and similar models
Stroller compatibility	HARTAN strollers with suitable attachment rails
Use positions	Vertical (car seat) and horizontal (stroller)
Attachment	On the chassis rails using two slotted screws and the supplied Allen key
Safety device	Audible ‘click’ engagement and locking on the adapter
Warranty	2 years, subject to warranty conditions
Care and cleaning	Clean with a damp cloth and mild soap; do not use abrasive products
Spare parts and repairability	Use only genuine HARTAN spare parts
Country of manufacture	Germany (made in Germany)

Frequently Asked Questions - AUTOSITZADAPTER 9905 HARTAN

How to attach the AUTOSITZADAPTER 9905 adapter to the stroller?

Attach the adapter to the stroller's attachment rail from the outside using the two slotted screws and the supplied Allen key. Tighten the nuts well. The adapter must be firmly fixed in the rail.

Which car seats are compatible with this adapter?

The adapter is compatible with Maxi Cosi and Römer Baby Safe Plus SHR car seats. For other models, check compatibility with the manufacturer.

How to switch between car seat mode and stroller mode?

Turn both adapters to the vertical position until they click for car seat use, and to the horizontal position for stroller use.

How to correctly install a Maxi Cosi car seat on the adapter?

Place the car seat on the adapter by turning the carrying handle to the vertical position until it clicks fully. You will hear a 'click'. Check the attachment by lifting the seat. To remove, simultaneously press both release buttons on either side.

How to install a Römer Baby Safe Plus SHR car seat?

Turn the carrying handle to the vertical position until it clicks fully. The seat locks with a 'click'. To remove, press one of the three triangular safety buttons on the carrying handle, then press the release button.

Is this adapter safe for jogging or rollerblading?

No, using this combination for jogging or rollerblading is dangerous and prohibited.

What to do if the car seat does not click in properly?

Make sure the adapter is properly attached to the chassis and the seat is correctly aligned. If the problem persists, contact your dealer or HARTAN customer service.

How to maintain the adapter?

Clean it with a damp cloth and mild soap. Do not use abrasive products. Regularly check the tightness of the screws and the condition of the parts.

Where to find spare parts for the adapter?

Use only genuine HARTAN spare parts. Contact your dealer or HARTAN after-sales service to order.

How to make a warranty claim?

Keep the duly completed warranty card, the checklist and the receipt. In case of a defect, contact your dealer within 2 years of purchase. The warranty covers material and manufacturing defects, but not normal wear or improper use.

USER MANUAL AUTOSITZADAPTER 9905 HARTAN

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purchased a Xanlan high-quality product. You have made an excellent choice.

SAFETY AND QUALITY LEADERSHIP THROUGH TECHNOLOGY

As a competent and recognized company in the European baby carriage industry, it has become our mission to deliver only fashionable top models, the most innovative technology and the best quality as well.

Made in Germany products manufactured with
the greatest possible care
- Constant rigorous quality control
- Content of harmful substances at as low a level as possible

Important for your child's safety!

Before using your child car seat adapter, please consult both the manual of your baby carriage and that of your adapter. The safety notes given in these manuals apply to the chassis/ car-seat combination as well.

Please do not use this adapter before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer.

Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

WARNING!

Never leave your child unattended in the child car seat.
Before use, make sure all the catches are locked in place and the carriage top is secured properly.
Using this combination while jogging, skating, etc. can be dangerous and is therefore not allowed.
Use the safety belt for your child.
The carrying handle of the car seat is not suitable for carrying the child carriage.
For safety reasons, only use Hartan replacement parts.

Mounting instructions

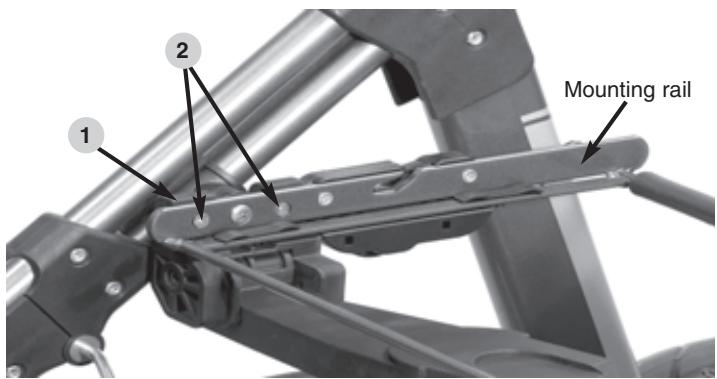

① The adapter is attached to the outside of the mounting rail.
② Secure the adapter by means of the two countersunk head screws using the Allen key provided. Tighten the screws properly; the adapter must fit tightly to the mounting rail.

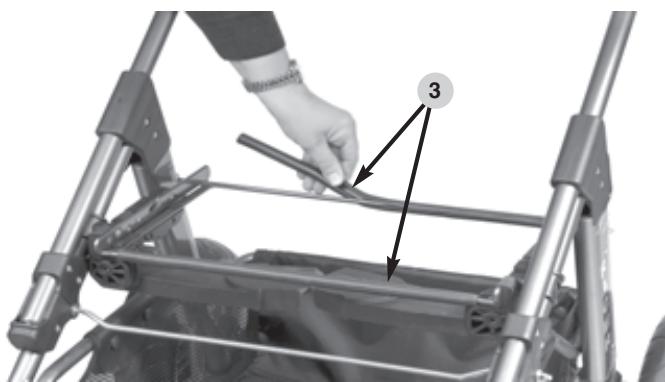

③ Put the two protective slit-hoses upon the crossbars of the chassis. Turn the hose in a way that the slots point downwards.

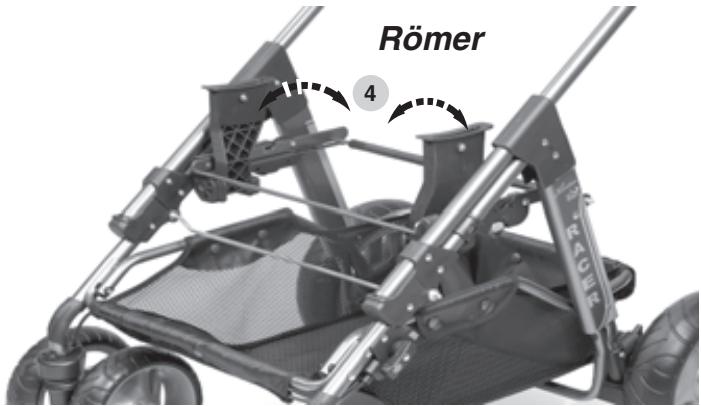

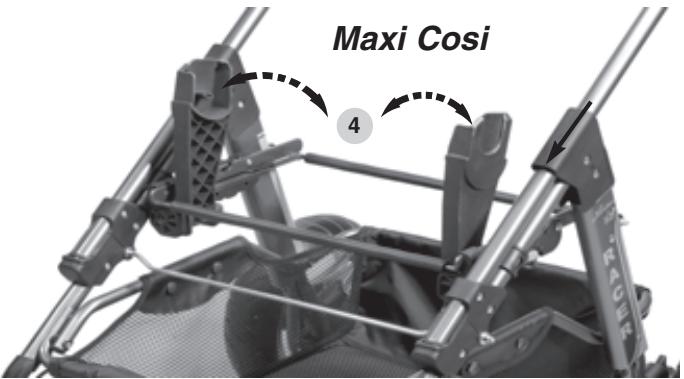

④ To attach the child car seat, fold up the two adapters into vertical position until they snap into place. To attach the stroller unit, bring the two adapters into horizontal position.

"Maxi Cosi" user guide

Never use the car seats "Maxi Cosi" and "Romer" with the child in it in driving direction.

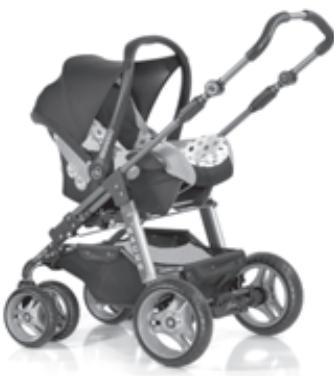

① To attach the child car seat to the chassis or to remove it from the chassis, fold up the carrying handle into vertical position until it snaps into place.

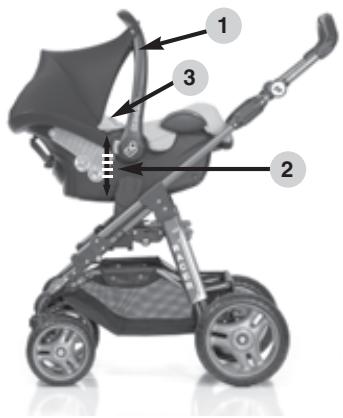

② The seat engages audibly onto the adapter, which is indicated by a click sound. Check by lifting to make sure it is engaged securely.
③ By depressing the two push buttons on both sides at the same time, the seat can be removed.

"Römer Baby Safe plus SHR" user guide

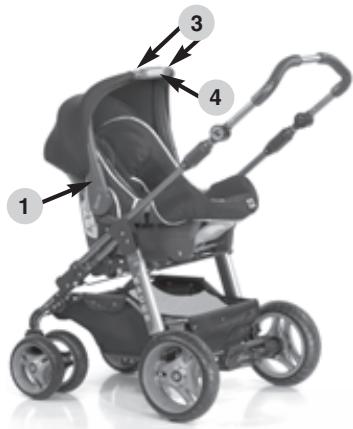

① To attach the child car seat to the chassis or to remove it from the chassis, fold up the carrying handle into vertical position until it snaps into place.

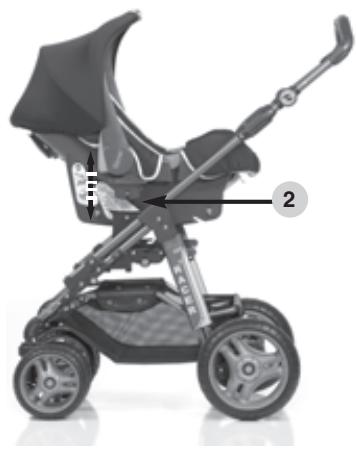

② The seat engages audibly into the adapter, which is indicated by a click sound. Check by lifting to make sure it is engaged securely.
The carrying handle has three triangular buttons. Press one of them and keep it depressed.
④ Press the release button of the carrying handle. The seat can now be removed.

2 YEARS WARRANTY

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the handover check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER ......

We disclaim liability for defects in the object of purchase that are beyond our control. This especially applies to:

■ natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
defects due to improper or inappropriate use (see Instructions)
defects due to incorrect assembly or operation
■ defects due to negligent handling or lack of maintenance of the product
defects due to improper alteration of the product.

Toutes nos félicitations

TAPAHTRBCJUYAEPEKJIAMAUN.

IpaHTH OXBaTbIBaET BCE IIOLOMKH, CBZ3aHHbIe C MaTepeHaIOM HJIH C IPOH3BOIcTBOM, KOTOpbIe IIpHCyTCTBOBaIIH BO BpeMaH.

TAPAHTRHE PACIPOCTPAHRETCAHA...

IapaHTHHe paacnpoCTpaHaeTcH Na IIOJIOMKn H HeIOCTaTKN IPOJAnHORO TObapa B cIyue, ecIIH OH He 6bIIHN bI3BaHbI HAMH. To paacnpocTpaHaeTc Oco6eHHo HA HNHKe Yka3AHHbIe IIYHKtBi

II INH3NaKN HAtypaJIbHOI H3Hoca H NIOJIOMKH, C8Ba3aHHbIe C Upe3MePbIM HcIOJIb3O-BaHNHeM IPOJyKTA
HeIOJIaIKN, Cb3aHHbIe c Tem, YTO Na IIOJOMKH/OIIIN6KHe 6bIIO O6paIeHO BHNMaHHe H BCJIeCTBHe 3TOrO pa60TbI IOpeMOHTy IPOpyKtyaCJOKHNHc
IIIOJOMKH, CB3aHHbIe C HeINPcHIOco6JIeHHbIM H HeINpABHbHbIM IIpHMHeHHem IPOJyKTA (cm. IHCTpyKTHIO IIO IIpHMHeHHIO)
IIOJOMKH, CB3aHHbIE C HIIpaBHLbHbIM MOHTaKOM H BBOJOM B DeICTBHe.
IIIOJOMKH，Bb3BaHHbIe He6peKHeIM HcIOJIb3OBAHHem HINH HeIOCTaTOHbIM yxODm H 06cIyKHBAHHEM KUYIIeHHORo BaMH IpeIMeta
IIIOJOMKN, CBA3aHHbIe C HEKOMIeTeHTHbIM H3MeHeHHem KYJIIEHHORIO npOdykTa.
