Product type	IR controller (infrared signal extender)
Brand	Marmitek
Model	Invisible Control 4
Power supply	4 AAA alkaline batteries (not included) or DC 12 V / 200 mA mains adapter
Dimensions	125 × 89 × 33 mm
Weight	Approximately 200 g (without batteries)
IR range	Up to 8 meters (remote control to receiver)
IR reception angle	±30° from center
Reception frequency	30–60 kHz
Number of IR LEDs (emitters)	2
IR extension cable length	3 meters (2 meters to the split, then 1 meter per LED)
Connection type	2 x 3.5 mm mono jack sockets for IR extension cable
Sleep mode	Yes, after 4 hours of inactivity (battery mode only)
Usage	Control AV devices placed in a closed cabinet or out of sight
Safety	Use only indoors, in a dry place; do not open (except battery compartment); observe battery polarity
Maintenance	Clean with a dry cloth; do not use abrasive products
Spare parts and repairability	User-replaceable batteries; no other detachable parts
Environmental information	Do not dispose with household waste (WEEE directive)

Frequently Asked Questions - INVISIBLE CONTROL 4 MARMITEK

How to install the Invisible Control 4?

Plug in the mains adapter or insert 4 AAA batteries into the compartment. Connect the IR extension cable to one of the jack sockets on the back. Stick the two IR LEDs exactly onto the IR eye of your AV devices. Place the receiver in view, within 8 meters of your remote control.

Why does my Invisible Control 4 not respond after a few hours?

In battery mode, the device goes into sleep mode after 4 hours of inactivity to save batteries. To reactivate, bring your remote control within 50 cm of the receiver and press a button. A red light confirms reactivation.

Can I use the mains adapter and batteries simultaneously?

No, the device operates either on batteries or on the adapter. When the adapter is plugged in, sleep mode is disabled and the device remains always active.

What should I do if the red light stays on permanently?

This indicates interference (e.g., from dimmers, energy-saving lamps, or daylight). Slightly move the receiver to avoid these light sources or sources of interference.

My devices do not respond properly, what should I check?

Make sure the IR LEDs are stuck precisely on the IR sensor of the device. Use a flashlight to locate the exact sensor. If the device is too sensitive (e.g., satellite box), slightly move the LED away to reduce intensity.

Does the Invisible Control 4 work with all remote controls?

No, it does not work with remote controls using a high-frequency signal (like B&O). It is compatible with standard IR remote controls (30–60 kHz).

What is the maximum range between the remote control and the receiver?

The range is about 8 meters with an angle of ±30° relative to the center of the receiver.

Can I use a longer extension cable?

The supplied cable is 3 meters (2 m + 1 m per LED). You can use a 3.5 mm mono extension cable, but the maximum length is limited by signal loss.

How to maintain the Invisible Control 4?

Clean the casing with a dry, soft cloth. Do not use chemical products. Remove the batteries if the device remains unused for a long time.

What to do with used batteries?

Do not throw them in the trash. Treat them as chemical waste and dispose of them at an appropriate collection point.

USER MANUAL INVISIBLE CONTROL 4 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• Do not open the product (battery panel excepted): the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

1. INTRODUCTION

Congratulations on buying the Invisible Control 4 ^ T M ! With the Invisible Control 4 ^ T M you can extend the IR (infra-red) signals from your own remote control. The Invisible Control 4 ^ T M gives you the opportunity to control your AV equipment when it's stored away in a closed cabinet or placed out of sight.

Marmitek products are manufactured with the utmost care and are exceptionally high quality. Please read this manual carefully and follow the instructions in order to get the best from this product.

2. SET CONTENTS

1x Invisible Control 4^TM
2x IR Extender cable with 2 IR LEDs
1x Power Adapters
1x User manual

3. HOW DOES IT WORK?

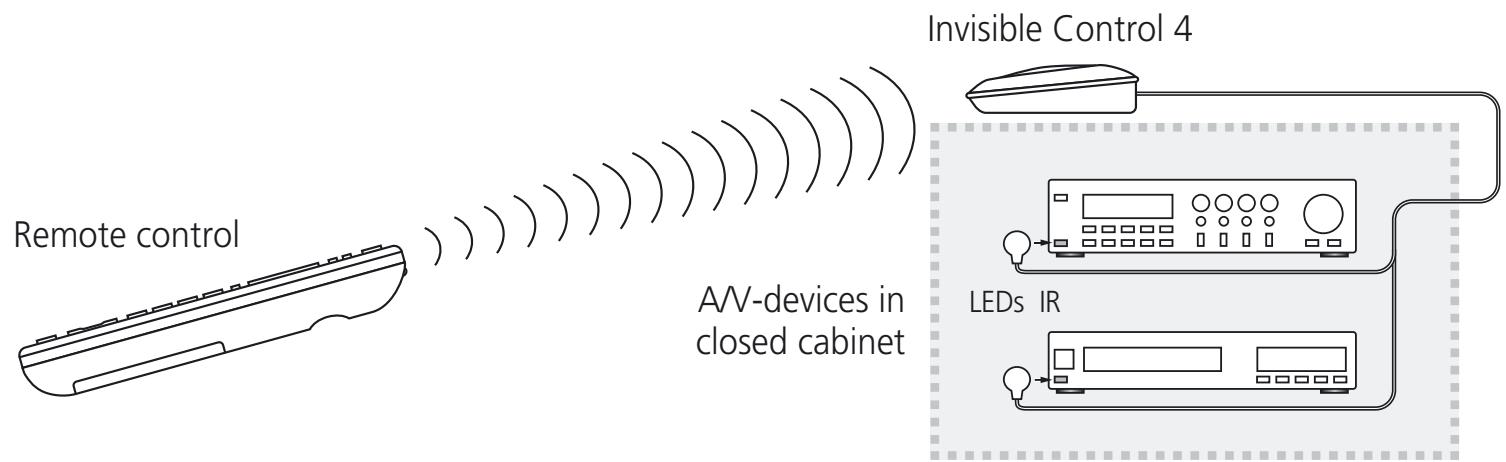

Place the IR LED's on the IR display panels of the A/V-devices

Place the Invisible Control 4^TM within sight, on or below the cabinet that the A/V equipment is in. Stick the IR LEDs on the IR eye of your equipment and then wire these to the Invisible Control 4^TM . The Invisible Control 4^TM now receives the signal from your own remote control and transmits it to the IR LEDs connected to your equipment. You can now use your own remote control to operate your equipment while it is still placed in a closed cabinet.

4. INSTALLATION

1. Plug the power adapter into the back side of the Invisible Control 4^TM or insert 4 pieces 'AAA' size ALKALINE battery (not included) into the battery compartment with correct polarity.
2. Connect the wire with the two IR LEDs (the IR extender) to the back side of the Invisible Control 4^TM . It doesn't matter whether you use the first or the second connection.
3. Place the Invisible Control 4^TM within sight and within reach of your remote control (max. 8 m) on or below the cupboard the equipment is in.
4. Lead the wire with the IR LEDs (the IR extender) to the A/V equipment in such a way that the IR LEDs (transmitters) are on the front of your equipment (e.g. via the back of the cabinet). The IR LEDs have self-adhesive tape on the back. Use this to stick them onto the IR sensor of your equipment. This should be done very carefully and precisely. Test the position of the IR LEDs first, before you stick them onto the sensor.

ATTENTION: If you are only using one appliance, then you do not need to use the second IR LED. Never remove it from the wire!

1. The Invisible Control 4^TM receives the signal from your remote control and transfers it to an electrical signal, which is passed on to the IR LEDs.
2. This means all signals from your remote control are passed on to your equipment.

5. STANDBY MODE

The Invisible Control 4^TM can be connected to the mains or can work using just a battery. If you are inserting a battery, the Invisible Control 4^TM will automatically switch to stand-by mode after 4 hours, to conserve energy. You can activate the Invisible Control 4^TM by pressing a button on your remote control within 50 cm of the receiver. A red light will flash to confirm the receiver is ready for use. After reactivation, the Invisible Control 4^TM can receive all signals from the remote control within a distance of 4 to 8 m, under an angle of 30° . The Invisible Control 4^TM will switch to stand-by mode when it has not been used for 4 hours.

If you have connected the Invisible Control 4^TM to the mains, it will remain switched on. You do not need to activate the Invisible Control 4^TM with your remote control first.

6. FREQUENTLY ASKED QUESTIONS

• In a few cases, the Receiver may be disrupted by interference and cannot, therefore, pick up the signals it receives. If this is the case the red light will be continuously illuminated than the Receiver must be relocated. This interference is caused by equipment in the vicinity such as dimmers, energy-saving light bulbs, IR alarms and so on. Direct sunlight can also disrupt the Receiver.
• Invisible Control 4^TM does not work with remote controls which use High Frequency signals (such as B&O).
• Please ensure that the LEDs of the IR extender cable are placed correctly to the infrared sensor of the AV device, this has to be done very precisely. The exact position can be found easily by shining at it with a flashlight.
• Some IR windows from set-top and satellite boxes are very sensitive and are easily disrupted. These devices then receive too much infrared light and will either work badly or not work at all. Relocate the IR LED so that less infrared light is received via the IR window.

Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com

7. TECHNICAL DATA

Invisible Control 4^TM module

Power:

4 X 'AAA' size Alkaline batteries

IR LEDs connections:

or DC 12V 200mA adapter

Frequency range:

2 × 3.5 mm jack plug (mono).

IR reception range:

30-60 KHz.

IR reception angle:

± 8 metres.

Dimensions:

60° (+30° / - 30° from centre).

125 × 89 × 33 mm

IR Extension cable

Connection:

3.5mm jack plug

IR LEDs:

2x IR LED

Length of cable:

3 metres (from plug to division 2 m ,

from division to LED 1m).

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection

facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

Raccordement IR LED's:

Fréquence:

Portée IR:

4x pile 'AAA' Alkaline o

VEILIGHEIDSWAARSCHUWINGEN

4 X 'AAA' Alkaline batterijen of

DC 12V 200mA adapter

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this InvisibleContro4TM is in compliance with the essential requirements and other relevant provisions of the following Directives:
DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Hiermit erklart Marmitek BV die Übereinstimmung des Gerätes InvisibleControl4™ den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinien:
RICHTLINIE 2004/108/EG DES EUROPÄISCHEN PARLAMENTS UND DES RATES vom 15. Dezember 2004 zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische Verträgelichkeit
Richtlinie 2006/95/EG des Europäischen Parlaments und des Rates vom 12. Dezember 2006 zur Angleichung der Rechtsvorschriften der Mitgliedstaaten betreffend elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannungsgrenzen
Richtlinie 2002/95/EG des Europäischen Parlaments und des Rates vom 27. Januar 2003 zur Beschänkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten
Par la presente Marmitek BV déclare que l'appareil InvisibleContr04TM est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directives:
DIRECTIVE 2004/108/CE DU PARLEMENT EUROPEEN ET DU CONSEIL du 15 décembre 2004 relative au rapprochement des légisations des États membres concernant la compatibilité electromagnétique
Directive 2006/95/CE du Parlement européen et du Conseil du 12 décembre 2006 concernant le rapprochement des législations des États membres relatives au matériel électrique destiné à être employé dans certaines limites de tension
Directive 2002/95/CE du Parlement européen et du Conseil du 27 janvier 2003 relative à la limitation de l'utilisation de certaines substances dangereuses dans les équipements électriques etlectroniques
Marmitek BV declares que este InvisibleControlo4™ cumple con las exigencias esenciales y con las demas reglas relevantes de la directriz:
DIRECTIVA 2004/108/CE DEL PARLAMENTO EUROPEO Y DEL CONSEJO de 15 de días de 2004 relativa a la aproximacion de las legislaciones de los Estados miembrlos en materia de compatibilidad electromagnética
Directiva 2006/95/CE del Parlamento Europeo y del Consejo de 12 de diciembre de 2006 relativa a la aproximacion de las legislaciones de los Estados miem-bros sobre el material eletrico destinado a utiliser con determinados limites de tension
Directiva 2002/95/CE del Parlamento Europeo y del Consejo de 27 de enero de 2003 sobre restricciones a la utilizacion de determinadas sustancias peligrosas en aparatos electricos y electronicos

Marmitek is a trademark of Pattitude B.V. InvisibleControl4™ is a trademark of Marmitek B.V. All rights reserved.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.
