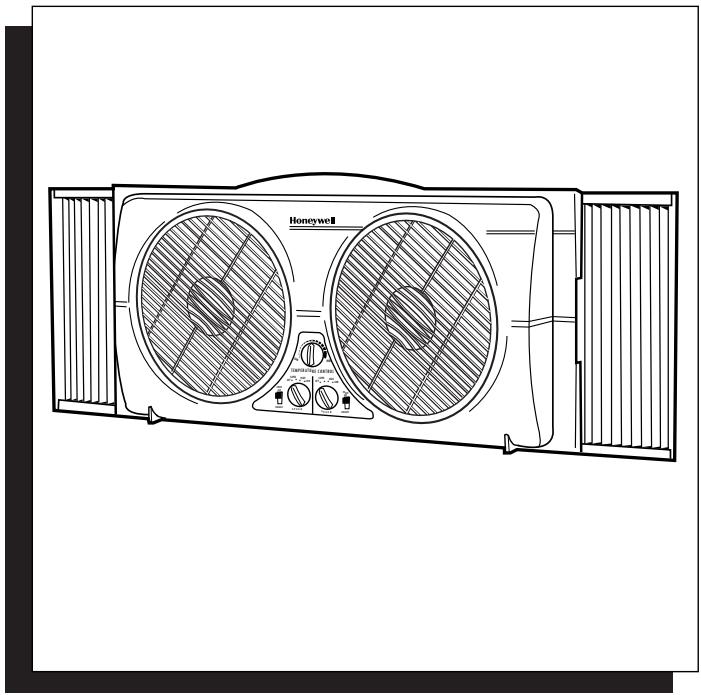

HW-628 - Fan KAZ - Free user manual and instructions

Product Type	Window Fan
Brand	KAZ (Honeywell)
Model	HW-628
Power Supply	120 V AC, 60 Hz
Minimum Window Dimensions (Double Hung)	Width 58 cm x Height 30 cm (23" x 12")
Minimum Window Dimensions (Casement/Slider)	Width 30 cm x Height 58 cm (12" x 23")
Operating Modes	Fresh Air (intake), Exhaust (outtake)
Speeds	Super, High, Low
Thermostat	Adjustable, maintains room temperature
Front Air Grilles	Manually adjustable
Cleaning	Removable grille, soft damp cloth, do not immerse
Safety	Polarized plug, do not use with solid-state speed control
Intended Use	Household use only
Replacement Parts Available	Mounting Bracket (DW-628-1), Alternate Bracket (DW-628-2)
Warranty	5 year limited

Frequently Asked Questions - HW-628 KAZ

How to install the fan in a double hung window?

Open the window at least 30 cm (12 inches). Place the fan in the window with the cord inside, then lower the window until it touches the top of the fan. Extend the side panels to fill the gaps.

How to use Fresh Air and Exhaust modes?

Use the FRESH AIR/EXHAUST switch: the FRESH AIR setting draws in outside air, EXHAUST expels room air. Do not switch while the fan is operating.

How to adjust the fan speed?

Use the SPEED control to select SUPER (very high), HIGH, or LOW.

How to use the thermostat?

First set the thermostat to maximum (clockwise). Once a comfortable temperature is reached, turn it counterclockwise until the fan stops. The thermostat then maintains the temperature by turning the fan on and off.

How to clean the fan?

Turn off and unplug the fan. The front grille can be removed with a small screwdriver (without inserting it inside). Clean with a soft damp cloth. Never immerse the fan in water.

What to do if the plug does not fully insert into the outlet?

The plug is polarized (one blade wider). Try reversing it. If it still does not fit, contact an electrician. Do not attempt to modify the plug.

Can this fan be used with a speed controller?

No, it is prohibited to use a solid-state speed control (dimmer) with this fan, as it may cause fire or electric shock.

How to store the fan off-season?

Clean it according to instructions, then store in its original packaging or cover with plastic to protect from dust. Store in a clean, dry place.

What replacement parts are available and how to order them?

Available parts: mounting bracket with hardware (DW-628-1, US $5) and alternate bracket for casement windows (DW-628-2, free). To order, contact Honeywell Consumer Relations by phone at 1-800-332-1110 or by mail, with a check including US $4.50 shipping.

What is the warranty duration and how to apply?

The limited warranty is 5 years from the original purchase date. To apply, return the defective product with proof of purchase and a payment of US $10 for handling and shipping to Honeywell. The address is provided in the manual.

USER MANUAL HW-628 KAZ

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY

INSTRUCTIONS BEFORE USING THIS FAN

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Use this fan only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.
2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.
3. To protect against electric shock, DO NOT immerse unit, plug or cord in water or spray with liquids.
4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
5. Close supervision is necessary when any appliance is used by or near children.

6. Turn the fan to the OFF position and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.

7. To disconnect the fan, first turn control to the OFF position, grip the plug and pull it from the wall outlet. Never pull by the cord.

8. Do not operate the fan in the presence of explosive and/or flammable fumes.
9. Do not place the fan or any parts near an open flame, cooking or other heating appliance.
10. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).
    11.Avoid contact with moving fan parts.
11. The use of attachments not recommended by the manufacturer may be hazardous.
12. Place the fan on a dry level surface.
13. Do not hang or mount fan on a wall or ceiling.
    15.Do not operate if the fan housing is removed or damaged.
    16.A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
14. This fan is rated for use as a window fan, however, we recommend that during rain, the fan be removed from the window.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

INSTALLATION INSTRUCTIONS

Your fan comes fully assembled and ready for installation. Casement and sliding windows require a mounting bracket for installation which can be found in the hardware packet provided.

Your fan has been designed to fit double hung, casement or sliding windows with minimum openings of 23^ wide × 12^ high (58cm X 30cm). Casement or sliding windows require minimum openings of 12^ × 23^ high (30cm X 58cm).

DOUBLE HUNG WINDOWS

• Open your window at least 12'' high (30cm)
• Turn the fan so that the front faces you. With the power cord hanging inside your room, position the lower edge of the fan in the window. Lower the window to the top of the fan. NOTE: Be sure the window is seated between the window guides protruding from the top of the fan (Fig. 1).
• Pull out each side panel until the space on the sides of the fan are fully blocked.
• To push the side panels back into the fan, pull out each tab on the back side of the fan (Fig. 2). In this "pulled-out" position you can easily slide the side panels back into the fan. The tabs should then be returned to the normal position to secure the side panels in place.

WARNING: To prevent personal injury and/or damage to the fan, never lean or push on fan while it is sealed in the window or during operation. Do not lift the window while the fan is operating. Be sure that the fan is fully secured in the window at all times.

CASEMENT OR SLIDING WINDOWS

• Remove the four "shoulder screws" supplied from the hardware packet.
• Screw two of the four shoulder screws into the holes on the bottom back of the fan and two into the holes on the bottom front of the fan.
• Remove the mounting bracket from the kit provided.
• Temporarily hook the mounting bracket over the four screws to hold the bracket in place (Fig. 3).
• Choose a suitable mounting location on the window frame where the fan can be positioned to direct airflow through the open window. Mark the location of the bracket with a pencil for placement. NOTE: Since the mounting bracket will remain attached to the window frame at the marked location, be sure that the bracket is positioned in a manner that will allow the window to be closed when the fan is removed.
• Unhook the bracket from the fan. Using the wood screws provided in the hardware packet, mount the bracket into the frame at the marked location (Fig. 4). The fan can be mounted onto the bracket within the window and is ready for use (Fig. 5).
• In rare instances during CASEMENT window installation, your window screen may not fit in its original position. In that event, it may become necessary to use an "alternate bracket" will be provided free of charge. This alternate bracket will enable you to use your window screen in its original position. Please refer to the PARTS AVAILABLE section of this instruction manual.

OPERATION

• Plug the fan into a polarized 120 Volt AC wall outlet.
• Turn the Thermostat Control to its highest setting (fully clockwise).
• Set the fan to either the FRESH AIR or EXHAUST mode by moving the FRESH AIR/EXHAUST switch up or down (Fig. 6). The FRESH AIR setting draws in air from the outside. The EXHAUST setting pulls indoor air out of the room. NOTE: Do not switch the fan from FRESH AIR to EXHAUST while the fan is on.
• Adjust the SPEED control of each fan to either SUPER, HIGH or LOW.
• When a comfortable room temperature has been reached, slowly turn the thermostat control COUNTER-CLOCKWISE until the fan stops. The thermostat will now turn the fan ON and OFF to maintain this comfort setting.
• The front air grilles can be manually rotated to change the direction of the air flow.

CLEANING AND STORAGE

• Turn fan off and unplug the fan before cleaning.
• The fan grilles are removable for cleaning by gently prying the grille from fan using a small screwdriver on the rim of the grille. (DO NOT INSERT SCREWDRIVER INTO THE GRILLE).
• Use only a soft, damp cloth to gently wipe the fan clean.
• DO NOT immerse the fan in water and never allow water to enter the motor housing.
• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.
• For storage, clean the fan as instructed and store it in its original box. Or, cover with plastic to protect it from dust. Store your fan in a clean, dry place.

REPLACEMENT PARTS AVAILABLE/CONSUMER RELATIONS

Item

Part No.

Price

Mounting Bracket and Hardware Kit

DW-628-1

5.00 US/ 7.50 CAN

Alternate Bracket (casement windows only)

DW-628-2

No Charge

To order parts send your request to Honeywell Consumer Relations. Be sure to include your fan model number, part no. and quantity desired. Make your check or money order payable to Honeywell and please include 4.50 US/ 7.00 CAN for shipping and handling. For your convenience, we also accept VISA and MASTERCARD orders by telephone. MASSACHUSETTS RESIDENTS PLEASE ADD 5% SALES TAX.

NOTE: Honeywell cannot ship to P.O. Box Numbers.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE RETURN THE FAN TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY Void YOUR WARRANTY AND CAUSE DAMAGE TO THE FAN OR PERSONAL INJURY.

IF YOU HAVE ANY QUESTIONS REGARDING THIS FAN, PLEASE CALL OR WRITE:

HONEYWELL CONSUMER PRODUCTS

CONSUMER RELATIONS DEPARTMENT

TOLL FREE:

1-800-332-1110

Mail questions or comments to:

HONEYWELL CONSUMER PRODUCTS

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

USA

Please be sure to specify model number.

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product. The enclosed Customer Response card should be filled out and returned within 10 days of purchase.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. HONEYWELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION

TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Honeywell will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Honeywell.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Honeywell Consumer Products with a brief description of the problem. Include proof of purchase and a 10 US/14.70 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

Honeywell
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA
