HPM-970 - Electric massager KAZ - Free user manual and instructions

Brand	KAZ
Model	HPM-970
Product Type	Massaging heating pad with moist and dry heat therapy
Power	120 V AC, 60 Hz (power adapter included)
Heat Settings	High, Low, Off
Massage Settings	High, Low, Off
Auto-Off Function	Yes, after 30 minutes of use (flashing indicator light)
Moist Heat Mode	Yes, via removable Aquifer MC sponge saturated with warm water
Cover Material	Fleece fabric (machine washable)
Cover Care	Machine wash cold, mild soap, tumble dry low heat
Pad Cleaning	Damp cloth, do not immerse or use chemicals
Safety	Auto shut-off, do not sit or lie on pad, do not fold, leave one side exposed
Warranty	2 years against defects in materials and workmanship
Spare Parts	Replaceable Aquifer MC sponge (included), power adapter (included)
Repairability	Kaz customer service available (phone and email), do not return to store
General Information	Made in China, distributed by Kaz, Inc.
Heat-up Time	Reaches high temperature in about 10 minutes
Indicator Light	Steady on during operation, flashing after auto shut-off
Box Contents	Heating pad, fabric cover, Aquifer sponge, power adapter, manual
Customer Service	1 800 477-0457 (business days, 7:30 am-7 pm EST), [e-mail]

Frequently Asked Questions - HPM-970 KAZ

Why is my heating massage pad not heating or heating only on one side?

Ensure that the fleece side of the cover is placed against the "heat and massage" side of the white pad. Heat and massage are only produced from that side.

The control indicator is flashing and the pad no longer heats. What should I do?

The pad has an auto shut-off after 30 minutes. To reactivate, set the heat and massage controls to Off, then set them to the desired settings again.

How long does it take for the pad to become hot?

The pad is designed to heat up quickly and reaches high temperature in about 10 minutes.

My pad does not seem hot enough. Is this normal?

The pad provides the highest possible level of heat while maintaining a safety margin. If the heat seems insufficient, check that the fleece side is oriented correctly and that the Aquifer sponge is properly positioned for moist heat.

Why should I not sit or lie on the pad?

Sitting or lying on the pad can damage the internal wires and cause burns. It is also important not to fold the pad and to leave one side exposed for air circulation.

The control indicator stays on even when I am not using the pad. Is this normal?

Yes, the indicator reminds you to unplug the pad after use for safety reasons.

How do I use the moist heat function?

Remove the Aquifer sponge, saturate it with warm water, and squeeze out excess. Place it inside the cover under the fleece side. Plug in and set the control as for dry heat.

How do I care for my heating massage pad?

Machine wash the fabric cover in cold water with mild soap, then tumble dry low heat. Clean the pad with a damp cloth, no chemicals. Do not immerse the control.

What if my pad stops working or is defective?

Contact Kaz Customer Service at 1 800 477-0457 or by email at [e-mail]. Do not return the product to the store. The 2-year warranty covers defects in materials and workmanship.

Can I use the pad with an adapter or voltage converter?

No, the pad is designed for a 120 volt AC outlet only. Using an adapter can damage the unit and pose a safety risk.

USER MANUAL HPM-970 KAZ

IMPORTANT SAFETY INSTRUCTIONS DO NOT DESTROY

DANGER: TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK AND FIRE, THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS.

1. READ ALL INSTRUCTIONS.
2. DO NOT USE WHILE SLEEPING.
3. DO NOT USE ON AN INFANT.
4. THIS PAD IS NOT TO BE USED ON OR BY AN INVALID, SLEEPING OR UNCONSCIOUS PERSON, OR A PERSON WITH POOR BLOOD CIRCULATION OR DIABETES UNLESS CAREFULLY ATTENDED.
5. DO NOT USE A HEATING PAD WHEN SYMPTOMS OF APPENDICITIS ARE PRESENT. CONSULT YOUR PHYSICIAN.
6. DO NOT USE ON AREAS OF INSENSITIVE SKIN.
7. BURNS CAN OCCUR REGARDLESS OF CONTROL SETTING. CHECK SKIN UNDER PAD FREQUently.
8. DO NOT USE IN AN OXYGEN RICH ENVIRONMENT.
9. NEVER USE PAD WITHOUT COVER IN PLACE.
10. DO NOT USE PINS OR OTHER METALLIC MEANS TO FASTEN THIS PAD IN PLACE.
11. DO NOT SIT ON OR CRUSH PAD – AVOID SHARP FOLDS. ALWAYS PLACE PAD ON TOP OF AND NOT UNDER YOUR BODY. NEVER PLACE PAD BETWEEN YOURSELF AND CHAIR, SOFA, BED OR PILLOW.
12. NEVER PULL THIS PAD BY THE SUPPLY CORD. DO NOT USE THE CORD AS A HANDLE. UNPLUG WHEN NOT IN USE.
13. DO NOT USE OUTDOORS.
14. DO NOT USE PAD WITH LINIMENT, SALVE OR OINTMENT PREPARATIONS THAT CONTAIN HEAT-PRODUCING INGREDIENTS. SKIN BURNS CAN RESULT.
15. CAREFULLY EXAMINE INNER COVER BEFORE EACH USE. DISCARD THE PAD IF INNER COVERING SHOWS ANY SIGN OF DETERIORATION.
16. WHEN NOT IN USE, STORE THE PAD IN THIS BOX, IN A COOL, DRY PLACE.
17. SAVE THESE INSTRUCTIONS.

USE ONLY WITH THE POWER PACK WITH THIS PAD. USE OF ANY OTHER POWER PACK COULD DAMAGE THE PAD OR CREATE AN UNSAFE CONDITION.

OPERATING INSTRUCTIONS

Heat therapy relaxes muscles and relieves joint pain and soreness. By increasing blood flow to the injury area, heat therapy can help accelerate healing. Finally, heat can effectively warm and loosen stiff muscles before exercise. Moist heat provides deeper heat penetration than dry heat alone. Moist heat is physician recommended.

Gentle, energetic massage coupled with moist heat therapy provides added relief from back, menstrual, arthritis and muscle pain.

Kaz heat therapy products provide relief from back, menstrual, arthritis and muscle pain. Please note that the pad must be placed on the injured area, but not under your body, for safe operation. (see Figures 3A-D)

IMPORTANT

Please do not return this product to the store or us. Contact Kaz Consumer Relations – we can help you.

Call: 1-800-477-0457 weekdays 7:30am - 7:00pm EST

Email: [e-mail]

Write:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Rd.

Southborough, MA 01772

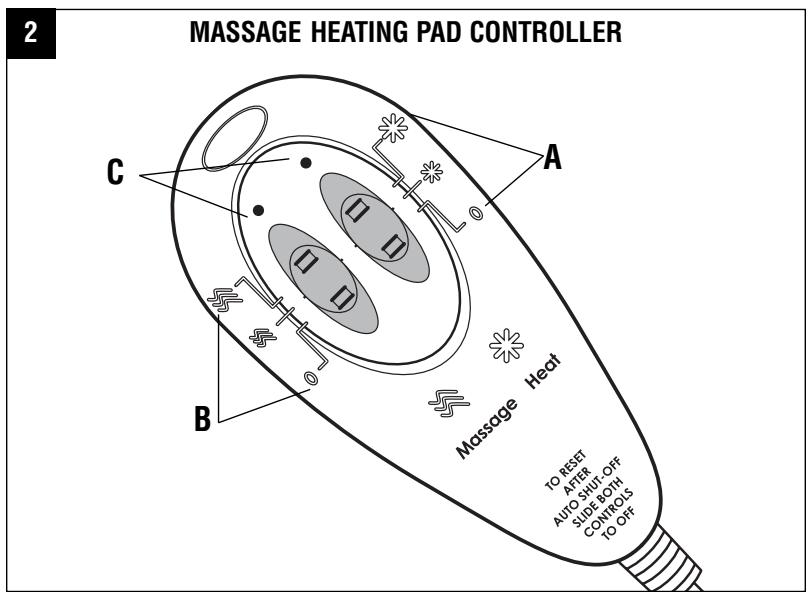

A. Heat Settings High, Low, Off
B. Massage Settings High, Low, Off
C. Solid Light for Power Flashing Light for Auto Shut-off

HS175N3

Dry Heat

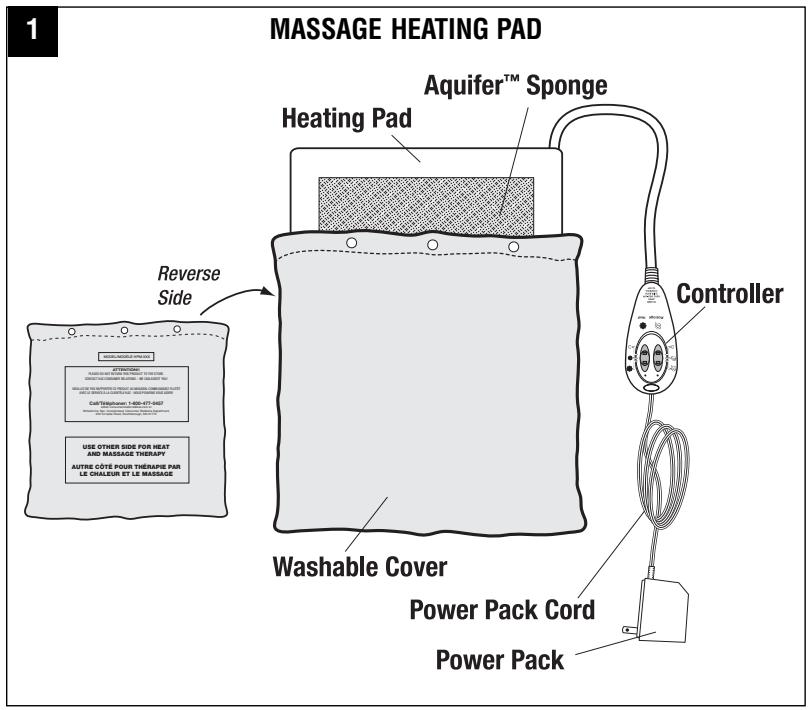

1. Connect power pack cord to the controller (see Figure 1)
2. Remove the Aquifer™ sponge from pad and plug the power pack into a 120 volt AC electrical outlet. Set the control to desired setting. (see Figure 2)
3. Place the fleece side of the cover on the area to be treated – See Figures 3A-D for examples of how to position heating pad.

Moist Heat

1. Connect power pack cord to the controller (see Figure 1)
2. Remove and saturate the Aquifer™ sponge with warm water and wring out the excess.
3. Place the sponge under the fleece side of cloth cover.
4. Plug the power pack into a 120 volt AC electrical outlet.
5. Set the control to desired setting. (see Figure 2)
6. Place the fleece side of the cover on the area to be treated - See Figures 3A-D for examples of how to position heating pad.

Automatic Shut-off

Your heating pad is equipped with a special safety feature designed to shut the heating pad off after 30 minutes of use. When the automatic shut-off feature turns the pad off, the indicator light on the controller flashes slowly to let you know the pad has shut off. To restart the pad, set the heat and massage controllers to off and reselect the desired settings.

CARE AND CLEANING

Machine wash cloth cover in cool water, using a mild detergent.
- Hang dry or tumble dry on a cool setting.
- Wipe the pad clean with a damp cloth, do not use chemicals.
- DO NOT IMMERSE OR WET CONTROLLER.
- Reinstall the cover on the white pad when the cover is dry. Match the fleece side of the cover against the "Heat and Massage" side of the white heating pad.

COMMONLY ASKED QUESTIONS

Q: Why is my massage heating pad not getting hot or hot only on one side?
A: This type of heating pad only produces heat and massage on the fleece side of the cover. Please ensure the fleece side of the cover is matched against the "Heat and Massage" side of the white pad.
Q: I was using my massage heating pad and now it isn't producing heat and the controller is flashing.
A: This heating pad is equipped with an automatic shut-off safety feature to shut itself off after 30 minutes. To restart once it shuts off, set the heat and massage controllers to off and reselect the desired settings..
Q: How fast should my massage heating pad heat-up?
A: Your massage heating pad is specially designed for the fastest heat-up safely possible. Your massage heating pad should reach the high temperature setting in about 10 minutes.
Q: My massage heating pad doesn't feel hot enough?
A: Your massage heating pad is specially designed for the highest heat possible and allow a margin for safety.
Q: How come I can't lay or sit on my massage heating pad
A: Laying or sitting on the pad could damage the wires in the pad. It's also very important to avoid folding or creasing the pad. Additionally, the pad needs to have one side exposed to the open air at all times so it can breathe for safe operation. Using the pad any other way could cause damage to the pad or cause burns.
Q: Why is the light on the controller lit when I'm not using my massage heating pad - I'd prefer it off.
A: Your massage heating pad is equipped with an extra safety feature to help alert you to unplug your heating pad after use.

WARRANTY

This heating pad is warranted against defective material or workmanship from the date of purchase. The length of the warranty is 2 years.

Any defective part will be repaired or replaced at no charge as long as it has not been repaired or tampered with and was used according to these printed instructions. Any charges incurred to ship the product back for replacement are the sole responsibility of the consumer. This warranty gives you specific legal rights as well as other rights, which vary from state to state.

CONTACT US

If you experience unsatisfactory operation or have any questions or comments, call the Kaz Consumer Relations Department at 1-800-477-0457 or write to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Rd.

Southborough, MA 01772

You can also email Kaz at [e-mail] Please be sure to include the model number of the unit, as well as a detailed description of how the pad is operating.

Do not return product to store.

IMPORTANT INSTRUCCIONES DE SEGURIDAD

NO DESTRUIR

PELIGRO: PARA REDUCIR EL RIESGO DE QUEMADURAS, SACUDIDAS ELECTRICAS E INCENDIO, Este PRODUCTO DEBE EMPLEARSE DE ACUERDO CON LAS INSTRUCCIONES SIGUIENTES.

1. LEA TODAS LAS IBSTRUCCIONES.
2. NO UTILICE LA ALMOPHADILLA MIENTRAS DUERME.
3. NO APLIQUE LA ALMOHADILLA A UN BEBÉ.
4. LA ALMOHADILLA NO DEBE SER APLICADA A PERSONAS DISCAPACIDADAS, DORMIDAS, EN ESTADO INCONSCIENTE O QUE PADECEN DE MALA CIRCULACION O DIABETES, AL MENOS QUE SEAN SUPERVISADAS CUIDADOSAMENTE.
5. NO UTILICE LA ALMOHADILLA ELECRICA CUANDO HAYAN SINTOMAS DE UNA APENDICITIS. CONSULTE AL MEDICO.
6. NO UTILICE LA ALMOHADILLA EN PARTES DEL CUERPO DONDE LA PIEL CAREZCA DE SENSIBILIDAD.
7. PIEDEN PRODUCIRSE QUEMADURAS SEA CUAL FUERE LA TEMPERATUREA SELECTIONADA. REVISE CON FRECUENCIA LA PIEL QUE SE ENCUESTRA DEBAJO DE LA ALMOHADILLA.
8. NO UTILICE LA ALMOHADILLA EN UN AMBIENTE DONDE ES ABUNDANTE EL OXIGENO.
9. NUNCA UTILICE LA ALMOHADILLA SIN LA FUNDA.
10. NO UTILICE ALFILERES U OTROS OBJECTOS METÁLICOS PARA SUJETAR LA ALMOHADILLA.
11. NO SE SIENTESOBRELA ALMOHADILLA NI LA APLASTE. NO LA DOBLE EN DOS. SIempre COLOQUE LA ALMOHADILLA SOBRE EL CUERPO, NUNCA DEBAJO DE EL. NUNCACOLOQUE LA ALMOHADILLA ENTRE EL CUERPO Y UNA SILLA, UN SOFÁ, UNA CAMA O UNA ALMOHADA.
12. JAMAS TIRE DEL CABLE DE ELECTRICIDAD NI LO UTILICE PARA ASIR LA ALMOHADILLA. DESENCHUFE LA ALMOHADILLA CUANDO NO LA ESTÉ UTILIZANDO.
13. NO UTILICE LA ALMOHADILLA AL AIRE LIBRE.
14. NO UTILICE LA ALMOHADILLA CON LINIMENTOS BÁLSAMOS O UNGÜENTOS QUE CONTENGAN INGREDIENTES GENERADOS DE CALOR, YA QUE PUEDEN PRODUCIRSE QUEMADURAS EN LA PIEL.

15. EXAMINE CUIDADOSAMENTE LA FUNDA INTERNA ANTES DE CADA USO. DESHECHE LA ALMOHADILLA SI LA FUNDA INTERNA MUESTRA INDICIOS DE DETERIORO.

16. CUANDO NO LA ESTÉ UTILIZANDO, GUARDE LA ALMOHADILLA EN ESTA CAJA Y COLOQUELA EN UN LUGAR FRESCO Y SECO.

17. CONSERVE ESTAS INSTRUCCIONES.

UTILICE UNICAMENTE EL DISPOSITIVO DE ALIMENTACION SUMINISTRADO CON LA ALMOHADILLA,DE LO CONTRARIO PUEDE DANAR LA ALMOHADILLA O PROVOCAR UNA SITUACION PELIGROSA.

Oswana : Kaz, Incorporated Consumer Relations Dept. 250 Turnpike Rd. Southborough, MA 01772

Consumer Relations Dept.

250 Turnpike Rd

Southborough, MA 01772

Kaz, Incorporated, Consumer Relations Dept.

250 Turnpike Rd.

Southborough, MA 01772

Consumer Relations Dept.

250 Turnpike Rd

Southborough, MA 01772

Manufacturing Quality Healthcare Products for Over 75 Years
