16060OLYMPIC DECLINE BENCH - Fitness Equipment CYBEX INTERNATIONAL - Free user manual and instructions

Product Type	Olympic Decline Bench Press
Brand	CYBEX INTERNATIONAL
Model	16060 Olympic Decline Bench
Dimensions (L x W x H)	135 cm x 185 cm x 119 cm
Net Weight	60 kg
Maximum User Weight	Not specified, but designed for heavy commercial use
Power Supply	None (manual device)
Main Functions	Decline bench press for chest, with adjustable leg support
Materials	Steel frame, foam cushions, vinyl covering
Daily Maintenance	Clean cushions with a damp cloth; wipe frame with mild soap
Weekly Maintenance	Check tightness of all bolts and nuts; inspect warning labels
Safety	Use a spotter; do not use if damaged; keep children away
Spare Parts Available	Yes, via Cybex customer service (references in manual)
Repairability	Repairs by qualified technician; use only Cybex parts
Warranty	Included in manual (warranty booklet)
Usage	Commercial (gyms)
Serial Number	On the label, see exploded diagram in manual

Frequently Asked Questions - 16060OLYMPIC DECLINE BENCH CYBEX INTERNATIONAL

How to assemble the Olympic Decline Bench?

Assembly requires a rubber mallet and a flat-head screwdriver. First remove the transport pads, then install the provided rubber feet. Tighten all bolts according to the diagram in the manual.

What is the maximum weight supported?

The manual does not specify a maximum load. However, the device is designed for commercial use with standard Olympic weights. For your safety, respect the weight limits of the bars and plates.

How to maintain the cushions?

Clean the cushions daily with a soft cloth and soapy water. Avoid acidic or chlorine-based cleaners. Dry thoroughly.

Can I use the bench without a spotter?

It is strongly recommended to use a spotter for safety reasons, especially when using heavy loads. If you feel weak, stop immediately.

How to adjust the leg position?

The bench is equipped with an adjustable leg support. Use the release pin to adjust the height. Make sure the pin is fully engaged before each use.

Where is the serial number located?

The serial number is on a label attached to the main frame. Consult the exploded diagram in the manual for its exact location.

What types of weights can I use?

This bench is designed for Olympic bars and standard weight plates. It does not accept standard type bars (smaller diameter).

How to clean the frame?

Use a mild solution of warm water and car soap. Dry immediately. Avoid abrasive or chlorine-based products that could scratch or damage the paint.

What to do if a part is damaged?

Contact Cybex customer service at 888-462-9239 (USA) or 508-533-4300 (outside USA). Have the serial number and part reference. Only use Cybex replacement parts.

Can I use the bench on a floor mat?

Yes, but make sure it is installed on a flat and solid surface. The transport pads must be removed to avoid instability.

USER MANUAL 16060OLYMPIC DECLINE BENCH CYBEX INTERNATIONAL

Cybex® Free Weight Olympic Decline Press Owner's and Service Manual

Strength Systems Part Number 16060-999-4 A

CYBEX

Cybex® Free Weight Olympic Decline Press Owner's and Service Manual

Strength Systems

Part Number 16060-999-4 A

Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.

DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

Copyright 2009, Cybex International, Inc. All rights reserved.

Table of Contents

Table of Contents.

1 Safety

Safety. 1

Warning/Caution Decals 2

Regular Maintenance Activities 3

2 Exercise

Intended Use 3

3 Customer Service

Contacting Service. 4

Ordering parts 4

Return Material Authorization (RMA). . . . 5

Damaged Parts 5

4 Assembly

Assembly 6

5 Maintenance

Daily Procedures 7

Weekly Procedures 7

6 Service

Parts Lists 10

Exploded-View Diagram 10

1 - Safety

Safety

Read the Owner's Manual carefully before assembling, servicing or using Cybex equipment.

WARNING: Serious injury could occur if these safety precautions are not observed:

User Safety Precautions

• Obtain a medical exam before beginning any exercise program.
• Stop exercising if feeling faint, dizzy or experiencing pain and consult your physician.
• Obtain instructions before using. Lisez les instructions avant l'utilisation.
• Read and understand the owner's manual and all warnings posted on the machine before using.
• Keep all children (12 and under) away. Teenagers (13 and over) and disabled must be supervised. Garder tous les enfants (de 12 ans et moins) éloignés. Les adolescents (de 13 ans et plus) et les handicapés doivent être surveillés.
  Use a spotter.
• Keep body and clothing free from and clear of all moving parts.
• Use the machine only for the intended use. DO NOT modify the machine.
• Inspect machine prior to use. DO NOT use if it appears damaged or inoperable.
• DO NOT attempt to fix a broken or jammed machine.
  Report any malfunctions, damage or repairs to the facility.
• Replace any warning labels if damaged, worn or illegible

Facility Safety Precautions

• Read the Owner's Manual carefully before assembling, servicing or using this equipment.
• Make sure that each machine is set up and operated on a solid level surface. Do not install equipment on an uneven surface.
• Make sure that all users are properly trained on how to use this equipment.
• Make sure there is enough room for safe access and operation of this equipment.
• Perform regular maintenance checks on this equipment. Also pay close attention to all areas most susceptible to wear.
• Immediately replace worn or damaged components. If unable to immediately replace worn or damaged components then remove from service until the repair is made.

NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is performed.

Warning/Caution Decals

Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury.

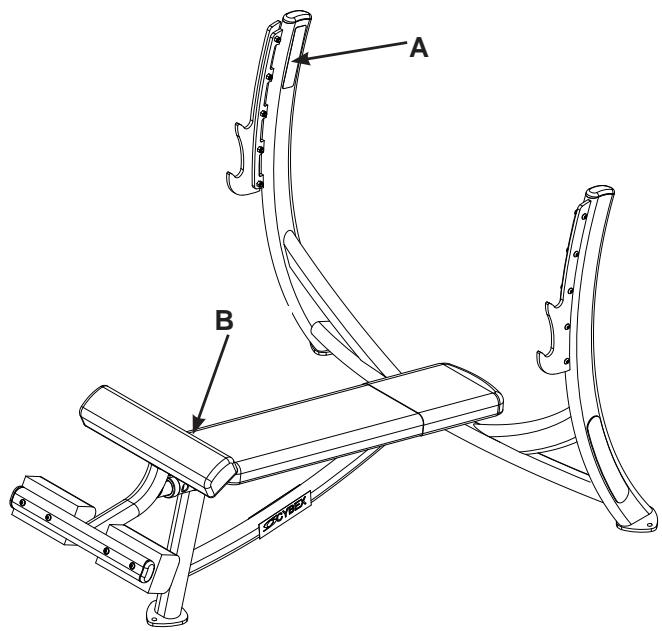

The caution and warning decals are shown on this page.

WARNING

SERIOUS INJURY

COULD OCCUR IF

THESE PRECAUTIONS

ARE NOT OBSERVED

1. Obtain a medical exam before beginning any exercise program.

2. Stop exercising if feeling faint, dizzy or experiencing pain and consult your physician.

3. Obtain instructions before using, Lisez les instructions avant l'unitilisation.

4. Read and understand the owner's manual and all warnings posted on the machine before using.

5. Keep all children (12 and under) away. Teenagers (13 and over) and disabled must be supervised. Garder tous les enfants (de 12 ans et moins) éloignés, Les adolescents (de 13 ans et plus) et les handicapés doivent être surveillés.

6. Use a spotter.

7. Keep body and clothing free from and clear of all moving parts.

8. Use the machine only for the intended use. DO NOT modify the machine.

9. Inspect machine prior to use. DO NOT use if it appears damaged or inoperable.

10. DO NOT attempt to fix a broken or jammed machine.

11. Report any malfunctions, damage or repairs to the facility.

12. Replace any warning labels if damaged, worn or illegible.

5220-364-4

Olympic Decline Press - 16060

DESCRIPTION

PART NO.

A. Warning Decal............5220-364
B. Caution Decal. 8500-025

CAUTION

Failure to correctly adjust could result in personal injury.

Always fully engage the detent pin before use to avoid injury.

8500-025-4

Regular Maintenance Activities

Preventative maintenance activities must be performed to maintain normal operation of this equipment.

Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities.

WARNING: Equipment found to have worn or damaged components must be removed

from service until repair(s) is made. Failure to do so could result in injury.

Daily

1. Clean upholstery.

Weekly

1. Inspect all nuts and bolts for looseness. Tighten as required.
2. Check for worn handles, and worn warning labeling. Replace all worn parts immediately.

2 - Exercise

Intended Use

The intended use of this equipment is to aid or improve general physical fitness and exercise. For Comercial use.

Before you workout

Prior to starting a training program, get a complete physical exam to make sure your physician agrees that you are ready. Always warm-up your muscles before a workout. A 5 - 10 minute cardio warm-up followed by slow stretching (no bouncing) is recommended. Continue with a lighter set (50% of normal) of intended exercises. Start your program conservatively. Choose weights you can easily lift in the first weeks. Always perform the full range of motion unless you have an injury, then consult a professional trainer. Know the terms. A "repetition" (rep) is defined as one complete movement through an exercise, returning to the start position. A "set" is a continuous series of reps usually between 6-15.

During your workout

The number of reps you perform in a set depends on your goal. To build muscle and strength, do fewer reps (6 - 8) with heavier weight. To build endurance, do more reps (12-15) with lighter weight. Never "cheat" by shortening the range of motion, bouncing the weight, or shifting your posture. This may allow you to lift more weight, but it is dangerous and less effective. Catch your breath between sets, then continue. When "circuit training" move briskly to the next exercise; when doing multiple sets on one exercise, rest 45 - 90 seconds before the next set. Work up to three sets per exercise. When you can perform the desired reps and sets for any exercise, increase the weight by a half or full plate.

Designing your workout

Circuit training is a good way to start. This involves doing one set per exercise, then moving to the next exercise, pausing only briefly between them (to keep your heart and breath rate up) until completing a balanced "circuit" of 8 - 10 exercises for your entire body. Then repeat the circuit. After several weeks, you can move into multiple sets (3 in a row) per exercise if you choose. For both of these, exercise the complete body every other day, up to three times a week. NOTE: A full day's rest, plus proper nutrition and hydration are required for optimum muscle-building or toning. Alternatively, work out half your body one day (e.g., the upper body) and the other half the following day (e.g. the lower body). At the end of your workout, cool down in a similar way to your warm-up.

3 - Customer Service

Contacting Service

Hours of phone service are Monday through Friday from 8:30 to 6:00 p.m Eastern Standard Time.

For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.

For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax [phone].

Find information on the web at www.cybexintl.com or e-mail at [e-mail].

Ordering Parts

Fax orders to 508-533-5183. To speak with a customer service representative, call 888-462-9239 (for customers living within the USA) or 508-533-4300 (for customers outside the USA). You may also contact us through e-mail at [e-mail]

Having the following information ready when calling will assist our Cybex representatives in serving you.

• Unit Serial Number
  Product Name

The unit serial number and product name can be found on the serial number decal. See Chapter 6 for exact location of serial number decal.

Part Description
Part Number

Part descriptions and part numbers are located in Chapter 6 of this manual.

Shipping Address
- Contact Name

In addition to your shipping address and contact name, your account number is helpful but not required.

Return Material Authorization (RMA)

The Return Material Authorization (RMA) system outlines the procedures to follow when returning material for placement, repair or credit. The system assures that returned materials are properly handled and analyzed. Follow the following procedures carefully.

Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.

1. Call the Customer Service Hot Line listed above for the return of any item that is defective.
2. Provide the technician with a detailed description of the problem you are having or the defect in the item you wish to return.
3. Provide the model and serial number of your Cybex equipment.

4. At Cybex's discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. Include the description of the problem, the serial number of the equipment and the name and address of the owner in the package along with the part(s).

5. Forward the package through UPS to Cybex.

Attn: Customer Service Department

Cybex International, Inc.

1975 24th Ave SW

Owatonna, MN 55060

NOTE: Merchandise returned without an RMA number on the outside of the package or shipments sent COD will not be accepted by the Cybex receiving department.

Damaged Parts

Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)

Apparent Damage - Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier's agent. Failure to do so will result in the carriers refusal to honor your damage claim. The carrier will provide you with the required forms for filing such claims.

Concealed Damage - Damage not seen with a visual check upon receipt of a shipment but notices later must be reported to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to perform an inspection of the materials must be made within ten days of the delivery date. Keep all shipping containers and packing materials as they will be needed in the inspection process. The carrier will provide you with an inspection report and the necessary forms for filing a concealed damage claim. Concealed damage claim is the carrier's responsibility.

4 - Assembly

Tools Required

Rubber mallet
- Flat head screwdriver

Plastic shipping foot glides are used on Cybex Strength Systems machines to protect the bottom of machines during transportation. These foot glides must be removed before a machine is first placed in service as the shipping foot glides may cause the machine to be unstable.

WARNING: Failure to remove shipping foot glides before placing a machine in service may cause the machine to be unstable, therefore, creating potential for personal injury or product damage.

NOTE: Failure to remove shipping foot glides before placing a machine in service may void warranty on the frames.

REMOVING FOOT GLIDES

NOTE: Be careful not to damage frame (such as chipping the paint) when removing foot glides.

NOTE: The foot of the machine will need to be raised slightly off the floor in order to remove foot glide. Do not install weight stack (if applicable) until after removing foot glides.

1. Using a rubber mallet, carefully strike foot glide.
2. With a flat blade screwdriver, carefully pry off foot glide.
3. Carefully place rubber feet (supplied with machine) on each foot of the frame.
4. Carefully Install grips (if required) part number 16030-309, see exploded view for location.

Olympic Decline Press - Product No.16060

Total Weight and Size

Weight: 133 lbs. Size: 53'' W x 73" L x 47" H

Weight: 60 kgcm. Size: 135 cm W x 185 cm L x 119 cm H

5 - Maintenance

All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment.

NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting/recording. Cybex phone representatives are available to answer any questions or concerns that you may have.

Daily Procedures

1. Upholstery - Wipe down all upholstery.
2. Frames - Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
3. Chrome - Clean chrome tubes, first using chrome polish and then using a car wax seal. Neutral cleaners with a pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.

Weekly Procedures

1. Inspect all nuts and bolts for looseness. Tighten as required
2. Inspect all labeling for readability. This includes instructional placards, warning and caution decals. Replace all worn labeling immediately.

This page intentionally left blank

6 - Service

Please refer to the next page for parts lists and exploded-view diagrams

CAUTION

Use only Cybex replacement parts when servicing.
Failure to do so could result in personal injury.

NOTE: All inspections and repairs must be performed by trained service personnel only.

Cybex will void warranty if non-Cybex replacement parts are used.

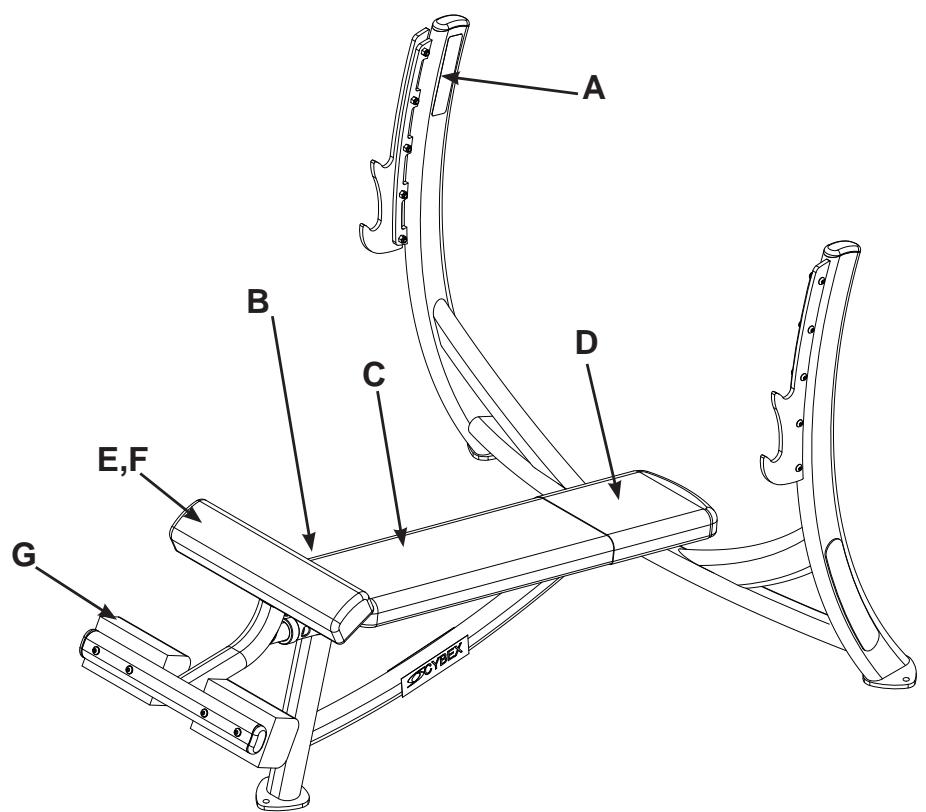

Free Weight Olympic Decline Press

PRODUCT NO. 16060

NOTE: See exploded-view diagram for location of H (serial number decal)

DESCRIPTION

PART NO.

A. Warning Decal............5220-364-X
B. Caution Decal. 8500-025-X
C. Back Pad W/Wear cover....4800-412
D. Wear Cover............4800-411
E. Leg Pad W/ Wear cover .........4800-006
F. Wear Cover. 4800-093
G. Leg pad. 01215
H. Serial Number Decal

16060 MAIN ASSEMBLY DETAIL

ITEM	QTY	PART NO.	DESCRIPTION
1	1	08229	P/PIN,DETENT
2	1	11040-440	KNOB
3	2	16010-309	BAR PLATE
4	3	16010-311	FOOT PAD
5	1	16060-200	W/ MAIN FRAME
6	1	16060-201	W/ LEG ADJUSTING
7	1	16060-311	PLASTIC GUIDE
8	1	16060-315	PLASTIC GUIDE
9	2	3900-445	DECAL, CYBEX BLACK
9	2	3900-446	DECAL, CYBEX SILVER
10	1	51198	WARRANTY BOOK
11	1	BS070201	COM SPRING .56 x .66 1.50 LG
12	4	HC700428	BHSCS .375-16 X 2.25
13	2	HM583208	10-32 X .25 LG
14	10	HN704901	LOCKNUT, .375-16 NYLON
15	2	HP286810	SPRING PIN .188 X .37 LG
16	12	JC700420	BHSCS .375-16 X 1.25
17	2	JC700434	BHSCS .375-16 X 3.00
18	8	JS347400	LOCKWASHER, INT TOOTH .375
19	2	PP130002	INSERT, DOMED PLASTIC
20	2	PP130003	INSERT, DOMED PLASTIC
21	1	4800-408	BACK PAD W/WEAR COVER
22	1	4800-411	WEAR COVER
23	1	4800-006	LEG PAD W/WEAR COVER
24	1	4800-093	WEAR COVER
25	2	01215	LEG PADS
26	1	5220-364-X*	DECAL, WARNING
27	1	8500-025-X*	DECAL, CAUTION
28	2	PR520006	PAD

This page intentionally left blank
