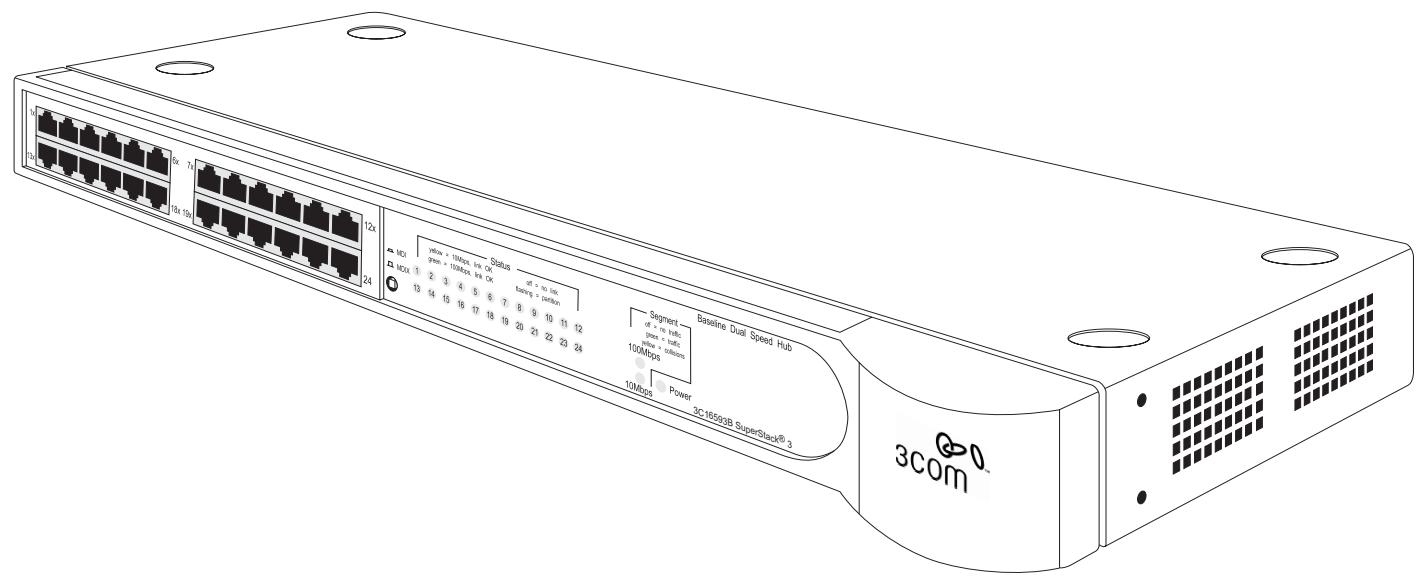

The SuperStack® 3 Baseline Dual Speed Hub is an easy-to-use, 10/100 autosensing Class II hub (repeater). It is ideal for users who want to con- nect both Ethernet and Fast Ethernet devices (workstations and other equipment) to the same hub All ports on the Baseline Dual Speed Hub are half duplex, autosensing 10 Mbps and 100 Mbps. Each port senses the speed of the connected equipment and operates at the appropriate speed. The Baseline Dual Speed Hub comes with: = One power cord for use with the Baseline Dual Speed Hub = Four standard height and two reduced height, self-adhesive rubber pads = One rack mounting kit = A card with details of online registration The Baseline Dual Speed Hub is suitable for office use where it can be free standing or rack-mounted (in a wiring closet or equipment room). The hub can be powered either from the AC mains supply, or through an optional 3Com® SuperStack Advanced Redundant Power System (3C16071B). Contact your supplier for details. Network Connections The Baseline Dual Speed Hub has 12 or 24 shielded RI-45, 10/100 autosensing ports on the front panel. Each port can be connected to either a 10BASE-T (Ethernet) or a 100BASE-TX (Fast Ethernet) device. Internal, the hub has two repeater segments (10 Mbps and 100 Mbps) which are linked by à switch, allowing connected 10 Mbps and 100 Mbps devices to communicate. You can connect a 10BASE-T or 100BASE-TX hub or switch to the Base- line Dual Speed Hub.

TT == Numbered elements in this diagram refer to numbered sections in the text. These numbers, in bold, are used as references. Front Panel 112 or 24 RJ-45 10/100 Ports You can use these ports to connect 10BASE-T or 100BASE-TX devices {workstations and other equipment) to the Baseline Dual Speed Hub. As the ports are autosensing, the speed of the ports is determined automatically when you connect your equipment.

WARNING: RJ-45 Ports. These are shielded RJ-45 data sockets

A They cannot be used as standard traditional telephone sockets, or to connect the unit to à traditional PBX or public telephone network. Only connect RJ-45 data connectors, network tele- phony systems, or network telephones to these sockets. Either shielded or unshielded data cables with shielded or unshielded jacks can be connected to these data sockets.

Connect one end of the TP (twisted pair) cable to the RI-45 port on the Baseline Dual Speed Hub and the other end to the appropriate RI-45 port on the device. Use either shielded or unshielded data cables (with shielded or unshielded jacks) to connect to the devices

10BASE-T To connect 10BASE-T equipment, use 10BASE-T Category 3 or Category 5 unshielded or shielded (screened) 100 Ohm TP cable

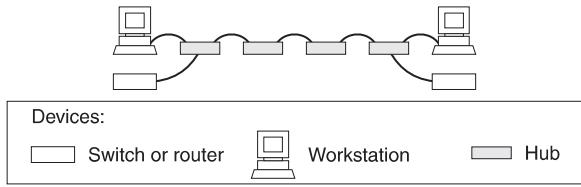

Ethernet Network Configuration Rules To remain within IEEE 802.3 10 Mbps Ethernet rules, the maximum length of cable between the Baseline Dual Speed Hub and an attached device must not exceed 100 m (328 fd. If you are connecting multiple hubs in The equipment that is connected to the Baseline Dual Speed Hub must not be set to operate in full duplex mode. It must be set to operate in autonegotiate or half duplex mode. Category 5 cable should be used with this product in structured wiring environments. This will ensure correct operation of all ports at 10 Mbps or 100 Mbps. series, ensure that there are no more than four 10 Mbps hubs between any two devices on your network, as shown below. Devices: ET Switch or router 1 Workstation = Hub 100BASE-TX To connect 100BASE-TX equipment, use 100BASE-TX Category 5 unshielded or shielded (screened) 100 Ohm TP cable. Fast Ethernet Network Configuration Rules To remain within IEEE 802.3 100 Mbps Fast Ethernet rules, the maximum length of cable between the Baseline Dual Speed Hub and an attached device must not exceed 100 m (328 ft). Ensure that there are no more than two 100 Mbps hubs between any two devices on your network, and that the total cable distance (A+B+C) between the two devices does not exceed 205 m (672.4 ft), as shown below. B If you connect two Baseline Dual Speed Hubs together, the link between them operates at 100 Mbps. 2 MDI Switch This switch affects port 12 (3C 165928) or port 24 (3C16593B). Ports 1-11 (8C165928) or 1-23 (3C16593B) are fixed as MDIX ports. Each can be connected to à device with an MDI port (such as most workstations) using à normal “straight through” TP cable. Port 12 or 24 is “switch selectable” using the MDI switch Out In this position, port 12 or 24 is an MDIX port. It can be connected to à device with an MDI port (such as most workstations) using à normal "straight through" TP cable: MDIX mn " In this position, port 12 or 24 is an MDI port. VI It can be connected to an MDIX port on à device (such as another hub) using a normal “straight through" TP cable. Set switch to MDI (in) Unit1 | Switch set to MDIX (out) if port 24 used

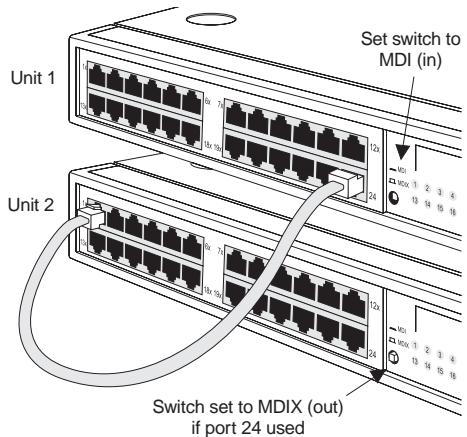

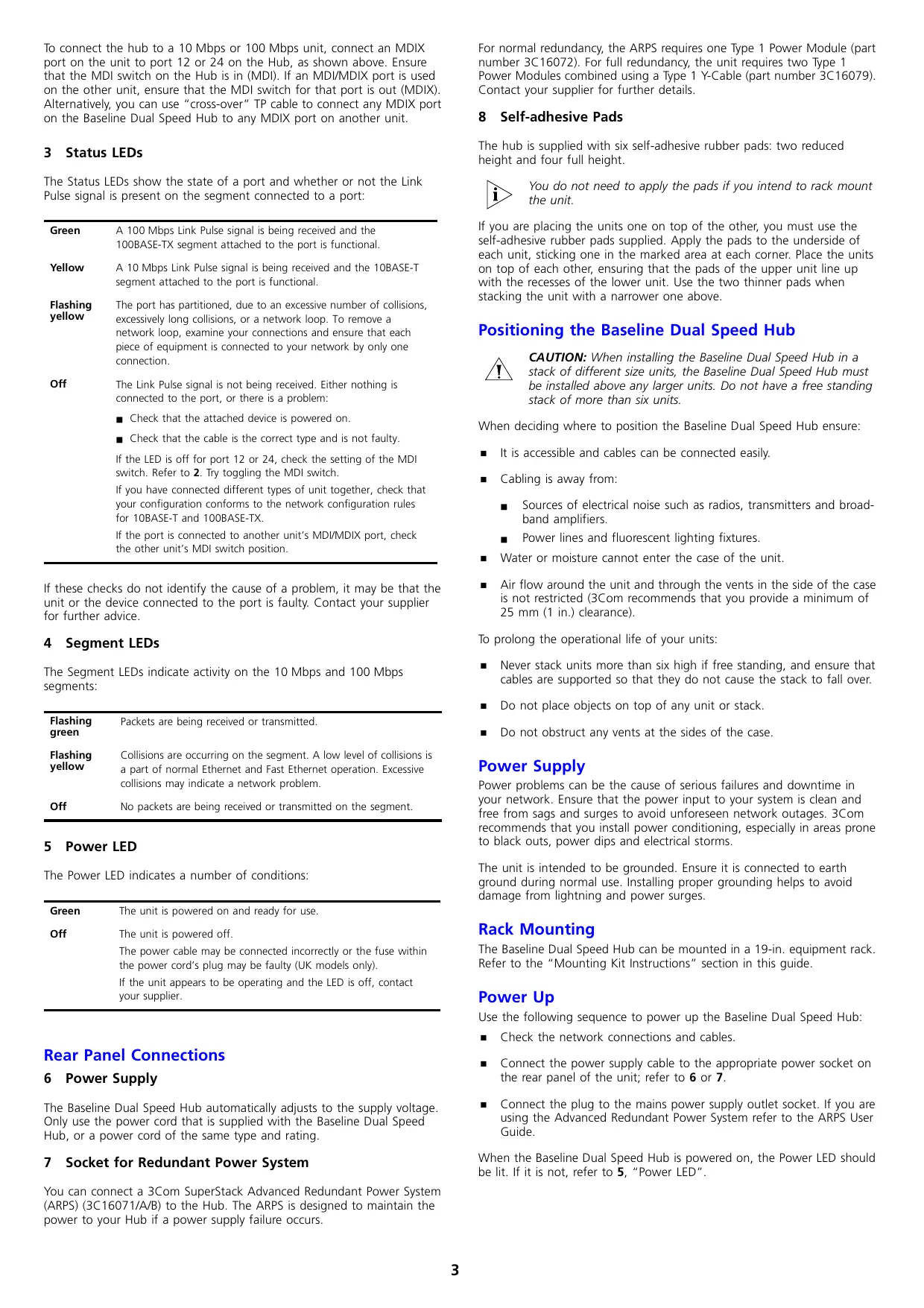

To connect the hub to a 10 Mbps or 100 Mbps unit, connect an MDIX port on the unit to port 12 or 24 on the Hub, as shown above. Ensure that the MDI switch on the Hub is in (MDI). If an MDIMDIX port is used on the other unit, ensure that the MDI switch for that port is out (MDIX) Alternatively, you can use “cross-over” TP cable to connect any MDIX port on the Baseline Dual Speed Hub to any MDIX port on another unit 3 Status LEDs The Status LEDS show the state of à port and whether or not the Link Pulse signal is present on the segment connected to à port: Green A 100 Mbps Link Pulse signal is being received and the 100BASE-TX segment attached to the port is functional Yellow A 10 Mbps Link Pulse signal is being received and the 10BASE-T segment attached to the port is functional Flashing The port has partitioned, due to an excessive number of collisions, yellow excessively long collisions, or a network loop. To remove a network loop, examine your connections and ensure that each piece of equipment is connected to your network by only one connection: off The Link Pulse signal is not being received. Either nothing is connected to the port, or there is à problem: m Check that the attached device is powered on. m Check that the cable is the correct type and is not faulty. If the LED is off for port 12 or 24, check the setting of the MDI switch. Refer to 2. Try toggling the MDI switch. If you have connected different types of unit together, check that your configuration conforms to the network configuration rules for 10BASE-T and 100BASE-TX. If the port is connected to anather units MDI/MDIX port, check the other unit's MDI switch position. If these checks do not identify the cause of à problem, it may be that the unit or the device connected to the port is faulty. Contact your supplier for further advice 4 Segment LEDs The Segment LEDS indicate activity on the 10 Mbps and 100 Mbps segments: Flashing Packets are being received or transmitted green Flashing Collsions are occurring on the segment. A low level of collisions is yellow à part of normal Ethernet and Fast Ethernet operation. Excessive collisions may indicate a network problem off No packets are being received or transmitted on the segment. 5 Power LED The Power LED indicates a number of conditions: Green The unit is powered on and ready for use off The unit is powered off. The power cable may be connected incorrectly or the fuse within the power cord's plug may be faulty (UK models only). I the unit appears to be operating and the LED is off, contact your supplier Rear Panel Connections 6 Power Supply The Baseline Dual Speed Hub automatically adjusts to the supply voltage Only use the power cord that is supplied with the Baseline Dual Speed Hub, or à power cord of the same type and rating 7 Socket for Redundant Power System You can connect à 3Com SuperStack Advanced Redundant Power System (ARPS) (3C16071/A/B) to the Hub. The ARPS is designed to maintain the power to your Hub if à power supply failure occurs. For normal redundancy, the ARPS requires one Type 1 Power Module (part number 3C 16072). For full redundancy, the unit requires two Type 1 Power Modules combined using a Type 1 Y-Cable (part number 3C 16079) Contact your supplier for further details 8 Self-adhesive Pads The hub is supplied with six self-adhesive rubber pads: two reduced height and four full height You do not need to apply the pads if you intend to rack mount the unit. If you are placing the units one on top of the other, you must use the self-adhesive rubber pads supplied. Apply the pads to the underside of each unit, sticking one in the marked area at each corner. Place the units on top of each other, ensuring that the pads of the upper unit line up with the recesses of the lower unit. Use the two thinner pads when stacking the unit with à narrower one above Positioning the Baseline Dual Speed Hub stack of different size units, the Baseline Dual Speed Hub must be installed above any larger units. Do not have à free standing stack of more than six units. î CAUTION: When installing the Baseline Dual Speed Hub in a When deciding where to position the Baseline Dual Speed Hub ensure: = _itis accessible and cables can be connected easily = Cabling is away from = Sources of electrical noise such as radios, transmitters and broad- band amplifiers. = Power lines and fluorescent lighting fixtures. = Water or moisture cannot enter the case of the unit. = Air flow around the unit and through the vents in the side of the case is not restricted (3Com recommends that you provide à minimum of 25 mm (1 in.) clearance) To prolong the operational life of your units: = Never stack units more than six high if free standing, and ensure that cables are supported so that they do not cause the stack to fall over. Do not place objects on top of any unit or stack = Do not obstruct any vents at the sides of the case Power Supply Power problems can be the cause of serious failures and downtime in your network. Ensure that the power input to your system is clean and free from sags and surges to avoid unforeseen network outages. 3Com recommends that you install power conditioning, especially in areas prone to black outs, power dips and electrical storms. The unit is intended to be grounded. Ensure it is connected to earth ground during normal use. Installing proper grounding helps to avoid damage from lightning and power surges Rack Mounting The Baseline Dual Speed Hub can be mounted in à 19-in. equipment rack. Refer to the “Mounting Kit Instructions" section in this guide Power Up Use the following sequence to power up the Baseline Dual Speed Hub: = Check the network connections and cables. = Connect the power supply cable to the appropriate power socket on the rear panel of the unit; refer to 6 or 7 = Connect the plug to the mains power supply outlet socket. If you are using the Advanced Redundant Power System refer to the ARPS User Guide When the Baseline Dual Speed Hub is powered on, the Power LED should be lit. If it is not, refer to 5, “Power LED"

SAFETY INFORMATION Please read the following safety information carefully before installing the Baseline Dual Speed Hub.

WARNING: Installation and removal of the unit must be carried out by

H\._ aualified personnel onÿ: m The unit must be connected to an earthed (grounded) outlet to comply with international safety standards m Do not connect the unit to an A.C. outlet (power supply) without an earth (ground) connection. = The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN60320/EC320 appliance inlet. m The socket outlet must be near to the unit and easily accessible. You can only remove power from the unit by disconnecting the power cord from the outlet. M This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 60. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions. LL Only connect an Advanced Redundant Power System (3C16070, 3C16071, 3C16071A or 3C16071B) or Redundant Power System (3C565047) to the Redundant Power System socket. France and Peru only This unit cannot be powered from IT* supplies. 1f your supplies are of IT type, this unit must be powered by 230V (2P4T) via an isolation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground).

• Impédance à la terre Power Cord Set This must be approved for the country where it will be used. e.g USA and m The cord set must be UL-approved and CSA certiied Canada m_ The minimum specifications for the flexible cord are No. 18 AWG Type SV or SJ 3-conductor m_ The cord set must have à rated current capacity of at least 10A. m_ The attachment plug must be an earth-grounding type with à NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration Denmark æ_ The supply plug must comply with Section 107-2-D1, Standard DK2-1a or DK2-5a Switzerland m_ The supply plug must comply with SEV/ASE 1011 uk m The supply plug must comply with BS1363 (3-pin 13-amp) and be fitted with a SA fuse which complies with BS1362. m_ The mains cord must be <HAR> or <BASEC> marked and be of type HO3WF3G0.75 (minimum). Europe m The supply plug must comply with CEE7/7 (*SCHUKO") m_ The mains cord must be <HAR> or <BASEC> marked and be of type HO3WF3G0.75 (minimum)

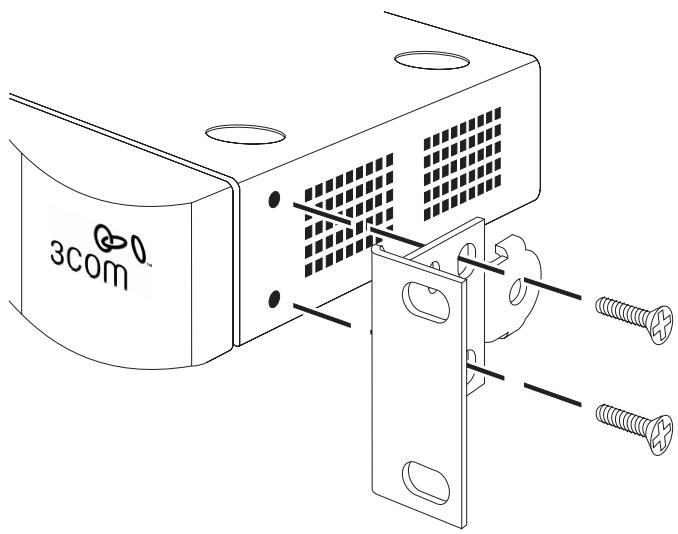

The Baseline Dual Speed Hub is supplied with two mounting brackets and four screws. These are used for rack mounting the unit. When mounting the unit, you should take note of the guidelines given in “Positioning the Baseline Dual Speed Hub”on page 3 The Baseline Dual Speed Hub is TU high and will fit a standard 19-inch rack. CAUTION!: Disconnect all cables from the unit before continuing. Remove the self-adhesive pads from the underside of unit, if already fitted. To rack mount the unit 1 Place the unit the right way up on à hard, flat surface with the front facing towards you 2 Locate a mounting bracket over the mounting holes on one side of the unit, as shown in the diagram 3 Insert the two screws supplied in the mounting kit and fully tighten with a suitable screwdriver. 4 Repeat the two previous steps for the other side of the unit. 5 Insert the unit into the 19-in. rack and secure with suitable screws {not provided) 6 Reconnect all cables PROBLEM SOLVIN Refer to the information about LEDs given earlier in this guide to see if the problem can be identified and rectified. If the problem persists and the Baseline Dual Speed Hub still does not operate successfully, contact your supplier with the following information before returning the unit: = Product number and serial number {printed on a label on the rear of the unit) =_A brief description of the fault Related Standards The SuperStack 3 Baseline Dual Speed Hub has been designed to the fol- lowing standards Functional ISO/EC 8802-3, IEEE 802.3, IEEE 802.3u, IEEE 802.1D Safety UL 1950, EN 60950, CSA 22.2 #950, IEC 60950 EMC Emissions EN 55022 Class A, VCCI Class A, AS/NZS 3548 Class A, FCC Part 15 Class À, ICES-003 Class A, CNS 13438, EN61000-3-3, EN61000-3-2 Immunity ENS5024 Physical Width 440 mm (17.3 in.) Depth 173 mm (6.8 in.) Heïght 44 mm (1.7 in) or 1 U Weight 3C165928: 2.22 kg (4.90 lb) 3C165938: 2.10 kg (4.63 lb) Mounting Free standing, or 19 in. rack mounted using the mounting kit supplied When returning any equipment to your supplier ensure that the equipment is packed suitably for transit. before the standardization of the auto-negotiation protocol. ô Some older NIC (network interface card) cards were developed These may cause the Baseline Dual Speed Hub to sense the speed of the network incorrectly, We strongly recommend that you install the latest versions of the NIC drivers before connect- ing your network. 3Com NIC card drivers dated before 23/03/95 should be updated from the 3Com website. TECHNICAL INFORMATIO Electrical Power Inlet AC Line Frequency Power Consumption Power Dissipation Input Voltage Current Rating Environmental Operating Temperature Humidity IEC 320 50/60 Hz 30165928: 25 VA 30165938: 42 VA 3C165928: 86 BTU/hr 3C165938: 142 BTU/hr 100-240 V AC 3C165928: 1.0 À (maximum) 30165938: 1.0 À (maximum) 0-50 °C (32-122 ‘F) 0-95 % (non-condensing)

LIMITED WARRANTY This warranty applies to customers located in the United States, Australia, Canada {except Quebec), Ireland, New Zealand, UK., and other English language countries, and countries for which a translation into the local language is not provided SuperStack 3 Baseline Dual Speed Hub 12-Port TP (3C16592B) and 24-Port TP (C16593B) HARDWARE: 3Com warrants to the end user ("Customer") that this hardware product will be free from defects in workmanship and materials, under normal use and senice, for the following length of time from the date of purchase from 3Com or its authorized reseller: Lifetime, for as long as the original Customer owns the product (not transferable to à subsequent end user) 3Com's sole obligation under this express warranty shall be, at 3Com's option and expense, to repair the defective product or part, deliver to Customer an equivalent product or part to replace the defective item, or if neither of the two foregoing options is reasonably available, 3Com may, in its sole discretion, refund to Customer the purchase price paid for the defective product. AI products that are replaced will become the property of 3Com. Replacement products or parts may be new or reconditioned. 3Com warrants any replaced or repaired product or part for ninety {80) days from shipment, or the remainder of the initial warranty period, whichever is longer. SOFTWARE: 3Com warrants to Customer that each software program licensed from it, except as noted below, will perform in substantial conformance to its program specifications, for à period of ninety (90) days from the date of purchase from 3Com or its authorized reseller. 3Com warrants the media containing software against failure during the warranty period. No updates are provided, unless specifically included in the included Services section. 3Com's sole obligation under this express warranty shall be, at 3Com's option and expense, to refund the purchase price paid by Customer for any defective software product, or ta replace any defective media with software which substantially conforms to applicable 3Com published spedifications. Customer assumes responsibility for the selection of the appropriate applications program and associated reference materials. 3Com makes no warranty or representation that its software products will meet Customer's requirements or work in combination with any hardware or applications software products provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. For any third party products listed in the 3Com software product documentation or specifications as being compatible, 3Com will make reasonable efforts to provide compatibility, except where the non-compatibiliy is caused by a “bug” or defect in the third party's product or from use of the software product not in accordance with 3Com's published specifications or user manual. THIS 3COM PRODUCT MAY INCLUDE OR BE BUNDLED WITH (1) THIRD PARTY SOFTWARE, OR (2) 3COM SOFTWARE THAT IS LICENSED "AS IS”, THE USE OF WHICH IS GOVERNED BY À SEPARATE END USER LICENSE AGREEMENT. THIS 3COM WARRANTY DOES NOT APPLY TO SUCH THIRD PARTY SOFTWARE OR 3COM SOFTWARE LICENSED *AS IS". FOR THE APPLICABLE WARRANTY, PLEASE REFER TO THE END USER LICENSE AGREEMENT GOVERNING THE USE OF SUCH SOFTWARE OR THE ACCOMPANYING DOCUMENTATION RELATING TO SUCH SOFTWARE YEAR 2000 WARRANTY: In addition to the Hardware Warranty and Software Warranty stated above, 3Com warrants that each product sold or licensed to Customer on and after January 1, 1998 that is date sensitive will continue performing properly with regard to such date data on and after January 1, 2000, provided that all other products used by Customer in connection or combination with the 3Com product, including hardware, software, and firmware, accurately exchange date data with the 3Com product, with the exception of those products identified at 3Com's Web site, http//www.3com.com/products/yr2000.html, as not meeting this standard. If it appears that any product that is stated to meet this standard does not perform properly with regard to such date data on and after January 1, 2000, and Customer notifies 3Com within ninety (90) days after purchase of the product from 3Com or its authorized reseller, 3Com shall, at its option and expense, provide à software update which would effect the proper performance of such product, repair such product, deliver to Customer an equivalent product to replace such product, or if none of the foregoing is feasible, refund to Customer the purchase price paid for such product. Any software update or replace or repaired product will carry à Year 2000 Warranty or ninety (90) days after purchase OBTAINING WARRANTY SERVICE: Customer must contact à 3Com Corporate Service Center or an Authorized 3Com Service Center within the applicable warranty period to obtain warranty service authorization. Dated proof of purchase from 3Com or its authorized reseller may be required. Products returned to 3Com's Corporate Service Center must be pre-authorized by 3Com with a User Service Order (USO) number (or a Return Material Authorization (RMA) number or à Service Repair Order {SRO) number, whichever was issued) marked on the outside of the package, and sent prepaid and packaged appropriately for safe shipment, and it is recommended that they be insured or sent by a method that provides for tracking of the package. Responsibility for loss or damage does not transfer to 3Com until the returned item is received by 3Com. The repaired or replaced item will be shipped to Customer, at 3Com's expense, not later than thirty (30) days after 3Com receives the defective product, and 3Com will retain risk of loss or damage until the item is delivered to Customer. 3Com shall not be responsible for any software, firmware, information, or memory data of Customer contained in, stored on, or integrated with any products returned 10 3Com for repair, whether under warranty or not Dead- or Defective-on-Arrival. In the event a product completely fails to function or exhibits a defect in materials or workmanship within the first forty-eight (48) hours of installation but no later than thirty (80) days after the date of purchase, and this is verified by 3Com, it will be considered dead- or defective-on-arrival (DOA) and à replacement shall be provided prior to 3Com receiving the defective product, but only if Customer provides à purchase order number, credit card number, or other method of payment acceptable to 3Com, to be used if 3Com needs to charge Customer for the replacement, as explained below. The replacement product will normally be shipped not later than three (3) business days after 3Com's verification of the DOA product, but may be delayed due to export or import procedures. The shipment of a replacement product prior to 3Com receming the defective product is subject to local legal requirements and may not be available in all locations. When such à replacement is provided and Customer fails to return the original product to 3Com within fifteen (15) days after shipment of the replacement, 3Com will charge Customer for the replacement product, at list price. Shipment of a Replacement Prior to 3Com Receiving the Defective Product is provided for five (5) years, after which time it may be available for à specified fee, but in either case only if Customer provides à purchase order number, credit card number, or other method of payment acceptable to 3Com, to be used if 3Com needs to charge Customer for the replacement, as explained below. 3Com will make commercially reasonable efforts to ship the replacement product not later than five (5) business days after receiving the request for à replacement, but may be delayed due to product availability or export or import procedures. The shipment of a replacement product prior to 3Com receiving the defective product is subject to local legal requirements and may not be available in all locations. When such à replacement is provided and Customer fais to return the original product to 3Com within fifteen (15) days after shipment of the replacement, 3Com will charge Customer for the replacement, at ist price. This replacement prior to 3Com receiving the defective product is different from the fee-based Advance Hardware Replacement Service, which is available as à contracted service offering, INCLUDED SERVICES: 3Com's Electronic Support Services, available at no charge, include 3Com Knowledgebase, information on known bugs, documentation, release notes, and publicly available software and firmware upgrades. 3Com reserves the right to modify or cancel this offering at any time, without advance notice Telephone Technical Support, with coverage for basic troubleshooting only, will be provided at no additional charge for 12 months from the date of purchase, on à commercially reasonable efforts basis. Telephone support is provided by 3Com only if Customer purchased this product directly from 3Com, or if Customer's reseller is unable to provide telephone support. To qualify for this telephone technical support, Customer must register on the 3Com Web site at httpx/Support.3Com.com/ndex.htm, and state the date of purchase, product number, and serial number. 3Com's response to à request for telephone technical support will be in the form of a return call from à 3Com representative by close of business the following business day, defined as 9 a.m. to 5 p.m,, local time, Monday through Friday, excluding local holidays. Please refer to the Technical Support appendix in the User Guide for telephone numbers. Software Updates, All software and firmware upgrades and the latest code for this product downloaded through the 3Com Software Library WARRANTIES EXCLUSIVE: IF A 3COM PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT 3COM'S OPTION. TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES, TERMS, OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A
