USER MANUAL MSP162 DOMETIC

We will be happy to provide you with further information about WAECO products. Please order our free catalogue with no obligation to buy on our homepage: www.waeco.com

Please read this manual carefully before installing and starting up and store it in a safe place. If the device is resold, this instruction manual must be handed over to the purchaser along with the device.

Contents

1 Notes on using the manual 20
2 Safety instructions 21
3 Scope of delivery 23
4 Intended use 23
5 Technical description 23
6 Fastening the inverter 25
7 Connecting the inverter 26
8 Using the inverter. 28
9 Cleaning and caring for the inverter. 29
10 Rectifying faults 29
11 Guarantee 30
12 Disposal 30
13 Technical data 31

1 Notes on using the manual

Caution

Safety instruction: Failure to observe this instruction can cause material damage and impair the function of the device.

Caution

Safety instruction relating to a danger from an electrical current or voltage. Failure to observe this instruction can cause material damage and personal injury and impair the function of the device.

Note

Supplementary information on operating the device.

Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
This symbol describes the result of an action.

Please observe the following safety instructions.

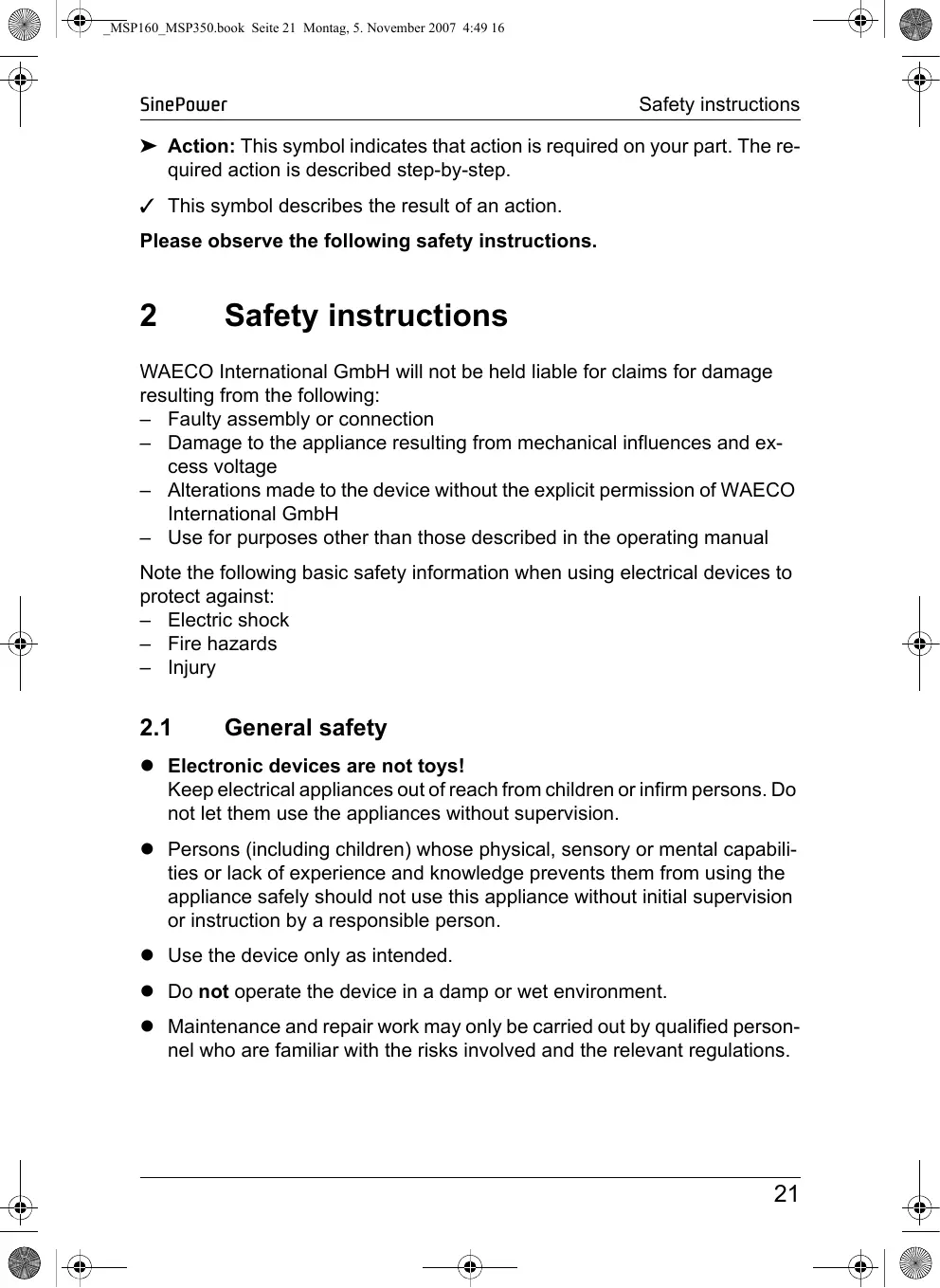

2 Safety instructions

WAECO International GmbH will not be held liable for claims for damage resulting from the following:

• Faulty assembly or connection
• Damage to the appliance resulting from mechanical influences and excess voltage
• Alterations made to the device without the explicit permission of WAECO International GmbH
• Use for purposes other than those described in the operating manual

Note the following basic safety information when using electrical devices to protect against:

Electric shock
- Fire hazards
Injury

2.1 General safety

• Electronic devices are not toys!
  Keep electrical appliances out of reach from children or infirm persons. Do not let them use the appliances without supervision.
• Persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely should not use this appliance without initial supervision or instruction by a responsible person.
• Use the device only as intended.
• Do not operate the device in a damp or wet environment.
• Maintenance and repair work may only be carried out by qualified personnel who are familiar with the risks involved and the relevant regulations.

2.2 Safety when installing the device

• Ensure the device is standing firmly.
  The device must be set up and fastened in such a way that it cannot tip over or fall down.
• Take the precautions necessary to ensure that children cannot interfere with operation. Dangerous situations may occur which cannot be recognised by children!
• Do not expose the device to a heat source (such as direct sunlight or heating). Avoid additional heating of the device in this way.

For installation on boats

• If electrical devices are incorrectly installed on boats, corrosion damage might occur. Have the inverter installed by a specialist (marine) electrician.

Electrical cables

• If cables have to be fed through metal walls or other walls with sharp edges, use ducts or wire bushings to prevent damage.
• Do not lay cables which are loose or bent next to electrically conductive material (metal).
• Do not pull on the cables.
• Do not lay the 230V mains cable and the 12/24V DC cable in the same duct.
• Fasten the cables securely.
• Lay the cables so that they cannot be tripped over or damaged.

2.3 Operating the appliance safely

• Operate the device only if you are certain that the housing and the cables are undamaged.
• Make sure the air inlets and outlets of the device are not covered.
• Ensure good ventilation.

• Do not connect the 230V output of the inverter (fig. 1 3, page 3) to a different 230V source.

• Even after the fuse triggers, parts of the inverter remain live.

• Always disconnect the power supply when working on the device.

3 Scope of delivery

• Sine wave inverter
• 4 holders
• Instruction Manual

4 Intended use

The SinePower inverters are used to convert a direct current of 12V or 24V into a 230V AC supply of 50Hz .

12V:

SinePower MSP 162, item no. MSP160-012, or SinePower MSP 352, item no. MSP350-012

24V:

SinePower MSP 164, item no. MSP160-024, or SinePower MSP 354, item no. MSP350-024

5 Technical description

The inverters can be operated wherever there is a 12 V DC supply (MSP 162 or MSP 352) or a 24 V DC supply (MSP 164 or MSP 354). The MSP 352 and MSP 354 devices are additionally cooled with a load and temperature-dependent fan (fig. 2 5, page 4).

The maximum constant output for the devices is as follows:

• For inverters MSP 162 and MSP 164 150 W
• For inverters MSP 352 and MSP 354 350 W

Never connect devices that have a higher power requirement.

The inverter can be switched on and off using the switch directly on the device or using an external switch.

Note

Note when connecting devices with an electrical drive (such as power drills and refrigerators), that they often need more power than is stated on the type plate.

If the system is overloaded or has a short circuit, the device switches off. If the input voltage is too high or too low or the system overheats, the device switches off and then on again after a short while.

The plugs of the MSP 162 and MSP 164 inverters can be inserted in the socket (fig. 2 1, page 4) for storage.

The inverter has the following connections, displays and control elements:

Pos. in fig. 1, page 3	Element
1	Switches 0 / Off: device is switched off I / On: device is switched on II / Remote: device is switched on and off with an external switch
2	Status LED
3	230 V AC safety socket
4	Holders
5	DC connection cable
Pos. in fig. 2, page 4	Element
1	Socket (MSP 162 and MSP 164 only) for storing the DC connector.
2	Earth terminal
3	DC connection cable
4	Remote port for connecting to an external switch for switching the device on and off
5	Fan (MSP 352 and MSP 354 only)

6 Fastening the inverter

You can fasten the inverter using the four holders supplied.

When selecting the installation location, observe the following instructions:

• The inverter can be mounted horizontally or vertically.
• The inverter must be installed in a place that is protected from moisture.
• The inverter may not be installed in the presence of flammable materials.
• The inverter may not be installed in a dusty environment.
• The place of installation must be well-ventilated. A ventilation system must be present for installations in small, closed spaces. The minimum clearance around the inverter must be at least 25~cm (fig. 1, page 3).
• The air intake on the underside or the air outlet on the back side of the inverter must remain clear.
• For ambient temperatures higher than 40^ (such as in engine or heating compartments, or direct sunlight), the heat from the inverter under load can lead to the automatic shut-off of the inverter.
• The installation surface must be level and sufficiently strong.

Caution

Before drilling any holes, ensure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing.

Fasten the inverter as follows (fig. 3, page 4):

Clip two holders on the lower left bar and two on the right. You can move the holders as required.
Fasten the inverter by screwing one screw through each hole in the holders.

7 Connecting the inverter

7.1 Connecting the MSP 162 and MSP 164

The inverter is connected via a plug connected to a 12 V socket (for MSP 162) or a 24 V supply (for MSP 164). The middle pin of the plug must be connected to the positive wire (fig. 6, page 3) and the two side brackets of the plug must be connected to the negative wire (fig. 7, page 3).

Caution

Make sure the plug is firmly connected in the socket. If the connection is loose, the plug may heat up.

Caution

The rating of the socket, the supply cable and the fuse must be at least 15 amps. Do not put in a fuse with a higher rating.

7.2 Connecting the MSP 352 and MSP 354

Warning

Never use the inverter on vehicles where the positive terminal of the battery is connected to the chassis.

• When installed in vehicles or boats, the inverter must be connected to the chassis or earth.
• Only use copper cables.
• Keep the cables as short as possible.
• Fit a 50 A cable fuse as close to the battery as possible on the positive cable.

Caution

If you do not fit a fuse in the positive cable, it could damage the inverter and invalidate the guarantee.

To set up the inverter, connect the red cable (fig. 1 4, page 3) to the positive pole (+) of the battery and the black cable (fig. 1 5, page 3) to the negative pole (-) of the battery. Make sure the battery poles are clean when connecting the terminals.

Caution

Only extend the connection line with cables with a cross section that is equal to or greater than that of the connection line.

Caution

Do not reverse the polarity. Reversing the polarity of the connections will cause a great spark and the internal fuses will melt. These fuses should only be replaced by a qualified electrician.

7.3 Connecting external switches

Note

Connect the external switch to the inverter using a connection cable with Western telephone jack. Observe the PIN configuration on the plug for the connection cable.

Cut the connection cable to size according to the wiring diagrams or have the device connected up by a specialist.

• External switch, voltage supply from the inverter: fig. 4, page 5
• Control unit with relay or semiconductor circuit (TR): fig. 5, page 5
• External switch with voltage supply from the battery (BAT) of the vehicle: fig. 6, page 5
• External switch with its own voltage supply (DC POWER) e.g. from the ignition: fig. 7, page 5

Connect the external switch with the connection cable on the remote port (fig. 2 4, page 4).

8 Using the inverter

Connect your power consuming device, to the socket (fig. 1 3, page 3) of the inverter.

Switching on at the device

Switch the inverter on by pressing the switch (fig. 1, page 3) on the device.
When the switch is set to "On", the LED (fig. 1 2, page 3) lights up green.

Switching on with an external device

You can also switch the inverter on and off with a connected external switch.

Set the on/off switch (fig. 1, page 3) on the device to "Remote".
If the inverter is switched on via an external switch, the LED (fig. 12, page 3) lights up green.

Observe the following when using the device

During operation, if the battery voltage drops below 11V for MSP 162/ MSP 352 or 22V for SP 164/354, a warning signal sounds and the LED (fig. 1 2, page 3) flashes red. If the battery voltage falls further, the inverter switches off.

If the inverter overheats, it switches off – the LED (fig. 12, page 3) flashes red.

If this happens, switch the inverter off with the switch.

When it cools down, you can use the inverter again.

When operating the inverter at a high load for lengthy periods, it is advisable to start the engine in order to recharge the vehicle battery.

You can operate the inverter with the engine running or switched off. However, do not start the engine while the inverter is switched on, since the power supply to the cigarette lighter is disconnected during ignition.

9 Cleaning and caring for the inverter

Caution

Do not use any sharp or hard objects for cleaning since they may damage the device.

Occasionally clean the device with a damp cloth.

10 Rectifying faults

Note

If you have detailed questions on the specifications of the inverter please contact WAECO.

Fault	Cause	Remedy
No output voltage	No contact to the battery	Check contact and cable.
	Battery voltage less than 11 V (MSP 162/MSP 352) or 22 V (MSP 164/MSP 354)	Charge the battery (start the engine).
	Overheating	Switch off power consuming devices. Let the inverter cool down and ensure better ventilation.
	Defective fuse (in the inverter or the vehicle)	Have an electrician change the fuse.
Warning signal during operation	The battery voltage is less than 11 V (MSP 162/MSP 352) or 22 V (MSP 164/MSP 354)	Charge the battery.
	Poor contact to the battery	Clean the contacts.
Warning sound during operation below nominal load	Insufficient battery power. Inadequate cable connection (cross section too small or poor contact).	Charge the battery. Use a cable with a larger cross section and check contacts.
The device switches on and off repeatedly	Excessive constant load	Reduce the load.
The inverter switches off when the consumer is switched on	Starting current too high	Compare the device power with the maximum power of the inverter.

The status LED (fig. 1 2, page 3) displays the following conditions:

Display	Cause	Remedy
Green, constantly lit	The device is functioning.	-
Red, quickly flashing	Input voltage is too high.	Check the input voltage. Reduce the input voltage.
Red, slowly flashing	The input voltage is too low.	Charge the battery. Check cables and contacts.
Red, occasionally flashing	Overheating	Ensure better ventilation. Make certain that the ventilation slots are not covered. Lower the ambient temperature.
Red, constant light	Short circuit or electrical wiring error Excessive load	Check electrical wiring. Reduce the load.

11 Guarantee

The statutory warranty period applies. If the product is defective, please return it to the WAECO branch in your country (see the back of the instruction manual for the address) or to your dealer. For repair and guarantee processing, please include the following documents when you send in the appliance:

A copy of the receipt with purchasing date
A reason for the claim or description of the fault

12 Disposal

If possible, always take the packaging material for recycling.

If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

13 Technical data

	MSP 162	MSP 164
Item number	MSP160-012	MSP160-024
Rated input voltage	12 V DC	24 V DC
Constant output power	150 W	150 W
Peak output power	300 W	300 W
Output voltage	230 V AC pure sine wave
Output frequency	50 Hz
Idle current consumption	1.2 A	0.6 A
Input voltage range	11 – 15 V	22 – 30 V
Low voltage alarm/shutdown	11 V	22 V
Ambient temperature	0 °C – 40 °C
Heat dissipation	Fan
Dimensions (mm)	243 x 157 x 64
Weight	2 kg
Testing/certification	CE E4
	MSP 352	MSP 354
Item number	MSP350-012	MSP350-024
Rated input voltage	12 V DC	24 V DC
Constant output power	350 W	350 W
Peak output power	700 W	700 W
Output voltage	230 V AC pure sine wave
Output frequency	50 Hz
Idle current consumption	1.2 A	0.6 A
Input voltage range	11 – 15 V	22 – 30 V
Low voltage cut-off	11 V	22 V
Ambient temperature	0 °C – 40 °C
Heat dissipation	Fan
Dimensions (mm)	243 x 157 x 64
Weight (kg)	2.2 kg
Testing/certification	CE E4

Variations, technical improvements and delivery options reserved.

SinePower

5 Description technique

SinePower MSP 164, N. art. MSP160-024, o

SinePower MSP 354, N. art. MSP350-024

Overseas + Middle East

AUS WAECO Pacific Pty. Ltd 1 John Duncan Court Varsity Lakes QLD 4227 [phone] [phone] Mail: [e-mail].a

CHA WAECO Schweiz AG Riedackerstrasse 7a CH-8153 Rumlang (Zurich) [phone] [phone] Mail: [e-mail]

1 WAECO Italcold SRL Via dell'Industria 4/0 I-40012 Calderara di Reno (BO) [phone] [phone] Mail: [e-mail]

N WAECO Norge AS Leif Weldsgesvei 16 N-3208 Sandefjord [phone] [phone] Mail: [e-mail]

NL WAECO Benelux B.V. Ecustraat 3 NL-4879 NP Etten-Leur ^+ 31 76 5029000 ^ [phone] Mail: [e-mail] S WAECO Svenska AB Gustaf Melins gata 7 S-42131 Västra Frolunda (Göteborg) ^+ [phone] ^ [phone] Mail: [e-mail]

UK WAECO UK Ltd.
Dorset DT2 8LY·Unit G1
Roman Hill Business Park
UK-Broadmayne
[phone]
[phone]
Mail: [e-mail]

WAECO Implex Ltd.
Suites 3210-12·32/F·Tower 2
The Gateway·25 Canton Road
Tsim Sha Tsui·Kowloon
Hong Kong
[phone]
[phone]
Mail: [e-mail]
ROCAWEACO Impex Ltd.
Taipei Office
2 FL-3 No. 56 Tunhua South
Taipei 106, Taiwan
[phone]
Fax: [phone]
Mail: [e-mail]
UAE WAECO Middle East FZCO R/A 8,SD6 Jebel Ali, Dubai [phone] [phone] Mail:[e-mail]

E WAECO Iberica S.A. Cami del Mig, 106 Poligono Industrial Les Corts E-08349 Cabrera de Mar (Barcelona) ^+ 34 93 7502277 [phone] Mail: [e-mail]
San Francisco, 100
Poligono Industrial Les Corts
E-08349 Cabrera de Mar
(Barcelona)
[phone]
[phone]
Mail: [e-mail]

DK WAECO Danmark A/S
Tvaervej 2
DK-6640 Lunderskov
[phone]
[phone]
Mail: [e-mail]
FAWECO Distribution SARL
ZA du Pré de la Dame Jeanne
BP 5
F-60128 Plailly
[phone]
[phone]
Mail: [e-mail]
www.waeco.com
FA WAECO Distribution SARL
ZA du Pré de la Dame Jeanne
BP 5
F-60128 Plainly
[phone]
[phone]
Mail: [e-mail]
FA WAECO Distribution SARL
ZA du Pré de la Dame Jeanne
BP 5
F-60128 Plailly
[phone]
[phone]
Mail: [e-mail]
