USER MANUAL EBV215 WEED EATER

WEED EATER WEED EATER

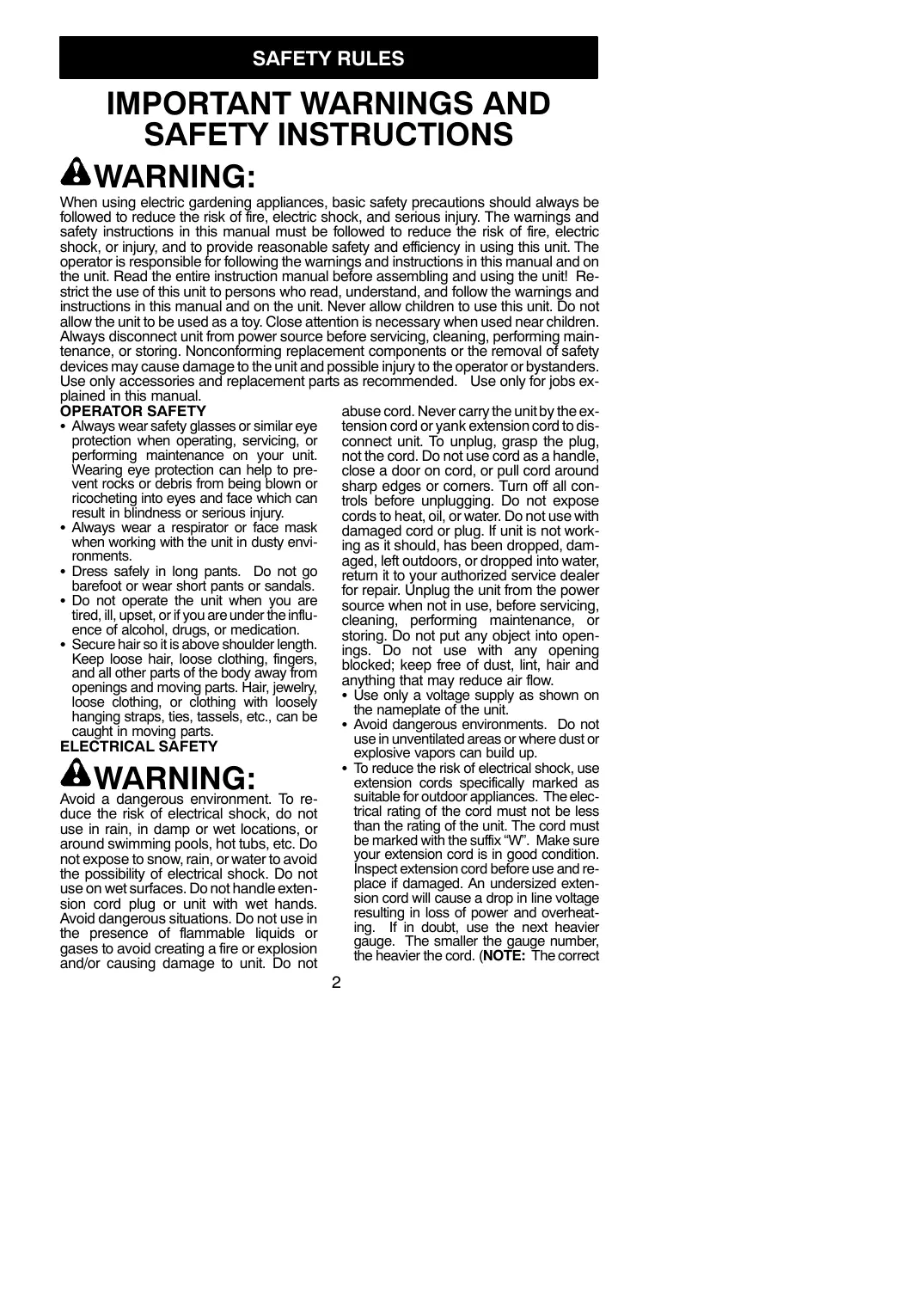

SAFETY INSTRUCTIONS A WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce the risk of fre, electric shock, and serious injury. The wamings and safety instructions in this manual must be followed to reduce the risk of fire, electric Shock, or injury and to provide reasonable safety and eficiency in using this unit. The operator is responsible for following the wamings and instructions in this manual and on the unit. Read the entire instruction manual before assembling and using the unit! Re- strict the use of this unit to persons who read, understand, and follow the wamings and instructions in this manual and on the unit. Never allow children to use this unit. Do not allow the unit to be used as a toy. Close attention is necessary when used near children. Always disconnect unit from power source before servicing, cleaning, performing main- tenance, or storing. Nonconforming replacement components or the removal of safety. devices may cause damage to the unit and possible injury to the operator or bystanders. Use only accessories and replacement parts as recommended. Use only for jobs ex- plained in this manual. OPERATOR SAFETY + Always wear safety glasses or similar eye protection when operating, servicing, or performing maintenance on your unit. Wearing eye protection can help to pre- vent rocks or debris from being blown or ricocheting into eyes and face which can result in blindness or serious injury. + Always wear à respirator or face mask when working with the unit in dusty envi- ronments. Dress safely in long pants. Do not go barefoot or wear short pants or sandals. Do not operate the unit when you are tired, il, upset, or if you are under the influ- ence of alcohol, drugs, or medication. Secure hair so itis above shoulder length. Keep loose hair, loose clothing, fingers, and all other paris of the body away from openings and moving parts. Hair, jewelry, loose clothing, or clothing with loosely hanging straps, ties, tassels, etc. can be caught in moving parts. ELECTRICAL SAFETY A WARNING: Avoid a dangerous environment. To re- duce the risk of electrical shock, do not use in rain, in damp or wet locations, or around swimming pools, hot tubs, etc. Do not expose to snow, rain, orwater to avoid the possibilty of electrical shock. Do not use on wet surfaces. Do not handle exten- sion cord plug or unit with_wet hands. Avoid dangerous situations. Do not use in the presence of flammable liquids or gases to avoid creating a fire or explosion and/or causing damage to unit. Do not abuse cord. Never carry the unitby the ex- tension cord or yank extension cord to dis- connect unit. To unplug, grasp the plug, notthe cord. Do not use cord as a handle, close a door on cord, or pull cord around sharp edges or comers. Tum off all con- trols before unplugging. Do not expose cords to heat, oil, or water. Do not use with damaged cord or plug. f unit is not work- ing as it should, has been dropped, dam- aged, left outdoors, or dropped into water, return it to your authorized service dealer or repair. Unplug the unit from the power source when not in use, before servicing, cleaning, performing maintenance, or storing. Do not put any object into open- ings. Do not use with any opening blocked: keep free of dust, lint, hair and anything that may reduce air flow. + Use only a voltage supply as shown on the nameplate of the unit. + Avoid dangerous environments. Do not use in unventilated areas or where dust or explosive vapors can build Up. + To reduce the risk of electrical shock, use extension cords specifcally marked as suitable for outdoor appliances. The elec- trical rating of the cord must not be less than the rating of the unit. The cord must be marked with the suffix ‘W”. Make sure your extension cord is in good condition. Inspect extension cord before use and re- place if damaged. An undersized exten- Sion cord will cause a drop in line voltage resulting in loss of power and overheat- ing. fin doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. (NOTE: The correct

size to be used depending on the cord length is shown in this manual. See SE- LECT AN EXTENSION CORD in the AS- SEMBLY section). Do not use multiple cords. Keep the extension cord clear of operator and obstacles at all times. Tie cord to cord retainer and connect to recessed plug as shown in this manuel to prevent damage to unit and/or extension cord and to reduce the possibilty of the extension cord disconnecting from the unit during operation. Donotatiempt to repair unit. Inspectthe insulation and connectors on the unit and extension cord before each use. If there is any damage, do not use until damage is repaired by your authorized service dealer. Do not use the unit if the switch does not turn the unit on and off properly. Have the unit repaired by your authorized service dealer. Avoid accidental starting. Be sure the switch is in the OFF position and keep your hand and fingers away from the Switch while connecting the unit to the power source or when carrying a unitcon- nected to the power source. Avoid any body contact with any grounded conductor, such as metal fences, or pipes, to avoid the possibility of electric shock. Ground Fault Circuit Interrupter (GFCI) protection should be provided on the cir- cuit or outlet to be used for this unit. Re- ceptacles are available having butin GFCI protection and may be used for this measure of safety. + Stop the motor immediately if you are ap- proached. DOUBLE INSULATION CONSTRUCTION This unit is double insulated to help pro- tect against electric shock. Double insula- tion construction consists of two separate “layers” of electrical insulation instead of grounding. Tools and appliances built with à double insulation system are not in- tended to be grounded. No grounding means is provided on this unit, nor should a means of grounding be added to this unit, As a result, the extension cord used with your unit can be plugged into any standard 120 volt electrical outlet. Safety precautions must be observed when op- erating any electrical tool. The double in- sulation system only provides added pro- tection against injury resulting from an internal electrical insulation failure. À WARNING:

SERVICING OF DOUBLE INSULATED

BLOWER/VACUUM All electrical repairs to this unit, including housing, switch, motor, etc. must be diag- nosed and repaired by qualified service personnel. Replacement parts for a double insulated appliance must be iden- tical to the parts they replace. À double in- sulated appliance is marked with the words “double insulation” or “double insu- lated”. The symbol [n] (square within a square) may also be marked on the ap- pliance. Failure to have the unit repaired by an authorized service dealer can cause the double insulation construction to become ineffective and result in serious injury.

UNIT/MAINTENANCE SAFETY

Do not set the unit on any surface except a clean, hard area while the unit is run- ning. Debris such as gravel, sand, dust, grass, etc., could be picked up by the air intake and thrown out through the dis- charge opening, damaging the unit, prop- erty, or causing serious injury to bystand- ers or operator. Do not overreach or use from unstable surfaces such as ladders, trees, steep slopes, rooftops, etc. Use extra care when cleaning on stairways. Keep firm footing and balance at all times. Keep hands out of tubes. Inspect the entire unit before each use for wo, loose, missing, or damaged parts. Do not use until the unit is in proper work- ing order. This unit is double insulated. See the

DOUBLE INSULATION CONSTRUCTION

section. Have all intemal service per- formed by qualiied service repair person- nel to avoid creating a hazard or voiding your warranty. Have all maintenance other than the rec- ommended procedures described in the instruction manual performed by your au- thorized service dealer. Always see your authorized service deal- er to replace a damaged impeller. Parts that are chipped, cracked, broken, or damaged in any other way can fly apart and cause serious injury. Replace dam- aged parts before using the unit. Never place any object in the air intake opening as this could restrict proper air flow and cause damage to the unit. Never douse the unit with water or other liquids or squirt with a water hose. Clean the unit using a damp cloth. Wipe off with a clean dry cloth. See MAINTENANCE. + Check air intake openings and tubes fre- quentiy, always with the unit stopped and

power source disconnected. Keep vents and tubes free of debris which can accu- mulate and restrict proper air flow. + Do not burn, incinerate, or expose this unit to extreme heat. + Store the unit unplugged in a high, cool, dry, indoor area out of the reach of chil- dren. + Use only recommended attachments and replacement parts to avoid creating a hazard and/or voiding warranty. + Maintain the unit according to recom- mended procedures. + Use only for jobs explained in the OPERA- TION section of this manual. BLOWER SAFETY

• Use on in daylght or in good arficil ight. + Inspect the area before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc., that can rico- chet, be thrown, or otherwise cause injury or damage during operation. + Never run the unit without the proper equipment attached. When used as a blower, always install a blower tube. Use only recommended attachments. To avoid spreading fire, do not use blower near leaf or brush fires, fireplaces, barbe- cue pits, ashtrays, etc. + Never place objects inside the blower tubes; always direct the blowing debris away from people, animals, glass, and solid objects such as trees, automobiles, walls, etc. The force of air can cause rocks, dir, or sticks to be thrown or to rico- chet which can hurt people or animals, break glass, or cause other damage. + Never use for spreading chemicals, fertl- izers, or any other substances which may contain toxic materials. VACUUM SAFETY + Stop the motor and disconnect the power source before opening the air inlet door or attempting to insert or remove the vacu- um tubes. The motor must be stopped and the impeller blades no longer tuning to avoid serious injury from the rotating blades. Hard objects can be thrown through the collection bag or the housing and become dangerous missiles which can cause seri- ous injury to the operator or others. When using the vacuum attachment, the unit is designed to pick up dry material such as leaves, grass, small twigs, and bits of paper. Do not vacuum Stones, gravel, metal, broken glass, etc. to avoid severe damage to the impeller. To avoid the possibility of electrical shock, do not attempt to vacuum water or other liquids. Never run the unit without the proper equipment attached. When used as a vacuum, always install vacuum tubes and collection bag assembly. Make sure the collection bag assembly is completely Zipped when unit is running to avoid flying debris. Use only recommended attach- ments. Avoid situations which could set the col- lection bag on fire. Do not vacuum dis- carded matches, cigars, cigarettes, or ash from fireplaces, barbecue pits, brush piles, etc. To avoid spreading fire, do not use blower near leaf or brush fires, fire- places, barbecue pits, ashirays, etc. Always use the collection bag shoulder strap when vacuuming to avoid loss of control. Check air intake openings, elbow tube, and vacuum tubes frequentiy, always with the unit stopped and the power Source disconnected. Keep vents and tubes free of debris which can accumulate and re- strict proper air flow. Do not use with any opening blocked, Keep free of dust, inf, hair and anything that may reduce air flow. STANDARDS This product is listed by Underwriters Lab- oratories, Inc. in accordance with UL Standard 1017. If situations occur which are not covered in this manual, use care and good judg- ment. If you need assistance, contact your authorized service dealer or call 1-800-554-6723. Failure to folow all Safety Rules and Precautions can result in serious injury.

SAVE THESE INSTRUCTIONS

To reduce the risk of electrical shock, this unit has a polarzed plug (one blade is wider than the other) and will require the use of a polarized extension cord. The appliance plug will ft into a polarized ex- tension cord only one way. If the plug does not fi fully into the extension cord, reverse the plug. If the plug still does not fit. obtain a correct polarized extension cord. À polarized extension cord will re- guire the use of a polañized wal outet his plug wil fitinto the polarized wall out- let only one way. If plug does not fit fully into the wall outlet, reverse the plug. If it still does not ft, contact a qualiied electri- cian to install the proper wall outlet, Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.

ASSEMB] À WARNING: Stop the unit and dis- connect from the power source before opening the inlet cover or attempting to in- sert or remove the inlet restrictor, blower tube, or vacuum tubes. The motor must be stopped and the impeller blades no longer tuming to avoid serious injury from the rotating blades. A WARNING: ffreceived assembled, ensure your unit is propery assembled and all fasteners are secure. + A standard screwdriver is required for as- sembly. BLOWER ASSEMBLY NOTE: Assembly instructions for using your unit as a vacuum follow this section. Attaching the blower tube you have already assembled your unit for use as a vacuum, referto the section

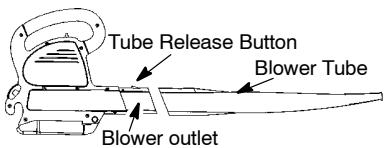

outlet until itsnaps into place (tube is secured by red tube release button).

3. To remove the blower tube, press the

tube release button while puling on tube

( rune Release Button \ À ré Blower Tube LE a Cerise Fadier outlet VACUUM ASSEMBLY NOTE: Assembly instructions for using your unitas a blower are explained inthe previous section. H you have already assembled your unit for use as a blower, remove the blower tube. Remove the inlet restrictor An inlet restrictor is used when using your unitas a blower. This restrictor is not used during vacuum use and must be removed during assembly for vacuum use. NOTE: Be sure to keep the inlet re- strictor for using your unit as a blower.

1. Ensure unit is stopped and extension

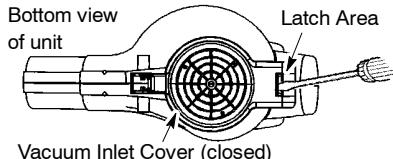

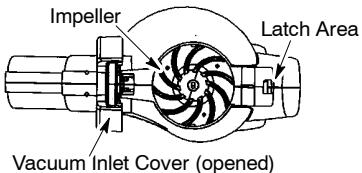

2. Open the inlet cover by inserting the

tip of a screwdriver into the latch area on the blower unit. Gentiy tilt handle of screwdriver toward the front of the unit to release the latch while pulling up on the vacuum inlet cover with your other hand. Bottom view of unit Latch Area 1ÈEZZ Vacuum Inlet Cover (closed) Vacuum'inlet Cover (opened)

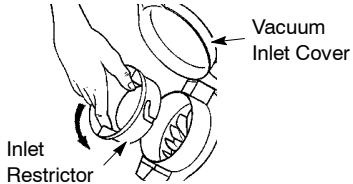

. Tum the inlet restrictor counterclock- wise and remove it from the unit. Do not close the inlet door. You will next attach the vacuum tubes. | NS __ Vacuum Inlet Cover Inlet A )) Restrictor Attaching the vacuum tubes There are 2 vacuum tubes, an upper tube and a lower tube. The upper tube has a vacuum assist handle attached to one end and is cut straighton both ends. The upper tube attaches to the blower unit. The lower tube has an angled end that you point toward the ground during vacuum use. The lower tube attaches to the upper tube.

1. Ensure unit is stopped and exten-

sion cord is unplugged.

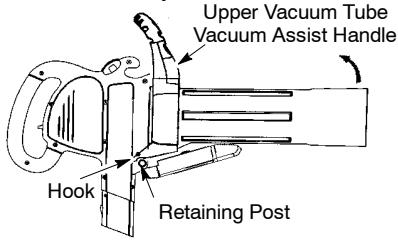

2. While holding inlet cover open, place

the hooks ofthe vacuum assist handle on the retaining posts of the unit.

3. Raise the tube until itis secured to the

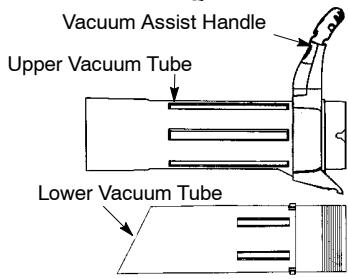

blower unit by the red inlet cover latch. Upper Vacuum Tube Vacuum Assist Handle Retaining Post

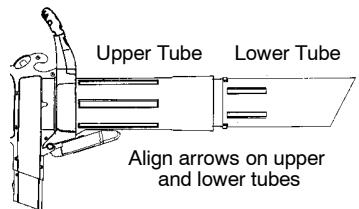

4. To attach the lower vacuum tube to

the upper vacuum tube, first align the arrows onthe two tubes. Then, press the two tubes together until the lower tube is securely seated in the upper tube (about 3 inches). Upper Tube … Lower Tube

Align arrows on upper and lower tubes

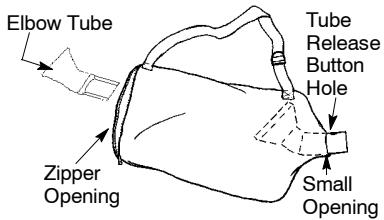

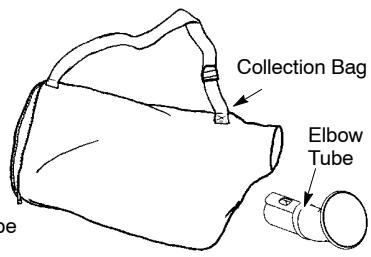

COLLECTION BAG ASSEMBLY

1. Open the zipper on the collection

bag and insert the elbow tube.

2. Pushthe small end ofthe elbow tube

through the small openingin the bag. NOTE: Make sure edge of the small opening is flush against the flared area of the elbow tube and the hole for the tube release button is on top. Tube Release Button Hole

Elbow Tube Zipper Ohening Small Opening

3. Close the zipper on the bag. Make

sure the zipperis closed completely.

outlet until it snaps into place (elbow tube is secured by red tube release button).

through the buckle as shown in the il- lustration below.

2. Position the unit on your right-hand

side, blower outlet and bag pointing toward the rear. Hold the unit in an upright position with the lower vacu- um tube on the ground to support it.

3. Place the shoulder strap over your

head and onto your left shoulder.

4. Adjustthe strap to allow a free flow of

air from the blower. If the collection bagis kinked, the unitwill notoperate properly. NOTE: The strap is designed to posi- ion the collection bag on your shoulder without kinks. The strap is not intended to support the weight of the unit. Shoulder strap on left shoulder No kinks in bag allows free air flo

1. Stop unit and unplug the extension

2. Remove the vacuum tubes by insert-

ing the tip of a screwdriver into the laich area on the vacuum assist han- die. Gently tit handle of screwdriver toward the front of the unit to release the latch while pulling up on the vacu- um assist handle with your other hand. Latch Area Vacuum 7 Assist Handie

8. Install the inlet restrictor that was re-

moved when assembling for vacuum use. NOTE: |f you are unable to locate the inlet restrictor, the unit wil still operate. This restrictor improves the blower function.

4. Remove the collection bag.

5. Close the inlet cover and make sure

it is latched closed.

6. Re-installthe blower tube. Refer to AT-

TACHING THE BLOWER TUBE for instructions on how to attach this item.

SELECT AN EXTENSION CORD

Use only a 120 A.C. voltage supply as shown on nameplate of the unit to power your blower.

The extension cord used to reach the power source must be: + Specifcally marked as suitable for out- door use. The cord must be marked with the surix “W. + Heavy enough to carry full current from the power source to the unit. Otherwise, loss of power and overheating can occur causing damage to unit. Refer to table for minimum wire gauge recommendations. The cord must be marked with the proper wire gauge. (Appropriate extension cords are available.) Do not use multiple cords. In good condition. Cord insulation must be intact with no cracks or deterioration. Plug connectors must be undamaged. DO NOT use multiple cords.

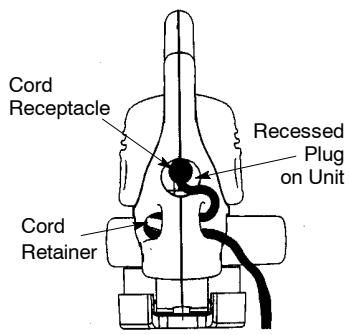

FAmerñcan Wire Gauge Secure the extension cord to the unit by threading the cord through the cord re- tainer (see illustration). Insert the cord receptacle into the recessed plug. CAUTION: Failure to use cord retain- er could result in damage to the unit, extension cord, or both. Cord Receptacle à Recessed — Plug on Unit Cord _ Retainer

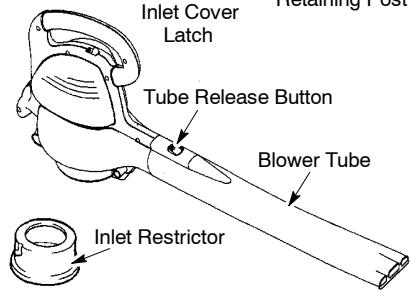

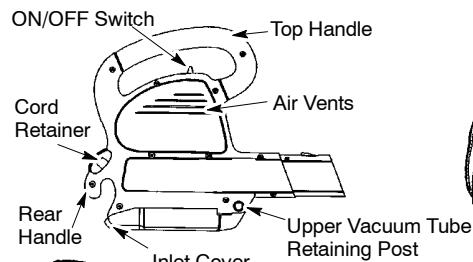

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations to your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. ONOFF Swilgh__— {Top Handie Collection Bag Cord - Air Vents Retainer Upper Vacuum Tube Retaining Post Inlet Cover Latch Vacuum Assist Handle Upper Vacuum Tube Lower Vacuum Tube ROTH Inlet TS, |

ON/OFF SWITCH INLET COVER LATCH

The ON/OFF SWITCH is used to activate The INLET COVERLATCH is used to open the motor. and close the inlet cover and to secure the upper vacuum tube to the blower unit.

BLOWER TUBE The BLOWER TUEE is designed to direct the flow of air. INLET RESTRICTOR The INLET RESTRICTOR improves the blower function.

The TUBE RELEASE BUTTON secures the blower tube or elbow tube to the blower unit during operation. Also, pressing the tube release button allows removal ofthe blower tube or elbow tube. A WARNING: You MUST make sure the tubes are secure before using the unit. A WARNING: Do not use the unit without the tubes or collection bag proper- ly aftached to avoid flying debris and/or impeller contact which can cause serious injury. Always wear eye protection to pre- vent rocks or debris from being blown or ricocheting into the eyes and face which can result in blindness or serious injury.

Slide the ON/OFF switch to the OFF position.

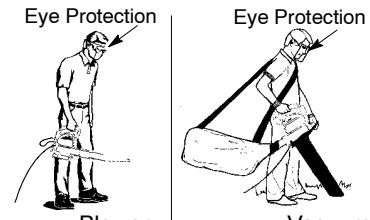

Your unit has two run positions, LOW and HIGH. Slide the switch to one of these positions to turn on the unit. OPERATING POSITION Eye Protection Eye Protection Blower Vacuum

USING YOUR UNIT AS A BLOWER

À WARNING: Inspect the area be- fore using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc., that can ricochet, be thrown, or otherwise cause injury ‘or damage during operation. Use your unit as a blower fo + Sweeping debris or grass clippings from driveways, sidewalks, païos, etc. + Blowing grass clippings, straw, or leaves io iés, or removing debris rom cor- ners, around joints, or between bricks. Direct air flow by directing the blower tube down or to one side. Always work away from solid objects such as walks, large stones, vehicles, and fences. Clean comers by starting in comers and moving outward. This wil help prevent an accumulation of debris which could y into your face. Be careful when working near plants. The force of the air could damage tender plants.

USING YOUR UNIT AS À VACUUM

AWARNING: Do not vacuum stones, gravel, metal, broken glass, etc., to avoid severe damage to the im peller. To avoid the possibility of electri- cal shock, do not attemptto vacuum wa- ter or other liquids. Use your unit as a vacuum to pick up dry material such as leaves, grass, small iigs, and bits of paper. For best results during vacuum use, operate your unit at high speed. Move slowly back and forth over the material as you vacuum. Avoid forc- ing the unit into a pile of debris as this can clog the unit. + Keep the vacuum tube about an inch above the ground for best results. A WARNING: 1f the unit becomes clogged, stop the unit and unplug the ex- tension cord. Wait until the impeller has completely stopped tuning, then re- move the vacuum tubes. Carefully reach into the vacuum opening and clear out the clogged debris. MAINTENANCE A WARNING: Disconnect power Source before performing maintenance. GENERAL RECOMMENDATIONS The warranty on this unit does not cover items that have been subjected to opera- tor abuse or neglgence. To receive full value from the warranty, the operator must maintain unit as instructed in this manual. Various adjustments will need to be made periodically to propery maintain your unit.

WORN PARTS Contact your authorized service dealer for replacement of damaged or womn parts. + ON/OFF Switch - Ensure switch functions properly by moving the switch to the OFF. position. Make sure motor stops: then re- start motor and continue. + Inlet Cover - Discontinue use of unit if in- let cover fails to latch properly or if it is damaged in any way.

Stop unit and unplug extension cord. + After each use, inspect complete unit for loose or damaged parts. Clean the unit using a damp cloth. + Wipe off unit with a clean dry cloth.

CLEAN COLLECTION BAG

MUST BE PROPERLY EMPTIED. + You must properiy empty and maintain the collection bag to avoid deterioration and obstruction of air flow. + Remove the collection bag from the unit and empty after each use, Do not store bag without emptying the bag of all con- tents (gras, leaves, etc.). + Wash the bag once a year. Remove the bag from the blower and turn the bag in- side out. Wash the bag with a water hose. Allow the bag to hang and dry completely before you reuse the bag. SERVICE

HOW TO REMOVE AN OBJECT

À WARNING: Stop the unit and dis- connect from the power source before opening the inlet cover. The motor must be stopped and the impeller blades no longer tuming to avoid serious injury from the rotating blades.

1. While holding the inlet cover open,

remove the vacuum tubes. The inlet cover must be held open through all remaining steps.

2. Carefully reach into the vacuum

opening and clear out the air intake area. Clear all debris from impeller.

3. Inspect the impeller for cracks. If

cracked or damaged, do not use the unit. Have parts replaced by your au- thorized service dealer. Do not at- tempt to replace them yourself. STORAGE À WARNING: Periorm the following steps after each use: + Stop unit and disconnect from the power source. + Alow motor to cool before storing or transporting. + Store unit with all guards in place. Posi- ion unit so that any sharp object cannot accidentally cause injury. + Store unit unplugged, well out of the reach of children. SEASONAL STORAGE Prepare unit for storage at the end of the season or if it will not be used for 30 days or more. f your blower is to be stored for a period of time: + Stop unit and disconnect from the power source. Clean the entire unit before lengthy stor- age. Open inlet cover and clean any dir, grass, or debris that has collected. In- spect the blower and all tubes. Close and make sure the cover is latched. Clean air vents and air inlet of debris. Store your unit and extension cord in a well ventilated area and covered, if pos- sible, to prevent dust and dirt accumula- tion. Do not cover with plastic. Plastic can- not breathe and may cause condensation and eventual rust or corrosion. Check entire unit for loose screws. Re- place any damaged, wom, or broken parts.

TROUBLESHOOTING TABLE À WARNING: Alvays stop unit and disconnectfrom the power source before performingall ofthe recommended remedies below exceptremedies thatre- quire unit to be operating.

SYMPTOM | CAUSE REMEDY

Unit fails to | 1. Switch in the OFF position. | 1. Slide switch to ON position. operate. | 2. Extension cord discon- 2. Reconnect extension cord. nected.

3. Circuit breaker tripped, or | 3- Reset circuit breaker or

4. Mechanical failure 4. Contact your authorized

service dealer. Unit 1. Mechanical failure 1. Contact your authorized vibrates service dealer. abnormally. Impeller will |. Debris in air intake area. 1. Clean unit. Remove any nottum |2. Mechanical failure. debris. freely. 2. Contact your authorized service dealer. LIMITED WARRANTY WEED EATER, a division of Husqvarna Outdoor Products Inc. warrants to the original consumer purchaser that each new WEED EATER brand electric or cordless product is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective WEED EATER brand electric or cordless product within two (2) years from the original date of purchase. f your WEED EATER brand electric or cordless product should fail within the lim- ited warranty period, you may retum it in complete condition, prepaid, with proof of purchase, to the dealer from whom it was purchased for repair or replacement atthe option of WEED EATER. This warranty is nottransferable and does not cover damage or liabilty caused by improper handling, _improper _ mainte- nance or alteration, or the use of accesso- es and/or attachments not specifically recommended by WEED EATER for this product. Additionally, this warranty does not cover parts that will wear and require replacement with reasonable use during the warranty period. This warranty does not cover predelvery set-up or normal adjustments explained in the instruction manual. Should you have any unanswered ques- tions conceming this warranty, please contact: WEED EATER, a division of Husqvarna Outdoor Products Inc. 7349 Statesville Road Charlotte, NC_28269 1-800-554-6723 In Canada, contat

850 Matheson Blvd. West Mississauga, Ontario LSV 0B4 Giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY GIVES YOU SPECIFIC LE-

GAL RIGHTS, AND YOU MAY HAVE OTHER

OTHER DAMAGES WILL BE ALLOWED, AND

LIMITATIONS OF INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, SO THE ABOVE LIM-

ITATIONS OR EXCLUSION MAY NOT APPLY

TO YOU. This is a limited warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975. The policy of WEED EATER is to contin- uously improve its products. Therefore, WEED EATER reserves the right to change, modify, or discontinue models, designs, specifications, and accesso- ries of all products at any time without notice or obligation to any purchaser.
