Product type	Electronic antistress patch (transcutaneous neurostimulation TENS)
Brand	IBP
Model	WL-2301
Classification	Medical device class IIa (directive 93/42/EEC)
Power supply	CR2032 button cell, 3 V, non-rechargeable
Max output value of electrodes	50 mA
Pulse width	100 - 150 μs
Pulse frequency	10 Hz - 20 Hz
Voltage	3 V
Weight	10 g (without battery)
Adjustable intensity levels	10
Recommended session duration	30 minutes per stimulation zone
Automatic shut-off	After 15 minutes
Maximum daily use	150 minutes (5 zones × 30 min)
Housing maintenance	Clean with a damp cloth (do not immerse)
Replacing the dressing	When dirty or worn out
Contraindications	Heart problems, electronic implants, epilepsy, pregnancy, skin allergies
Spare parts available	Electrode dressings, CR2032 batteries
Warranty	24 months from purchase date
After-sales service	IBP Service Center, Am Weimarer Berg 6, D-99510 Apolda, Germany
Recycling	Do not dispose of with household waste; deposit at a WEEE collection point
Included accessories	Patch with dressing, battery, protective case, instruction manual

Frequently Asked Questions - WL-2301 IBP

How to use the KOOL Patch?

Stick the patch on a stimulation area (neck, trapezius, back, stomach) after removing the protective film. Turn it on with the ON+ button and set the desired intensity (10 levels). The device switches off automatically after 15 minutes; you can turn it back on for a maximum session of 30 minutes per zone.

What are the stimulation points?

The recommended areas are the transition between the neck and trapezius (zone 1, left and right), the middle of the back (zone 2, left and right), and the stomach between the sternum and navel (zone 3).

How long to use the patch each day?

For optimal relief, use the patch for 30 minutes per stimulation zone, ideally for 10 consecutive days. The total daily duration should not exceed 150 minutes.

What to do if the patch does not turn on?

Check that the battery is inserted correctly (+ symbol facing up). If the problem persists, replace the battery or contact after-sales service.

Can I use the patch if I am pregnant?

No, using the patch is not recommended during pregnancy as electrical stimulation can trigger contractions.

How to clean the patch?

Turn off the patch, then clean the housing with a slightly damp cloth. Do not use harsh cleaners and do not immerse the device.

How to change the battery?

Open the compartment by pressing the cap and pushing it backwards. Replace the used battery with a CR2032 battery, observing polarity (+ facing up). Close the compartment.

Where can I buy replacement dressings?

Replacement electrode dressings are available from your IBP dealer or via after-sales service. They should be changed when dirty or no longer sticky.

Is the patch waterproof?

No, the patch is not waterproof. Do not expose it to water, moisture, or steam. Do not wear it for swimming or in a sauna.

What if the stimulation is too weak or too strong?

Adjust the intensity using the ON+ (increase) and OFF- (decrease) buttons. If stimulation is too weak, the battery may be low; replace it. If too strong, reduce the intensity immediately.

USER MANUAL WL-2301 IBP

Electronic Anti-Stress Relaxation Patch

Instructions for Use 24

Mode d'emploi 46

4
innovative business promotion gmbh

KOOL Patch

Electronic Anti-Stress Relaxation Patch

Pansement electronicique antistress de relaxation

Instructions for Use 24

Mode d'emploi 46

Well-Life Healthcare Limited
1Fl., No. 16Lane 454, Jungjeng Rd.
Yunghe City, Taipei City
Taiwan, R.O.C

Geratotyp:

Gerät zur transkutanen elektrischen Nervenstimulation (TENS)

10.1 Service Adresse

ibp Service Center

Am Weimarer Berg 6

D-99510 Apolda

Germany

Tel.: [phone]

Hersteller/Manufacturer:

Well-Life Healthcare Ltd., Taiwan

S/N:

0434

S/N

Seriennummer

1. How do these instructions for use support you?...25
2. How your KOOL Patch works 26
3. Your safety is important to us 27
   3.1 For which use is your KOOL Patch suited, and for which is it not? 27
   3.2 For which applications is your KOOL Patch suited, and for which is it not? 28
   3.3 When may you not use your KOOL Patch? 28
   3.4 Other factors you need to consider 29
4. How to protect your KOOL Patch 29
5. How to prepare your KOOL Patch for use 30
   5.1 Unpacking and checking the KOOL Patch 30
   5.2 Insert battery 32
6. How to conduct a session 34
   6.1 On which stimulation points may you apply your KOOL Patch? 34
   6.2 How long and how often may you use your KOOL Patch? 35
   6.3 How to use your KOOL Patch 36
7. How to clean and care for your KOOL Patch....38
   7.1 Cleaning 38
   7.2 Changing the patch 39
   7.3 Changing the battery 39
8. In case problems occur 40
9. Technical Data 41
10. Service and Warranty 42
    10.1 Service Address 42
    10.2 Warranty and Compensation for Damages 42
11. Disposal and Environmental Protection 43
    12.What does the designation on your product mean? 44

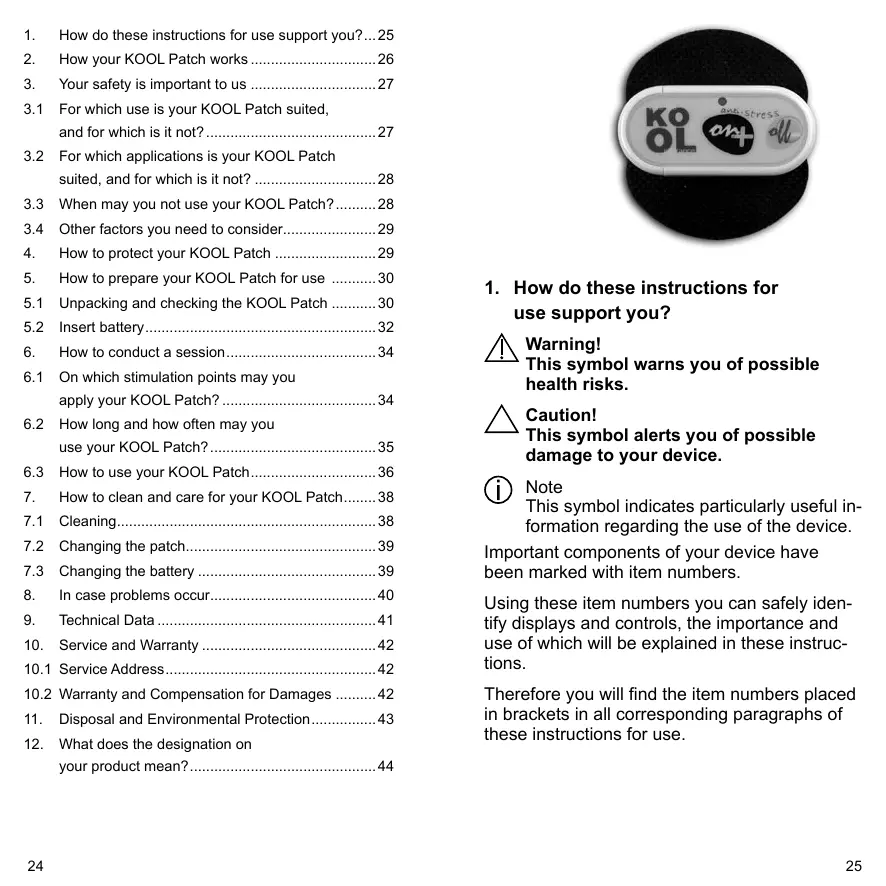

1. How do these instructions for use support you?

Warning! This symbol warns you of possible health risks.
Caution! This symbol alerts you of possible damage to your device.
Note This symbol indicates particularly useful information regarding the use of the device.

Important components of your device have been marked with item numbers.

Using these item numbers you can safely identify displays and controls, the importance and use of which will be explained in these instructions.

Therefore you will find the item numbers placed in brackets in all corresponding paragraphs of these instructions for use.

2. How your KOOL Patch works

Stress leads to tightness and muscle tension. Especially severely affected are the following areas of the body:

The transition area from the neck to the trapezius muscle containing a variety of muscles and nerves.
- The trapezius muscles extend from the back of the head to the shoulder blade and from the shoulder joint to the outer part of the collarbone. Additionally the trapezius muscles are connected to the spinous processes of some cervical vertebrae and the thoracic vertebrae.
The area at the center of the back, containing likewise a variety of muscles and nerves.
The abdominal region between the breastbone and navel.

Transcutaneous (conducted via the skin) electrical nerve stimulation is a method that allows the results of stress to be alleviated.

A microprocessor-controlled relaxation program conducts current-induced stimuli of different intensity levels via electrodes that are affixed onto the skin to the nervous system. These stimuli are not painful. You will only feel a slight tingling sensation on the skin.

With daily applications of just 30 minutes for each stimulation area, you will experience pleasant relief after only 10 days.

• Your KOOL Patch stimulates nerves in the affected regions of the body and this way easily and effectively reduces the sensation of pain caused by stress-related tension and tightness.

You will be able to move freely and wear the KOOL Patch underneath your clothing.
Once the effects of stress have been alleviated, you will feel fit and relaxed, and you will sleep better.

3. Your safety is important to us

Please read these instructions for use carefully before using your KOOL Patch for the first time. They contain everything you need to know to operate your KOOL Patch safely and to avoid damage.

These instructions for use are part of your device. Store these instructions for use carefully until you either pass your KOOL Patch on to a new owner along with these instructions or until you dispose of your KOOL Patch.

3.1 For which use is your KOOL

Patch suited, and for which is it not?

Use the KOOL Patch exclusively in a private setting.
The KOOL Patch is not intended for commercial or medical use.
The KOOL Patch is intended exclusively in humans for external application on the stimulation points described in these instructions of use.
The KOOL Patch is not intended for application on children - not even under the permanent supervision of adults.

3.2 For which applications is your KOOL

Patch suited, and for which is it not?

The KOOL Patch is designed exclusively for alleviating pain caused by stress-induced tension.
Tension and pain can also be symptomatic of a serious illness, which excludes self-treatment with the KOOL Patch.

Prior to its use, we recommend that you consult your physician, pharmacist or physiotherapist.

3.3 When may you not use your KOOL

Patch?

Do not use the KOOL Patch

• if you suffer from cardiac problems, especially from cardiac dysrhythmias. The stimulation current can lead to ventricular fibrillation and in the worst case to cardiac arrest.
  if you have a pacemaker or other electronic implants. The stimulation current can interfere with the function of your implant.
  if you suffer from seizures. In severe cases the stimulation current can trigger convulsions.
  when pregnant. In severe cases the stimulation current can trigger contractions.

if you suffer from allergic skin reactions. The electrodes and patch can lead to skin irritations.
- if you suffer from systemic illnesses, i.e. those affecting the entire body.
if the KOOL Patch is damaged. The stimulation current can lead to aches and skin irritations.

3.4 Other factors you need to consider

Do not allow children access to your KOOL Patch.

Children could swallow small pieces and as a consequence suffocate.

1. How to protect your KOOL Patch

The electronics of your KOOL Patch tolerate neither wetness nor moisture.

Do not rinse the KOOL Patch under running water, do not immerse it in water or other fluids, and do not wear it while swimming or while in the sauna.

• Your KOOL Patch is sensitive to heat.
• Do not expose the KOOL Patch to direct sunlight, and do not place it on hot surfaces.

5. How to prepare your KOOL Patch for use

5.1 Unpacking and checking the KOOL Patch

1. Unpack your KOOL Patch.

i Please save the original packaging so that you may send your KOOL Patch safely to our service department in case of repairs.
2. Check if the scope of delivery is complete:

① KOOL Patch with inserted electrode patch and protective foil
② Battery
③ Protective cover
(4) Instructions for use

1. Check your KOOL Patch for possible damage from transport.

If your KOOL Patch should be damaged, please contact our service department (see Service and Warranty).

1
(3)

4
innovative business promotion gmbh

KOOL Patch

Electronic Anti-Stress Relaxation Patch

Pansement electronicique antistress de relaxation

Instructions for Use 24

Mode d'emploi 46

If the battery has not yet been inserted:

1. Unwrap battery.
2. Open battery compartment: Push down the cover using your thumb and slide back.
3. Insert battery.

The "+" symbol on the battery must face up.

1. Close battery compartment.

If the battery has already been inserted:

1. Open battery compartment: Push down cover using your thumb and slide back.

1. Remove battery.

1. Remove safety strip.
2. Reinsert battery.

The "+" symbol on the battery must face up!

1. Close battery compartment.

6. How to conduct a session

Apply the KOOL Patch only on such stimulation points of the skin that are described in this section. Do not use the device

on the eyelids. The stimulation current can damage the eye.
in the laryngeal or pharyngeal areas. The stimulation current can lead to muscle cramping and possibly to suffocation.
such that the current flows directly across the heart (e.g. in direct vicinity of the heart). The stimulation current can lead to ventricular fibrillation and in the worst case to cardiac arrest.
such that the current flows directly across the brain (e.g. on the temples). The stimulation current can trigger convulsions.

6.1 On which stimulation points may you apply your KOOL Patch?

On the transition between the neck and trapezius muscles, the center of the back

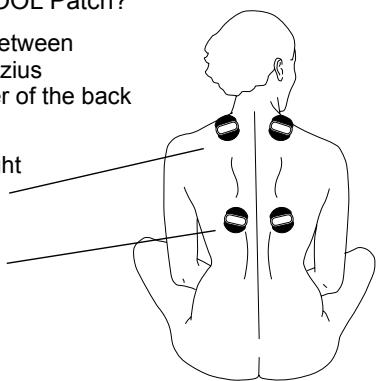

Zone 1, left and right stimulation points

Zone 2, left and right stimulation points

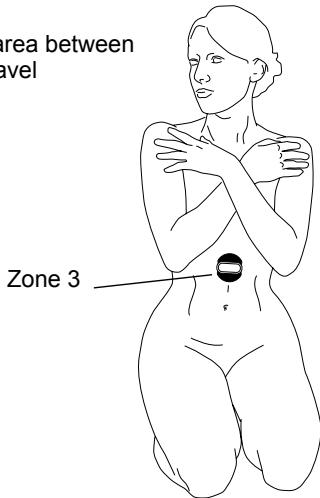

In the abdominal area between breastbone and navel

6.2 How long and how often may you apply your KOOL Patch?

1 Do not exceed the listed application duration and frequency. It will not increase its effectiveness.

Try to perform the application over the course of 10 days if possible.

In order to alleviate the effects of stress, try to stimulate each stimulation point daily if possible for 30 minutes.

This equates to a maximum daily application duration of 5 × 30 minutes = 150 minutes.

Try to maintain the achieved relaxation effect after the 10-day treatment period by stimulating each stimulation point for 30 minutes 1-2 times a month.

6.3 How to use your KOOL Patch

During your applications, maintain a minimum distance of 1m to microwave devices and short-wave devices. Electromagnetic interaction may impair the function of the KOOL Patch.

1. Remove the protective foil from the patch.
2. Apply the KOOL Patch to one of the stimulation zones.

Apply the KOOL Patch only to clean, dry, healthy skin that has not been treated with cosmetics and creams.

The KOOL Patch must adhere firmly to the skin. Replace the patch when its adhesiveness has subsided.

1. Turn on the KOOL Patch: Push the ON+ button once. The illuminated display blinks red.

① ON+ button
② Illuminated display
③ OFF- button

1. Adjust the stimulation intensity:

The intensity of the stimulation is increased with the ON+ button and decreased with the OFF- button. You may set the intensity of the stimulation to 10 different levels.

• Repeatedly press the ON+ button until you have reached the highest stimulation intensity that feels comfortable to you. The brightness of the illuminated display increases with the amount of stimulation intensity.

• Repeatedly press the OFF- button if you would like to lower the stimulation intensity. The brightness of the illuminated display decreases with the decreasing stimulation intensity.

i Your KOOL Patch automatically turns off after 15 minutes. Turn the KOOL Patch back on if you wish to continue the application.
Lower the stimulation intensity or turn off the KOOL Patch if the effect should become unpleasant.

1. Turn off the KOOL Patch after an application duration of 30 minutes: Press the OFF- button repeatedly until the illuminated displays turns off.

Remove the electrode patch from the skin only in off-mode in order to prevent stimulation currents in impermissible areas.

1. Remove the KOOL Patch from the skin: Slide a finger underneath the patch and lift up the patch.
2. Moisten the back of the electrode patch with a drop of water each on the left and right sides to protect the patch from drying out.

3. Apply the KOOL Patch on a different stimulation point. or

4. Terminate the application:

5. Apply the protective foil to the patch.

6. Place the KOOL Patch inside the protective cover.
7. Store the KOOL Patch out of the reach of children and protected from sunlight and moisture until the next application.

7. How to clean and care for your KOOL Patch

7.1 Cleaning

1. Turn off the KOOL Patch.
2. Clean the housing with a damp cloth.

Do not clean the housing with caustic or abrasive cleansers.
Do not sterilize the patch or the device itself in a steam sterilizer or in a cold sterilizing bath.

7.2 Changing the patch

Replace the electrode patch when it is dirty or worn.

1. Turn off the KOOL Patch.
2. Remove the electrode patch from the KOOL Patch.

1. Place the new electrode patch on the KOOL Patch.

7.3 Changing the battery

Danger of poisoning and suffocation!

Children could swallow batteries. Keep batteries out of reach of children.

Only insert into the KOOL Patch batteries in compliance with the specifications listed in the "Technical Data" section
Do not attempt to recharge the batteries!

Change the battery as described in the "Inserting the battery" section.

8. In case problems occur

Problem	Possible Cause	Solution
The KOOL Patch is switched on, but does not function.	The battery is not inserted.	Insert the battery.
The KOOL Patch is empty.	Replace the battery.
The KOOL Patch is defective.	Mail your KOOL Patch to our service department, see Service and Warranty.
or	or
Dispose of the KOOL Patch, see Disposal and Environmental Protection	Repair the battery.
The stimulation is too weak.	Replace the battery.
The patch does not adhere any longer.	The patch is dried out.

9. Technical Data

Manufacturer:

Well-Life Healthcare Limited
1Fl., No. 16Lane 454, Jungjeng Rd.

Device for transcutaneous electrical nerve stimulation (TENS)

Classification according to 93/42/EWG:

Class Ila

Model:

WL-2301

Maximum permissible ambient temperature: 10^ - 45^

Maximum permissible relative humidity: 30% - 75%

Maximum permissible air pressure:

700 hPa - 1060 hPa

Battery:

Coin cell Type CR2032, 3 V, non-rechargeable

Max. output of electrodes: 50 mA

Pulse width: 100 - 150 μs

Pulse rate: 10 Hz - 20 Hz

Operating voltage: 3V

Weight: 10 g (w/o Battery)

Dimensions (mm): W:55 x D:10 x H:60

10. Service and Warranty

10.1 Service Addresses

England:

International Business Products Limited

6 Newfield Court

West Houghton

Bolton BL5 3 SA England

Phone: [phone] - 8196 95

India:

sano health care products pvt. Ltd.-Group

Corporate Office:

28 Landsdown Terrace

1st Floor

Kolkata-700 026

Phone: [phone]

10.2 Warranty and Compensation for Damages

Starting with the purchase date (date on proof of purchase or receipt) we will perform repairs free of charge for 24 months, should your device be non-operational due to manufacturing or material defects.

The warranty excludes damage resulting from non-compliance or only partial compliance with these instructions for use.

Farther-reaching claims such as compensation for damages are likewise excluded.

Please send your device in question as well as the proof of purchase or receipt and the description of the complaint to our service address. Please also attach the warranty documents if you would like to file a warranty claim.

Batteries and electrodes are excluded from the warranty.

11. Disposal and Environmental Protection

11.1 Battery disposal / battery safety instructions

Do not dispose of used batteries in domestic waste, but instead in hazardous waste or take them to a battery collection site available at your retailer.

Battery safety instructions:

Do not short-circuit battery
Do not throw battery into fire Explosion Hazard

Your retailer will answer additional questions regarding disposal.

12. What does the designation on your product mean?

The nameplate is located on the bottom of the KOOL Patch.

GmbH Jena, Germany

KOOL Patch TENS

Model(I):WL-2301*Art.-No.:10112

Batterie/Battery: 3V CR2032

Hersteller/Manufacturer:

Well-Life Healthcare Ltd., Taiwan

S/N:

0434

S/N

serial number

At the end of its life cycle, this product must not be disposed of in regular domestic waste, but must be taken to a collection site for recycling electric and electronic devices (disposal of used appliances).

Type BF application device

The application device offers protection against electrical shock by standard compliance to leakage currents (Type B). The application device is insulated (Type F).

Follow instructions for use

The product meets the safety requirements of EU guideline 93/42/EWG

4
innovative business promotion gmbh

KOOL Patch

Electronic Anti-Stress Relaxation Patch

Pansement electronique antistress de relaxation

Instructions for Use 24

Mode d'emploi 46

Well-Life Healthcare Limited
1Fl., No. 16Lane 454, Jungjeng Rd.

Dimensions (mm): L:55 x P:10 x L:60

Hersteller/Manufacturer:

Well-Life Healthcare Ltd., Taiwan

S/N:

C

0434

S/N

Numero de série

4
innovative business promotion gmbh

KOOL Patch

Electronic Anti-Stress Relaxation Patch

Pansement electronicique antistress de relaxation

Instructions for Use 24

Mode d'emploi 46

Well-Life Healthcare Limited
1Fl., No. 16Lane 454, Jungjeng Rd.
Yunghe City, Taipei City
Taiwan, R.O.C

Apparaattype:

Hersteller/Manufacturer:

Well-Life Healthcare Ltd., Taiwan

S/N:

S/N

Serienummer

4
innovative business promotion gmbh

KOOL Patch

Electronic Anti-Stress Relaxation Patch

Pansement electronicique antistress de relaxation

Instructions for Use 24

Mode d'emploi 46

Well-Life Healthcare Limited
1Fl., No. 16 Lane 454, Jungjeng Rd.
Yunghe City, Taipei City
Taiwan, Républca de China

Tipodequipment:

Hersteller/Manufacturer:

Well-Life Healthcare Ltd., Taiwan

S/N:

0434

S/N

Numero de série

innovative business promotion gmbh

Botzstraße 6

07743Jena

Germany

Tel.: [phone]

Fax: [phone]
