USER MANUAL CN-01 M IBP

KOMPRESSOR-INHALIERGERÄT

COMPRESSOR NEBULIZER COMPRESSEUR-NÉBULISEUR COMPRESSOR-INHALEERTOESTEL INHALADOR PRESURIZADO

Read all instructions carefully before use.

Mode d'emploi.

ibp innovative business promotion GmbH

Borzstraße 6

D-07743 Jena

www.ibp-info.de

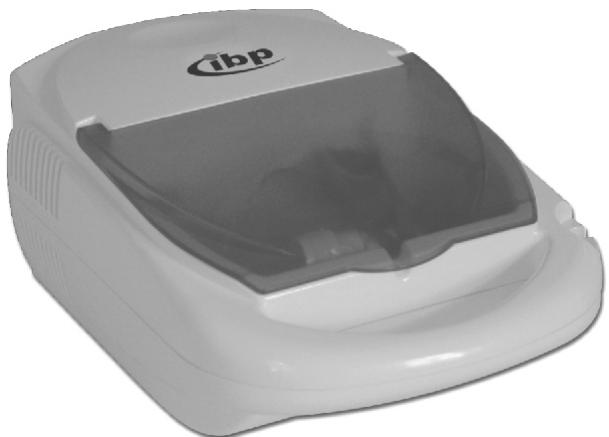

COMPRESSOR NEBULIZER

Instruction manual.

Read all instructions carefully before use.

12 INTRODUCTION
PRODUCT IDENTI CATION
13 IMPORTANT SA EGUARDS
3 OPERATING OUR COMPRESSOR NEBULIZER
16 CLEANING
17 SPECIFICATIONS
18 WARRANTY

INTRODUCTION

Thank you for purchasing the Compressor Nebulizer. It is a compact medical device designed to efficiently deliver physician prescribed medication to the bronchial lung passages. With proper care and use, it will provide you with many years of reliable treatment.

This product is developed for the successful treatment of asthma, allergies and other respiratory disorders. It creates a stream of air that travels through clear tube to the nebulizer. When air enters the nebulizer, it will convert the prescribed medication into aerosol mist for easy inhalation.

our Compressor Nebulizer should be used under the supervision of a licensed physician and/or a respiratory therapist. We encourage you to thoroughly read this guidebook to learn about the features of this product. Any use of this product other than its intended use should always be avoided.

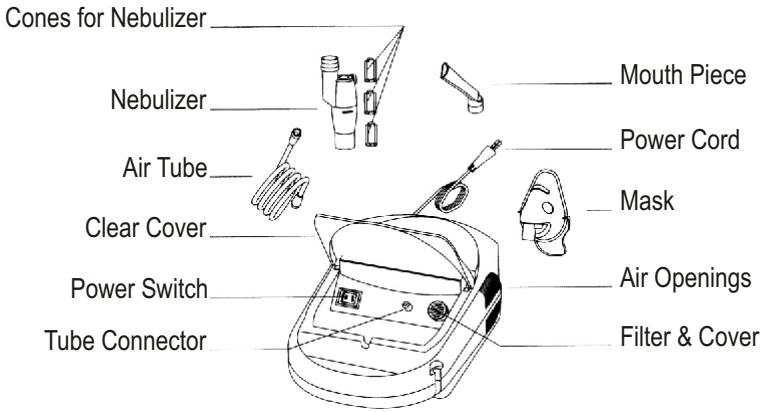

PRODUCT IDENTI CATION

ote:

Read all instructions carefully before use.

The following basic precautions are needed when using an electrical product.

auction:

Failure to read and observe all precautions could result in personal injury or equipment damage.

Product cautions:

1. To avoid electrical shock: Keep the unit away from water Do not immerse the power cord or the unit in liquid Do not use while bathing Do not reach for a unit that has fallen into water - immediately unplug the unit.
2. Never operate the unit if it has any damaged parts (including power cord), if it has been dropped or submersed in water. Promptly send it to a service center for examination and repair.
3. The unit should not be used where flammable gas, oxygen or aerosol spray products are being used.
4. Disconnect the unit from the electrical outlet before cleaning, filling and after each use.
5. Do not use other attachments unless recommended by distributor.

perating auctions:

1. Connect this product to an appropriate voltage outlet for your model.
2. Do not run this product unattended.
3. Never operate if this unit has a damaged cord or plug, if it has been dropped, or in any way, into water, if it does not work properly. Return it to a service center for repair.
4. If any abnormality occurs, discontinue use immediately until the unit has been examined and repaired.
5. Always unplug the product immediately after use.
6. Never block the air openings of the main unit or place it where the air openings may be obstructed.

torsauctions:

1. Do not store the unit under direct sunlight, high temperature or humidity.
2. Keep the unit out of reach of small children.
3. Always keep the unit unplugged while not in use.

leaning auctions:

1. Do not immerse the unit in water. It may damage the unit.
2. Disconnect the unit from the electrical outlet before cleaning.
3. Clean all necessary parts after each use as instructed in this guidebook.

ote:

Prior to initial operation, the nebulizer should be thoroughly cleaned.

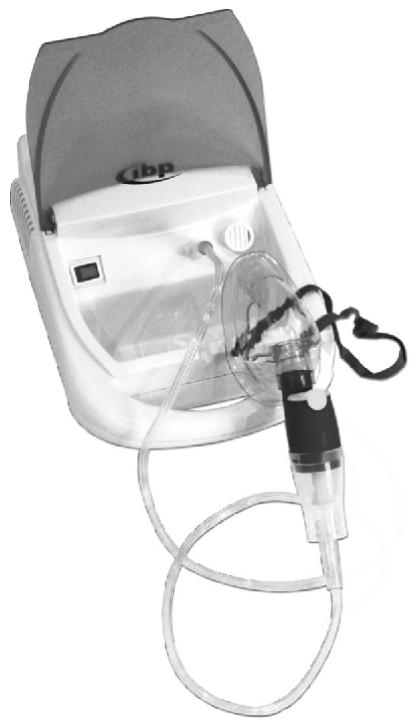

1. Place your Compressor Nebulizer on a flat and stable surface. Be sure that you can easily reach the controls when you are seated.
2. Open the clear cover and remove the inside accessories.

important:

Prior to initial operation, the nebulizer should be thoroughly cleaned referring to the Cleaning Procedures in the manual.

1. Gently twist the top part of the nebulizer counter-clockwise to disassemble the nebulizer.
2. Consult with your physician to select an appropriate cone for the best treatment. Insert it to the bottom of nebulizer.

Place cone inside and fill medication.

Cone A for the therapy of the upper respiratory tract

Cone B for the trachea-bronchial therapy

Cone C for the therapy of the deep respiration tract

1. Fill the bottom section of the nebulizer with the medication prescribed by your physician.
2. Gently twist the top part clockwise to re-assemble the nebulizer. Be sure the two sections fit well.
3. Attach one end of air tube to the base of the nebulizer
4. Attach the other end of air tube to the tube connector located on the front of the compressor.
5. Attach mouthpiece or mask per your choice to the top section of nebulizer.
6. Plug the power cord into an appropriate electrical outlet. Make sure at this stage, the power switch is at O status.
7. Press power switch to begin your prescribed treatment. Adjust the aerosol outflow by regulating the valve.

Important:

The compressor motor has a thermal protector, which will shut off the unit before the unit is overheated. When the thermal protector shuts the unit off, please:

a. Switch off the unit.
b. Unplug the unit from the electrical outlet.
c. Wait 30 minutes for the motor to cool down before another treatment. Make sure the air openings are not obstructed.
12. When treatment is finished, shut off the unit and unplug it from the electrical outlet.

It is recommended that the nebulizer, mouthpiece and mask are thoroughly cleaned with hot water after each use and cleaned with a mild detergent after the last treatment of the day. If your physician or respiratory therapist specifies a different cleaning procedure, follow their instructions.

Rinsing (after each treatment):

1. Disconnect the air tube, nebulizer, mouthpiece and mask.
2. Gently twist the nebulizer to open it.
3. Rinse the nebulizer, mouthpiece and mask with water.
4. Dry them with clean soft towel or let it air dry.
5. Reassemble the nebulizer when completely dry and put these parts in a dry, sealed container.

Disinfections:

Please follow the following steps to disinfect your nebulizer unless otherwise specified by your physician. It is suggested that the unit is disinfected after the last treatment of the day.

1. Use one part white vinegar with three parts distilled water. Make sure mixed solution is enough to submerge the nebulizer, mouthpiece, and mask.
2. Complete Rinsing Steps 1-3.
3. Wash nebulizer, mouthpiece and mask in warm water and a mild detergent. Then wash them in hot tap water.
4. Submerge these parts in the vinegar and water solution for thirty minutes.
5. Complete Rinsing Steps 3-5.

leaning the compressor:

1. Wipedailywithadampcloth.
2. Do not use any powdered cleaners or soap pads which may damage the finish.

Filter change:

1. Do not use cotton or any other materials. Do not wash or clean the filter. Only use the filters supplied by your distributor. And do not operate without a filter.
2. Change the filter every 30 days or when the filter turns gray.
3. Changing procedure:

a. Remove the filter cover
b. Replace the used filter with a new one.
c. Replace the filter cover.

Power:

Power Consumption:

Medication Capacity:

Particle Size:

MMAD:

Sound Level:

Average Nebulization Rate:

Compressor Pressure Range:

Operating Pressure:

Liter Flow Range:

Operating Temperature Range:

Operating Humidity Range:

Storage Temperature Range:

Storage Humidity Range:

Dimension L x W x H:

Weight:

Standard Accessories:

AC 230V, 50Hz

80 VA

5ml

0.5 to 10~ m

4 m

Around 60 dBA

Min 0.2m1/min

30 to 36 Psi 210 to 250 KPa / 2.1 to 2.5 bar

100KPa / 0.5 to 1.0 bar

6-8 lpm

10 C to 40^ (50 F to 104 F)

10 to 95% RH

-20°C to 70 C (-4F to 158 F)

10 to 95% RH

300 × 180 × 115 ~mm 11.8 × 7.1 × 4.5

4.5Lbs 2.1 k

Nebulizer with 3 cones, Air Tube, Mouth piece, 5 Filter, Mask

Protection against electric shock.

Class II Equipment.

Type BF applied parts: Mouth piece & mask.

Degree of safety in the presence of flammable anesthetics or oxygen.

No AP/APG (Not suitable for use in the presence of flammable anesthetics or oxygen)

Mode of operation - continuous.

The Compressor Nebulizer CN-01 M was checked for function before shipment.

To obtain service under the terms of this warranty, mail the product to the address below. Make sure to enclose a note describing the difficulty you have with the monitor and the bill of sale or cash receipt.

All repairs due to defects of workmanship or material will be repaired free within 36 months from the date of purchase (date of the cash receipt/sales bill).

The warranty does not apply if the monitor is used contrary to instructions, handled, stored or cleaned improperly or in any other unusual circumstances.

Any further claims, e.g., claims for damages, are excluded.

If you ant to obtain warranty service, mail the monitor and the warranty documents to the customer service of:

International Business Products Limited

6 Newfield Court

West Houghton

Bolton BL 5 3 SA England

Phone [phone] - 81 96 95

sano health care products pvt. Ltd. ibp-Group

Corporate Office: 28 Lansdown Terrace, 1st Floor

Kolkata - 700 026

Phone No: 913324650383-85

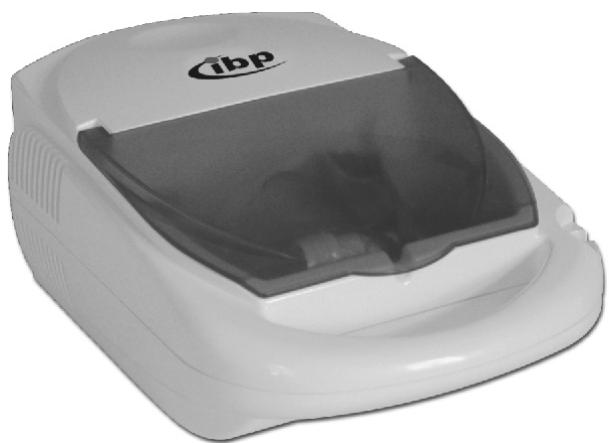

COMPRESSEUR-NÉBULISEUR

Mode d'emploi.

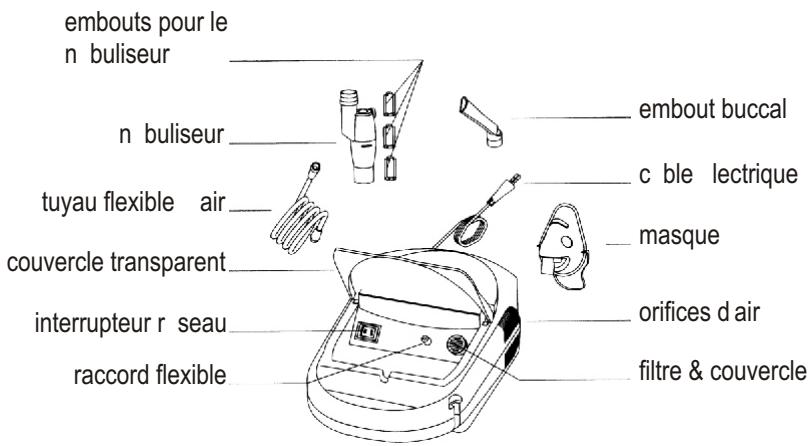

LESPI CES DU PRODUIT

Remar ue:

Temp rature de service: 10-40°c

Humidit relative en service: 10-95%

Temp rature de stockage: -20 70^

Humidit relative au stockage: 10-95%

Dimensions (L x La x H): 300 x 180 x 115 mm

Poids: 2,1 kg

ibp innovative business promotion GmbH

Botzstraße 6

D-07743 Jena

www ibp info de

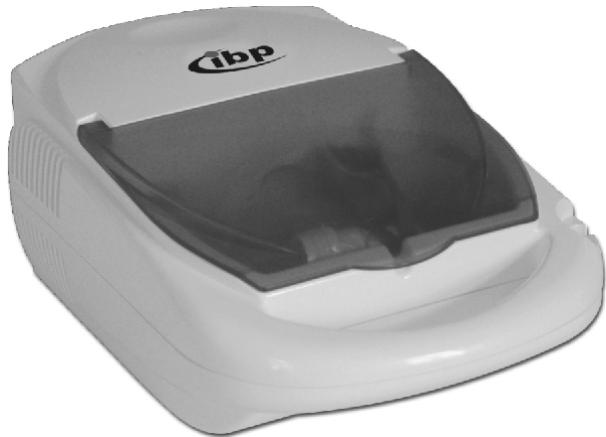

COMPRESSOR-INHALEERTOESTEL
