USER MANUAL RDV-1062 ROTEL

Important Safety Instructions

WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, be sure that the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

You must allow 10cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling.

Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat.

The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit.

Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords.

Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit.

The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if:

The power supply cord or plug has been damaged.
- Objects have fallen or liquid has been spilled into the unit.
The unit has been exposed to rain.
The unit shows signs of improper operation.
The unit has been dropped or damaged in any way.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLLY.

ATTENTION: FOR EVITER LES CHOCES ELECTRIQUES INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISSE ET POSSUER JUSQU AU FOND.

This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock.

This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.

WARNING!

To reduce the risk of electrical shock, fires, etc.:

1. Do not remove screws, covers or cabinet.
2. Do not expose the unit to rain or moisture.
3. Do not touch the power cord or plug with wet hands.

IMPORTANT

FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

1. DANGER: Visible laser radiation when open and interlock failed or bypassed. Avoid direct exposure to beam.
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the player; leave all servicing to qualified service personnel.

CAUTION	-LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM.
ATTENTION	-RAYONNEMENTER LASER EN CAS D'OUVERTURE. NE PAS REGRDER DANIS LE FAISCEAU.
VORSICH	-LASERSTRALHUNG, WENNA BOECKUNG GEÖFFENET. NICTT IN DEN STRAHL BLUCKEN.
ADVARSE	-LASERSTRALING VED ÅBNING. SE IIKE IND I STRALEN.
ADVARSE	-LASERSTRALING NAR DEKSEL APNES. STIRR IIKE IINI I STRALEN.
VARYING	-LASERSTRALING NAR DENNA DEL ÄR ÖPPNAD. STRRA EU INI STRALEN.
VARO!	AVATTA ESSA OLET ALTTINA LASERSATEYILLYL. ALA TÜUOTA SATESEEN.
注意	- 当打开这里会出现激光，请不要直视激光。
注意	- ご本文にとレーサー光が出来。レーサー光をそのまえお願いいたします。いります。

Notice

The COMPUTER I/O connection should be handled by authorized person only.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. (TV, radio, etc.)
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for additional help.

Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the following to conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

This symbol means that this unit is double insulated.

An earth connection is not required.

Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTS Digital Out" are registered trademarks of Digital Theater Systems, Inc.
- USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.
DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
- Official DivX® Ultra Certified product Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format

This remote control handset is supplied with alternative models - as a result some of the buttons will not apply for the RDV-1062.

1 POWER button

Press to turn the RDV-1062 on or off (standby).

DISPLAY button

Press to change the information shown in the display window.

Repeat button

Switches the RDV-1062 among the various repeat modes.

TOP MENU button

Press to display a menu to select specific scenes on a disc.

CURSOR ▲ and Button

CURSOR 一 Button

Press to select an item from a menu or on-screen display, or to change the setting of an item in the on-screen display.

ENTER button

Press to accept selections from menus or on-screen displays.

B SETUP button

Press to access the Setup menu and select settings for language display, video, audio and several other operation controls.

9 Numeric buttons

Use these to select a title or track number.

SUBTITLE button

Used to activate the on-screen subtitle selection display and to turn the subtitle on or off (for DVD VIDEO).

1 ANGLE button

Changes camera angles when playing a DVD
VIDEO disc that has multiple camera angles.

PAGE button

Some Audio DVDs have Browsable Still Pictures. This button changes the picture being viewed.

13 REPLAY button

Press to replay the previous 10 seconds of a DVD.

14▶(PLAY) button

Starts playback of a disc.

STOP/CLEAR button

Stops playback.

16 PREVIOUS button

17 NEXT button

Press to skip forward or back a chapter, title or track. Hold down the button during playback to rapidly scan to earlier or later scenes. Also used for the page selection from menu screens (VCD and SVCD only).

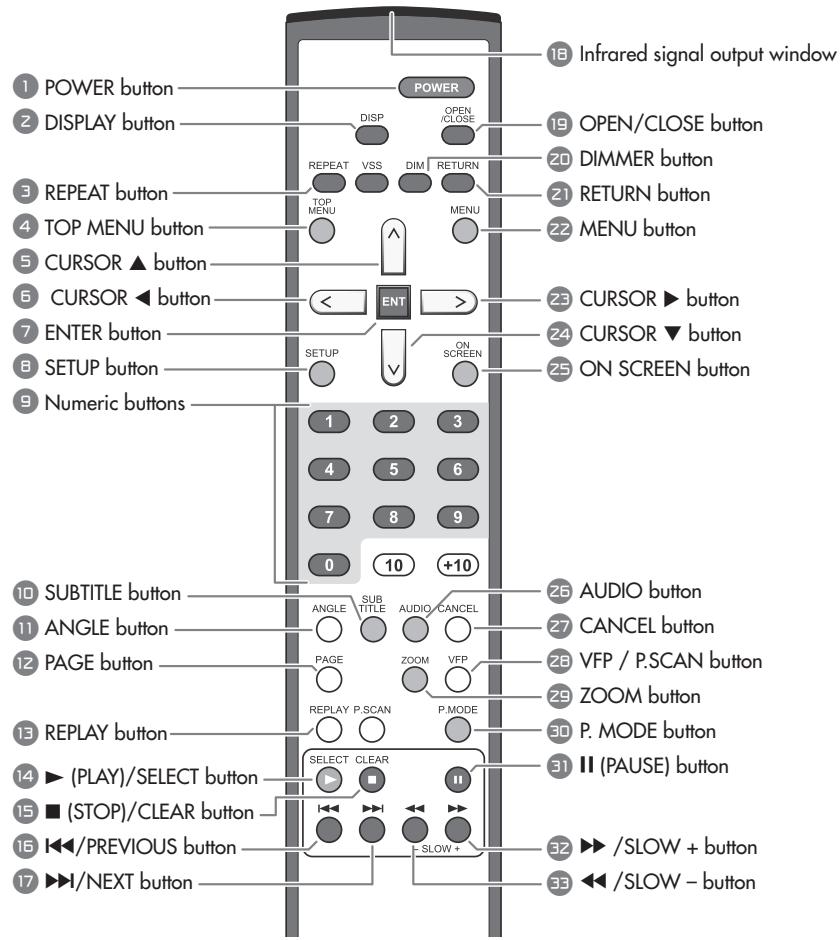

Figure 1: RR-DV99 Remote Control

Infrared signal output window

Point this toward the remote sensor on the front panel when pressing buttons.

OPEN/CLOSE button

Opens and closes the disc tray.

DIMMER button

Press to change the brightness of the display window

2 RETURN button

Press to go back to the previous menu during PBC playback of VCD or SVCD discs.

22 MENU button

Displays menus that let you make select items from the disc.

CURSOR▶Button

CURSOR Button

Press to select an item from a menu or on-screen display, or to change the setting of an item in the on-screen display.

25 ON SCREEN Button

Press to display the status bar and the menu bar on the TV screen.

26 AUDIO Button

Press to select the audio language on discs that have sound tracks in multiple languages.

27 CANCEL Button

Press to remove selections from a programmed playback list.

26 VFP / P.SCAN button

Press and release to access the Video Fine Processor to adjust settings such as brightness, contrast, etc.

Press and hold (2 seconds) to select an output signal that is compatible with your television - NTSC, NTSC Progressive, PAL or PAL Progressive.

ZOOM button

Press to change the magnification of the picture on the screen.

P.Mode button

Press the Play Mode button to change among regular play, program play and random play modes.

31 II (PAUSE) button

Pauses playback.

32 >/SLOW + button

33 /SLOW -button

During playback press repeatedly to speed up or slow down playback speed. When disc play is paused press repeatedly to play forward or backward at reduced speed.

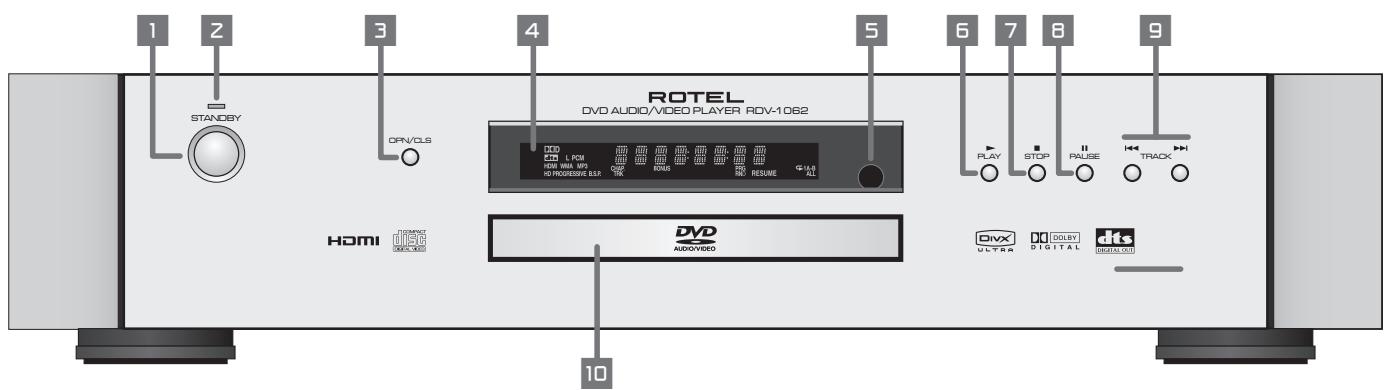

Figure 2: Front Panel Controls

1 STANDBY button

Turns the unit on or off (standby).

STANDBY indicator

Lights when the power cord is connected and the unit is on standby. When the unit is turned on, the STANDBY indicator goes off.

OPN/CLS (OPEN/CLOSE) button

Opens and closes the disc tray.

4 Display Window

Shows various indicators and information about the operation of the RDV-1062.

Remote sensor

Receives the signal from the remote control unit.

5 (PLAY) button

Starts playback. Also, used as a SELECT button for PBC of Video CDs.

7 (STOP) button

Stops playback. Also used to erase tracks from a programmed play list.

8 II (PAUSE) button

Pauses playback.

9 山 (SKIP) buttons

Used to skip a chapter, title or track. Also used for the page selection of a menu screen (for DVD Video/Video CD).

Holding down during playback reverses or advances playback rapidly.

Disc tray

Used to load discs.

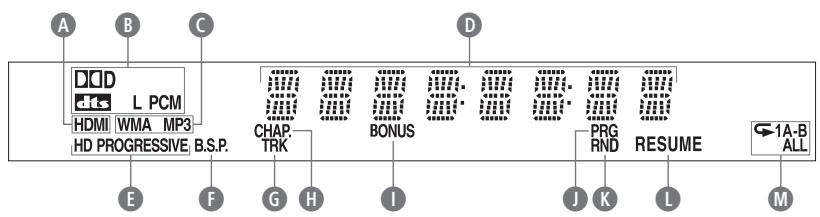

Figure 3: Display Window

A HDMI Connection indicator
Digital Format indicator
C File Format indicators
Multi-Purpose Display
HD TV and Progressive Scan indicators
Browsing Still Picture indicator
Track indicator
Chapter indicator
Bonus Content indicator
Programmed Play indicator
Random Play indicator
ResumePlaybackindicator
Repeat Mode indicators

Contents

Important Safety Instructions 2

Notice 2

FCC Information 2
Caution 2
Figure 1: RR-DV99 Remote Control 3
Figure 2: Front Panel Controls 4
Figure 3: Display Window 4
Figure 4: Rear Panel Connections 6

About Rotel 5

About This Manual 5

About the RDV-1062 6

Precautions 6

Placement 6

Audio/Video Connections 6

Composite Input TV Connection 7
S-Video Input TV Connection 7
Component Input TV Connection 7
HDMI Connection 7
Connecting to Audio Equipment with a Digital Input 8

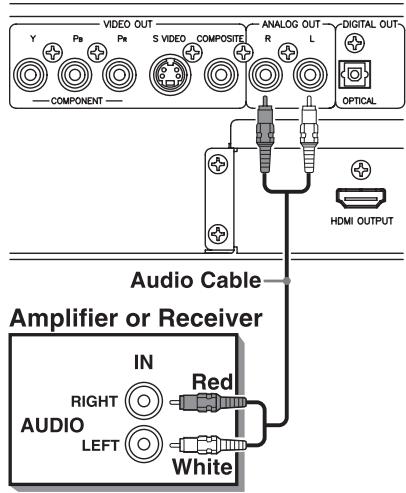

Connecting to an Audio Amplifier or Receiver 8

Connecting the Power Cord. 9

AC Input 11 9

RR-DV99 Remote Control 9

Installing the Batteries 9
Precautions for the safe use of batteries 9
Using the Remote Control 9
Remote Control Numeric Buttons 9
External Remote In 18 9
12V TRIGGER Connection 15 9
Computer I/O 16 9

Playable Discs. 10

Notes on Discs 10
Invalid Operation Icon 10

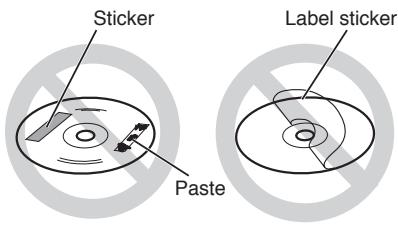

Unplayable Discs 10

Notes About Disc Copying 10

About Copyright Laws 10
About the Copy Guard System 10

Disc Care and Handling 11

DVD Video Disc Region Codes 11

Initial Setup. 11

Turning On the RDV-1062 11
Turn On Messages 11
Setting the Output Signal Type 11
Selecting Preferences 11
Changing the Display Window Brightness 11

Playing a DVD or CD 12

On-Screen Menu 12
Selecting a Track/Chapter with the Numeric Buttons 12

Playing Other Discs. 12
On Screen Icons 12

Display Window 12

DVDVIDEO/DVD VR Disc 12
DVD AUDIO/VCD/SVCD/CD Disc 12
MP3/WMA/WAV Disc 12
ASF/MPEG1/MPEG2/DivX disc 13
JPEG disc 13

Other Disc Play Controls. 13

Pausing Playback 13
Fast Forward/Reverse Search 13
Slow Motion Playback 13
Skip to Beginning or End 13
One Touch Replay 13
Skipping 5 Minute Intervals 13
Advancing Frame by Frame 13
Resuming Playback 13

Other Playback Features 14

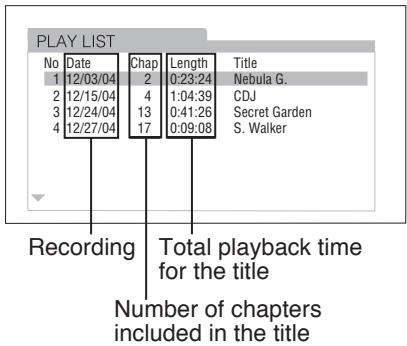

Menu Screen Track Selection 14
Programmed Playback 14
Random Playback 14
Repeat Playback 15
A-B Repeat Playback 15

Other Control Features 15

Selecting the Subtitle Language 15
Selecting the Audio Language 15
Selecting the Viewing Angle 15
Magnifying the Picture (Zoom) 16
Adjusting the Picture Quality (VFP) 16
Browsing Still Pictures (BSP) 16

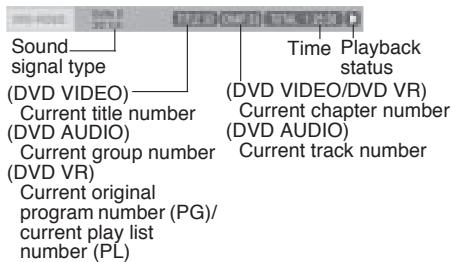

Menu and Status Bar 16

Menu Bar Functions 16

Time Search. 17

Preference Setup. 17

Language Menu 17
Picture Menu 17
Audio Menu 18
Others Menu 18

Caring for the RDV-1062 18

Cabinet and Disc Tray Cleaning 18
Condensation 18

Locking the Disc Tray 18

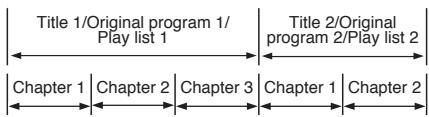

Disc Structure 18

DVDVIDEO/DVD VR 18
DVD AUDIO 18
VCD/SVCD/CD 18
MP3/WMA/JPEG/ASF/MPEG1/MPEG2 Discs 18

Additional Disc Information 19

Troubleshooting 19

Power source 19
Operation 19
Images 19
Other 20
If Problems Persist 20

Language Codes 20

Digital Audio Output Table 21
Specifications 21

About Rotel

A family whose passionate interest in music led them to manufacture high fidelity components of uncompromising quality founded Rotel over 45 years ago. Through the years that passion has remained undiminished and the family goal of providing exceptional value for audiophiles and music lovers regardless of their budget, is shared by all Rotel employees.

The engineers work as a close team, listening to, and fine tuning each new product until it reaches their exacting musical standards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semi conductors from Japan or the United States, while toroidal power transformers are manufactured in Rotel's own factory.

Rotel's reputation for excellence has been earned through hundreds of good reviews and awards from the most respected reviewers in the industry, who listen to music every day. Their comments keep the company true to its goal - the pursuit of equipment that is musical, reliable and affordable.

All of us at Rotel, thank you for buying this product and hope it will bring you many hours of enjoyment.

About This Manual

Throughout this manual the controls and components of the RDV-1062 are identified with numbers and letters in dark gray circles. Numbers in circles such as 2 identify items on the RR-DV99 remote control. (To help you remember this think of "round equals remote".)

Numbers in squares such as 9 identify items on the front and rear panel of the unit.

Letters in circles such as A identify items in the front panel display window.

In the operation section of the manual some function descriptions apply only to certain kinds of discs. The types of discs to which the information applies are indicated with symbols such as DVD.

About the RDV-1062

Thank you for purchasing the Rotel RDV-1062. It will provide years of enjoyment when used in a high-quality audio/video system.

The RDV-1062 is one of the most flexible components you can add to your audio/video system. In addition to DVD Video discs, the RDV-1062 can play Video and audio CD discs recorded in a variety of formats. It provides a full range of operating features and control functions.

Angle function*

You can select a desired angle from multiple camera angles recorded on the DVD disc.

Zoom function

You can view scenes close-up.

Video Fine Processor (VFP) controls

You can adjust many video image characteristics to suit the type of program being played or personal preferences.

Resolution and Scan Type Selection

You can use the remote control to change the resolution and scan options when disc play is stopped. Options range from 480p/576p to 1080i.

High quality digital sound

You can enjoy high quality sound from discs recorded with a full range of digital audio formats.

Surround function*

The unit is compatible with Dolby Digital surround and DTS surround.

Multi-language subtitles and sound*

You can select a subtitle or sound language from those recorded on the DVD disc.

Multi-disc playback

The RDV-1062 can play Audio CDs and Video CDs as well as DVD-A and DVD Video discs.

On-screen display

User-friendly on-screen displays allow you to operate the unit easily.

• Functions only with DVD discs.

Precautions

Please read this manual carefully, particularly the Caution information. In addition to basic installation and operating instructions this manual provides valuable information on various system configurations as well as general information that will help you get the most from your system. Please contact your authorized Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.

Save the RDV-1062 shipping carton and all enclosed packing material for future use. Shipping or moving the RDV-1062 in anything other than the original packing material may result in severe damage.

Be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required.

Register your product online at:

www.rotel.com/register

Also keep your original sales receipt. It is your proof of purchase in the event that warranty service is required.

Placement

Place the RDV-1062 on a surface that is level, dry and neither too hot nor too cold (between 41^ and 95^, 5^ and 35^ ). Do not place the unit where it will be exposed to direct sunlight. Avoid locations that are dusty. Do not place the unit too close to the television set. Do not place the RDV-1062 where it will be exposed to vibrations, such as near a subwoofer. To ensure proper ventilation observe the minimum clearance specifications listed on the safety information page.

Audio/Video Connections

NOTE: Do not plug in the power cable until all audio/video signal connections are complete. Do not change any audio/video cable connections until the RDV-1062 has been unplugged from the power outlet.

Carefully read the instructions supplied with the components you are going to connect to the RDV-1062 to be sure they are compatible. If you have questions, contact your authorized Rotel dealer.

You may need to change the "Monitor Type" setting. See the Picture Menu portion of the Preferences Setup section of this manual.

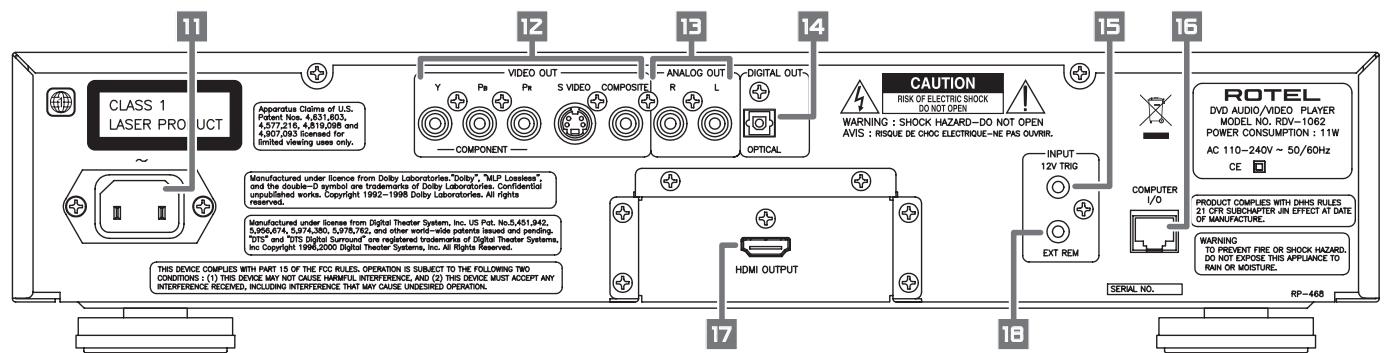

Figure 4: Rear Panel Connections

11 AC power cord receptacle

For the power cord.

VIDEO OUTPUT jacks

Outputs video signals in Component, S-Video and Composite formats.

Audio ANALOG OUTPUT jacks

Left and right channel analog audio outputs.

14 OPTICAL DIGITAL OUTPUT

Provides a digital output signal to receivers or sound processors that can decode it.

15 12V Trigger Input

The RDV-1062 can be activated by a 12 volt trigger signal from a Rotel preamplifier.

16 Computer Input/Output

Must be connected and programmed only by authorized personnel.

17 HDMI Output

Provides high quality video and audio signals for televisions that have an HDMI input.

18 External Remote Input

"Ext Rem In"

This feature is useful when the unit is installed in a cabinet and the front panel IR sensor is blocked.

Composite Input TV Connection Connect the COMPOSITEVIDEO output to the composite video input of your TV. Connect the ANALOG AUDIO outputs to the audio inputs of your TV. A cable for these connections is supplied.

If your TV has a single monaural audio input instead of a pair of stereo inputs, you need to use a "Y" cable adapter to connect the two output channels of the RDV-1062 to the single input.

You can improve the sound quality of the system by connecting the audio outputs to a separate hi-fi audio system. (See the following section.)

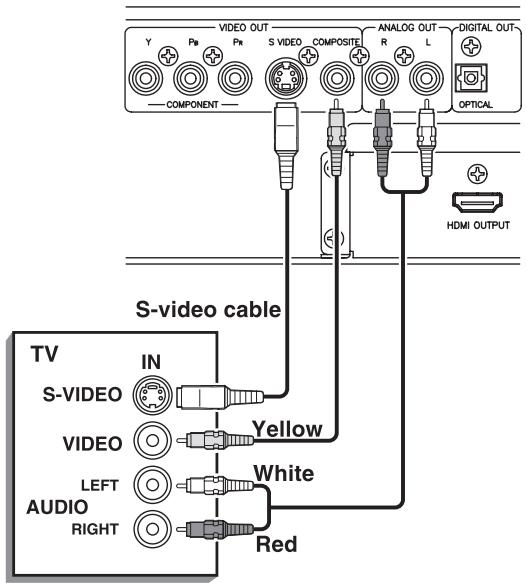

S-Video Input TV Connection

If your TV has an S-video input, you should connect it to the S-VIDEO output of RDV-1062 using an S-video cable. This will produce better picture quality.

NOTES: Do not connect an S-video cord and a component video cord at the same time. This may prevent proper playback

Connect the DVD player directly to a TV or a monitor. Do not route through a video cassette recorder (VCR), otherwise picture distortion may occur during playback. Connecting the DVD player to a VCR-built-in-TV may also cause picture distortion.

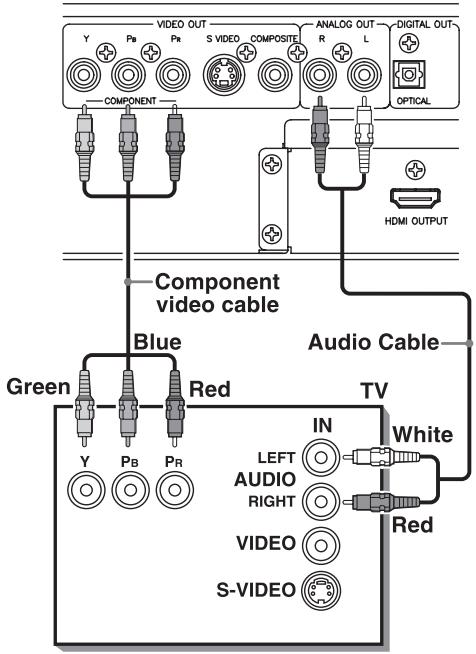

Component Input TV Connection

If your TV has component video signal input jacks you will get better video performance by using the COMPONENTVIDEO12 output jacks of the RDV-1062. The required cable is not provided. Be sure to connect the "Y" output to the "Y" input, "Pb" output to the "Pb" input, and the "PR" output to the "PR" input.

NOTES: When using the Component Video outputs do not connect an S-Video cable.

The component signal inputs on some TV's have BNC type connectors. (BNC connectors are coaxial connectors that have keyed locking collars.) In such instances adapters or a special cable may be needed.

When the Component Video outputs are connected to an NTSC/PAL television you may be able to use the Progressive Scan mode of the RDV-1062 which produces a picture with less flicker. See the P.SCAN section of this manual.

HDMI Connection

This type of connection is not illustrated. It is simply a matter of connecting a special HDMI cable between the HDMI output of the RDV-1062 and a corresponding input on the television. An HDMI connection provides very high quality video and audio signals.

NOTE: Connect VIDEO OUT 12 of the unit directly to the video input of your TV. Connecting VIDEO OUT to a TV via a VCR may result in unacceptable video quality because many discs are copy-protected.

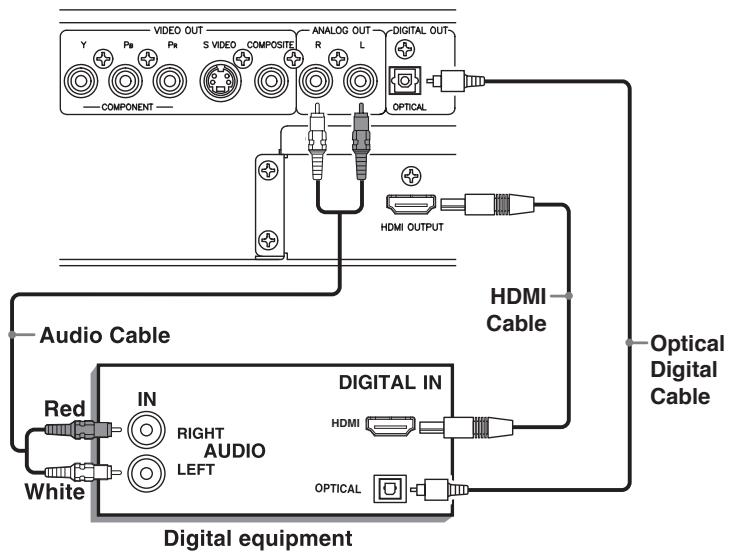

Connecting to Audio Equipment with a Digital Input

You can enhance the sound quality by connecting the OPTICAL DIGITAL OUTPUT 14 or the HDMI OUTPUT 17 of the RDV-1062 to the corresponding input of the television or signal processor. Cables for these connections are not included. The digital stereo audio signal from a disc is directly transferred. If you connect the unit to a Dolby Digital or DTS decoder or an amplifier with built-in decoder by using an optional digital cable, you can enjoy high-quality surround sound.

When you use one of the digital outputs, you should also connect the Audio Analog Output 13, because, depending on the disc type, no audio may be included in the digital output signal.

With the digital connection, the Preference menu settings for COMPRESSION and DOWN MIX are disabled. Settings for these items must be made from the decoder.

IMPORTANT NOTE ABOUT

DIGITAL SIGNAL CONNECTION:

The Digital Audio Output setting in the Audio Preferences on-screen display must be set so the digital output of the RDV-1062 is compatible with the digital input of the component it is connected to. If this preference setting is not done correctly, loud noise may be generated which can damage the speakers. Before using the RDV-1062 with a digital signal connection be sure the proper type of Digital Audio Output has been selected. See the Audio Menu information in the Preferences Setting section of this manual.

NOTE: Bending an optical digital cable at a sharp angle can damage it. Use caution when handling optical cables.

Some optical digital cables have a protective cover over the end of the plug. Be sure to remove any covers before attempting to connect optical cables.

Connecting to an Audio Amplifier or Receiver

You will get better sound quality if you connect the audio outputs of the RDV-1062 to a high quality amplifier or receiver and use component loudspeakers, rather than those built into the television.

Connect the AUDIO OUTPUTS 12 of the RDV-1062 to any high level input (such as AUX, DVD, CD, etc.) of an amplifier or receiver.

Connecting the Power Cord

AC Input

It is best to plug the RDV-1062 directly into a 2-pin polarized wall outlet. Avoid the use of extension cords.

Your RDV-1062 will automatically configure itself for the proper AC line voltage ranging from 110 volts to 240 volts at 50 / 60Hz . No setting is required to match the unit to your local voltage.

Plug the supplied cord into the AC INPUT receptacle on the back of the unit. After all connections have been made, plug the cord into an appropriate AC wall outlet.

NOTE: If you are away for an extended period of time, it is a sensible precaution to unplug your audio/video components

Observe the following precautions:

• Do not connect or disconnect the power cord with wet hands.
• Disconnect the power cord if you are not going to use the unit for a long time.
• When unplugging the player from the wall outlet, always pull the plug, not the power cord.
• Disconnect the power cord before cleaning the unit.
• Disconnect the power cord before moving the unit.
• Do not damage, alter, twist or pull the power cord. This may damage the cord and cause fire, electric shock, or other accidents. Contact your authorized Rotel dealer and get a new power cord if the cord is damaged.
• Do not put anything heavy, on the unit, or the power cord, as this may cause fire, electric shock, or other accidents.

RR-DV99 Remote Control

Installing the Batteries

The battery compartment is located on the back of the remote control unit. Place three AAA batteries in the remote control according to the polarity markings (^ + ^ and - - ^ ) inside the compartment and on the batteries. Replace the battery compartment cover.

The batteries will last about six months with normal use. If the functions of the remote control become erratic, replace the batteries.

Precautions for the safe use of batteries

Observe the following precautions for the safe use of batteries. If they are used improperly their life will be shortened, they may burst or their contents may leak.

• Remove the batteries from the remote control if it will not be used for a long period of time.
• Remove dead batteries and dispose of them properly.
• Never leave dead batteries lying around. Do not take them apart, mix them with other refuse, or throw them into an incinerator.
• Never touch liquid that has leaked out of a battery.
• Do not mix new and old batteries, or batteries of different types, when replacing them.

Using the Remote Control

When using the remote control point it at the front panel of the RDV-1062. The remote control may not always properly operate the RDV-1062 if it is used from too far away or if you are at too great of an angle relative to the front panel.

The remote control may also fail to properly operate the RDV-1062 if the remote control sensor 5 on the front panel is exposed to strong light, such as sunlight.

For best results there must be a direct, unobstructed path from the remote control to the front panel sensor.

Remote Control Numeric Buttons

For many operations selections are made using the RR-DV99 NUMERIC BUTTONS . The examples below show how to select various numbered items.

5: 5

15: (+10) (1) (5)

External Remote In 18

The 3.5mm mini-jack (labeled EXT REM IN) receives command signals from an industry standard infrared receiver. This feature is useful when the unit is installed in a cabinet and the front panel sensor is blocked. Consult your authorized Rotel dealer for information on external receivers and the proper wiring of a jack to fit the mini-jack receptacle.

12V TRIGGER Connection

The RDV-1062 can be activated by a remote 12 volt trigger signal from a Rotel control component such as a preamplifier, integrated amplifier, receiver or surround processor. The 12V TRIG input accepts any control signal (AC or DC) ranging from 3 volts to 30 volts. When a cable is connected to the input and a trigger signal is present, the DVD player is activated. When the trigger signal is interrupted, the unit goes into standby mode. The front panel indicator light remains lit, but the display goes dark and the unit will not operate. Consult your authorized Rotel dealer for information on the 12V TRIG input and the proper wiring of a plug to fit the connector.

Computer I/O 16

The RDV-1062 can be operated from a computer with audio system control software from third-party developers. This control is accomplished by sending operating codes from the computer via a hard-wired RS-232 serial connection.

The COMPUTER I/O input provides the necessary network connections on the back panel. It accepts standard RJ-45 8-pin modular plugs, such as those commonly used in 10-BaseT UTP Ethernet cabling.

For additional information on the connections, cabling, software, and operating codes for computer control of the RDV-1062, contact your authorized Rotel dealer.

Playable Discs

The RDV-1062 unit can play the following types of discs:

DVD Video	DVD VIDEO TM	DVD VIDEO
DVD Audio (2 channel only)	DVD AUDIO/VIDEO	DVD AUDIO
VCD	COMPACT DISC DIGITAL VDEO	Video CD
SVCD	COMPACT DISC SUPER VDEO	VIDEO CD
CD	COMPACT DISC DIGITAL AUDIO
CD-R	COMPACT DISC DIGITAL AUDIO Recordable
CD-RW	COMPACT DISC DIGITAL AUDIO ReWritable

The RDV-1062 can also play back the following discs produced in CD or DVD recorders:

	CD-R/CD-RW	DVD-R	DVD-RW
Audio CD	✓	X	X
VCD/SVCD	✓	X	X
MP3/WMA/WAV	✓	✓1	✓1
JPEG	✓2	✓1	✓1
DVD Video	X	✓	✓
DVD Audio	X	✓	✓
DVD VR	X	✓	✓
ASF	✓	✓1	✓1
MPEG1/MPEG2	✓2	✓1	✓1
DivX	✓	✓1	✓1

Discs should be "finalized" while being recorded.

1 Recorded with UDF Bridge format.
2 The RDV-1062 may not be able to play a file if it is too large.

Notes on Discs

• With some DVD VIDEO discs, the RDV-1062 starts playback automatically after inserting the disc.
• The image may be sometimes poor or noisy due to defects in the disc itself.
• With some discs, operations described in this manual may not be possible.

Other Notes About Recordable Discs

• Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stains on them.
  It is possible to play back finalized +R / + RW (DVD Video Format only) discs. "DVD" lights on the front display panel when a +R / + RW disc is loaded.
• The RDV-1062 can play CD-R and CD-RW disc recorded with the ISO 9660 format and "multi-session" discs (up to 12 sessions).
  Super Audio CDs (SACD) compatible with conventional CD players can be played.
• The RDV-1062 can play NTSC and PAL system discs. When a PAL disc is played the signal is converted to NTSC and output.

NOTE: If a disc is dirty, scratched or warped, or has unusual disc or recording characteristics, it may take considerable time for the RDV-1062 to read the disc contents. In some instances the RDV-1062 may not be able to play certain discs.

When playing some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs the operation of the RDV-1062 may be different from what is described in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

Other Notes About Playable Discs:

Because the RDV-1062 can play such a variety of disc formats, and because many disc formats can be recorded to a variety of standards, there are many things that can affect how certain discs will work. See the "Additional Disc Information" section of this manual for more information.

Invalid Operation Icon

With some discs the RDV-1062 may not be able to perform certain operations. For example, some discs may not allow rapid advance/reverse or slow motion playback. When you press a remote control or front panel button if the RDV-1062 cannot perform the operation the Invalid Operation icon appears on your TV screen. Operations are occasionally unacceptable even if it is not displayed.

Unplayable Discs

The RDV-1062 does not play back discs listed below. If you try to play back these discs, noise may generate causing damage to speakers.

DVD-ROM (except for MP3/WMA/JPEG/ASF/MPEG1/MPEG2 format)
DVD-RAM
CD-ROM
- CD-I (CD-I Ready)
Photo CD
SACD,etc.
- Damaged discs and discs that are not standard size or shape (other than round 12cm / 4^3 / 4^ or 8cm / 3^3 / 16^ diameter discs).
- Unfinalized discs
- Discs of irregular shape or discs with tape, seals or adhesives on either the label side or playback side. Playing back these discs may damage the RDV-1062.
- Discs with labels that are not completely bonded to the disc.

Notes About Disc Copying

About Copyright Laws

Check the copyright laws before recording from DVDs, VCDs, SVCDs and CDs. Recording of copyrighted material may infringe copyright laws.

About the Copy Guard System

DVDs are protected by a copy guard system. When you connect the RDV-1062 directly to a VCR, the copy guard system can prevent proper playback of the disc.

Disc Care and Handling

Proper handling and storage of discs is very important. If a disc gets dirty, dusty, scratched or warped, playback, sound and picture will be adversely affected.

Handling

• To avoid damage do not touch the surface of the disc.
• Do not apply labels or use any adhesive on either the label side or playback side.

Storing discs

• Keep discs in their cases. If discs are piled on top of one another without their protective cases, they can be damaged.
• Do not put discs where they may be exposed to direct sunlight, or high temperatures or humidity. Avoid leaving discs in a car!

Cleaning discs

• Wipe with a soft dry cloth, moving from the center outwards. If a disc is difficult to clean, wipe with a cloth moistened with water.
• Never use record cleaners, petrol, alcohol or any anti-static agents.

DVD Video Disc Region Codes

All DVD players and DVD discs have a Region Code number. This unit only can play back DVD discs whose Region Code numbers include the unit's Region Code, which is indicated on the region code symbol on the rear panel.

Examples of playable DVD discs for a unit with Region Code "1"

NOTE: With some DVD and Video CD discs, you may not be able to control them according to the instructions described in this manual, because of the contents of the disc.

If a DVD VIDEO with an improper Region Code number is loaded, "REGION CODE ERROR!" appears on the TV screen and playback cannot start.

Initial Setup

Turning On the RDV-1062

When the RDV-1062 is connected to a power outlet the STANDBY indicator 2 on the front panel is always on. Press the STANDBY 1 button on the front panel, or the POWER button ① on the remote, to turn the unit on and light the display 4.

Turn On Messages

One of the following messages may appear in the display when the RDV-1062 is turned on:

NOW READING - Appears when the DVD player is reading the disc information. Do not try to operate the unit until this message goes away.

REGION CODE ERROR! - Appears when the Region Code of a DVD that has been loaded is not supported by the player.

NO DISC - Appears when no disc is loaded.

OPEN - Appears when the disc tray is opening.

CLOSE - Appears when the disc tray is closing.

CANNOT PLAY THIS DISC - Appears when you try to play an unplayable disc.

Setting the Output Signal Type

With the RDV-1062 and the TV turned on and disc play stopped, press and hold the VFP/P.SCAN button on the remote for at least two seconds. The current video signal type will be displayed.

If necessary, press the / buttons 5 23 to select the video signal type suitable for the TV. Then press ENTER 7 . The selected video signal type is displayed for a short time.

About Output Signals

The video output and resolution choices are shown in the graphic below.

When "AUTO" is selected the output will be the maximum resolution the television that is connected can reproduce.

NTSC ("NT") is the correct choice for TVs in North America. PAL TVs are used through most of the rest of the world.

With either NTSC or PAL TV's you can select INTERLACE ("NTSC" or "PAL") or PROGRESSIVE ("NTSC PROG" or "PAL PROG"). Picture quality is better with the "PROGRESSIVE" mode. But only newer, high performance TVs can accept progressive signals.

Not all resolutions are available from every output.

Component Video: NTSC 480p, PAL 576p

S-Video, Composite Video: NTSC 480i, PAL 576i

HDMI Output: All resolutions available.

If you are unsure about which setting to use, contact your authorized Rotel dealer.

Output Signal Notes

• The picture may be distorted for a period of time after you press ENTER button. This is not a malfunction of the system.
• Some progressive signal and high-definition TVs are not fully compatible with this unit. This will result in an unnatural picture when playing a DVD VIDEO with progressive scanning. In this case, change the scan mode to INTERLACE.
• Even if the power cord of the DVD player is disconnected from the AC outlet or the power is interrupted, the video signal type setting is stored.

Selecting Preferences

See the "Selecting Preferences" of this manual for information on changing the preferred setting for such things as menu languages, video picture options, audio options and other features.

Changing the Display Window Brightness

To change the brightness of the display window press the DIMMER button 2D of the remote control. Each time you press DIMMER, the brightness of the display changes in the order shown.

Playing a DVD or CD

DVD AUDIO

DVD VR

VCD SVCD

CD

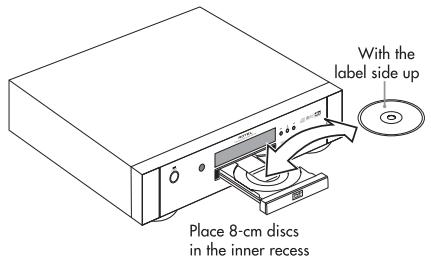

Press ▲ OPEN/CLOSE 19 to open the disc tray. Place a disc, label side up, in the tray. Place smaller 8cm / 3^3 /_16 discs in the recessed, inner part of the disc tray.

Press again to close the tray. Then press PLAY 5. To stop disc play press (STOP) 15 7.

NOTES: Do not insert an unreadable disc. (See Playable Discs section.)

When placing a disc on the disc tray, be sure to set it in the recess. Otherwise, the disc may be damaged when the disc tray is closed, or you may not be able to remove the disc from the RDV-1062.

On-Screen Menu

After loading a DVD VIDEO, SVCD or Video CD disc, a menu may appear on the TV screen. From the menu, you can select an item to be played.

For DVDVIDEO

1 Press ▲▼▲▶ 5 24 6 23 to select an item.
2 Press ENTER ⑦. The RDV-1062 starts playback of the selected item.

You can also use the numeric buttons to select an item. Key in the number of the item and press ENTER. The RDV-1062 starts playback of the selected item.

Selecting a Track/Chapter with the Numeric Buttons

DVDVIDEO

DVD AUDIO

DVD VR

CD

MP3 WMA

JPEG

ASF

MPEG1 MPEG2

VCD SVCD

(PBC C)

ff)

Press the Numeric Buttons to select a track or chapter number. Refer to the "Remote Control Numeric Buttons" section. This method of Track/Chapter selection will not work with some discs.

Playing Other Discs

MP3 WMA

JPEG

ASF

MPEG1 MPEG2

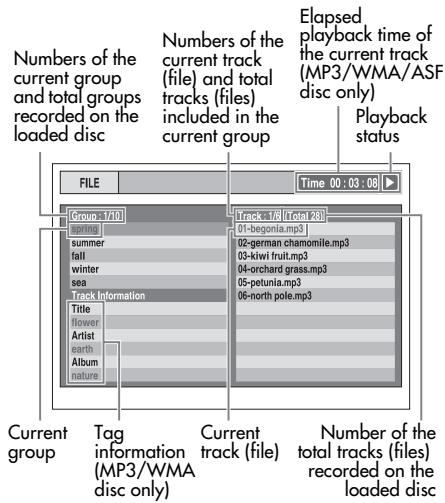

After a disc is loaded, an on-screen display is shown. The sample menu screen shown below is what appears when an MP3 disc is loaded. With a JPEG disc "File" is shown on the right side instead of "Track".

Press the 5 24 buttons to select a Group. Then press 23 to move to the Track (File) list. Use the buttons again to select a Track or File. The Numeric Buttons can also be used to select a Track or Title. Then press (PLAY) 14 or ENTER 7.

When a disc with JPEG images is loaded, pressing (PLAY) will start a "slide show" of the images. Each image is shown for about 3 seconds. If ENTER is pressed only the selected file is shown.

On Screen Icons

At times you may see the following icons on the screen:

Play Paus
Fast reverse/fast forward search Slow motion playback (reverse/forward directions)
Containing multi-view angles (See "Selecting Viewing Angles")
Containing multi-audio languages (See "Selecting the Audio Language") Containing multi-subtitle languages (See "Selecting the Subtitle Language")
The disc cannot accept the operation you have attempted.

Display Window

The information in the display window changes, depending on the type of disc that is loaded and the operating mode of the RDV-1062.

DVDVIDEO/DVD VR Disc

• Press the Display button ② to show the Title Number and Chapter Number. Press the button again to go back to the original display mode.

If a programmed playlist is playing this display is shown.

• Press the Display button to show the Playlist Number and Chapter Number. Press the button again to go back to the original display mode.

DVD AUDIO/VCD/SVCD/CD Disc

• When a DVD Audio disc is playing press the Display button to show the Group Number and Track Number. Press the button again to go back to the original display mode.
• When a VCD or SVCD with PBC function is played, "PBC" appears instead of the elapsed playing time.

MP3/WMA/WAV Disc

• Press the Display button to show the Group Number and Track Number. Press the button again to go back to the original display mode.
• The WMA indicator lights when a WMA file is playing. There is no WAV indicator.

ASF/MPEG1/MPEG2/DivX disc

When an ASF disc is playing

• Press the Display button to show the Group Number and Track Number. Press the button again to go back to the original display mode.

JPEG disc

When a disc is playing

• Press the Display button to show the Group Number and File Number. Press the button again to go back to the original display mode.

Other Disc Play Controls

Pausing Playback

To pause playback when a disc is playing press II (PAUSE) 31.

Fast Forward/Reverse Search

While a disc is playing press Each time these buttons are pressed the forward or reverse speed increases. Press (PLAY) to resume normal speed playback.

Or, while a disc is playing press and hold 快 NEXT/PRVIOUS 15/17. Fast forward or reverse searching will continue as long as the button is held.

The speeds of the fast forward/reverse searching will vary, depending on the type of disc being played. Also note that during fast forward/reverse searching the sound may be intermittent or turned off.

Slow Motion Playback

DVD DVD VCD DVD DVD (moving images only)

While disc play is paused press 33 32. Each time one of these buttons is pressed the speed of the slow forward or reverse play will increase. Press II (PAUSE) 31 to pause slow motion play. Or press (PLAY) 14 to resume normal speed playback.

No sound is produced during Slow Motion Playback. During Reverse Slow Motion Playback the picture motion will not be smooth. When playing VCD, SVCD or DVD VR discs, Slow Motion Playback will work only in the forward direction.

Skip to Beginning or End

MPEG1 MPEG2-(moving images only)

To skip to the beginning or end of a track (or chapter or file), while a disc is playing, press PREVIOUS/NEXT 15 17.

During playback of an MP3/WMA/JPEG/ASF disc, press NEXT 17 or to play the next file, or press PREVIOUS 15 or 5 to play the previous file.

The Skip function does not work with all discs.

One Touch Replay

When a disc is playing, press the REPLAY button. Playback will continue from 10 seconds before the previous location.

One Touch Replay will not skip past the beginning of the track or title being played. This function will not work with some discs.

Skipping 5 Minute Intervals

With the type of discs shown above you can skip forward or backward at intervals of approximately 5 minutes. While a disc is playing press 6 23 .

Intervals are automatically assigned from the beginning of the file. You cannot skip past the beginning or the end of the current file being played. This function will not work with some discs.

Advancing Frame by Frame

DVD AUDIO-(moving images only)

When a disc is paused, press II (PAUSE) repeatedly. Each time the button is pressed the next frame is shown.

Resuming Playback

When playback is stopped while a selection is playing, you can resume playback from where it was stopped.

NOTE: The Resume function must be turned on in order for this function to work. If the feature does not work as described here check "Preference Menu / Others Menu" section of this manual. This menu can also be used to turn off the Resume Playback feature if you want to.

While a disc is playing press STOP once. "RESUME" will appear in the display. Press PLAY to resume playback. If the STOP button is pressed twice "RESUME" will disappear from the display and the stored location will be cleared.

• The position where playback starts again may be slightly different from the stopped position.
• The location where playback was stopped is remembered even if the RDV-1062 is turned off.
• This function does not work in program playback or random playback.
• When the menu screen is displayed, the resume playback function may not work.
• The audio language, the subtitle language and the viewing angle are stored with the stopped position.
• The stored position will be cleared if the disc tray is opened.

Other Playback Features

NOTE: The available features depend upon the video resolution in use.

Menu Screen Track Selection

DVD DVD VCD (PBC off)

Press the MENU 22 or TOP MENU 4 button to display an on-screen menu. Note: With DVD audio discs the TOP MENU button must be used. Not all discs have menu screens.

Press ▲▼▲▶ 5 24 6 23 for DVD audio or video track selection. Or use the numeric buttons to select a track.

If the menu screen has more than one page press NEXT or PREVIOUS to change the page. Note: This applies only to VCD or SVCD discs.

After selecting the track you want press ENTER ⑦. With some discs playback may start without pressing ENTER.

Press the TOP MENU 4 button to display the original program or press MENU 2 to display the play list. Note: Not all discs have a play list.

Original Program

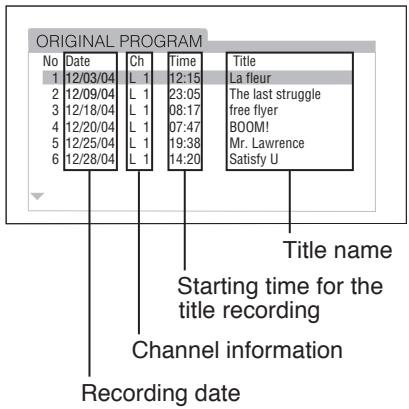

Play List

Press ▲▼ 5 Z4 to select the desired title. Then press ENTER 7.

When you select the original program using the TOP MENU button, playback will start from the selected title to the following titles. When you select the playlist using the MENU button only the selected title will be played.

Programmed Playback

DVD DVD CD MP3 DVD AUDIO AVCD CD WMA

You can program up to 99 track or chapters to be played in a specific order. The same track or chapter can be programmed more than once.

While the disc is stopped press P. MODE 30 . "PROGRAM" will appear in the display and an on-screen menu will appear.

Press the Numeric buttons to program selections. Refer to the "Remote Control Numeric Buttons" section.

For DVD Video programming:

• Select a title number, and then a chapter number.

For DVD AUDIO/MP3/WMA disc programming:

• Select a track number.

For VCD/SVCD/CD programming:

• Select a track number. As you finish the track selection, the total time for the program playback will be displayed.

Example:

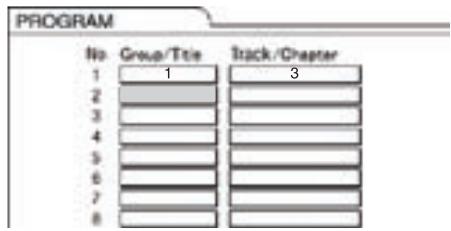

On-screen menu for DVD Video programming.

• If you try to enter more than 99 chapters or tracks, "MEMORY FULL" appears.
• If you are programming selections from a VCD, SVCD or CD, when the total playback time reaches 9 hours 59 minutes 59 seconds, "..." will appear in the display window.

NOTE: Only for a DVD Video, DVD Audio, MP3, WMA disc.: If you press ENTER instead of specifying a track/chapter number, "ALL" is displayed and all of the tracks/chapters included in the selected group/title are programmed.

When you are done programming selections: Press (PLAY) 14 to start playing the programmed items selected.

To return to normal playback: While disc play is stopped press P. MODE repeatedly until the "PRG" in the display window is turned off. The program content will not be erased.

To erase the program content:

• Hold down CANCEL until "ALL CLEAR!" appears in the display window while the program screen is displayed on the TV screen (if CANCEL is pressed and released quickly, programs will be erased one by one).
• Open the disc tray.
• Turn off the power.

Random Playback

DVD DVD CD MP3VIDEO AUDIO SVCD WMA

While disc play is stopped press P. MODE repeatedly until "RND" appears in the display window. "RANDOM" will also be displayed on the TV screen.

Press (PLAY) 14. During Random Play the same chapter or track will not be played twice even if the (PREVIOUS) 15 button is pressed. (Playback will be returned to the beginning of the current chapter or track.)

To return to normal playback: While disc play is stopped, press P. MODE repeatedly to turn off "RND" (the upper indicator) in the display window.

The following operations also cancel random playback:

• Open the disc tray.
• Turn off the power.

NOTE: You cannot use the random playback function with some DVD VIDEO discs.

Repeat Playback

Press REPEAT 3. Each time you press the button the repeat mode changes.

Display on the TV screen	Display in the display window	Usage for the repeat mode
TITLE	ALL REPEAT TITLE	Repeats the current title
ALL or REPEAT ALL	ALL REPEAT ALL	Repeats the whole disc*1
GROUP*2 or REPEAT GROUP	GR GROUP*2	Repeats the current group*3
CHAP*4	REPEAT CHAP*4	Repeats the current chapter
TRACK*4 or REPEAT TRACK	REPEAT TRACK*4	Repeats the current track
OFF or no display	REPEAT OFF	Repeat off

1 Repeats the whole program during program playback.
2 For a DVD VR, "PG" is displayed during original program playback, and "PL" is displayed during play list playback.
3 Repeats the current original program or the current play list for a DVD VR.
4 "STEP" is displayed during program/ random playback.

The repeat playback can also be set on the menu bar. (See the "A-B Repeat Playback" section.)

The repeat mode will be automatically cancelled if there is a file that cannot be played back.

A-B Repeat Playback

You can play back a specific section of a selection repeatedly by specifying a start point (A) and an end point (B).

While a disc is playing press ON SCREEN twice. The menu bar will be displayed.

Press 6 23 to select OFF. Then press ENTER 7.

Press ▲▼ 5 24 to display

Other repeat modes can be selected in this step. For other repeat modes, refer to "Repeat Playback" section.

Press ENTER at the start point of the part to be repeated (specifying point A). The icon on the menu bar will be A.

Press ENTER at the end point of the part to be repeated (specifying point B). The icon on the menu bar will be A-B. will appear in the display window on the DVD player and the part between points A and B will be played back repeatedly.

To Cancel A-B Repeat Playback: Press

(STOP). Select A-B and press ENTER twice. (Select OFF.)

NOTE:

• You can use A-B repeat playback only within the same title or track.
• You cannot use A-B repeat playback during program playback, random playback or repeat playback.
• You cannot use the A-B repeat playback function for some DVD VIDEOs during program playback, random playback or repeat playback.
• You cannot use the A-B repeat playback function for some DVD VIDEOs.

Other Control Features

Selecting the Subtitle Language

DVD DVD DVD DVD (only for moving images)

The following describes how to control the subtitle display with a DVD Video disc. Most other types of discs will work in the same manner.

While a disc that has subtitles is playing press SUBTITLE 10. A selection menu appears on the screen.

Each time you press the button, the subtitle menu will toggle between on and off.

Press 5 24 to select a subtitle language. Then press ENTER 7 . The subtitle language setting will change automatically in a few seconds even if ENTER is not pressed.

Subtitles can also be controlled using the Menu Bar. See the "Menu and Status Bar" section.

For a language code such as "AA", refer to the "Language Codes" table.

Selecting the Audio Language

While a disc that has multiple audio languages is playing press AUDIO 25. A selection menu appears on the screen.

Each time you press the button, the language menu will toggle between on and off.

Press 5 24 to select a audio language. Then press ENTER 7 The audio language setting will change automatically in a few seconds even if ENTER is not pressed.

Audio language selection can also be controlled using the Menu Bar. See the "Menu and Status Bar" section.

For a language code such as "AA", refer to the "Language Codes" table.

If "ST", "L" and "R" are displayed when playing back a VCD, SVCD or DVD VR, they respectively represent "Stereo", "Left sound" and "Right sound".

Selecting the Viewing Angle

DVD DVD (only for moving images)

While a scene from a disc containing multi-view angles is playing press ANGLE 1. A selection menu appears on the screen.

Each time you press the button, the angle will be changed. The angle can also be changed by pressing 524 . Then press ENTER. The subtitle language setting will change automatically in a few seconds even if ENTER is not pressed.

The viewing angle can also be controlled using the Menu Bar. See the "Menu and Status Bar" section.

Magnifying the Picture (Zoom)

DVD DVD VCD MPEG ASF MPEG1 VIDEO VR SVCD MPEG2

DVD AUDIO (only for moving images)

While a disc is playing or is paused press ZOOM 29. Each time you press the button, the picture magnification is changed.

When the picture is magnified there will be portions of the image you cannot see on the screen. Use the 524623 buttons to move the viewable area to a different part of the image.

To return to normal playback, press the ZOOM button until "ZOOM OFF" appears on the screen.

For a JPEG disc, you cannot change the picture magnification during slide-show playback. When playing an ASF disc the cursor buttons may allow you to move the viewable part of the image.

Adjusting the Picture Quality (VFP)

DVD DVD DVD VCD MPEG1 DVD AUDIO VR SVCD JPEG ASF MPEG2

The availability of this feature depends upon the video resolution in use.

NOTE: It is not available when using the HDMI output.

When a disc is playing or paused press VFP (Video Fine Processor). A table with the current settings will appear on the TV screen.

The "GAMMA" setting adjusts the brightness of medium tones while leaving the darkest and brightest portions unchanged.

The "SHARPNESS" setting adjusts the sharpness of the on-screen image.

Press 6 Z3 to select a VFP mode. "NORMAL" is suitable for normal usage. "CINEMA" is suitable for a dark room. If the "NORMAL" or "CINEMA" setting produces satisfactory results, press ENTER 7.

"USER 1 and "USER 2" allow you to make detailed adjustments to the various settings on the menu. Press 5 24 to select an item to be adjusted then press ENTER 7.

Adjustment menu example:

Use the buttons again to change the value. Press ENTER to accept the selected setting.

To adjust other items, use the buttons again to select another item to adjust and repeat the process described above. When you are done making adjustments press the VFP button again to save the adjustments. If no adjustments are made for several seconds the settings that have been made will be automatically stored.

Browsing Still Pictures (BSP)

Some Audio DVDs have pictures called B.S.P. (Browsing Still Pictures). The pictures can be viewed as if you are turning pages. You can use this function when the BSP indicator lights in the display window.

While a disc is playing press the PAGE button 12. Each time you press the button, the still picture is changed. You can also switch the picture using ▲▼5 24

BSP Selection menu example:

Press ENTER 7. The picture setting will change automatically in a few seconds even if ENTER is not pressed.

This feature can also be controlled using the Menu Bar. See the "Menu and Status Bar" section.

Menu and Status Bar

DVD DVD DVD VCD CD ASF MPEG1 VIDEO AUDIO VR SVCD

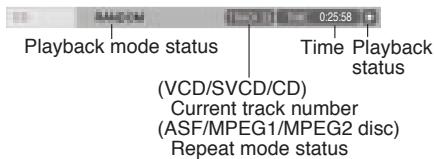

While a disc is playing press ON SCREEN twice. "ON SCREEN" will appear in the display window. The status and menu bars will appear on the TV screen.

DVD Video Status/Menu Bar Example:

Press 6 23 to select an item on the menu bar to be changed. Press ENTER 7 . The currently active function is shown in blue. Refer to the Menu Bar Functions section that follows for more information on the control features available on the Menu Bar. To turn off the menu bar, press the ON SCREEN button again.

Menu Bar Functions

TIME Time display selection - Changes the time information in the display window and on the status bar. Each time ENTER ⑦ is pressed the display is changed.

DVDVIDEO/DVD AUDIO (operating during playback) TOTAL:Elapsed playback time of the current title/group. T.REM:Remaining time of the current title/ group. TIME:Elapsed playback time of the current chapter/track. REM:Remaining time of the current chap ter/track.
DVD VR (operating during playback)
TOTAL: Elapsed playback time of the current title/group.
T.REM: Remaining time of the current title/group.
CD (operating during playback)/VCD/SVCD TIME:Elapsed playback time of the current track. REM:Remaining time of the current track. TOTAL:Elapsed playback time of the disc. T.REM:Remaining time of the disc.
Repeat mode - See the "Repeat Playback" section of this manual on a preceding page.
Time search - See the "Time Search" Section that follows.
CHAP / TRACK Chapter search (DVDVIDEO/DVD VR) / Track search (DVDAUDIO) - Selects a chapter/track. Press the Numeric Buttons to input the chapter/track number and press ENTER 7 .

Examples: 5: 5

24: 2 4

Audio language / Audio (DVDVIDEO/DVD AUDIO/VCD/SVCD)-See the "Selecting the Audio Language" of this manual on a preceding page.

Subtitle language (DVD VIDEO/DVD VR/SVCD) - See the "Selecting the Subtitle Language" section of this manual on a preceding page.

1/3 View angle-(DVDVIDEO/DVD AUDIO) See the "Selecting the Viewing Angle" section of this manual on a preceding page.

PAGE -/- Page switch (DVD AUDIO) Switches the browsable still pictures (B.S.P.) recorded on a DVD AUDIO. See the "Brows-able Still Pictures" section of this manual on a preceding page.

Status Bar Information

DVD Video/DVD Audio/DVD VR (the DVD Video status bar is shown in the example below)

VCD/SVCD/CD/ASF/MPEG1/MPEG2 (the CD status bar is shown in the example below)

Time Search

While a disc is playing press ON SCREEN twice. The Menu Bar will appear. Press 6 23 to select .Press ENTER 7. Input the time using the Numeric Buttons 9

Example: When you want to play a Video DVD from the position of (0 hour) 23 minutes 45 seconds, press the buttons in the following order: 0 2 3 4 5

You can skip the minute and second setting. If an incorrect Numeric Button is pressed, press to delete the incorrect entry and re-enter numbers as needed.

When you are done entering numbers press ENTER ⑦. To turn off the Menu Bar press ON SCREEN again.

• This function does not work for a DVD Video with no time information recorded.
• This function does not work during program playback or random playback.
• For a CD, you can use this function any time.
• For a VCD or SVCD, you can use this function during playback without the PBC function.
• Time search for a DVD Video is from the beginning of the title. Time search for a DVD Audio is from the beginning of the track being played back.
• Time search for a VCD, an SVCD and a CD is as follows: When the disc is stopped, time search is from the beginning of the disc.

When the disc is being played, time search is within the track currently being played back.

Preference Setup

The initial settings of the DVD player can be changed with the Preference screen.

NOTE: The top and bottom of the preference screen may not be displayed on a wide TV. If necessary adjust the picture size on the TV.

When the disc is stopped or no disc is loaded press SET UP . The following screen will be displayed on the TV.

The same procedure is used for changing the settings on these screens. Use the 6 23 buttons to highlight one of the icons at the top of the screen. Then use the 5 24 buttons to highlight the item you want to change. Then press ENTER 7 .

A pull down menu will appear. Use the 5 24 buttons again to select the setting you want. Then press ENTER to set the selection.

NOTE: The initial settings for the Preference menus are shown in bold italics.

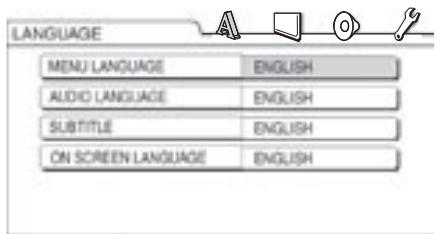

Language Menu

The following choices are available on the Language Menu.

Menu Language - Selects the language for the DVD VIDEO menu screen.

Audio Language - Selects the audio language for the DVD VIDEO.

Subtitle - Selects the subtitle language for the DVD Video.

On Screen Language - Selects the language displayed on the preference screens.

Picture Menu

This menu is used to select the various picture preferences.

Monitor Type

16:9 Normal and 16:9 Auto - For an ordinary wide screen TV.

4:3 LB (Letterbox) or 4:3 Multi LB (Letterbox) - For a TV with conventional 4:3 aspect ratio. When a wide screen picture is input, the black bars appear on the top and bottom of the screen.

4:3 PS (Pan Scan) / 4:3 Multi PS (Pan Scan) - For a TV with conventional 4:3 aspect ratio. When a wide screen picture is input, the left and right edges of the picture will not be shown on the screen. (If the disc is not compatible with Pan Scan, the picture will be displayed at the Letterbox ratio.)

NOTE: When using a TV compatible with multiple video signals select "16:9 Multi", "4:3 Multi LB" or 4:3 Multi PS

Picture Source

Selects an item suitable to the video source.

Auto - The video source type (a video or film) is automatically selected.

Film - To view a film or video recorded with the progressive scan method.

Video - To view a normal video.

Screen Saver

Lets you turn the Screen Saver function On (the initial setting or Off. (Screen Saver activates when a still picture remains on the screen for more than 5 minutes.)

File Type

Selects an item suitable to the file type.

Audio - For MP3/WMA files.

Still Picture - For JPEG files.

Video - For ASF/MPEG1/MPEG2 files.

HDMI DVI Color

Can be set to "ENHANCE" or "STANDARD". Default is "ENHANCE".

HDMI OUT

You can select from "AUTO" or "RGB". Default is "AUTO" which automatically selects maximum resolution of the monitor TV.

Audio Menu

Digital Audio Output

Selects the output signal type suitable to the equipment connected to the DIGITAL OUT terminal (a decoder-built-in amplifier or other digital equipment with an optical input terminal). Refer to "Digital Audio Output Table". The default setting is Stream/PCM.

PCM Only - Equipment corresponding only to linear PCM.

Dolby Digital/PCM - Dolby digital decoder or equipment having the same function.

Stream/PCM - DTS/Dolby digital decoder or equipment having the same function.

Down Mix

Selects the signal suitable to the equipment connected to the DIGITAL OUT terminal. Set "DOWN MIX" only when "DIGITAL AUDIO OUTPUT" is set to "PCM ONLY".

Dolby Surround - Dolby Pro Logic decoder-built-in equipment.

Stereo - Ordinary audio equipment.

D (Dynamic) RANGE COMPRESSION

To correct the difference between high volume and low volume when playing back with low volume (only for a DVD recorded with Dolby digital).

Auto - The D. RANGE COMPRESSION function automatically works.

On - The D. RANGE COMPRESSION function always works.

HDMI Audio Out

Select from "ON" or "OFF". Default is "ON" which means the HDMI output terminal provides the audio signal.

Others Menu

Resume

Select On or OFF.

On Screen Guide

Select On or OFF.

DivX Registration Menu

The unit has its own Registration Code for DivX playback. You can confirm the code of your unit. Once you play back a disc created by using the Registration Code, the unit's code is overwritten by a totally different new one for copyright protection purpose.

Caring for the RDV-1062

Cabinet and Disc Tray Cleaning

Clean the cabinet and disc tray by gently wiping them with a soft cloth dampened with a small amount of a neutral detergent diluted with water. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

Condensation

In some situations, condensation (water drops) can accumulate on the optical lens of the disc reading mechanism, preventing the RDV-1062 from working properly. This can happen when:

• When the RDV-1062 is suddenly moved from a cold place to a warmer place.
• When the RDV-1062 is in a cool room and a heating system is turned on.
• When the RDV-1062 is installed in a steamy or damp space.

In any of these cases, leave the system turned on for 1 or 2 hours before use.

Locking the Disc Tray

You can lock the disc tray to prevent a loaded disc from being ejected.

While the RDV-1062 is off, press and hold the STOP button then press the OPEN/CLOSE button. "LOCKED" will appear in the display window. Repeat the procedure to unlock the disc tray. Then "UNLOCKED" will appear in the display window.

Disc Structure

DVDVIDEO/DVD VR

A DVD Video disc consists of "titles" and each title may be divided into "chapters".

A DVD VR disc consists of "original programs" or "play lists" and each original program/play list may be divided into "chapters".

DVD AUDIO

A DVD Audio disc consists of "groups" and each group may be divided into "tracks".

VCD/SVCD/CD

VCD, SVCD and CD consist of "tracks". In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)

MP3/WMA/JPEG/ASF/MPEG1/MPEG2 Discs

On an MP3/WMA/JPEG/ASF/MPEG1/MPEG2 disc, each still picture (material) is recorded as a track/file. Tracks/files are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.

This system simplifies the hierarchical construction of a disc and manages folders by "groups". This system can recognize up to 4 000 tracks/files in a disc. Also, the system can recognize up to 150 tracks/files per group and up to 99 groups in a disc. Since the system ignores tracks/files with numbers exceeding 150 and groups with numbers exceeding 99, these cannot be played back.

• If there is any type of files other than MP3/WMA/JPEG/ASF/MPEG1/MPEG2 files in a folder, those files are also counted in the total file number.

Additional Disc Information

About MP3/WMA/JPEG/ASF/MPEG1/MPEG2 discs

Playable MP3/WMA/JPEG/ASF/MPEG1/MPEG2 discs and files

• CDs recorded in the "packet write" format (UDF format) are not playable.
• Files with an extension of ".mp3", ".wma", ".jpg", ".jpeg", ".asf", ".avi", ".mpg" or ".mpeg" (extensions with uppercase and lowercase letters mixed are also acceptable) are playable.

Notes on MP3/WMA/JPEG/ASF discs and files

• A disc may not be played back, or reading it may take a long time depending on its recording conditions or properties.
• The time needed for reading varies with the number of groups or tracks (files) recorded on the disc.
• If a character other than single byte English characters is used in the file name of an MP3/WMA/JPEG/ASF file, the track/file name will not be displayed correctly.
• The order of tracks/groups displayed on the MP3/WMA control screen, and the order of files/groups displayed on the JPEG control screen may be different from that of files/folders displayed on a computer monitor screen.
• A commercially available MP3/WMA disc may be played back in an order different from that indicated on the label attached to the disc.

• Playing back an MP3/WMA/JPEG/ASF disc may take a long time. The elapsed time is not displayed until playback starts. The elapsed time may also not be displayed correctly.

• For an MP3/WMA file, a disc with a sampling frequency of 44.1kHz and transmission rate of 128 kbps is recommended.

• This system can play back a baseline JPEG file, excluding monochromatic JPEG files.
• This system can play back JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function such as the automatic image rotation function of a digital camera is applied, the data no longer complies with the DCF standard, so the image may not be displayed).
• If data has been processed, edited and restored with computer image editing software, the data may not be displayed.
• This system cannot play back animations such as MOTION2 JPEG, still images (TIFF etc.) other than JPEG, or image data with sound.
• The resolution of 640 × 480 pixels is recommended for JPEG files. If a file has been recorded at a resolution of more than 640 × 480 pixels, display may take a long time. An image with a resolution of more than 8192 × 7680 pixels cannot be displayed.
• The system supports ASF files recorded with the maximum bit rate of 384 kbps and an audio coder decoder of G.726.
• The maximum size of the playback picture is 352 × 288 pixels (CIF).

Notes on MPEG1/MPEG2 discs and files

• The stream structure of MPEG1/MPEG2 discs and files should conform to MPEG system/program stream.
• 720 × 576 pixels (25 fps)/ 720 × 480 pixels (30 fps) is recommended for the highest resolution.
• This system also supports the resolutions of 352 × 576 / 480 × 576 / 352 × 288 pixels (25 fps) and 352 × 480 / 480 × 480 / 352 × 240 pixels (30 fps).
• The profile and level should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).
  Audio streams should conform to MPEG1 Audio Layer- 2 or MPEG2 Audio Layer-2.

Caution for DualDisc playback:

The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Troubleshooting

Power source

Power does not come on.

• The power cord of the RDV-1062 is not connected to an AC outlet. Connect the power cord correctly.

Operation

Controls and button do not work.

• Some specific operations may be restricted for some discs.

The remote control does not work.

• The batteries have run out. Replace the batteries.

A disc cannot be played back.

• In the case of DVD Videos.

Check the Region Code number of the disc.

• "PLAYABLE Err" is displayed in the display window.

The disc cannot be played back on this DVD player. Check the disc type. See the "Playable Discs" and "Unplayable Discs" sections of this manual.

MP3, WMA, JPEG, ASF, MPEG1 or MPEG2 files cannot be played back.

• The loaded disc may include files of different types (MP3, WMA, JPEG, ASF, MPEG1 or MPEG2). You can play back only the files of the types selected with "FILE TYPE". See the "Preference Setup/Picture" section of this manual.

Images

No picture appears.

• The composite video cord is not connected correctly.

See the "Audio/Video Connections" section of this manual.

• An S-video cord and a component video cord are connected at the same time.

Disconnect one of the cords.

The picture is distorted.

• A video cassette recorder is connected between the DVD player and the TV.

Connect the DVD player directly to the TV.

The screen size is abnormal.

• The screen size is not set correctly. Select the correct "Monitor Type" for the TV you are using. See the "Preference Setup/Picture" section of this manual.

The TV screen darkens.

• "SCREEN Saver" is set to "ON". Press any button.

Other

You cannot switch audio or subtitles between languages.

• The disc does not contain multiple languages.

If only a single language is recorded on the disc, you cannot switch the current language to another language.

No subtitle is displayed.

• The disc does not contain any subtitles.
  A DVD Video without subtitles cannot display any subtitles.
• The subtitle language is set to "OFF". Specify a subtitle language. See the "Preference Setup/Language" section of this manual.
• Before or after point A or B in A-B repeat playback, no subtitle may be displayed.

"LR ONLY" is displayed in the display window (for a DVD AUDIO).

• This is not a malfunction. When a down mix prohibited track is played back for multichannel sound, the left and right sounds are output directly as they are.

If Problems Persist

Many functions of the RDV-1062 are controlled by microprocessors that can be affected by things like power surges. You can "reset" the microprocessors by cycling the power supply. If the unit seems "frozen" and does not respond to buttons being pressed, disconnect the power cord from the outlet, wait for a while, and connect the power cord again.

Language Codes

AA	Afar	MK	Macedonian
AB	Abkhazian	ML	Malayalam
AF	Afrikaans	MN	Mongolian
AM	Ameharic	MO	Moldavian
AR	Arabic	MR	Marathi
AS	Assamese	MS	Malay (MAY)
AY	Aymara	MT	Maltese
AZ	Azerbaijan	MY	Burmese
BA	Bashkir	NA	Nauru
BE	Byelorussian	NE	Nepali
BG	Bulgarian	NL	Dutch
BH	Bihari	NO	Norwegian
BI	Bislama	OC	Occitan
BN	Bengali, Bangla	OM	(Afan) Oromo
BO	Tibetan	OR	Oriya
BR	Breton	PA	Panjabi
CA	Catalan	PL	Polish
CO	Corsican	PS	Pashto, Pushto
CS	Czech	PT	Portuguese
CY	Welsh	QU	Quechua
DA	Danish	RM	Rhaeto-Romance
DZ	Bhutani	RN	Kirundi
EL	Greek	RO	Rumanian
EO	Esperanto	RU	Russian
ET	Estonian	RW	Kinyarwanda
EU	Basque	SA	Sanskrit
FA	Persian	SD	Sindhi
FI	Finnish	SG	Sangho
FJ	Fiji	SH	Serbo-Croatian
FO	Faroese	SI	Singhalese
FY	Frisian	SK	Slovak
GA	Irish	SL	Slovenian
GD	Scots Gaelic	SM	Samoan
GL	Galician	SN	Shona
GN	Guarani	SO	Somali
GU	Gujarati	SQ	Albanian
HA	Hausa	SR	Serbian
HI	Hindi	SS	Siswati
HR	Croatian	ST	Sesotho
HU	Hungarian	SU	Sundanese
HY	Armenian	SV	Swedish
IA	Interlingua	SW	Swahili
IE	Interlingue	TA	Tamil
IK	Inupiak	TE	Telugu
IN	Indonesian	TG	Tajik
IS	Icelandic	TH	Thai
IW	Hebrew	TI	Tigrinya
JI	Yiddish	TK	Turkmen
JW	Javanese	TL	Tagalog
KA	Georgian	TN	Setswana
KK	Kazakh	TO	Tongan
KL	Greenlandic	TR	Turkish
KM	Cambodian	TS	Tsonga
KN	Kannada	TT	Tatar
KO	Korean (KOR)	TW	Twi
KS	Kashmiri	UK	Ukrainian
KU	Kurdish	UR	Urdu
KY	Kirghiz	UZ	Uzbek
LA	Latin	VI	Vietnamese
LN	Lingala	VO	Volapuk
LO	Laothian	WO	Wolof
LT	Lithuanian	XH	Xhosa
LV	Latvian, Lettish	YO	Yoruba
MG	Malagasy	ZU	Zulu
MI	Maori

Digital Audio Output Table

Playback disc	DIGITAL AUDIO OUTPUT preference
	PCM ONLY	DOLBY DIGITAL/PCM	STREAM/PCM
48 kHz, 16/20/24 bit Linear PCM DVD VIDEO96 kHz linear PCM DVD VIDEO	48 kHz, 16 bit stereo linear PCM
48/96/192 kHz,16/20/24 bit linear PCM DVD AUDIO*	48 kHz, 16 bit stereo linear PCM
44.1/88.2/176.4 kHz,16/20/24 bit linear PCM DVD AUDIO*	44.1 kHz, 16 bit stereo linear PCM
DTS DVD VIDEO/DVD AUDIO*	48 kHz, 16 bit stereo linear PCM		DTS bit stream
DOLBY DIGITAL DVD VIDEO/DVDAUDIO*	48 kHz, 16 bit stereo linearPCM	DOLBY DIGITAL bit stream
VCD/SVCD/CD	44.1 kHz, 16 bit stereo linear PCM/48 kHz, 16 bit linear PCM
DTS CD	44.1 kHz, 16 bit linear PCM		DTS bit stream
MP3/WMA disc	32/44.1/48 kHz, 16 bit linear PCM

Specifications

Video Characteristics

Readable discs:

DVDVIDEO,DVD AUDIO(2 channel down mix),

Video CD, SVCD, CD-DA, CD-R/RW, DVD-R/RW for

MP3, WMA, JPEG

Video format:

NTSC(480i)/PAL(576i), 480p/576p, 720p, 1080i

Signal to noise ratio:

65 dB

Audio output

Analog Out (pin jack):

2.0 Vrms

Digital Out:

Optical; HDMI ver.1.0

Audio Characteristics

Frequency response:

CD (at 44.1 kHz)

20 Hz to 20 kHz

DVD (at 48 kHz)

20 Hz to 22 kHz

DVD (at 96 kHz)

20 Hz to 44 kHz

DVD (at 192/176.4 kHz)

20 Hz to 88 kHz

Dynamic range:

more than 98 dB

Total harmonic distortion:

Less than 0.006%

General Characteristics

Power requirements:

AC 110V - 240V ，50-60Hz

Power consumption:

11W (Power ON), 0.6W (Standby)

Weight:

4.7kg / 10.36lb

Dimensions (W× H× D)

432× 93× 340mm

17.01^ × 3.62^ × 13.23^

Front Panel Height:

80mm / 3.15^

(feet removed/for rack mount)

Specifications and appearance subject to change without prior notice.

15 Touche ■ (STOP)/CLEAR

Stoppe la lecture.

16 Touche |PREVIOUS 17 Touche |NEXT

3 Touche OPN/CLS (OPEN/CLOSE)

9 Touches (SKIP)

Lecture programme 34

www.rotel.com/register

AA	Afar	MK	Macedonian
AB	Abkhazian	ML	Malayalam
AF	Afrikaans	MN	Mongolian
AM	Ameharic	MO	Moldavian
AR	Arabic	MR	Marathi
AS	Assamese	MS	Malay (MAY)
AY	Aymara	MT	Maltese
AZ	Azerbaijan	MY	Burmese
BA	Bashkir	NA	Nauru
BE	Byelorussian	NE	Nepali
BG	Bulgarian	NL	Dutch
BH	Bihari	NO	Norwegian
BI	Bislama	QC	Occitan
BN	Bengali, Bangla	OM	(Afan) Oromo
BO	Tibetan	OR	Oriya
BR	Breton	PA	Panjabi
CA	Catalan	PL	Polish
CO	Corsican	PS	Pashto, Pushto
CS	Czech	PT	Portuguese
CY	Welsh	QU	Quechua
DA	Danish	RM	Rhaeto-Romance
DZ	Bhutani	RN	Kirundi
EL	Greek	RO	Romanian
EO	Esperanto	RU	Russian
ET	Estonian	RW	Kinyarwanda
EU	Basque	SA	Sanskrit
FA	Persian	SD	Sindhi
FI	Finnish	SG	Sangho
FJ	Fiji	SH	Serbo-Croatian
FO	Faroese	SI	Singhalese
FY	Frisian	SK	Slovak
GA	Irish	SL	Slovenian
GD	Scots Gaelic	SM	Samoan
GL	Galician	SN	Shona
GN	Guarani	SO	Somali
GU	Gujarati	SQ	Albanian
HA	Hausa	SR	Serbian
HI	Hindi	SS	Siswati
HR	Croatian	ST	Sesotho
HU	Hungarian	SU	Sundanese
HY	Armenian	SV	Swedish
IA	Interlingua	SW	Swahili
IE	Interlingue	TA	Tamil
IK	Inupiak	TE	Telugu
IN	Indonesian	TG	Tajik
IS	Icelandic	TH	Thai
IW	Hebrew	TI	Tigrinya
JI	Yiddish	TK	Turkmen
JW	Javanese	TL	Tagalog
KA	Georgian	TN	Setswana
KK	Kazakh	TO	Tongan
KL	Greenlandic	TR	Turkish
KM	Cambodian	TS	Tsonga
KN	Kannada	TT	Tatar
KO	Korean (KOR)	TW	Twi
KS	Kashmiri	UK	Ukrainian
KU	Kurdish	UR	Urdu
KY	Kirghiz	UZ	Uzbek
LA	Latin	VI	Vietnamese
LN	Lingala	VO	Volapuk
LO	Laothian	WO	Wolof
LT	Lithuanian	XH	Xhosa
LV	Latvian, Lettish	YO	Yoruba
MG	Malagasy	ZU	Zulu
MI	Maori

NTSC(480i)/PAL(576i),480p/576p,720p,1080i

1. KLASSE 1 LASERPRODUCT

KLASSE 1 LASERPRODUCT

CAUTION	- LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM.
ATTENTION	- RAYONNEMENT LASEN EN CAS D'OUVERTURE. NE PAS RÉGARDER DANS LE FASGEAU.
VORSICH	- LASERSTRAHUNG, WEIN BADECKUNG GEÖFFENET. NIGHT IN DEN STRAH BLICKEN.
ADVARSE	- LASERSTRAHUNG VED ABNING. SE IKKE IND I STRALEN.
ADVARSE	- LASERSTRAHING NAR DENSEL APNES. STRIR IKKE INN I STRALEN.
VARNING	- LASERSTRAHING NAR DENNA DEL AR ÖPPNAD. STRRA EJ IN I STRALEN.
VARO!	- AVATTAESA OLET ALTTINA LASERSATEIYLLE. ALI TÜJOTA SATESESEEN.
注意	· 当打开这里会出现激光。 请不要直视激光。
注意	· ごこ閉くとレーパー光が出来。 レーパー光をそのまきACYみはて工程质量。

WAARSCHUWING - KIJK NIET IN DE LASERSTRAAL WANNEER DE SPELER OPENSTAAT

Opmerking

De toets "CLEAR" (stop)

3 De toets "OPN/CLS"

www.rotel.com/register

Display on the TV screen	Display in the display window	Usage for the repeat mode
TITLE	ALL REPEAT TITLE	Repeats the current title
ALL or REPEAT ALL	ALL REPEAT ALL	Repeats the whole disc*1
GROUP*2 or REPEAT GROUP	GR GROUP*2	Repeats the current group*3
CHAP*4	REPEAT CHAP*4	Repeats the current chapter
TRACK*4 or REPEAT TRACK	REPEAT TRACK*4	Repeats the current track
OFF or no display	REPEAT OFF	Repeat off

De keuze is "ON" (aan) of "OFF" (uit).

On Screen Guide

De keuze is "ON" (aan) of "OFF" (uit).

Group 1		Group 2
Track 1/ File 1	Track 2/ File 2	Group 3	Group 4

AA	Afar	MK	Macedonian
AB	Abkhazian	ML	Malayalam
AF	Afrikaans	MN	Mongolian
AM	Ameharic	MO	Moldavian
AR	Arabic	MR	Marathi
AS	Assamese	MS	Malay (MAY)
AY	Aymara	MT	Maltese
AZ	Azerbaijan	MY	Burmese
BA	Bashkir	NA	Nauru
BE	Byelorussian	NE	Nepali
BG	Bulgarian	NL	Dutch
BH	Bihari	NO	Norwegian
BI	Bislama	QC	Occitan
BN	Bengali, Bangla	OM	(Afan) Oromo
BO	Tibetan	OR	Oriya
BR	Breton	PA	Panjabi
CA	Catalan	PL	Polish
CO	Corsican	PS	Pashto, Pushto
CS	Czech	PT	Portuguese
CY	Welsh	QU	Quechua
DA	Danish	RM	Rhaeto-Romance
DZ	Bhutani	RN	Kirundi
EL	Greek	RO	Romanian
EO	Esperanto	RU	Russian
ET	Estonian	RW	Kinyarwanda
EU	Basque	SA	Sanskrit
FA	Persian	SD	Sindhi
FI	Finnish	SG	Sangho
FJ	Fiji	SH	Serbo-Croatian
FO	Faroese	SI	Singhalese
FY	Frisian	SK	Slovak
GA	Irish	SL	Slovenian
GD	Scotts Gaelic	SM	Samoan
GL	Galician	SN	Shona
GN	Guarani	SO	Somali
GU	Gujarati	SQ	Albanian
HA	Hausa	SR	Serbian
HI	Hindi	SS	Siswati
HR	Croatian	ST	Sesotho
HU	Hungarian	SU	Sundanese
HY	Armenian	SV	Swedish
IA	Interlingua	SW	Swahili
IE	Interlingue	TA	Tamil
IK	Inupiak	TE	Telugu
IN	Indonesian	TG	Tajik
IS	Icelandic	TH	Thai
IW	Hebrew	TI	Tigrinya
JI	Yiddish	TK	Turkmen
JW	Javanese	TL	Tagalog
KA	Georgian	TN	Setswana
KK	Kazakh	TO	Tongan
KL	Greenlandic	TR	Turkish
KM	Cambodian	TS	Tsonga
KN	Kannada	TT	Tatar
KO	Korean (KOR)	TW	Twi
KS	Kashmiri	UK	Ukrainian
KU	Kurdish	UR	Urdu
KY	Kirghiz	UZ	Uzbek
LA	Latin	VI	Vietnamese
LN	Lingala	VO	Volapuk
LO	Laothian	WO	Wolof
LT	Lithuanian	XH	Xhosa
LV	Latvian, Lettish	YO	Yoruba
MG	Malagasy	ZU	Zulu
MI	Maori

Playback disc	DIGITAL AUDIO OUTPUT preference
	PCM ONLY	DOLBY DIGITAL/PCM	STREAM/PCM
48 kHz, 16/20/24 bit Linear PCM DVD VIDEO96 kHz linear PCM DVD VIDEO	48 kHz, 16 bit stereo linear PCM
48/96/192 kHz,16/20/24 bit linear PCM DVD AUDIO*	48 kHz, 16 bit stereo linear PCM
44.1/88.2/176.4 kHz,16/20/24 bit linear PCM DVD AUDIO*	44.1 kHz, 16 bit stereo linear PCM
DTS DVD VIDEO/DVD AUDIO*	48 kHz, 16 bit stereo linear PCM		DTS bit stream
DOLBY DIGITAL DVD VIDEO/DVDAUDIO*	48 kHz, 16 bit stereo linearPCM	DOLBY DIGITAL bit stream
VCD/SVCD/CD	44.1 kHz, 16 bit stereo linear PCM/48 kHz, 16 bit linear PCM
DTS CD	44.1 kHz, 16 bit linear PCM		DTS bit stream
MP3/WMA disc	32/44.1/48 kHz, 16 bit linear PCM

Technische Gegevens

Betreffende Video

Browsing Still Pictures (BSP)
