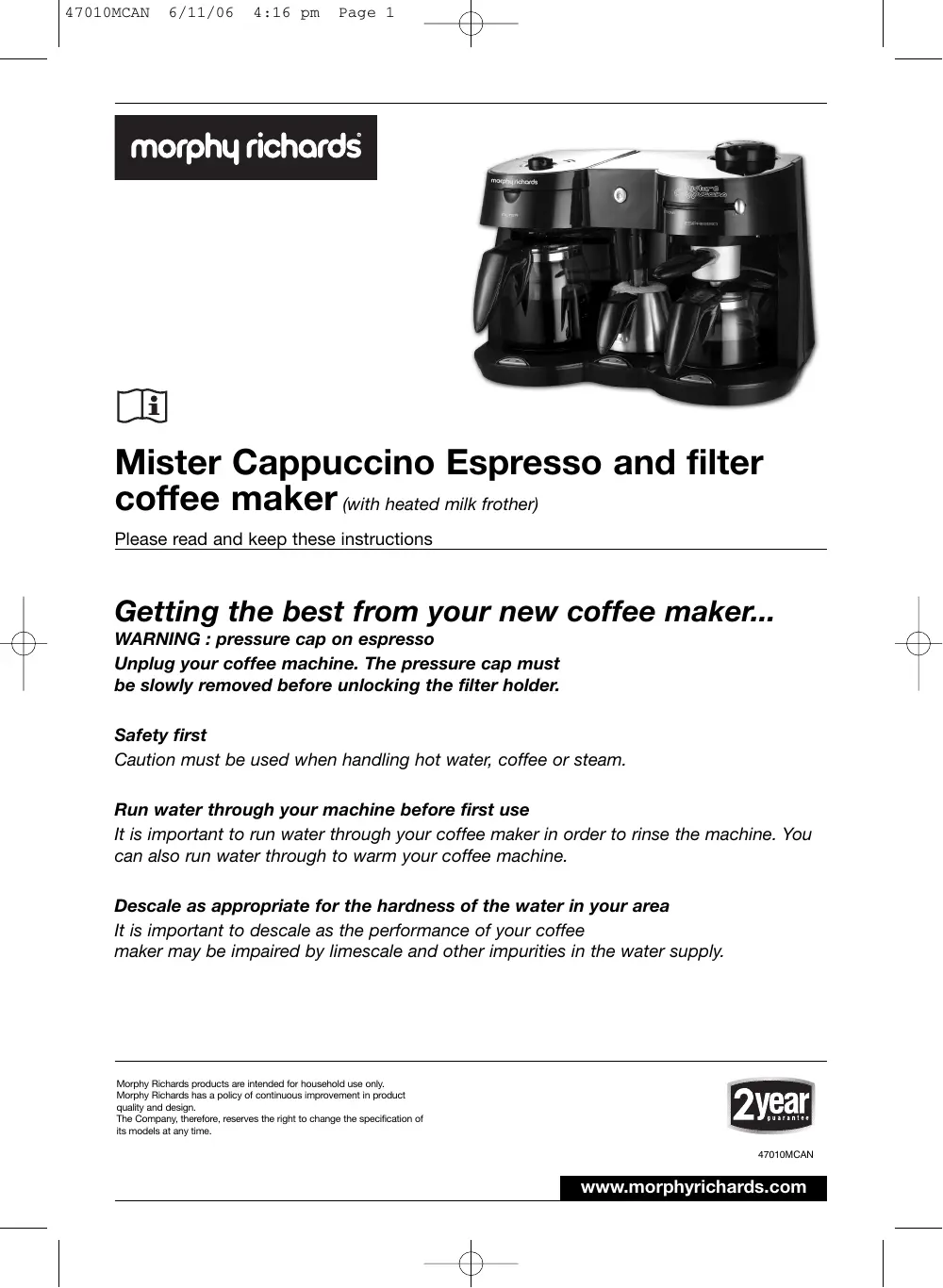

MISTER CAPPUCINO EXPRESSO AND FILTER COFFEE MAKER - Machine à café MORPHY RICHARDS - Free user manual and instructions

USER MANUAL MISTER CAPPUCINO EXPRESSO AND FILTER COFFEE MAKER MORPHY RICHARDS

Mister Cappuccino Espresso and filter coffee maker (with heated milk frother) Please read and keep these instructions

Getting the best from your new coffee maker... WARNING : pressure cap on espresso Unplug your coffee machine. The pressure cap must be slowly removed before unlocking the filter holder. Safety first Caution must be used when handling hot water, coffee or steam. Run water through your machine before first use It is important to run water through your coffee maker in order to rinse the machine. You can also run water through to warm your coffee machine. Descale as appropriate for the hardness of the water in your area It is important to descale as the performance of your coffee maker may be impaired by limescale and other impurities in the water supply.

Morphy Richards products are intended for household use only. Morphy Richards has a policy of continuous improvement in product quality and design. The Company, therefore, reserves the right to change the specification of its models at any time. 47010MCAN

www.morphyrichards.com

Do not attempt to modify the plug in any way.

Getting the best from your new coffee maker

Ensure the coffee maker is used on a firm, flat surface.

Warning : pressure cap on espresso

Do not use the coffee maker outdoors or in a bathroom.

The pressure cap must be slowly removed before unlocking

Do not place the coffee maker on a highly polished wooden surface as damage may occur to the surface.

Do not place the coffee maker on or near hot surfaces such as a hot plate or radiant rings or near a naked flame.

WARNING: Do not place the coffee maker onto a metal tray or metal surface whilst in use.

Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance. Close supervision is necessary when appliance is used near children.

It is important to run water through your coffee maker in order to rinse the machine. You can also run water through to warm your coffee machine.

Disconnect coffee maker from outlets when not in use and before cleaning. Allow to cool before put on or taking off parts, and before cleaning the appliance.

Descale as appropriate for the hardness of the water in your area

When unplugging, turn any control to ‘off’, then remove plug from the wall outlet.

Keep the outside of the coffee maker area clean and dry at all times.

Do not touch hot surfaces. Always use handles or knobs.

Do not immerse the coffee maker itself in water or other liquid and always ensure the electrical connections are kept dry.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return to an authorised service facility for examination, repair or adjustment.

The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury.

Do not use abrasive cleaners on the outside of the coffee maker, they may scratch the surface. Clean only with a soft damp cloth.

the filter holder with the appliance disconnected from the mains.

Safety first Caution must be used when handling hot water, coffee or steam Note The filter coffee unit and the espresso unit cannot be used a the same time. Use either the filter or the espresso. •

Run water through your machine before first use

It is important to descale as the performance of your coffee maker may be impaired by limescale and other impurities in the water supply.

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: •

READ ALL INSTRUCTIONS

Remove all the packaging and retain for future reference.

This appliance has a polarized plug. To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

www.morphyrichards.com

Do not use the coffee maker for anything other than its intended purpose.

Never use warm or hot water to fill the reservoir or water tank.

Do not overfill the water tank.

Scalding may occur if the pressure cap is removed during the brewing cycles, therefore never open or remove the pressure cap whilst the machine is switched on. Unplug your coffee maker and allow to cool. The pressure cap must be removed slowly before unlocking the filter holder.

The glass jugs and the espresso filter holder get hot while the machine is in use. Always use with care. Do not set a hot container on a cold surface. Do not use a cracked container or a container having a loose or weakened handle. Do not clan containers with wire wool pads or other abrasive material. Make sure the mains lead does not touch the hot parts of the machine. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces. Do not wind the mains lead around the hot appliance or store the appliance until it has fully cooled down. Do not remove the espresso filter holder when the appliance is producing hot water or coffee. Turn the machine off and release the steam first by slowly removing the pressure cap. Treating scalds Run cold water over the affected area immediately. Do not stop to remove clothing, get medical help quickly.

Ensure the lid of the glass jug is securely in place before pouring.

Take care to pour hot coffee slowly and carefully without tipping the glass jug too fast.

Do not place the filter machines glass jug on the hot plate unless the lid is in position.

Do not fill above the capacity mark of the water level indicator.

Do not use the glass jug in a microwave.

Milk should not be reheated, only heat it when required.

When heating milk, please use stainless steel jug provided.

Do not fill milk jug above the MAX mark.

Do not touch metal parts until the unit has cooled.

Do not adjust the coffee strengths once brewing is in process. Warning : Espresso pressure cap: Unplug the machine and allow to cool. Slowly remove the pressure cap before unlocking the filter holder.

Extension cords A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Extension cords are commercially available and may be used if care is exercised in their use. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type the extension cord should be a grounding type 3-wire cord. If an extension cord is used it should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

SAVE THESE INSTRUCTIONS

www.morphyrichards.com

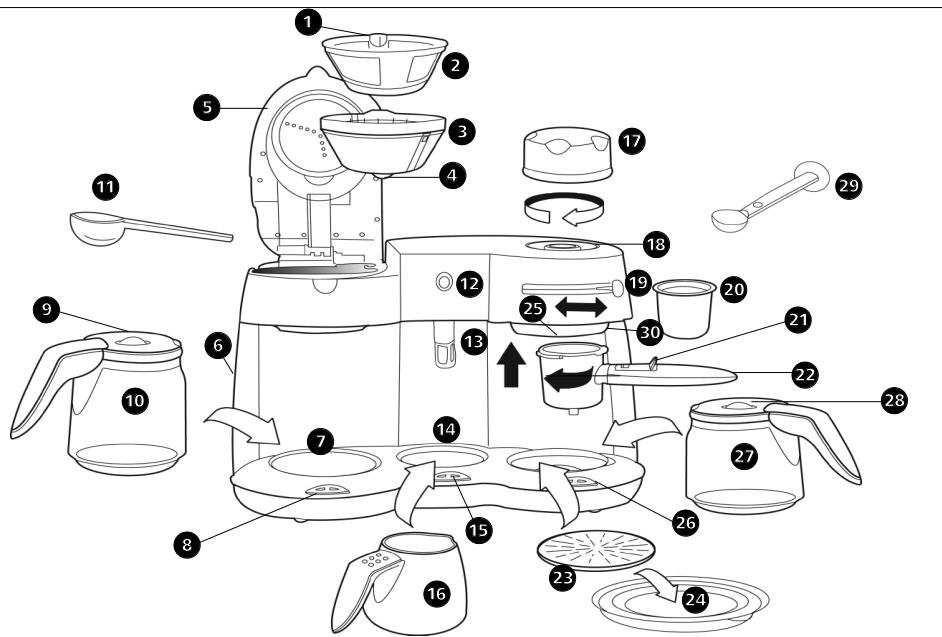

Features Filter coffee ⁄ Filter locking tab ¤ Removable permanent mesh filter ‹ Removable filter holder with locking tab › Non drip valve fi Hinged reservoir lid with strength selector fl Water level indicator ‡ Filter coffee hot plate · Filter coffee on/off switch with power and ready indicators ‚ Jug lid „ Glass filter coffee jug with water level indicator ‰ Measuring spoon Milk frother  Milk frother on/off button Ê Milk frother attachment Á Milk frother hot plate Ë Milk frother hot plate on/off switch with indicator È Milk frother jug

www.morphyrichards.com

Espresso coffee Í Pressure cap Î Water tank Ï Strength selector Ì Filter Ó Filter retaining clip Ô Filter holder  Drip tray metal plate Ò Drip tray Ú Hot water outlet Û Espresso on/ off switch with power and ready indicators Ù Glass espresso coffee jug with water level indicator ı Glass espresso coffee jug lid ˆ Measuring spoon/ tamper ˜ Steam exhaust tube

Slide the jug into the coffee maker ensuring it sits correctly on the hot plate. The jug lid must be in place during the brewing process, otherwise the non-drip valve will not open, causing the filter to flood.

Plug the filter coffee maker in at the wall socket and push the coffee on/off switch to ‘ON’ position. The orange light will glow to show coffee maker is working.

Hot water will start to flow through the coffee grounds and into the glass jug as coffee.

When the filtering process is complete remove the glass jug from your coffee maker and pour the coffee into your cups.

Before use Take your coffee maker out of the box and remove the packaging. Before using the appliance for the first time, clean thoroughly by operating two or three times with the maximum volume of fresh water (10 cups for filter, 6 cups for espresso) but without using coffee. Washable the detachable parts of the machine in warm soapy water.

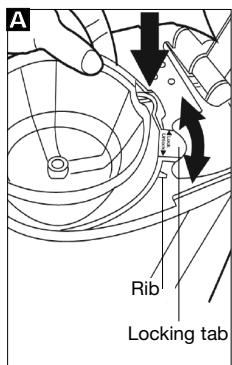

Locating the filter 1

To remove the filter, slide the locking tab on the removable filter holder to the unlock position and and lift both the holder and mesh filter out to clean (see cleaning) A. To refit, place the removable filter holder into the top of your coffee maker, making sure the tab lines up with the rib then slide the locking tab to the lock position. Place the permanent mesh filter inside the filter holder by lining up the locating tab with the groove in the filter holder as shown.

Making filter coffee 1

Lift up the hinged reservoir lid.

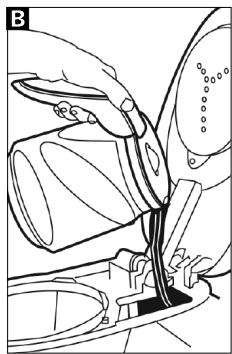

Fill the water reservoir with the required amount of water using the water level indicator as a guide. Both the jug and water level indicator are marked in cups. Do not exceed the maximum level on the water gauge B.

10 The anti-drip valve will prevent any remaining coffee dripping onto the hot plate. Ensure that the jug is replaced on the hot plate after serving. While the coffee maker is switched ON the hot plate will keep the coffee warm. 11 Switch off the coffee maker when the jug is empty or the coffee is no longer required.

WARNING: The coffee maker and hot plates are hot and remain hot for some time after switching off. 12 Allow unit to cool.

Spoon the required amount of ground filter coffee into the mesh filter spreading it evenly. We suggest one level measuring spoon for every cup. Ensure the filter is sitting properly in the filter holder.

Close the reservoir lid.

Select the strength of coffee required using the strength selector on the reservoir lid.

13 Remove the permanent mesh filter and empty the used coffee grounds. Wash the filter immediately and dry thoroughly. NOTE: THE MESH WILL BECOME DISCOLOURED AFTER A WHILE DUE TO THE STAINING EFFECT OF COFFEE. NOTE: It is normal for the green ready light to go out and come back on intermittently due to thermostatic cycling.

www.morphyrichards.com

Unscrew the pressure cap ⁄ by turning it anti-clockwise. To fill the water tank ¤ use your glass jug  to measure the volume of water required. The jug is marked with the water levels for 2 cups (minimum), 4 cups and 6 cups (maximum). Always switch the machine off and remove the plug from the socket before filling the water tank. Care should be taken to ensure that the correct quantity of water is placed in the tank, as the machine always uses all the water.

Close the pressure cap tightly by turning it clockwise.

Place the washable metal filter › into the filter holder fl and add the desired quantity of coffee to the filter using the measuring spoon provided. Special marks on the inside of the filter show the correct levels for 2, 4 and 6 cups of coffee lightly compress the coffee down. Remove excess coffee from the edge of the filter.

Set the on/off switch to ‘OFF’.

When the filtering process is complete remove the glass jug from your coffee maker and pour the coffee into your cups.

10 Unplug machine and allow to cool. Slowly remove the pressure cap. 11 To remove the used coffee grounds, remove the filter holder by turning the handle to the left until you find that the filter holder drops down. Flip the filter retaining clip fi so that it retains the filter. Turn the filter upside down and knock out the grounds. Flip the retaining clip back along the handle before the next use. NOTE: Due to the amount of steam lost through the process, the coffee produced will be less than the water put in. This is accounted for in the amount to put in

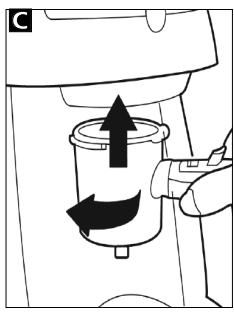

Position the filter holder underneath the water outlet ‚, push it upwards and turn it to the right into the locked position to fix it onto your coffee machine C. NOTE: Push firmly to the right to lock into position.

Your machine is fitted with a strength selector ‹ which allows you to make LIGHT to STRONG coffee. Set the strength selector mid way between LIGHT and STRONG for MEDIUM strength coffee. Place your glass jug with the lid on the drip tray ‡ and · directly under the spout of the filter holder, ensuring that the jug handle is pointing outwards from the unit. Press the on/off switch „ to ‘ON’ and the orange light will glow. The coffee will start to flow from the filter holder spout after about 2 or 3 minutes. Wait until all the water from the water tank has flowed into your glass jug and the green light glows.

www.morphyrichards.com

Remove the cowl directly after use and rinse in cold water. It is recommended that you clean the blade immediately after use, as dried milk can be difficult to remove. The propeller can be wiped clean still attached to the machine.

If further cleaning is required the propeller and shaft can be removed. To replace, insert the stem of the milk frother blade into the mounting hole on the unit and screw into place.

There may be some splash back of milk on the underside of the frothing unit. Switch the unit off then simply wipe this area clean with a damp cloth.

Making a cappuccino Prepare your machine as described in the section ‘Making a coffee’. Use your glass jug for measuring the correct amount of water needed.

It is advised to start heating your milk ready for frothing several minutes before making coffee to ensure milk is hot.

The milk frother blade can be wiped clean still attached to the machine or it can be removed for easy cleaning by unscrewing the blade and shaft. Wash carefully in hot soapy water.

Fill the stainless steel milk jug provided with the required amount of milk. Do not exceed the maximum level or add less than the minimum level.

For quick cleaning just after use, fill up the milk jug with hot water and run the frother for 30-50 seconds; repeat the process twice.

Place the jug on the hot plate and switch on, the orange light will glow. Once the coffee is brewed, the milk is ready to froth. Lift the milk jug up to the milk frother blade E. Raise the milk jug ensuring that the frother blade is just under the surface of the milk - this will give the maximum froth.

If the milk has been left for a long time the cowl and blade can be removed and soaked in hot soapy water for 2-5 minutes before rinsing clean.

Push and release the milk frother button. Take care as the milk will be hot. When the milk is frothy, which normally takes around 30 seconds), press the milk frother button once more to stop the frother. Pour the coffee into cups and gently pour or preferably spoon the milk onto the coffee, then sprinkle a little chocolate powder for perfect cappuccino.

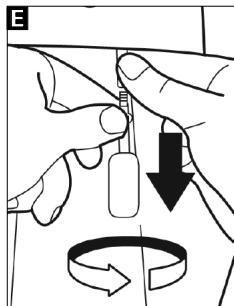

The milk frother blade can be removed for easy cleaning by unscrewing the blade. Wash carefully in hot soapy water. It is recommended that you remove the blade immediately after use, as dried milk can be difficult to remove. To replace, insert the stem of the milk frother blade into the mounting hole on the unit and screw into place.

If further cleaning is required the propeller and shaft can be removed. To replace, insert the stem of the milk frother blade into the mounting hole on the unit and screw into place E. NOTE: If the blade is removed, ensure that it is fully tightened in place otherwise the frother will not operate properly.

Turn off the milk frother hot plate by pressing the neon on/off switch. WARNING: The stainless steel jug and the hotplate will remain hot for sometime after switching off.

D The frother blade can be wiped clean still attached to the machine.

Remove the cowl directly after use and rinse in warm water D. It is recommended that you clean the blade immediately after use, as dried milk can be difficult to remove.

E There may be some splash back of milk on the underside of the frothing unit. Switch the unit off then simply wipe this area clean with a damp cloth. WARNING: The frother only operates correctly when the cowling is correctly assembled. WARNING: Do not operate the frother dry or not submersed in liquid for long periods of time.

There may be some splash back of milk on the underside of the frothing unit. Switch the unit off then simply wipe this area clean with a damp cloth.

www.morphyrichards.com

Filter recipes Cafe Melange 2 parts coffee

Blend or shake until thick and frothy.

Serve in a tall glass and top with grated chocolate.

Note: for a thicker shake reduce the quantity of milk and increase the amount of icecream.

1 part hot milk Dollop whipped cream 1

Prepare filter coffee as per ‘making coffee’ instructions.

Irish coffee Makes 4 servings

Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 5-7 minutes to reach the appropriate temperature.

75ml of double cream 4 tsp sugar 8 shots of Irish whiskey

Once the coffee and milk are ready, pour 2 parts coffee into a cup and add 1 part milk.

700ml hot strong coffee 1

Whip double cream until thick then chill.

Warm 4 Irish coffee glasses with hot water and place in each a teaspoon of sugar and 2 shots of Irish whiskey.

1-2 tablespoons of condensed milk or single cream

Divide coffee among the glasses.

Large splash of vanilla essence

Slowly dribble the chilled cream over the back of the spoon.

Top with a dollop of whipped cream to serve. Cafe Frappe 250ml cold strong coffee

Combine ingredients in a blender until smooth.

Amaretto coffee 250ml hot strong coffee

Serve in a tall glass. 2 tablespoons of double or whipped cream

Coffee milkshake Combine in a blender or cocktail shaker:

100ml of cold strong filter coffee 1 scoop of vanilla icecream

Stir the coffee and alcohol together either with a couple of tablespoons of double-cream, or top with a dollop of whipped cream.

Sprinkle with grated chocolate and serve.

250ml milk grated chocolate Sugar to taste double shot of Amaretto liqueur (optional)

www.morphyrichards.com

Cappuccino 1/3 espresso

1/3 hot frothed milk 1/3 hot milk 1/3 hot chocolate 1/3 hot frothed milk 1

Prepare coffee as per ‘making a perfect espresso coffee’ instructions.

Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 5-7 minutes to reach the appropriate temperature.

Froth milk by lifting the milk jug up to the milk frothing blade ensuring that the blade is just under the surface of the milk and press the milk frothing button. The milk will take approx. 30-60 seconds to froth.

Prepare the hot chocolate according to the instructions.

Pour the coffee, hot milk and hot chocolate into a tall glass and serve.

Prepare coffee as per ‘making a perfect espresso coffee’ instructions. Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 5-7 minutes to reach the appropriate temperature. Froth milk by lifting the milk jug up to the milk frothing blade ensuring that the blade is just under the surface of the milk and press the milk frothing button. The milk will take approx. 30-60 seconds to froth.

Pour the coffee and hot milk into a cappuccino cup, spoon over frothed milk.

Sprinkle with chocolate powder to serve.

Irish coffee Makes 2 servings

Cafe Latte 1/2 espresso

40ml of double cream 2 tsp sugar

1/2 hot frothed milk 4 shots of Irish whisky 1

Prepare coffee as per ‘making a perfect espresso coffee’ instructions. Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 5-7 minutes to reach the appropriate temperature. Froth milk by lifting the milk jug up to the milk frothing blade ensuring that the blade is just under the surface of the milk and press the milk frothing button. The milk will take approx. 30-60 seconds to froth. Pour the coffee into a tall glass and top with the frothed milk

350ml hot strong coffee 1

Whip double cream until thick then chill.

Warm 2 Irish coffee glasses with hot water and place in each a teaspoon of sugar and 2 shots of Irish whisky.

Divide coffee among the glasses.

Slowly dribble the chilled cream over the back of the spoon.

Do not stir. Amaretto coffee 250ml hot strong coffee 2 tablespoons of double or whipped cream

www.morphyrichards.com

HINTS AND TIPS Cleaning and maintenance 1

Refilling the coffee maker Switch off the coffee maker, and allow 5 minutes to cool.

Remove the espresso pressure cap slowly and refill with cold water.

Lift the hinged reservoir lid and refill with cold water. Espresso descaling Your coffee machine should be regularly descaled using a good quality proprietary descaler recommended for espresso machines. We suggest the following intervals. Normal water - every 6 months

Note: The permanent stainless steel filter should not be used during descaling. Filter descaling Follow the instructions on the bottle or sachet, and then operate the coffee maker with just water 3 times before making coffee. Note: The permanent mesh filter should not be used during descaling.

Cleaning care Espresso Unplug the coffee maker, slowly remove the espresso pressure cap and allow to cool. Do not immerse the coffee maker in liquid.

Hard water - every 3 months Very hard water - every 6 to 8 weeks Remove the filter from its holder and position the filter holder beneath the water outlet. Pour fresh cold water together with 2 or 3 teaspoonfuls of descaler into the water container of your machine and close its lid. Place the empty glass jug back onto the drip tray and set the strength selector to the ‘light’ position. Switch on your machine to descale, repeating the process if necessary. After descaling, flush your machine through by operating 2 or 3 times using fresh cold water. Clean all detachable parts and please remember that you can help prevent build up of deposits, especially in hard water areas by leaving your machine empty between use. -It is important you use a descaler suitable for cappuccino/espresso machines carefully following any special instructions given by its manufacturer. undertaken for possible damage in the event of the appliance being misused or operated in any manner other than described in these instructions.

www.morphyrichards.com

Rinse the water tank occasionally with cold water. Do not use a cloth as any residue or lint left behind may clog the coffee maker. Wash the milk frother blade, milk frother attachment, milk frother jug, drip tray metal plate, drip tray, drip tray plate, glass jug, lid, filter, filter holder and stainless steel milk jug in warm soapy water. Rinse and dry all parts thoroughly. Refit filter, filter holder , milk frother blade and milk frother attachment. Unplug The coffee maker, slowly remove the pressure cap and allow to cool. Do not immerse the coffee maker in liquid. Rinse the water tank occasionally with cold water. Do not use a cloth as any residue or lint may be left behind to clog the coffee maker. Wash the milk frother blade, drip tray , glass jug, lid filter and filter holder, in warm soapy water. Rinse and dry all parts thoroughly. Refit filter, filer holder and milk frother blade. Wipe all external surfaces with a damp cloth and dry thoroughly. Never use harsh or abrasive cleaners.

EXCLUSIONS Milk frother parts (excluding milk frother jug) are dishwasher safe.

Your two year guarantee It is important to retain the retailers receipt as proof of purchase. Staple your receipt to this back cover for future reference. Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where: 1

The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturers recommendations or where the fault has been caused by power surges or damage caused in transit.

The appliance has been used on a voltage supply other than that stamped on the products.

Repairs have been attempted by persons other than our service staff (or authorised dealer).

Where the appliance has been used for hire purposes or non domestic use.

Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.

Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be replaced. If the fault develops after 28 days and within 24 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown. You will be asked to return the product (in secure, adequate packaging) to the address below along with a copy of proof of purchase.

This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

Subject to the exclusions set out below (see Exclusions) the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt. If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase. To qualify for the 2 year guarantee the appliance must have been used according to the manufacturers instructions. For example coffee makers should have been regularly descaled.
