Product type	Floorstanding speaker
Brand	TRIANGLE
Model	ANTAL 202
Speaker type	Bass reflex, 3-way
Sensitivity	91 dB/W/m
Frequency response	50 Hz - 20 kHz (+/-3 dB)
Power handling (RMS)	120 W
Minimum impedance	4.5 ohms
Dimensions (H x W x D)	1080 x 220 x 297 mm
Net weight	20 kg
Power supply	Passive (requires external amplifier)
Main features	High-fidelity sound reproduction, bi-wirable / bi-amplifiable
Recommended placement	Minimum distance of 2 m between speakers and 40 cm from wall
Maintenance and cleaning	Dust with a soft, dry cloth
Safety precautions	Avoid excessive exposure to moisture; observe polarity
Spare parts and repairability	Repair by Triangle-approved personnel; 5-year warranty
Warranty	5 years for the first user, on manufacturing defects
Environmental protection	Recyclable materials; do not dispose of with household waste

Frequently Asked Questions - ANTAL TRIANGLE

How to connect my ANTAL speakers?

Use a cable of sufficient gauge, preferably the TRIANGLE High Definition cable. Observe the + and - polarities and use identical lengths for the right and left channels.

What is the minimum distance between the speaker and a CRT television?

To avoid magnetic interference on the screen, maintain a distance of at least 1 meter. This precaution is not necessary for shielded center channels.

How to place speakers for stereo?

Place the speakers at least 2 meters apart and 2 meters from the listening area. Avoid corners and walls that are too close (minimum 40 cm). Orient them along the length of the room for better sound dispersion.

How to place speakers for home theater?

The main speakers follow stereo rules. The center channel should be aligned with the main speakers. The subwoofer preferably between the speakers, away from corners. The rear channels at a height of 1.5 to 2 meters.

What is bi-wiring and how to do it?

Bi-wiring consists of connecting each speaker to the amplifier with two separate cables, one for the bass and one for the midrange/treble. Remove the connecting plates from the terminal and use the upper terminals (midrange/treble) and lower terminals (bass).

How to perform bi-amping?

Use two identical amplifiers: one for the bass (lower terminals), the other for the midrange/treble (upper terminals). Remove the connecting plates. The amplifiers must have similar power and characteristics.

Which amplifier to choose for my ANTAL speakers?

Choose a good quality amplifier with sufficient power (at least 120 W RMS per channel for the ANTAL). It is better to have a powerful amplifier used moderately than a weak one pushed to the limit, which could damage the speakers.

What does the TRIANGLE warranty cover?

The 5-year warranty covers manufacturing defects. It is valid only for the first buyer upon presentation of the coupon and invoice. Excluded are damages due to overpowering, excessive humidity, mechanical shock, or unauthorized repair.

How to maintain my ANTAL speakers?

Dust with a soft, dry cloth. Avoid chemical products. Protect from humidity and extreme temperatures. In case of problems, contact a Triangle-approved service.

What to do at the end of the speaker's life?

Do not dispose of the speaker with household waste. Take it to a collection point for recycling of electronic equipment. The product contains recyclable materials.

USER MANUAL ANTAL TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

202

MANUFACTURE ELECTROACOUTIQUE

MANUFACTURE ELECTROACOUSTIQUE

MANUFACTURE ELECTROACOUSTIQUE

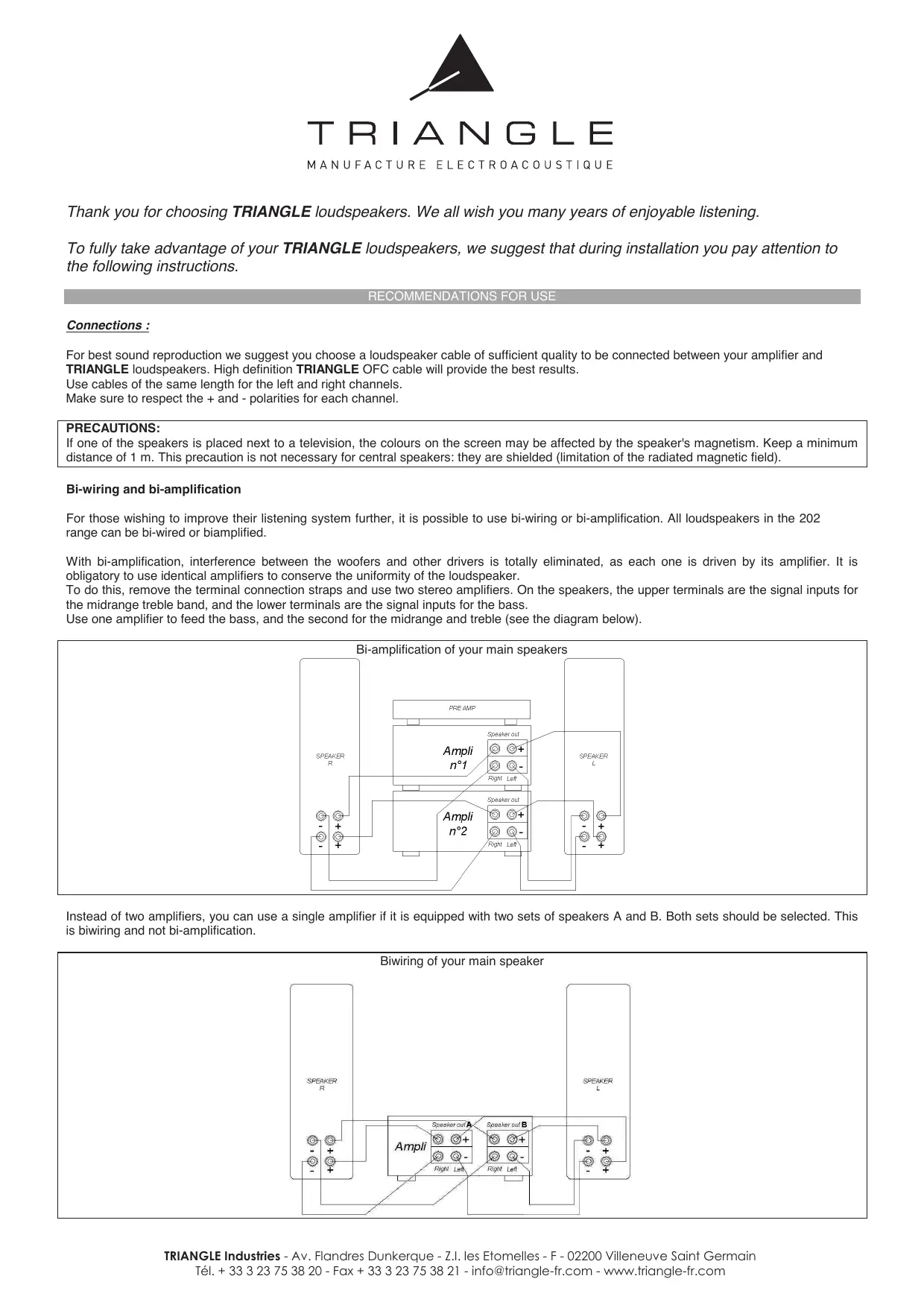

Thank you for choosing TRIANGLE loudspeakers. We all wish you many years of enjoyable listening.

To fully take advantage of your TRIANGLE loudspeakers, we suggest that during installation you pay attention to the following instructions.

RECOMMENDATIONS FOR USE

Connections :

For best sound reproduction we suggest you choose a loudspeaker cable of sufficient quality to be connected between your amplifier and TRIANGLE loudspeakers. High definition TRIANGLE OFC cable will provide the best results.

Use cables of the same length for the left and right channels.

Make sure to respect the + and - polarities for each channel.

PRECAUTIONS:

If one of the speakers is placed next to a television, the colours on the screen may be affected by the speaker's magnetism. Keep a minimum distance of 1m . This precaution is not necessary for central speakers: they are shielded (limitation of the radiated magnetic field).

Bi-wiring and bi-amplification

For those wishing to improve their listening system further, it is possible to use bi-wiring or bi-amplification. All loudspeakers in the 202 range can be bi-wired or biamplified.

With bi-amplification, interference between the woofers and other drivers is totally eliminated, as each one is driven by its amplifier. It is obligatory to use identical amplifiers to conserve the uniformity of the loudspeaker.

To do this, remove the terminal connection straps and use two stereo amplifiers. On the speakers, the upper terminals are the signal inputs for the midrange treble band, and the lower terminals are the signal inputs for the bass.

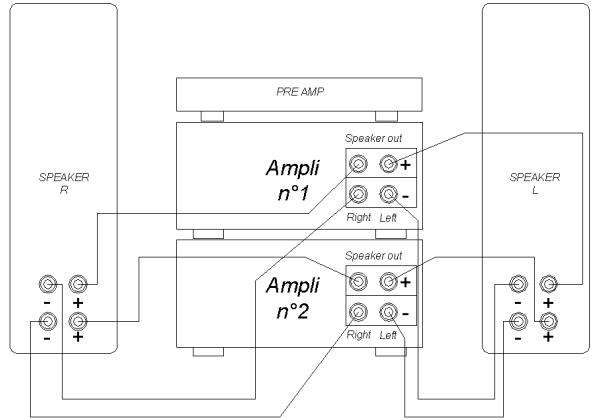

Use one amplifier to feed the bass, and the second for the midrange and treble (see the diagram below).

Bi-amplification of your main speakers

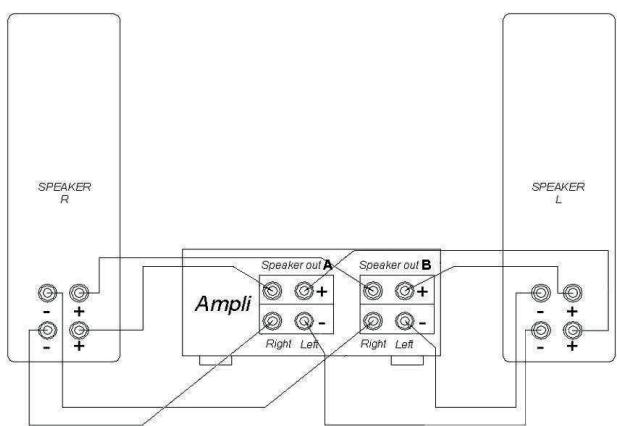

Instead of two amplifiers, you can use a single amplifier if it is equipped with two sets of speakers A and B. Both sets should be selected. This is biwiring and not bi-amplification.

Biwiring of your main speaker

TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

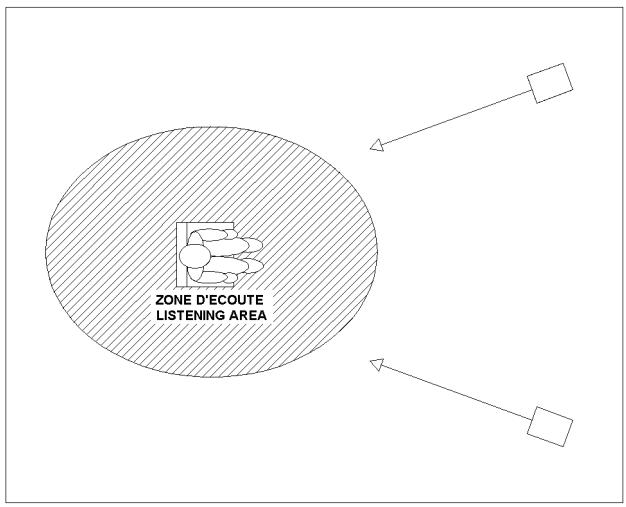

Positioning for the stereo:

When positioning your loudspeakers, follow the rules below:

• Avoid rooms with too much reverberation, such as tiled rooms with no carpets or curtains.

• Your listening zone should not be too close to the loud speakers: minimum 2m
  The distance between the speakers should be a minimum of 2 m for a good stereo effect.

• If possible, place the speakers so that they "diffuse" along the length of the room.

• Avoid placing them in the corners, this excites the rooms own resonance, leave at least 40~cm between the wall and the speaker. Position the speakers carefully in relation to the back wall. Generally, a position close to the back wall improves the response in low frequencies (to the detriment of the image) and inversely, a position far from the wall helps reproduction of a wide and deep sound image (carry out several tests to find the best compromise in your room).

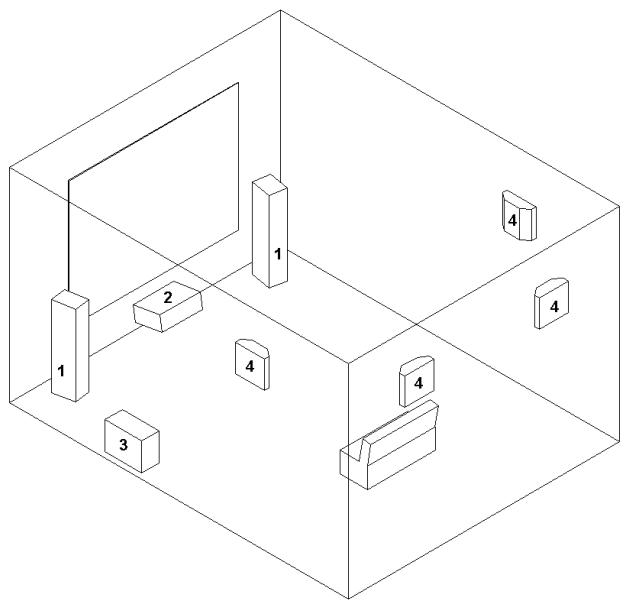

Positioning for Home Cinema:

A typical home cinema installation includes:

1. Two main left and right speakers
2. A central speaker
3. One or several subwoofoers
4. Several surround speakers (signal 5:1: 2 rear speakers, signal 6:1: 3 rear speakers, signal 7:1: 4 rear speakers).

To place the main speakers in the best position, follow the same rules as for a stereo installation (see paragraph on stereo positioning).

• The center speaker should be placed on the same line formed by the two main speakers.
• A subwoofer is particularly recommended in home cinema to reproduce the special effects channel in the very low register on supports such as audio or video DVD. The positioning of the subwoofer is not critical if you select a connection frequency with the main speakers below 80Hz . Below this frequency, it is better to move the subwoofer close to the main speakers, the best position being between them. Ensure that it is not placed in the corner of the room to avoid creating unpleasant resonance.
• It is recommended to place the rear speakers at between 1.5 and 2 m in height. They are used to give atmosphere.

You will find further instructions for configuring your installation in your A/V amplifier owner's manual.

Choosing the Amplifier;

Use a good quality amplifier (the result will be better) and of a sufficient power. It is preferable to use a powerful amplifier, with less risk of distortion, than "boosting" a less powerful amplifier which will clip and seriously risk damaging your loudspeakers.

Finally, remember that a volume button in the middle position does not mean that the amplifier is at "middle" power. It depends firstly on the sensitivity of the inputs and the level of output of the source used.

For any further information concerning your system, please consult our website: www .triangle-fr.com

NOTE ON THE WARRANTY

Your TRIANGLE loudspeaker is warranted for 5 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeaker could suffer as a result of these very same defects. This warranty is granted solely to the first user of the product, and is not transmittable in the case of resale. For prompt after sales service, please fill out the enclosed coupon and mail it to TRIANGLE authorized distributor in your country, together with proof of purchase (copy of invoice). Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following is not warranted :

• A burned voice coil due to overload
• A pierced or torn-off membrane
• A crushed cone or dome
• A torn out suspension
• Any fault resulting from a mechanical shock
• Any fault arising from storage in high humidity environments
• Any fault arising from the intervention of a person not authorized by TRIANGLE
• Any fault arising from professional usage (sound reinforcement, public-address, etc.)

RECYCLING

• Your product contains valuable materials which can be recovered or recycled.
• Leave it at local point.

CHARACTERISTIQUES / SPECIFICATIONS

SPECIFICATIONS TECHNIQUES	ANTAL 202	ZERIUS 202
Type	Bass reflex	Bass reflex
Ways	3	2
Sensitivity (dB/W/m)	91	91
Bandwidth (+/-3dB Hz-KHz)	50-20	50-20
Power Handling (W Rms)	120	100
Minimum Impedance (ohms)	4,5	4
Cabinet Dimensions (mm)	1080 x 220 x 297	970x220x295
Net Weight (Kg)	20	15

SPECIFICATIONS TECHNIQUES	COMETE 202	SEXTAN 202
Type	Bass reflex	Bass reflex
Ways	2	2
Sensitivity (dB/W/m)	91	91
Bandwidth (+/-3dB Hz-KHz)	55-20	60-20
Power Handling (W Rms)	80	80
Minimum Impedance (ohms)	4	4
Cabinet Dimensions (mm)	400x220x297	200x500x314
Net Weight (Kg)	7,5	9,5
