Product Type	USB Video Camera
Brand	GENIUS
Model	NB300
Connectivity	USB 2.0
Resolution	640 x 480 pixels (estimate)
Frame Rate	30 fps (estimate)
Sensor	CMOS (estimate)
Focus	Lens cap rotation
Main Functions	Webcam, image capture, video recording, security monitor
Video Formats	AVI, MPEG conversion
Security Monitor	Motion detection, auto-stop after 4 seconds
Power Supply	USB port (5V)
Weight	Approximately 80 g (estimate)
Dimensions	Approximately 70 x 40 x 30 mm (estimate)
Operating System	Windows (based on installation)
Included Software	Driver, VideoCAM utility, DirectX
Maintenance	Clean the lens with a soft cloth
Storage of Recordings	C:\WINDOWS\Album

Frequently Asked Questions - NB300 GENIUS

How to install the Genius NB300 driver?

Insert the VideoCAM NB300 software CD-ROM. The installation screen should appear automatically. Click on Utility Driver and follow the instructions. Make sure to install DirectX from the CD. If the screen does not appear, go to Start > Run and type D:\SETUP.EXE (assuming your CD drive is D).

What to do if the installation screen does not appear?

If the installation screen does not appear automatically, open the Start menu, click Run and type D:\SETUP.EXE (replace D with the letter of your CD-ROM drive). Then follow the on-screen instructions.

How to use the security monitor?

In the VideoCAM interface, click on the security monitor icon (icon F). You can configure the time range. The camera automatically records movements. If there is no movement, the recording stops after 4 seconds. Files are saved in C:\WINDOWS\Album.

How to adjust exposure in bright environment?

In case of high brightness, open the Camera Control > Control > Exposure menu in the VideoCAM interface to adjust the camera exposure.

Where are the video recordings saved?

Video recordings are stored by default in the folder C:\WINDOWS\Album.

How to uninstall the software?

To uninstall the software, go to Start > Programs > VideoCAM NB300 > VideoCAM NB300 Uninstall. Follow the on-screen instructions to completely remove the software and driver.

How to take a photo with this webcam?

Use the screenshot button on the VideoCAM interface (icon D) or press the Snapshot button located on the camera housing to take a photo. The photo will be saved in the default folder.

How to convert an AVI file to MPEG?

In the VideoCAM interface, use the H icon to convert an AVI file to MPEG format. This function reduces the size of video files.

Does the webcam work with video conferencing applications?

Yes, the Genius NB300 is compatible with video conferencing and video chat software. You can use it with applications like Skype, Zoom, etc.

What to do if the webcam is not recognized?

Make sure to install the USB driver before connecting the camera. Disconnect the camera, uninstall the driver and software via Start > Programs > VideoCAM NB300 > Uninstall. Then reinstall the driver following the correct procedure: install the software first, then connect the camera.

USER MANUAL NB300 GENIUS

Please install the driver first and then connect VideoCAM NB 300 to the USB port.

Please read the important notice before the installation.

1. Installing VideoCAM NB 300 software

A. Insert the VideoCAM NB 300 software CD into CD-ROM drive.
B. After few seconds, the setup screen will show the picture of VideoCAM NB 300. Click the "Utility Driver" then simply follow the on-screen instructions.
C. Please remember to install DirectX of the CD-ROM.

Notice:

If the setup screen doesn't show the picture of VideoCAM NB 300, please proceed the following installation:

• Go to the taskbar and click Start then Execute.
• Type D : \SETUP.EXE , then click Enter

key.

(Suppose your CD-ROM is in Drive D)

USB Port

2. Connect the VideoCAM NB 300 to your computer.

Connect the VideoCAM NB 300 to the USB port as shown on the right drawing.

1. To get rid of driver installation, please go to the taskbar and follow "Start Program VideoCAM NB 300 VideoCAM NB 300 Uninstall, then follow the on-screen instruction to remove the installation.
2. You can install the recognize software for video conferencing or chat with your friends.

You can use snapshot button to capture still image or rotate the lens cover to adjust the focus.

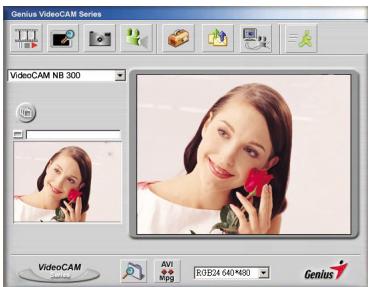

5. Function description for the major icon

A.

Play the .avi file.

B.

Preview the video image.

C.

Capture image with full motion video.

D.

Take a picture.

E.

Send photo through e-mail.

F.

Use PC camera as a security monitoring system.

G.

Exit the Genius VideoCAM Series UI.

H.

Convert AVI files into MPEG format

NOTE

• Make sure to install the USB driver before connecting the device otherwise unable to install properly. If you encounter problems, uninstall the driver and software then follow the proper installation.
• Should you need the device under high luminance environment, please follow the steps as below:

Camera Control Control Exposure

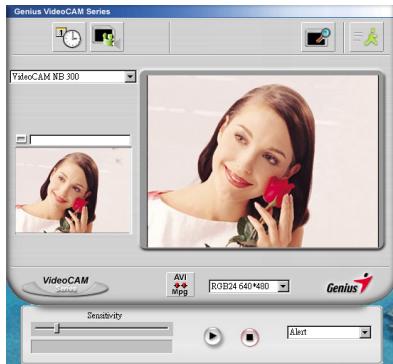

1. Function description for the security monitoring system icon.

You can record any movements that appear in front of your monitor automatically. It can also record anytime until the HD is full. If there's no movement, it will shut down automatically after four seconds or until there is new movement. It's a great security monitoring system and you can set the software so it works at times when you're not around.

A.

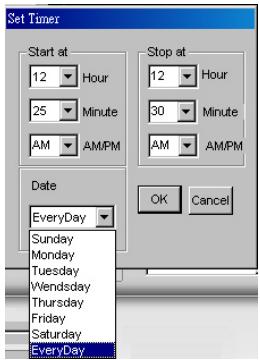

Setup time of the security monitoring system.

When you start to record video, please press the play button.

NOTE

• The recording file will be retained in C:\WINDOWS\Album.
