USER MANUAL 802.11 B-G WIRELESS PRINTER ADAPTER COMPAQ

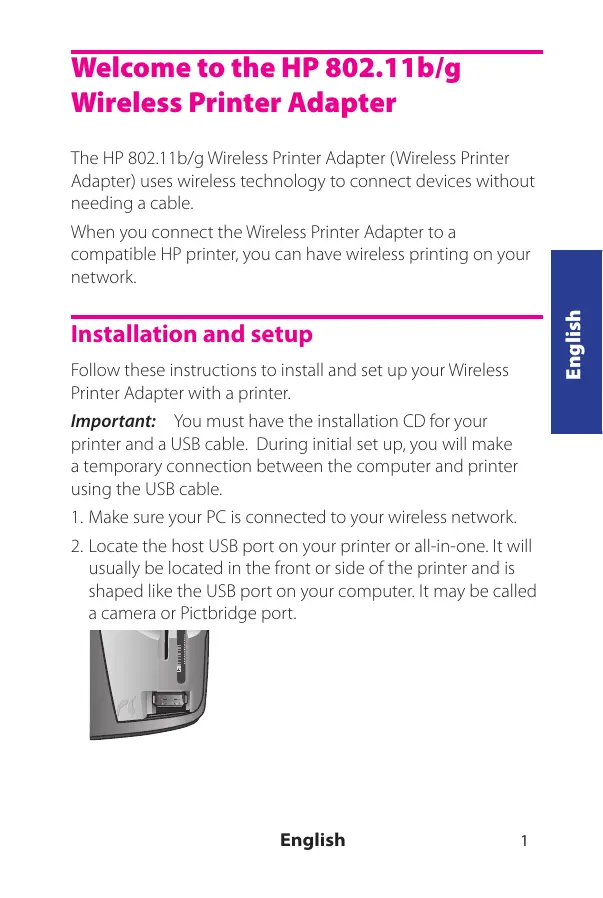

Welcome to the HP 802.11b/g Wireless Printer Adapter

The HP 802.11b/g Wireless Printer Adapter (Wireless Printer Adapter) uses wireless technology to connect devices without needing a cable.

When you connect the Wireless Printer Adapter to a compatible HP printer, you can have wireless printing on your network.

Installation and setup

Follow these instructions to install and set up your Wireless Printer Adapter with a printer.

Important: You must have the installation CD for your printer and a USB cable. During initial set up, you will make a temporary connection between the computer and printer using the USB cable.

1. Make sure your PC is connected to your wireless network.
2. Locate the host USB port on your printer or all-in-one. It will usually be located in the front or side of the printer and is shaped like the USB port on your computer. It may be called a camera or Pictbridge port.

1. Remove the cap from the Wireless Printer Adapter and insert it in the port.

1. Insert the installation CD for your printer into your computer.
2. Select the option Install Wireless Connected Device. Follow the directions on the screen.
3. When asked for the Connection Type, choose Through the Network.

The computer will search for printers already on the network.

1. When it cannot find the printer already on the network, click Next and follow the directions to temporarily use the USB cable to establish the network connection to the printer.
2. Follow the directions on the screen to complete the installation of your Wireless Printer Adapter.

Printing

Print to your printer as you would normally. The user documentation for your printer contains detailed information on using its wireless capabilities.

Technical specifications

General

802.11b/g
Power Requirement: Provided by the host
Power Consumption at 5V

• Standby: 85.4 mA (typical)
  Tx 11g:242 mA (typical)
  Tx 11b:302.3 mA (typical)

Radio

Range: 100m (per Standard)

Antenna

Internal Antenna
Peak Gain: +0dBi
VSWR: < 2.0:1
- Polarization: Linear

Temperature

• Operating temperature: -0^ to 40^
  Storage temperature: -40^ to 70^

Interface

Standard USB male Type A connector

Environmental product stewardship program

This section provides information on protecting the environment; ozone production; energy consumption; paper use; plastics; material safety data sheets; and recycling programs.

Protecting the environment

Hewlett-Packard is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize impacts on our environment. For more information, visit HP's Commitment to the Environment website at: www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the

product's life.

Material safety data sheets

Material safety data sheets (MSDS) can be obtained from the HP website at: www.hp.com/go/msds

Customers without Internet access should contact their local HP Customer Care Center.

Recycling program

HP offers an increasing number of product return and recycling programs in many countries/regions, as well as partnering with some of the largest electronic recycling centers throughout the world. HP also conserves resources by refurbishing and reselling some of its most popular products. For more information regarding return and recycling of HP products generally, please visit: http://www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Disposal of waste equipment by users in private households in the European Union

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Limited Warranty Statement

A. Extent of Limited Warranty

1. Hewlett-Packard ("HP") warrants to the end-user customer ("Customer") that each HP accessory product ("Product") shall be free from defects in material and workmanship for twelve months after the date of purchase.
2. For each software Product, HP's limited warranty applies only to a failure to execute programming instructions. HP does not warrant that the operation of any Product shall be uninterrupted or error free.
3. HP's limited warranty covers only those defects which arise as a result of normal use of a Product, and does not cover any other problems, including those which arise as a result of:

a. Improper use, maintenance, or modification;

b. Software, media, parts, accessories, or supplies not provided or supported by HP; or,
c. Operation outside a Product's specifications.

1. If HP receives, during the applicable warranty period, notice of a defect in a Product, HP shall at its option either repair or replace the defective Product.
2. If HP cannot repair or replace a defective Product that is covered by HP's limited warranty, HP shall, within a reasonable time after being notified of the defect, refund the purchase price for the Product.
3. HP shall have no obligation to repair, replace, or refund until Customer returns the defective Product to HP.
4. Any replacement product may be new or like-new, provided it has functionality at least equal to that of the Product being replaced.
5. A Product may contain remanufactured parts, components, or materials equivalent to new in performance.
6. HP's limited warranty for a Product is valid in any country or locality where HP has a support presence for the Product and has marketed the Product. The level of warranty service may vary according to local standards. Upgraded warranty services, such as next day exchange, on-site service, and accident protection, may be available from HP if separately documented by HP and on additional terms or conditions designated by HP.

B. Limitations of Warranty

1. TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER HP NOR ITS THIRD PARTY SUPPLIERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO A PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTY OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

C. Limitations of Liability

1. To the extent allowed by local law, the remedies provided in this Limited Warranty Statement ("LWS") are Customer's sole and exclusive remedies.
2. TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SET FORTH IN THIS LWS, IN NO EVENT SHALL HP OR ITS THIRD PARTY SUPPLIERS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND WHETHER ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

D. Local Law

1. This LWS gives Customer specific legal rights. Customer may also have other rights that vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world.
2. To the extent this LWS is inconsistent with local law, this LWS shall be deemed modified to be consistent with local law. Under local law, certain disclaimers and limitations of this LWS may not apply to Customer. For example, the federal government of the United States, some states in the United States, and some governments outside the United States (including provinces in Canada) may:

a. Grant Customer additional warranty rights;
b. Preclude the disclaimers and limitations in this LWS from limiting the statutory rights of a consumer (e.g. the United Kingdom);
c. Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations;
d. Specify the duration of implied warranties that the manufacturer cannot disclaim; or,
e. Disallow limitations on the duration of implied warranties.

1. For consumer transactions in the United States, any implied warranties imposed by law are limited in duration to the express warranty period.
2. FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND, THE TERMS IN THIS LWS, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT, OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF A PRODUCT TO SUCH CUSTOMERS.

Regulatory notices

The HP Wireless 802.11 b/g Printer Adapter meets product requirements from regulatory agencies in your country/region.

Regulatory model identification number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is SDCAB-0704. This regulatory number should not be confused with the marketing name (HP Wireless 802.11b/g Printer Adapter) or product number (Q6274).

FCC Statement

The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna.
- Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For further information, contact:

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, Ca 94304

[phone]

Modifications (part 15.21)

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by HP may void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Wireless regulatory information

This section contains regulatory information pertaining to wireless products.

Exposure to radio frequency radiation

Caution The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. This product and any attached external antenna, if supported, shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20~cm (8 inches) during normal operation.

European Union Regulatory Notice

Products bearing the CE marking comply with the following EU Directives:

Low Voltage Directive 2006/95/EEC
EMC Directive 2006/95/EEC

CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided by HP.

If this product has telecommunications functionality, it also complies with the essential requirements of the following EU Directive:

R&TTE Directive 1999/5/EC

Compliance with these directives implies conformity to harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity

issued by HP for this product or product family. This compliance is indicated by the following conformity marking placed on the product.

The wireless telecommunications functionality of this product may be used in the following EU and EFTA countries:

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and United Kingdom.

Products with 2.4-GHz wireless LAN devices

France

For 2.4 GHz Wireless LAN operation of this product certain restrictions apply: This product may be used indoor for the entire 2400-2483.5 MHz frequency band (channels 1-13). For outdoor use, only 2400-2454 MHz frequency band (channels 1-9) may be used. For the latest requirements, see http://www.artelecom.fr.

Italy

License required for use. Verify with your dealer or directly with the General Direction for Frequency Planning and Management(Direzione Generale Pianificazione e Gestione Frenquence).

Notice to users in Canada

For Indoor Use. This digital apparatus does not exceed the Class B limits for radio noise emissions from the digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The internal wireless radio complies with RSS 210 and RSS GEN of Industry Canada.

Notice to users in South Africa

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Matières plastiques

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, Ca 94304

[phone]

Directive RTTE 1999/5/CE

For Indoor Use. This digital apparatus does not exceed the Class B limits for radio noise emissions from the digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The internal wireless radio complies with RSS 210 and RSS GEN of Industry Canada.

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plastica

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Manager of Corporate Product Regulations

Hewlett-Packard Company

3000 Hanover Street

Palo Alto, Ca 94304

[phone]

www.hp.com/hpinfo/globalcitizenship/environment/index.html

Plácicos

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

www.hp.com/hpinfo/globalcitizenship/environment/index.html

wwwHp.com/ Hpinfo/globalcitizenship/environment/recycle/index.html.

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

Disposal of waste equipment by users in private households in the European Union

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html.

OrpaHnueHHa rapaHTn

A.Cpok DeiCTBnO rpaHnueHHo rapaHTnn

1. Kompanha Hewlett-Packard ("Kompanha HP") rapaHTnpyeT KOHeuHOMy Nolb3OBaTeHIO ("POnlb3OBaTeHb") OTCYCTBNE DEeKETOB MATEpnaJOB IN I3rTOBTNeHHN B JIo6OM DOnonHInTeHbHOM PpojkyTe HP ("PpojkyT") B TceHeN DEbaHaUaTm MecaJeB C MOMENTA pIPO6peTehn.
2. B oTHoUeHnM kajdo rno pnpaMMHO rpoDyKta orpaHnueHHra rapAHTNnHP paacnOcPCTAHTReTc TofbKo Ha HeNoIaKn, Bo3NHkauOuIne npri BByIOHHeHn I nporpAMMbHX hInctpyKuI. KompanHn HE rpoAHTnpyET, qTO paBOTA JIo6oBOI prOyDka 6dyET 6ecnepe6oIHn I 6e0oOHouHn
3. OrpaHnueHHaRapTnHa HP paNpOcTpaHReTc TOnbKaHo TAe DeΦeKtby, KOTOpBte B03Nkbln B XoDe HOPMaIbHO NcKnPlyAtauZnn I PtoyKaT, He n PaCpOCTpaHReTc Ha Liob6be DpyHne HEnoLAnJa, BKJIOha HEnoLAnJa, PnpUHnO KOTOpBx RaJIETc:

A. icnobnL3OBAHne He NO H3aAHueHHo, TNYeuchKeOEc 06CynKbHAbe INI MoDnFkHaJau IPOyDKTu C hapuyEnHeHtNcPkuN O KcKpNyaTaN;
b. nCnOJIb3OBAHnE npOrpaMMHOrO obecneueHnna, HocnteneI JnI neaTn, DeTaneI, ODOJIOnHITeJIbHbX yCTPOIcTB N PaCXoJdHbIX MaTePnAIIOB, He NOCTaBnIeMbIX INI H neOpIepKINBaEMbIX KompNaHne IHP; nII
c. nCnoJIb3OBAHHe IpoJyKa 6e3 yUeTa erO TexHnuecknx XapaKTePepNCtIK.

4.Пи полочуши ведомлени Oдeфкг Te PpoDyKtВ Tсчелпд Рацшного Крпога KMponaHn HP no CBOeMy Bb6Opby OTpeMOnTpyet ИИЗ замен't DeefckThb ПpoDyKt.
5. Ecnn KOMNANH HP He mMeet BOMOXHOCTN OTPeMOHTINPOBAtb NIN 3aMeHNt bDeEeKTHbI PtoDky, Ka HOTOpB pAcNPcOPTaHReTc ORpAunHeuHAR papaTHNHP B TAKOM Clyyae KomNAnH HP O6ByETC B TeueHne PnpEnmEro cPoka NoCNE POnyEnH yBeoDMLeHn O DeEeKTe BO3MeNTb IpoDAxHuY CTOMMOCs T PtoDkyTA.
6. KOMaHnIy HP He npHIMMaET KAKIN-JIbO O6B3AteJIbCTNo pEMoHTy, 3aMeHe IJN BO3MeJeHIO CTMOmOCTn DoTex nOp, nKaI PoIb3ObaTeJIb He BepHT DeΦeKTHbI PtOdyKT KOMaHnIY HP
7. IIO60I npOyKT n3AmeHbI deEeKHTo POpykTA MOKeT 6bTb HOBIM IIO60 pAOBaHEHnOBMy, pIIN cyOJbWu, tTO eFOyHkuHOHaJIbHe XApakTePcNtKu COOTBeCTBYOt XApokTePcNtKmAM3MaMeHrEMOl PpOyDKa.
8.IpDyKt MOKET CoEpaKbTb OBCCTAHOBENHbIe TAEJIIN KOMPOHeHTb IIN MATEPnAJIb, 3KBeNtHENTbHOBIM NO CBOIMX XaPAkTePNCtIKAm.
9. OrpaHnueHHa rapaTnHa HP Ha IpoyKT DeiCTBtEnb Ho BCex CTpaHax/permoHax, rme Meeetc npEctBaHTbCTBO CnyKb6b NpOdEckxn HP dIaDAnHO pOpykTu, nR de KOMpanHa HP npOeAaTDHnIpyOk. YpOBeHs rapaTHnHO orObcLyKmbAHnHP 3aBmCIT oMeTbHX bCTaHdaptOB. DOnOpHnIbHbNe napeKtBu rapaTHnBHX yCnyr, TAKne Ka 3aMeHa h cIeNdyUoiu nnDeh, TexHnYeCKoe obcLyKmbAHne Ha MceTe n 3aHtta O TcIyauHbX nobPReJDenH, MOrY tBbI npEOCTABHeHb KompanMe HP, eCN taKnePaTbO tOeJIbNO DOkyMeHTnpOBaHb KompanHa HP i BkLNIOeB HpaTaHnHOe 063aTeBCTBO KAK DOJIPOHNTBHeNIOPOJOEHNHa IIN cyONBA.

6. OrpahnueHne rapaHTm

1.B\PNEJELAX,DOYCKAEMbIX MECTHbIM 3AKOHODATEJIbCTBOM HN,KOMIAHINH NHPHTOPOHHVEIOCTABUKNHE PINEOCTABJRIOT KAKIX-NIIBO BOIIOJIHNTEJBHbX TAPAHNTINJIN YCJIOBNI, RBHbIX INJIN IOJPA3yMEBAEMbIX, BOTHOUIEHNI PINDKYTA INOTKA3bIBAIOTCR OT RHBIX TAPAHNTINJIN YCJIOBNI KOMMEPEECHKO LIEHHOCTNOYOBJETBOPINHBOHOKAECTBNA JINPINOHOCTN DIA KOHKPETHOI.

B.OrpaHnueHne OTBeTcBeHHOCTn

1. B npèdénax, donycyaembix MecTHbIM 3aKOHoDAteNBtCBM, BO3meuHne Iyuepe6b, ONpeDJIeRMeOE HactoIeJraPHTHe, JABTcE eINHCTBeHNbIM INCKJIQUHTeblbIM BO3meuHneIEM ue6b, npEOCTABJIeMbIM NlOJB3OBATEIINo.
   2.B TOI CTENHIN, B KOTOPOJ 3TO DONYCKAETCR MECTHBIM 3AKOHODATEJBCTBOM,3A INCKJIOUHEMEM OTBTETBEHHOCHTN,OCO6O 3AOBOPEHHON B HACTORIEM OPGAHUNEHOM TAPAHNTHM OMB3ATEJIbCTBE, HN KOMPAHNIHP,NH EE HEBACIMMbIE NOCTABLIHKN H N PIPKAKIX 06CTORTJIbCTBAX HE HECYT OTBTCTBEHHOCHTN 3A KAKNE-JINBO PPAMBIE, KOCBEHNHIE,OCOBBLE,CJYAAHNBIE ININ BOCIOCPJEOBABLIUE YbITKN, IOHECEHENBIE PB3YbTATE KOHTPAKTHbIX,TPAKDAHCKNX INHbIX PIPABOBbIX 0THOUIHIN, HEBACIMMO TO OTTO,BblIN IN OHN OTOBEUEHbIO BO3MOXHOCTTNAKIX YbBITKOB INI HET.

Γ.MecThoe 3aKoHoaTeNbCTBO

1. HactoJee OrpahuHcHHeHoe rapaHTnHoe o63aTebCTBO npedocTabIeT Ipb3OBATEBIOOC6bIe Ib4OcHcKcNEIpaBa.Iob3OBATEB TaKke MOKET ObJaTaB nIpyIMn npabAm, KOtOpBE MOyT MeHATCBN 3aBNCMOnCTN OT wTAHa TeppITOpIN CoEOHNHeHb IITaTOB AMePNI, OT npOBHcNn Ha TeppITOpIN KaHAdbln60OT cTpaHb/perNoHa.
2. B cnyuae ecn kaoe-Jinbo nonoJenHne HactoJero OrpaHueHHoro
   raopaHTNIHOro 063aTeBCTBa HE COOTBETCYBT MEcTHOMY 3aKHOdAteBCTBY,
   taKeO nonoJenHne CnEpyET CHTaTb NImeHeHbIM CoIaNCHO MeCTHOMY
   3aKHOdAteBCTBy. B COOTBECTBN C MecTHbIM 3aKHOdAteBCTBOM HeKOTOpBle
   OrpaHueHHra OTBeCTBeHHOCn IpnON3BOJNTeNl I ORpaHueHHra YCNOBNI
   KaTOBHeJr OropaHueHHoro rapaHTNIHOro 063aTeBCTBA MoryT He OHOCuTbCn
   K POnb3OBeTEn. HanPmIpem, PedeapbHoe npabITbCTBO CUSA, npabITbCTBO
   HEKOTOpBX ⅢATOB CUSA, A Thatke npytne npabITbCTBa 3a npedenaMn CUSA
   (BkIOUaH pOBuHNi KAnadbl) MORYT:

a. npedocabntb Poin30BaTeIIO dOonHnTeBhIe npabaHa rapaHTnHoe 06cnyxnbAHne;
b. kNIOHHTB TeIcTBNe OTOBOPOK n ORpAHNEHnY, yONMAHYbX B HACTOJcEM OrpaHHeHHOM rapAHTINHom OBA3aTbCTBe, KAc ORpAHUNBaKUxN 3aKOHbNs npaba Notpe6tIeNe (HanPImpeB e NIIKKoBpTAnu)
C. KaKM-IM60 INbIM OOBa3OM OpraHnHTb npaBO pOIN3BODInTeIa PpIMeHraTb TaKHe OROBOPKn IIN OpraHnHeHIA;
d.yctaHOBtBcPcOeJCTbBnTOIpa3yMaBEmBXraPahHTN,co6bIOJeHNEKOTOpBX 063atBbHOI IINPOI3BQIDTJIEN;IIN
e.3aIpeTbOgrapHueHHe cPoka JeIcTbNIOpa3yMeBaembIXrapaHTM

3.Пи сoveшени Сделов в СИА срokлобх подаумевамь rapанньх обзастбг,поредусмтөньх зakohOM, оогарчен пэрнодөдүвя рямо раунэн.
4.ДЛЯ COBEPIEHNIG CIDELOK HA TEPPINTOPINH ABCTPAJIMN HHOBOI 3JIAHINYUCIOBIA JAIHOTO OPGAHUEHNOI TAPAHNTNIHOTO OS3ATEJBCTBA,3A NCKIIPOEHEM CJUYAEB, PIPDEYMCTOMPEHINBXI DEICTBYOLIM3AKOHDAITECBVOM, HE ICKJIPOAOKT, HE OPGAHYNBAOT IN HE I3MEHANT3AKOHHBIX PPAB POJIb3OBATEJIA, A YBIJAOTCJIIMb DOJONJIHEHEM TAKNXIPAB, BO3NHKAIOUIXPINI POKYNTKE IPOJyKTA.

YBeDomJIeHne o perynpuyoIx DokyMeHTax

Бсплковд�ааитердяприптета HP 802.11 b/g cootbetcTByeТебовимаoprohanobocydapctBENHOro peylnpoBaHnВ cTpaH/peHOneПиьзвателЯ.

PeryraTnBbH ndeHTnKauOnHbH HOpEeN

B peryIaTbHbIx nIeHTnΦIkaUOnHbIX cIeJx DaHOMy I3dEJIIO Ha3HaueH peryIaTbHbI HOMep MOeJI. PeryIaTbHbI HOMep MOeJI DaHORO I3dEJIIN

—SDCAB-0704. 3TOT peryIyIaIbHbI HOMep He cIeJyET pyTatb C mapKeITInHroBIMnHaBaHmE (BecnpoBdHn oAaITpEr dI pyPiNtEpa HP 802.11b/g) nIi HomepOmU3dJIeN (Q6274).

Hopmatubhoe perynipobanhe 6ecnpoBODHO CB3N

B 3TOM pa3dene coedepkatc BcdeHnO HopMaTINBHOM peyIynpoBaHHu yctpoiCTB,pa60aIOux Ha OCHObe 6ecnpoBdoHbIX texHONOrn.

PadouacmomHoe u3nyueHue

BHMImaHHe! 3JyMaMaa BixOxHnA MoUHOb TaDHORO yCTPOICTBa 3HaHHTeHb HNKe MAKcIMAbHb DOJYCTMIMO rypoBHn 3JLYeHHa, YCTAHOBLeHHO FCC nra PaDIOuAcTOTbX bYCTPOICTB. TEm He MeHee, pRn EKcPlyaTaUcIN yCTPOICTBa B O6bHnHOM paOoEHm peXime cJeYET CBEcTN K MINMHMy eRO B03dEChTBne Ha ueOBueCckn oprAHnM. PAm3MeaTb yCTPOICTBO n ERO BHEuHnA hENTHB, eCInn HAnuHne TAKOBx npDeYCmOTpeHo, cJeYET TakIM o6pa3OM, YTOb6i MaKcIMAbHc COkparNTb BO3dEChTBne iJNyehnHa NaJeOBueCckn oprAHnM npn pa6oTe B O6bHOM peXime Bo I36BeKaHme npeBbUeHHa MAcKcIMAbHO DOnyCTMIMO rypoBHn I3JyueHHa, UcTAHOBLeHHOro FCC dPaHOuCAtOTbX yCTPOICTB, npn pa6oTe yCTPOICTBa B O6bHOM peXime K Hemy He cJeYET noDxOHNb 6LnHexe qem Ha 20 cm.

欢迎使用 HP 802.11b/g Wireless Printer Adapter

www.hp.com/hpinfo/globalcitizenship/environment/index.html

塑料

Complies with IDA Standards DB100427

www.hp.com/hpinfo/globalcitizenship/environment/index.html

74

www.hp.com/ Hpinfo/globalcitizenship/environment/recycle/index.html.

限定保証宣言

A. 限定保证の範圍

www.hp.com/hpinfo/globalcitizenship/environment/index.html

glue

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

江

A. 類相的多種形式

WwWnJnD WwWnJnHnWnJn Hn JnHnJnJn D WwWnZdWnJn
WztdWnJnD WnJnHnWnJn

yannnnnna

#

802.11b/g
- yannnnnnaeennnnnnaaee:
- 5V

• 85.4 mA (1J)
  Tx 11g:242mA (Jn)
• Tx 11b:302.3 mA (Unn)

nui

100m（n）

#

• ： 网 _ 1 ^ 网 ：+OdBi
  VSWR: < 2.0:1
  IwanyIyIyIyIyIyIy

aannnn

• 40C
• 40°C 70°C

aunau

USB USB

i

www.hp.com/hpinfo/globalcitizenship/environment/index.html

waaan

nna nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1

enrrnreennnnnneennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn n

www.hp.com/go/msds

gnnnnaaennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

aonnnnna

HP 10000000000000000000000000000000000000000000000000000000000000000000000000

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

www.hp.com/hpinfo/globalcitizenship/environment/index.html

塑膠

www.hp.com/hpinfo/globalcitizenship/environment/recycle/index.html

有限保固聲明

A. 有限保固範圍

Product Name and Model: HP 802.11 b/g Wireless Printer Adapter

Regulatory Model Number: 1) SDCAB-0704

Product Options:

All

Conforms to the following Product Specifications and Regulations:

EMC: Class B

EN 301 489-1 V1.4.1

EN 301 489-17 V1.2.1

FCC CFR 47 Part 15 / ICES-003 Issue 4: 2004

Safety :

EN 60950-1:2001

IEC 60950-1:2001

EU: 1999/519/EC (Health)

Telecom:

EN 300 328 V1.7.1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC and the R&TTE Directive 99/5/EC, and carries the CE-marking accordingly.

Additional Information:

1) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

Roseville CA, USA

June 12, 2007

Steve Ortmann, Manager

Connectivity

Local contact for regulatory topics only:

EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

www. hp.com/go/certificates

U.S.: Hewlett-Packard, 3000 Hanover St., Palo Alto 94304, U.S.A. 650-857-1501

Printed in China

Imprimé en Chine

Impreso en China

Impresso na China
