COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W - Professional monitors for photo editing and graphic design EIZO - Free user manual and instructions

Product Type	Professional LCD color monitor
Brand	EIZO
Compatible Models	COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W
Screen size (CG223W / CG243W)	22.0 inches (560 mm) / 24.1 inches (610 mm)
Native resolution	1680 x 1050 (CG223W) / 1920 x 1200 (CG243W)
Dimensions (with stand) (CG223W / CG243W)	511 x 347.5-521.5 x 240.5 mm / 566 x 456-538 x 230 mm
Weight (with stand) (CG223W / CG243W)	Approx. 9.6 kg / 10.7 kg
Power supply	100-120/200-240 VAC ±10%, 50/60 Hz
Power consumption (max.)	85 W (CG223W) / 95 W (CG243W) with USB charging
Input connectors	2 x DVI-I (HDCP), 1 x DisplayPort (HDCP)
Main functions	Color Mode (Custom, sRGB, EBU, REC709, SMPTE-C, DCI, CAL), calibration with ColorNavigator, Auto EcoView, rotate (portrait/landscape), overdrive (CG243W), USB 2.0 hub (1 upstream, 2 downstream)
Viewing angle	Horizontal 178°, Vertical 178° (CR ≥ 10)
Displayable colors	Up to 1.07 billion (10-bit via DisplayPort)
Adjustable color temperature	From 4000 K to 10000 K, Standard, Native
Adjustable gamma	1.8 to 2.6
Care and cleaning	LCD panel: soft cloth (cotton or glasses pouch). Stubborn stains: supplied ScreenCleaner or lightly damp cloth. Cabinet: soft cloth with mild detergent. Do not use solvents, alcohol, abrasive powder.
Security	Kensington lock slot; main power switch; operation indicator (blue/orange); power saving function (DPMS, DVI DMPM, DisplayPort)
Repairability / Spare parts	Backlight with limited lifespan. In case of dimming or flickering, contact your dealer. Compatible with VESA arm (100x100 mm). Screws provided for CG243W, check manual for CG223W.
General information	PDF manual available on eizo.com; ColorNavigator software for calibration; compatible with Unicolor Pro (color blindness simulation); limited backlight lifespan; 30-minute stabilization required after turning on.

Frequently Asked Questions - COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W EIZO

How to calibrate the EIZO ColorEdge monitor?

Use the ColorNavigator software supplied on the CD-ROM. Connect the monitor to the computer using the supplied USB cable, then launch the software to generate an ICC or ColorSync profile. The monitor must be turned on for at least 30 minutes before calibration.

What display modes are available?

Modes include: Custom, sRGB, EBU, REC709, SMPTE-C, DCI (digital cinema) and three CAL modes (for calibration via ColorNavigator). Each mode can be adjusted in brightness, color temperature, gamma, etc.

How to safely clean the LCD screen?

Use a soft cotton cloth or glasses pouch. For stubborn stains, use the supplied ScreenCleaner cloth or slightly dampen a part of the cloth. Never use solvents, alcohol, benzene or abrasive powder that could damage the panel.

What resolutions are supported?

The monitor supports many resolutions, from 640x480 up to the native resolution: 1680x1050 (CG223W) or 1920x1200 (CG243W). Refresh rates depend on the resolution; see the preset timing table in the manual.

Does the monitor have a USB hub?

Yes, it incorporates a USB 2.0 hub with one upstream port (for connection to the computer) and two downstream ports for peripherals. The hub remains active even in standby, unless the main switch is turned off.

How to save energy with this monitor?

Enable the Auto EcoView function that automatically adjusts brightness according to ambient lighting, or use the PowerManager energy-saving mode. The main power switch completely cuts off power (0 W).

Can the monitor be used in portrait mode?

Yes, the monitor can rotate 90° to the right (portrait). Requires a compatible video card and a setting in the Orientation menu to display the OSD correctly. Caution: ensure cables are clear before rotating.

What to do if the screen displays no image?

Check that the power cord is plugged in and the main switch is ON. Check the signal cable connection and press the S button to switch between inputs. The blue indicator shows that the monitor is on; if orange, the monitor is in standby. Refer to the Troubleshooting chapter in the manual.

How to adjust the color temperature?

Access the Color menu > Temperature. You can choose between Standard, Native, or a value from 4000K to 10000K in steps of 500K. The Gain adjustment allows fine tuning of the red, green, blue components.

Is the monitor compatible with VESA mounting?

Yes, it is compatible with VESA 100x100 mm standard. Use an optional EIZO arm or stand. The plate thickness should be 2.6 mm and the screws suitable (M4 x 12 mm for CG243W, foot screws for CG223W). Consult the manual for mounting precautions.

USER MANUAL COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W EIZO

Setting Resolution 13

Windows 7. 13
Windows Vista 13
Windows XP 13
Mac OS X 13

FCC Declaration of Conformity 49

2 Réglage/Configuration

DVI DMPM (DVI Digital Monitor Power Management)

HDCP (High-bandwidth Digital Contents Protection)

TMDS (Transition Minimized Differential Signaling)

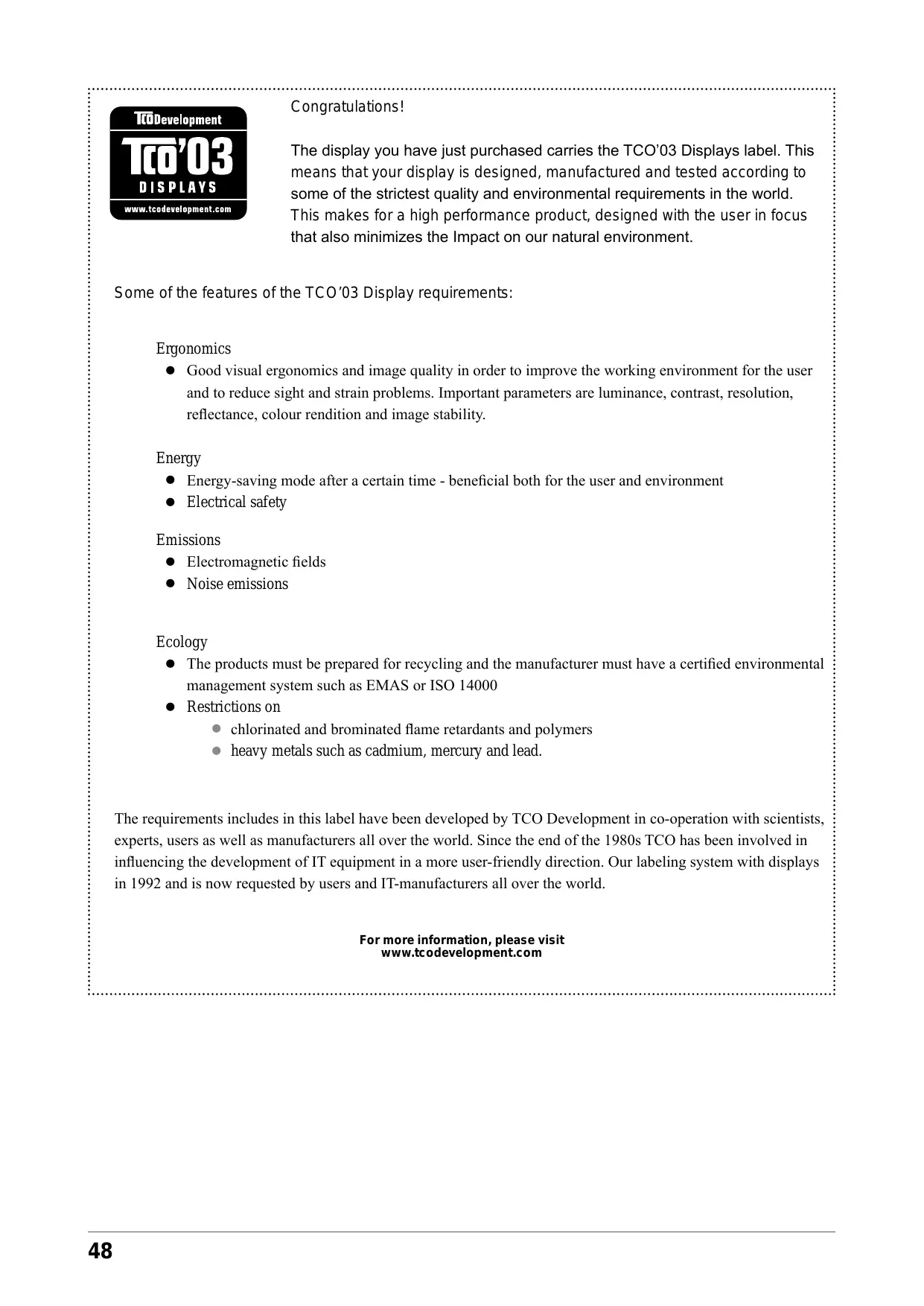

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000

• Restrictions on

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements include in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party	EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: ColorEdge CG223W / CG243W
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note
Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.
- AC Cord
- Shielded Signal Cable (Enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet appeil numérique de le classe B est conforme à la norme NMB-003 du Canada.
