USER MANUAL LCD73VXM NEC

AccuSync LCD73VXM™/LCD93VXM™

To learn about other special offers, register online at www.necdisplay.com.

Manufacturer's Recycling and Energy Information 22

Avertissement 25

Contenu 26

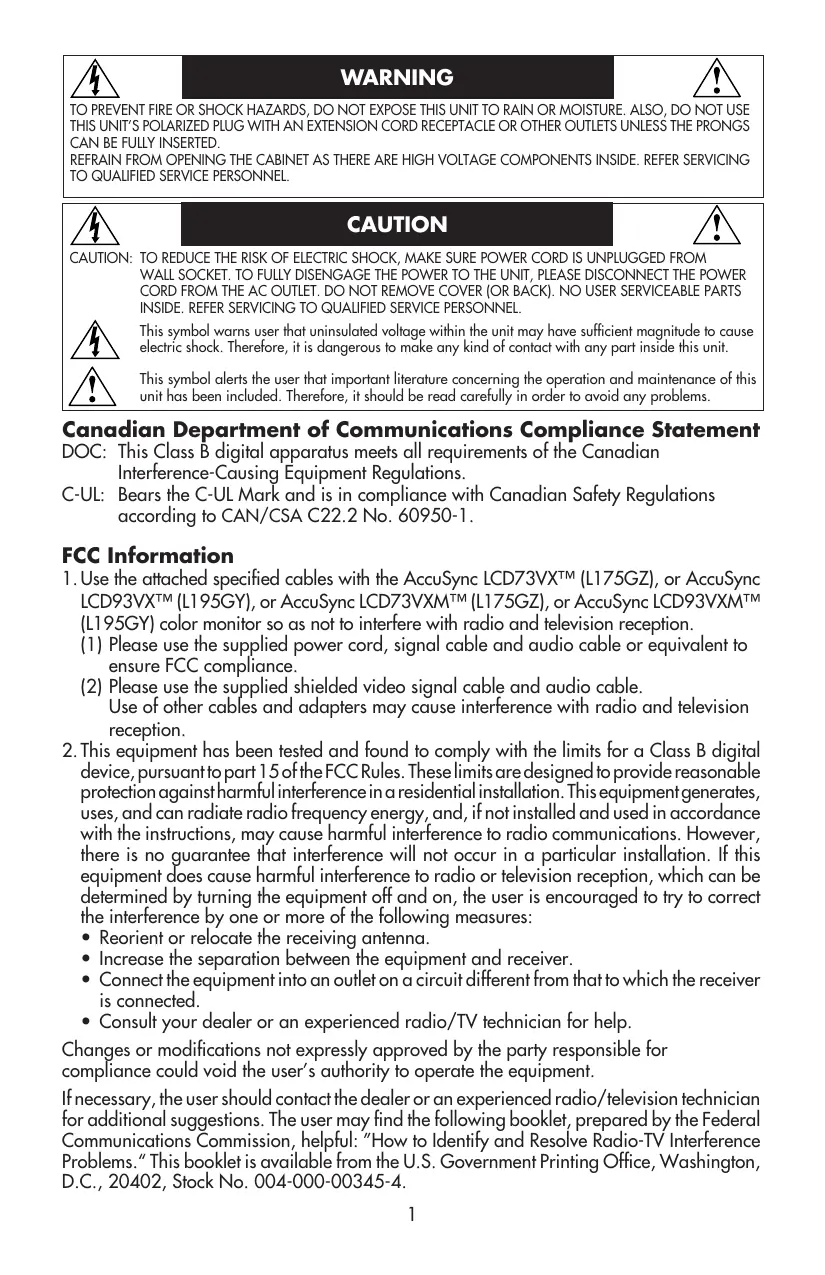

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the AccuSync LCD73VXTM (L175GZ), or AccuSync LCD93VXTM (L195GY), or AccuSync LCD73VXMTM (L175GZ), or AccuSync LCD93VXMTM (L195GY) color monitor so as not to interfere with radio and television reception.

(1) Please use the supplied power cord, signal cable and audio cable or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable and audio cable.

Use of other cables and adapters may cause interference with radio and television reception.

1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult your dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Your new NEC LCD monitor box* should contain the following:

LCD monitor
Power Cord
Video Signal Cable
Audio Cable (LCD73VXM / LCD93VXM only)
- User's Manual
- Base Stand
- Cable Holder

Audio Cable

(LCD73VXM/LCD93VXM only)
Power Cord

Video Signal Cable

User's Manual

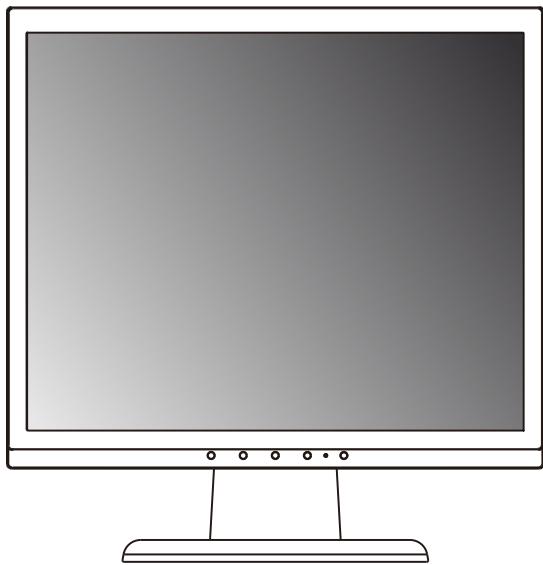

LCD Monitor
(Stand not connected)

Cable Holder

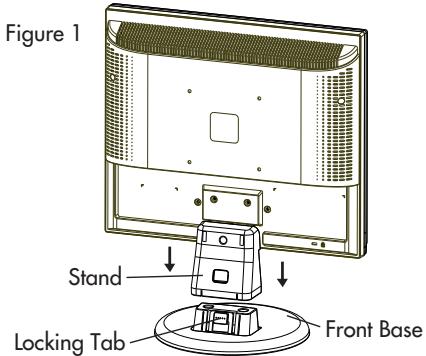

To attach the Base to the LCD Stand:

1. Insert the front of the LCD Stand into the holes in the front of the Base (Figure 1).
2. Attach the Base to the Stand. The locking tab on the Base should fit into the hole on the back of the Stand.

To attach the LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

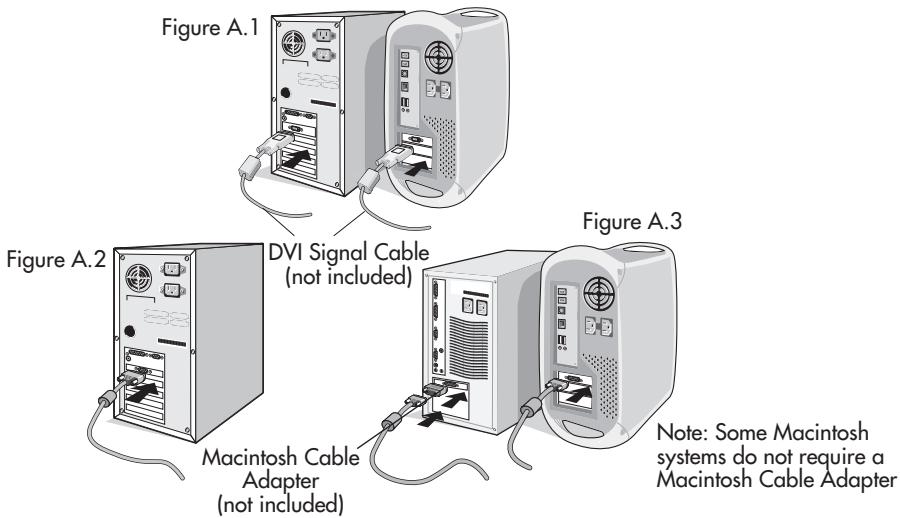

2. For the PC or Mac with DVI digital output: Connect the DVI signal cable (not included) to the connection of the display card in your system (Figure A.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure A.2). Tighten all screws.

For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure A.3). Tighten all screws.

NOTE: To obtain the Macintosh cable adapter, call NEC Display Solutions of America, Inc. at [phone].

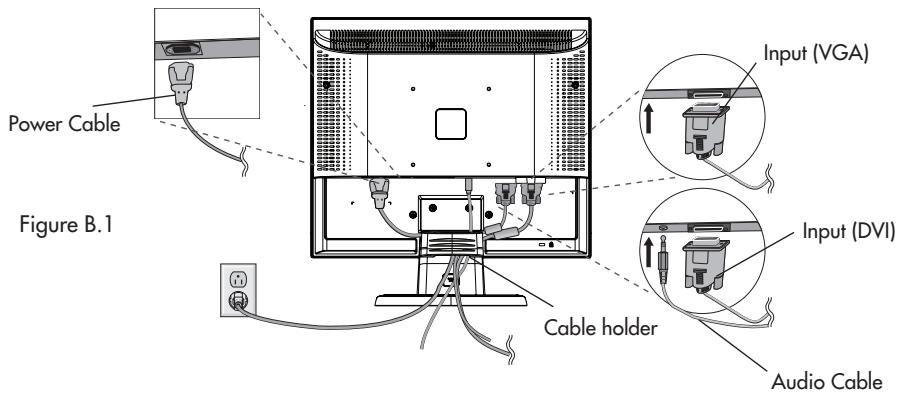

1. Connect all cables to the appropriate connectors on the back of the monitor (Figure B.1). Headphones may be connected to the "Headphones" output, "O" on the front of the monitor. While headphones are connected, the sound from the speakers will be disabled.

NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of power cord.

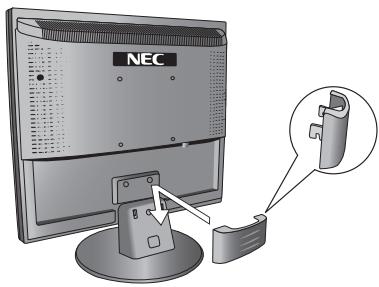

1. Attach the Cable Holder onto the Base (Figure C.1). Place all cables together between holes at the back of the stand. Insert the hooks on the Cable Holder into the holes at the back of the Stand and slide the Cable Holder downward into place. Adjust the position of cables between the holder too avoid damage.

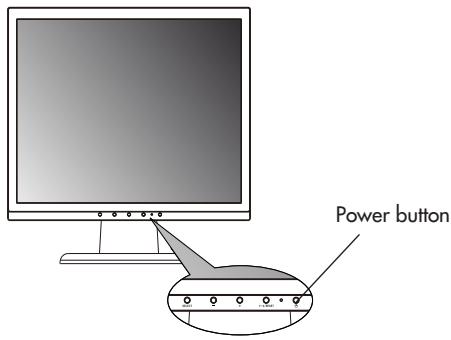

2. Turn on the monitor with the front power button. (Figure D.1)

3. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSD controls:

4. Auto Adjust Contrast - Auto Adjust

Refer to the Controls section of this User's Manual for a full description of these OSD controls.

NOTE: For download information on the Windows® INF file for your NEC monitor, visit www.necdisplay.com.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

Figure C.1

Figure D.1

Tilt

Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

NOTE: Handle with care when tilting the monitor screen.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

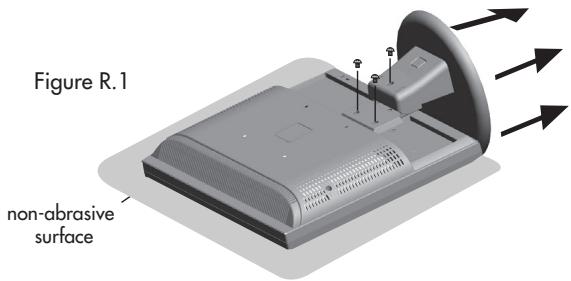

2. Place monitor face down on a nonabrasive surface (Figure R.1).
3. Remove the 3 screws connecting the monitor to the stand and slide the stand off from the LCD (Figure R.1).

The monitor is now ready for mounting in an alternate manner.

1. Connect the AC cord and the video signal cable to the back of the monitor (Figure R.2).
2. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

NOTE: Handle with care when removing monitor stand.

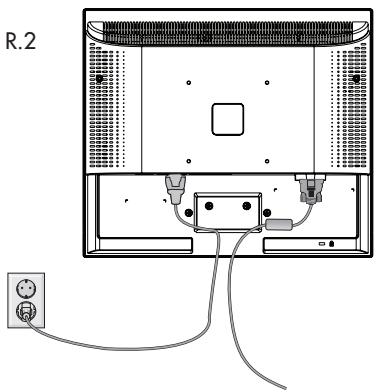

Figure R.2

Figure TS.1

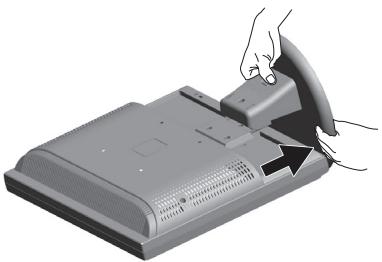

Removing the Base

Note: Always remove the Base when shipping the LCD.

1. Place monitor face down on a non-abrasive surface.
2. While using your thumbs, press the bottom tabs upward to unlock.
3. Press the top tabs down to unlock and pull off the stand.

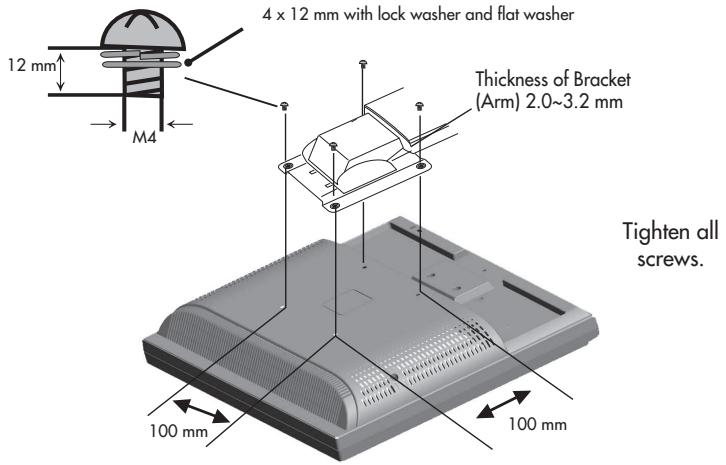

Connecting a Flexible Arm

This LCD monitor is designed for use with a flexible arm. Please use the attached screws (4pcs) as shown in the picture when installing.

To meet the safety requirements, the monitor must be mounted to an arm which guarantees the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

Specifications

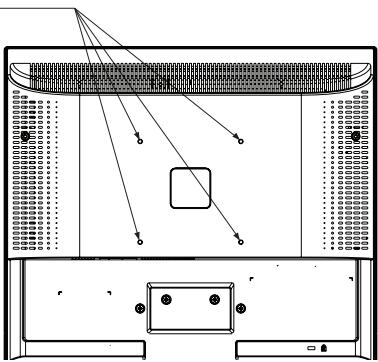

4-SCREWS (M4)

(MAX depth: 8.5mm )

Weight of LCD assembly:

OSD (On-Screen Display) control buttons on the front of the monitor function as follows:

1. Basic key function

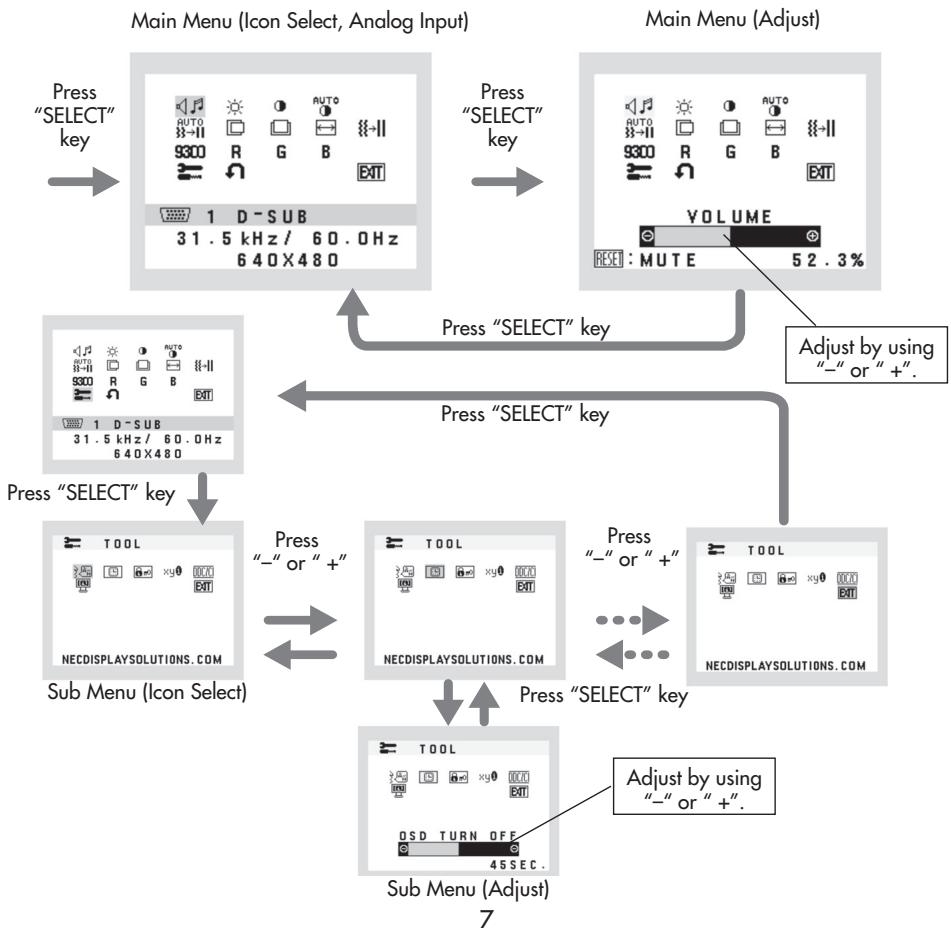

2. OSD structure

Button	SELECT	-	+	1 <> 2/RESET
OSD Off	OSD displayed	Shortcut to bright adjust window	Shortcut to volume adjust window (LCD73VXM/LCD-93VXM)	Input signal select
			Shortcut to contrast adjust window (LCD73VX/LCD-93VX)
OSD On (Icon selection stage)	Go to Adjustment stage	Cursor moves left	Cursor moves right
OSD On (Adjustment stage)	Go to Icon selection stage	Adjust value decrease or Cursor for adjust moves left	Adjust value increase or Cursor for adjust moves right	Reset operation

AUDIO (LCD73VXM/93VXM only)

Controls the volume of the speaker or headphones.

To mute the speaker output, press the "1<-->2/RESET" button.

BRIGHTNESS

Adjusts the overall image and background screen brightness. To enter the Eco mode, press the "1<-->2/RESET" button.

1 CONTRAST

Adjusts the image brightness in relation to the background.

AUTO AUTO CONTRAST

Adjusts the image displayed for non-standard video inputs (Analog input only).

AUTO AUTO ADJUST

Automatically adjusts the Image Position, H. Size and Fine setting (Analog input only).

LEFT/RIGHT

Controls Horizontal Image Position within the display area of the LCD (Analog input only).

DOWN/UP

Controls Vertical Image Position within the display area of the LCD (Analog input only).

H.SIZE

Adjusts the horizontal size by increasing or decreasing this setting (Analog input only).

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting (Analog input only).

9301 COLOR CONTROL SYSTEMS

Five color presets (9300/7500/sRGB/USER/NATIVE) to choose from for the desired color setting. The sRGB and NATIVE color presets are standard and cannot be changed.

COLOR RED

Increase or decreases Red. The change will appear on screen.

COLOR GREEN

Increase or decreases Green. The change will appear on screen.

B COLOR BLUE

Increase or decreases Blue. The change will appear on screen.

TOOL

Selecting TOOL allows you to get into the sub menu.

FACTORY PRESET

Selecting Factory Preset allows you to reset all OSD control settings back to the factory settings. The "1<->2/RESET" button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the "1<->2/RESET" button.

EXIT

Selecting EXIT allows you exit OSD menu/sub menu.

LANGUAGE

OSD control menus are available in eight languages.

OSD TURN OFF

The OSD control menu will stay on as long as it is in use. In the OSD Turn OFF submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSD control menu. The preset choices are 10 - 120 seconds in 5 second intervals.

OSD LOCK OUT

This control completely locks out access to all OSD control functions without Brightness and Contrast. When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD are locked out. To activate the OSD Lock Out function, press "1<-2/RESET", then "+" key and hold down simultaneously. To deactivate the OSD Lock Out, press "1<-2/RESET", then "+" key and hold down simultaneously.

RESOLUTION NOTIFIER

If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at optimal resolution.

DDC/CI

Turns on or off the two-way communication and control of the monitor. With DDC/CI turned on, some monitor settings can be adjusted through the graphics card using a computer.

MONITOR INFO

Indicates the model and serial numbers of your monitor.

OSD Warning: OSD Warning menus disappear with SELECT button.

NO SIGNAL: This warning appears when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn't have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn't have proper timing, the Out Of Range menu will appear.

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• When operating the LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The lamps in this product contain mercury. Please dispose according to state, local or federal law.
• Do not bend power cord.
• Do not use monitor in high temperature, humid, dusty, or oily areas.
• If glass is broken, handle with care.
• Do not cover vent on monitor.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
  If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

Image Persistence

Image persistence is when a residual or "ghost" image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors' image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC Display Solution of America, Inc. recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

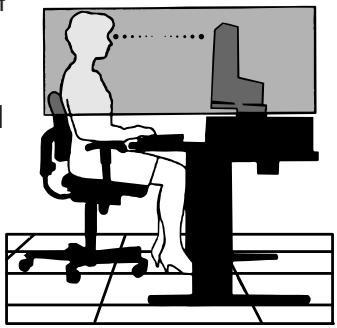

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.
• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
• Position the monitor at a 90^ angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an antiglare filter.
• Adjust the monitor's brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.
  Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals
• Use the preset Color Setting
• Use non-interlaced signals with a vertical refresh rate between 60-75Hz
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

Cleaning the LCD Panel

• When the liquid crystal panel becomes dusty or dirty, wipe grently with a soft cloth.
• Do not rub the LCD panel with coarse or hard material.
• Do not apply pressure to the LCD surface
• Do not use OA cleaner as it will cause deterioration or discoloration to the LCD surface.

Cleaning the Cabinet

• Unplug the power supply.
  -ampen a soft cloth with water and a neutral detergent. Gently wipe the cabinet then dry gently with a soft cloth.

NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene, thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not touch rubber or vinyl to the cabinet for a long period of time. These type of fluids and fanrics can cause the paint to deteriorate crack or peel.

For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations - ANSI-HFS Standard No. 100-1988 - The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

Monitor
Specifications
AccuSync™ LCD73VX
Notes

LCD Module	Diagonal:	17.0 inch	Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.264 mm dot pitch; 280cd/m² white luminence; 700:1 contrast ratio, typical
	Viewable Image Size:	17.0 inch
	Native Resolution (Pixel Count):	1280 x 1024
Input Signal	Video:	Analog RGB 0.7 Vp-p/75 Ohms	Digital Input: DVI
	Sync:	Separate sync TIL Level (Positive/Negative)
Display Colors		16.7M	Depending on display card used.
Maximum Viewing Angles	Left/right:	80°/80° (CR>10)
	Up/Down:	75°/80° (CR>10)
Synchronization Range	Horizontal:	31.5 kHz to 81.1 kHz	Automatically
	Vertical:	56 Hz to 76 Hz	Automatically
Resolutions Supported		720 x 400*1 : VGA text	Some systems may not support all modes listed.
		640 x 480*1 at 60 Hz to 75 Hz
		800 x 600*1 at 56 Hz to 75 Hz
		832 x 624*1 at 75 Hz
		1024 x 768*1 at 60 Hz to 75 Hz
		1152 x 864*1 at 70 Hz to 75 Hz
		1152 x 870*1 at 75 Hz
		1280 x 960*1 at 60 Hz to 75 Hz
		1280 x 1024 at 60 Hz to 75 Hz………	NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.
Active Display Area	Horizontal:	338mm/13.3 inches
	Vertical:	270mm/10.6 inches
Power Supply		100-240 V ~ 50/60 Hz
Current Rating		0.7 - 0.35 A/100-240V
		1.5A/100-240V (for Mexico)
Dimensions		368.0mm (W) x 381.5mm (H) x 209.6mm (D)
		14.5 inches (W) x 15.0 inches (H) x 8.3 inches (D)
Weight		4.3kg
		9.5lbs
Environmental Considerations	Operating Temp.:	5°C to 35°C/41°F to 95°F
	Humidity:	10% to 80%
	Altitude:	0 to 10,000 Feet
	Storage Temperature:	-10°C to +60°C/14°F to 140°F
	Humidity:	10% to 85%
	Altitude:	0 to 40,000 Feet

Monitor
Specifications
AccuSync™ LCD93VX
Notes

LCD Module	Diagonal:	19.0 inch	Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.294 mm dot pitch; 300cd/m2white luminence; 800:1 contrast ratio, typical
	Viewable Image Size:	19.0 inch
	Native Resolution (Pixel Count):	1280 x 1024
Input Signal	Video:	Analog RGB 0.7 Vp-p/75 Ohms	Digital Input: DVI
	Sync:	Separate sync TIL Level (Positive/Negative)
Display Colors		16.7M	Depending on display card used.
Maximum Viewing Angles	Left/right:	80°/80° (CR>10)
	Up/Down:	80°/80° (CR>10)
Synchronization Range	Horizontal:	31.5 kHz to 81.1 kHz	Automatically
	Vertical:	56 Hz to 76 Hz	Automatically
Resolutions Supported		720 x 400*1 : VGA text640 x 480*1 at 60 Hz to 75 Hz800 x 600*1 at 56 Hz to 75 Hz832 x 624*1 at 75 Hz1024 x 768*1 at 60 Hz to 75 Hz1152 x 864*1 at 70 Hz to 75 Hz1152 x 870*1 at 75 Hz1280 x 960*1 at 60 Hz to 75 Hz1280 x 1024 at 60 Hz to 75 Hz......	Some systems may not support all modes listed.NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.
Active Display Area	Horizontal:	376mm/14.8 inches
	Vertical:	301mm/11.9 inches
Power Supply		100-240 V ~ 50/60 Hz
Current Rating		0.75 - 0.4 A/100-240V1.5A/100-240V (for Mexico)
Dimensions		405.5mm (W) x 405.5mm (H) x 222.0mm (D)16.0 inches (W) x 16.0 inches(W) x 8.7 inches (D)
Weight		4.7kg10.4lbs
Environmental Considerations	Operating Temp.:	5°C to 35°C/41°F to 95°F
	Humidity:	10% to 80%
	Altitude:	0 to 10,000 Feet
	Storage Temperature:	-10°C to +60°C/14°F to 140°F
	Humidity:	10% to 85%
	Altitude:	0 to 40,000 Feet

Monitor
Specifications
AccuSync™ LCD73VXM
Notes

LCD Module	Diagonal:	17.0 inch	Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.264 mm dot pitch; 280cd/m2white luminence; 700:1 contrast ratio, typical
	Viewable Image Size:	17.0 inch
	Native Resolution	1280 x 1024
	(Pixel Count):
Input Signal	Video:	Analog RGB 0.7 Vp-p/75 Ohms	Digital Input: DVI
	Sync:	Separate sync TTL Level (Positive/Negative)
	Audio Input:	Stereo Mini Jack 1V rms Input
Output Signal	Headphones:	Stereo Mini Jack
Display Colors		16.7M	Depending on display card used.
Maximum Viewing Angles	Left/right:	80°/80° (CR>10)
	Up/Down:	75°/80° (CR>10)
Synchronization Range	Horizontal:	31.5 kHz to 81.1 kHz	Automatically
	Vertical:	56 Hz to 76 Hz	Automatically
Resolutions Supported		720 x 400*1 : VGA text640 x 480*1 at 60 Hz to 75 Hz800 x 600*1 at 56 Hz to 75 Hz832 x 624*1 at 75 Hz1024 x 768*1 at 60 Hz to 75 Hz1152 x 864*1 at 60 Hz to 75 Hz1152 x 870*1 at 75 Hz1280 x 960*1 at 60 Hz to 75 Hz1280 x 1024 at 60 Hz to 75 Hz......	Some systems may not support all modes listed.NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.
Active Display Area	Horizontal:	338mm/13.3 inches
	Vertical:	270mm/10.6 inches
Power Supply		100-240 V ~ 50/60 Hz
Current Rating		0.7 - 0.35 A/100-240V1.5A/100-240V (for Mexico)
Speaker Practical Audio Output		1+1 watts
Dimensions		368.0mm (W) x 381.5mm (H) x 209.6mm (D)14.5 inches (W) x 15.0 inches (H) x 8.3 inches (D)
Weight		4.3kg9.5lbs
Environmental Considerations	Operating Temp.:	5°C to 35°C/41°F to 95°F
	Humidity:	10% to 80%
	Altitude:	0 to 10,000 Feet
	Storage Temperature:	-10°C to +60°C/14°F to 140°F
	Humidity:	10% to 85%
	Altitude:	0 to 40,000 Feet

Monitor
Specifications
AccuSync™ LCD93VXM
Notes

LCD Module	Diagonal:	19.0 inch	Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.294 mm dot pitch; 300cd/m² white luminence; 800:1 contrast ratio, typical
	Viewable Image Size:	19.0 inch
	Native Resolution (Pixel Count):	1280 x 1024
Input Signal	Video:	Analog RGB 0.7 Vp-p/75 Ohms	Digital Input: DVI
	Sync:	Separate sync TIL Level (Positive/Negative)
	Audio Input:	Stereo Mini Jack 1V rms Input
Output Signal	Headphones:	Stereo Mini Jack
Display Colors		16.7M	Depending on display card used.
Maximum Viewing Angles	Left/right:	80°/80° (CR>10)
	Up/Down:	80°/80° (CR>10)
Synchronization Range	Horizontal:	31.5 kHz to 81.1 kHz	Automatically
	Vertical:	56 Hz to 76 Hz	Automatically
Resolutions Supported		720 x 400*1 : VGA text	Some systems may not support all modes listed.
		640 x 480*1 at 60 Hz to 75 Hz
		800 x 600*1 at 56 Hz to 75 Hz
		832 x 624*1 at 75 Hz
		1024 x 768*1 at 60 Hz to 75 Hz
		1152 x 864*1 at 70 Hz to 75 Hz
		1152 x 870*1 at 75 Hz
		1280 x 960*1 at 60 Hz to 75 Hz
		1280 x 1024 at 60 Hz to 75 Hz......	NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.
Active Display Area	Horizontal:	376mm/14.8 inches
	Vertical:	301mm/11.9 inches
Power Supply		100-240 V ~ 50/60 Hz
Current Rating		0.75 - 0.4 A/100-240V
		1.5A/100-240V (for Mexico)
Speaker Practical Audio Output		1+1 watts
Dimensions		405.5mm (W) x 405.5mm (H) x 222.0mm (D)
		16.0 inches (W) x 16.0 inches(W) x 8.7 inches (D)
Weight		4.7kg
		10.4lbs
Environmental Considerations	Operating Temp.:	5°C to 35°C/41°F to 95°F
	Humidity:	10% to 80%
	Altitude:	0 to 10,000 Feet
	Storage Temperature:	-10°C to +60°C/14°F to 140°F
	Humidity:	10% to 85%
	Altitude:	0 to 40,000 Feet

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE: Technical specifications are subject to change without notice.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor's small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor® Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.

OSD (On-Screen Display) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

NaViSet™ Software: NaViSet offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSD display settings via mouse and keyboard.

No-touch Auto Adjust™: No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup.

ErgoDesign® Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSD controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play: The Microsoft® solution with the Windows® operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM® (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card's scanning frequency, thus displaying the resolution required.

FullScan® Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

VESA® Standard Mounting Interface: Allows users to connect their monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

No picture

• The signal cable should be completely connected to the display card/computer.
• The display card should be completely seated in its slot.
• Front Power Switch and computer power switch should be in the ON position.
• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)
• Check the monitor and your display card with respect to compatibility and recommended settings.
• Check the signal input.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

Image Persistence

• Image persistence is when a residual or "ghost" image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors' image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC Display Solutions of America, Inc. recommends displaying moving images or using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.
• Use the OSD Image Adjust controls to focus and adjust display by increasing or decreasing the FINE control. When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.
• Check the monitor and your display card with respect to compatibility and recommended signal timings.
• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit (no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

Display image is not sized properly

• Use the OSD Image Adjust controls to increase or decrease the H.SIZE.
• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Power button off and on again.
• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

No Sound

• Make sure the speaker cable is properly connected.
• Check to see if mute is activated.
• Check the volume in the OSD menu.

No Sound from Headphones

• Make sure the headphones are properly connected.

NEC Monitor Customer Service & Support

Customer Service and Technical Support: [phone]

Fax: [phone]

Parts and Accessories/Macintosh

Cable Adapter: [phone]

Warranty Information: www.necdisplay.com

Online Technical Support www.necdisplay.com

Sales and Product Information

Sales Information Line: [phone]

Canadian Customers: [phone], Ext#: 4037

Government Sales: [phone]

Government Sales email: [e-mail]

Electronic Channels

World Wide Web: www.necdisplay.com

Product Registration: www.necdisplay.com

European Operations: www.nec-display-solutions.com

Drivers and Downloads www.necdisplay.com

Limited Warranty

NEC Display Solutions of America, Inc. (hereinafter "NEC DISPLAY SOLUTIONS") warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY SOLUTIONS' sole option) any part of the enclosed unit which proves defective for a period of one (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC DISPLAY SOLUTIONS-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NEC DISPLAY SOLUTIONS No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC DISPLAY SOLUTIONS to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NEC DISPLAY SOLUTIONS to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NEC DISPLAY SOLUTIONS for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NEC DISPLAY SOLUTIONS to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User's Manual. Any such conditions will void this warranty.

NEC DISPLAY SOLUTIONS SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NEC DISPLAY SOLUTIONS PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTY ARE IN LIEU OF ALL OTHER WARRANTYES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTY OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NEC DISPLAY SOLUTIONS Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NEC DISPLAY SOLUTIONS.

For the name of your nearest authorized NEC Display Solutions of America, Inc. service facility, contact NEC Display Solutions of America, Inc. at 1-800-632-4662.

TcODevelopment

Development

Tc0'03

DISPLAYS

www.tcodevelopment.com

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14001

• Restrictions on:

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Manufacturer's Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company's top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organization for Standardization) and TCO (Swedish Trades Union).

Disposing of old NEC product

The aim of recycling is to gain environmental benefits by means of reusing, upgrading, reconditioning, or reclaiming old material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed.

To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product, in an environmentally sensitive way, once it has reached the end of its life.

All required information concerning the disposal of the product and country-specific information can be found on our following websites:

USA: http://www.necdisplay.com

Europe: http://www.nec-display-solutions.com/greencompany/

Japan: http://www.nec-display.com

Energy saving

This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode..

LCD73VXTM

Mode	Power Consumption	LED Color
Normal Operation	Approx. 28W	Green
Energy Saving Mode	Less than 2W	Amber
Off Mode	Less than 1W	Unlit

LCD93VXTM

Mode	Power Consumption	LED Color
Normal Operation	Approx. 33W	Green
Energy Saving Mode	Less than 2W	Amber
Off Mode	Less than 1W	Unlit

Manufacturer's Recycling and Energy Information -continued

LCD73VXM

Mode	Power Consumption	LED Color
Normal Operation	Approx. 32W	Green
Energy Saving Mode	Less than 2W	Amber
Off Mode	Less than 1W	Unlit

LCD93VXM

Mode	Power Consumption	LED Color
Normal Operation	Approx. 39W	Green
Energy Saving Mode	Less than 2W	Amber
Off Mode	Less than 1W	Unlit

Declaration of the Manufacturer

We hereby certify that the color monitor LCD73VXTM (L175GZ), LCD93VXTM (L195GY) or

LCD73VXM™ (L175GZ), LCD93VXM™ (L195GY)

is in compliance with

Council Directive 73/23/EEC:

• EN 60950-1

Council Directive 89/336/EEC:

• EN 55022

• EN 61000-3-2

• EN 61000-3-3

• EN 55024

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Disposing of your old NEC Products

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC. The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

AVERTISSEMENT

AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU À L'HUMIDITÉ. NE PAS UTILISER LA FICHE D'AImentation POLARISÉE AVEC UNE PRIDE DE CORDON DE RALLYNGE OU AUTRE PRISE SAUF SI LES BROCHES PEUVENT ÉTRE INTÉRÊMENT INTRODUITES.

NE PAS OUVRIR LE BOITIER, LEQUEL CONTIENT DES COMPOSANTS À HAUTE TENSION. CONFIER TOUS TRAVAUX À DU PERSONNEL TECHNIQUE QUALIFIÉ.

ATTENTION

ATTENTION: POUR ÉVITER TOUT RISQUÉD'ÉLECTROCUTION, NE PAS OUVRIR LE COUVERCLE (L'ARRÊIRE). À L'INTÉRIER, AUCUNE PIECE NE NÉCESSITE L'INTERVENTION DE L'UTILISATEUR. EN CAS DE PROBLÈME, S'ADRESSER À DU PERSONNEL TECHNIQUE QUALIFIÉ.

LCD73VXM™ (L175GZ), LCD93VXM™

(L195GY)

dont conformes a

la directive 73/23/EEC du Counsel:

• EN 60950-1

la directive 89/336/EEC du Counsel:

• EN 55022
• EN 61000-3-2
• EN 61000-3-3
• EN 55024

et porte le sigle

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

To prepare the monitor for alternate mounting purposes:

Figura TS.1

Adjusts the image displayed for non-standard video inputs.

AUTO AJUSTA AUTOMÁTICO

LCD73VXM™ (L175GZ), LCD93VXM™ (L195GY)

• EN 60950-1

Directiva municipal 89/336/EEC

• EN 55022

• EN 61000-3-2

• EN 61000-3-3

• EN 55024

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

The information disclosed in this document, including all designs and related materials, is the valuable property of NEC Display Solutions of America, Inc. and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights are expressly granted to others.

The NEC Display Solutions of America, Inc. product(s) discussed in this document are warranted in accordance with the terms of the Limited Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC Display Solutions of America, Inc.

To allow for design and specification improvements, the information in this document is subject to change at any time without notice. Reproduction of this document or portions thereof without prior approval of NEC Display Solutions of America, Inc. is prohibited.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

NEC Display Solutions of America, Inc.

Address:

500 Park Blvd, Suite 1100

Tel. No.:

Itasca, Illinois 60143

[phone]

Type of Product:

Display Monitor

Equipment Classification:

Class B Peripheral

Model:

LCD73VXTM (L175GZ) / LCD93VXTM (L195GY)

LCD73VXMTM(L175GZ)/LCD93VXMTM(L195GY)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners.

As an ENERGY STAR® Partner, NEC Display Solutions of America, Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service.
