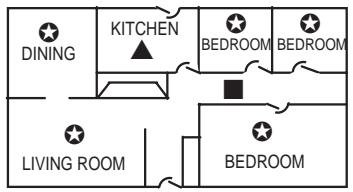

EARLY WARNING FIRE DETECTION

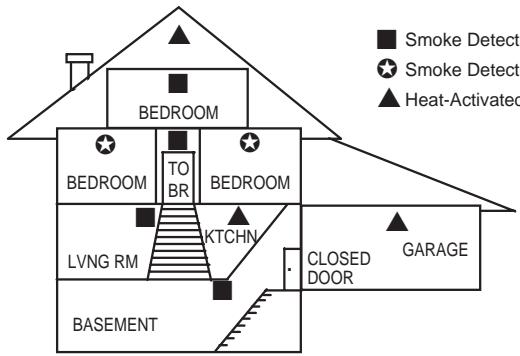

Early warning fire detection is important in a home. Smoke and heat detectors have played a key role in reducing fire deaths in the United States. With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72). These recommendations can be found on page 34 of this manual. About This Manual This manual is a step-by-step guide that will acquaint you with the system's features and benefits. It defines the components and their functions, describes their operation, and provides clear step-by-step instructions for normal and emergency procedures. Keep this manual in a convenient place so that you can refer to it as necessary.

Table of Contents System Overview Introduction … System Basics Using the Voice Message Center About The Touchpads . General Information Functions of the Touchpads … Entry/Æxit Delays Exit Delay Entry Delay. Exit Alarms. Checking For Open Zones. Usingthe[*# Key to Display and Announce System Status Arming the System. Stay Mode: Arms Perimeter Only, Entry Delay On Night-Stay Mode: Arms Perimeter Only, Plus Selected Zones . Instant Mode: Arms Perimeter Only, Entry Delay Off. Away Mode: Arms Entire System, Entry Delay On. Arming Commands.. Single Button Arming Single-Button “Step” Arming Using the Keyswitch.. Using the Keyswitch Disarming and Silencing Alarms. Usingthe[OFF] key... Bypassing Protection Zones Usingthe BYPASS Key Quick Bypass Chime Mode Viewing Current Date and Time Viewing the Current Date and Time. Setting the Date and Time. Panic Keys. Using Panic Keys...

Tableof Contents Macro Key Programming & Usage About Macro Keys. Example of Macro Programming Using a Programmed Macro Key Using Device Commands Paging Feature … About Automatic Paging About Manual Paging. Latch Key Paging. Security Codes & Authority Levels.. About Security Codes . Authority Level Definitions. To assign User Codes and Attributes Accessing Other Partitions (GOTO Command and Mul About Accessing Partitions Using the GoTo Command Multi-Partition Arming Common Zone Operation Scheduling About Schedulin Creating Schedules Event Logging Procedures. About E vent Logging Viewing the Event Log... Testing the System (To Be Conducted Weekly) Trouble Conditions Maintaining Your System. Fire Alarm System (If Installed)… Quick Guide to Basic System Functions Summary of Audible/Visual Notifications. Regulatory Statements and Warnings Charts of Your System's Features

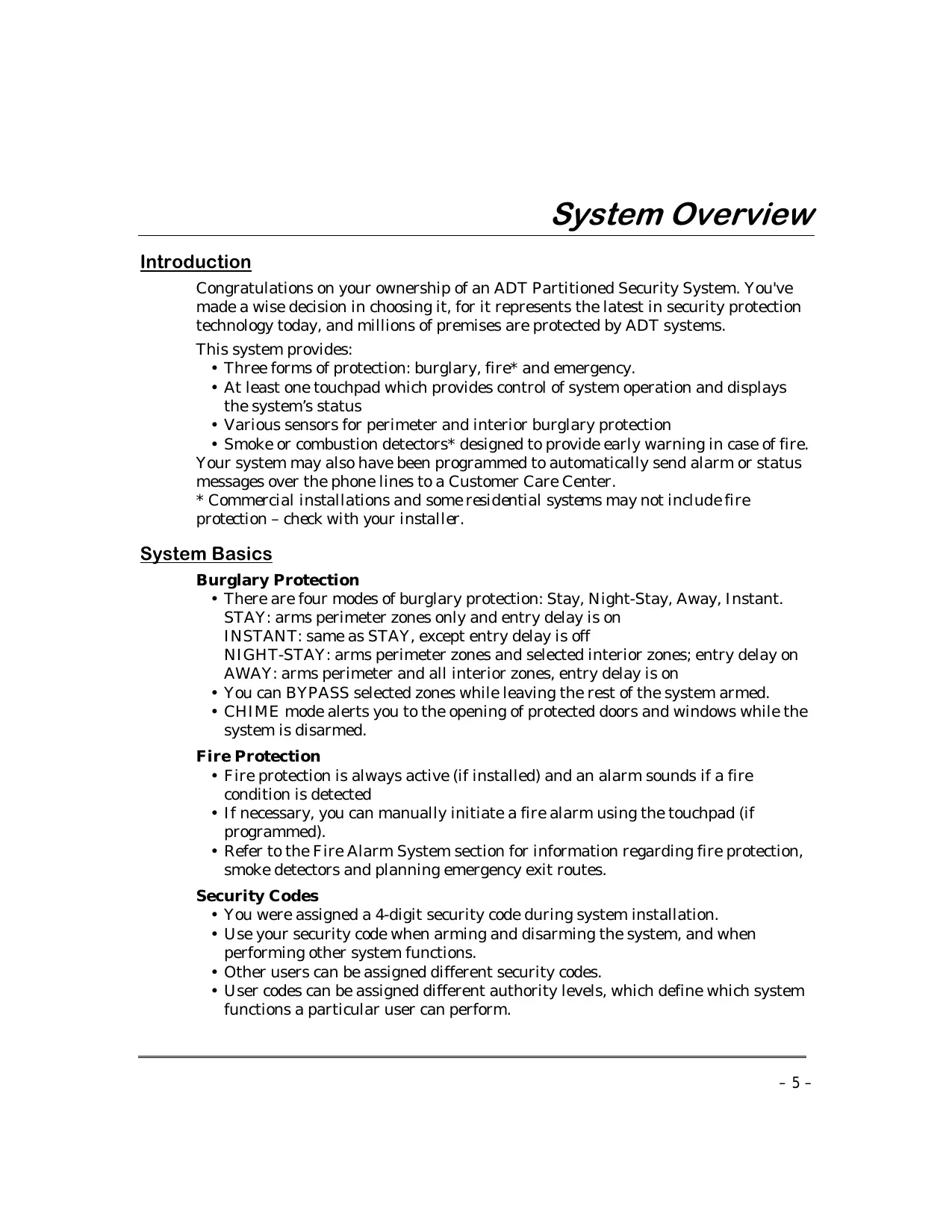

System Overview Introduction Congratulations on your ownership of an ADT Partitioned Security System. You've made a wise decision in choosing it, for it represents the latest in security protection technology today, and millions of premises are protected by ADT systems. This system provides: + Three forms of protection: burglary, fire* and emergency. + At least one touchpad which provides control of system operation and displays the system's status + Various sensors for perimeter and interior burglary protection + Smoke or combustion detectors* designed to provide early warning in case of fire. Your system may also have been programmed to automatically send alarm or status messages over the phone lines to a Customer Care Center.

• Commercial installations and someresidential systems may not indudefire protection - check with your installer. System Basics Burglary Protection + There are four modes of burglary protection: Stay, Night-Stay, Away, Instant. STAY: arms perimeter zones only and entry delay is on INSTANT: same as STAY, except entry delay is off NIGHT-STAY : arms perimeter zones and selected interior zones; entry delay on AWAY: arms perimeter and all interior zones, entry delay is on + You can BYPASS selected zones while leaving the rest of the system armed. + CHIME mode alerts you to the opening of protected doors and windows while the system is disarmed. Fire Protection - Fire protection is always active (if installed) and an alarm sounds if a fire condition is detected + If necessary, you can manually initiate a fire alarm using the touchpad (if programmed). + Refer tothe Fire Alarm System section for information regarding fire protection, smoke detectors and planning emergency exit routes. Security Codes + You were assigned a 4-digit security code during system installation. + Use your security code when arming and disarming the system, and when performing other system functions. + Other users can be assigned different security codes. + User codes can be assigned different authority levels, which define which system functions a particular user can perform.

System Overview (Continued) Zones and Partitions + The system sensing devices have been assigned to various “zones,” which are spedific areas of protection (e.g., front door, kitchen window, etc.). + Zone numbers are displayed at the touchpad when an alarm or trouble condition occurs on a sensor. + Partitions provide two independent areas of protection, with each partition containing a group of zones that can be armed and disarmed without affecting other zones or users. + Partitioned systems can include à common zone area, which is an area shared by users of both partitions (such as a lobby in a building). + Partition identification: 1 =partition 1; 2 =partition 2; 3 =common zone. Arming, Step-Arming and Disarming Burglary Protection + The system must be armed before the burglary protection can sense intrusions. + To arm your system, enter your user code followed by the desired arming key. + If programmed, the [# key can be pressed instead of entering the security code when arming the system. + You can also use the step-arming key to arm the system, if programmed. + To disarm the system, enter your user code then press the [OFF] key. + Step-arming, if programmed, lets you use a function key to arm the system in one of three modes by simply pressing the key repeatedly, where: first press arms STAY; second press arms NIGHT-STAY; third press arms AWAY. Alarms + When an alarm occurs, both the touchpad and external sounders will sound, and the touchpad will display the zone(s) causing the alarm. - If your system is connected to a Customer Care Center, an alarm message will also be sent. - Tostop the alarm sounding, simply disarm the system. Memory of Alarm + When an alarm condition occurs, the touchpad displays the number(s) of the zone(s) that caused the problem, and displays the type of alarm (e.g., “FIRE”). + The message remains displayed even after disarming the system, but can be cleared with another “off” sequence. Function Keys - The “A”, “B”, “C”, and “D” keys on the touchpad can be programmed to perform various functions. + Functions indude: activate a Panic alarm; arm the system; provide step arming; switch lights on/off; send a message to a pager; display Time/Date:; start a Macro

System Overview (Continued) Phone Access + Ifinduded, a phone module permits you to access the system via a touch-tone phone, either on-premises or by call-in when away. + When you call in, the phone module announces system status over the telephone, and you can arm/disarm the system and perform most function commands remotely using the telephone keys. + Complete information for using these features is provided with the voice module. Paging Feature + If programmed, the system can automatically send messages to up to four pagers. certain system condition + The display consists of code numbers that identify the type of condition that has occurred. Scheduling + Your system can be programmed to automatically perform certain functions (e.g., arm the system) at a predetermined time each day. Using the Voice Message Center The Voice Touchpads feature à voice message center that lets you record and playback one message. + The message can be up to 2.5-minutes long + The message remains in the Touchpad's memory until a new message is recorded. - The volume control of the message is adjustable. + Refer to the procedures below when using the Message Center functions. Message Center Functions

To... Press these keys. Notes... record a [# FUNCTION +[0] VOICE +[1] RECORD The red MESSAGE LED lights. message Message remains in memory until a new message is recorded. end [1] RECORD The red MESSAGE LED flashes, recording indicating message waiting. play a [# FUNCTION +[0] VOICE +[3] PLAY The recorded message plays and message the red MESSAGE LED turns off. adjustthe | [#4 FUNCTION +[0] VOICE +[2] VOLUME keys, | Adjusting message volume also volume then press volume key [3] ? (up) or [6] 4 (down) adjusts status volume. Volume cannot be adjusted while playing.

About The Touchpads General Information Your touchpads allow you to control all system functions and feature the following:

• À telephone style (digital) keypad - Liquid Crystal Display (LCD) which shows the nature and location of all occurrences - Built-in sounder which will sound during alarms and troubles. The sounder also "beeps" during certain system functions and when depressing any of the keys (to acknowledge the key press). -Backlighting of the LCD display windows. Backlighting turns on when any key is pressed, and when opening an entry/exit door while the system is armed. This feature is helpful when a touchpad is located in a dimly lit area. + Some touchpads have a voice feature that announces the nature and location of all occurences. Voice touchpads also announce any faulted zones when Chime mode is on. Ask your installer if this option has been programmed for your system. IMPORTANT: If the touchpad beeps rapidiy upon enteringthe premises, it indicates that an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a nearby safe location. Your touchpads are functionally the same, but may have different types of displays, depending on the type installed with your system. To access the keys on the touchpad, simply open the swing-down door. Custom English 2-line Custom English display touchpads feature a 2-line, Display 32-character alphanumeric LCD which displays system messages in friendly English. These touchpads can also be programmed with custom zone descriptors. English Display English display touchpads are functionally identical to Custom English display touchpads, but the LCD display uses pre- designated words to identify the nature and location of occurrences. Voice Touchpads Voice Touchpads (if installed), are functionally the same as other touchpads, except that these touchpads can provide the following: + Voice announcements of system status (see Checking for Open Zones section) + Voice chime, which can alert you to the opening of doors and windows while the system is disarmed (see Voice Chimein Chime mode section) + Message center, which lets you record and playback messages (see Using the Voice Message Center in the System Overview section).

About The Touchpads (Continued) AWAY: STAY: INSTANT: BYPASS: NOT READY: NO AC: AC: CHIME: BAT: ALARM: CHECK: FIRE: English Display Touchpad All burglary zones, interior and pue NO AC perimeter, are armed. J Îl AWAY TEST

Perimeter burglary zones, such as ALARM STAY cm Bar protected windows and doors, are FIRE CHECK INSTANT armed. Entry delay is turned off: Lit with STAY =Instant mode Lit with AWAY =Maximum mode

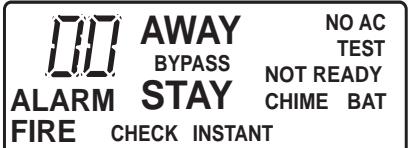

ENGLISH DISPLAY TOUCHPAD

This appears when one or more burglary protection zones have been bypassed. Appears when burglary portion of the system is not ready for arming (due to open protection zones). The system is ready to arm when this message disappears and the READY indicator light comes on. Appears when AC power has been cut off. System is operating on backup battery power. Appears when AC power is present. Appears when the CHIME featureis activated. Low battery condition in a wireless sensor (if zone number displayed) or low system battery (if no zone number displayed). Appears when an intrusion has been detected and the system is armed (also appears during a fire alarm or audible emergency alarm). Accompanied by the protection zone in alarm. Appears when a malfunction is discovered in the system at any time or if an open is detected in a FIRE zone at any time or a fault in a DAY/NIGHT burglary zone during a disarmed period. Accompanied by a display of zone number in trouble. Appears when a fire alarmis present. Accompanied by a display of the zonein alarm. A FIRE display also appears when a fire alarm is manually activated, accompanied by a display of emergency key zone number programmed for fire.

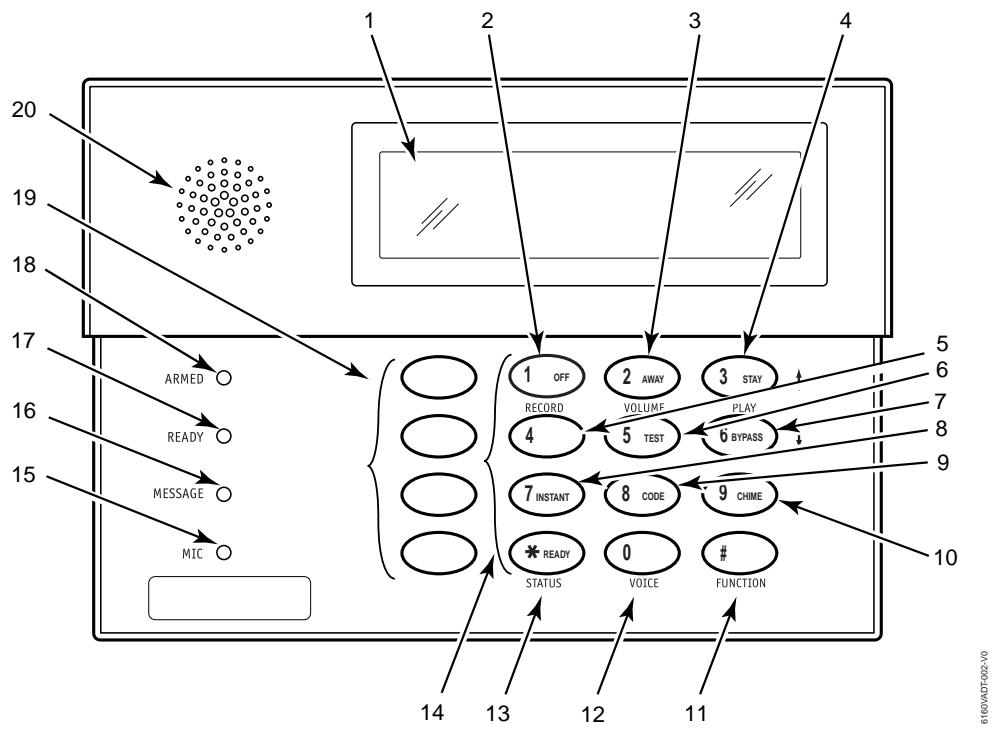

Functions of the Touchpads NOTE: The functions printed directly on the keys indicate their primary purpose (most require entry of a security code first); the functions printed under some keys (shoun in brackets in the list below) indicate an alternate function available on voice touchpads only.

Custom English Display Touchpads: 2-line, 32- character Liquid Crystal Display (LCD) touchpads that display protection point identification, system status, and messages. English Display Touchpads: Display protection zone ID and system status messages using pre- designated words in the LCD display.

2. Disarms burglary portion of the system,

silences alarms and audible trouble indicators, and clears visual display after problem's correction. [RECORD] Used to record up to a 2.5-minute message. Arms the entire burglary system, perimeter and interior. [VOLUME] Used with the desired ? [3] or L [6] keys to set playback and system announcement volume.

4. Arms perimeter portion of burglary

system only. Interior protection is not armed, allowing movement within premises without causing an alarm. [PLAY] Used to playback a recorded message. [T1 Used with VOLUME key to raise volume.

5. [4] Thisis not a Function key. Used only as

a numeric key. 6: Tests the system and alarm sounder if disarmed. Refer to Testing The System section for test procedures. . Removes individual protection zones from being monitored by the system. LulUsed with VOLUME key to lower volume.

8. Arms in manner similar to the STAY

mode, but without the entry delay feature. Entering via an entry/exit door will cause an instant alarm.

Used to assign additional user codes for other users of the system.

10. Turns CHIME mode on and off.

When on, the opening of windows or doors while the system is disarmed will sound 3 beeps at the touchpad(s).

11. [_#] This key can be used for "Quick Arming' of

the system without use of a security code (if programmed). [FUNCTION] Used to enable voice and volume functions.

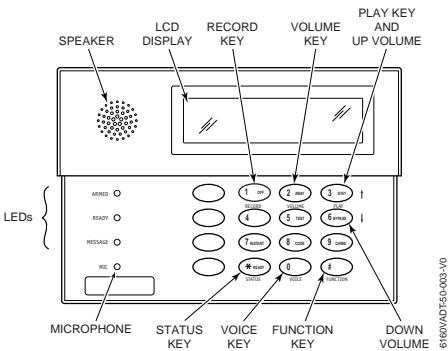

12. Key [ 0 ] [VOICE] Used to activatethe

RECORD, VOLUME, and PLAY functions. Used to display all open protection zones. [STATUS] Used to announce system status and faulted zones (if any exist).

14. KEYS 0-9: Numeric keys used to enter your

15. MIC: Microphone for Message Center recordings.

system is ready to be armed (no faults present). Whilethe system is disarmed, this indicator will go on and off as protection zones are dosed and opened.

18. ARMED INDICATOR: (red) Lit when the

system has been armed.

19. FUNCTION KEYS: Keys A, B, C, D may have

been programmed for a variety of functions, induding panic (emergency) functions. For details, see the Function Keys section.

20. INTERNAL SPEAKER: The built-in speaker

mimics the alarm sounder during alarms, and will also "beep" during certain system functions. The speaker also provides voice playback for any recorded messages.

Functions of the Touchpads (Continued) 17 l 5 Sgese ft Custom English Display Voice Touchpad {shown without swing-down front door) IMPORTANT! When entering codes and commands, sequential key depressions must be made within 10 seconds of one another. 1f 10 seconds elapse without a key depression, the entry will be aborted and must be repeated from its beginning. Be sure to observe this precaution when performing any of the procedures in this manual. If you make a mistake while entering a security code, stop, press the [x] key, and then start over. 1f you stop in the middle while entering a code, and then immediately start the entry over, an erroneous code might be entered.

Entry/Exit Delays Entry Delay Entry Delays give you time to disarm the system when you re-enter through the designated entrance door. You must disarm the system (simply enter your security code) before the entry delay period ends, or an alarm will occur. The touchpad beeps during the entry delay period, reminding you to disarm the system. There are two entry delays (if programmed). The first is for your primary entrance and the second can be used for a secondary entrance, where a longer delay is required to walk tothe touchpad to disarm the system. You can also arm the system with no entry delay at all by using the INSTANT arming mode. This mode provides greater security while on the premises or while away for extended periods of time. See your installer for your delay times. Partition 1 Exit Delay: [ |] seconds Entry Delay 1:[ | seconds Entry Delay 2:[ | seconds NOTE: Entry/Æxit times set for partition 1 also apply to the common zone. Partition 2 Exit Delay: [|__| seconds Entry Delay 1:[___ | seconds Entry Delay 2: LC] seconds Exit Delay Exit delay gives you time to leave through the designated exit door without setting off an alarm. Exit delay begins immediately after arming your system in any arming mode and Custom Display touchpads display the message “You May Exit Now.” When “You may exit now” disappears, the system is fully armed. 1f programmed, a slow beeping will sound during the exit delay period, until the last 10 seconds, which then changes to fast beeping (alerting you to the end of exit delay). 1f you cannot leave by this time, you should stop, disarm the system, and start over to avoid a false alarm. Exit Delay Restart (if programmed): 1f you wish to open the entry/exit door to let someone in after arming STAY, you can re-start the exit delay at any time - simply press the [*] key, then let that person in. The system automatically re-arms when exit delay expires, which avoids having to disarm the system and then re-armit again. In addition, when the system is armed AWAY, reopening and dosing the entry/exit door before exit delay time expires (e.g., reentering to get a forgotten item) will reset the exit delay time.

Entry/Exit Delays (Continued) Exit Alarms Whenever you arm the system, the exit delay begins. If an entry/exit door or interior zone is faulted when the exit delay ends (e.g., exit door left open), the system sounds an alarm and starts the entry delay timer. 1f you disarm the system before the entry delay ends, the alarm sound stops and the message "CANCE LED ALARM" or "CA"is displayed on the touchpad, along with a zone number indicating the faulted zone. No message is sent to the Customer Care Center. To clear the exit alarm condition, the open zone must be made intact; to clear the display, enter your code plus OFF. If you do not disarm the system before the entry delay ends, and an entry/exit door or interior zone is still open, the alarm sound continues and an "exit alarm" message is sent to the Customer Care Center. The message ""EXIT ALARM" or "EA"is displayed on the touchpad, along with a zone number indicating the faulted zone. To stop the alarm, the system must be disarmed (your code plus OFF); to clear the display, enter your code plus OFF a second time. An “exit alarm” also results if an entry/exit door or interior zone is faulted within two minutes after the end of the exit delay. Your system may have been programmed for this feature to minimize false alarms sent to the Customer Care Center. Ask your installer if "Exit Alarm" is active in your system. If so, check this box. [me] Checking For Open Zones Using the [4 Key to Display and Announce System Status Before arming your system, all protected doors, windows and other protection zones must be dosed or bypassed, otherwise the touchpad will display a "Not Ready" message.

1. Press [A READY (do not enter code first) to display Custom Display:

2. Secure or bypass the zones displayed. DISARMED - PRESS %

3. The touchpad's READY indicator lights when all TO SHOW FAULTS

protection zones have been either closed or bypassed. | English Display:

4. Arm the system as desired. Zone no. and "NOT READY”

Voice Status: Voice Touchpads (if installed), can announce system status and faulted zones (up to 3 zone descriptors) if the Voice Status feature is turned on. To turn the Voice Status feature on/off: +[01 + {also turns on Voice Chime mode: see Chime mode section) To announce Status: Press [4 STATUS key once. To announce faulted zones: Press the [4 STATUS key a second time within 5 seconds of the first press.

Arming the System Stay Mode: Arms Perimeter Only, Entry Delay On + Used when you want to arm the system with persons staying inside (or if you have pets that are moving throughout the premises). + The perimeter sensors are armed, but interior sensors are left disarmed. + Exit delay begins (you can leave through the entry/exit door, if desired).

• An alarm sounds immediately if any protected perimeter window or non-entry/exit door is opened. + You may otherwise move freely within the premises. + Persons entering later can enter through an entry/exit door without causing an alarm, but they must disarm the system within the entry delay period to avoid sounding an alarm. Night-Stay Mode: Arms Perimeter Only, Plus Selected Zones + Use Night-Stay mode to provide increased security while staying inside. + Arms same as Stay mode, but also arms pre-selected interior sensors (programmed by your installer), while other interior sensors are left disarmed. + Persons entering later can use an entry/exit door but they must disarm the system and must not violate any of the programmed interior zones to avoid sounding an alarm. + IMPORTANT: When Night-Stay mode is on, the selected interior zones are armed and cause an alarm if anyone enters those areas (e.g., waking in the middle of the night). To avoid sounding an alarm, you must disarm the system before any activity takes place in those interior zones. Instant Mode: Arms Perimeter Only, Entry Delay Off + Used when staying inside and do not expect anyone to use an entry/exit door. + Arms same as Stay mode.

• An alarm sounds immediately if any protected perimeter window or any door is opened, including entry/exit doors. + IMPORTANT: Arming the system in this mode greatly increases the chance of false alarms. Use extreme care in selecting this mode of arming. Away Mode: Arms Entire System, Entry Delay On + Used when nobody will be staying inside (including pets). + Theentire system (interior and perimeter) is armed. + Exit delay begins letting you leave through the entry/exit door. - An alarm sounds if a protected window or any door is opened, or if any movement is detected inside your premises. + You can reenter through an entry/exit door without causing an alarm, but you must disarm the system within the entry delay period to avoid sounding an alarm.

• also note that entry delay is turned off Away security code +[2] (AWAY) * two beeps, or, if programmed, beeping for duration of exit delay + armed AWAY message displayed + red ARMED indicator lights Leave the premises through an entry/exit door during the exit delay period to avoid using an alarm. The touchpad beeps rapidly during the last 5 seconds of the exit delay to warn you that it is ending. Quick Arming If "Quick Arming" was programmed by the installer, the [# key can be pressed in place of the security code when arming the system in any of its arming modes. However, the security code must always be used to disarm the system. Function Key Arming For any arming command, a function key may have also been programmed for your system. 1f so, you can press and hold the appropriate function key for 2 seconds to arm the system. See your installer for the designated functions (see Single Button Arming section). Refer to the Accessing Other Partitions section for information on multi-partiion arming.

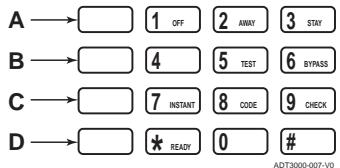

Arming the System Single Button Arming The “A”, “B”, “C”, and/or “D” keys on your touchpad may have been programmed for single-button arming. Note that whileit will not be necessary to use a security code for arming, a security code must always be used to disarm the system. If Single-Button Arming is programmed: - A function key has been assigned to a specific type of arming: STAY mode, Night- STAY mode, AWAY mode, or STEP-ARMING (see Step-Arming paragraph). + You DO NOT need to enter your security code before pressing the function key (but you always need your security code to DISARM the system). Bæforearming, dose all perimeter doors and windows.

1. Press and hold the assigned function key for 2

armed message. The red ARMED indicator also lights. Single-Button “Step” Arming DISARMED

English Display: Green LED lit ARMEDAUANE

English Display: AWAY Single-Button “Step” arming may have been programmed into one of the lettered keys (A, B,C, or D). Check with your installer to see if this has been done in your system. If Step-Arming is programmed': + The assigned key provides a choice of three levels of security. + Theselected key can be pressed once, twice, or three times, increasing the level of security with each press, as follows Key

Using the Keyswitch Using the Keyswitch Your system may be equipped with a keyswitch for use when arming and disarming. Red and green lights on the keyswitch plate indicate the status of your system as follows: Green Light: Lights when the system is disarmed and ready to be armed (no open zones). If the system is disarmed and the green light is off, it indicates the system is not ready (one or more zones are open). Red Light: Lights or flashes when system is armed in AWAY or STAY mode. See your installer for the meanings of the lit red light: Lit Steady = system armed AWAY or system armed STAY and exit delay has expired Flashing = system armed STAY and exit delay timer active Rapid flashing = an alarm has occurred (memory of alarm). Bæorearming, close all perimeter doors and windows. To armin the AWAY mode: Turn the key to the right for 1/2 second and release. Touchpads beep twice and the red indicator lights or

flashes. To armin the STAY mode: een T ame Ve Turn the key to the right and hold for longer than 1 second, then release. Touchpads beep three times and the red indicator lights or flashes. To disarm the system: Turn the key to the right and release. The red light turns off

Disarming and Silencing Alarms Using the [OFF] key The OFF key is used to disarm the system, silence alarm and trouble sounds, and dear alarm memories. IMPORTANT: If you return and the main burglary sounder is on, DO NOT ENTER, but CONTACT THE POLICE from a nearby safe location. If you return after an alarm has occurred and the main sounder has shut itself off, the touchpad will beep rapidly upon your entering, indicating that an alarm has occurred during your absence. LEAVE AT ONCE, and CONTACT THE POLICE from a nearby safe location. :0000+ (Security Code) OFF The “READY” indicator light will belit if all zones are secure, and the touchpad will emit a single tone to confirm that the system is disarmed. NOTE: If entry delay has started (you've opened the entry door), you do not need to press the OFF key; simply enter your security code. DISARMED

Enter your security code. This disarms the system and silences the alarm (or warning tones of a Memory of Alarm). Note the zone in alarm on the touchpad display, and make that zone intact (dose door, window, etc.). Now enter the security code plus OFF sequence again to dear the touchpad's Memory of Alarm display.

3. To Silence a Fire Alarm and Clear Memory of Alarm

Simply press the OFF key to silence the alarm. Note the zone in alarm on the touchpad display, and check the detector. Now enter the security code plus OFF sequence to clear the touchpad's Memory of Alarm display. See the Fire Alarm System section.

Bypassing Protection Zones Using the BYPASS Key Use this key when you want to arm your system with one or more zones intentionally unprotected. Vent Zones: Your system may have certain windows set as “vent” zones, which are automatically bypassed if left open when arming the system (you do not need to manually bypass them). However, if a vent zone window is dosed after arming, it becomes protected and will cause an alarm if opened again while the system is armed. When bypassing zones: + The system must be disarmed before you can bypass zones. + Bypassed zones are unprotected and will not cause an alarmif violated. + Thesystem will not allow fire zones to be bypassed. + Zones are automatically unbypassed when the system is disarmed. 1 D D OU + CA] +zone numbers (see below) DISARMED - PRESS (Security Code) BYPASS + TO SHOW FAULTS Enter the 2-digit zone number(s) for the zone(s) to be bypassed (e.g., 06, 10, 13, etc.). Single digit zone English Display: NOT READY numbers must be preceded by a zero (e.g. 05, 06).

2. When finished, the touchpad will momentarily

display à "Bypass" message for each bypassed zone DISARMED BYPASS number. Wait for all bypassed zones to be displayed. REÂDS TO AFM Arm the system as usual. : A . English Display: BYPASS To display bypassed zones prior to arming, enter your security code and press the [6] BYPASS key.

Bypassing Protection Zones Quick Bypass If programmed, "Quick Bypass" allows you to easily bypass all open (faulted) zones without having to enter zone numbers individually. This feature is useful if, for example, you routinely leave certain windows open when arming at night. 2 ODUU + +14 (Security Code) BYPASS In a few moments, all open zones will be displayed and automatically bypassed. Make sure that only those zones that you wish to leave unprotected are bypassed, and that there are no other zones unintentionally left open.

2. Wait for all bypassed zones to be displayed, then arm

the system as desired. Ask your installer if "Quick Bypass" is active for your system, and if so, check here: [] Chime Mode

English Display: BYPASS CHIME mode alerts you to the opening of a perimeter door or window while the system is disarmed. When Chime mode is activated: + Three tones sound at the touchpad whenever à perimeter door or window is opened. + Interior zones do not produce a tone when they are faulted. + Pressing the READY key will display the open protection points. To turn Chime Mode on/off (system must be disarmed): ODOU+0 (Security Code) CHIME The CHIME message appears when on. Perimeter zones will cause a tone when faulted. The CHIME message disappears when Chime mode is off. DISARMED

English Display: READY DISARMED CHIME

English Display: CHIME Voice Chime: You can set the Voice Touchpads (if installed) to announce faulted (opened) entry/exit or perimeter zones whenever normal Chime mode is on. To turn Voice Chime Mode on or off: {normal Chime mode must be on first) +0] +21 +041 When Voice Chimeis on, any faulted zone(s) causes a voice status announcement, chime and display. When off, the sounder still provides chime if normal Chime mode is on.

Viewing Current Date and Time Viewing the Current Date and Time The system lets you view its time and date setting. C0 0 0 44 +#61131 (Security Code) OR, press the function key (A, B, C, or D) for viewing current date and time, if programmed. A typical time/date display is shown. The display will remain on for about 30 seconds. “pm “p” “c" “D” CT ET ET 2] DISARMED

18-GSAM_ 65/69/68 If one of the above keys has been programmed for the date/time display feature, place a check mark in the box beneath that key. Setting the Date and Time You can set the time and date by doing the following;: 1 0 0 O0 OÙ] 44 + 161131 (Security Code)

2. Press [4 when thetime/dateis displayed.

A cursor appears under the first digit of the hour. To move cursor ahead, press [ 4. To go back, press [#]. -* Enter the 2-digit hour setting. + Enter the 2-digit minute setting. + Press [1] for PM or [0] for AM. - Enter the last two digits of the current year. - Enter the 2-digit month setting. - Enter the 2-digit day setting.

3. Toexit, press [4 when cursor is at the last digit, or

wait 10 seconds. DISARMED

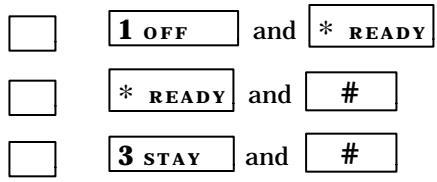

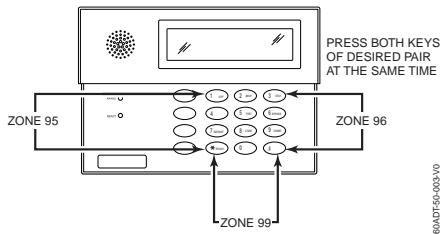

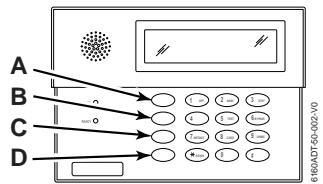

Panic Keys Using Panic Keys Your system may have been programmed to use special keys to manually activate emergency (pan ic) functions as follows: This Function Sends this signal* With This Sounding.. Silent Alarm silent alarm no audible alarm or any visual display indicating that a silent alarm has been initiated. Audible Alarm audible alarm a loud, steady alarm at touchpad(s) and at any external sounders that may be connected. Personal Alarm auxiliary alarm steady alarm sound at touchpad(s), but not at external bells or sirens. Fire Alarm fire alarm temporal (pulsing) sound at external bells and sirens. *AIl panic functions send signals to the Customer Care Center, if connected. To activate a Panic Function: Press and hold down for at least 2 seconds whichever lettered key on the touchpad has been programmed for the desired emer

Press both keys of the assigned key pair at the same time. Lette rgency function. DISARMED

English Display: READY Typical Panic Display: ALAEM 93 English Display: 99 and ALARM zou 95 red Panic Keys el 7 T 3 Panic Key Pairs See your installer and use the chart provided in the Features Programmed in Your System section to note the functions that have been programmed for your system.

Macro Key Programming & Usage About Macro Keys The “A”, “B”, “C” or “D” keys can be used to automatically activate a series of commands of up to 16 keystrokes, if programmed for this function. These keystrokes, as a group, are called “macros” and are stored in the system's memory. + Typical macro functions can indude: - Arming sequences: STAY, Night-STAY, INSTANT, or AWAY - Bypassing particular zone(s) - Activating relay(s) for turning on (or off) lights, fans, etc. + Upto four macros can be assigned - but no more than one macro to a key. + Macros can be activated only by users with authority levels authorized to perform the macro's function. NOTE: Theinstaller must activate the desired function key (using *57 Function key Menu Mode) before macros can be assigned. See the chart at the back of this manual for the key(s) assigned for macros. 1 OO 0 +14 +161 +16 DISARMED (Security Code) READY TO AEM

2. Enter the macro number, 1-4, to be programmed at

the “Select Macro?” prompt. Remember, there are SELECT MACRO four macros available, but only one macro can be 1-4 ä assigned to each key.

3. 1f à macro has been previously defined, the

keystrokes are shown on the bottom line of the display, otherwise the display is blank. To exit this mode (and keep the existing macro definition), press any key except the [*# key. The system returns to normal mode. To define a macro for the selected key, press [4 and continue with the next prompt. Enter the first of the series of desired commandés, (do not include your user code when programming a macro), then press/hold the “D” key for at least two seconds to complete the first command. This key terminates each separate command, and appears as an “Fin the touchpad display. MACRO DISPLAY MACRO PEM

Macro Key Programming & Usage (cont.) The touchpad beeps to acknowledge your input and displays the command you entered (followed by “F”).

4. Enter the next command, followed by press/holding

the “D” key for at least two seconds. The touchpad beeps and displays the keystrokes entered so far.

5. Repeat until the all the desired commands (up to 16

characters induding the “F"s) have been entered. Be sure to check your keystrokes before continuing. If you made a mistake, you must start over.

6. To exit, press/hold the “D” key for at least two

seconds. The display returns to system status and indicates system is ready. Example of Macro Programming Typical Macro Display: MACRO FCM G0203F#101F0F Suppose you want to (1) bypass the two upstairs window zones, then (2) turn on an exterior light, and then (3) arm the security system in the AWAY mode. The procedures in the table that follows show you how you would program this macro: Function Keystrokes Required Touchpad Display L Bypass zones 02 & 03 | Press BYPASS [6] key, then 606803 2-digit zone numbers 02 & 03.

2. Insert terminator. Press the “D” key for at least 2 seconds. 602803F

3. Turn light on Press [# and 7 keys for “device ON”, and | 59293F#101

(device 01). [01] key for selecting device 1.

4. Insert terminator. Press the “D” key for at least 2 seconds. 60203F#701F

5. Arm system AWAY Press AWAY [2] key. 60603F#101F0

6. Insert terminator. Press the “D” key for at least 2 seconds. 60203F#101F2F

1. Press the Macro key programmed for the desired

series of commandés for at least 2 seconds. The “Enter User Code” prompt appears. The prompt remains displayed for up to 10 seconds.

2. Enter your 4-digit user code.

The programmed macro sequence begins automatically after the user code is entered.

Using Device Commands About Device Commands Your system may be set up so that it can control certain lights or other devices. + Some devices may be automatically turned on or off by the system. + You may be able to override automatically controlled devices using the commandés described below. + Some devices can be manually turned on or off using the commands described below. + See your installer for a list of devices that may be set up for your system. A list of these devices is provided at the back of this manual for you tofill out. To Activate Devices: O0 D + +71 +2-digit device number (Security Code) Devices associated with that device number activate. English Display: READY DISARMED

To Deactivate Devices: C1 0 O] À] + 1 +181 +2-digit device number (Security Code) Devices associated with that device number deactivate.

Paging Feature About Automatic Paging Your system may be set up to automatically send alert messages to a pager as certain conditions occur in your system. - The following events can be programmed by your installer to be sent to the pagers: arming, disarmingf, alarms, and trouble conditions. (+ reports when arming/disarming from a touchpad using a security code; auto-arming/disarming, arming with assigned button, and keyswitch arming do not send pager messages.) You can also program the system to send an automatic pager message to alert you in the event that someone has not arrived home (disarmed the system) within à defined period of time (see the Scheduling section for details on programming a “latch key report”). Your installer programs the pager phone numbers and reporting events. The pager message consists of a 7-digit system status code that indicates the type of condition that has occurred. An optional, predefined 16-digit character string can precede the 7-digit system status code; these characters can consist of a PIN no., subscriber account no., or any additional data that you may wish to have sent to the pager. The pager display format is as follows: 3.digit Event Code

Optional 16 digits > AAAAAAAAAAAAAAAA - BBB - CCCC € 4-digit User or Zone No. A= B= c= Optional 16-digits for | A 3-digit code that | À +digit User or Zone number, depending on the type of Account numbers, describes the event | event that has occurred, where: PIN numbers, or any | that has occurred | * alarms and troubles display zone number other data: in your system + arming/disarming (opens/closes) display user number programmed by the | (see for event Thefirst 2 digits are always “00” (e.g., 0004 represents installer, ifrequired. | codes table below) | 20e or user number 4), and, single-digit user or zone numbers are always preceded by a zero. The 3-digit Event Codes (BBB) that can be displayed are: 911= 811= 101= 102= Alarms. Troubles. Open Close The 4-digit number The 4-digit number (system disarmed). (system armed). (CCCC) followingthis | (CCCC) followingthis | The4-digit number The 4-digit number code is the zonenumber | code is the zonenumber | (CCCC) that follows (CCCC) that follows that has used the that has caused the this code is the user this code is the user alarm. trouble. number that has number that has armed disarmed the system. the system. Examples of typical 7-digit pager displays follow. Ex. L. = Reporting of an alarm (911) caused by a fault on zone 4 (0004). EX. 2. = Reporting of a closing-system arming (102)- by user 5 (0005).

Paging Feature About Manual Paging Your system may be set up so you can manually send à message to up to four pagers. + Your installer programs the paging function key and the pager phone numbers. + Pressing the paging keys sends the message to the selected pager. + This message could mean “call home”, “call your office”, or any other prearranged meaning. + See the Paging chart at the back of this manual for details of the paging setup for your system. 1 Hold 2 seconds then press [1-4]. DISARMED (pager no.) READY TO AM Press and hold the programmed Paging Key for at least 2 seconds (wait for beep), then press the pager English Display: READY number (1-4}* representing the pager intended to receive the message. 999-9999

2. The redpient, on seeing the 999-9999 message, will pager Display

understand the prearranged meaning of this signal.

• |f no number is pressed, the message is sent to pager 1. Latch Key Paging You can program a schedule that causes a pager report to be sent if the system is not DISARMED by the scheduled time (see Scheduling section, event “03”). For example, a working parent might want a message to be sent to a pager if their child did not arrive home from school and disarm the system by a certain time. If programmed, the message that is sent is: [777-7777 ].

Security Codes & Authority Levels About Security Codes Your system lets you assign up to 45 different security codes for use by other users. + Only the System Master and Partition Masters can assign user codes to users. + Users are identified by 2-digit user numbers 03-49 and are pre-assigned to either partition 1 or partition 2 (users 01-02 are reserved). + Only thelnstaller or System Master can change the partitions to which a user is assigned. + In addition to a security code, each user is assigned various system attributes. + User codes can be used interchangeably within à partition when performing system functions (a system armed with one user's code can be disarmed by another user's code), with the exception of the guest code described below. + User code programming involves these steps:

1. Choose a user number from the set of users assigned to the partition in which the

user will be operating, and assign a 4-digit security code.

2. Assign an authority level to that user.

3. Assign other attributes as necessary (see attributes on the next page).

NOTE: The factory settings are designed to meet most normal user situations. Therefore, the only step you usually need to do when adding users is assign a user number (from the partition's pre-assigned user numbers) and a security code. Authority Level Definitions Authority levels define the system functions à particular user can/cannot perform. Level] Title Explanation N/A | System Master | Reserved for user 02; Can perform all system functions and assign codes in both partitions; can change its own code as follows: Master code +[8] +02 +new master code +new master code again] 0 Standard User | Can only perform security functions in assigned partition. Cannot perform other system functions. 1 Arm Only Can only arm the system. Cannot disarm or do other functions. 2 Guest Can arm the system in assigned partitions, but cannot disarm the system unless the system was armed with this code. This code is typically assigned to someone (such as a babysitter or cleaner) who has a need to arm/disarm the system only at certain times. The user of this code should not use the “Quick Arming” feature. 3 Duress Code Intended for use when you are forced to disarm or arm the system under threat. When used, the system will act normally, but can silently notify the Customer Care Center of your situation, if that service has been provided. 4 Partition Master| Can do everything a standard user can do, and can assign user codes to users in their partition.

Security Codes & Authority Levels (Cont.) How To Assign User Codes and Attributes The following lists the various command strings for adding user codes and attributes. Refer to the User Setup chart at the back of this manual for factory assignments of user attributes and to keep a record of user programming. NOTE: Partition Master codes apply only to those user numbers previously assigned (by the system master/installer) to the partition master's partition. Add User Code: {Users 03/33 are preset to partition masters, but can be changed.) Delete User Code: Authority Level: Factory Assignments users 04-32/34-49 =0 users 03/33 =4 Access Group: Factory Assignments: none User's Partition: Factory Assignments Part. 1 =users 03-32 Part. 2 =users 33-49 RF User Number: Factory Assignments: none Pager On/Off: Factory Assignments users 01-04 =0 (off) users 05-49 =1 (on) [SystemP artition Master code +[8]+user no. +new user's code] User 01 =installer User 03 =partition 1 master User 02 =master User 33 =partition 2 master The Touchpad beeps once to confirm that new user was added. [SystemP artition Master code +[8]+ [user no.]+[# 10] The user code and all attributes* programmed for this user number, induding any associated RF keys, are erased from the system. (except assigned partition) [System/P artition Master code + [8] + [user no.] +[#[1]+ auth. level Authority Levels (see definitions on previous page): 0 =standard user 3 =duress 1=armonly 4 =partition master 2 =guest [System/P artition Master Code +18] + [user no.] +[#[2]+ group (1-8) You can assign users to a group, then set an access schedule that defines the times this group of users can operate the system. The system ignores these users outside the scheduled times. [System Master Code +[8] + [user no.]+[#][3]+0 +partition(s) +[#] This command assigns the partitions the user can access. 1f more than one, enter partition numbers sequentially, then press [# to end. E.g., master code +[8] +[user no.] +[# [3] +[0] +[1] [2] +[# gives the user access to partitions 1 and 2 and the common partition. Partition Entries: 1 =partition 1 and common 2 =partition 2 and common 3 =common partition only [System/Partition Master Code + [8]+[userno.] +[#[4}+ zone no] Use this command to assign a wireless button device (keyfob) to this user (keyfob must be enrolled in system first; see installer). Zone number: enter the zone number assigned to a button on the keyfob that will be used for arming/disarming by this user. [System/Partition Master Code + [8] +[userno.] +[#15]+0or1] You can program a user so that a message is sent to a pager whenever this code is used to arm or disarm the system. Paging On/Off: 1 =allow paging; 0 =no paging for this user

Accessing Other Partitions (GOTO Command and Multi-Partition Arming) About Accessing Partitions Each touchpad is assigned a default partition for display purposes, and will show only that partition's information. + 1f the user is authorized, a touchpad in one partition can be used to perform system functions in the other partition by using the GOTO command. Refer to the GOTO section. + If the user is authorized, that user can arm other partitions. Refer to the Multi- Partition Arming section. The following table shows the relationship of the touchpads in each partition when system is armed and disarmed.

PARTITION 1 PARTITION 2 COMMON ZONE

(LOBBY, etc.) Arming | Touchpad Arming | Touchpad Arming | Touchpad State Status State Status State Status Condition 1 ->| Disarmed | Partition 1 | Disarmed | Partition 2 | Disarmed | Common Zone Only Only Only Condition 2 >| Disarmed |Partition 1and| Armed Partition 2 | Disarmed | Common Zone Common Zone Only Only Condition 3©>| Armed Partition 1 | Disarmed |Partition 2 and| Disarmed | Common Zone Only Common Zone Only Condition 4->| Armed Partition 1 Armed Partition 2 Armed | Common Zone Only Only Only When both partitions are disarmed, the touchpad in each partition displays zone status for its partition only. The common zone touchpad shows the status in that zone only. See Condition 1 above. When partition 1 is disarmed and partition 2 is armed, the touchpad in partition 1 Shows the status of partition 1 and the common zone. Partition 2 will display the status of partition 2 only. See Condition 2 above. When partition 1 is armed and partition 2 is disarmed, the touchpad in partition 1 shows the status of partition 1 only. Partition 2 will display the status of partition 2 and the common zone. See Condition 3 above. As long as any one of the two partitions is disarmed, the common zone will always be disarmed. The common zone will be armed only when both partition 1 and 2 are armed. See Condition 4 above.

Accessing Other Partitions (Continued) Using the GoTo Command If the user is authorized, a touchpad in one partition can be used to perform system functions in the other partition by using the GOTO command. + You must use a Custom English touchpad to access another partition. + Touchpads automatically return to their original partition after 2 minutes with no touchpad activity.

1. Ü = = Ü + [#K +partition number (0,1,2,3) 1 DISARMED

(Security Code) READY TO AEM 0 =return to touchpad's original partition. 1 =partition 1; 2 =partition 2; 3 =common zone The touchpad beeps to confirm the partition change. English Display: Green LED lit

2. The touchpad remains in the new partition until

directed to go to another partition, or until it 2 DISARMED automatically returns to the original partition. READY TO ARM The active partition number is displayed in the upper English Display: Green LED li left portion of screen, if the option is programmed. Multi-Partition Arming Some users can be given Multi-Partition arming ability by being assigned to both partitions when programming user attributes. When attempting to arm multi-partitions: + You must use a Custom English touchpad. + The system arms only if all partitions are “ready to arm.” + If any partition is “not ready,” the system does not arm at all. + You can use the GOTO command to bypass open zones before arming,. + If any partition is already armed when global arming is attempted, that partition remains in its existing armed state. O0 0 OÙ + [0] +arm command (see list below) 1 DISARMED (Security Code) READY TO AEM Multi-Partition Arming Commands 2 = arms all partitions AWAY English Display: Green LED lit 3 = arms all partitions STAY 33 = arms all partitions NIGHT-STAY 7 = arms all partitions INSTANT 1 =disarms all partitions

Accessing Other Partitions (Continued) Common Zone Operation Ask your installer if a "common zone" was assigned. If so, check this box [_] Your system may have been set up to use a common zone, which is an area shared by users of both partitions, such as a foyer or lobby. 1f so, please note the following: The common zone will sound and report alarms only when both partitions are armed. 1f only one partition is armed, the system ignores faults on the common zone. Either partition may armits system if the common zone is faulted, but once armed, the other partition will not be able to arm unless the common zone is first bypassed or the fault is corrected. Faults on the common zone are displayed on common zone touchpads, and will also appear on another partition's touchpad when that partition is armed. Either partition can clear and restore the common zone after an alarm. Entry/exit time for the common zone is the same as for partition 1.

Scheduling About Scheduling The system provides up to 16 end-user schedules (programmable by master/installer only), which can be used to control various types of events. - Each schedule causes a defined event to start and stop (when appropriate) at a specified time. + Schedules can be set to automatically repeat at various intervals. + Schedules can be set for random starting, if desired. Creating Schedules

k ENTER SCHED HO. Press [4 to continue.

3. Enter the desired 2-digit event number from the

following list. ENTER EUENT 00 = clear the scheduled event 01 =turn a programmed output on or off (see Using Device Commands section for a list of output device numbers used in your system) 02 =set a user access schedule for one or more users (see Security Codes section for an explanation of access groups) 03 =send a “latch-key” report to a pager if the system is not disarmed by a specified time; message sent is “777-7777. 04 =automatically arm the system in STAY mode at a specified time 05 =automatically arm the system in AWAY mode at a specified time 06 =automatically disarm the system at a specified time 07 =Display the word “REMINDER" at a specified time Press [* to continue.

4. For event number “01,” enter the output number

associated with this schedule. DEVICE NUMBER Otherwise, this prompt is skipped. #X Press [* to continue to the “Start” prompt below.

Scheduling (continued)

5. For event number “02,” enter the access group

number. Otherwise, this prompt is skipped. GROUP NUMBER Press [* to continue to the “Start” prompt below. #

6. For event numbers “03-07,” enter the partition

number to be armed or disarmed. PARTITION 0 =armall; 1 =partition 1; 2 =partition 2; # 3 =arm common Otherwise, this prompt is skipped. Press [* to continue to the “Start” prompt.

7. Enter the event's start time and days of week.

Days =Position the cursor under the desired days using the [X key to move forward, then press “1” to select the day. Press [* to continue.

8. Enter the event's stop time, AM/PM and days of week.

Refer to step 7 for available entries. STOP SMTUTFS Press [* to continue. HH:MMAM 1888888

9. Enter the desired repeat option.

0 =no repeat REPEAT OPTION 1 =repeat schedule weekly G-4 K 2 =repeat schedule biweekly (every other week) 3 =repeat schedule every third week 4 =repeat schedule every fourth week e.g., To make a schedule that happens everyday you would select all days with a repeat count of 1. To make a schedule that runs for one week then stops, select everyday with a repeat count of 0.

10. Select the randomize option, if desired.

0 =no; 1 =yes RANDOMIZE 1f selected, the schedule times will vary within 60 BENQ 12SES XX minutes of the “hour” time. For example, if a schedule is set to start at 6:15pm, it will do sothe first time 6:15pm arrives, but on subsequent days it will start anytime between 6:00 and 6:59 p.m. Press [4 to continue.

Event Logging Procedures About Event Logging The system records various events in a history log, which can be viewed by the master user using à Custom English Display touchpad. - TheE vent Log holds up to 100 events. - Events are displayed in chronological order, from most recent to oldest. - When the logis full, the oldest event is replaced by the logging of any new event. Viewing the Event Log LOCOCOC +# +06] +[o] DISARMED (Master Code) READY TO ARM

2. The system displays the most recent event as follows:

+ event number - type of event, identified by its corresponding code (see your installer for the meaning of each code) zone or user number (depending on type of event) - partition in which event occurred + time and date of the event's occurrence.

3. Pressing [* displays previous events (back in time).

Pressing [# displays events forward in time.

4. Exit the event log by pressing any key other than [

Testing the System (To Be Conducted Weekly) About Testing the System Using TEST mode allows each protection point to be checked for proper operation. + The touchpad sounds a single beep every 40 seconds as a reminder that the system is in the Test mode. + Alarm messages are not sent to your Customer Care Center while Test mode is on. 1 Disarm the system and dose all protected windows, doors, etc. The READY indicator light should come on if all zones areintact (i.e. all protected windows, doors, etc. are dosed.

2. [IDE + [5] then [0] (walk) 1=DIAL G=UALK

(Security Code) TEST TheDial test (option “1”) is intended for theinstaller and should not be used unless directed to do so by your Customer Care Representative. DISARMED

second and then turn off. 1f the sounder does not sound, CALL FOR SERVICE.

4. Fault zones. Open each protected door and window in turn and listen for three

beeps from the touchpad. Identification (zone number or zone description) of each faulted protection point should appear on the display. The display dears when the door or window is dosed.

5. Walk in front of any interior motion detectors (if used) and listen for three beeps.

Theidentification of the detector should appear on the display when it is activated. The display clears when no motion is detected. Note that if wirdess motion detectors are used, thereis a 3-minute da ay between activations. This is to conserve battery life.

6. Test all smoke detectors, following the manufacturer's instructions. The

identification of each detector should appear on the display when each is activated. If a problem is experienced with any protection point (no confirming sounds, no display), call for service immediately. When all protection points have been checked and are intact (dosed), there should be no zone identification numbers displayed on the touchpad.

7. Exittest mode [JE JL JT ]+11]

(Security Code) Ifthetest mode is inadvertently left active, it automatically turns off after 4 hours.

Trouble Conditions "Check" and "Battery" Displays

• Not all systems use wireless sensors. The word CHECK on the touchpad's display, accompanied by a “beeping" at the touchpad, indicates a trouble condition in the system. To silence the beeping for these conditions, press any key. 1 A display of "CHECK"and one or more zone numbers indicates that a problem exists with the displayed zone(s) and requires your attention. Determine if the zone(s) displayed are intact and make them soif they are not. 1f the problem has been corrected, the display can be cleared if you enter the OFF sequence (security code plus OFF key) twice. If the display persists, CALL FOR SERVICE. Note: À display of CHECK 70 on English Display touchpads indicates that the wiring connection to the external sounder is at fault (opened or shorted), and you should CALL FOR SERVICE. See “BELL FAILURE” on next page. A display of CHECK %indicates that RF interference may be impeding the operation of wireless sensors* in the system. See “Rcvr J am” on next page. If there are wireless sensors* in your system, the CHECK condition may also be caused by some change in the environment that prevents the wireless receiver from receiving messages from a particular sensor. CALL FOR SERVICE if this occurs. IF YOU CANNOT CORRECT A'CHECK"DISPLAY, CALL FOR SERVICE.

ENGLISH DISPLAY CUSTOM ENGLISH DISPLAY

Trouble Conditions (Continued) Other Trouble Displays

• Any “beeping” that accompanies a trouble display can be stopped by depressing any key on the touchpad or by entering an OFF sequence (code +OFF) Words or letters in parentheses (_ ) are those that are displayed on English Display touchpads. *#+ Not all systems use wireless sensors. COMM. FAILURE Indicates that a failure has occurred in (or FC) the telephone communication portion of your system. CALL FOR SERVICE. SYSTEM LO BAT Indicates that a low system battery (or BAT with no condition exists. Display is zone No.) accompanied by "beeping'* at the touchpad. If this condition persists for more than one day (with AC present), CALL FOR SERVICE. LO BAT Indicates that there is a low battery +2zone descriptor condition in the wireless transmitter** (or BAT with number displayed (00 is RF keypad). zone No.) Accompanied by a single "beep"* (about once every 40 seconds) at the touchpad. Either replace the battery yourself, or CALL FOR SERVICE. Ifthe battery is not replaced within 30 days, a CHECK display may occur. Revr Jam Wireless part of the system is experiencing (or CHECK 90) RF interference which may impede reception from wireless sensors.** MODEM COMM Indicates that the control is on-line with (or CC) the Customer Care Center's remote computer. The control will not operate while on-line. Wait a few minutes — the display should disappear. BELL FAILURE Indicates that the wiring connection to (or CHECK 70) the external sounder is at fault (open or shorted). Accompanied by “beeping” at the touchpad. CALL FOR SERVICE.

Trouble Conditions (Continued) Other Trouble AC LOSS The system is operating on battery power Displays (or NO AC) only due to an AC power failure. (Continued) 1f only some lights are out on the premises, check circuit breakers and fuses and reset or replace as necessary. If AC power cannot be restored and a “low system battery” message appears (see previous page), CALL FOR SERVICE. Busy-Standby If this message remains displayed for more (or di) than 1 minute, system is disabled. CALL FOR SERVICE. OPEN CIRCUIT The touchpad is not receiving signals from (or OC) the control. CALL FOR SERVICE. Long Rang Trbl 1f part of your system, back-up Long (or bF) Range Radio communication has failed. CALL FOR SERVICE. TELCO FAULT The telephone line has a problem. (or CHECK 94) CALL FOR SERVICE. Total Power Failure If there is no touchpad display at all, and the READY indicator is not lit, operating power (from AC and back-up battery) for the system has stopped and the system is inoperative. CALL FOR SERVICE. In The Event Of Telephone Operational Problems In the event of telephone operational problems, disconnect the control from the phone line by removing the plug from the phone wall jack. We recommend that your installer demonstrate this disconnection on installation of the system. Do not attempt to disconnect the phone connection inside the control. Doing so will result in the loss of your phone lines. 1f the regular phones work correctly after the control has been disconnected from the phone wall jack, the control has a problem and you should immediately call for service. 1f upon disconnection of the control, there is still a problem on the phone line, notify the Telephone Company that they have a problem and request prompt phone repair service. The user may not under any circumstances attempt any service or repairs to the security system. Repairs must be made only by ADT authorized service (see the LIMITED WARRANTY statement for information on how to obtain service).

Maiïntaining Your System Taking Care of Your System Silencing Low Battery Warning Tones at the Touchpad Replacing Batteries in Wireless Sensors Wireless sensors may not have been used in your security system IMPORTANT: Use only batteries recommended by your installer as replacement. Routine Care The components of your security system are designed to be as maintenance-free as possible. However, to make sure that your system is in reliable working condition, do the following:

1. Test your system weekly.

2. Test your system after any alarm occurs.

You can silence the touchpad's warning tones by pressing the OFF key, but the touchpad's low battery message display will remain on as a reminder that you have a low battery condition in one or more of your wireless sensors. When you replace the weak battery with a fresh one, the sensor sends a "good battery" signal to the control as soon as the sensor is activated (opening/closing of door, window, etc.), causing the low battery display to turn off. If the sensor is not activated, the display will automatically clear within approximately 1 hour. Each wireless sensor in your system has a 9-volt or 3-volt battery. The system detects a low battery in wireless sensors, including smoke detectors, the personal emergency transmitter, and the portable wireless touchpad and displays a low battery message“. (A low battery in a portable wireless touchpad is detected as soon as one of its keys is pressed, and displayed as 00.). Battery-operated smoke detectors with a low battery also emit a single "chirp" sound approximately once every 20-30 seconds. Alkaline batteries provide a minimum of 1 year of operation, and in most units and applications, provide 2-4 years of service. 3-volt lithium batteries provide up to 4 or more years of operation. Actual battery life will depend on the environment in which the sensor is used, the number of signals that the transmitter in the sensor has had to send, and the specific type of sensor. Factors such as humidity, high or low temperatures or large swings in temperature, may all lead tothe reduction of actual battery life in an installation.

• The low battery message comes on as a warning that battery replacement in indicated sensor(s) is due within 30 days. In the meantime, a sensor using a low battery indication is still fully operational. < Treat the components of your security system as you would any other electrical equipment. Do not slam sensor-protected doors or windows. + Keep dust from accumulating on the touchpad and all protective sensors, particularly on motion sensors and smoke detectors. < Thetouchpad and sensors should be cleaned carefully with a dry soft doth. Do not spray water or any other fluid on the units.

Fire Alarm System ([f Installed) THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS General Silencing Fire Alarms and Clearing Memory of Alarm Smoke Detector Reset Your fire alarm system (if installed) is on 24 hours a day, for continuous protection. In the event of an emergency, the strategically located smoke and heat detectors will sound their alarms and automatically send signals to your system, triggering a loud, interrupted pulsed sound* from the Touchpad(s) and any external sounders. A FIRE message will appear at your Touchpad and remain on until you silence the alarm (see below for silencing fire alarms). *Temporal pulse sounding is produced for Fire alarms, as follows: 3 pulses-pause-3 pulses-pause-3 pulses-pause. .., repeated.

1. You can silencethe alarm at any time by pressing the OFF key (the

security code is not needed to silence fire alarms). To dear the display, enter your code and press the OFF key again (to clear Memory of Alarm).

2. Ifthe Touchpad's FIRE display does not clear after the second OFF

sequence, smoke detectors may still be responding to smoke or heat producing objects in their vicinity. Investigate, and should this be the case, eliminate the source of heat or smoke.

3. 1fthis does not remedy the problem, there may still be smoke in the

detector. Clear it by fanning the detector for about 30 seconds. When the problem has been corrected, dear the display by entering your code and pressing the OFF key. Depending on the type of smoke detectors in your system, it may be necessary to "reset" the smoke detectors after a fire alarm has been turned off. Check with your installer. This "reset" is accomplished at a touchpad, as follows: Enter User Code*, then press the [1] key (* except “arm only” user).

Fire Alarm System (Continued) THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS Manually 1. Should you become aware of a fire emergency before your smoke or Initiating heat detectors sense the problem, go to your nearest touchpad and a Fire Alarm manually initiate an alarm by pressing the panic key assigned for FIRE emergency for 2 seconds. If a key pair has been assigned for fire, press both keys at the same time. See Using the Panic Keys section below for further details.

2. Evacuateall occupants from the premises.

3. 1fflames and/or smoke are present, leave the premises and notify

your local Fire Department immediately.

4. Ifnoflames or smoke are apparent, investigate the cause of the

alarm. The zone number(s) of the zone(s) in an alarm condition will be displayed at the touchpad. Using the Panic A key or key pair may have been assigned for manually initiating a Key(s) Assigned FIRE alarm. See the Panic Keys section for key assignments. for FIRE For convenience, indicate the key or key pair assigned for fire below. Emergency Individual Keys A B C LT C] C] Press theindividual key assigned for fire for 2 seconds.

Key Pairs D Han Press the key pair assigned EL] and C#] for fire at the same time. DISPLAYS FOLLOWING MANUAL INITIATION OF A FIRE ALARM FIRE 95 95 “ ALARM FIRE

Fire Alarm System (Continued) THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS National Fire Protection Association Recommendations on Smoke Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's National Fire Alarm Code (NFPA 72) noted below. Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: A smoke detector installed outside of each separate sleeping area, in the immediate vicinity of the bedrooms and on each additional story of the family living unit, induding basements and exduding crawl spaces and unfinished attics. In addition, the NFPA reconmends that you install heat or smoke detectors in the living room, dining room, bedroom(s), kitchen, hallway(s), attic, furnace room, utility and storage rooms, basements and attached garages.

A Smoke Detectors for Minimum Protection 3 Smoke Detectors for Additional Protection BEDROOM A Heatactivated Detectors S So 8EDROOM ||gg || BEDROOM

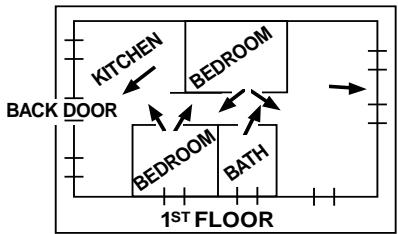

Fire Alarm System (Continued) THIS SECTION APPLIES ONLY TO RESIDENTIAL SYSTEMS Emergency Evacuation FRONT Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association:

1. Position your detector or your interior and/or

exterior sounders so that they can be heard by all occupants.

2. Determine two means of escape from each room.

One path of escape should lead to the door that permits normal exit from the building. The other may be a window, should your path be impassable. Station an escape ladder at such windows if there is a long drop to the ground.

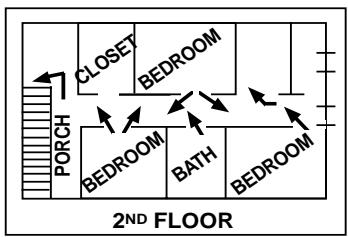

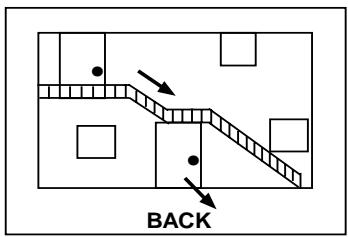

3. Sketch a floor plan of the building. Show windows,

doors, stairs and rooftops that can be used to escape. Indicate escape routes for each room. Keep these routes free from obstruction and post copies of the escape routes in every room.

4. Assure that all bedroom doors are shut while you

are asleep. This will prevent deadly smoke from entering while you escape.

5. Try the door. If the door is hot, check your

alternate escape route. 1f the door is cool, open it cautiously. Be prepared to slam the door if smoke or heat rushes in.

6. When smokeis present, crawl on the ground. Do

not walk upright, since smoke rises and may overcome you. Clearer air is near the floor.

7. Escape quickly; don't panic.

8. Establish a common meeting place outdoors, away

from your house, where everyone can meet and then take steps to contact the authorities and account for those missing. Choose someone to assure that nobody returns to the house — many die going back

Check Zones Press READY key. View faulted zones when system not ready. Arm System Enter code. Press arming key desired Arms system in mode selected. (AWAY, STAY, NIGHT-STAY, INSTANT) Quick Arm Press # Press arming key desired: Arms system in mode selected, quickly (if programmed) (AWAY, STAY, INSTANT) and without use of a code. Bypass Zone(s) Enter code. Press BYPASS key. Bypassed zones are unprotected and Enter zone numbers) to be bypassed will not cause an alarm if violated. (use 2-digit entries). Quick Bypass Enter code. Press BYPASS key +[#. Bypasses all faulted zones (if programmed) automatically. Silence Sounders Burglary: | Enter code. Press OFF key. Also disarms system. Memory of alarm remains until cleared. Fire: | Press OFF key. Memory of Alarm remains until cdeared. "Check" | Press any key. Determine cause. Disarm System Enter code. Press OFF key. Also silences sounders. Memory of alarm remains until cleared. Clear Alarm Memory After disarming, enter code again. Press OFF key again. Touchpad beeps rapidly on entry if alarm has occurred while absent. Alarm display will remain upon disarming until cleared. Duress (if active and connected to Customer Care Center) Arm or disarm "normally", but use your 4-digit Duress code to do so. Performs desired action and sends silent alarm to Customer Care Center. Panic Alarms Press key [A], [B], or [C] for at least 2 See the Panic Keys section for (as programmed) seconds. emergency functions programmed for your system. Note: Keys “A”, “B”, and “C” may have been programmed for other functions. Chime Mode Toturn ON or OFF: Enter code. Press The touchpad will sound if doors or CHIME key. windows are violated while system is disarmed and chime mode is ON. Test Mode Toturn ON: Enter code. Press TEST key. | Tests alarm sounder and allows sensors Toturn OFF: Enter code. Press OFF key. | to be tested. Phone Access Consult Phone Access User's Guidethat | Permits system access remotely, via {Smartphone Module) | äccompanies the Phone Module. Touch-tone phone. if applicable

LOUD, FIRE ALARM FIRE is displayed; zone number of zone in INTERRUPTED* alarmis displayed. 1f a fire alarm is manually Touchpad & Ext. activated, zone number 95 will be displayed. LOUD, CONTINUOUS* Touchpad & Ext. BURGLARY/AUDIBLE EMERGENCY ALARM ALARM is displayed. Zone number of zone in alarmis also displayed.

(not repeated) Touchpad only a. SYSTEM DISARM b. SYSTEM ARMING ATTEMPT WITH AN OPEN ZONE. c. BYPASS VERIFY a. READY indicator light comes on. b. Number of the open protection zone displayed. c. Zone numbers of the bypassed protection zones are displayed (one beep is heard for each zone displayed). Subsequently, BYPASS is displayed.

• 1f a bell is used as external sounder, fire alarm is pulsed ring; burglary/audible emergency is steady ring.

LOUD, FIRE ALARM. FIRE is displayed; descriptor of zone in alarmis INTERRUPTED* displayed. 1f a fire alarm is manually activated, zone Touchpad & Ext. number 95 will be displayed. LOUD, BURGLARY/AUDIBLE ALARM is displayed. 1f programmed, descriptor of CONTINUOUS* Touchpad & Ext. EMERGENCY ALARM. zonein alarmis also displayed

(not repeated) Touchpad only a. SYSTEM DISARM. b. SYSTEM ARMING ATTEMPT WITH AN OPEN ZONE. c. BYPASS VERIFY. a. DISARMED/READY TO ARM is displayed. b. Number and descriptor of open protection zone is displayed. c. Numbers and descriptors of the bypassed zones are displayed (One beep is heard for each zone displayed). Subsequently, the following is displayed: DISARMED BYPASS /Ready to Arm.

. CHECK displayed. Descriptor of troubled protection zone is displayed. b. FIRE or ALARM is displayed; descriptor of zone in alarmis displayed. c SYSTEM LO BAT displayed. d. BELL FAILURE is displayed. SLOW BEEPING Touchpad only a. EXIT DELAY WARNING (if programmed). b. ENTRY DELAY WARNING. a. ARMED AWAY is displayed along with You May Exit Now. b. DISARM SYSTEM OR ALARM WILL OCCUR is displayed. Exceeding the delay time without disarming causes an alarm.

• |f a bell is used as external sounder, fire alarm is pulsed ring; burglary/audible emergency is steady ring.

Regulatory Statements and Warnings NOTE: Thisis a “Grade A” Residential System

RADIO FREQUENCY EMISSIONS

Federal Communications Commission (FCC) Part 15 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada This Class B digital apparatus complies with Canadian 1CES-003. Cet Appareil numérique de la classe B_est conforme à la norme NMB-003 du Canada.

TELEPHONE/MODEM INTERFACE

FCC Part 68 This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains the FCC registration number and Ringer Equivalence Number (REN). You must provide this information to the telephone company when requested. This equipment uses the following USOC jack: RJ 31X This equipment may not be used on telephone-company-provided coin service. Connection to party lines is subject to state tariffs. This equipment is hearing-aid compatible. Industry Canada NOTICE: The Industry Canada Label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user's satisfaction. Before installingthis equipment, users should ensure that it is permissible to be connected to the fadlities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together, This précaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves but should contact appropriate electric inspection authority, or electrician, as appropriate. Ringer Equivalence Number Notice: The Ringer Equivalence Number (RE N) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

Charts of Your System's Features Schedules (master code +[# +16] [4]) No. Event Device No. | Group No. | Partition Start Stop Repeat | Random (see list below) | for ‘1" events: | for “02” events: | for “04-06” events:| Time/ | Time/ {yes/no) | (yes/no) enter 01-18 enter 1-8 enter 1, 2, or3 Day Day

Events: 00 =clear event 03 =latch key report 06 =auto disarm 01 = device on/off 04 =forced STAY arm 07 = display “reminder” 02 =user access 05 =forced AWAY arm List of Output Devices Device Description Schedule No.]_ Function Key

LIMITATIONS OF THIS SYSTEM

WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM Whilethis system is an advanced design security system, it does not offer guaranteed protection against burglary or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example: + Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or disconnect an alarm warning device. + intrusion detectors (e.g. passive infrared detectors), smoke detectors, and many other sensing devices will not work without power. Battery operated devices will not work without batteries, with dead batteries, or if the batteries are not put in properly. Devices powered solely by AC will not work if their AC power supply is cut off for any reason, however briefly. + Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the signal path has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path. + A user may not be able to reach a panic or emergency button quickly enough. + While smoke detectors have played a key role in reducing residential fire deaths in the United States, they may not activate or provide early warning for a variety of reasons in as many as 35% of all fires, according to data published by the Federal Emergency Management Agency. Some of the reasons smoke detectors used in conjunction with this System may not work are as follows. Smoke detectors may have been improperly installed and positioned. Smoke detectors may not sense fires that start where smoke cannot reach the detectors, such as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level of a residence or building. À second floor detector, for example, may not sense a first floor or basement fire. Moreover, smoke detectors have sensing limitations. No smoke detector can sense every kind of fire every time. In general, detectors may not always warn about fires caused by carelessness and safety hazards like smoking in bed, vidlent explosions, escaping ges, improper storage of flammable materials, overloaded electrical circuits, children playing with matches, or arson. Depending upon the nature of the fire and/or the locations of the smoke detectors, the detector, even if it operates as antidipated, may not provide sufficient warning to allow al! occupants to escape in time to prevent injury or death. + Passive Infrared Motion Detectors can only detect intrusion within the designed ranges as diagrammed in their installation manual. Passive Infrared Detectors do not provide volumetric area protection. They do create multiple beams of protection, and intrusion can only be detected in unobstructed areas covered by those beams. They cannot detect motion or intrusion that takes place behind walls, ceilings, floors, closed doors, glass partitions, glass doors, or windows. Mechanical tampering, masking, painting or spraying of any material on the mirrors, windows or any part of the optical system can reduce their detection ability. Passive Infrared Detectors sense changes in temperature; however, as the ambient temperature of protected area approaches the temperature range of 90° to 105°F, the detection performance can decrease. + Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other side of dosed or partly open doors. If warning devices sound on a different level of the residence from the bedrooms, then they are less likely to waken or alert people inside the bedrooms. Even persons who are awake may not hear the warning if the alarm is muffled from a stereo, radio, air conditioner or cther appliance, or by passing traffic. Finally, alarm warning devices, however loud, may not warn hearing-impaired people or waken deep sleepers. + Telephone lines needed to transmit alarm signals from a premises to a central monitoring station may be out of service or temporarily out of service. Telephone lines are also subject to compromise by sophisticated intruders. + Even if the system responds tothe emergency as intended, however, occupants may have insufficient time to protect themselves from the emergency situation. In the case of a monitored alarm system, authorities may not respond appropriately. + This equipment, like other electrical devices, is subject to component failure. Even though this equipment is designed to last as long as 10 years, the electronic components could fail at any time. The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This alarm system should be tested weekly to make sure all sensors and transmitters are working properly. Installing an alarm system may make one eligible for lower insurance rates, but an alarm system is not a substitute for insurance. Homeowners, property owners and renters should continue to act prudentiy in protecting themselves and continue to insure their lives and property. We continue to develop new and improved protection devices. Users of alarm systems owe it to themselves and their loved ones to learn about these developments.

LIMITED WARRANTY Terms and Conditions Applying to Sale of Equipment Limited Warranty. Any part of the system, including the wiring, installed under this Agreement which proves to be defective in material or workmanship within 90 days of the date of completion of installation will be repaired or replaced at ADT's option with a new functionally operative part. Labor and material required to repair or replace such defective components or to make mechanical adjustments to the system will be free of charge for a period of 90 days following the completion of the original installation. This warranty is extended only to the original consumer purchaser of the system and may be enforced only by such person. To obtain service under this warranty, call or write our local ADT Service Department at the telephone number or address found in your local yellow pages. Service pursuant to the warranty will be furnished only during ADT's normal working hours 8:00A.M. to 4:30P.M., Monday through Friday, except holidays. Services rendered outside the normal working hours of ADT are not within the scope of this warranty and any services requested to be performed at such times shall be charged for at ADT's then applicable rates for labor and material. This warranty does not apply to the conditions listed below, and in the event customer calls ADT for service under the warranty and upon inspection it is found that one of these conditions has led to the inoperability or apparent inoperability of the system, a charge will be made for the service call of the ADT representative, whether or not he actually works on the system. Should it actually be necessary to make repairs to the system due to one of the "conditions Not Covered By Warranty", a charge will be made for such work at ADT's then applicable rates for labor and material. Conditions Not Covered By Warranty. A. Damage from accidents, acts of God, alterations, misuse, tampering or abuse. B. Failure ofthe customer to properly close or secure a door, window, or other point protected by a burglar alarm device. C. Failure of customer to properly follow operating instructions provided by ADT at time of installation or at a later date. D. Trouble in leased telephone. E. Trouble due to interruption of commercial power. F. Battery replacements

LIMITED WARRANTY (Continued) This warranty is in lieu of all other express warranties. Any implied warranties of merchantability and fitness for a particular purpose are limited in duration to a period of 90 days from the date of completion of installation. The exclusive remedy of the customer hereunder shall be repair or replacement as stated above. Under no circumstances shall ADT be liable to the customer or any other person for incidental or consequential damages of any nature, including without limitation, damages for personal injury or damages to property, and, however occasioned, whether alleged as resulting from breach of warranty by ADT, the negligence of ADT, or otherwise, ADT's liability will in no event exceed the purchase price of the system. Some states may not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of incidental or consequential damages, so the above limitations and exclusions may not apply to you, unless a longer period is required by applicable law. Any action against ADT in connection with a system must be commenced within one year after the cause of action has occurred. No agent, employee or representative of ADT nor any other person is authorized to modify this warranty in any respect. This warranty gives you specific legal rights and you may also have other rights which vary from state to state

ADT agrees to install the equipment in a workmanlike manner in accordance with the following conditions: A. Customer will make premises available without interruption during ADT normal working hours 8:00A.M. to 4:30P.M., Monday through Friday, except Holidays. B. Customer understands that the installation will necessitate drilling into various parts of the premises: ADT intends, generally, to conceal wiring in the finished areas of the premises; however, there may be areas which, due to construction, decoration, or furnishing of the premises, ADT determines, in its sole discretion, that it would be impractical to conceal Wiring and, in such cases, wiring will be exposed. C. Customer agrees to provide 110 VAC electrical outlets at designated locations for equipment requiring AC power. D. Customer to provide for lifting and replacing carpeting, if required, for installation of floor mats or wiring. ans mm ALL RIGHTS RESERVED ---------"--""""" No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means - electronic, mechanical, photocopying, recording, or otherwise without the written permission of ADT Security Systems, Inc. The material in this publication is for information purposes and subject to change without notice. ADT Security Systems, Inc. assumes no responsibility for any errors which may appear in this publication. ADT Security Services, Inc. One Town Center Rd. Boca Raton, FL 33486 4 Copyright © 2000 K5309V2 1/02
