USER MANUAL 7T94 SEIKO

TACHYMETER . BATTERY CHANGE. SPECIFICATIONS TELEMETER......... nn # For the care of your watch, see “TO PRESERVE THE QUALITY OF YOUR WATCH" in the attached Worldwide Guarantee and Instruction Booklet.

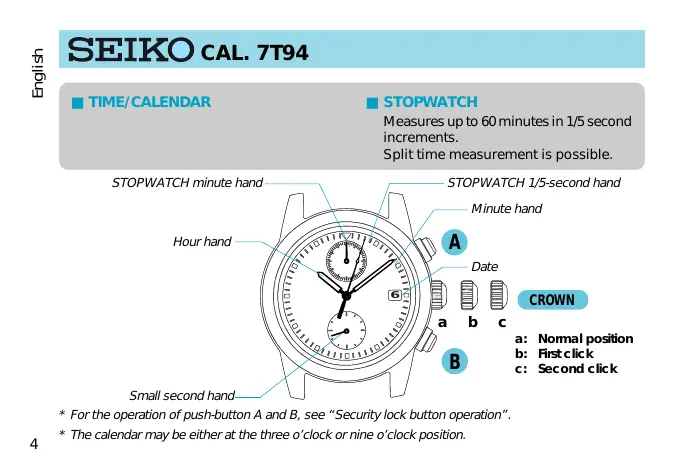

Measures up to 60 minutes in 1/5 second increments. Splittime measurement is possible. STOPWATCH minute hand ——— STOPWATCH 1/5-second hand < Second click Small second hand- + Forthe operation of pushr-button À and B, see “Security lock button operation”. + The calendar may be either at the three o'clock or nine o‘clock position.

AD] USTING THE STOPWATCH HAND POSITION

‘© This watch is so designed thatthe following are all made withthe crown at the second click position:

1) main time setting

2) stopwatch hand position adjustment

Once the crown is pulled out to the second click, be sure to check and adjust 1) and 2) atthe same time.

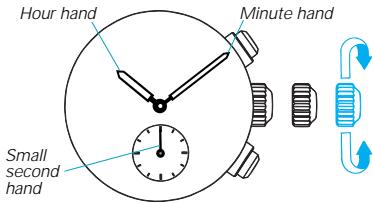

ŒCROWND Pull out to second clickwhen the second hands atthe 12 o’clock position.

Hour hand Minute hand Turn to set the hour and minute hands.

When the stopwatch is or has been measuring, if the crown is pulled out to the second click, it will automatically reset the STOPWATCH hands to “0”. Ikis recommended that the hands be set to the time a few minutes ahead of the current time, taking into consideration the time required to adjust the STOPWATCH hand position if necessary. When setting the hour hand, be sure to checkthat AM/PM is correctiy set. The watchis so designed that the date changes once in 24 hours. When setting the minute hand, first advance it 4 to 5 minutes ahead ofthe desired time andthentum it back to the exact minute.

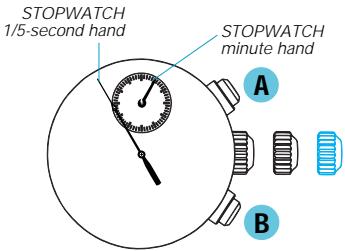

STOPWATCH HAND POSITION AD} USTMENT

# Ifthe STOPWATCH hands are not in the "0" STOPWATCH position, follow the procedure below to set them 1/5econd hand STOPWATCH tothe “0 position minute hand VA é A A Press for 2 seconds. / " J * SroPHATCHmnaehendtums iris | É) B) Press repeatedly to set STOPWATCH minute hand to the “0” position: B + The hand moves quick} if button B is kept pressed.

Press for 2 seconds.

Press repeatedly to set STOPWATCH 1/5-second hand to the “0” position. ŒCROWND Push back in to normal position in accordance with a time signal. us!6U

© Before setting the date, be sure to set the main time. 5 € CROAN am (Q Pul out to first click. Turn clockwise until the desired date appears.

Push back in to normal position. Date

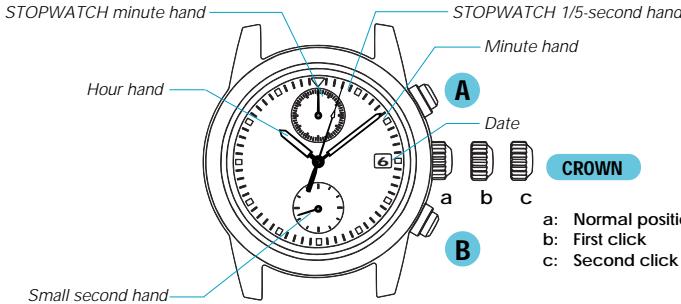

STOPWATCH ‘© The stopwatch can measure up to 60 minutes in 1/5-second increments. © After 60 minutes, it will start counting again from "O” repeatedly up to 12 hours. us!6U STOPWATCH minute hand STOPWATCH 1/5-second hand # Before using the stopwatch, be sure to check that the crown is set at the normal position and that the STOPWATCH hands are reset to the “0” position.

• Ifthe STOPWATCH hands do not retum to he “0” position when the stopivatch à reset to 0", follow the procedure in “SETNNG THE TIME AND AD] USTING THE STOPWATCH HAND POSITION"

START STOP RESTART STOP RESET

• Restart and stop of the stopwatch can be repeated by pressing button A. ® > ® > @-..-@ >

START SPLIT SPLIT STOP RESET

RELEASE + Measurement and release of split time can be repeated by pressing button B. ® > ® + ® + ® > START FINISH TIME 2ND FINISH TIME RESET

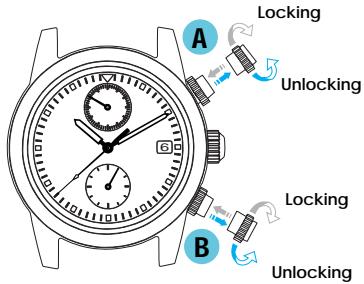

(for models with security lock button)

® Le) ” Unlocking the push-button - Turn Security Lock Button counterciockwise untl you no longer feel the threads tuming - The button can be pushed in. ing Locking the push-button = Tum Security Lock Button clockwise until you no longer feel the threads turning. = The button cannot be pushed in. us!6U

TACHYMETER (for models with tachymeter scale on the dial)

To measure the hourly average speed of a vehicle (Ex1) (Bei) Æ Use the stopwatch to determine how many seconds ittakes to go 1 km or 1 mile. end ane E Tachymeter scale indicated by STOPWATCH second hand gives the average speed per hour. “90” (tachymeter scale figure) x 1 (km or mile) 90 km/h ormph ‘© Tachymeter scale can be used only when the time required is less than 60 seconds. Ex. 2: Hfthe measuring distance is. d'to 2kmormilsorshortened to 0.5 km and SOPMATCH second hand indicates “90” on tachymeter scale: “90” (tachymeter scale figure) x 2 (km or mile) =180 km/h or mph “90” (tachymeter scale figure) x 0.5 (km or mile) =45 km/h or mph

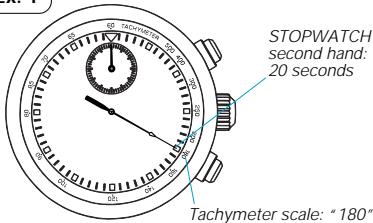

To measure the houriy rate of operation STOPWATCH Second hand: 20 seconds E Use the stopwatch to measure the time required to complete 1 job. E Tachymeter scale indicated by STOPWATCH second hand gives the average number of jobs ac- complished per hour. Tachymeter scale: “180” “180” (tachymeterscale figure) x 1 job 180 jobs/hour : 1f15 jobs are completed in 20 seconds: 180” (tachymeter scale figure) x 15 jobs =2700 jobs/hour us!

BATTERY CHANGE The miniature battery which powers your watch should last approximately 5 5 years. However, because the battery is inserted at the factory to check Years| the function and performance of the watch, its actual life once in your possession may be less than the specified period. When the battery expires, be sure to replace it as soon as possible to prevent any malfunction. For battery replacement, we recommend that you contact an AUTHORIZED SEIKO DEALER and request SEIKO SR927$W battery. + Ifthe stopwatch is used for more than 2 hours à day, the battery life may be less than the specified period.

• After the battery is replaced with à new one, set the time/calendar and adjust the Stopwatch hand position. © Battery life indicator When the battery nears its end, the small second hand moves at two-second intervals instead of normal one-second intervals. In that case, have the battery replaced with à new one as soon as possible. + The watch remains accurate while the small second hand is moving at two-second intervals.

À waRNING © Do not remove the battery from the watch. necessary to take out the battery, keep it out of the reach of children. If it, heat or otherwise tamper with the battery, and never expose it to fire. The battery may burst, become very hot or catch fire. © Thebatteryis not rechargeable. Never attempt to recharge it, as this may cause battery leakage or damage to the battery. usiuz

2. Loss/gain (monthly rate)

32,768 Hz (Hz = Hertz … Cycles per second) 415 seconds at normal temperature range (5° C — 35° C) UÏF-95°F) 10°C +#60° C (14°F —140°F) Step motor, 3 pieces

3. Operational temperature range

4 Driing system … 5 Displaysystem Timefcalendar… Hour, minute and small second hands Date is displayed in numerals. Stopwatch . Measures up to 60 minutes. Stopuratch minute and 1/5-Second hands 6 Battery SEIKO SR927SW, 1 piece 7 IC (integrated Circuit) CMOS:C, 1 piece + The specifications are subject to change without prior notice for product improvement.

English TELEMETER (for models with telemeter scale on the dial) © The telemeter can provide a rough indication of the distance to the source of light and sound. © The telemeter indicates the distance from your location to an object that emits both light and sound. For example, it can indicate the distance to the place where htning struck by measuring the time elapsed after you see a flash of lightning until you hear the sound. © Aflash of lightning reaches you almost immediately while the sound travels to you at a speed of 0.33 km/second. The distance to the source of the light and sound can be calculated on the basis of this difference. © The telemeter scale is so graduated that the sound travels at a speed of 1 km in 3 seconds.* “Under the condition of temperature of 20° CIG8°F) À CAUTION The telemeter provides only a rough indication of the distance to the place where lightning struck, and therefore, the indication cannot be used as the guideline to avoid the danger of lightning. It should also be noted that the speed of the sound differs depending on the temperature of the atmosphere where it travels.

HOW TO USE THE TELEMETER

Before beginning, check that the stopwatch has been reset. START (Flash of light) Press button À to start the stopwatch as soon as you see the light STOP When you hear the sound, press button À to stop the Stopwatch. (Crash of thunder) Read the telemeter scale that the stopwatch second hand points to. Approx. 3 km Please note that the stapwatch second hand moves in 1/5 second increments and does not always point exactly to the graduations of the telemeter scale. The telemeter scale can be used oniy when the measured time is less than 60 seconds. ys1fBua
