USER MANUAL P4500F POULAN

ÀDANGER: Use only specified trimmer head, spool, and 0.080 inch (2 mm) recommended trim- mer line. Never use blades, flaiing devices, wire, rope, string, etc. Uni is designed for line trimmer use only. Failure to follow these instructions may result in serious injury. A wARNING: This unit can be dangerous! Careless or improper Use can cause serious injury. AWARNING: Read the operators manual before use. Failure to follow instructions could result in serious injury to the operator and/or bystanders. Save operators manual Hazard zone for thrown objects: + Trimmer line throws objects violentiy. + You and others can be blinded/injured. + Keep children, bystanders, and animals 50 feet (15 meters) away. Trimmer line can throw objects violentiy. You can be blinded or injured. Always wear hearing protection and safety glasses marked Z87. Always wear heavy, long pants, long sleeves, boots and gloves. Secure hair above shoulder length Do not wear jewelry, loose clothing, or clothing with loosely hanging straps, ties, tassels, etc. They can be caught in moving parts. Never allow children to operate this unit.

Store unit indoors in a high, dry place out ofthe reach of children. When servicing unit, use only identical replace- ment parts. Always stop unit and disconnect spark plug before cleaning or servicing. À WARNING: Fire hazard. Never mix, pour, or store gasoline or à use the unit near a flame or sparks (including smoking, open flames, or work that can cause sparks). 40:1 (2.5% Use unleaded gasoline and two-stroke oil mixed at a ratio of

SAFETY RULES A WARNING: | Wen using gardening appliances, basic Safety precautions must al- ways be followed to reduce the risk of fire and serious injury. Read and follow al instructions. This power unit can be dangerous! Operator is responsible for following instructions and wa ings on unit and in manual. Read entire instruc- tion manual before using unit! Be thoroughly fa- miliar with ihe controls and the proper use ofthe unit. Restrict the use of this unit to persons who have read, understand, and will follow the instructions and wamings on the unit and in the manual. Never allow children to operate this unit.

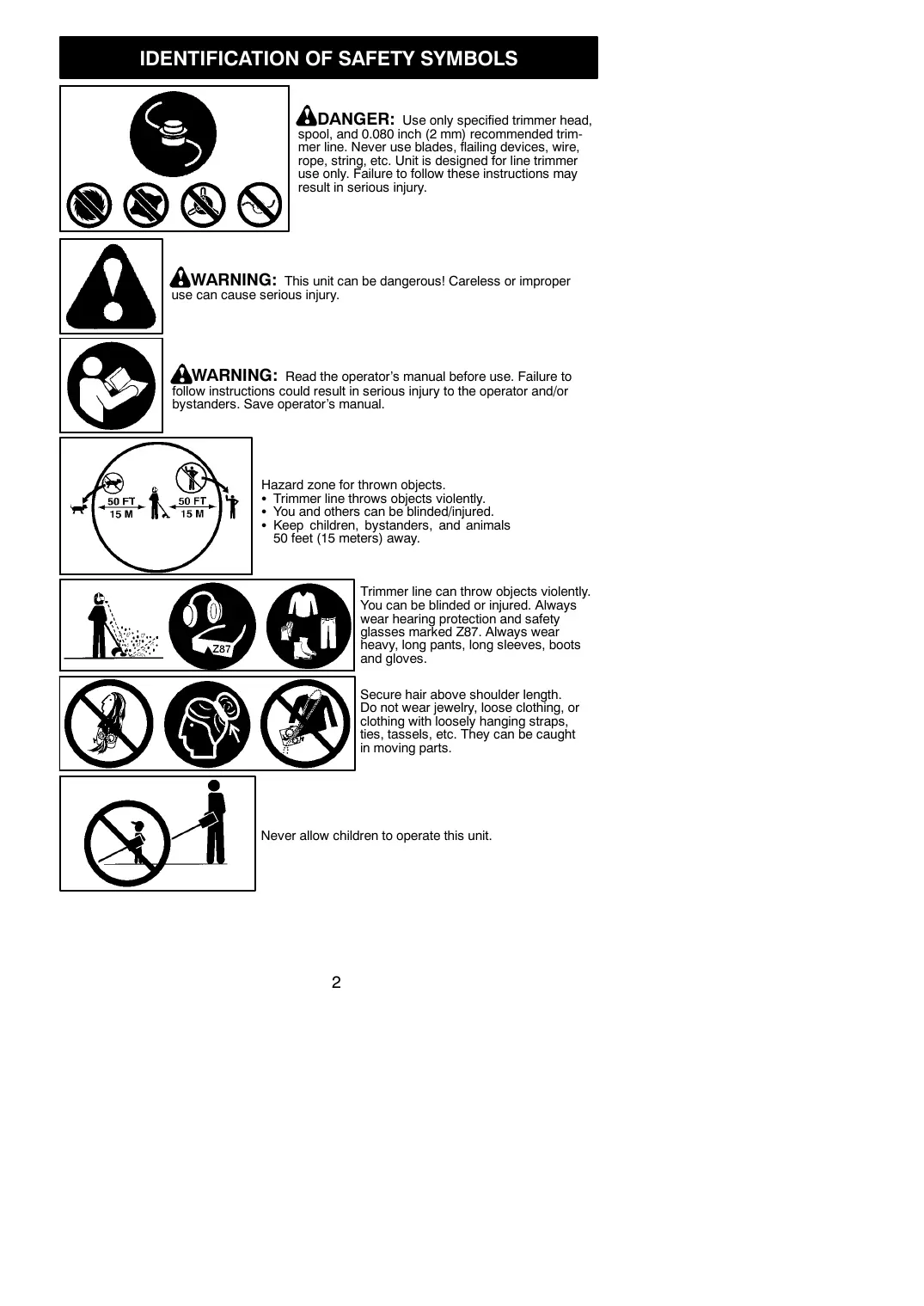

SAFETY INFORMATION ON THE UNIT

A DANGER: Never use blades oral ing devices. This unitis designed for line trim- mer use only. Use of any other accessories or attachments will increase the risk of injury. If situations occur which are not covered in this manual, use care and good judgment. If youneed assistance, contact your authorized service dealer or call 1-800-654-6723. OPERATOR SAFETY + Dress properly. Always wear safety glasses or similar eye protection when op- erating, or performing maintenance, on your ünit (safety glasses are available) Éye protection should be marked Z87. Always wear face or dust mask if operation is dusty. Always wear heawy, long pants, long sieeves boots, and gloves. Wearing safety leg guards is recommended. Always wear foot protection. Do not go barefoot or wear sandals. Stay clear of spinning line. Secure hair above shoulder length. Secure or remove loose clothing or clothing with loosely hanging ties, straps, tassels, etc. They can be caught in moving parts. Being fully covered also helps protect you from debris and pieces of toxic plants thrown by spinning line.

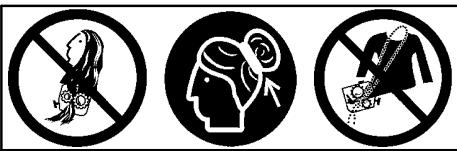

+ Stay alert. Do not operate this unit when you are tred, il, upset or under the influence of al- cohol, drugs, or medication. Watch what you are doing: use common sense. Wear hearing protection. Never start or run inside a closed room or building. Breathing exhaust fumes can kill. + Keep handles free of oil and fuel.

UNIT / MAINTENANCE SAFETY

À WARNING: _ Disconnect the spark plug before perfomming maintenance except carburetor adjustments. + Look for and replace damaged or loose parts before each use. Look for and repair fuel leaks before use. Keepin good working condition. Replace timmer head parts that are chipped, cracked, broken, or damaged in any other way before using the unit. Maintain unit according to recommended pro- cedures. Keep cutting line at proper lengih. Use only 0.095 inch (2,4 mm) diameter Poulan/WEED EATER brand replacement line. Never use wire, rope, string, etc. Install required shield propery before using the unit. Use only specified timmer head, make sure is propenly installed and securely fastened. Make sure unit is assembled correctly as shown in this manual. Make carburetor adjustments with lower end supported to prevent line from contact- ing any object. Keep others away when making carburetor adjustments. Use only recommended PoulanWEED EATER accessories and replacement parts. Have all maintenance and service not ex- plained in this manual performed by an au- thorized service dealer. FUEL SAFETY + Mix and pour fuel outdoors. + Keep away from sparks or flames. + Use a container approved for fuel. + Do not smoke or allow smoking near fuel or the unit. Avoid spiling fuel or oil. Wipe up all fuel spills. Move at least 10 feet (3 meters) away from fueling site before starting engine. Stop engine and allow to cool before re- moving fuel cap. + Always store gasoline in a container ap- proved for flammable liquids. CUTTING SAFETY A WARNING: inspect the area before each use. Remove objects (rocks, broken glass, naïls, wire, etc.) which can be thrown by or become entangled in line. Hard objects can damage the trimmer head and be thrown causing serious injury. + Keep others including children, animals, by- standers, and helpers at least 50 feet (15 me- ters) away. Bystanders should be encour- aged to wear safety glasses. Stop engine immediately if you are approached. Use only for timming, scalping, mowing and sweeping. Do not use for edging, pruning or hedge trmming Keep firm footing and balance. Do not over- reach. Keep all parts of your body away from mufler and spinning line. Keep engine below waist level. À hot mufler can cause serious burns. Cut from your left to your right. Cuting on right side of the shield wil throw debris away from the operator. + Use only in daylight or good artificial light. + Use only for jobs explained in this manual

TRANSPORTING AND STORAGE

+ Allow engine to cool before storing ortrans- porting in vehicle. Empty the fuel tank before storing or trans- porting the unit. Use upfuelleftinthe carbu- retor by starting the engine and letting it run until it Stops. + Store unit andfuelin areawhere fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc. Store unit so line limiter blade cannot acci- dentally cause injury. The unit can be hung by the Shaft. + Store unit out of reach of children. A WARNING: me engine exhaust from this product contains chemicals known tothe State of Califomia to cause cancer, birth defects or other reproductive harm: SAFETY NOTICE: Exposure lo vibrations through prolonged use of gasolne powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnor- mal swelings. Prolonged use in cold weather has been inked to blood vessel damage in otherwise healthy people ff symptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek medical attention. An anti-vibration system does not guarantee the avoidance of these problems. Users who oper- ate power tools on a continual and regular basis must monitor closely their physical condition and the condition of this tool. SPECIAL NOTICE: This unit is equipped with a temperature liming mufler and spark ar- resting screen which meets the requirements of Calfomia Codes 4442 and 4443. AI US. forest land and the states of Califomia, Idaho, Maine, Minnesota, New Jersey, Oregon, and Washing- ton require by law that many intemal. combus- tion engines be equipped with a spark arresting screen. If you operaïe in a locale where such regulations exist, you are legally responsible for mäintaining the operating condition of these parts. Faïlure to do so is à violation of the law. For normal homeowner use, the mufler and spark arresting screen will not require any ser- vice. After 50 hours ofuse, we recommend that your mufñler be serviced or replaced by an au- horized service dealer.

ASSEMBLY A WARNING: 1 received assembled, repeat all steps to ensure your unit is properly assembled and all fasteners are secure. Examine parts for damage. Do not use dam- aged parts NOTE: |f you need assistance or find parts missing or damaged, call 1-800-554-6723. It is normal for the fuel filter to rattle in the ‘empty fuel tank. Finding fuel or oil residue on muffler is normal due to carburetor adjustments and testing done by the manufacturer.

ADJUSTING THE HANDLE

À WARNING: wnen adjusingthe assist handle, be sure it remains above the safety label and below the mark or arrow on the shaît.

1. Loosen wing nut on handle.

2! Rotate the handle on the shaîtto an upright position: retighten wing nut. ATTACHING SHIELD À WARNING: The shield must be prop- erly installed. The shield provides partial protec- tion to the operator and others from the risk of thrown objects, and is equipped with a line limit- er blade which cuts excess line to the proper length. The line limiter blade (on underside of shield) is sharp and can cut you. For proper orientation of shield, see KNOW YOUR TRIMMER illustration in OPERATION section.

1. Remove wing nut from Shield.

2. Insert bracket into slot as shown.

4. Securely tighten wing nut onto bot.

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the ilustrations with your uni to familarize yoursel with the location of the various controls and adjustments. Save this manual for future reference. Trimmer Head Shaft | Safety Label R'T a Shield Spark Plug _r\m Line Limiter Blade sTop | Switch STOP SWITCH The STOP switchis used to stop the engine. To stop the engine, push and hold the switch in the STOP position until the engine stops. PRIMER BULB The PRIMER BULB removes air fromthe car- buretor and fuel Ines and fils them with fuel. This allows you to start the engine with fewer pulls on the starter rope. Activate the primer bulb by pressing it and allowing it to return to its original form. Assist Handle Muffler Xe Shaft Mark or Arrow Primer Bulb Throttie Trigger 2 Fuel Mix Fill Cap NA Choke Lever Starter Handle CHOKE ‘The CHOKE helps to supply fuel to the engine to aid in cold starting. Actvate the choke by moving the choke lever to the FULL CHOKÉ position. After the engine attempts to start, move he choke lever to the HALF CHOKE position: Once engine has started, move the choke lever to the RÜN position.

BEFORE STARTING ENGINE

A WARNING: 8e sure to read the fuel information in the safety rules before you be- gin. you do not understand the safety rules, do not_attempt to fuel your unit Call 1-800-554-6723. FUELING ENGINE À WARNING: Remove fuel cap slowiy when refueling. HELPFUL TIP To obtain the correct oil mix ratio, pour 8.2 ounces of 2-cycle synthetic oil into one gallon of fresh gas. This engine is certfied to operate on unieaded gasolne. Before operaïion, gasolne must be mixed with a good quality Syntheïic 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. PoulanWEED EATER brand synthetic oil is recommended. Mix gasoline and ol at a ratio of 40:1. À 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 mi) of oil with 1 gallon {4 lters) of unleaded gasolne. DO NOT USE automoïve oil or marne oi. These oils wil cause engine damage. When mixing fuel follow instructions printed on container. Once oil is added to gasoline, shake container momentarily to assure that the fuel is thoroughly mixed. Always read and follow the safety rules relating to fuel before fueling your unit CAUTIOI Never use straight gasoline in your unit. This wil cause permanent engine damage and void the limited warranty. FUEL REQUIREMENTS This engine requires the use of minimum 87 octane [R+M]/2 clean gasoline. IMPORTANT Use of alcohol blended fuels (called gasohol or using éthanol or methanol) can cause major en- gine performance and durabiity problems. À WARNING: Atemative tues (not gas- oine) such as E-15 (15% alcohol), E-20 (20% alcoho), E-85 (85% alcohol) are NOT classified as gasolne and are NOT approved for use in 2-stroke gasolne engines. Use of alternative fuels wil Cause problems such as: improper clutch engagements, overheating, vapor lock, power loss, Iubrication deficiency, deterioration of fuel lines, gaskets and internal carburetor components, etc. Alternative fuels cause high moisture absorption into the fueloil mixture leading to oil and fuel separation.

on HELPFUL TIP Le D) your engine switch reads “push to Stop”, it is always ED in the ON position.

HOW TO STOP YOUR UNIT

+ To stop the engine, push and hold the STOP switch in the STOP position until the engine stops. + If engine does not stop, move choke lever to FÜLL CHOKE position.

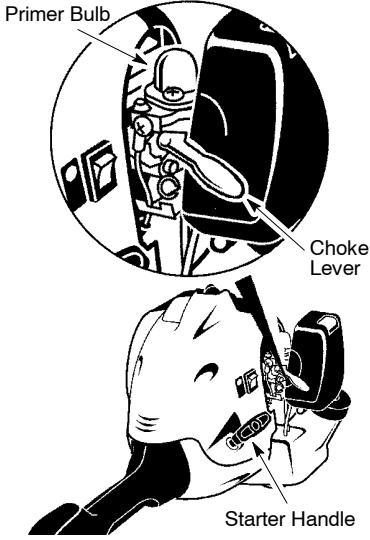

HOW TO START YOUR UNIT

A WARNING: _ The trimmer head wil turn while starting the engine. Avoid any con- tact with the muffler. A hot muffler can cause serious burns. HELPFUL TIP If your engine still does not siart after following these instructions, please call 1-800-554-6723. STARTING A COLD ENGINE (or a warm engine after running out of fuel)

1. Set unit on a flat surface

2: Slowiy press the primer bulb 6 times.

8. Move choke lever to the FULL CHOKE

4. Squeeze the throttle trigger fully and hold

through al remaining steps. Primer Bulb, Starter Handle

5. Pull starter rope handle sharply until engine

sounds as if itis trying to start, but do not pull rope more than 6 times.

6. Às soon as engine sounds as ffitis tyingto

Start, move choke lever to HALF CHOKE position. 7... Pull starter rope sharply until engine runs, but no more than 6 puls. NOTE: ffthe engine doesn't start after 6 pulls (at the HÂLF CHOKE position), move the choke lever to the FULL CHOKE position and press the primer bulb 6 times. Squeeze and hold the throtle trigger and pull the starter rope 2 more times. Move the choke lever to the HALF CHOKE position and pull the start er rope until the engine runs, but no more than 6 pulls. If the engine still doesn't Start, it is probably flooded. Proceed to STARTING À FLOODED ENGINE.

8. Once the engine starts, allowittorun 105e-

conds, then move the choke lever to the RUN position. Allow the unit to run for 30 more Seconds at RUN before releasing the throttle trigger. NOTE: f engine dies with the choke le- ver in the RUN position, move the choke lever to the HALF CHOKE position and pull the rope until engine runs, but no more than 6 pulls.

STARTING A WARM ENGINE

Move the choke lever to the HALF CHOKE position

2. Squeeze and hold the throttle trigger.

Keep throtile trigger fully squeezed until the engine runs Smoothiy.

8. Pull starter rope sharply until engine runs,

but no more than 6 puls.

4. Alow engine to run 15 seconds, then

move the choke lever to the RUN posi- tion. NOTE: if engine has not started, pull starter rope 5 more pulls. If engine still does not run, itis probably flooded.

STARTING À FLOODED ENGINE

Flooded engines can be started by placing the choke lever inthe RUN position: then, pull the rope to clear the engine of excess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded. If the unit stll doesn't start, refer to TROUBLESHOOTING TABLE or cal 180-554-6723. OPERATING INSTRUCTIONS It is recommended that the engine not be operated for longer than 1 minute at full throttle.

OPERATING POSITION ALWAYS WEAR: çf Heavy shoes

Cut from your left to your right. À WARNING: Awrays wear oye protec- tion. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other Sous nur Do not run the engine at a higher speed than necessary. The cutting line will cut effcientiy when the engine is run at less than full throttie. Atlower speëds, there is less engine noise and vibration. The cutting line wil last longer and will be less likely to “weld” onto the spool. Always release the throtile trigger and allow the ‘engine to return to ide speed when not cutting. To stop engine: + Release fhe throtile trigger. + Push and hold the STOP switch in the STOP position until the engine stops. CUTTING METHODS A WARNING: Use minimum speed and do not crowdthe linewhen cuttng around hard objects (rock, gravel, fence posts, etc.), which can damage the trimmer head, become entangled in the line, or be thrown causing a serious hazard. + The tip of the line does the cutting. You will achieve the best performance and minimum line wear by not crowding the line into the cutting area. The right and wrong ways are shown below. Tip of the line does the cutting. Line crowded into work area.

Right + The line will easily remove grass and weeds from around walls, fences, trees and flower beds, but it also can cut the tender bark oftrees or shrubs and scar fences. + For trimming or scalping, use less than full throttle to increase line life and decrease head wear, especially: + During light duty cutting. + Near objects around which the line can wrap such as small posts, trees or fence wire. + For mowing or sweeping, use full throttle for a good clean job. TRIMMING - Hold the bottom of the trimmer head about 3 inches (8 cm) above the ground and at an angle. Allow only the tip ofthe line to make contact. Do not force trimmer line into work area. Trimming 8 inches (8 cri) above ground SCALPING - The scalping technique re- moves unwanted vegetation, Hold the bottom of the trimmer head about 3 inches (8 cm) above the ground and at an angle. Allow the tip ofthe line tostrike the ground aroundtrees, posts, monuments, etc. This technique in- creases line wear. Scalping | MOWING - Your timmer is ideal for mowing in places conventional lawn mowers cannot reach. In the mowing position, keep the line parallel to the ground. Avoid pressing the head into the ground as this can scalp the ground and damage the tool. Mowing

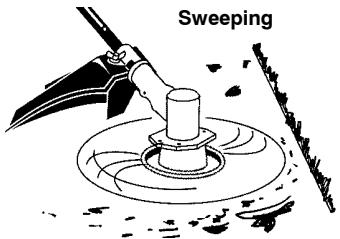

SWEEPING - The fanning action of the rotat- ing line can be used for a quick and easy clean up. Keep the line parallel to and above the surfaces being swept and move the tool from side to side. MAINTENANCE A WARNING: _ Disconnect the spark plug before performing maintenance except for carburetor adjustments. HELPFUL TIP IMPORTANT: Have all repairs other than the rec- ommended _ maintenance described in the instruction manual performed by an authorized service dealer. If any dealer other than an authorized service dealer performs work on the product, Poulan/WEED EATER may not pay for repairs under warranty. is your responsibility to maintain and per- form general maintenance.

WORN PARTS Contact an authorized service dealer for re- placement of damaged or worn parts. + STOP Switch - Ensure STOP switch functions properiy by pushing and holding the switch inthe STOP position. Make sure engine stops. Restart engine and continue. Fuel Tank - Discontinue use of unit if fuel tank shows signs of damage or leaks Debris Shield - Discontinue use of unit if debris shield is damaged.

INSPECT AND CLEAN UNIT AND DE-

CALS + After each use, inspect complete unit for loose or damaged parts. Cleanthe unit and decals using a damp cloth with a mild deter- gent. + Wipe off unit with a clean dry cloth.

À dirty air filter decreases engine perform- ance and increases fuel consumption and harmful emissions. Always clean after every 5 hours of operation. Sweeping

1. Clean the air fier cover and the area

around it to keep dirt from falling into the carburetor chamber when the cover is opened Open air fiter cover by pushing button (see illustration). Remove air fier. E: To avoid creating a fire hazard or producing harmful evaporative emissions, do not clean filter in gasoline or other flammable solvent.

3. Wash the fier in soap and water.

4. Allow filter to dry.

ING SCREEN À WARNING: The muñier on this prod uct contains chemicals known to the State of California to cause cancer. As your unitis used, carbon deposits build up on ihe muffler and spark arresting screen. For normal homeowner use, however, the muffler and spark arresting screen will not re- quire any service. After 50 hours of use, we recommend that your muffler be serviced or replaced by your authorized service dealer.

Replace the spark plug each year to ensure the engine starts easier and runs better. Set spark plug gap at 0.025 inch (0.6 mm). Igni- tion timing is fixed and nonadjustable. NOTE: This spark ignition system complies with the Canadian standard ICËS-002.

1. Twist, then pull off spark plug boot

2! Remove spark plug from cylnder and discard.

8. Replace with Champion RCJ-6Y spark

plug and tighten securely with a 8/4 inch {19 mm) socket wrench.

SERVICE AN JUSTMENTS

For unit to operate properly, the cutting line should be replaced when line becomes wom toless than 3inches inlength fromthe edge of each side of the cutting head. A waRNING: Use oniy 0.095 inch (2,4 mm) diameter Poulan brand cut length line. Never use wire, rope, string, etc., which can break off and become a dangerous missile

1. Remove and discard wo line before

installing new line.

2. Clean entire surface of cuting head.

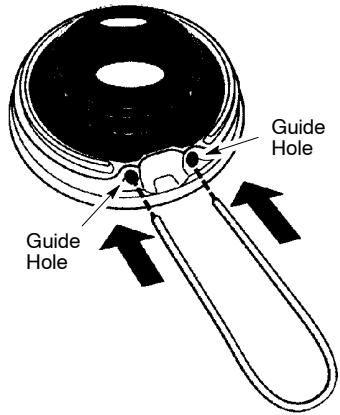

8. _Insertends oflineintothe two guide holes

on front of cutting head.

4. Continue to feed line through the guide

holes until the line is fuly extended through the side exit holes Side Exit Hole

installed line will be the same length on both ends.

REPLACING THE CUTTING HEAD

4. Align hole in the dust cup with the hole in

the side of the gearbox by rotating the dust cup.

2. Insert a small screwdriver into aligned

holes. This wil keep the shaî from tuming while removing and instaling timmer head.

8. While holding the screwdriver in position

remove trimmer head by turning clock- wise (looking from bottom of unit).

4. Thread replacement timmer head onto

the shaft by tuming counterclockwise. Tighten until secure.

5. Remove the screwdriver.

CARBURETOR IDLE SPEED

ADJUSTMENT À WARNING: keep others away ven making idle speed adjustments. The trimmer head will be Spinning during this procedure. Wear your protective equipment and observe all safety precautions. The carburetor has been carefully set at the factory. Adjustments may benecessary ifyou notice any of the following conditions: + Engine will not idle when the throtte is released. Make adjustments with the unit supported so the cutting attachment is off the ground and will not make contact with any object. Hold the unit by hand while running and making ad- justments. Keep all parts of your body away from the cutting attachment and muffler. To adjust idle speed: Allow engine to idie. Adjust speed until engine runs without stalling (ide speed too slow) + Tum idle speed screw clockwise to increase engine speed if engine stalls or dies. + Turnidle speed screw counterclockwise to decrease engine speed. Idie Speed Screw Air Filter Cover If you require further assistance or are unsure about performing this procedure, contact an authorized service dealer or call 1-800-554-6723.

STORAGE A warninc steps after each use: Allow engine to cool before storing or trans- porting. Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc. Store unit with all guards in place. Position unit so that any sharp object cannot acci- dentally cause injury. Store unit and fuel well out of the reach of children. SEASONAL STORAGE Prepare unit for storage at end of season or if it will not be used for 30 days or more. If your unit is to be stored for a period of time: + Clean the entire unit before lengthy storage. + Store in a clean dry area. + Lightly oil external metal surfaces. FUEL SYSTEM Under FUELING ENGINE in the OPERA- TION section ofthis manual, see message la- beled IMPORTANT regarding the use of ga- Sohol in your engine. Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to the gasoline in the fuel tank or fuel storage container. Perform the following Follow the mix instructions found on stabilizer container. Run engine at least 5 minutes after adding stabilizer. HELPFUL TIP During storage of your gas/ oil mixture, the oil will sepa- raie from the gas. We recommend that you shake the gas can weëkly. toinsure proper blending of the gas and oil. ENGINE + Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oi (air cooled) through the spark plug opening. Slowiy pull the starter rope 8 to 10 times to distribute oil. Replace Spark plug with new one of recom- mended type and heat range. Clean air fier. Check entire unit for loose screws, nuts, and bolts. Replace any damaged, broken. or worn parts. At the beginning of the next season, use only fresh fuel having the proper gasolineto oi ratio. OTHER + Do not store gasoline from one season to another. + Replace your gasoline can fitstarts to rust.

TROUBLESHOOTING TABLE PIN WARNING: Always stop unit and disconnect spark plug before performingall ofthe recommended remedies below except remedies that require operation of the unit.

TROUBLE CAUSE REMEDY

Engine will not _ | 1. Engine flooded 1. See “Starting a Flooded Engine” in Start. Operation Section.

2. Fuel tank empty. 2. Fill tank with correct fuel mixture.

8. Spark plug not fring. | 3. Install new spark plug

4. Fuel not reaching 4. Check for dirty fuel fier: replace.

carburetor. Check for kinked or split fuel line: repair or replace.

5. Carburetor requires | 5. Contact an authorized service dealer.

adjustment. Engine will 1. Carburetor requires 1. See “Carburetor ldle Speed Adjustment” not ide adjustment. in Service and Adjustments Section: properly. 2. Crankshaft seals wom. | 2. Contact an authorized service dealer.

3. Compression low. 8. Contact an authorized service dealer.

Engine will not | 1. Air filter dirty. 1. Clean or replace air filter. accelerate, 2. Spark plug fouled. 2. Clean or replace plug lacks power, and regap. or dies under | 3. Carburetor requires 8. Contact an authorized service dealer. a load. adjustment.

4. Carbon build-up on 4. Contact an authorized service dealer.

muffler outlet screen.

5. Compression low. 5. Contact an authorized service dealer.

Engine 1. Fuel mixture incorrect. | 1. Empty fuel tank and refil with smokes correct fuel mixture. excessively. 2. Air filter dirty. 2. Clean or replace air filter.

8. Carburetor requires | 8. Contact an authorized service dealer.

adjustment. Engine runs 1. Fuel mixture incorrect. | 1. See “Fueling Engine” in Operation hot. section.

2. Spark plug incorrect. | 2. Replace with correct spark plug.

8. Carburetor requires | 3. Contact an authorized service dealer.

4. Carbon build-up on 4. Contact an authorized service dealer.

muffler outlet screen. LIMITED WARRANTY Poulan, a division of Husqvama Consumer Outdoor Products, NA. Inc., warrants to the original consumer purchaser that each new Poulan brand gasolne_ tool or attachment is free from defects in material and workmanship and agrees to repair or replace under this war- ranty any defective gasolne product or attach- ment as follows from the original date of pur- chase 2 YEARS - Parts and Labor, when used for household purposes. 'AYS - Parts and Labor, when used for commercial, professional, or income producing purposes. 80 DAYS - Parts and Labor, i used for rental purposes. ‘This warranty is not transferable and does not cover damage or liabilty caused by improper handing, improper maintenance or alteration, or the use of accessories and/or attachments not speciicaly recommended by Poulan for this tool. This warranty does not cover tune-up, Spark plugs, fiers, starter ropes, cutting line, or rotating head parts that will wear and require re- placement with reasonable use during the war- ranty period. This warranty does not cover pre- delivery setup or normal adjustments explained in the instruction manual. This warranty does not cover transportation costs. Inthe event you have a claim under this warran- ty, you must return the product to an authorized service dealer. Should you have any unanswered questions concerning this warranty, please contact: Poulan, a division of Husqvarna Consumer Outdoor Products NA. Inc. 7349 Statesville Road Charlotte, NC_28269 1-800-554-6723 In Canada, contact: Poulan 850 Matheson Blvd. West Mississauga, Ontario LV 0B4

Giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased

WARRANTIES EXCEPT THOSE EX-

LIMITATIONS OF INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, SO THE ABOVE LIM-

ITATIONS OR EXCLUSION MAY NOT APPLY

TO YOU. This is a limited warranty within the meaning of thatterm as defined inthe Magnuson- Moss Act of 1975. The policy of Poulan is to continuousiy im- prove its products. Therefore, Poulan re- serves the right to change, modify, or discon- tinue models, designs, specifications, and accessories of all products at any time with- out notice or obligation to any purchaser. U.S. EPA/CALIFORNIA/ENVIRONMENT CANAD,

EMISSION CONTROL WARRANTY STATEMENT

LIGATIONS: The_ U.S._ Environmental Protection Agency, California Air Resources Board, Environment Canada and Poulan are pleased to explain the emissions control system warranty on your year 2010 and later small off- road engine. In Calfomia, all small oft-road en- gines must be designed, buit, and equipped to meet the States stringent anti-smog stan- dards. Poulan must warrant the emission control system on your small off-road engine for the periods of lime listed below provided there has been no abuse, neglect, or improp- er maintenance of your small off-road engine. Your emission control system includes parts such as the carburetor, the ignition system and the fuel tank. Where a warrantable condition exists, Poulan will repair your small off-road engine at no cost to you. Expenses covered under warranty include diagnosis, parts and labor.. MANUFACTURER’S WARRANTY COVERAGE: If any emissions related part on your engine (as listed under Emissions Control Warranty Parts List is defective or a de- fect in the materials or workmanship of the en- gine causes the failure of such an emission re- lated part, the part will be repaired or replaced by Poulan. OWNER'S WARRANTY RE- SPONSIBILITIES: As the small off-road en- gine ouner, you are responsible for the per: ormance of the required maintenance listed in your instruction manual. Poulan recom- mends that you retain all receipts covering maintenance on your small off-road engine, but Poulan cannot deny warranty solely for the lack of receipts or for your failure to er sure the performance of all scheduled main- tenance. As the small off-road engine owner, you should be aware that Poulan may deny You warranty coverage if your small off-road engine or a part of it has failed due to abuse, neglect, improper maintenance, unapproved modifications, or the use of parts not made or approved by the original equipment manufac- turer. You are responsible for presenting your small off-road engine to an Poulan authorized repair center as soon as a problem exists. War- ranty repair should be completed in a reason- able amount of time, not to exceed 30 days. If you have any questions regarding your war- ranty rights and responsibilties, you should contact your nearest authorized service cen- ter, call Poulan at 1-800-554-6723, or send e-mail correspondence to emission.warranty. @HCOP-emission.com, WARRANTY COM- MENCEMENT DATE: The warranty period begins on the date the small off-road engine is purchased. LENGTH OF COVERAGE: This warranty shall be for a period of two years from the initial date of purchase, or until the end ofthe product warranty (whichever is longer). WHAT IS COVERED: REPAIR OR REPLACEMENT OF PARTS. Repair or re- placement of any warranted part will be per- formed at no charge to the owner at an ap- proved Poulan servicing center. if you have any questions regarding your warranty rights and responsibilties, you should contact your nearest authorized service center, call Pou- lan at 1-800-554-6723, or send e-mail corre- spondence to emission warranty@HCOP- emission.com, WARRANTY PERIOD: Any warranted pari which is not scheduled for re- placement as required maintenance, or which is scheduled only for regular inspection tothe effectof “repair or replace as necessary” shall be warranted for 2 years. Any warranted part which is scheduled for replacement as re- quired maintenance shall be warranted for the period of time up to the first scheduled re- placement point for that part. DIAGNOSI: The owner shall notbe charged for diagnostic labor which leads to the determination that a warranted part is defective ifthe diagnostic work is performed at an approved Poulan servicing center. CONSEQUENTIAL DAMAGES: Poulan may be liable for damages to other en- gine components caused by the failure of awar- ranted part st under warranty. WHAT IS NOT COVERED: Al falures caused by abuse, ne- glect, orimproper maintenance are not covered. ADD-ON OR MODIFIED PARTS: The use of add-on or modified parts can be grounds for disallowing a warranty claim. Poulans notliable Lo cover flures of arrarted pas caused by the use of add-on or modifled parts. HOW FILE À CLAIM: Hf you have any questions re- garding your warranty rights and responsibil- ties, you Should contact our nearest authorized service center, call Poulan at 1-800-554-6723,

or send e-mail corespondence to emission. [e-mail]. WHERE TO GET WARRANTY SERVICE: Warranty ser- vices or repairs shall be provided at all Poulan service centers. Call: 1-800-554-6728 or send e-mail correspondence to emission.warranty. @HCOP-emission.com. MAINTENANCE

RÉPLACEMENT AND REPAIR OF EMI

SION RELATED PARTS: Any Poulan ap- proved replacement part used in the perfor- mance of any warranty maintenance or repair on emission related parts will be provided without charge tothe owner ifthe partis under warranty. EMISSION CONTROL WARRAN- TY PARTS LIST: Carburetor, air fiter (covered up to maintenance schedule), ignition system spark plug (covered up to maintenance sched- ule),ignition module, muffer including catalyst (f equipped), fuel tank. MAINTENANCE STATEMENT: The owner is responsible for the performance of all required maintenance as defined in the instruction manual. The information on the product label indicates which standard your engine is certified. Example: (Year) EPA and/or CALIFORNIA.

EMISSION CONTROL INFORMATION THIS ENGINE

MEETS EXH. AND EVAP. EMISSIONS ESULATIOS

MAINTENANCE SPECIFICATIONS AND ADJUSTHENTS. This engine is certified to be emissions compliant for the following use: DX Moderate (50 hours) [ intermediate (125 hours) [Extended (800 hours)
