WIRELESS DESKTOP MOUSE - Wireless Mouse VERBATIM - Free user manual and instructions

Product Type	Wireless Mouse
Brand	Verbatim
Model	Wireless Desktop Mouse
Connection Technology	27 MHz Radio Frequency
Identification Coding	256 ID codes to avoid interference
Power Supply	2 AAA batteries (rechargeable via USB cable)
Sleep Function	Automatic to save energy
Sensor Type	Optical
Buttons	Left, right, scroll wheel, ID button under mouse
System Compatibility	Windows 95/98/Me/2000/XP, Mac OS 9.x/10.x
Weight (estimated)	Approximately 100 g
Dimensions (estimated)	Approximately 100 x 60 x 35 mm
Range (estimated)	Up to 10 meters
Package Contents	Mouse, USB receiver, USB cable
Maintenance	Clean with a soft, dry cloth
Safety Instructions	Avoid reflective surfaces (glass, 3D mouse pads)
Repairability	User-replaceable batteries; consult a technician for any other repairs
Certification	Compliant with FCC Part 15 (Class B)

Frequently Asked Questions - WIRELESS DESKTOP MOUSE VERBATIM

How to connect the mouse to the computer?

Plug the USB receiver into a computer port, insert the batteries into the mouse and turn it on by pressing the ID button for 3 seconds. Click once on the receiver's ID button, then on the ID button under the mouse. The red light flashes then stops: the mouse is ready.

How to replace the batteries?

Remove the battery cover under the mouse. Insert two AAA batteries respecting the indicated polarity. Replace the cover. To turn on, press the ID button for 3 seconds.

Can the mouse recharge?

Yes, if you use rechargeable batteries. Connect the provided USB cable between the mouse and the computer. Charging takes about 3 to 4 hours. You can use the mouse while charging.

What to do if the mouse stops responding?

Check that the batteries are installed and the mouse is on (ID button). If the mouse is in sleep mode, press any button or move it. Retry the pairing procedure if necessary.

Does the mouse work with Windows 10?

Official compatibility goes up to Windows XP. On Windows 10, the mouse may work but without guarantee. Try plugging the receiver and pairing the mouse.

How to avoid interference with other mice?

The mouse uses 256 unique ID codes. If you use multiple wireless mice, make sure to pair them one by one with their respective receivers to avoid conflicts.

Why does the mouse not work on a glass surface?

The optical mouse does not work properly on reflective surfaces such as glass or 3D mouse pads. Use a matte mouse pad or a non-reflective surface.

How to save battery?

The mouse automatically enters sleep mode after a period of inactivity. For maximum savings, turn off the mouse by holding the ID button for 3 seconds when not in use.

Where to store the receiver when not in use?

The USB receiver stores in a compartment under the mouse. See Figure 4 of the manual for removal and reinsertion.

How to clean the mouse?

Use a soft, dry cloth to clean the surface of the mouse. Do not use chemicals or liquids that could damage the device.

USER MANUAL WIRELESS DESKTOP MOUSE VERBATIM

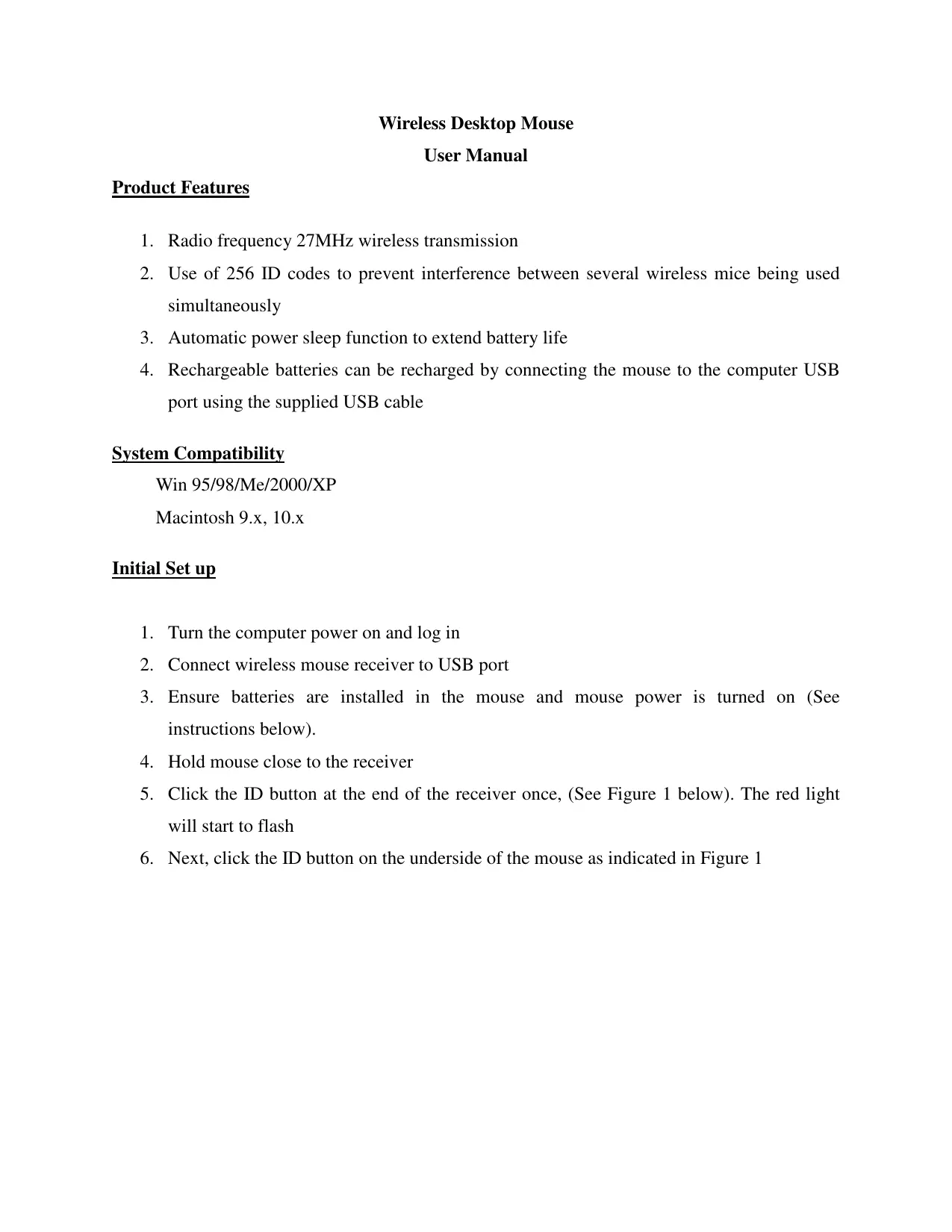

Wireless Desktop Mouse User Manual

Product Features

1. Radio frequency 27MHz wireless transmission
2. Use of 256 ID codes to prevent interference between several wireless mice being used simultaneously
3. Automatic power sleep function to extend battery life
4. Rechargeable batteries can be recharged by connecting the mouse to the computer USB port using the supplied USB cable

System Compatibility

Win 95/98/Me/2000/XP

Macintosh 9.x, 10.x

Initial Set up

1. Turn the computer power on and log in
2. Connect wireless mouse receiver to USB port
3. Ensure batteries are installed in the mouse and mouse power is turned on (See instructions below).
4. Hold mouse close to the receiver
5. Click the ID button at the end of the receiver once, (See Figure 1 below). The red light will start to flash
6. Next, click the ID button on the underside of the mouse as indicated in Figure 1.

Figure 1

1. The red light on the receiver will flash rapidly for a few seconds then stop flashing
2. Now the mouse is ready for use

Battery Installation

1. See Figure 2 below.
2. Remove the battery cover from the underside of the mouse. See Figure 2 below.

Figure 2

1. Insert 2 x AAA batteries as indicated
2. Replace the mouse cover over the batteries
3. To turn the mouse power on push the ID button, as indicated by Figure 3 below, for 3 seconds or more until the light comes on

Figure 3

Receiver Storage

The USB receiver is stored on the underside of the mouse. See Figure 4 below for receiver storage and removal.

Figure 4

Charge Function

When using the mouse, if the red led of the low battery beside the wheel flashes, please change batteries or charge them. The mouse can use the supplied USB cable to charge the batteries through the computer USB port. It can charge while the mouse is being used. The batteries will charge within about 3-4 hours. Then unplug the USB cable to stop charging. Please note that the time of charge may vary depending on the amount of charging required.

Figure 5

Note:

1. Please remove the batteries if the mouse will not be used for an extended period of time
2. If the mouse has entered power sleep mode please press any mouse button or move the mouse to make it active again
3. To turn the mouse power off click on the ID button on the underside of the mouse for over 3 seconds until the light turns off
4. Optical mouse will not operate correctly on any reflecting surface such as glass or 3D mouse pads

Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
