Brand	LA SOMMELIERE
Model	CVDE46
Product type	Built-in wine cellar
Capacity	45 bottles (132 L)
Energy class	C
Annual consumption	235 kWh / year
Dimensions (H x W x D)	84 x 59 x 58 cm (estimate)
Weight	Not specified
Power supply	220-240 V ~ 50 Hz
Climate class	N (16 °C to 32 °C)
Noise level	42 dB(A)
Upper zone temperature	5 °C to 12 °C
Lower zone temperature	12 °C to 18 °C
Dual temperature zone	Yes
Interior lighting	Replaceable LED light
Temperature alarm	Yes (audible and visual)
Reversible door	Yes (left or right opening)
Shelves	Removable, sliding
Water tray for humidity	Yes
Cleaning	Warm water and baking soda
Safety	Child lock, accessible plug
Spare parts	Bulb, handle, shelves
After-sales service	Contact retailer or customer service

Frequently Asked Questions - CVDE46 LA SOMMELIERE

How to set the temperature of the wine cellar?

Use the ⊡ button for the upper zone and the ⊡ button for the lower zone. Press once: the current temperature flashes, then each press decreases the temperature to the maximum value, then returns to the initial setting.

Why is the wine cellar not cooling enough?

Check the set temperature, the door closure, the absence of a heat source nearby, and that the door gasket adheres properly. Too frequent opening can also be the cause.

How to reverse the door opening direction?

Open the door, remove the screws from the lower hinge, unclip the door, swap the screws on each side, unscrew the upper hinge and install the provided hinge on the opposite side, then reassemble the door by fixing the lower hinge. Finally, move the handle.

How to clean the interior of the wine cellar?

Turn off and unplug the appliance. Remove the shelves and clean the interior with a mixture of warm water and baking soda (2 tablespoons per 1 liter of water). Clean the shelves with a mild detergent.

What does the audible alarm and the display 'LO' or 'LI' mean?

'LO' appears if the internal temperature drops below 0 °C, and 'LI' if it exceeds 23 °C. The audible alarm triggers in both cases. Check the ambient temperature and the door closure.

The wine cellar makes clicking or gurgling noises, is this normal?

Yes, these noises are normal. Clicking comes from the flow of refrigerant, and gurgling indicates the end of a cycle. Contraction/expansion sounds from the walls are also normal.

How to replace the light bulb?

Cut off the power supply. Remove the 2 screws from the upper shelf, push the LED cover to the left, remove the LED panel, unscrew the 2 screws, remove the old LED and install the new one. Reassemble in reverse order.

Can I install the wine cellar in an unheated garage?

No, the climate class N requires an ambient temperature between 16 °C and 32 °C. Below that, the appliance may not work properly; above that, consumption increases.

What to do in case of a prolonged power cut?

If the outage lasts more than a few hours, open the door as little as possible. For a long absence, empty the cellar, clean it, and leave the door slightly open to prevent mold.

How to save energy with my wine cellar?

Install the cellar in the coolest part of the room, away from heat sources and direct sunlight. Limit door openings and check that the door gasket is in good condition.

USER MANUAL CVDE46 LA SOMMELIERE

NOTICE D'UTILISATION INSTRUCTION MANUAL

The product is only for wine and beverage storage.

AVANT UTILISATION, VEUILLEZ LIRE ET SUIVRE TOUTES LES REGLES DE SECURITE ET D'UTILISATION.

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Please open the door 5 minutes before powering on to avoid possibility of gas danger

AVERTISSEMENT

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The Wine cooler should be installed in a suitable place in order to avoid Touching the compressor with the hand.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

·Read all instructions before using the Wine cooler. ·DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”. ·Before you throw away your old Wine cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside. ·Never allow children to operate, play with, or crawl inside the appliance. ·Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. ·Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. -Save these instructions-

INSTALLATION INSTRUCTIONS

> Before Using Your Wine Cooler

• Remove the exterior and interior packing.
• Before connecting the Wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
  Install the handle on the left side of the door.
• When replace the illuminating lamp, please select the lamp which comply with the rated power input of lamp according to the rating label. Shut off the power supply before replacing

the lamp.

• When disposing your appliance, please choose an authorized disposal site.

> Installation of Your Wine Cooler

This appliance is designed to be for free standing installation or built-in (fully recessed).
- Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.
- Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
- Avoid locating the unit in moist areas.
- Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

> Reversing the Door Swing of Your Appliance

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions.

Note: All parts removed must be saved to do the reinstatement of door.

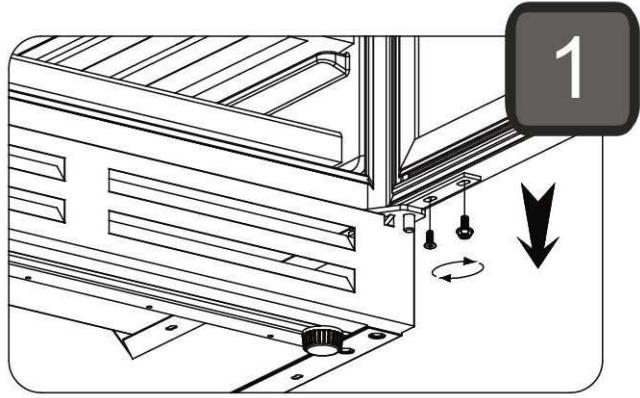

1. Open the glass door and remove the two screws under the right bottom corner of the glass door that are used to hold the lower hinge to the glass door. Be careful to hold the glass door with hands from dropping after removing the screws.

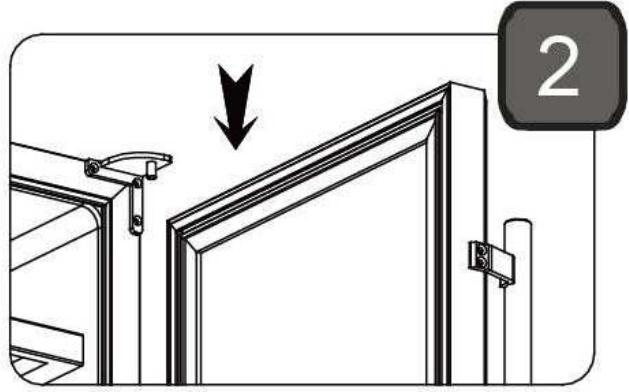

1. Pull down to remove the glass door and place it on a padded surface to prevent scratching it.

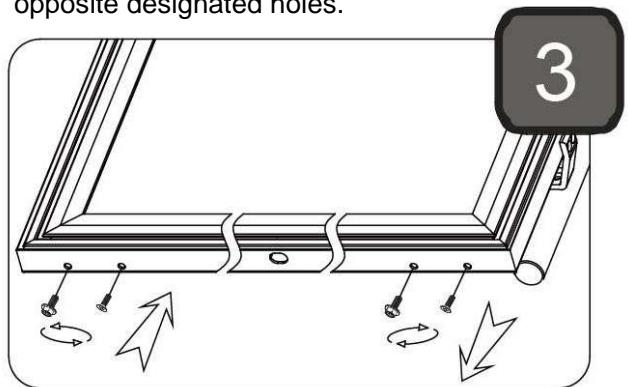

1. remove the two screws under the left lower corner of it. Then install and tighten them at the opposite designated holes.

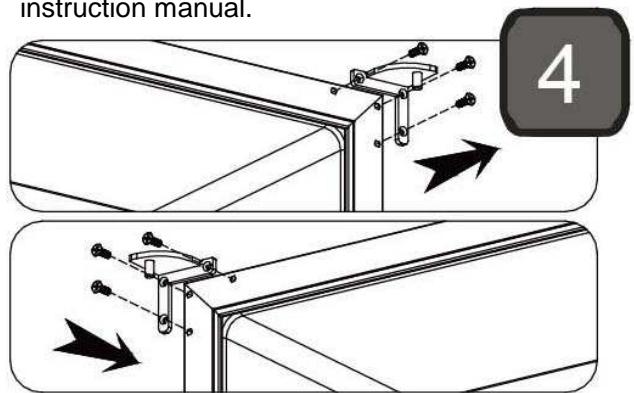

1. Remove the right upper hinge . Install the left upper hinge from the plastic bag that includes the instruction manual.

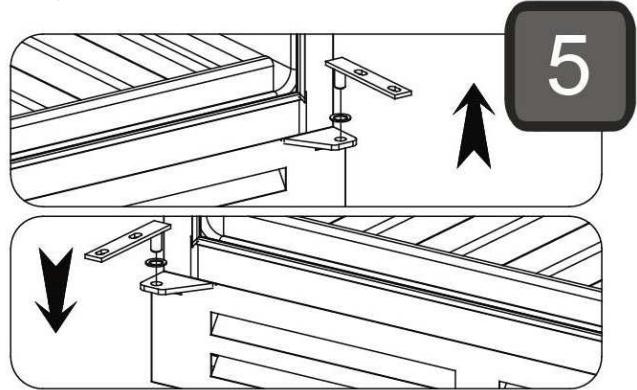

1. Remove the lower hinge supporter with the adjusting washer from right side. Install the lower hinge supporter in left side. Make sure to put the adjusting washers at the designated position.

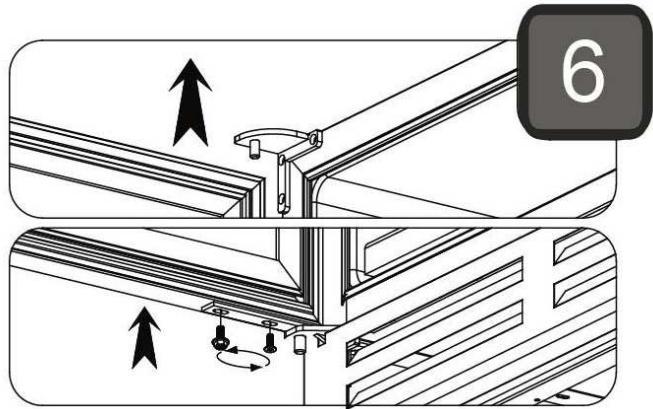

1. Locate the glass door to the designated position making sure that the door shaft enters the door hole at the left upper corner of the glass door. Install the two screws that are used to connect the left lower hinge with the glass door and tighten them before the door is leveled. Then remove the handle from the left side and install it on the right side of the door.

These Wine Cooler should be placed in where the ambient temperature is between 5 - 35^ . If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range may not be reached.

The controls of your Wine Cooler

Indicator light illuminates to signify the cooling mode is currently in operation.
- “①” Button To control this appliance turn on/off ( press and hold this buttons for approximately 2 seconds).
To control the inner light turn on/off.
- “ ” Button Used to set temperature in upper zone.
- “ ” Button Used to set temperature in lower zone.

Setting the Temperature Control

The Wine cooler has two temperature zones.

Upper zone - temperature range 5 to 12
Lower zone - temperature range 12 to 18
- You can set the required temperature either zone by pushing the Set Upper or Set Lower button. When you push the two buttons for the first time, the LED readout will show the previously set temperature set for that zones.
The temperature preset at the factory are: Upper zone:: 6 Lower zone: 12
- To set the temperature in the Upper zone press Set Upper button once. The present temperature will flash. The temperature will decrease by every time the button is pressed until minimum temperature is reached, at which point it will then revert back to its maximum setting and start again.
- To set the temperature in the Lower zone press the Set Lower button and follow the instructions above.
- To view the temperature set in either zone at any time, press the corresponding "Set Upper" or "Set Lower" button, the "Set" temperature will temporarily flash in the LED display for 5 seconds.

NOTE:

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
• When you use the Wine Cooler for the first time or restart the Wine Cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine Cooler is running for a few hours everything will be back to normal.

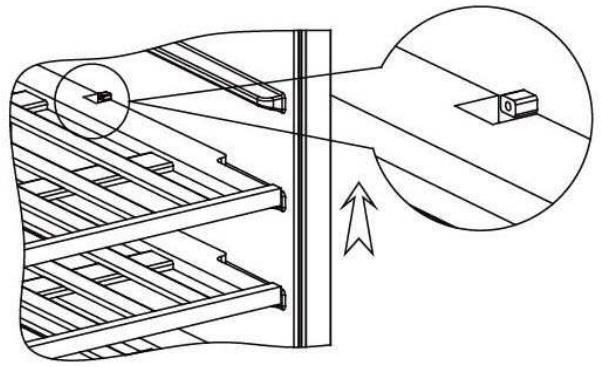

How to remove the Shelves

• To prevent damaging the door seal, ensure that the door is fully opened before pulling the shelves out.
• For easy access to the wine bottles, the shelves can be pulled partway out.
• Before removing a shelf please remove all items first. Pull the shelf forward until the notches in the sides of the shelf align with the pegs in the sides of the cabinet. Lift the shelf up over the pegs and remove it.

Handle installation instruction

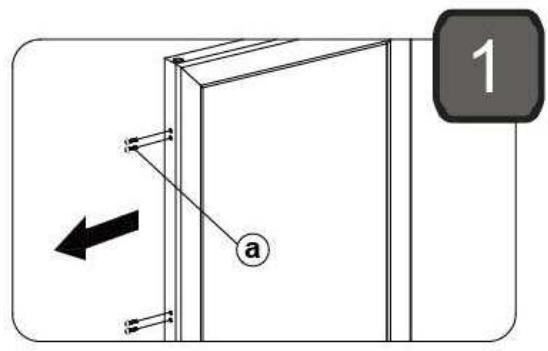

1. Using a "+" type head screwdriver remove the four screws ,a at the left side. (AS INDICATED IN ILLUSTRATION 1)

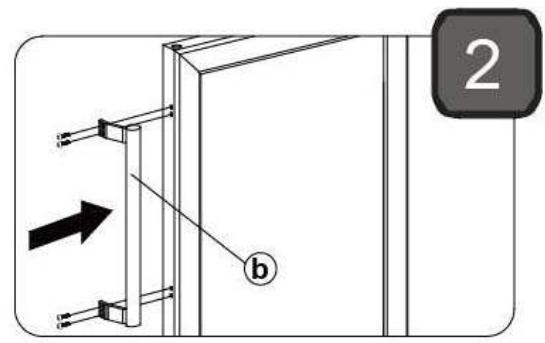

2. Align the handle , b with the four screws and tighten them using a “+” type head screwdriver until the handle sets flush against the door frame. (AS INDICATED IN ILLUSTRATION 2)

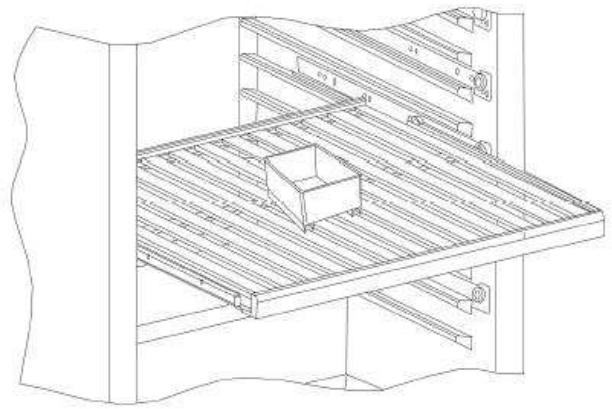

Water tray

In order to prevent drying up of the wine corks due to low humidity the cabinet is supplied with a water tray which should be placed at the top shelf. See fig.1.3. If end user feels the inside cabinet's humidity is not enough, please put water into this white water tray.

CARE AND MAINTENANCE

> Cleaning Your Wine Cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power Failure

• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

> Vacation Time

• Short vacations: Leave the Wine cooler operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

> Moving Your Wine Cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect

outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The Wine cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

> Temperature Alarm

The temperature adjust range is from 5 to 18

When temperature is lower than 0, it will have "Beep" sound, and "LO" will show in display, this is for low temperature alarm. When temperature is higher than 23, it will have "Beep" sound, and "HI" will show in display, this is for high temperature alarm. When alarm happens, please call servicer for maintain.

PROBLEMS WITH YOUR WINE COOLER?

You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently.	The room temperature is hotter than normal.A large amount of contents has been added to the Wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations.	Check to assure that the Wine cooler is level.
The Wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine cooler is not level.
The door will not close properly.	The Wine cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.
